Product Introduction

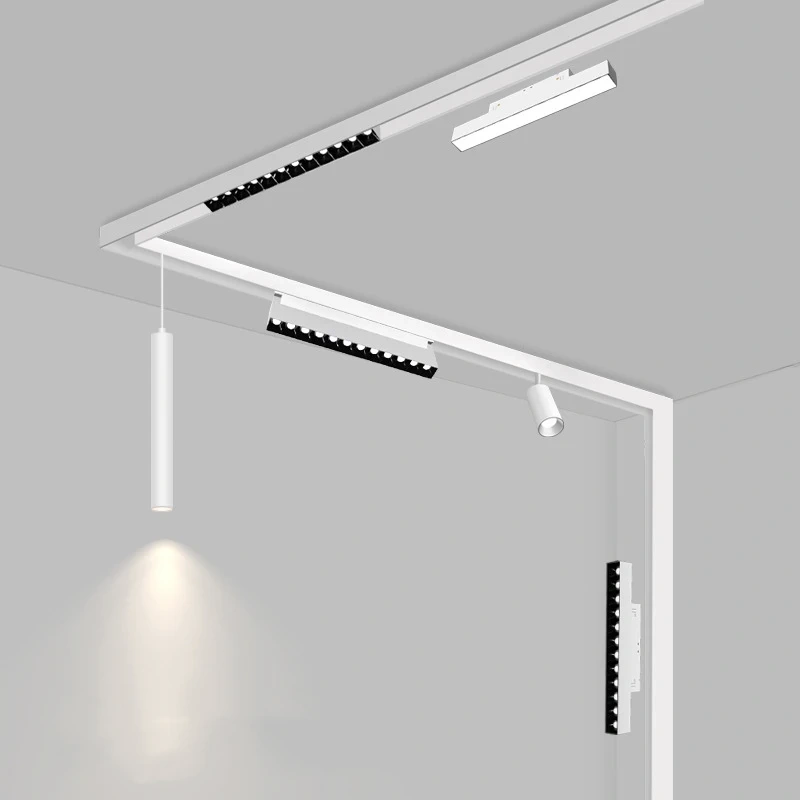

The USKYLED Ultra-Thin DC48V Magnetic Track System is a modular magnetic ceiling lighting platform designed for modern residential, commercial and architectural interiors.

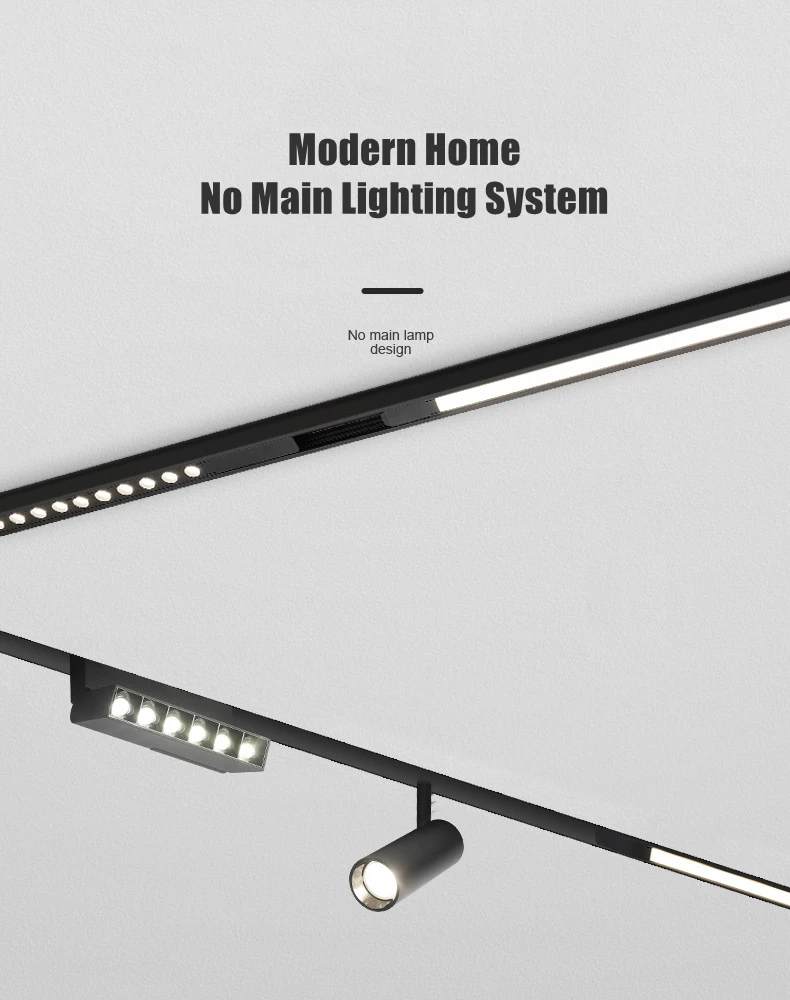

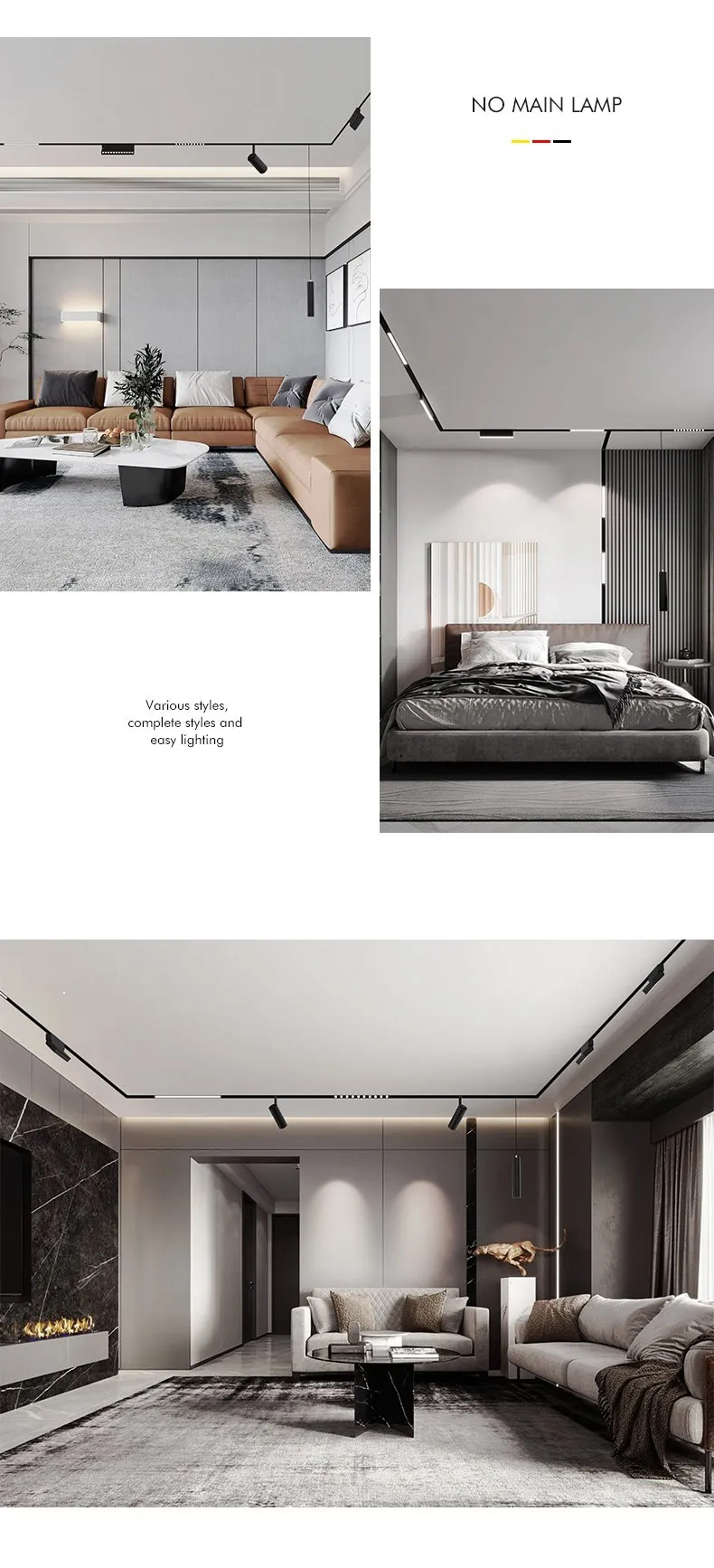

Instead of using a fixed lighting layout, the magnetic track system allows compatible lighting modules to be positioned along the rail according to the requirements of each space. This makes it suitable for mainless lighting concepts where spotlights, linear lighting and other magnetic fixtures need to work within the same ceiling system.
The product page specifies AC110–240V input and DC48V output, with the track system available for surface-mounted, suspended and embedded installation.
The system also provides different track sections, corner modules, input modules, power options and a Zigbee Gateway, allowing contractors and lighting designers to build customized track layouts.
Design

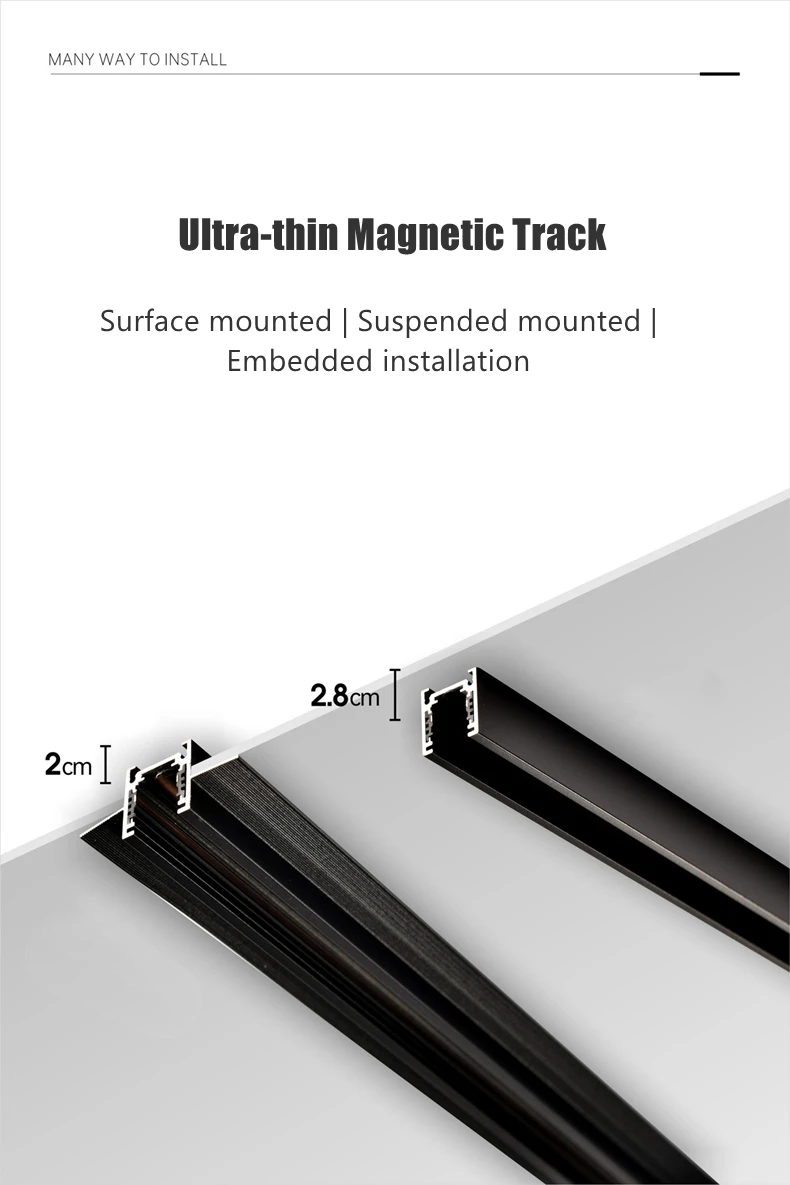

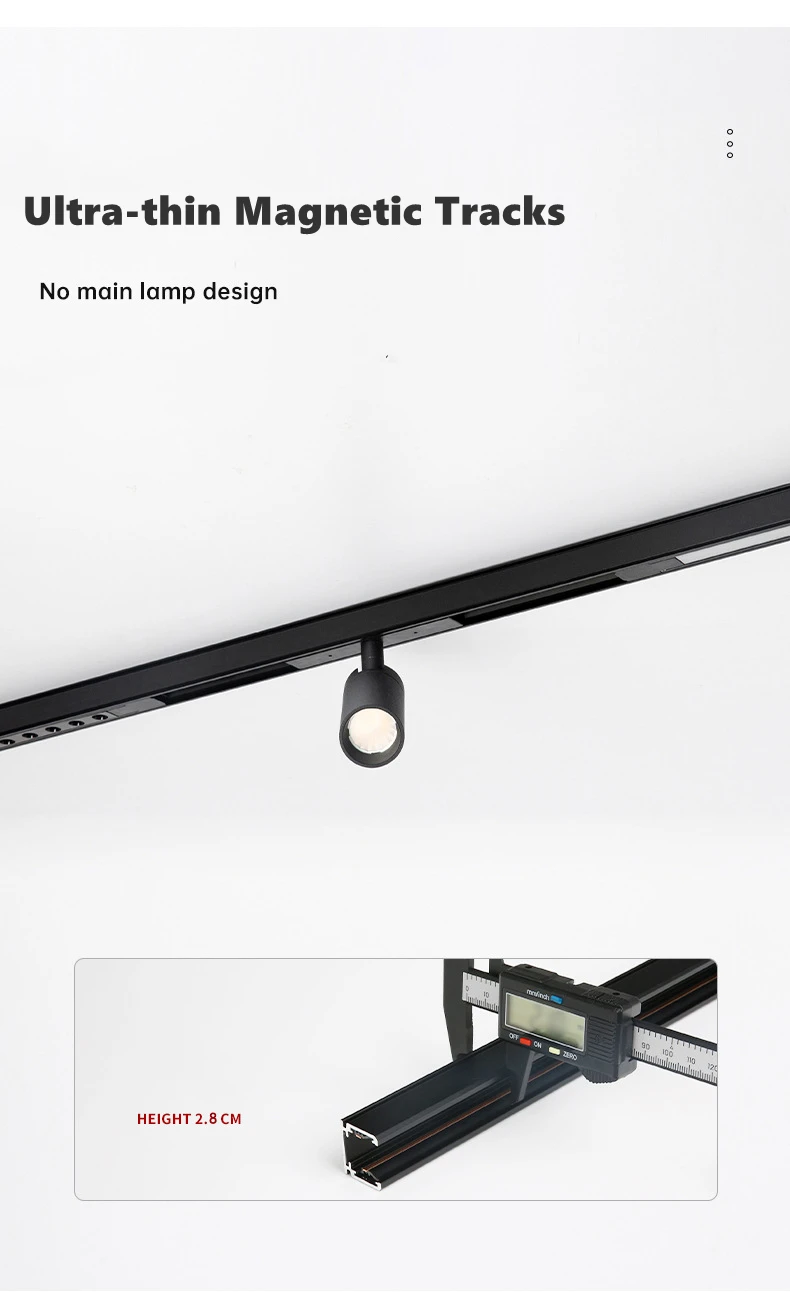

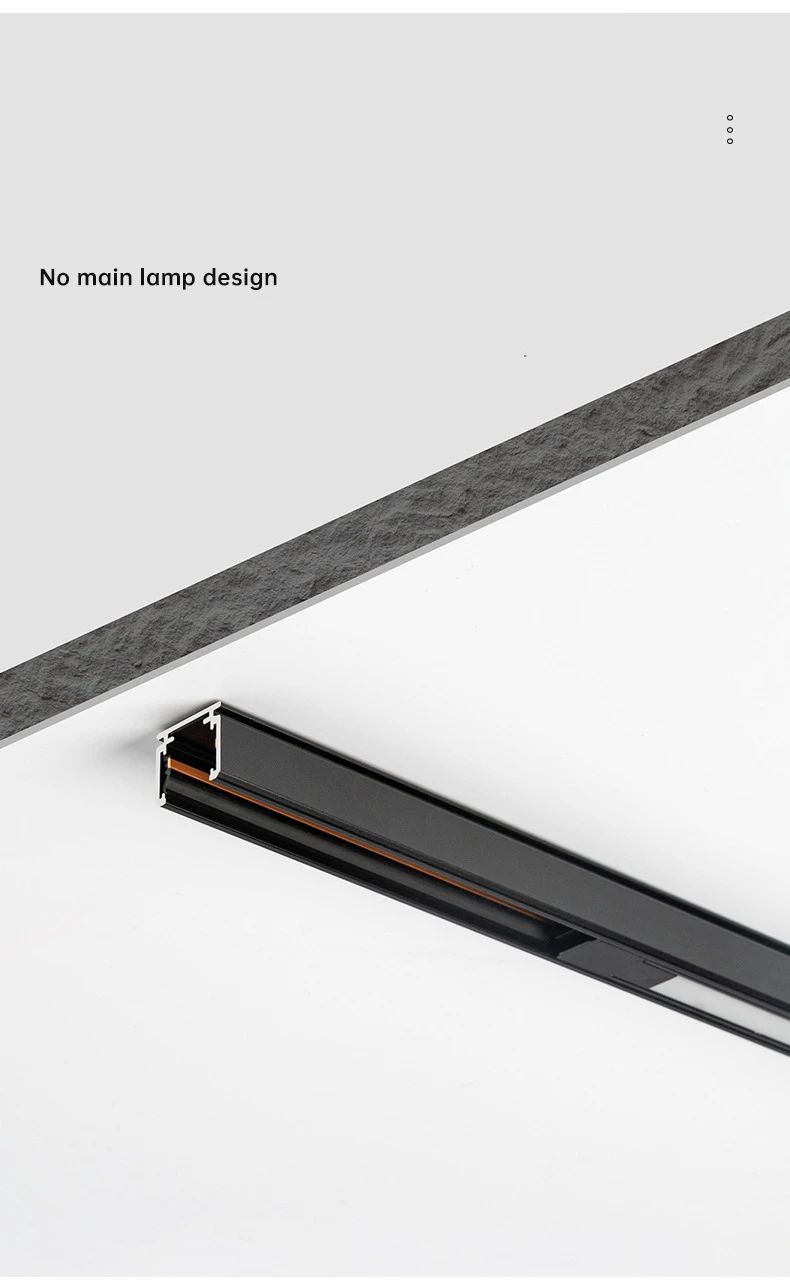

Ultra-Thin Magnetic Track Profile
The system uses an ultra-thin aluminum magnetic track designed to provide a clean architectural appearance.
The slim rail can be integrated into modern ceiling designs without creating the visual bulk associated with conventional track lighting systems.

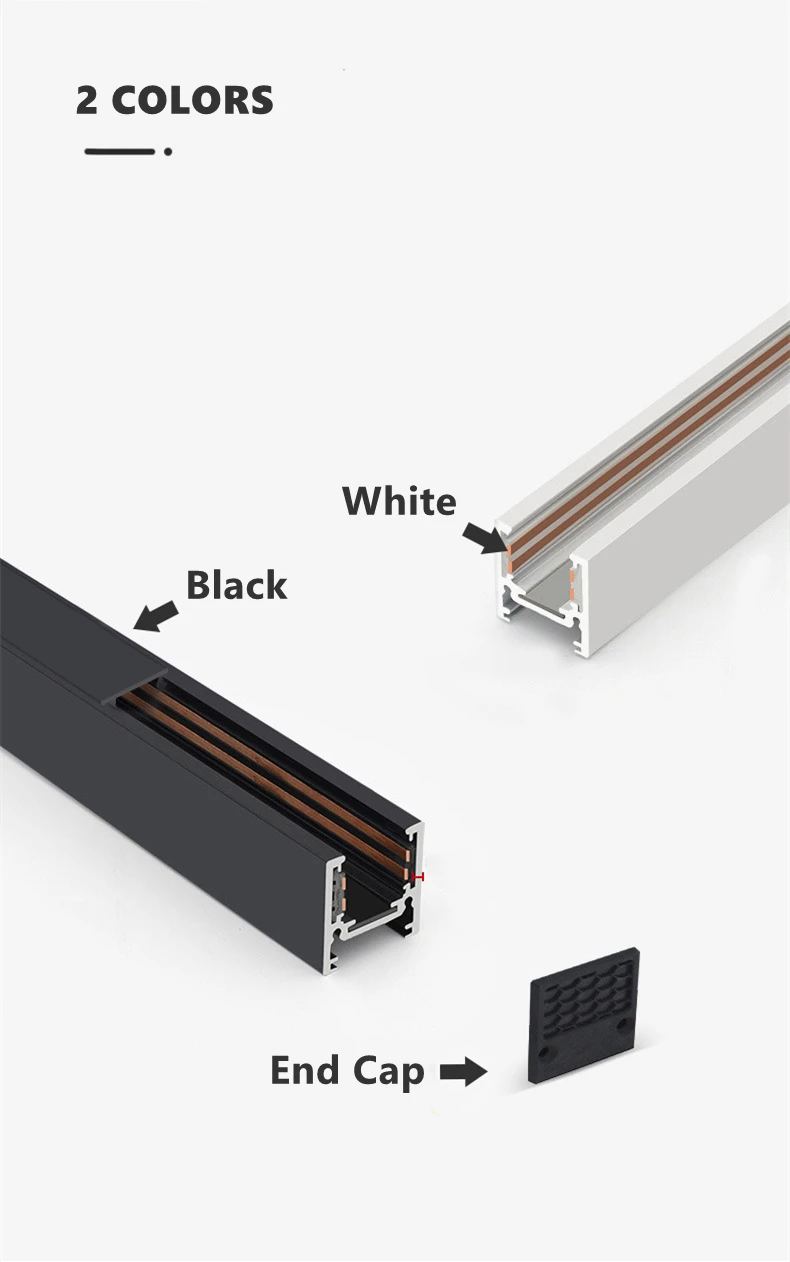

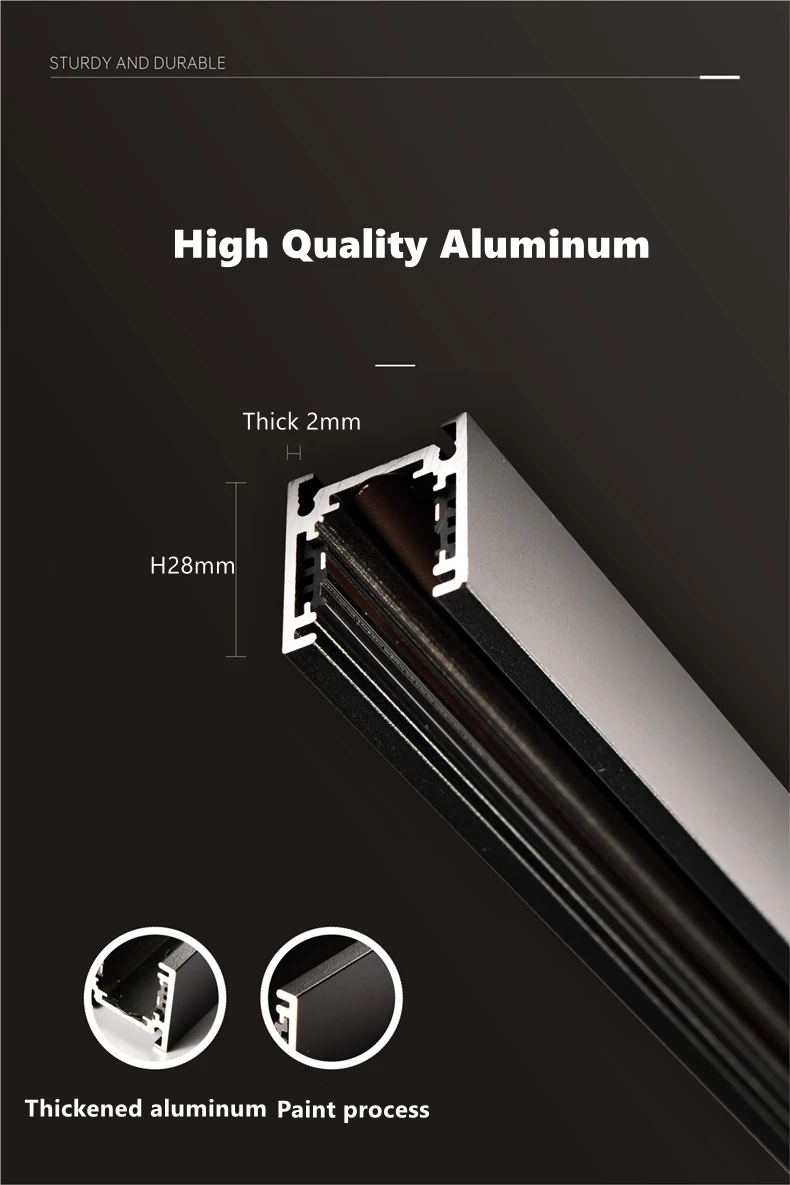

Aluminum Track Construction
The product page specifies:
- Anodized aluminum shell

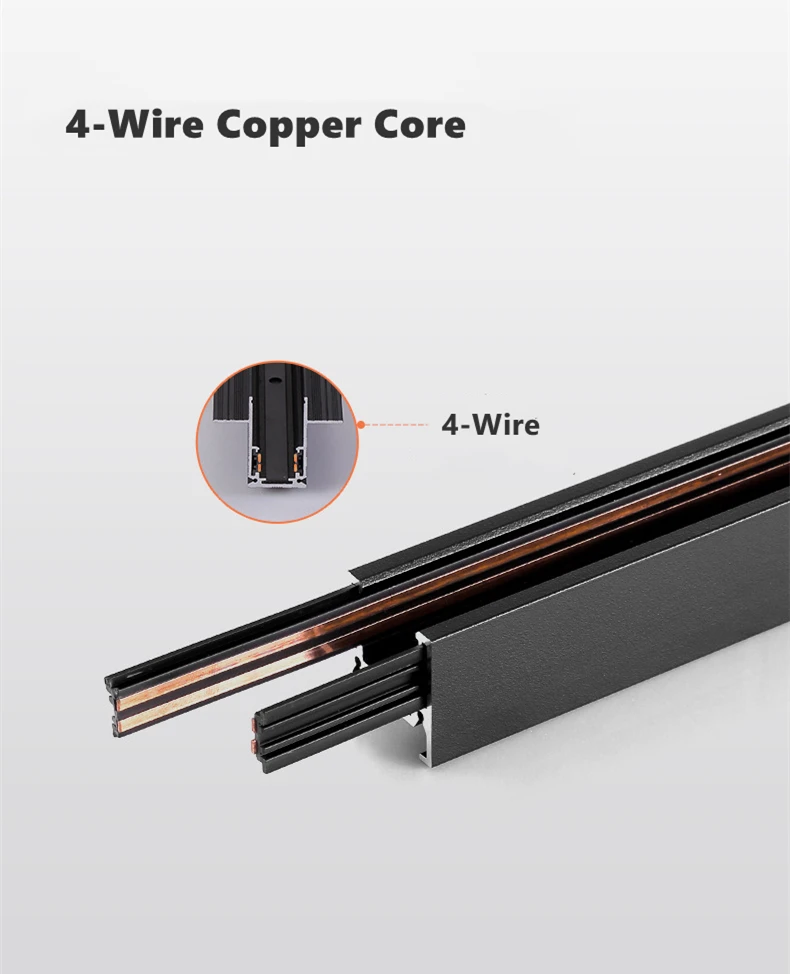

- Integrated copper wires
- Magnetic strips
- Black body option
- White body option
The aluminum profile provides the structural base for the magnetic lighting system, while the integrated conductors provide the electrical connection for compatible modules.

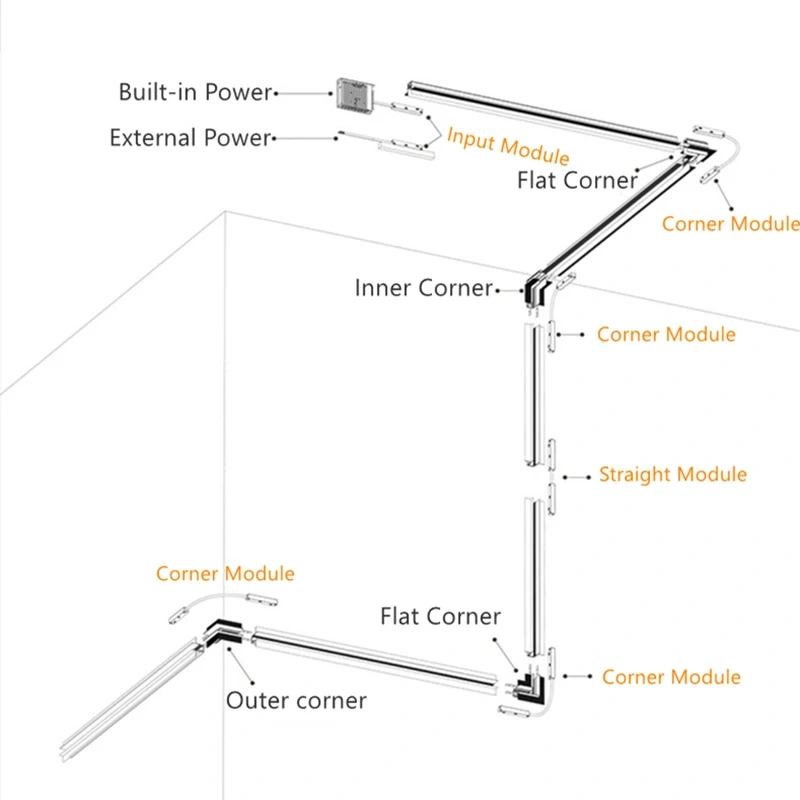

Modular Layout

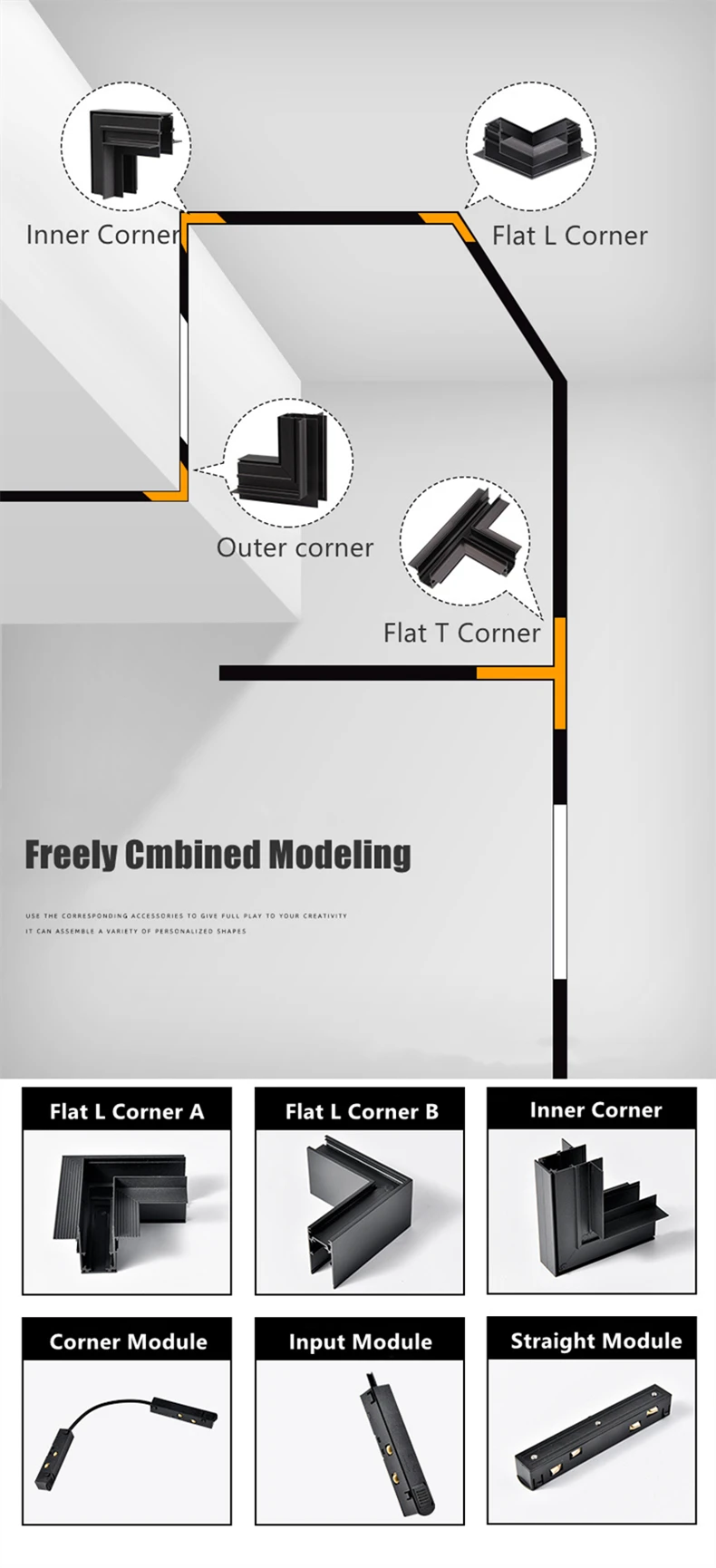

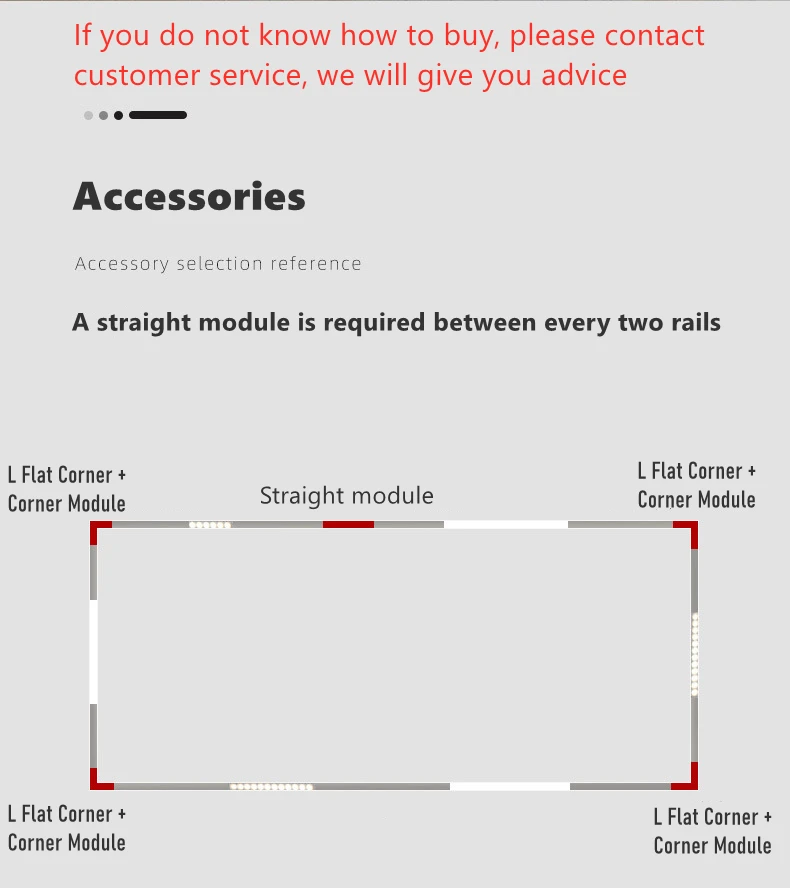

The system supports different track and connector configurations, including:
- Straight track
- Flat L corner
- Flat T corner
- Inner corner
- Outer corner

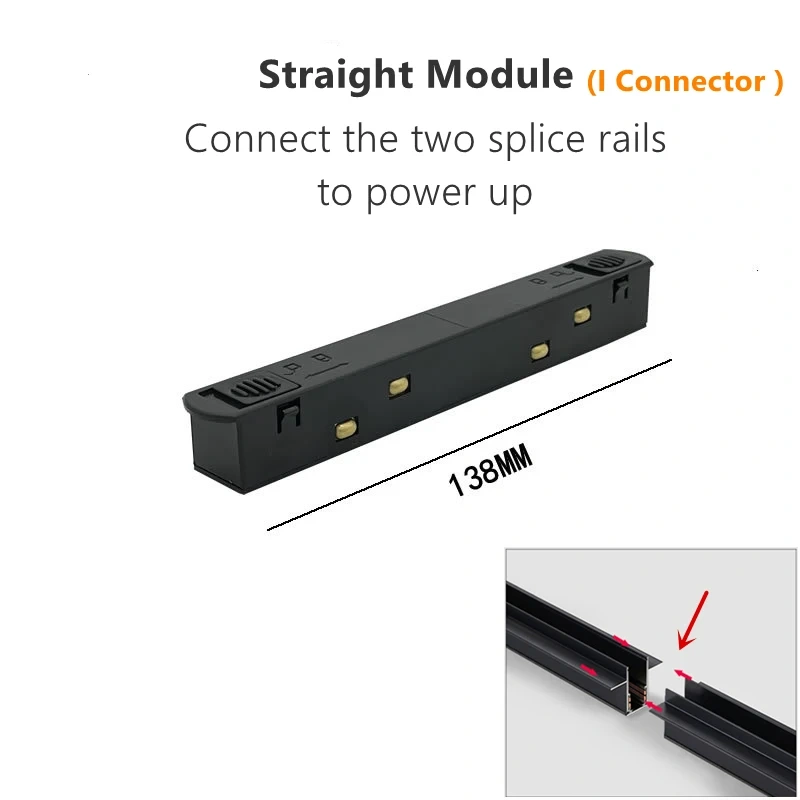

- Straight module

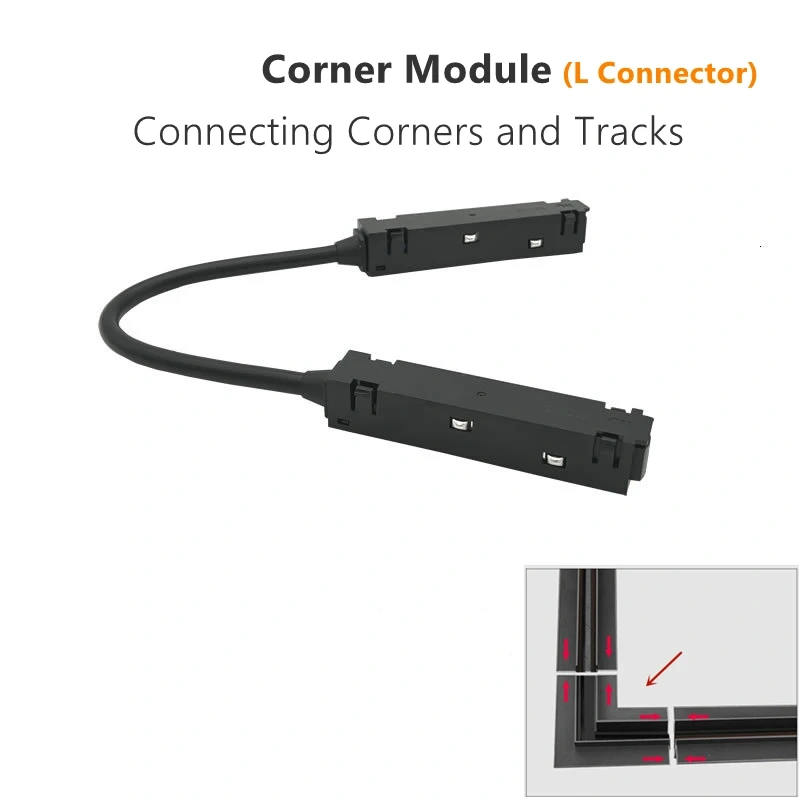

- Corner module
- Input module
This allows designers to create linear, L-shaped, T-shaped and other customized ceiling layouts.
Main Features
Ultra-Thin Profile
The slim track design is intended for modern architectural interiors where the lighting system needs to remain visually discreet.

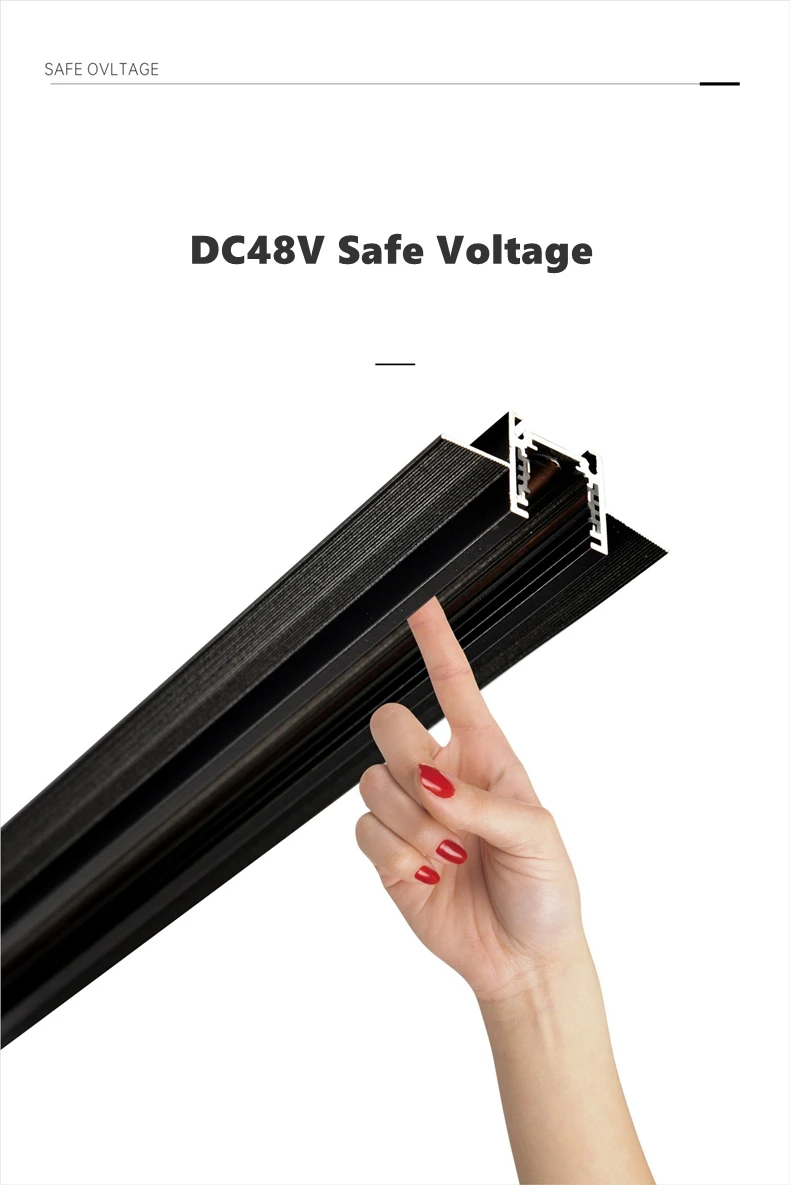

DC48V Low-Voltage Lighting System
The product page specifies:
AC110–240V input → DC48V output
The DC48V architecture provides a low-voltage lighting platform for compatible magnetic LED modules.

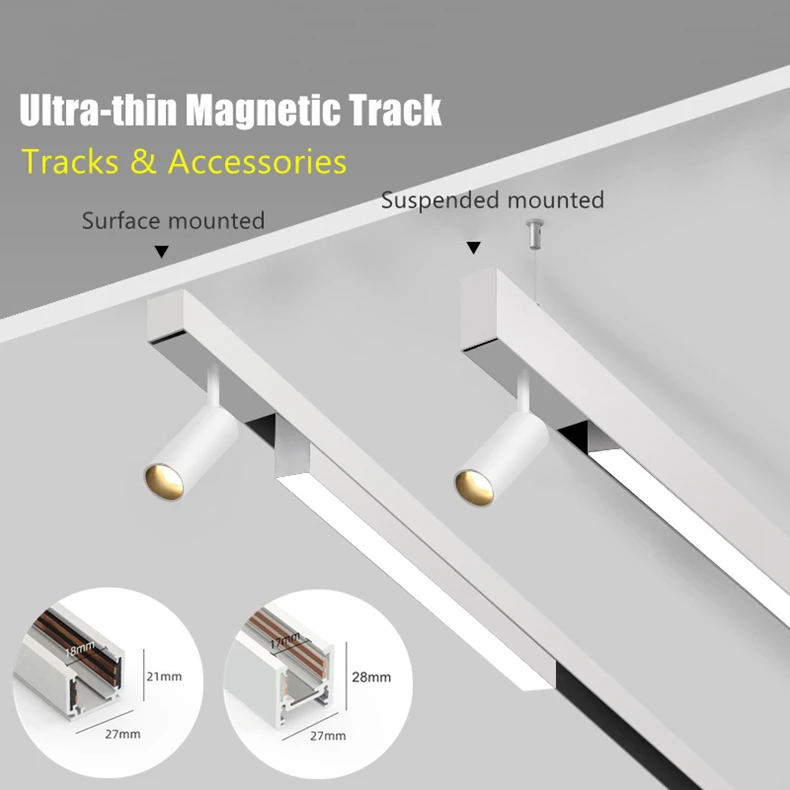

Flexible Installation
The system supports:
- Surface-mounted installation
- Suspended installation
- Embedded / recessed installation
This gives contractors flexibility when working with different ceiling structures.

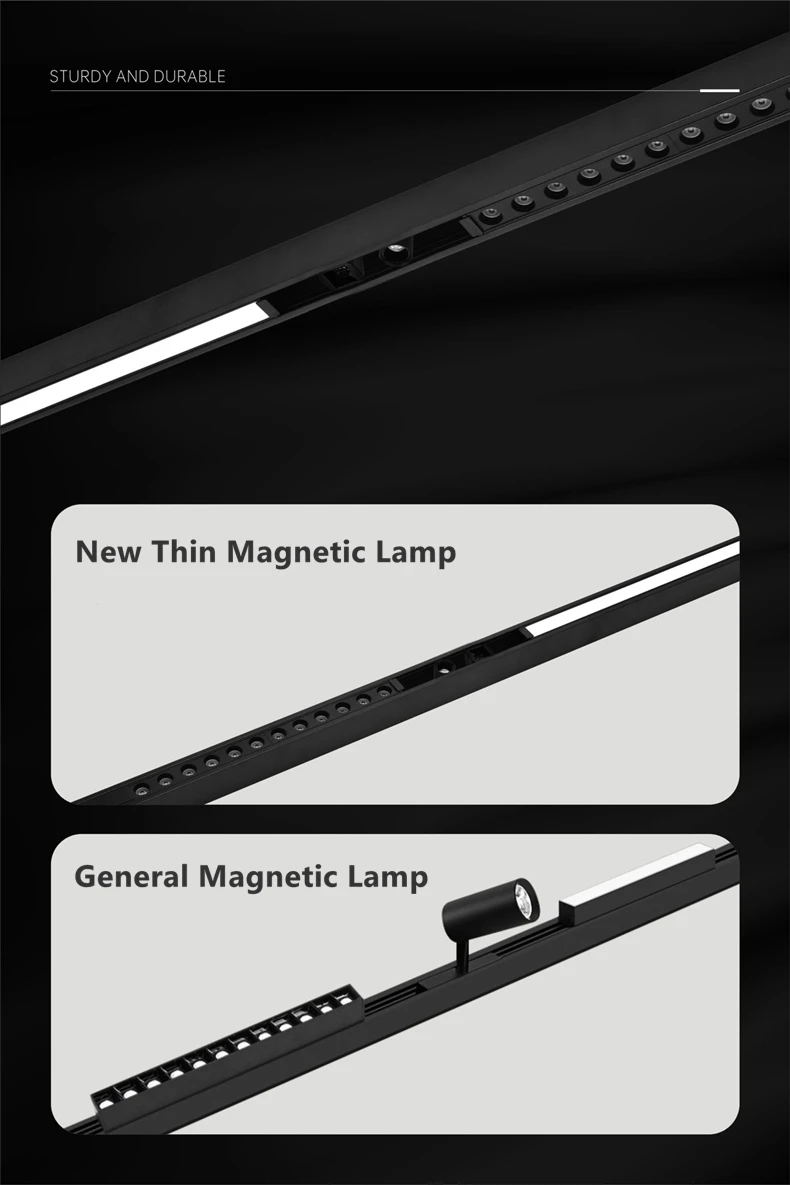

Modular Magnetic Lighting

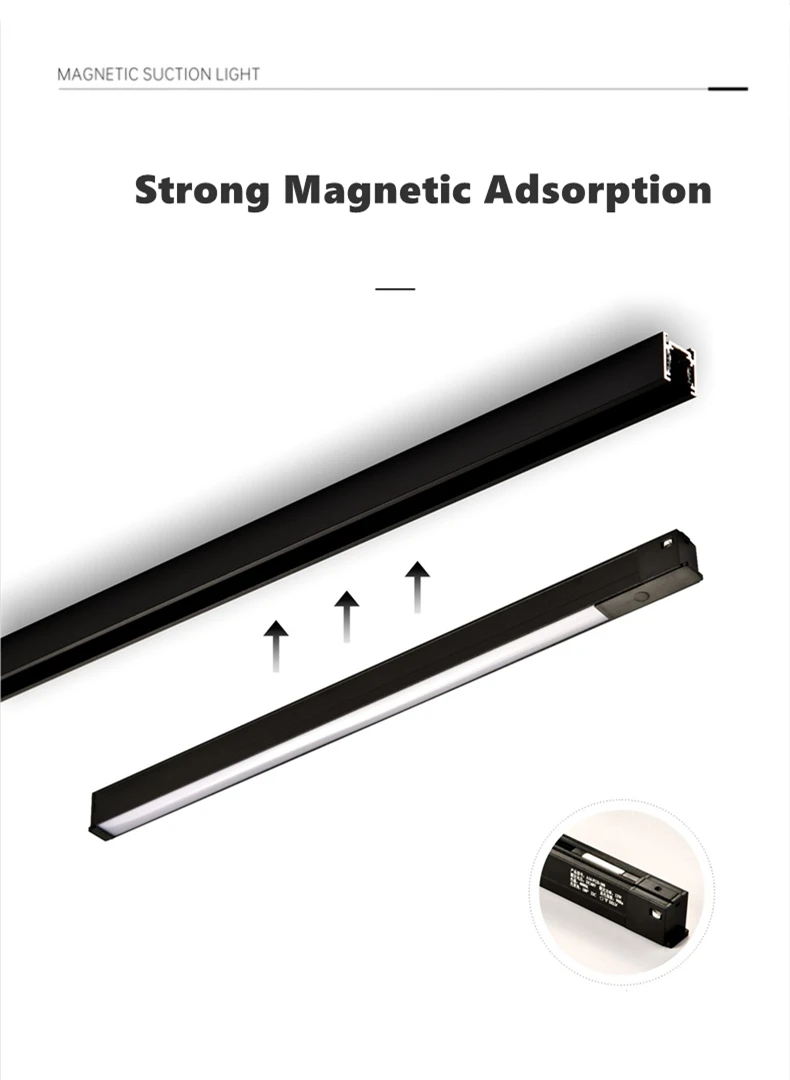

Compatible lighting modules can be repositioned along the track, allowing lighting layouts to be adjusted according to the space.
Multiple Track Components
The system includes options for:
- Track rails
- Input modules
- Straight modules
- Corner modules
- L connectors
- T connectors
- Inner corners
- Outer corners
- Hanging wire

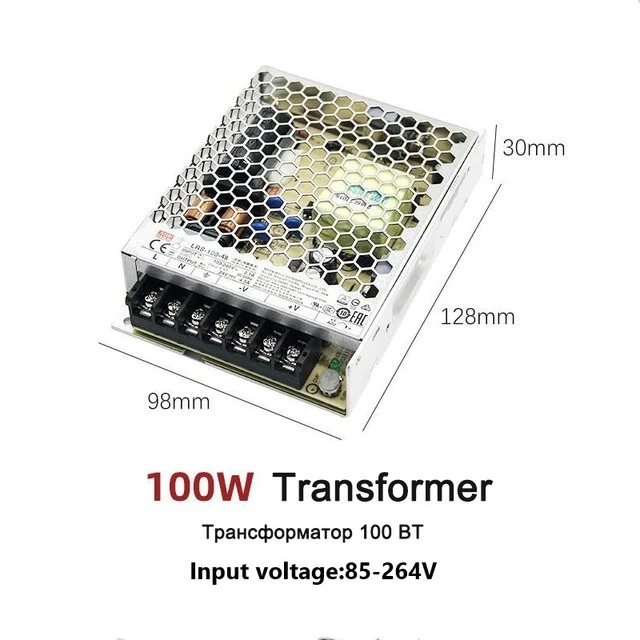

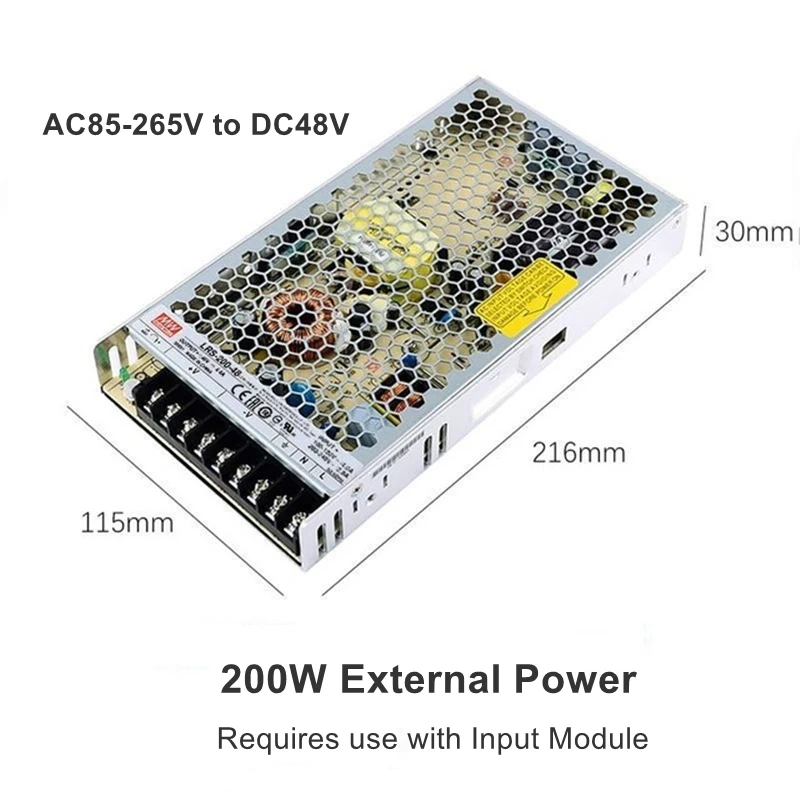

Power Supply Options
The page lists:

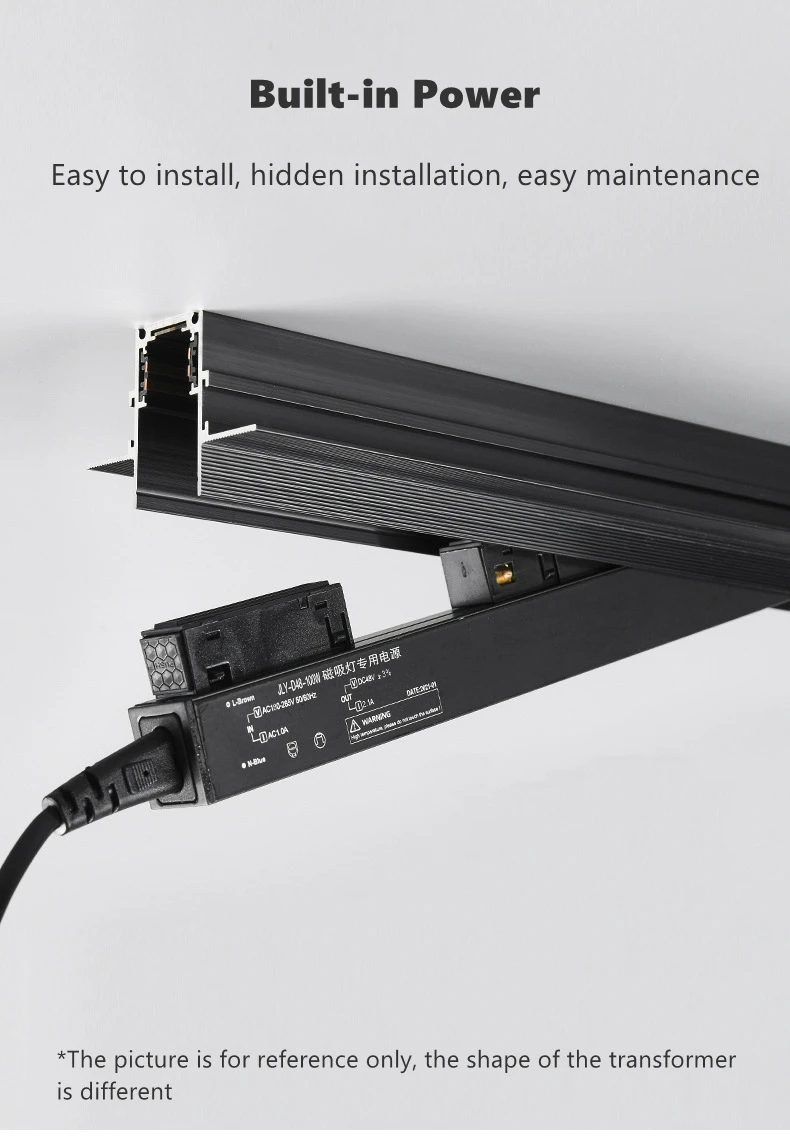

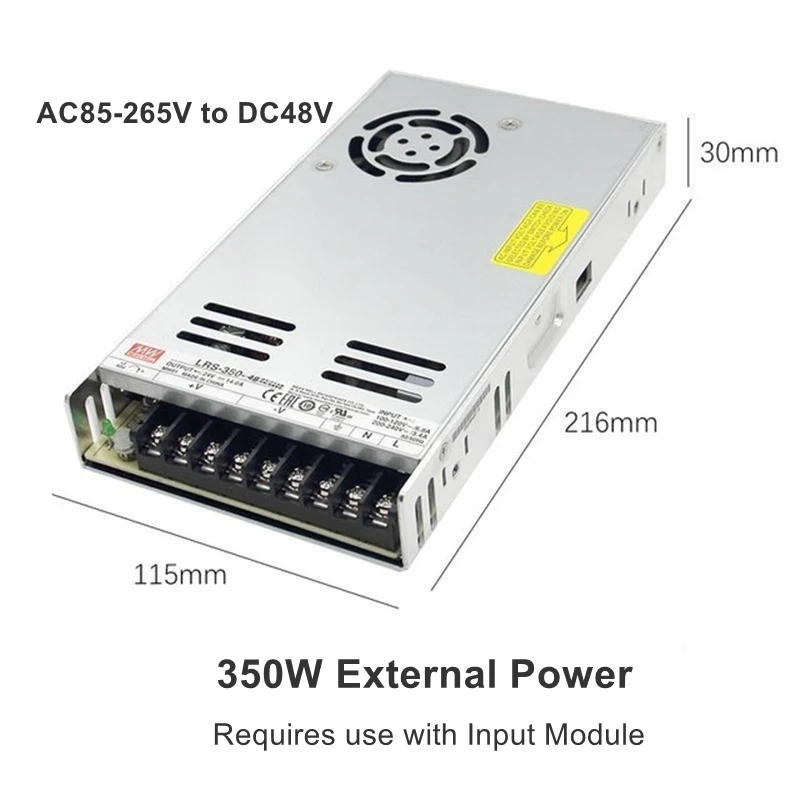

- Built-in Power 150W
- External Power 100W
- External Power 200W
- External Power 350W

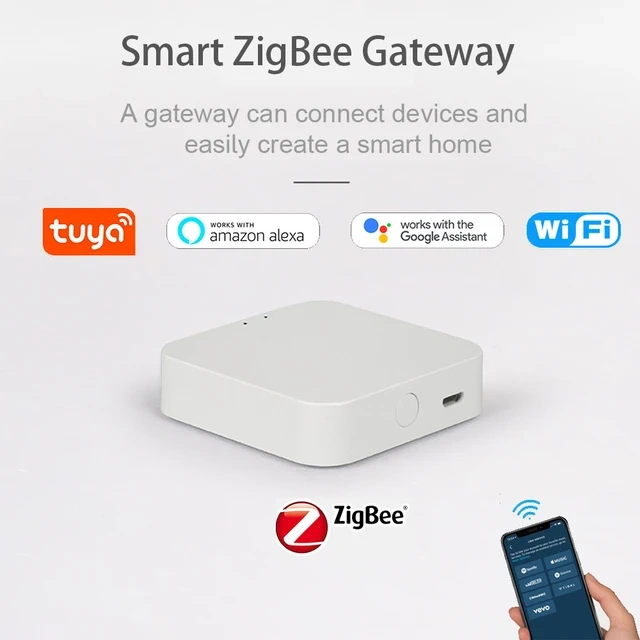

Smart Lighting Option
A Zigbee Gateway is available as a system option.
Color Options
The track body is available in:

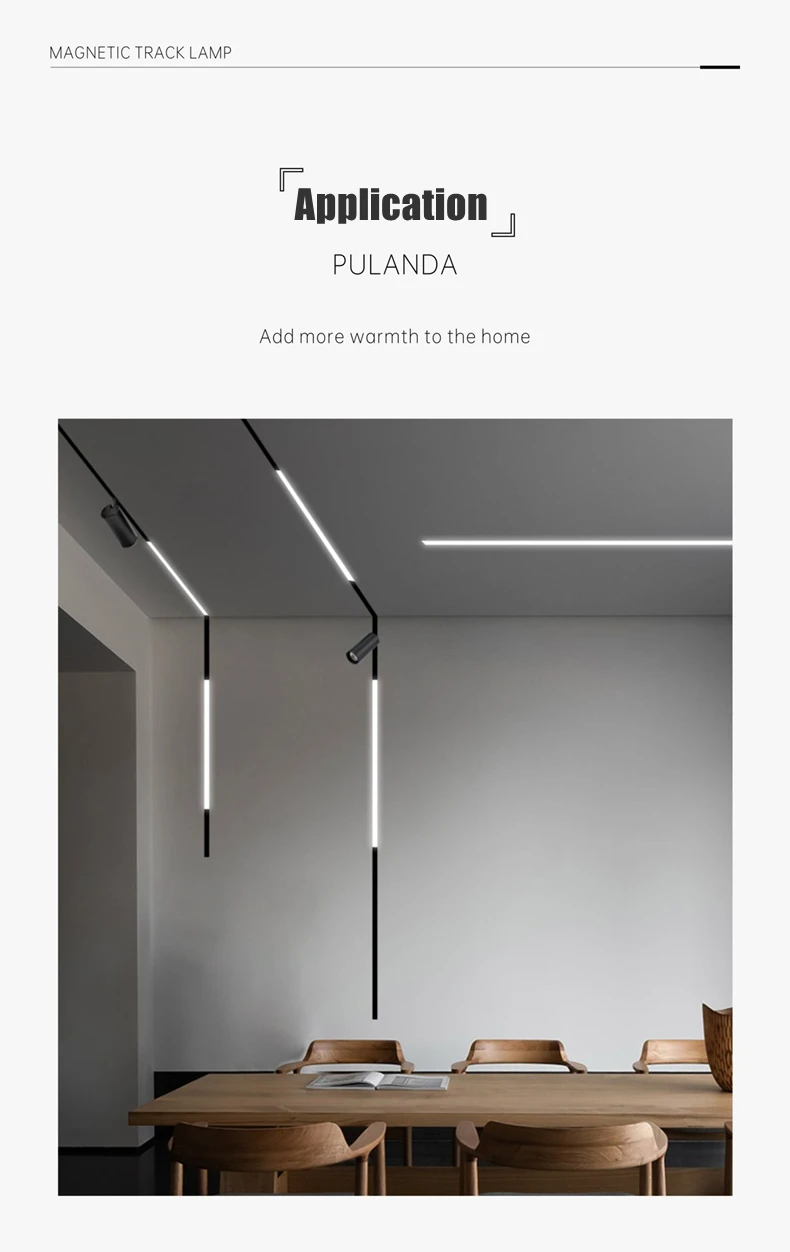

Application

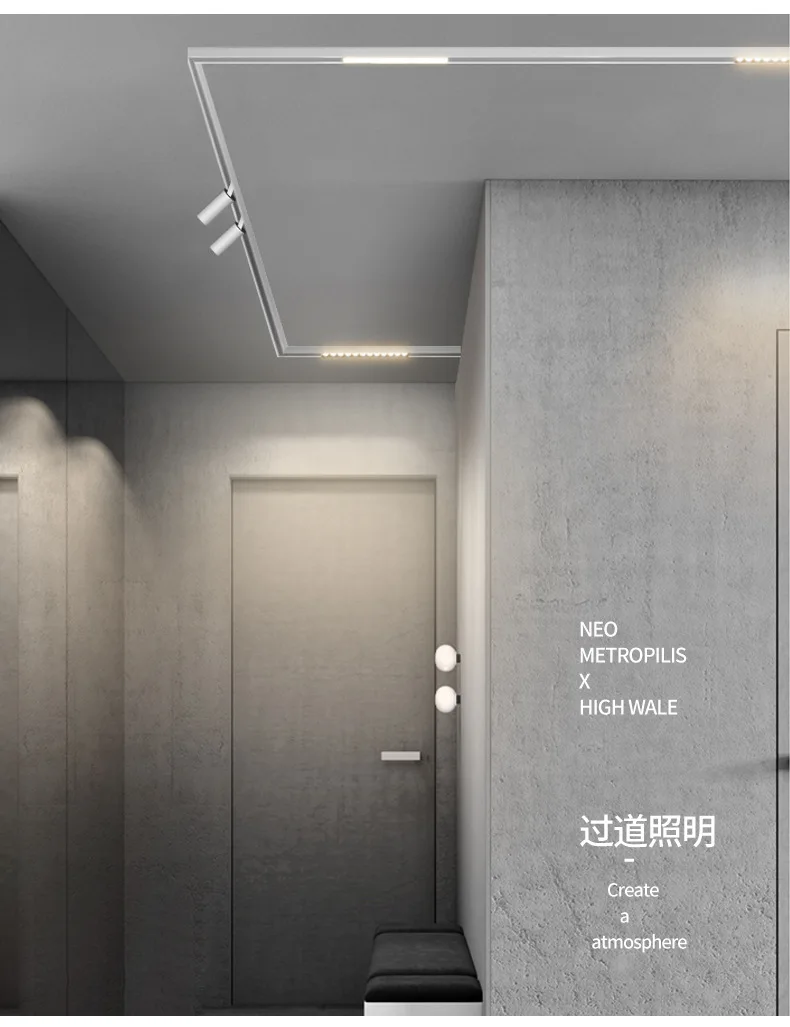

The Ultra-Thin DC48V Magnetic Track System is designed for modern interior lighting projects where flexible fixture positioning and a clean ceiling appearance are required.

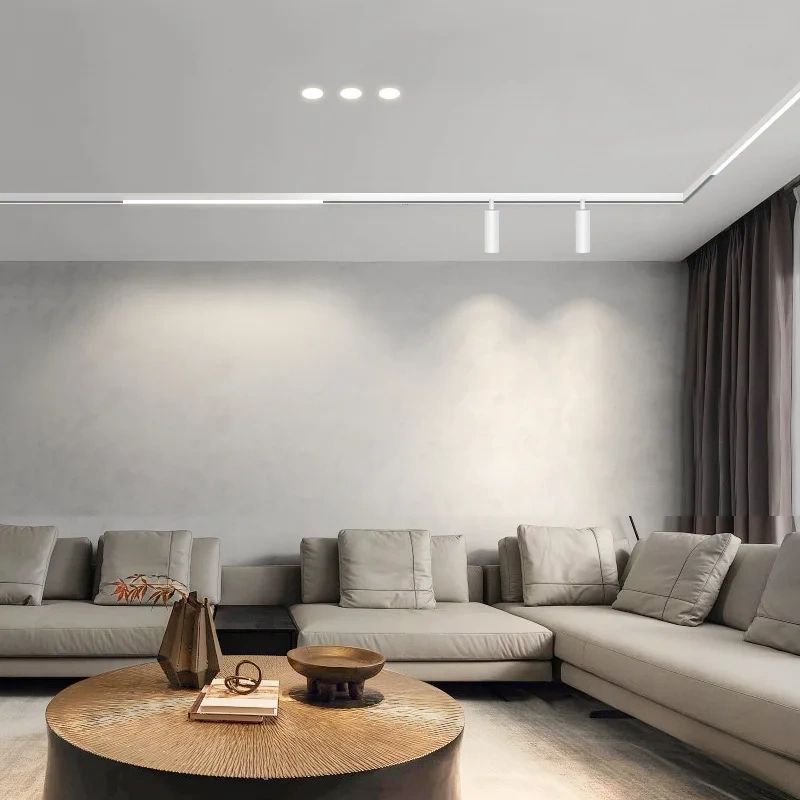

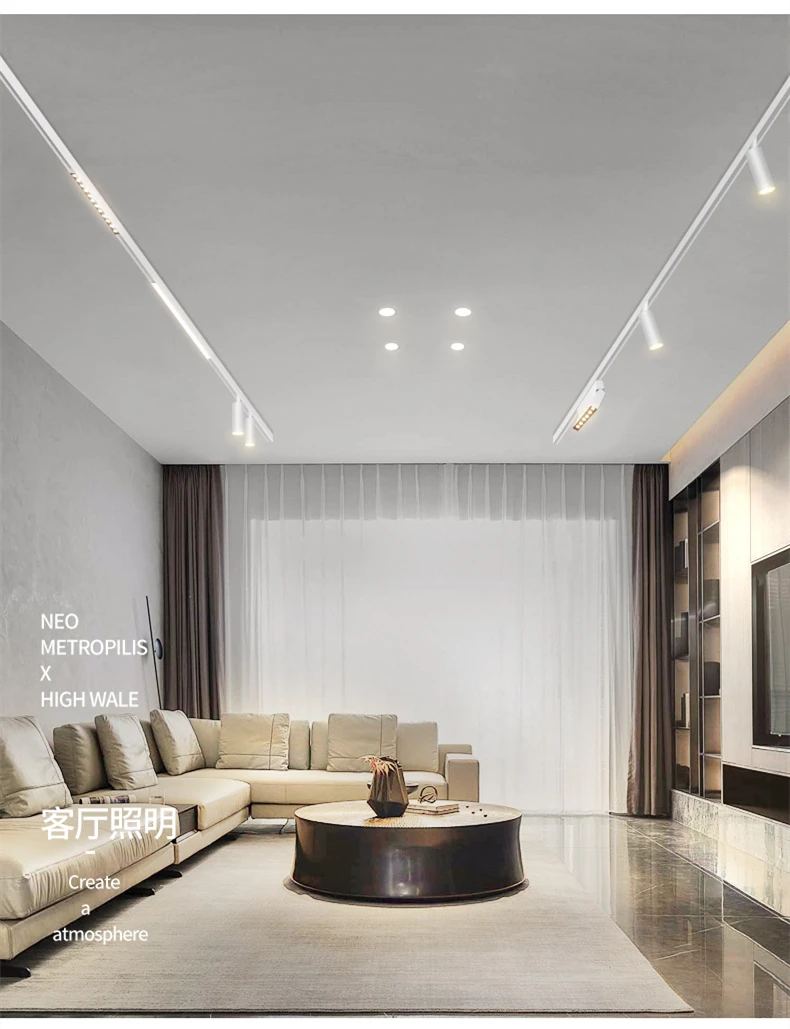

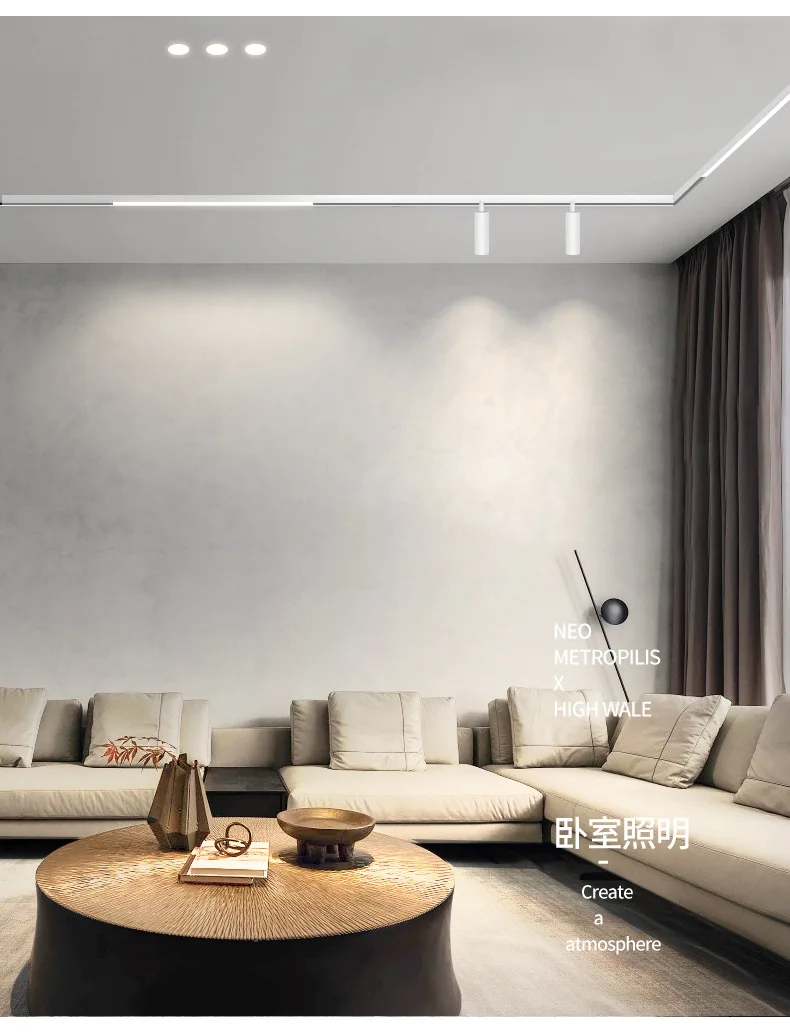

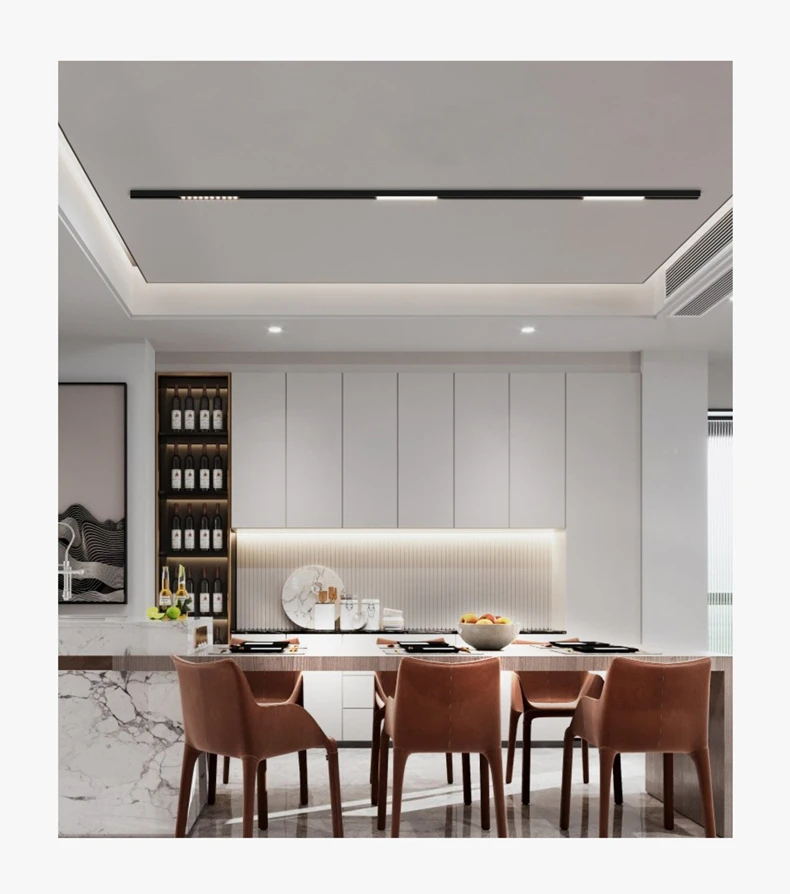

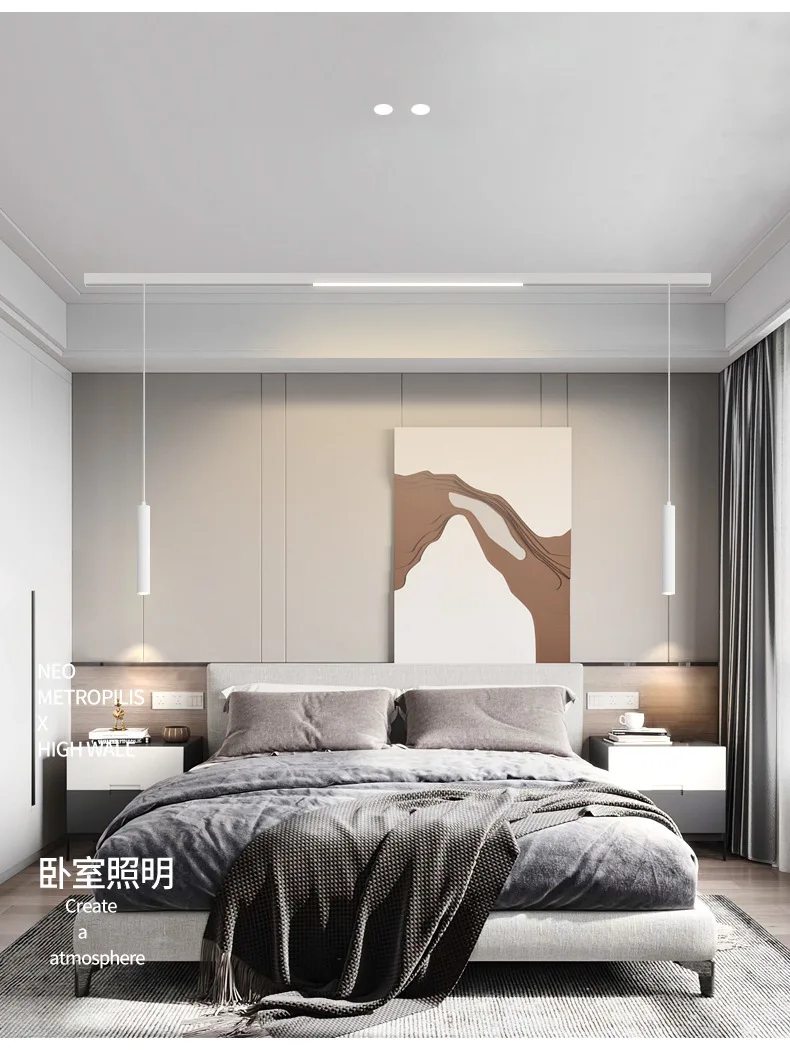

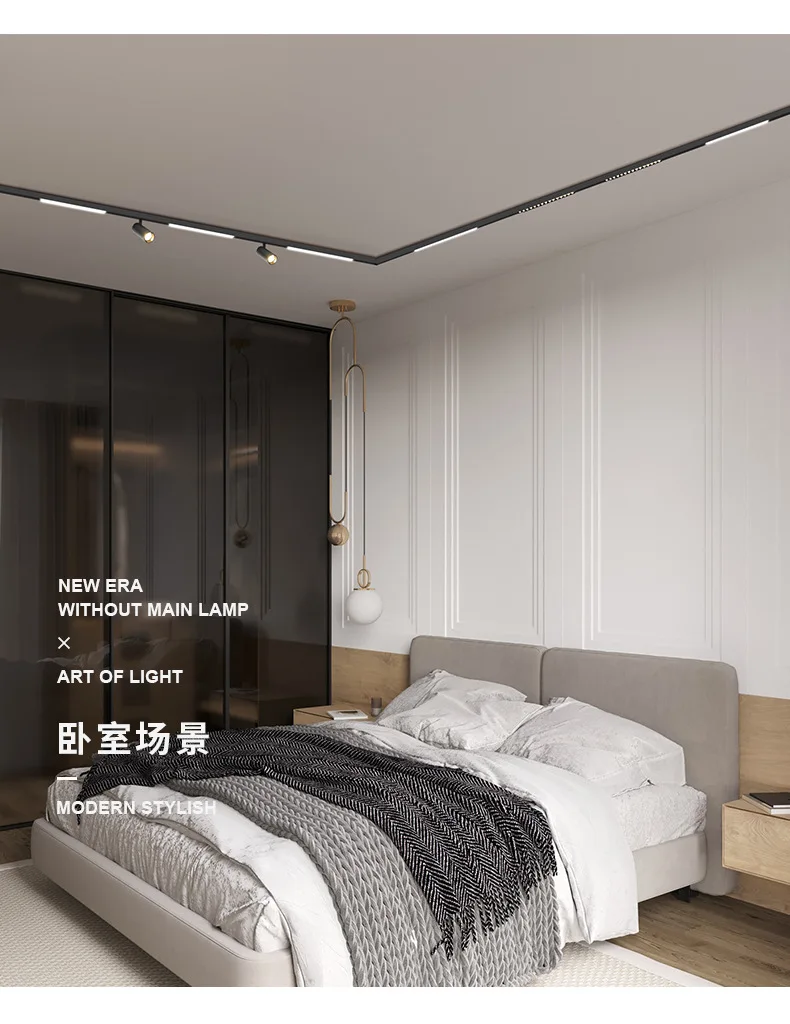

Residential Lighting
Suitable applications include:
- Living rooms
- Bedrooms
- Dining areas
- Apartments
- Villas
- Modern residential interiors
Retail Lighting
The modular track system can be used for:
- Clothing stores
- Retail shops
- Boutiques
- Showrooms
- Product displays
Hospitality Lighting
Applications include:
- Hotels
- Hotel rooms
- Restaurants
- Cafes
- Reception areas
- Hospitality interiors
Office Lighting
The system can be integrated into:
- Private offices
- Open-plan offices
- Meeting rooms
- Reception areas
- Commercial interiors
Architectural Lighting
The slim magnetic track format is suitable for architectural lighting designs where different lighting modules need to be combined within one ceiling system.
Size / Options
The product page lists the following main system options.

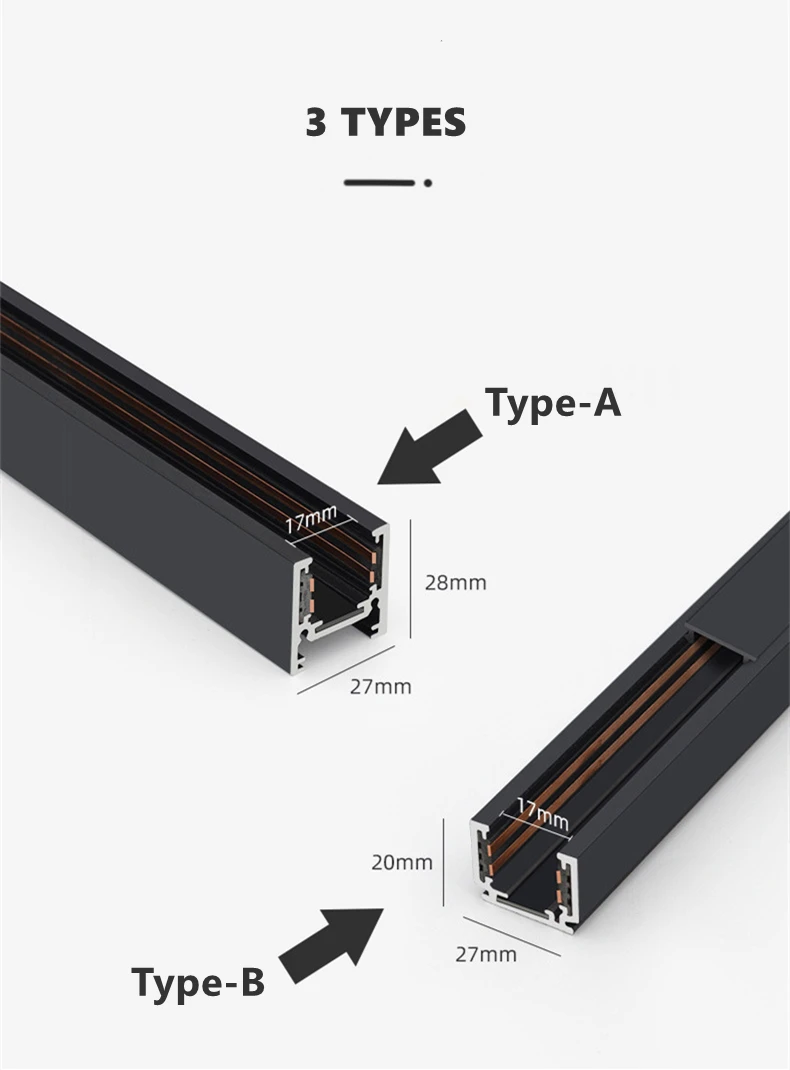

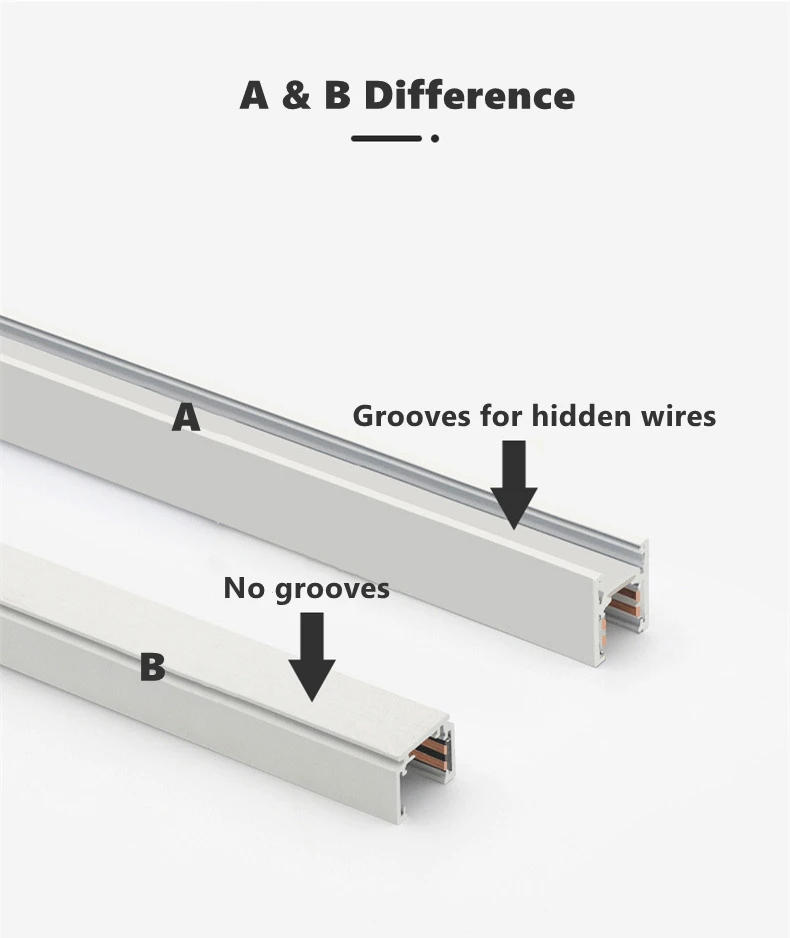

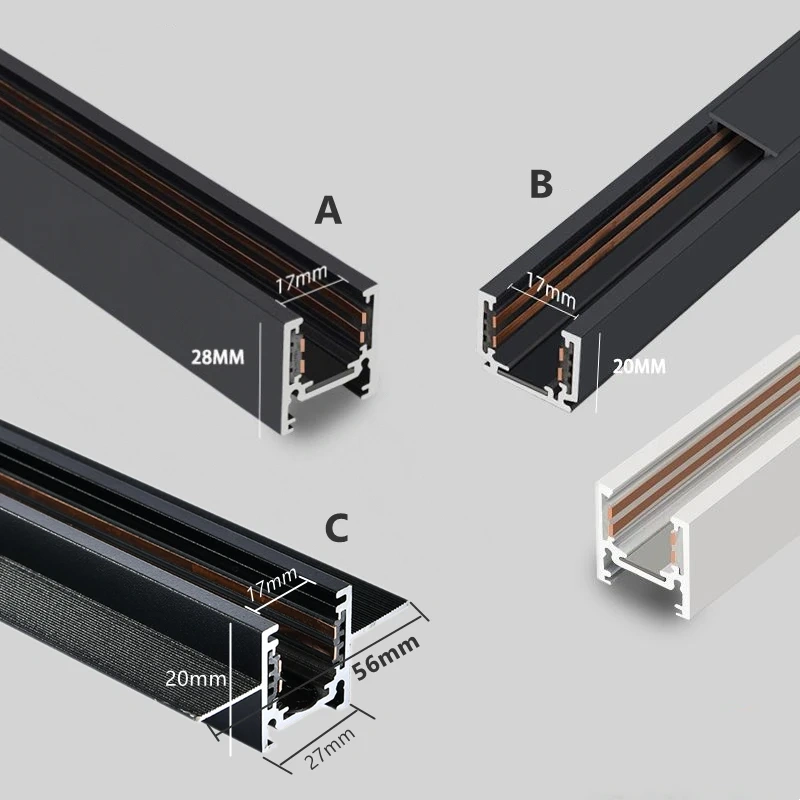

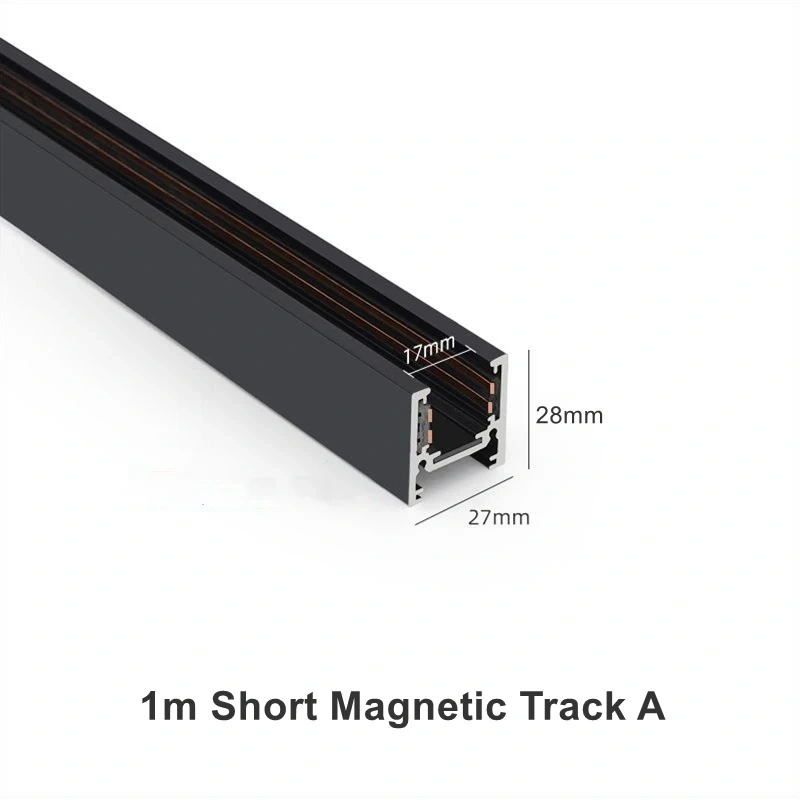

Track

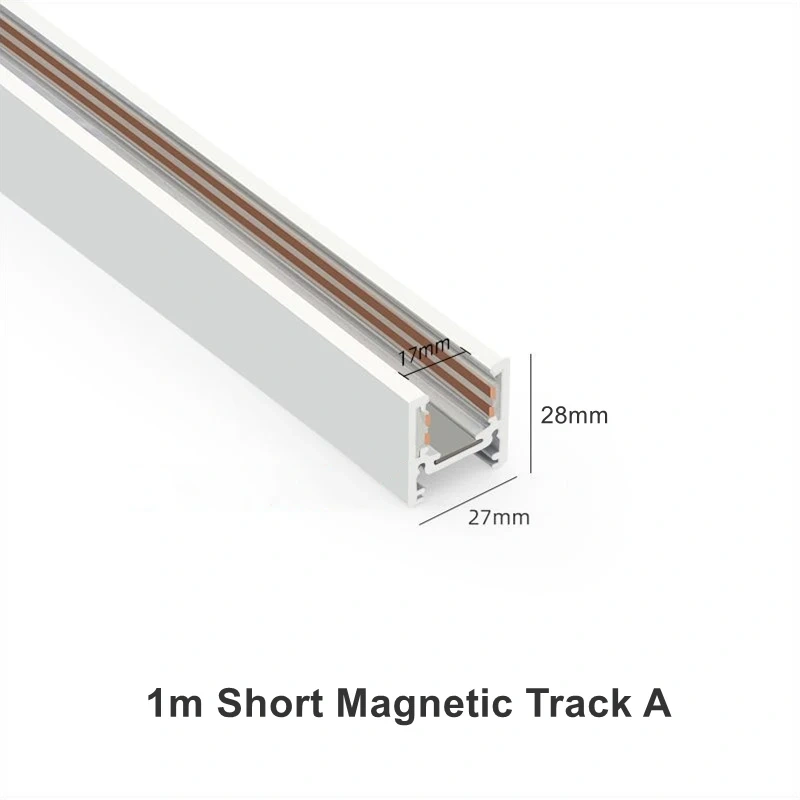

- 1M Black Track A
- 1M White Track A

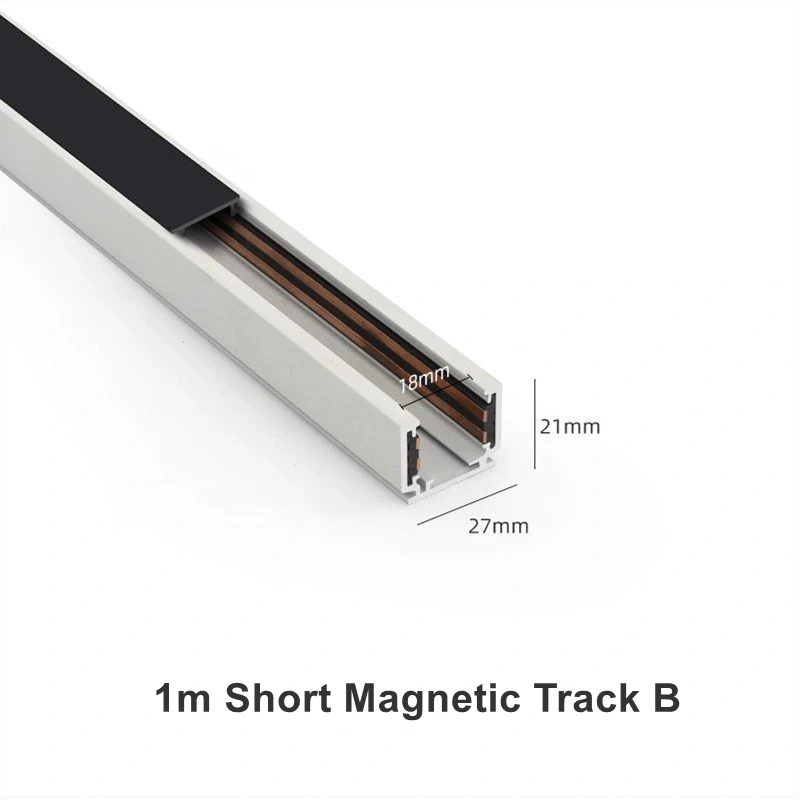

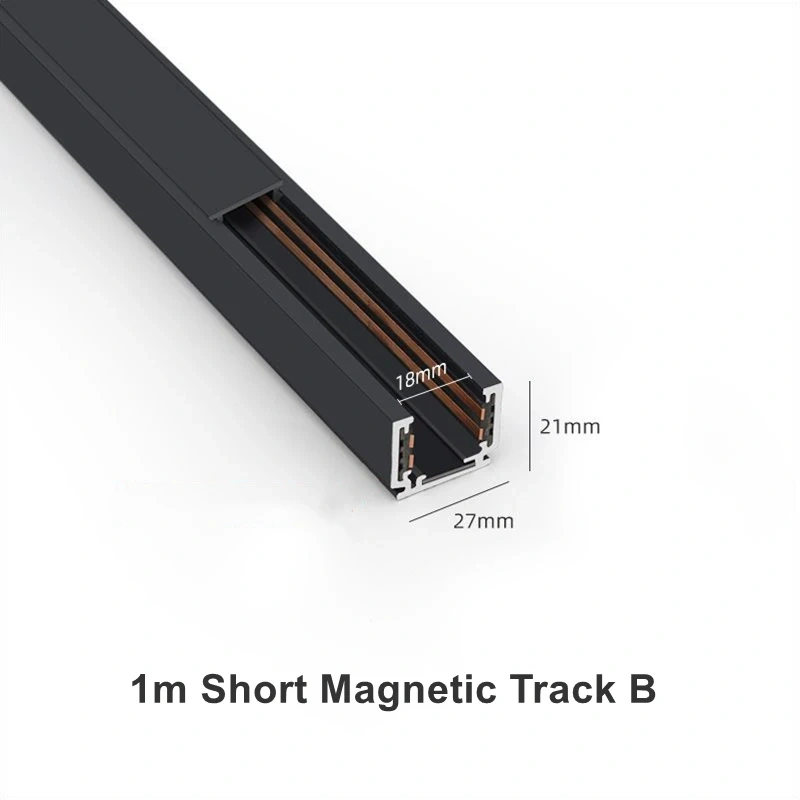

- 1M Black Track B
- 1M White Track B

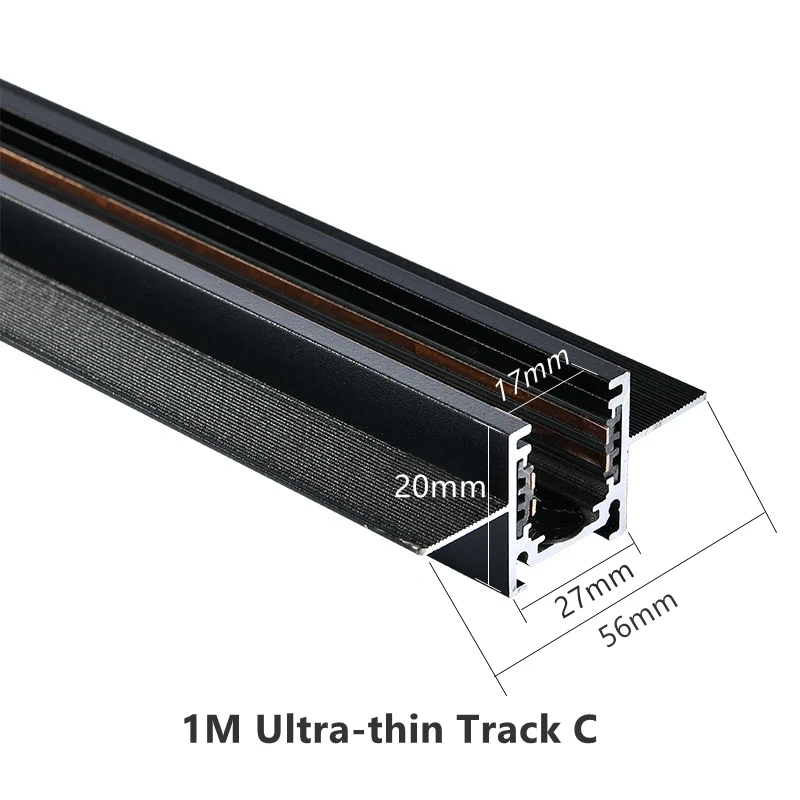

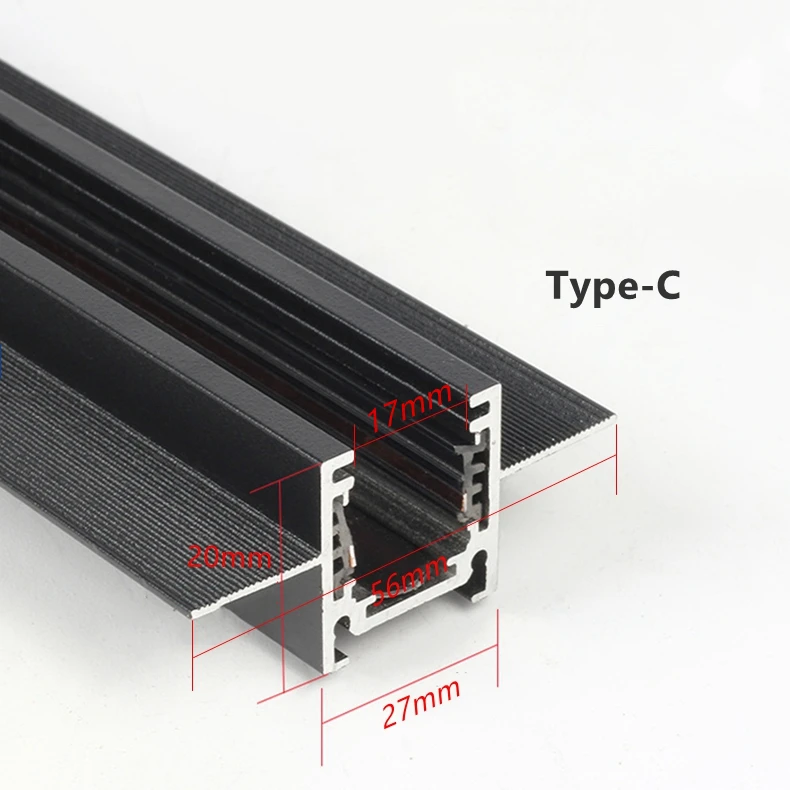

- 1M Black Track C

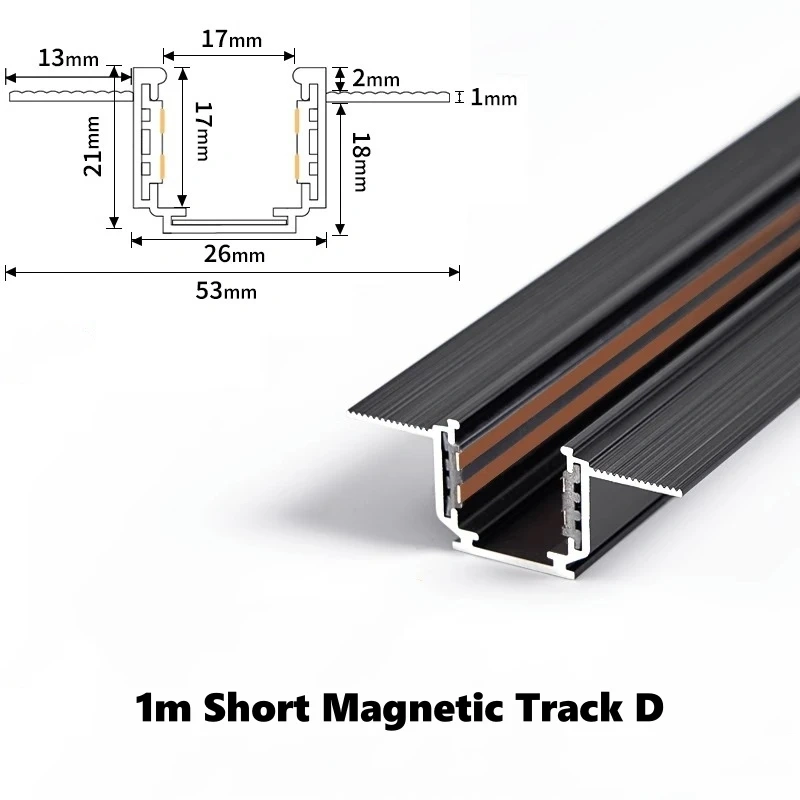

- 1M Black Track D
Connectors / Modules

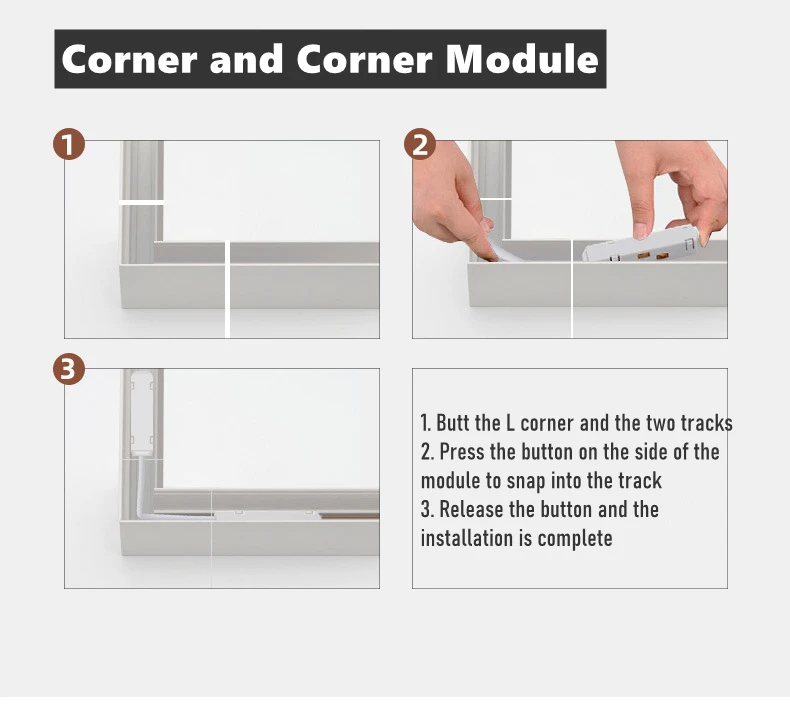

- Flat L Corner
- Inner Corner
- Outer Corner
- Flat T Corner

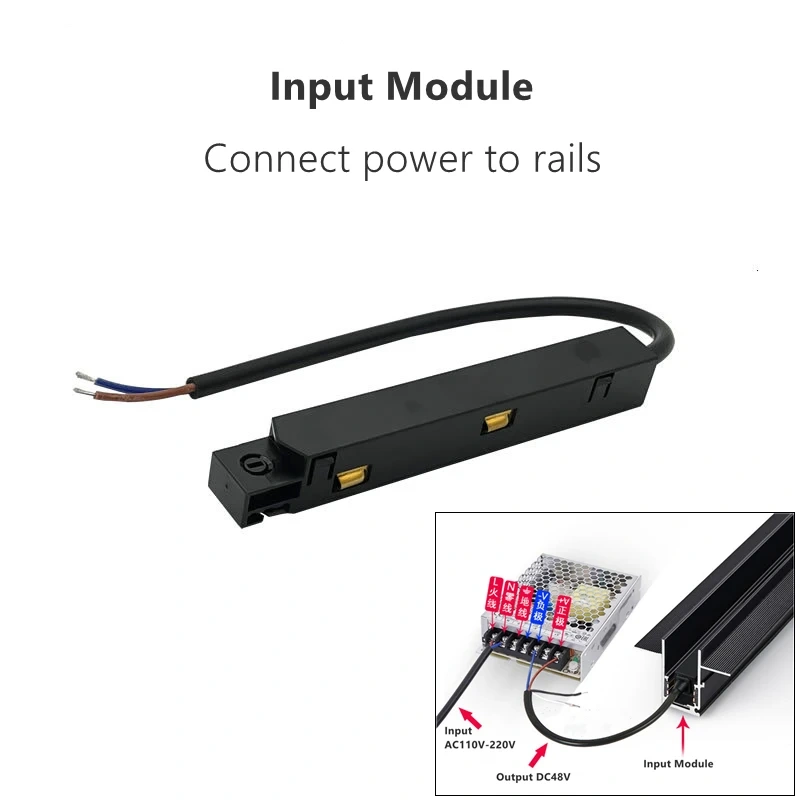

- Input Module
- Straight Module
- Corner Module
Power

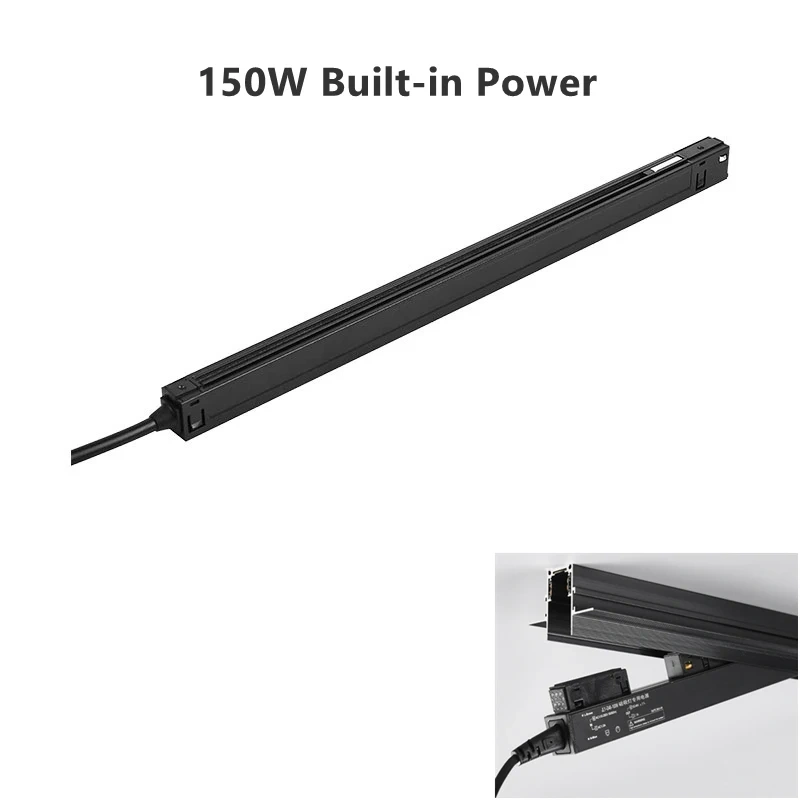

- Built-in Power 150W
- External Power 100W
- External Power 200W
- External Power 350W
Smart Control
Suspension

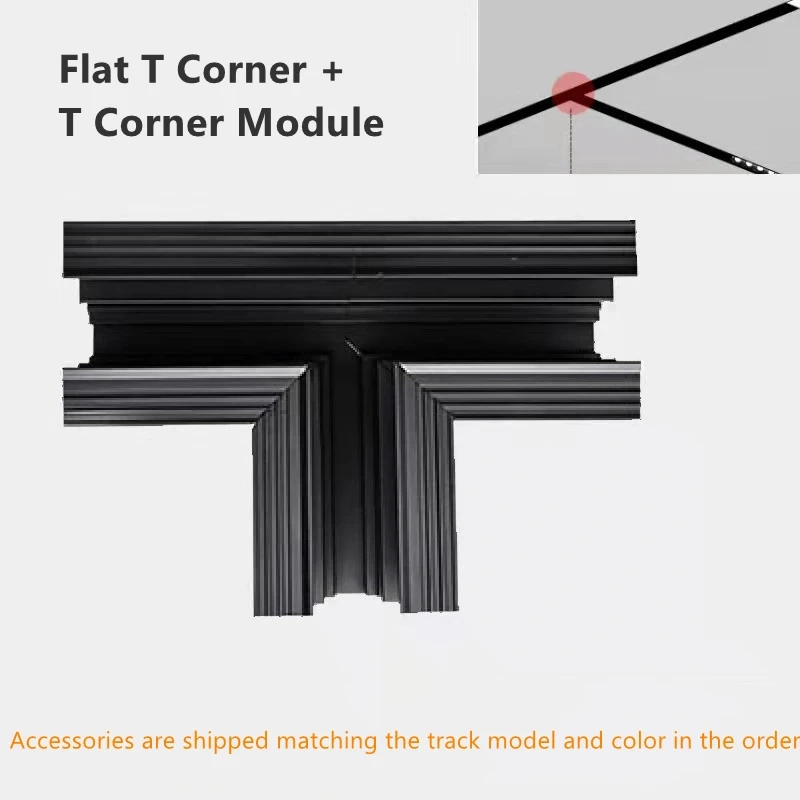

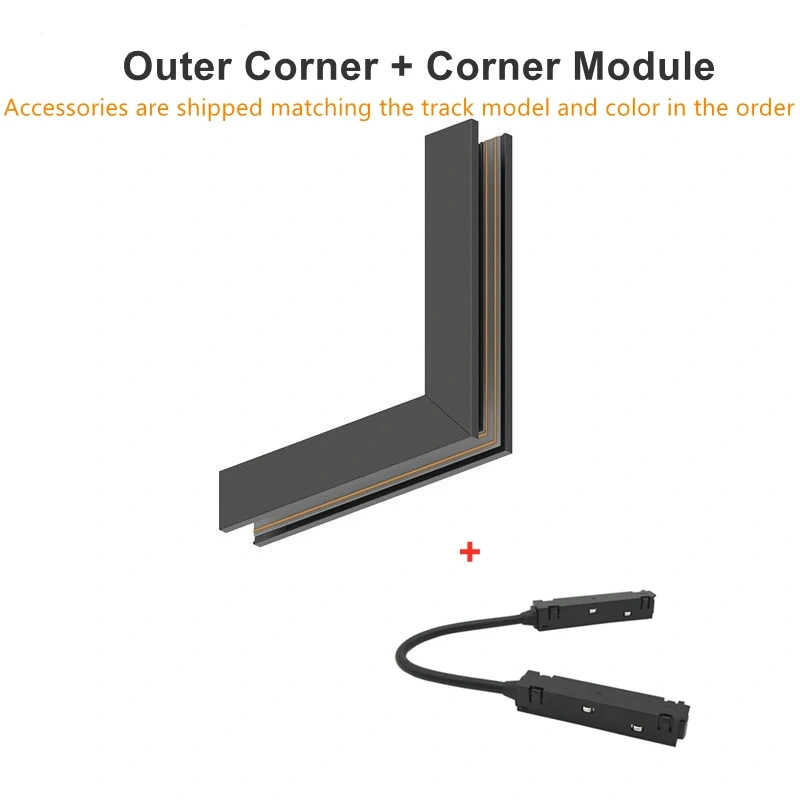

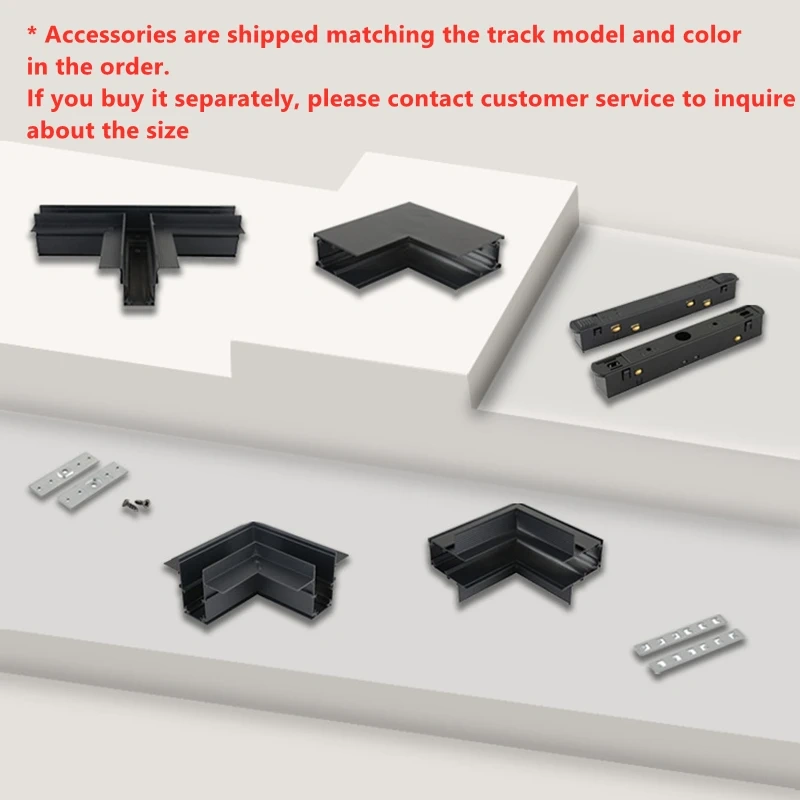

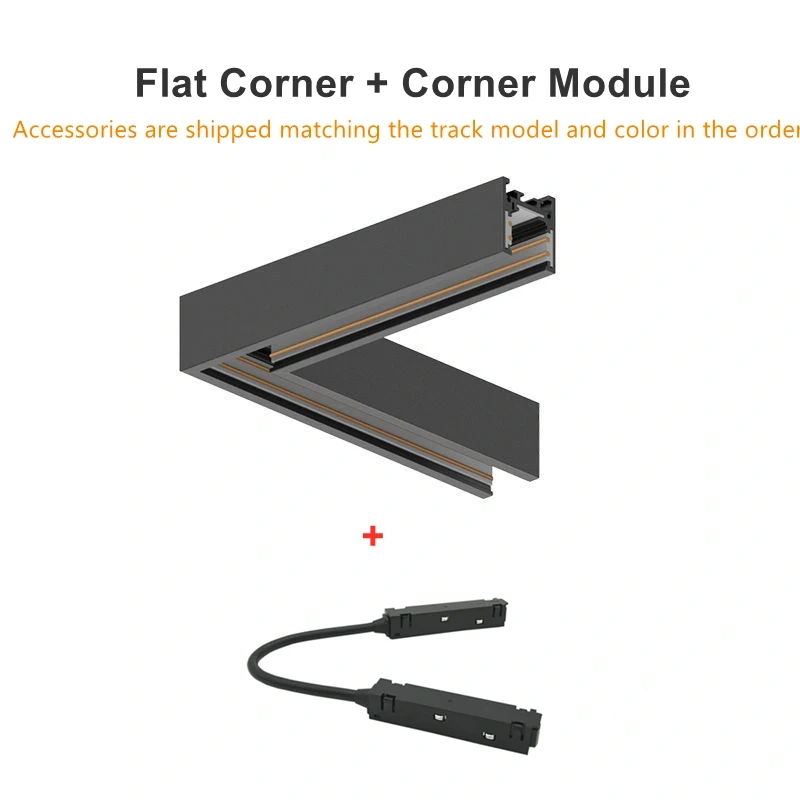

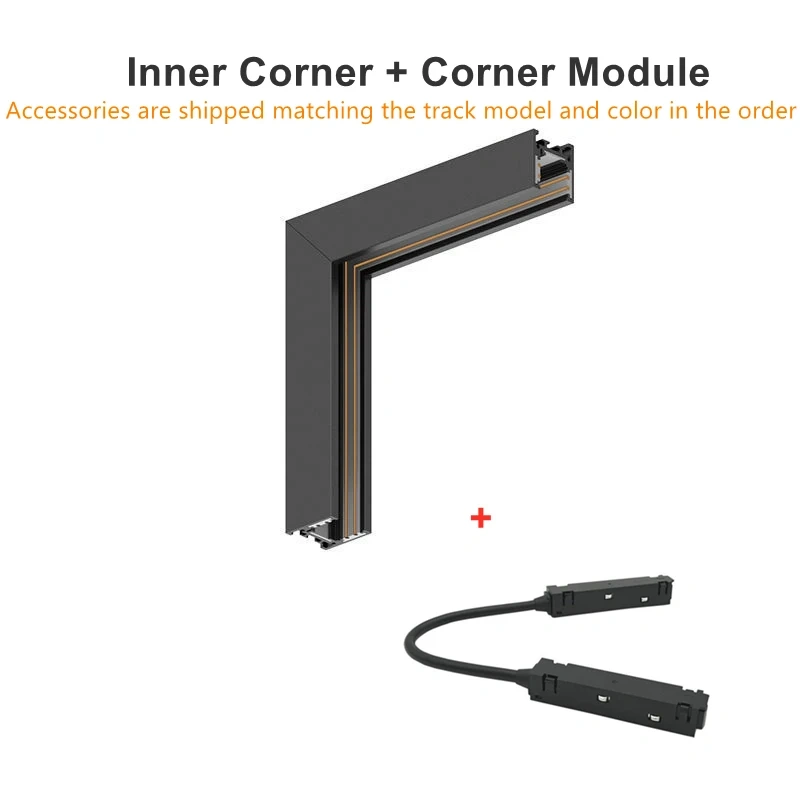

The page also states that corner connectors are matched to the track size and color of the order.
Lighting Options
This page is primarily a magnetic track system, rather than a single fixed LED fixture.
The system can therefore be specified together with compatible magnetic lighting modules according to the project requirement.

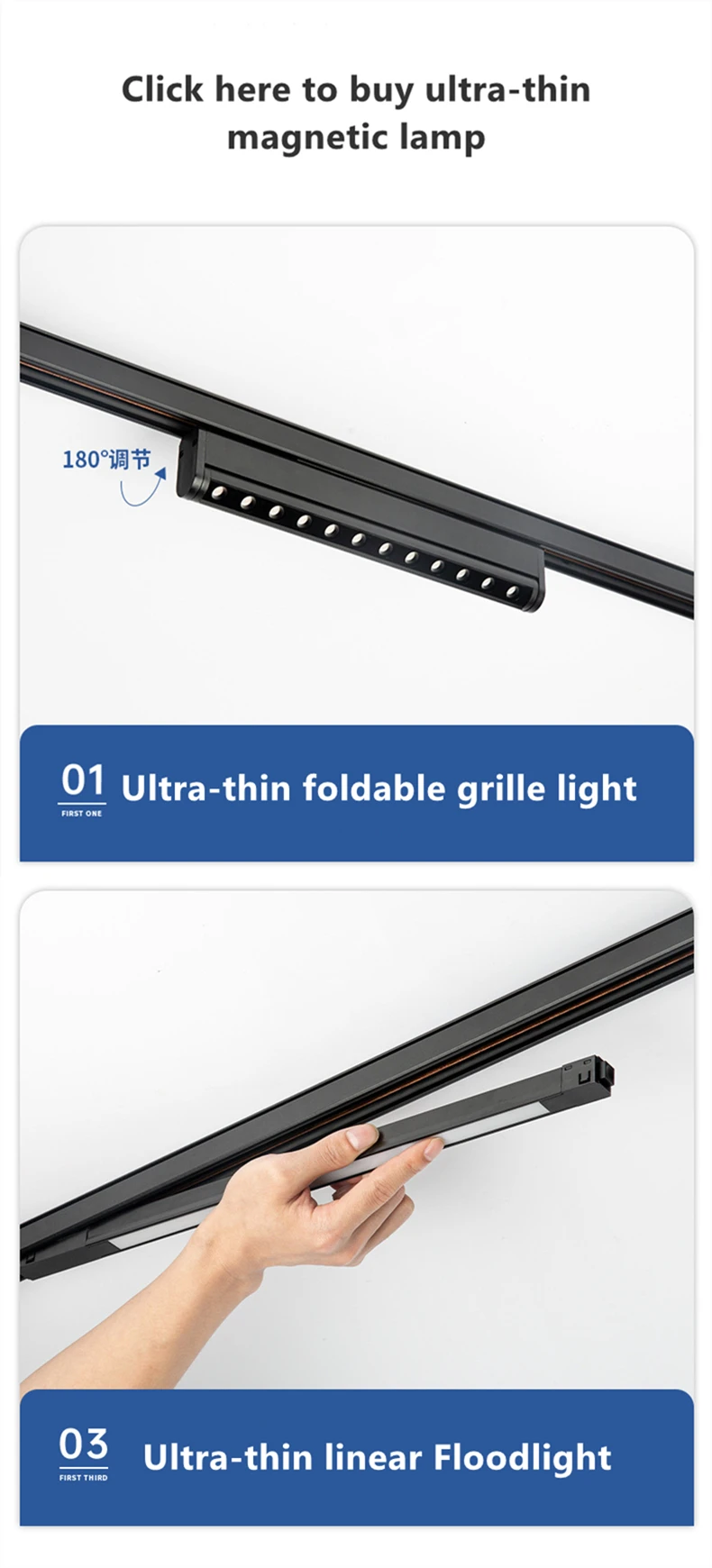

Potential system configurations can include different magnetic LED lighting modules for:
- General lighting
- Accent lighting
- Display lighting
- Linear lighting
- Decorative lighting
The product page itself focuses on the track, accessories, power supplies and system components. Compatible lighting modules should therefore be specified according to the actual project configuration rather than adding unconfirmed fixture specifications to this product page.

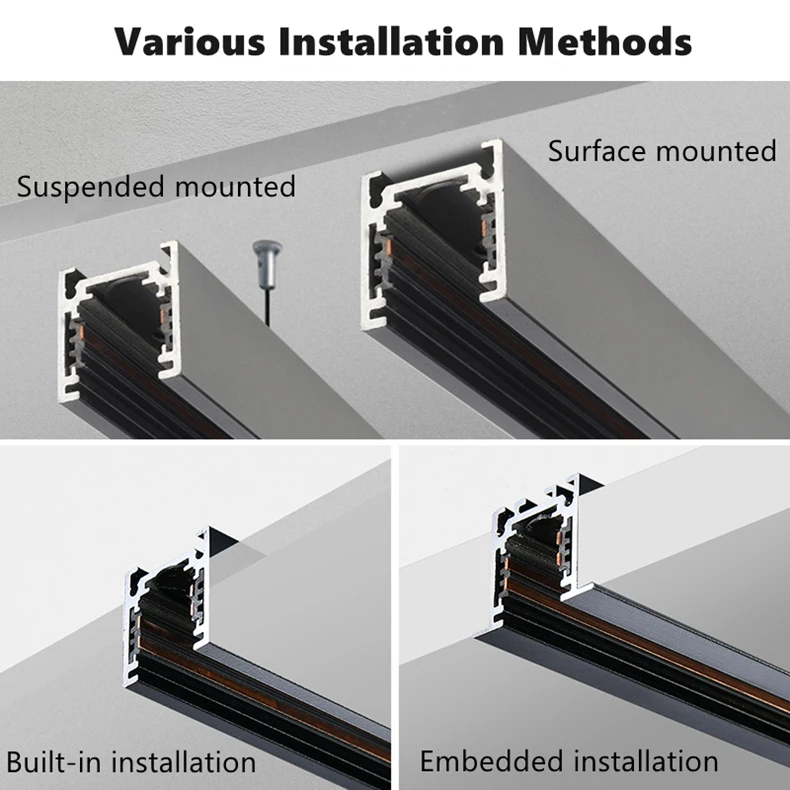

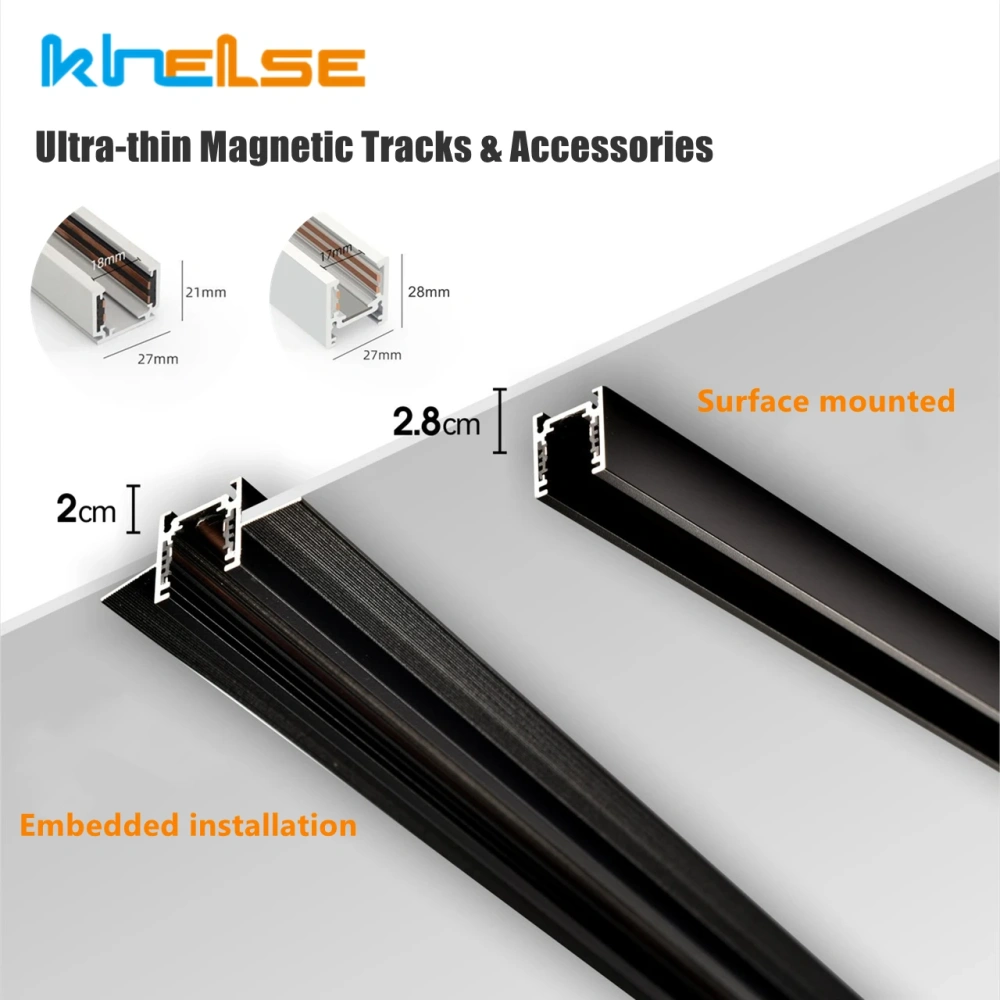

Installation
The system supports three primary installation methods:

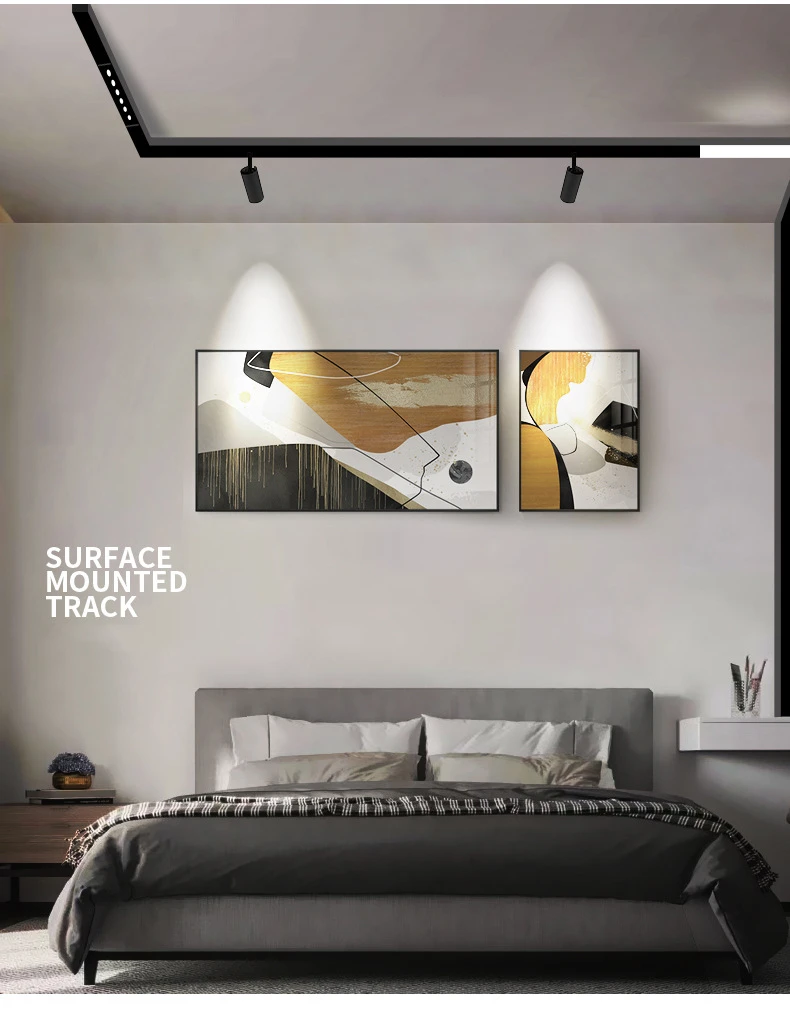

Surface Mounted
The magnetic rail can be mounted directly onto the ceiling surface.
This method is suitable for projects where the existing ceiling does not allow recessed track installation.

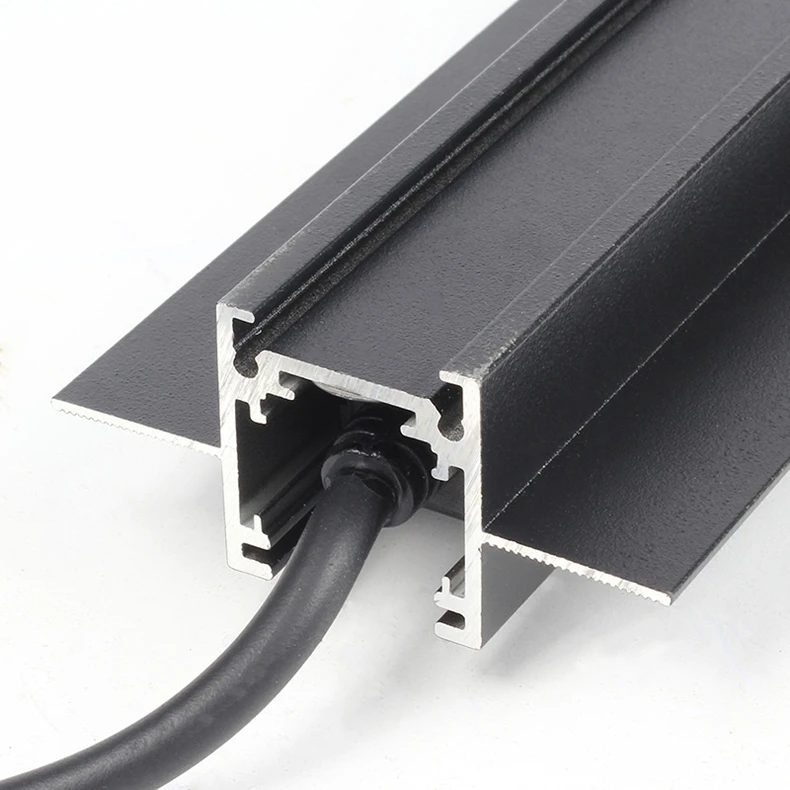

Embedded / Recessed
The track can be integrated into the ceiling to create a more concealed architectural appearance.

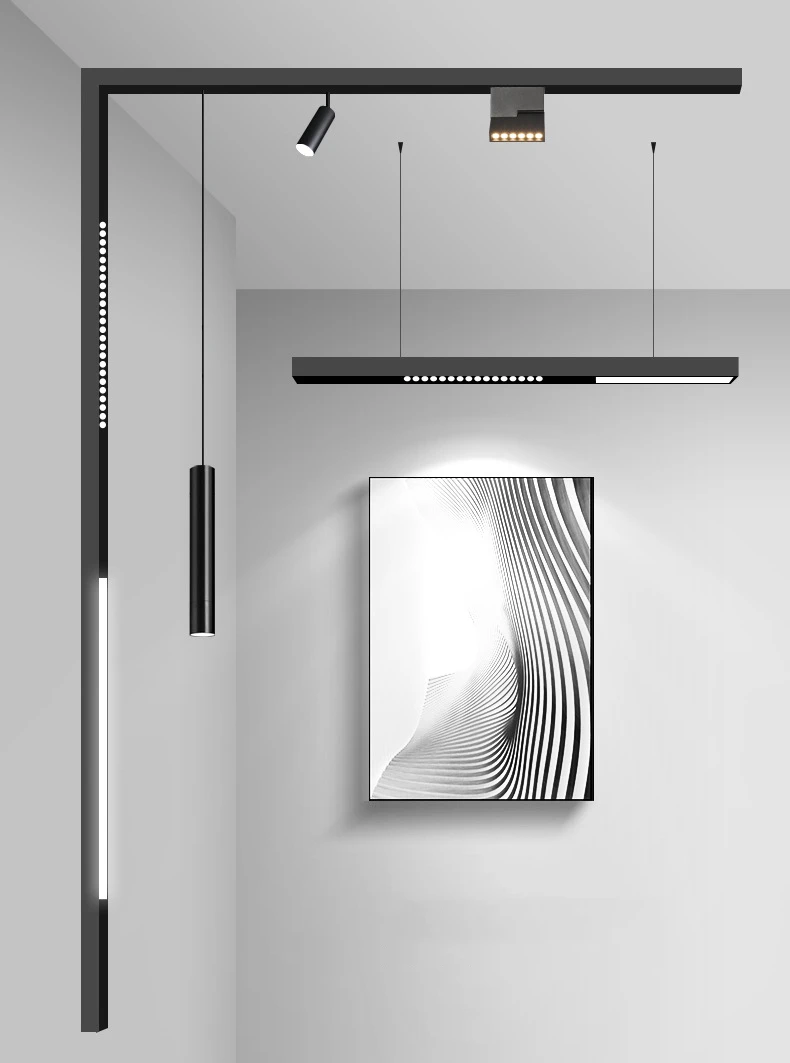

Suspended

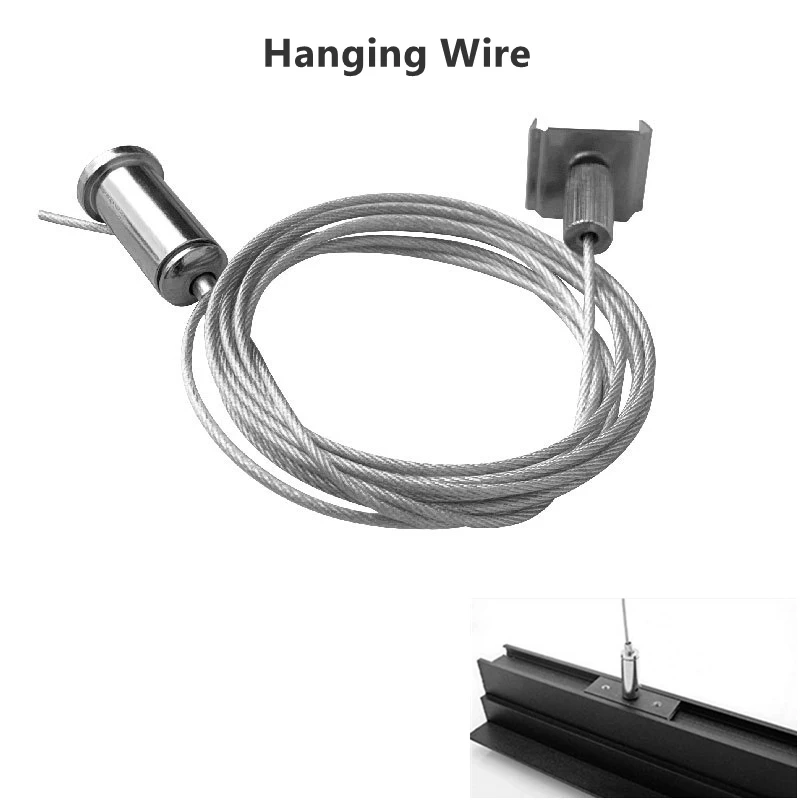

Hanging wire accessories can be used where a suspended magnetic track configuration is required.

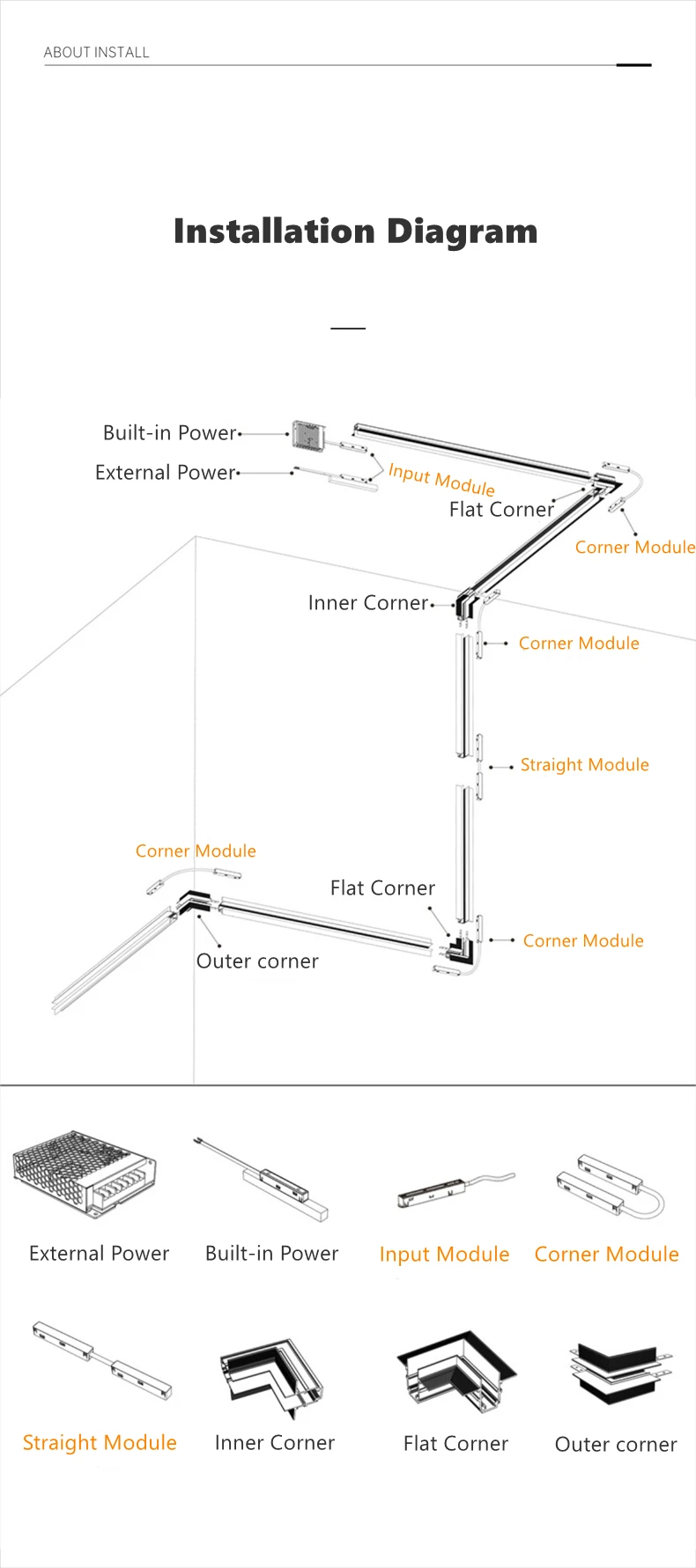

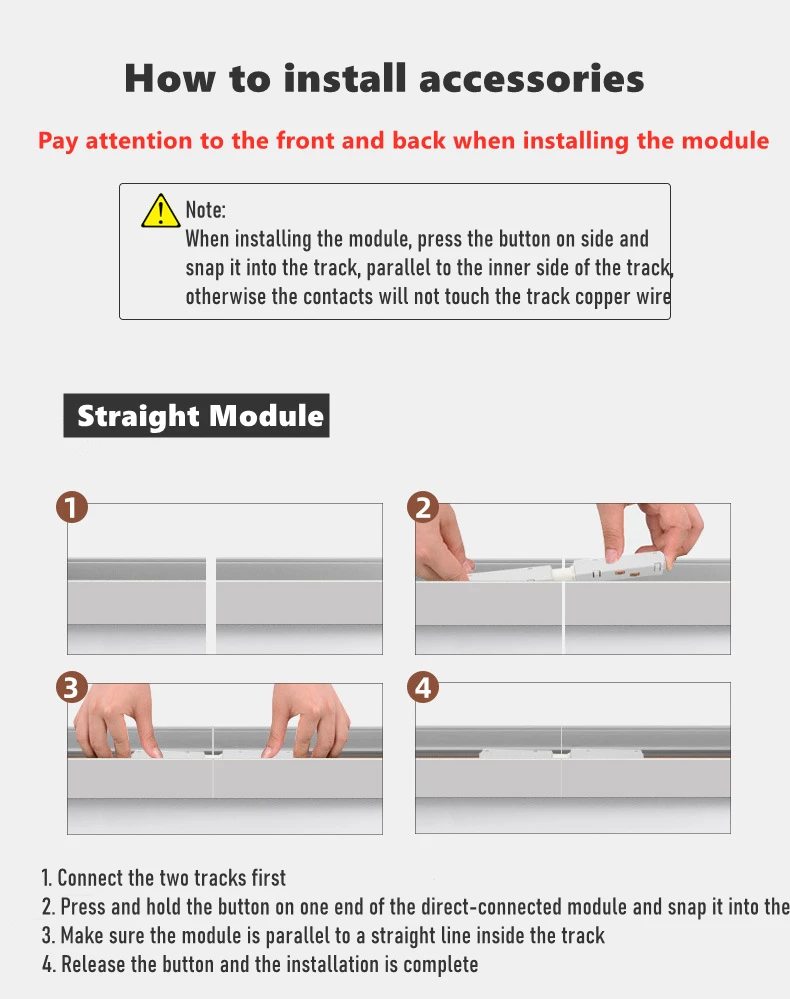

Recommended Installation Process
- Confirm the lighting layout.
- Select the required track sections.
- Determine the L/T/inner/outer corner configuration.
- Select the required input module.
- Select built-in or external power supply.
- Install the track according to the selected mounting method.

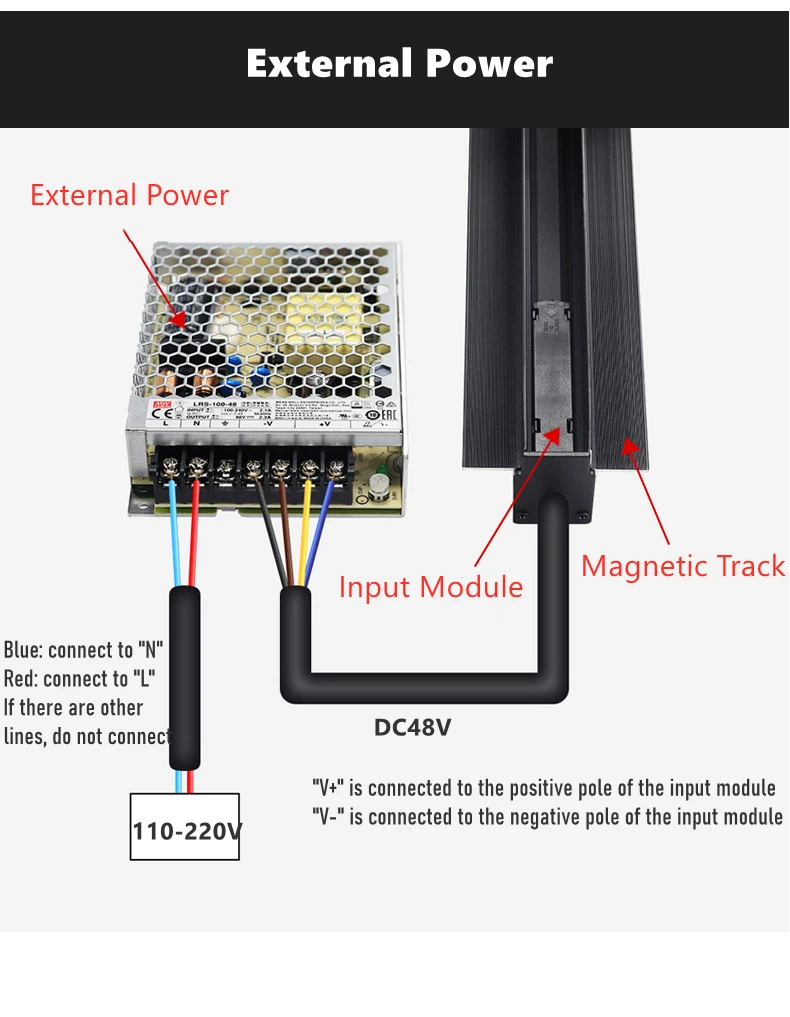

- Connect the DC48V power system.
- Install compatible magnetic lighting modules.
- Test the complete lighting circuit before final commissioning.
The final installation should follow the selected product configuration and applicable local electrical requirements.
Technical Specifications
| Specification |
Details |
| Product Type |
Ultra-Thin DC48V Magnetic Track System |
| Product No. |
1005004583423982 |
| System Type |
Modular Magnetic Track Lighting |
| Input Voltage |
AC110–240V |
| Output Voltage |
DC48V |
| Track Material |
Anodized Aluminum |
| Conductors |
Integrated Copper Wires |
| Magnetic Structure |
Magnetic Strip |
| Installation |
Surface / Suspended / Embedded |
| Track Length Options |
1M listed |
| Track Color |
Black / White |
| Track Options |
A / B / C / D configurations |
| Corner Options |
Flat L / Flat T / Inner / Outer |
| Modules |
Input / Straight / Corner |
| Built-in Power |
150W |
| External Power |
100W / 200W / 350W |
| Smart Option |
Zigbee Gateway |
| Suspension |
Hanging Wire |
| Warranty |
2 Years |
| Certification |
CCC / CE / RoHS |
| Country of Manufacture |
Mainland China |
| MOQ |
1pcs |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
| OEM/ODM |
Available |
Important Technical Accuracy Note
The page contains one conflicting statement describing the track as compatible with 24V DC input, while the detailed product specifications clearly state:
AC110V–240V input → DC48V output
and the product title itself identifies the system as DC48V. For SEO and product data consistency, I recommend correcting/removing the 24V wording unless there is a separate 24V module that is specifically being described.
Project Applications
Modern Residential Projects
The ultra-thin profile can be integrated into modern apartments, villas and residential interiors where a minimalist ceiling lighting system is required.
Retail Stores
The modular track can support changing display layouts and allow lighting modules to be repositioned according to merchandise arrangements.
Showrooms
Different magnetic modules can be combined to provide general illumination and accent lighting within the same ceiling system.
Hotels
The low-voltage magnetic track architecture can be specified for hotel rooms, corridors, reception areas and other interior spaces.
Restaurants & Cafes
The slim track format can be incorporated into decorative ceiling layouts while allowing lighting positions to be adjusted.
Commercial Offices
The system can be considered for offices, meeting rooms, reception areas and other commercial interiors requiring flexible lighting layouts.
Architectural Projects
For architects and lighting designers, the modular rail and corner components allow customized linear and geometric lighting layouts.
OEM/ODM
USKYLED can support OEM and ODM magnetic track lighting projects for distributors, wholesalers, contractors, lighting brands and architectural lighting companies.
Potential project support includes:
- Magnetic track system configuration
- Track length planning
- Black or white finish
- Track connector configuration
- Power supply selection
- Built-in or external power configuration
- Zigbee gateway integration
- Lighting module matching
- Packaging customization
- Private-label requirements
- Project-based product selection
For larger projects, customers can provide:
- Ceiling plan
- Track layout
- Required track length
- Number of lighting modules
- Installation method
- Power requirements
- Control requirements
USKYLED can then evaluate the system configuration and provide a project quotation.
CTA
Looking for an ultra-thin DC48V magnetic track system for a residential, retail, hotel or commercial lighting project?
Contact USKYLED for:
- Wholesale pricing
- Magnetic track system configuration
- Project quotations
- OEM/ODM
- Lighting module matching
- Custom track layouts
- Sample orders
MOQ: 1pcs
Sample Order Lead Time: 3–7 days
Mass Order Lead Time: 7–15 days
Send USKYLED your ceiling plan, track length and preferred installation method for a project-based quotation.
