Product Introduction
The USKYLED Cabinet LED Sensor Switch is a compact low-voltage sensor control solution designed for 12V and 24V LED cabinet, wardrobe and furniture lighting systems.
The product uses a detachable sensing head and plug-and-play wiring design, allowing manufacturers to integrate different sensing methods into furniture lighting applications without extensive rewiring.
Depending on the selected version, the sensor can provide door control, touch control, hand-wave control or PIR motion sensing. This makes the product suitable for cabinets, wardrobes, wine cabinets, shoe cabinets, kitchen furniture and other customized LED lighting systems.
Design

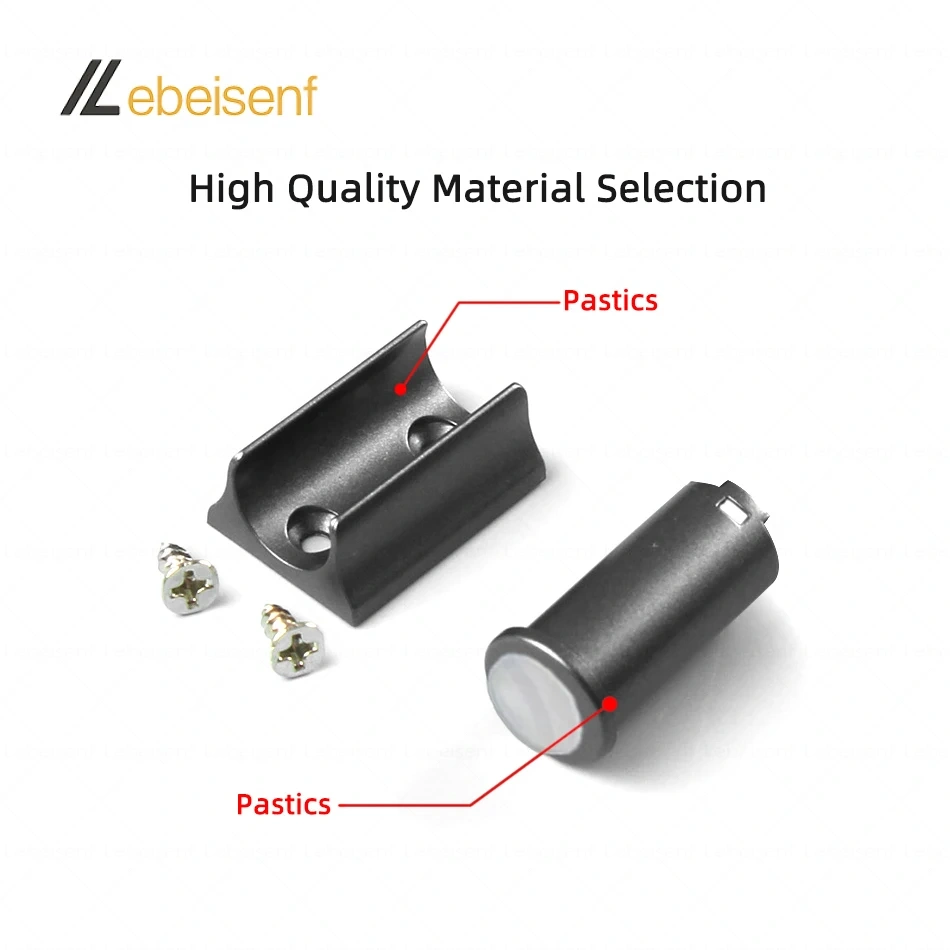

The sensor uses a compact ABS plastic housing with a detachable sensing head.
Its 3-pin DuPont wire and HY port design allows the sensing component to be connected to the main LED lighting system while maintaining a relatively simple installation structure.

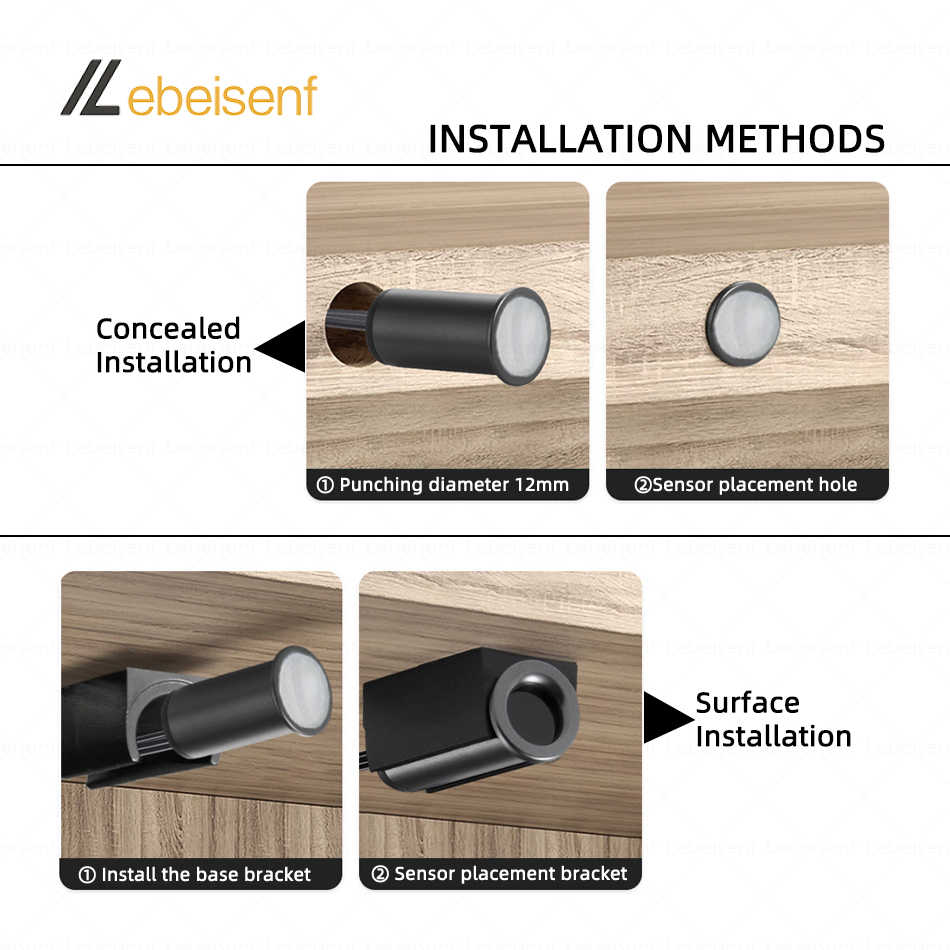

The sensor supports both:
- Surface-mounted installation
- Concealed installation
This makes it suitable for different furniture structures and installation environments.
The sensor head measures approximately 27 × 13.8 mm, with a required installation opening of approximately 12 mm diameter.
Main Features
Multiple Sensor Options

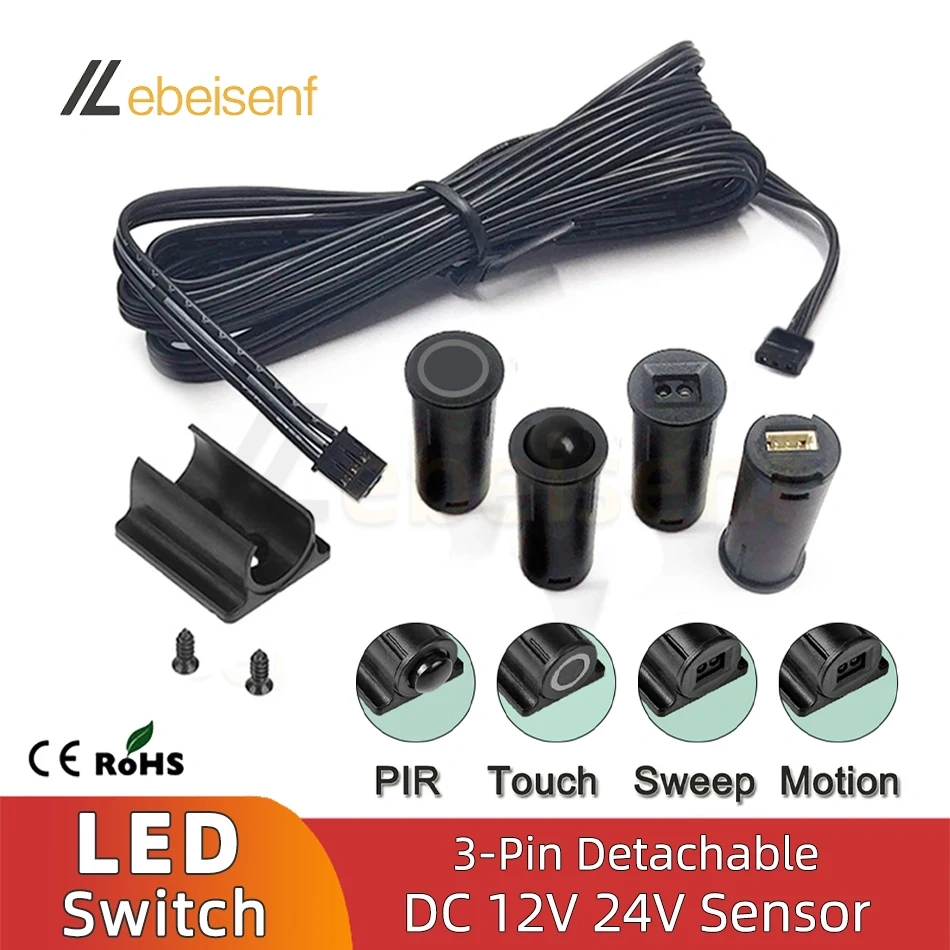

The product platform supports multiple control methods:

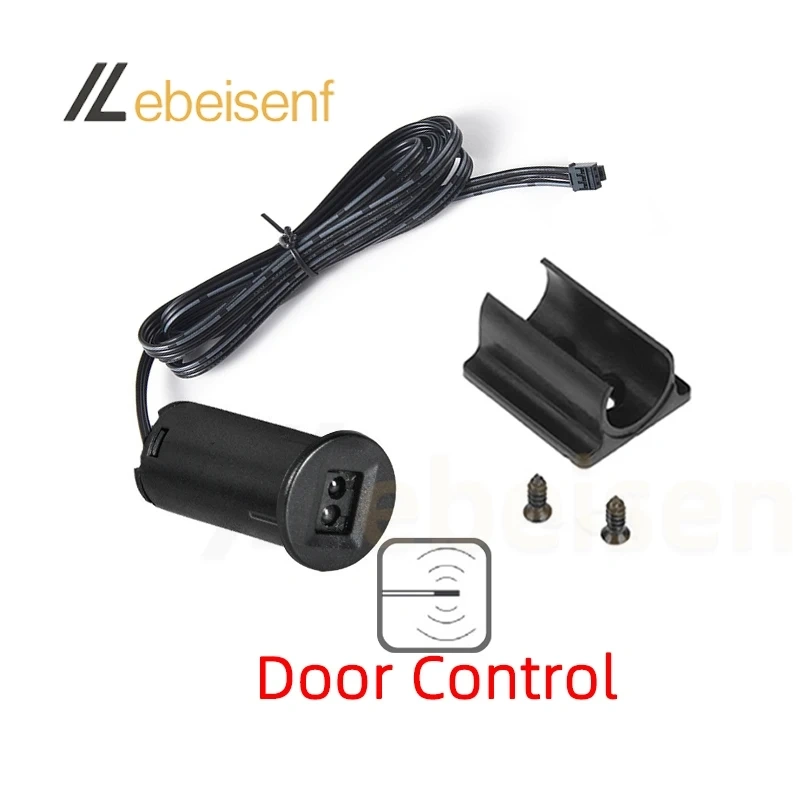

- Door Sensor

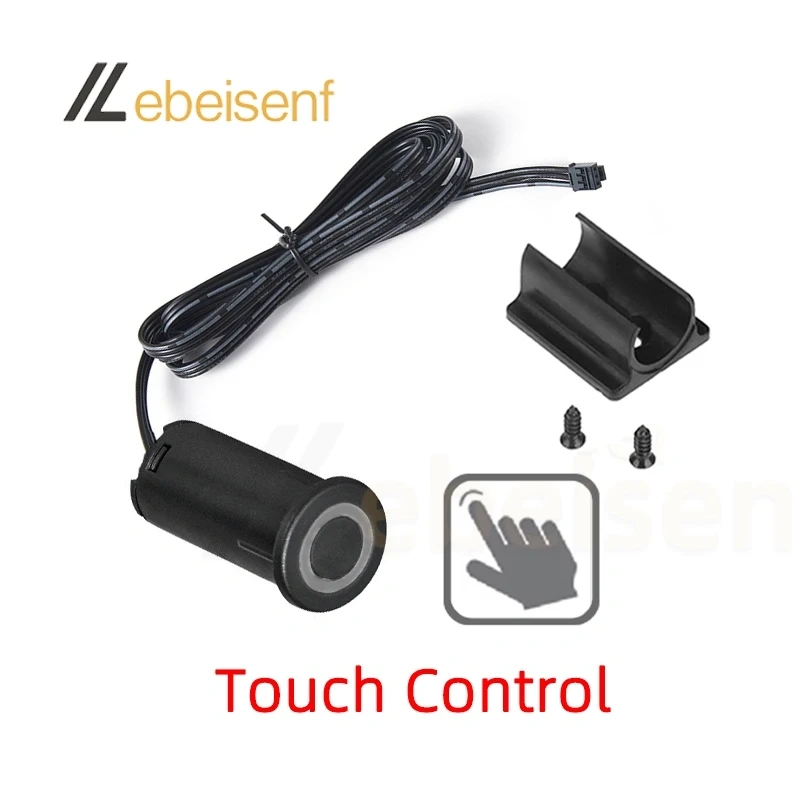

- Touch Sensor

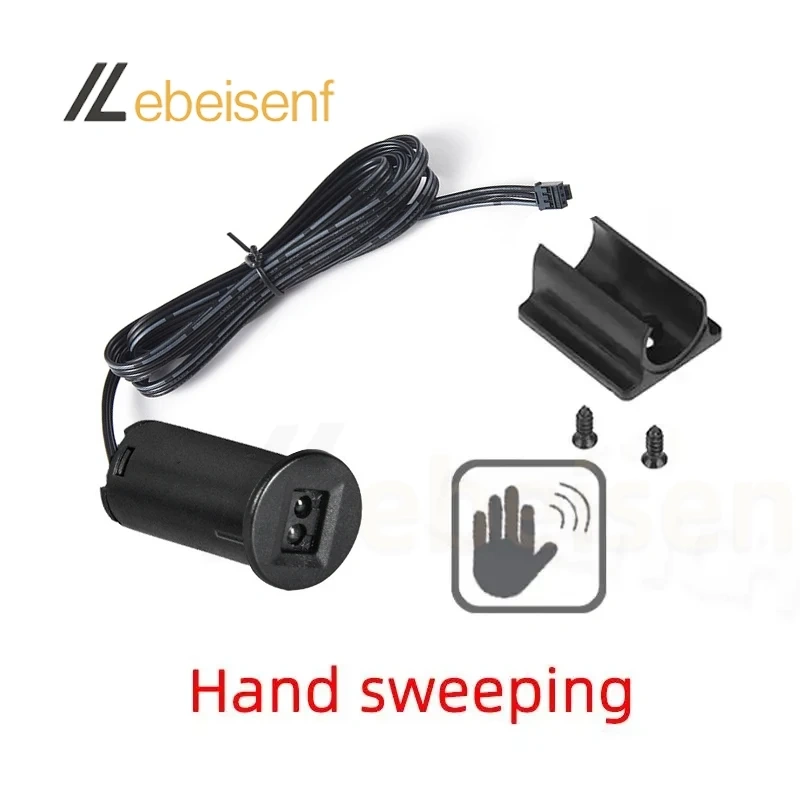

- Hand-Wave Sensor
- PIR Motion Sensor
This allows furniture manufacturers to select the appropriate control method for different lighting products.

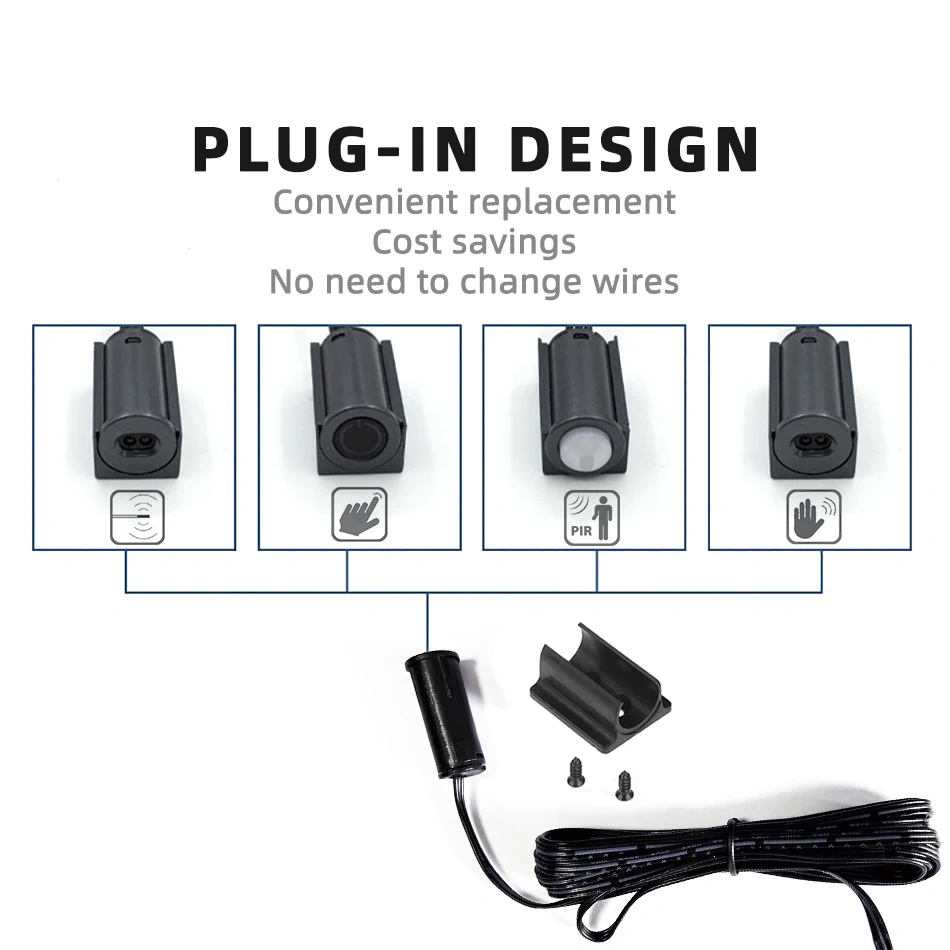

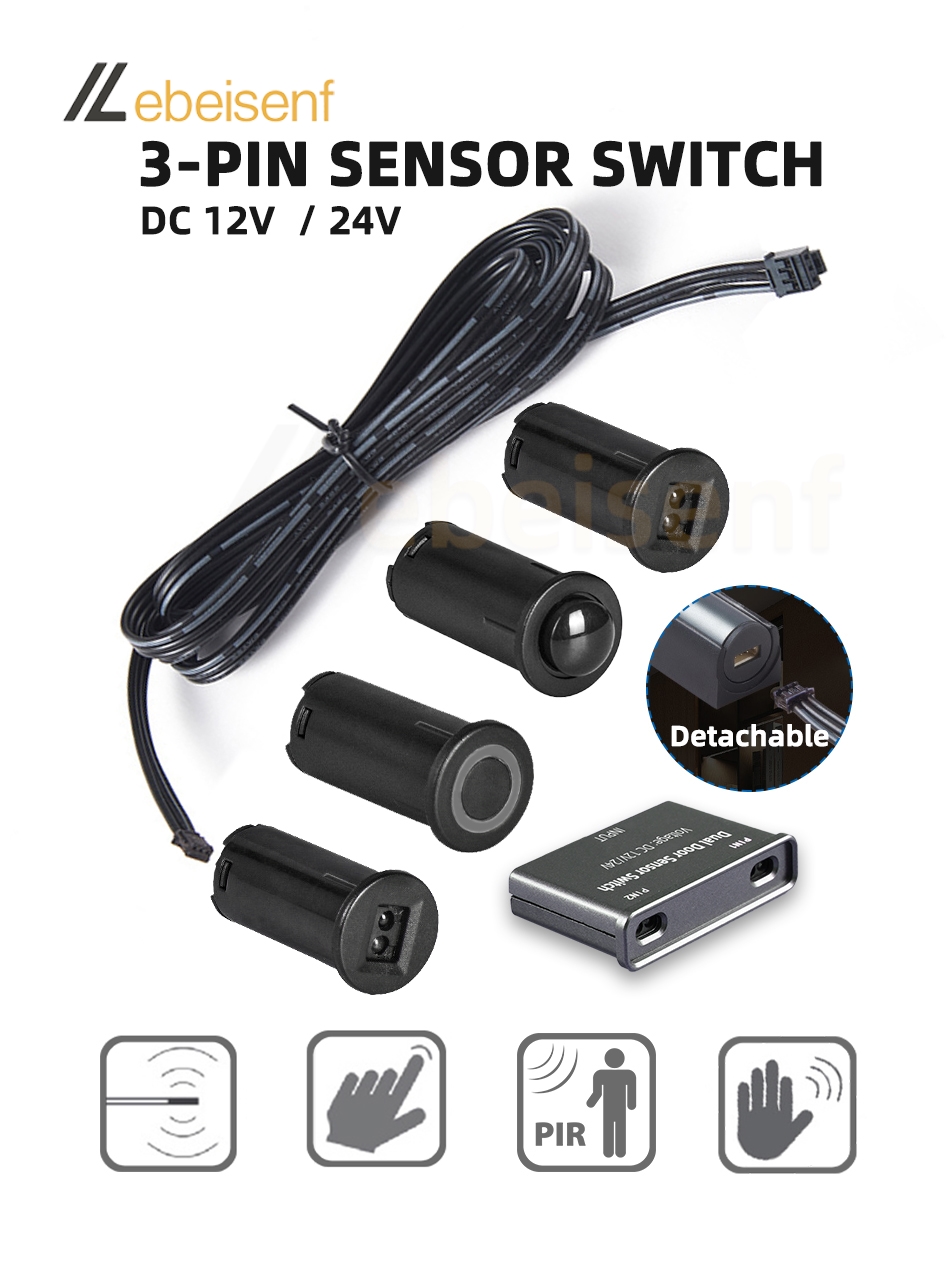

Detachable Sensor Head
The sensing head can be detached, making installation and product integration easier.
The product page specifically describes the sensor as plug and play and designed to avoid rewiring during installation.
12V / 24V Compatibility
The product is designed for DC 12V or DC 24V low-voltage LED lighting systems.
3-Pin Wiring

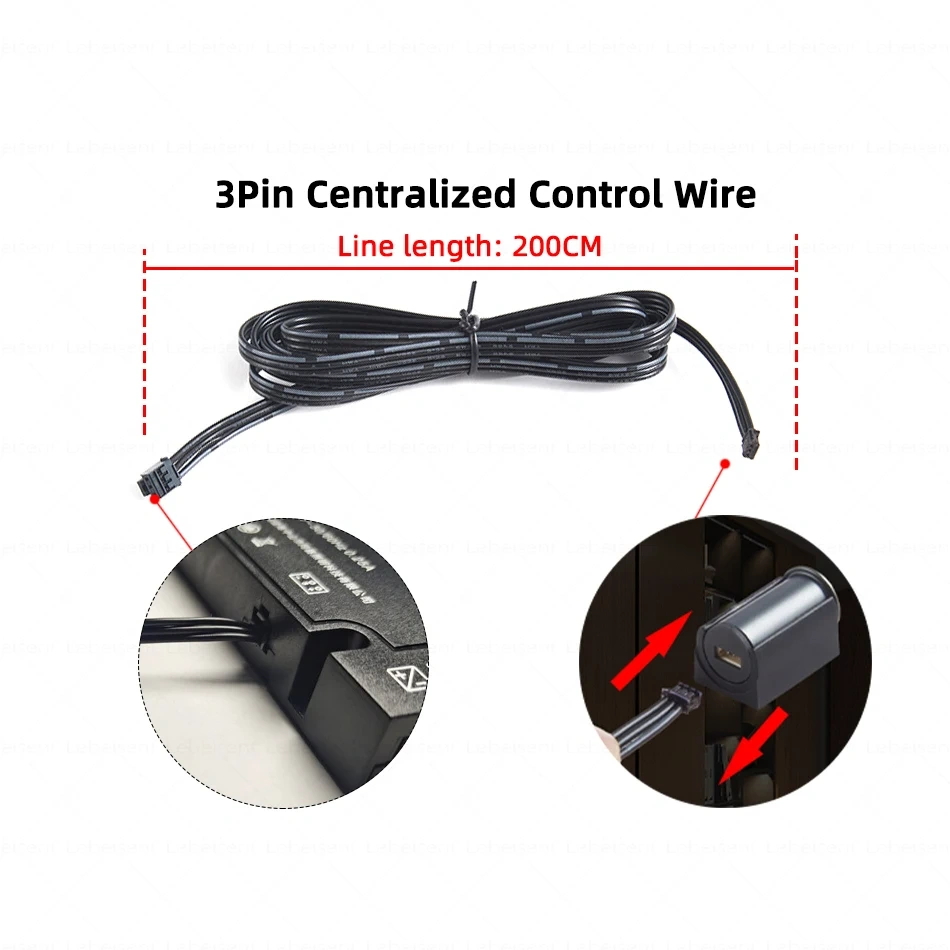

The controller uses a 3-pin DuPont wire with a 3-pin HY port for connection to the LED lighting system.
Surface or Concealed Installation
The sensor can be installed either on the surface or in a concealed position, giving furniture manufacturers greater flexibility when designing cabinet lighting systems.
Multiple Product Configurations
The available variants shown on the product page include:
- Door Control
- Touch

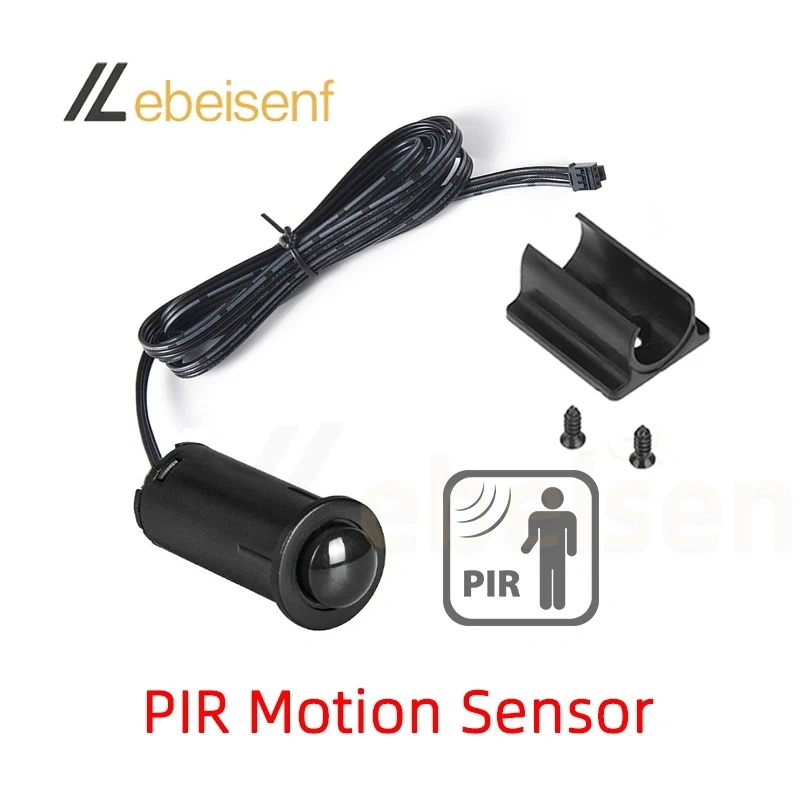

- PIR Sensing
- Hand Waving

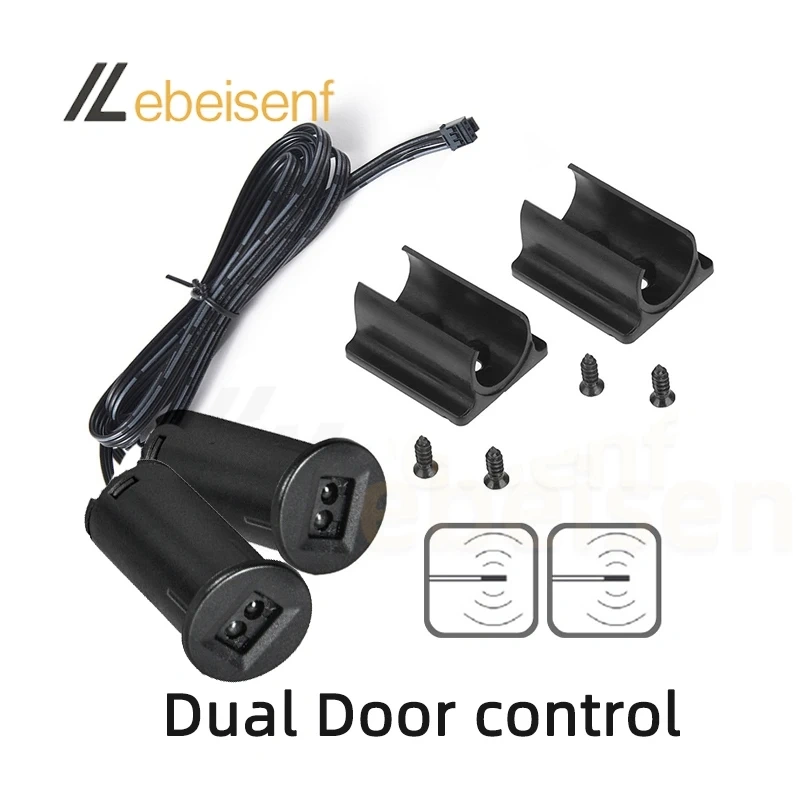

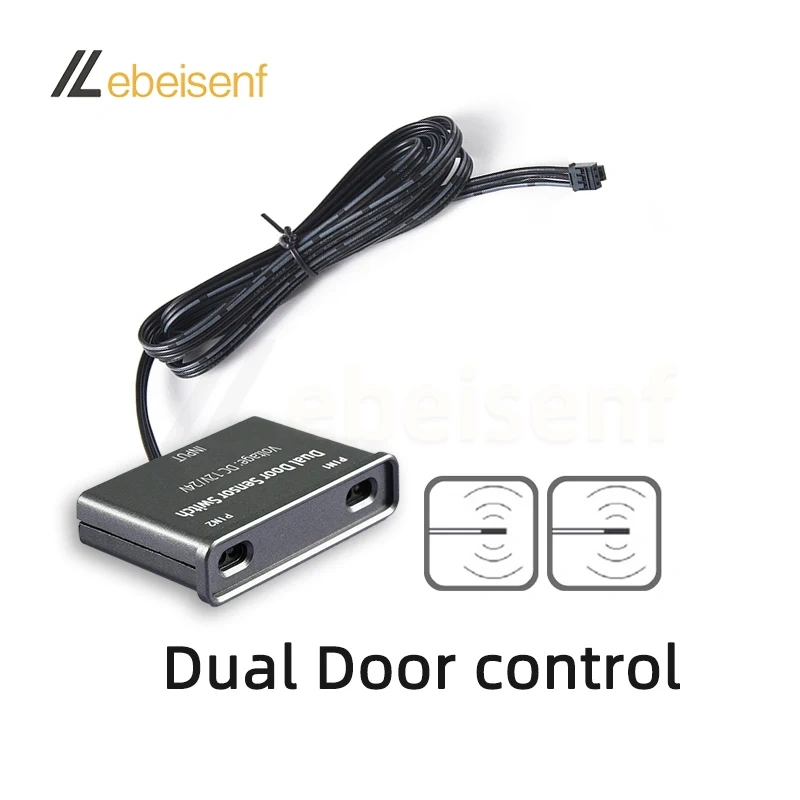

- Dual Door Control
- 2-in-1 Door Control
This provides flexibility for different cabinet and furniture lighting designs.

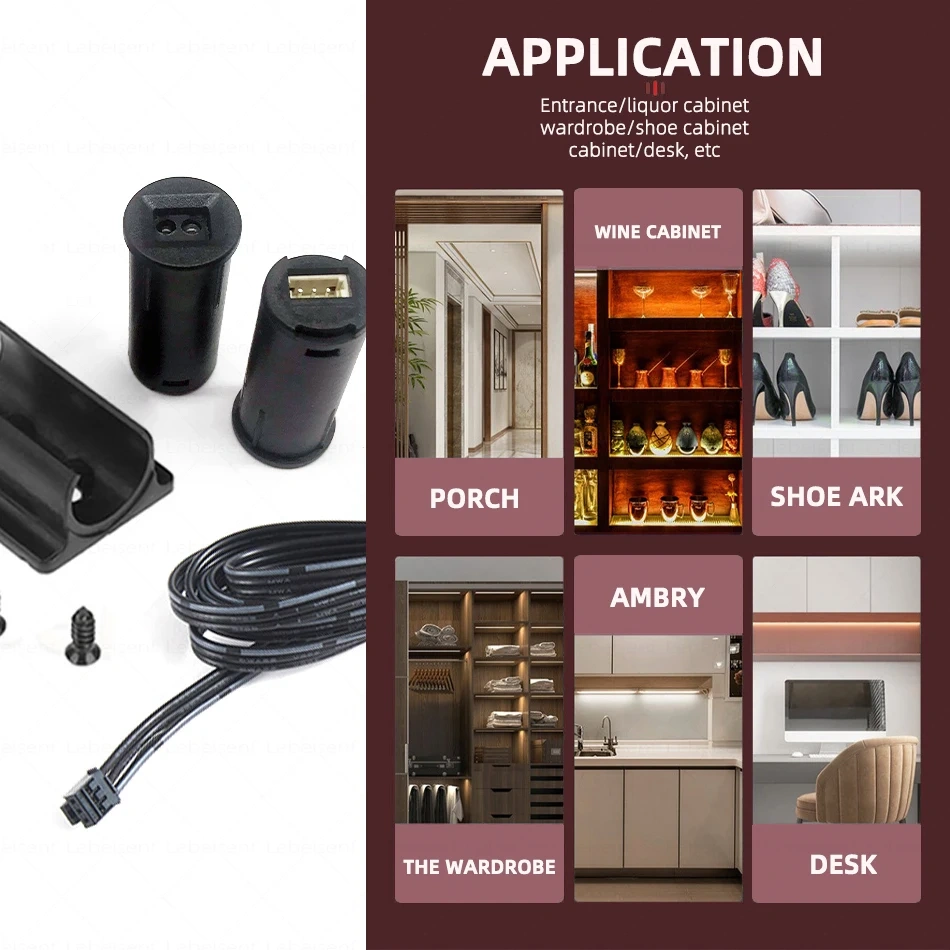

Application
The sensor switch is designed for:
- Kitchen cabinets
- Wardrobes
- Bedroom furniture
- Wine cabinets
- Shoe cabinets
- Bathroom cabinets
- Living room furniture
- Display cabinets
- Shelving
- Custom furniture lighting
The page specifically lists bedroom, kitchen, living room, bathroom cabinet, wardrobe, wine cabinet and shoe cabinet applications.
Size / Options
The main sensor specifications are:
| Item |
Specification |
| Sensor Size |
27 × 13.8 mm |
| Installation Opening |
Ø12 mm |
| Wire Length |
200 cm |
| Wire Type |
3-Pin DuPont |
| Connector |
3-Pin HY Port |
| Material |
ABS Plastic |
| Installation |
Surface / Concealed |
| Voltage |
DC 12V / 24V |
Lighting Options
The sensor switch is designed to control compatible 12V/24V low-voltage LED lighting systems.
Typical applications include:
- LED cabinet strips
- LED wardrobe lights
- LED furniture lights
- LED shelf lights
- LED linear lights
- Under-cabinet LED lighting
- Display cabinet lighting
- Closet LED lighting
The appropriate sensor version can be selected according to the desired lighting control method.
Installation
A typical installation process is:
- Confirm the LED system uses DC 12V or DC 24V.
- Select the appropriate sensor type.
- Prepare the required Ø12mm installation opening where applicable.
- Install the sensor head using surface or concealed mounting.
- Connect the 3-pin DuPont wire.
- Connect the HY port to the compatible LED lighting control system.
- Connect the LED driver and LED load.
- Test the sensor response before final installation.
For professional furniture production, the sensor position should be determined during cabinet or furniture design to provide reliable detection.
Technical Specifications
| Specification |
Details |
| Product Type |
Cabinet LED Sensor Switch |
| Input Voltage |
DC 12V / 24V |
| Power |
Dependent on LED Driver Power Supply |
| Material |
ABS Plastic |
| Sensor Size |
L27 × D13.8 mm |
| Opening Size |
Ø12 mm |
| Wire Length |
200 cm |
| Wire Type |
3-Pin DuPont Wire |
| Connector |
3-Pin HY Port |
| Installation |
Surface Mounted / Concealed |
| Control Methods |
Door / Touch / Hand Wave / PIR |
| Door Sensor Distance |
1–3 cm |
| Hand-Wave Distance |
1–8 cm |
| PIR Detection Distance |
1–3 m |
| PIR Detection Angle |
120° |
| PIR Function |
People Come ON / People Leave OFF with Delay |
| Touch Function |
Touch ON / Touch OFF / Long Press Dimming |
| Door Function |
Door Open ON / Door Close OFF |
| Hand-Wave Function |
Sweep Hand ON / Sweep Hand OFF |
| MOQ |
1 Piece |
| Sample Lead Time |
3–7 Days |
| Mass Order Lead Time |
7–15 Days |
| OEM/ODM |
Available |
Project Applications
Kitchen Cabinet Lighting
Use the sensor switch with 12V/24V LED strips or cabinet lights to provide convenient hands-free or door-controlled lighting.
Wardrobe Lighting
Door or hand-wave sensing can be integrated into wardrobes for automatic or touch-free lighting control.
Wine Cabinet Lighting
The compact sensor can be integrated into wine cabinets where discreet LED lighting control is required.
Shoe Cabinet Lighting
Door-control sensing can automatically activate LED lighting when the cabinet is opened.
Bathroom Cabinet Lighting
Suitable for low-voltage cabinet lighting systems where a compact sensor is preferred.
Furniture Lighting
Furniture manufacturers can integrate the sensor into customized cabinets, shelves, wardrobes and display furniture.
Commercial Display Cabinets
The sensor can also be used for retail displays and furniture-based lighting systems.
OEM/ODM
USKYLED supports OEM and ODM cabinet lighting sensor solutions for furniture manufacturers, cabinet manufacturers, LED lighting brands, distributors and project customers.
OEM/ODM requirements can include:
- Sensor configuration
- Touch / Wave / Door / PIR selection
- Cable length
- Connector configuration
- Product color
- Product labeling
- Packaging
- Furniture-specific installation
- Project-specific sensor requirements
For furniture manufacturers purchasing in volume, USKYLED can help select a suitable sensing method based on the cabinet structure and LED lighting system.
Mass Order & Sample Lead Time
Mass Order Lead Time: 7–15 Days
Sample Order Lead Time: 3–7 Days
MOQ: 1 Piece
The 1-piece MOQ allows customers to test the sensor before bulk production.
Suitable for:
- Furniture prototypes
- Cabinet lighting samples
- LED product development
- Project testing
- Smart furniture development
- Pre-production evaluation
