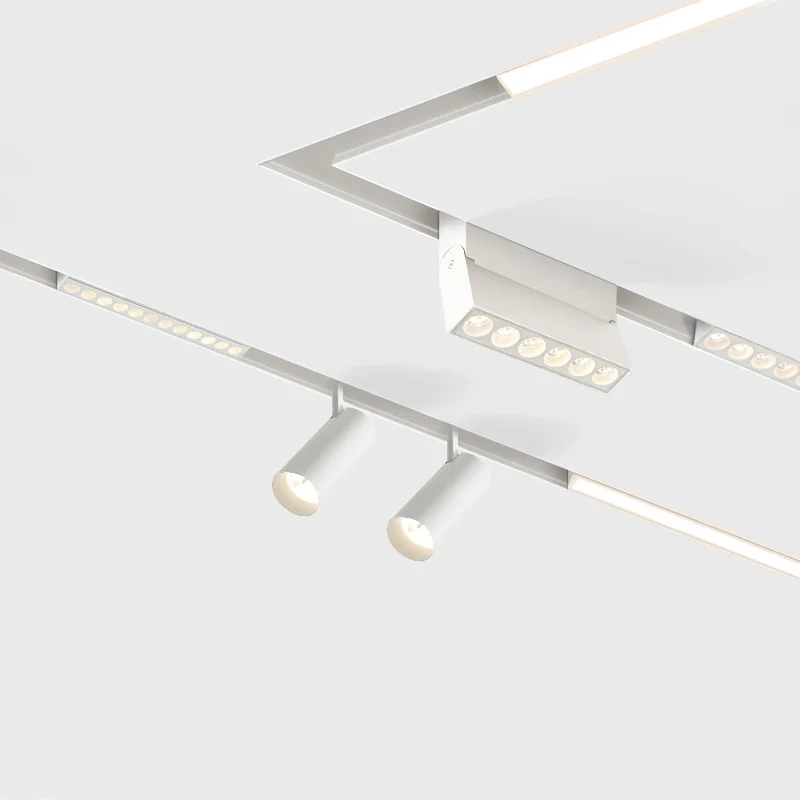

H2 Product Introduction
The DC48V Recessed Magnetic Track Light System is designed for modern interior lighting where flexible fixture positioning and a clean ceiling appearance are required.
Unlike conventional fixed ceiling lights, the magnetic track system combines a recessed track rail with interchangeable LED lighting modules. This allows lighting designers, contractors and project buyers to create different lighting layouts using spotlights, grille lights and floodlights on the same magnetic rail system.
The product page currently offers multiple fixture configurations, including 6W, 12W, 18W and 24W grille lights; 12W, 24W and 36W floodlights; 6W–18W fold spotlights and floodlights; and 5W, 7W, 12W and 24W spotlights.

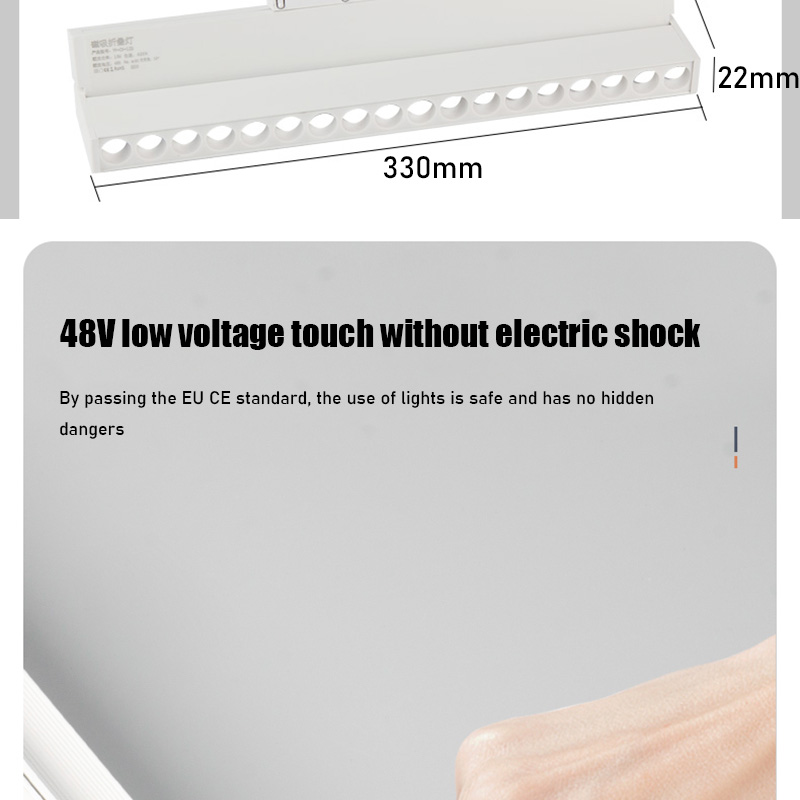

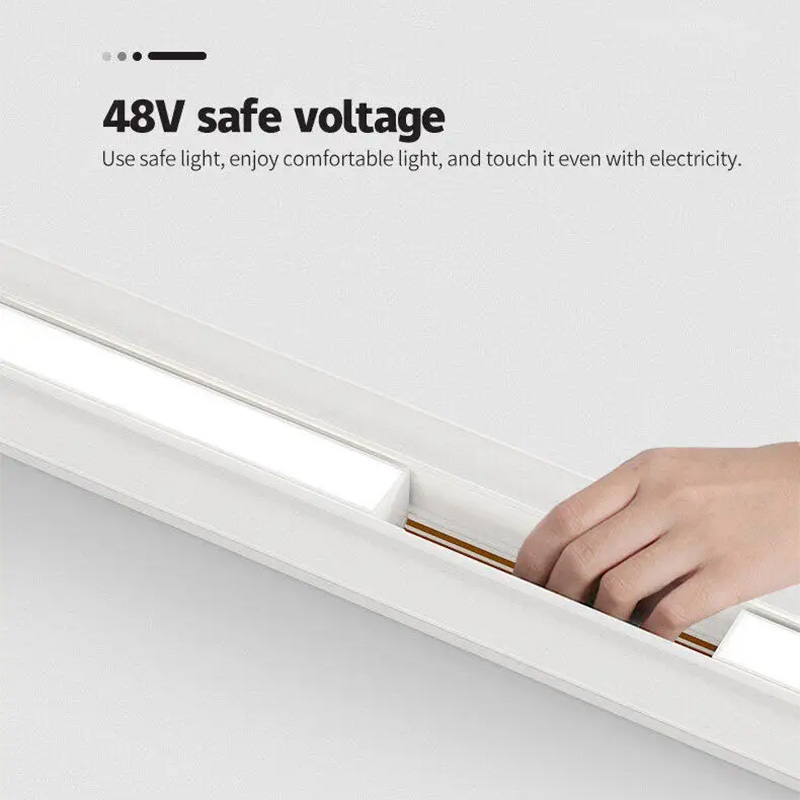

The system uses a DC48V low-voltage output, supplied by a transformer. The listed transformer accepts AC220–240V input and provides DC48V output; alternative input-voltage configurations can be discussed for different markets.
H3 Design
The system features a compact modern design intended to integrate with contemporary ceilings and interior architecture.
The white fixture finish provides a clean appearance for residential and commercial spaces, while the die-cast aluminum construction provides a stable and durable housing.

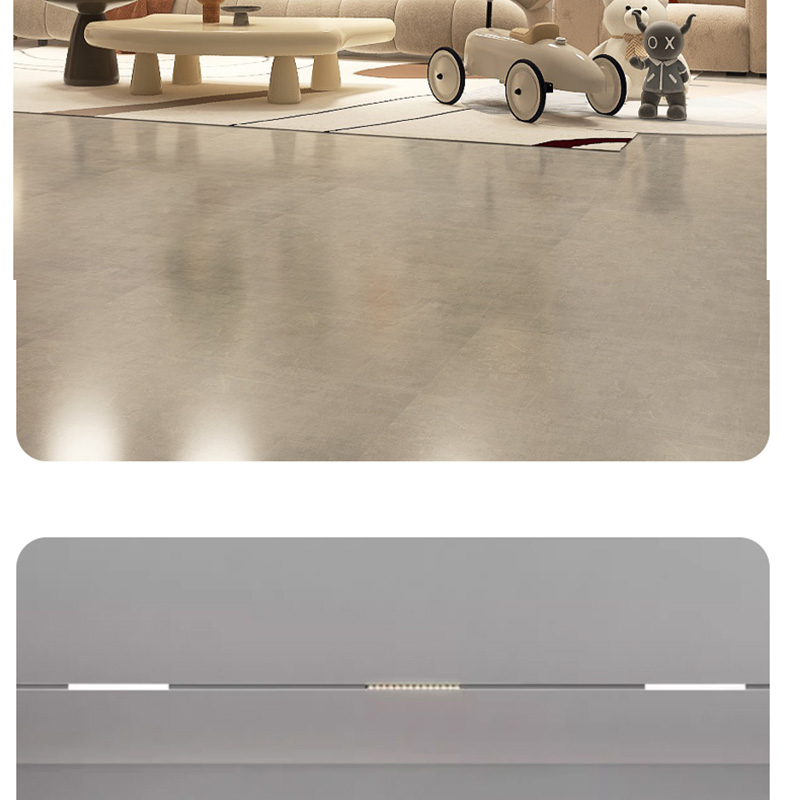

The recessed magnetic track configuration helps maintain a minimalist ceiling appearance while allowing individual light modules to be repositioned or changed according to the lighting plan.
H3 Main Features
- DC48V low-voltage magnetic track lighting system
- Recessed magnetic rail installation
- CRI90+ LED lighting
- OSRAM LED chips
- Die-cast aluminum construction
- White fixture finish
- Multiple spotlight and floodlight configurations
- 5W–36W fixture options
- Modular magnetic installation
- Suitable for residential and commercial interiors
- AC220–240V to DC48V transformer option
- Multiple track configurations
- Flexible system configuration for lighting projects
The original product page specifically identifies die-cast aluminum, white housing, LED light source, CRI above 90 and OSRAM chips.
H3 Application

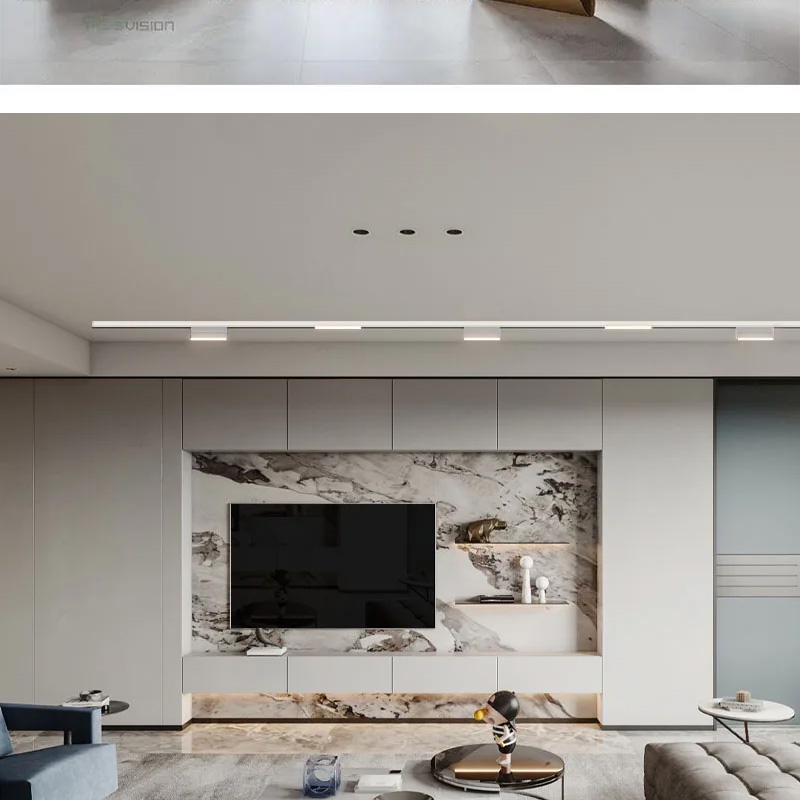

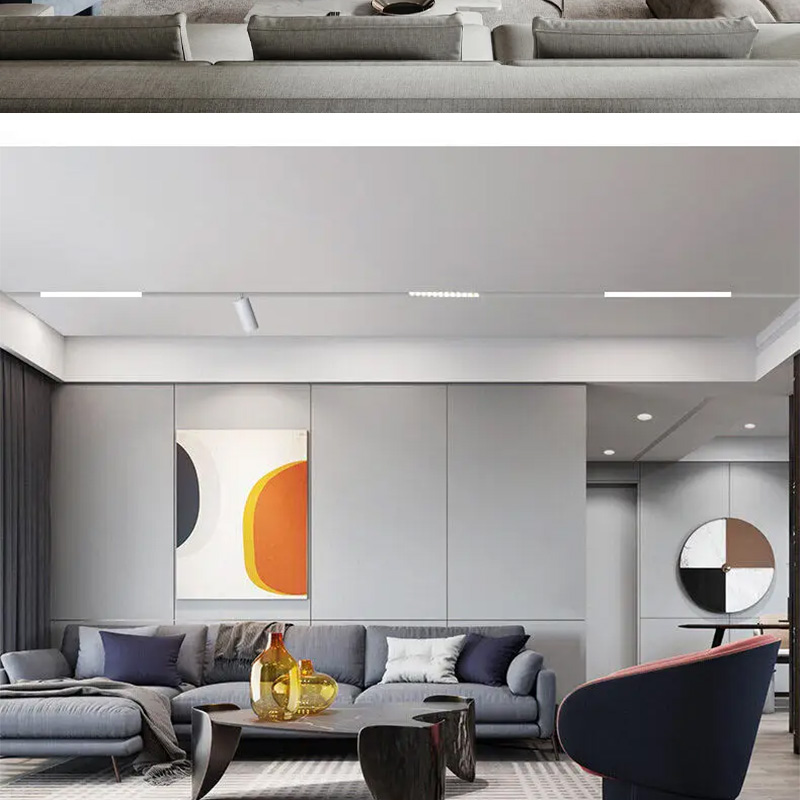

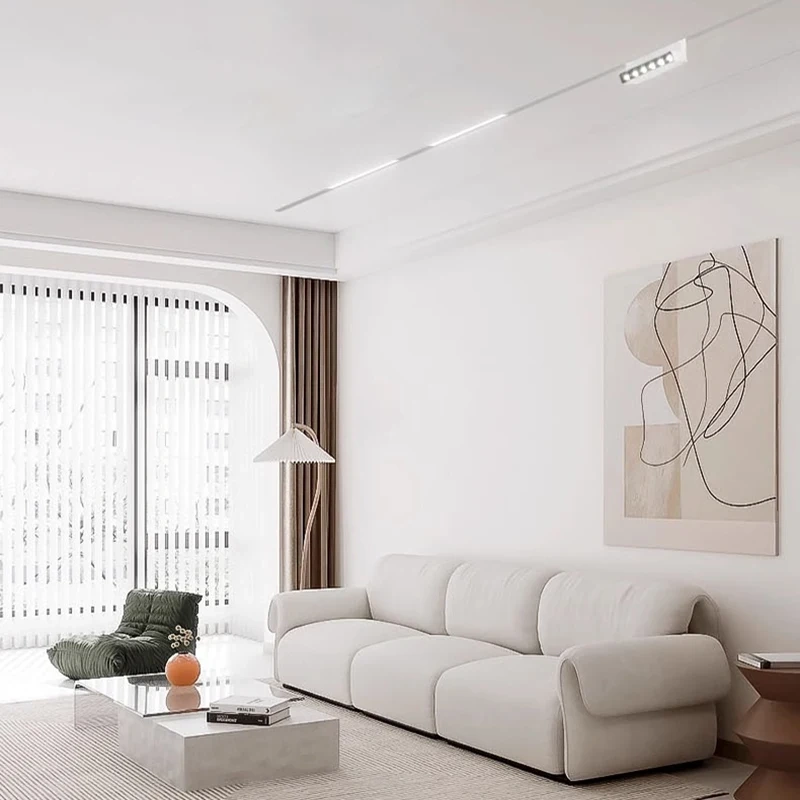

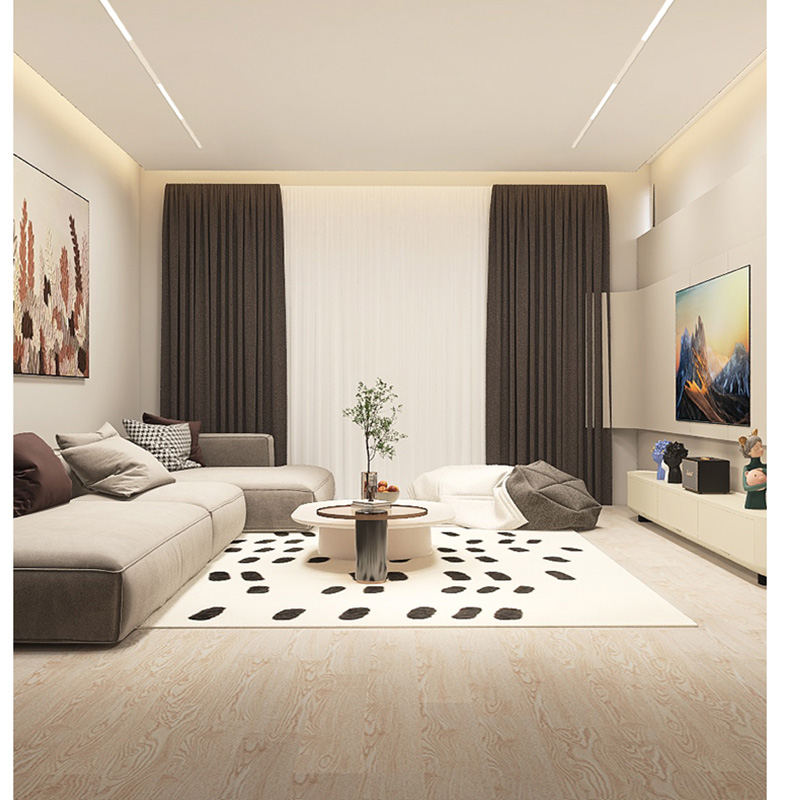

The recessed magnetic track light system can be used for:

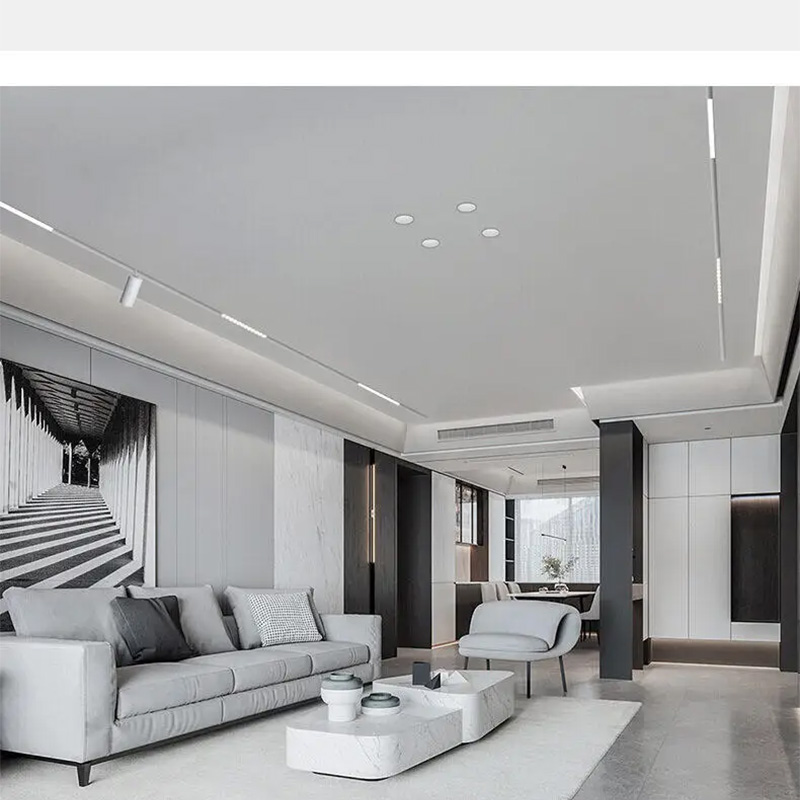

- Living rooms

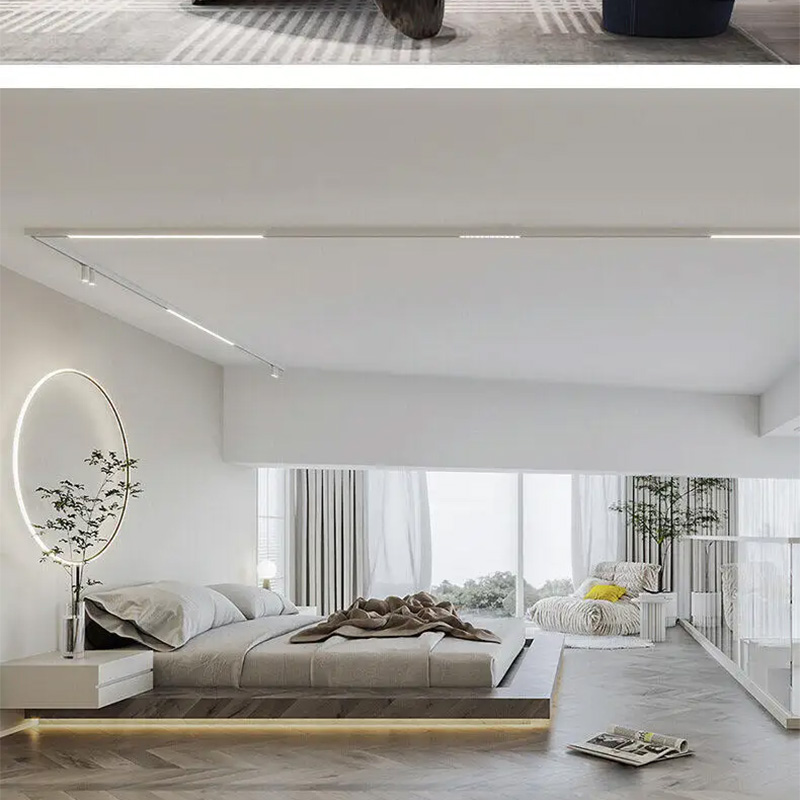

- Bedrooms
- Foyers
- Hallways
- Studies
- Kitchens
- Hotels
- Boutiques
- Retail stores
- Shopping malls
- Cafés
- Bars
- Museums
- Display halls
- Commercial interiors
The existing page also identifies hotels, supermarkets, display halls, museums, boutiques, KTVs, bars, cafés and shopping malls as application environments.
H3 Size / Options
The product is available with multiple fixture and track configurations.

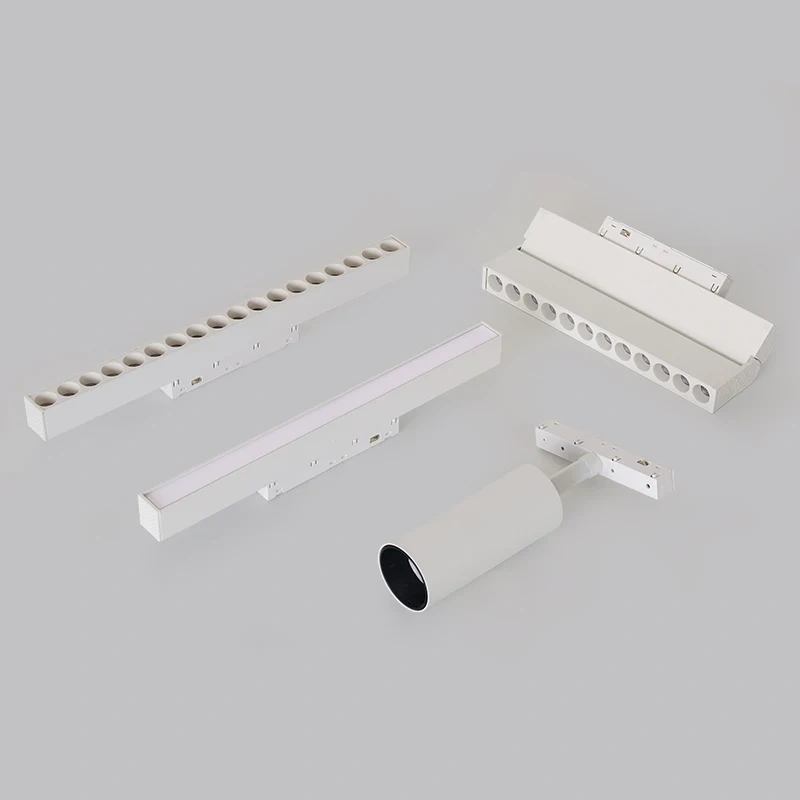

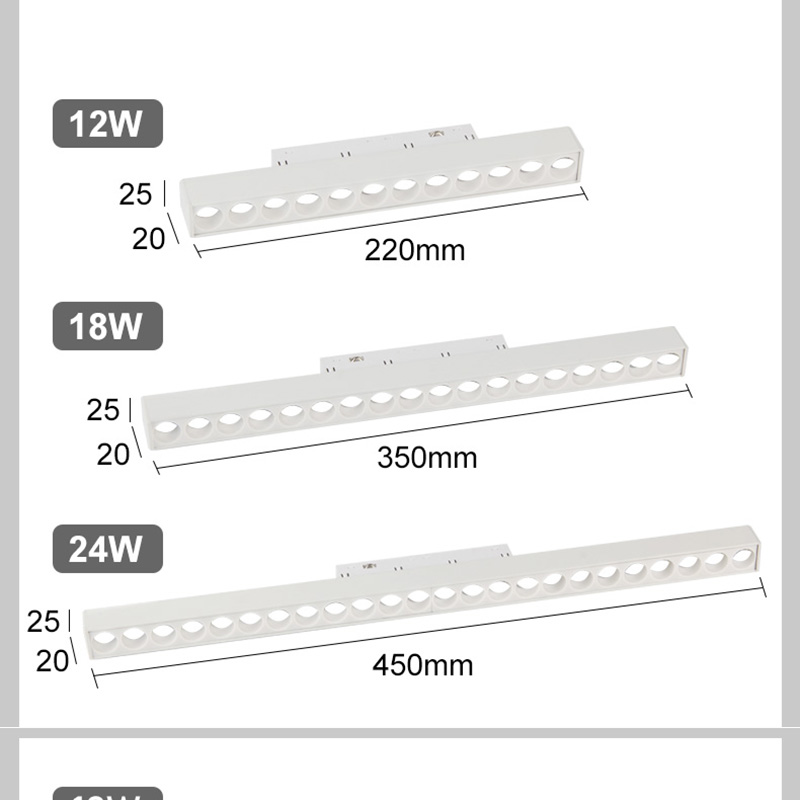

Light module options:

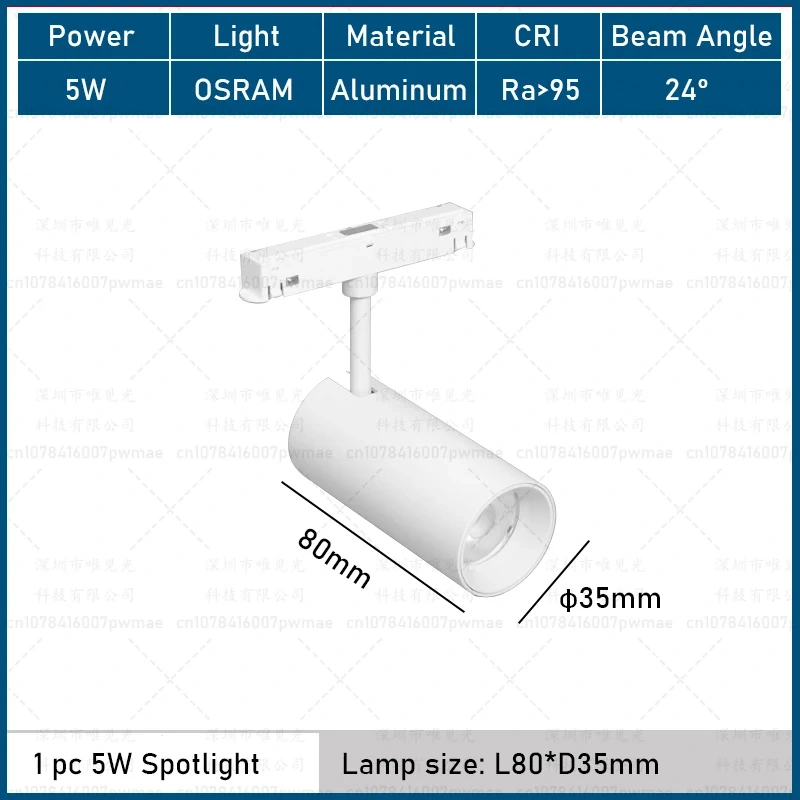

- 5W Spotlight

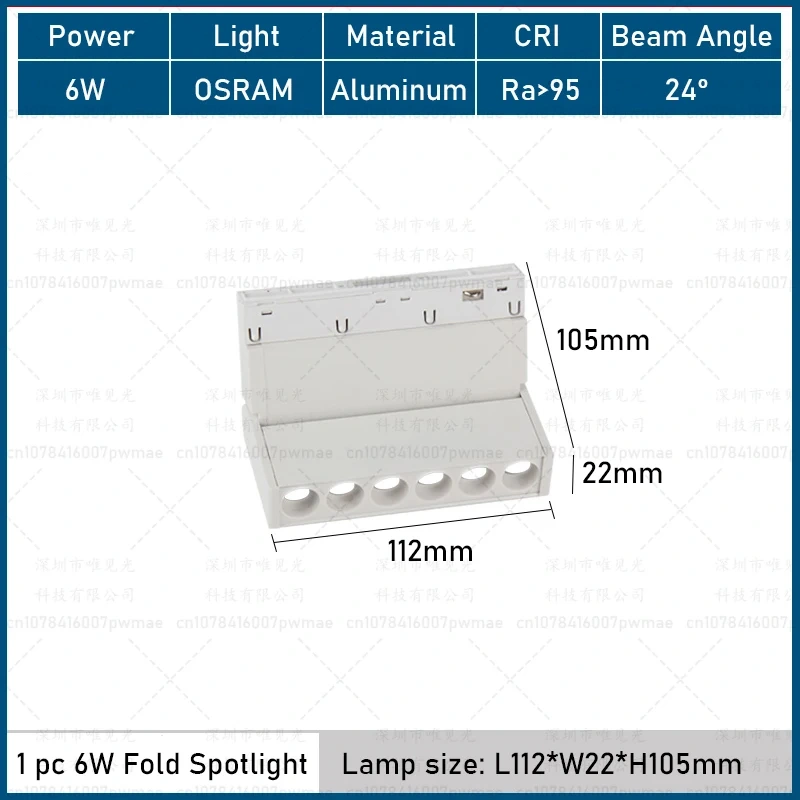

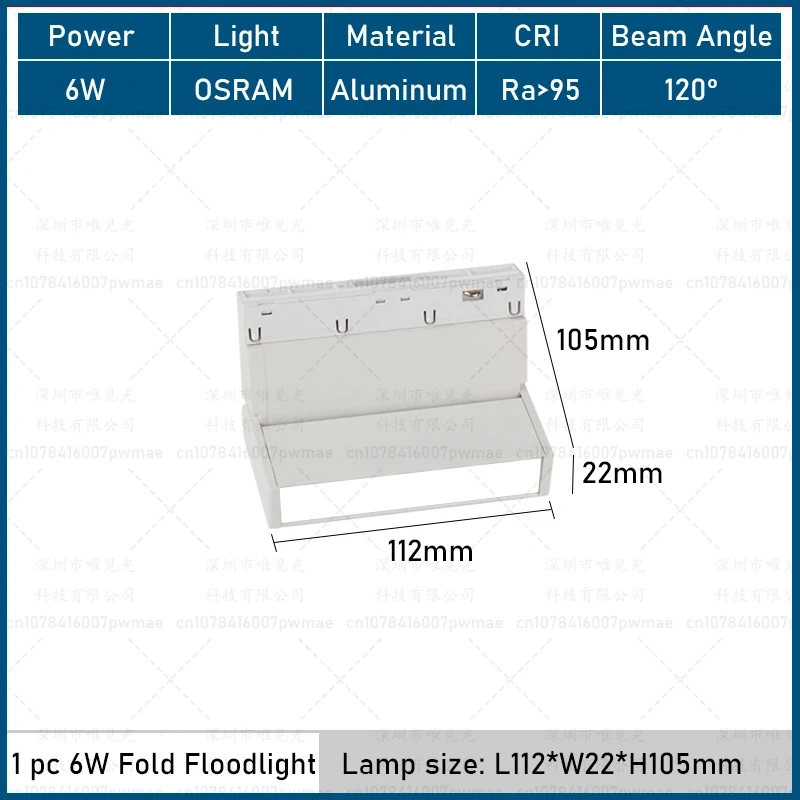

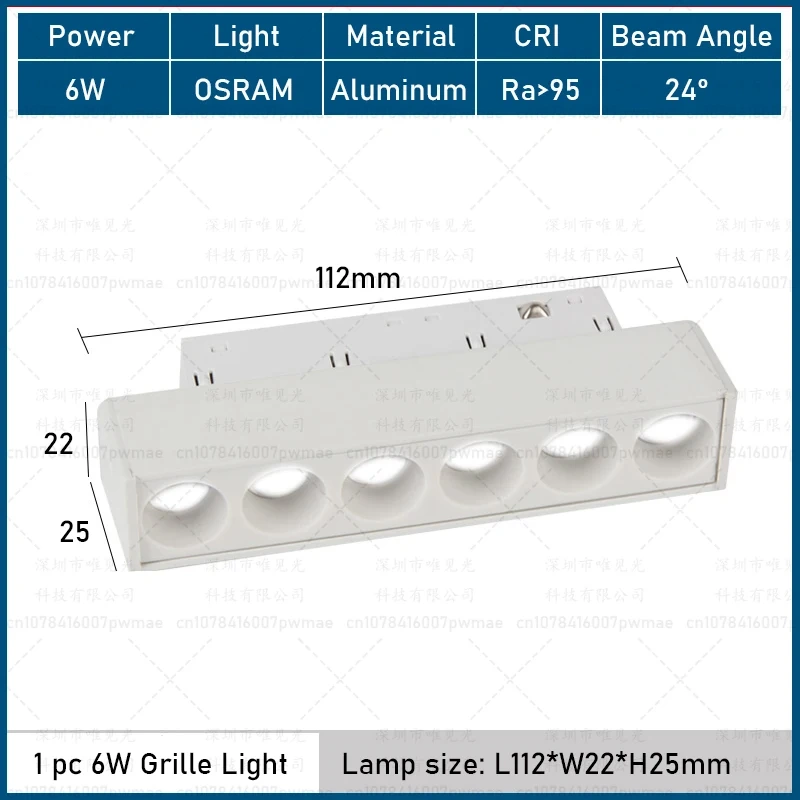

- 6W Spotlight / Fold Spotlight / Grille Light

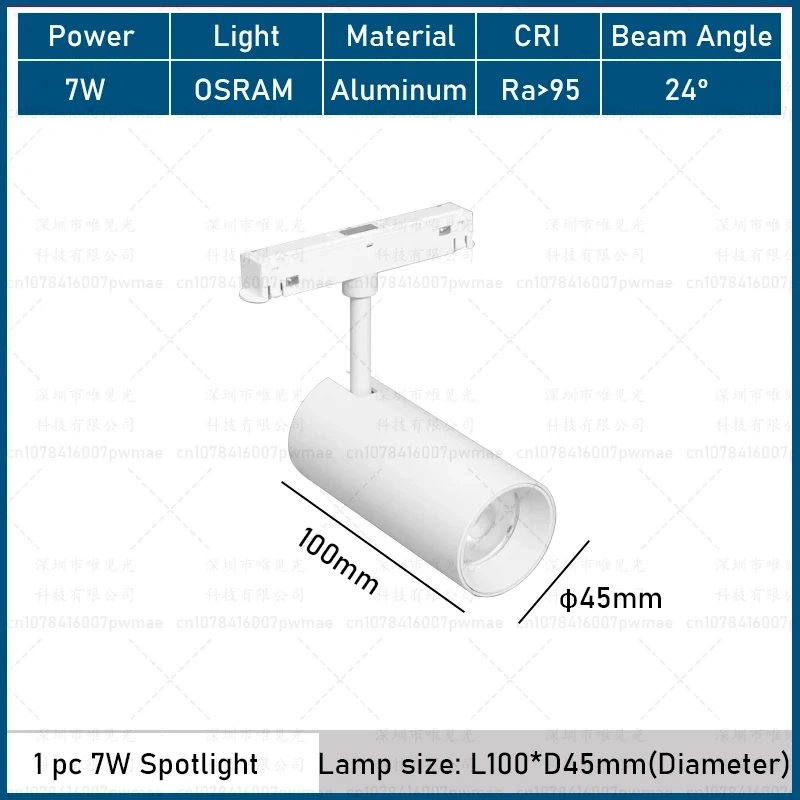

- 7W Spotlight

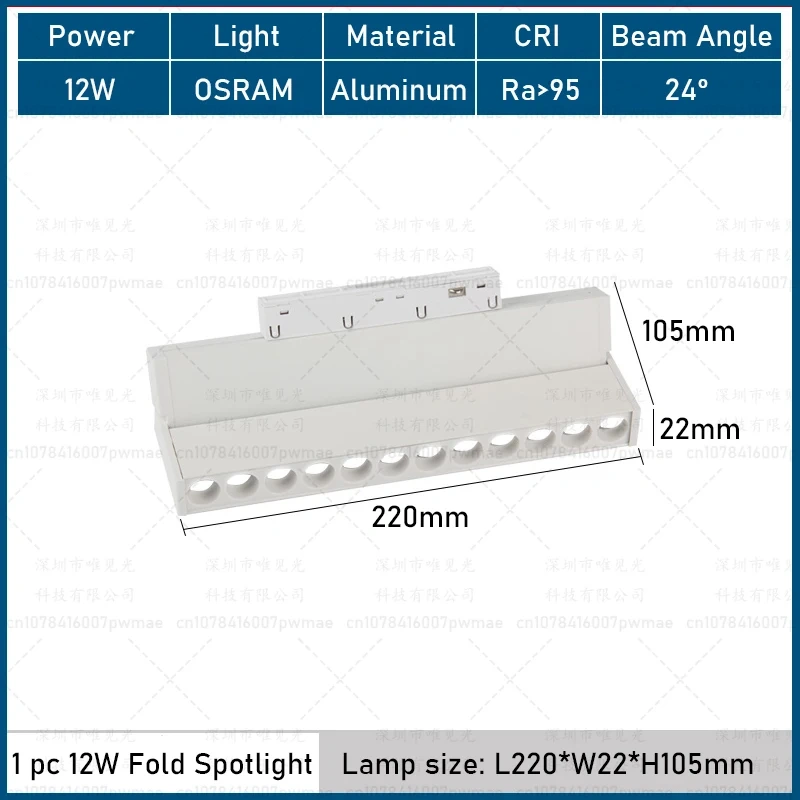

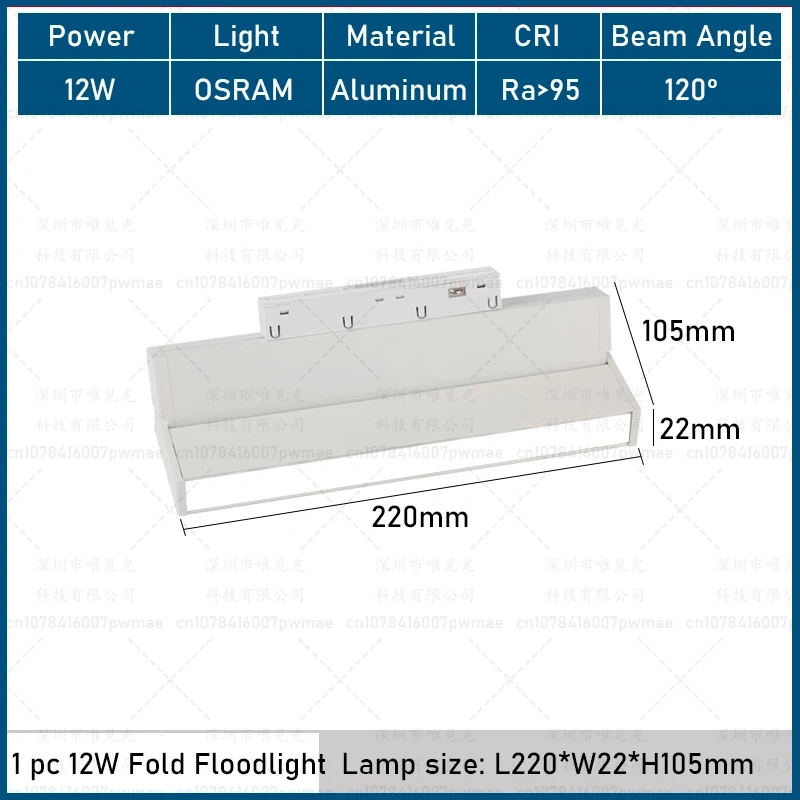

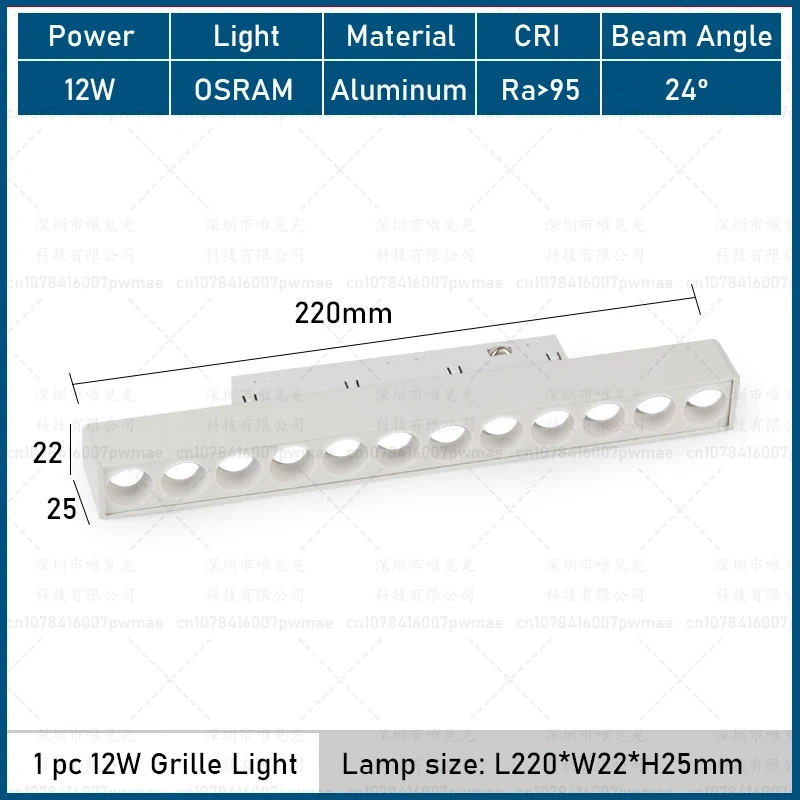

- 12W Spotlight / Fold Spotlight / Floodlight / Grille Light

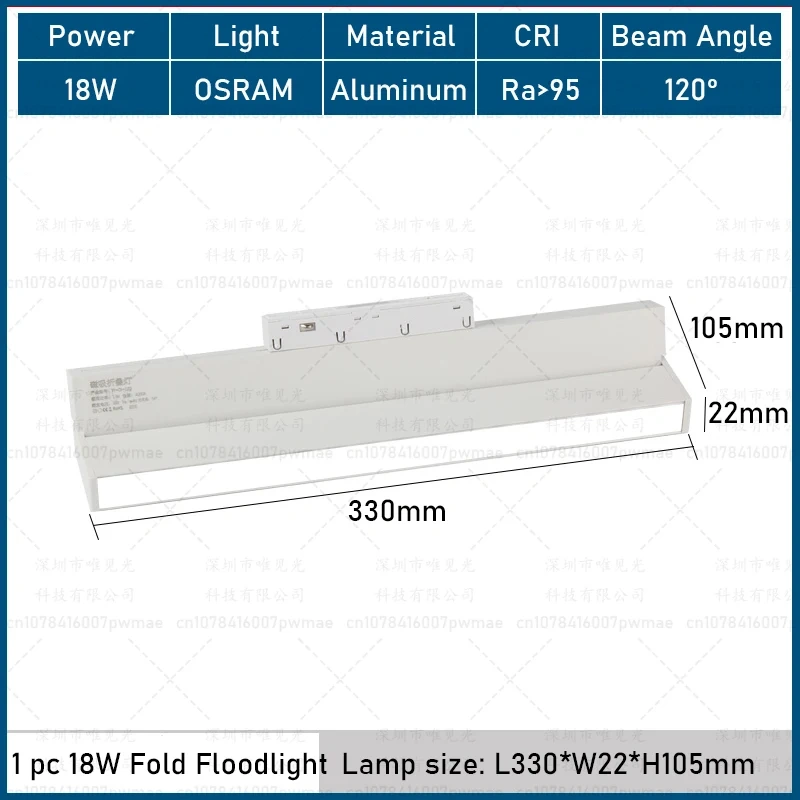

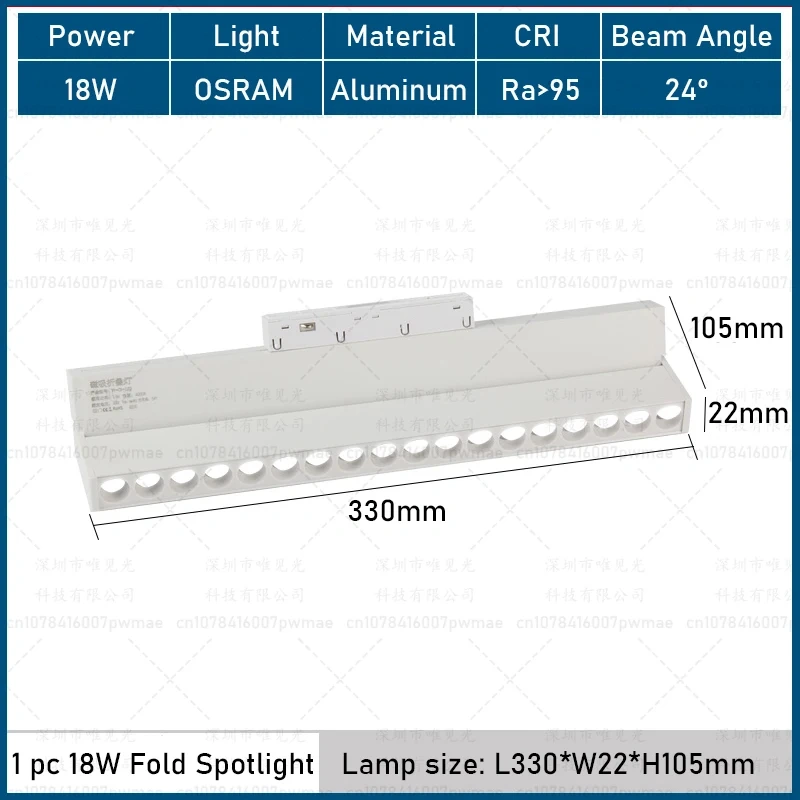

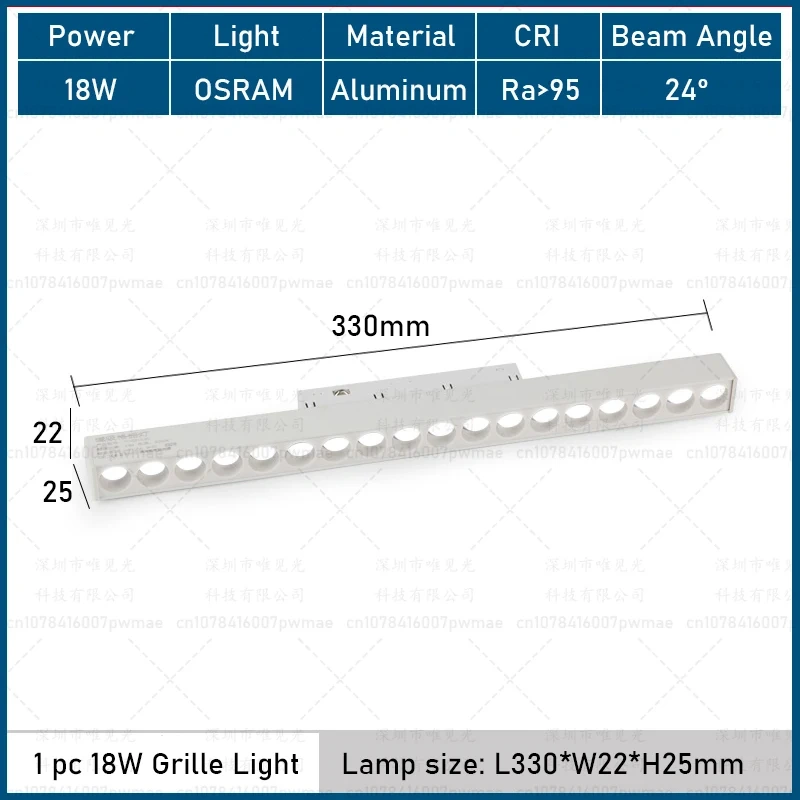

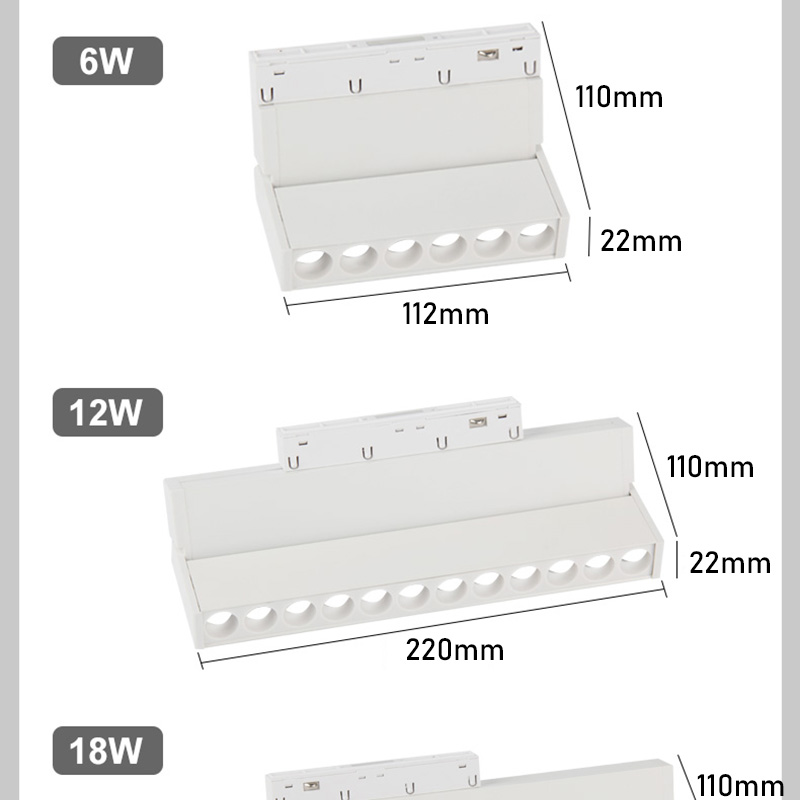

- 18W Fold Spotlight / Fold Floodlight / Grille Light

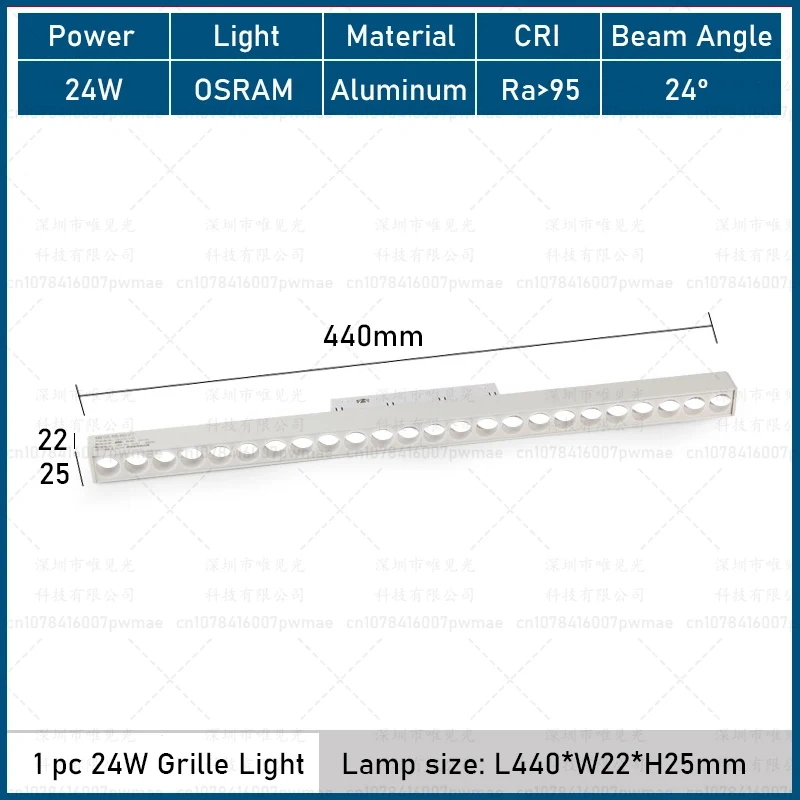

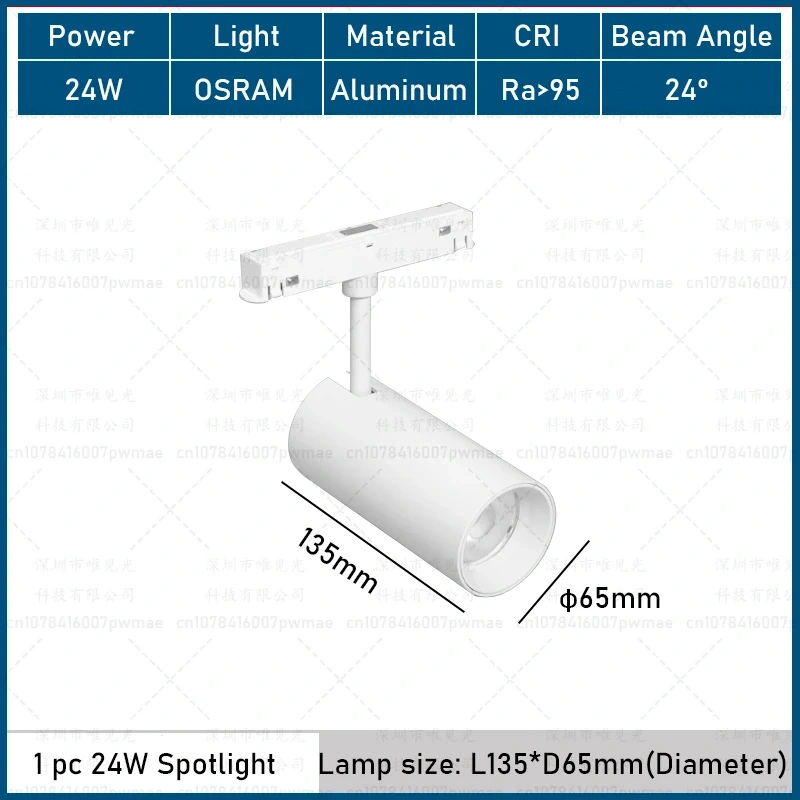

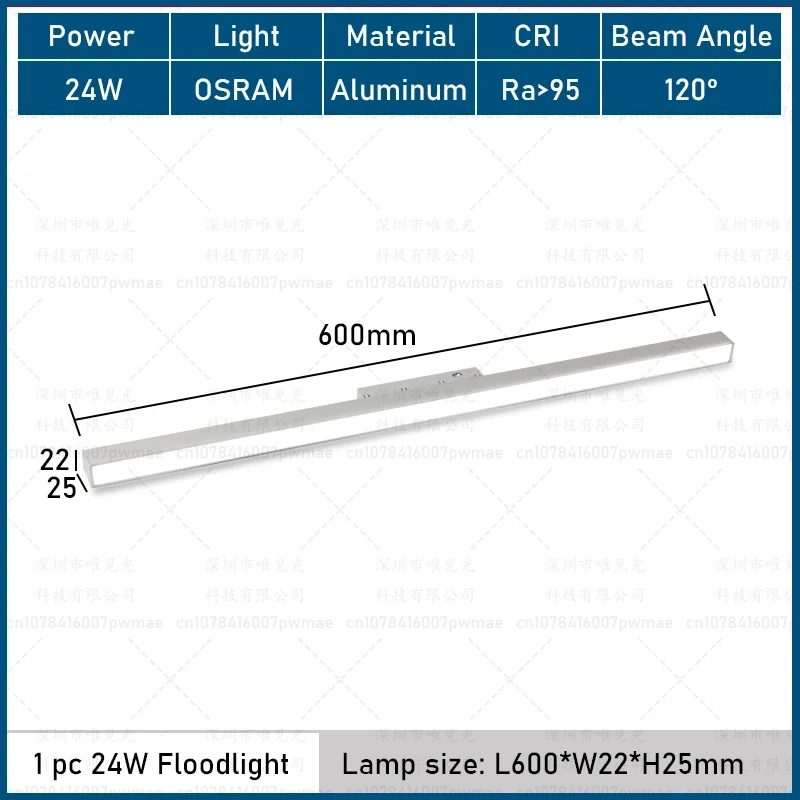

- 24W Spotlight / Floodlight / Grille Light

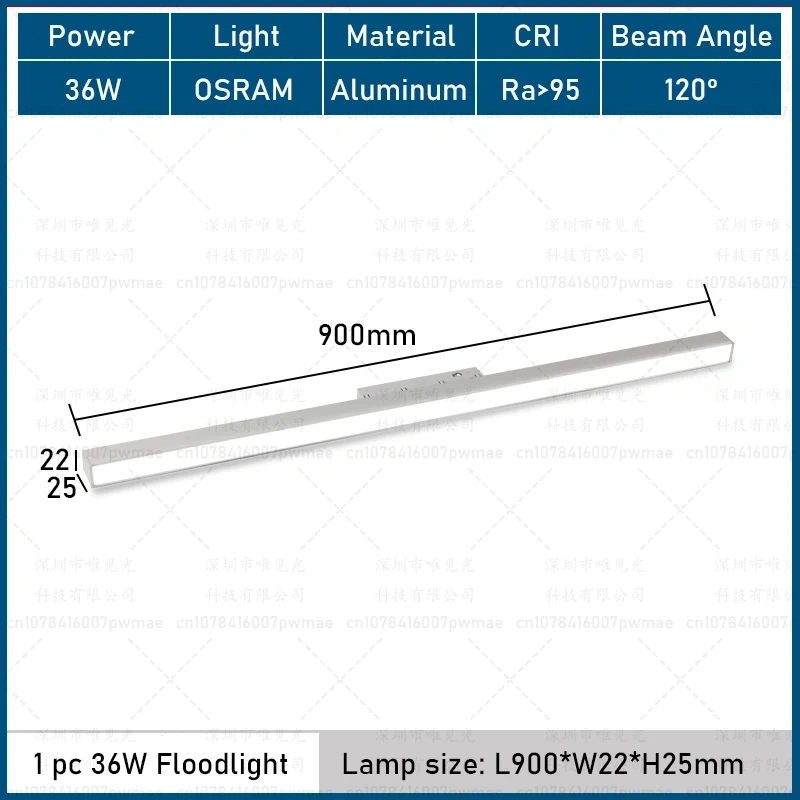

- 36W Floodlight

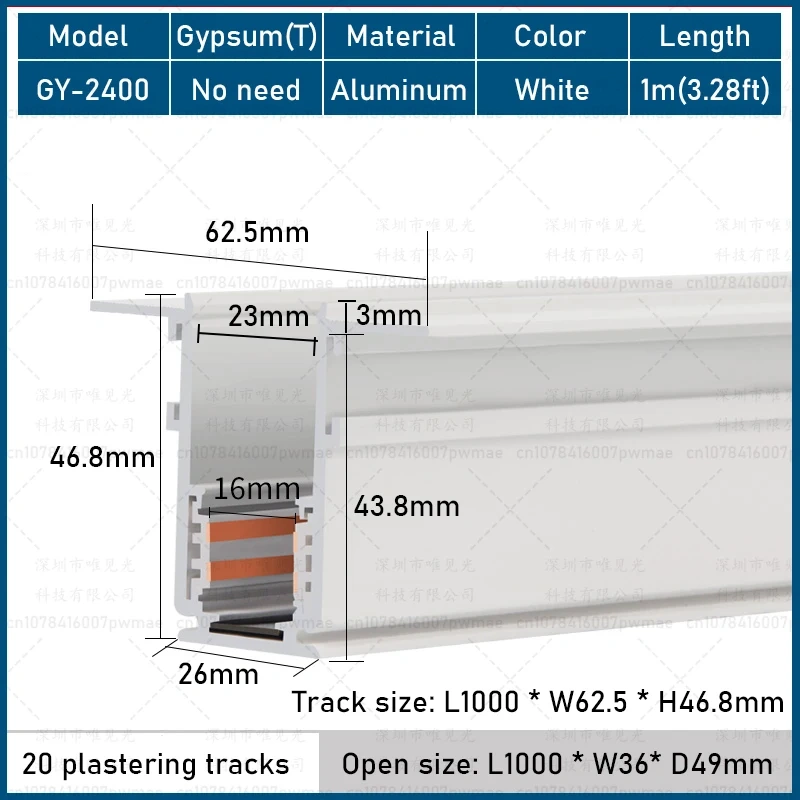

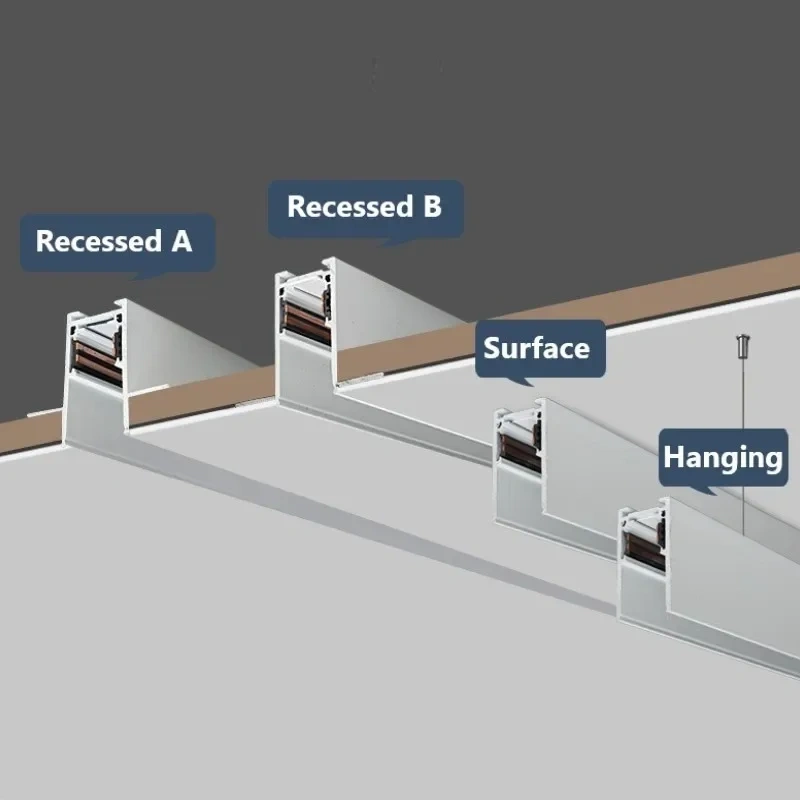

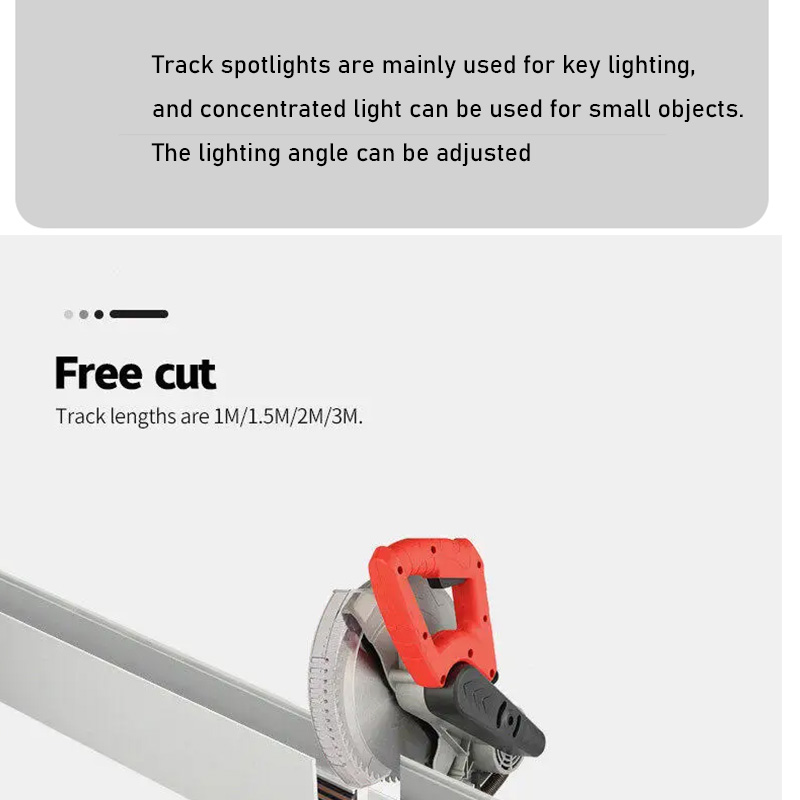

Track options:

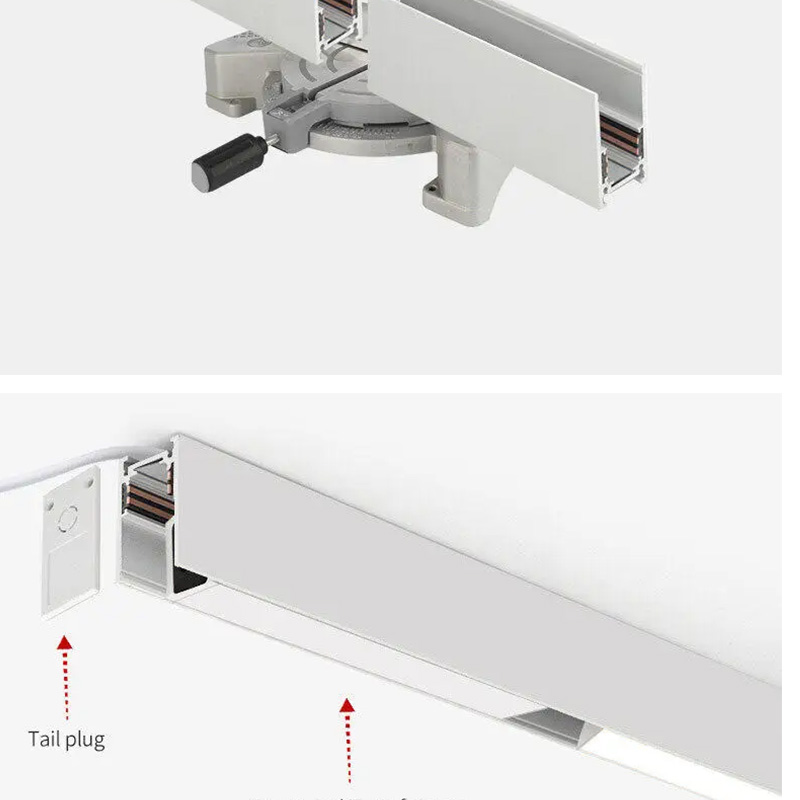

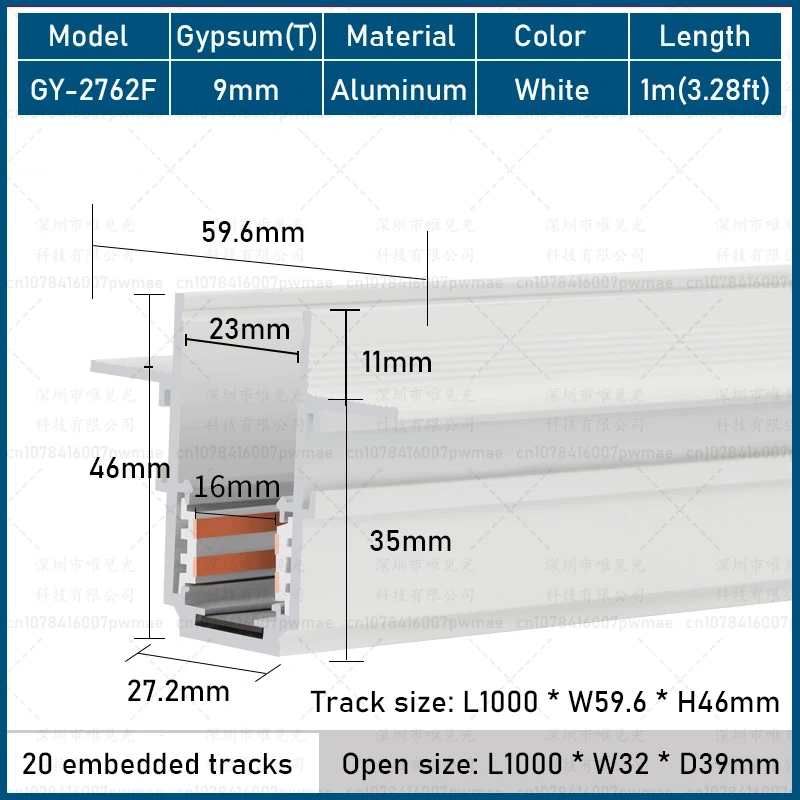

- Embedded Track
- Plastering Track

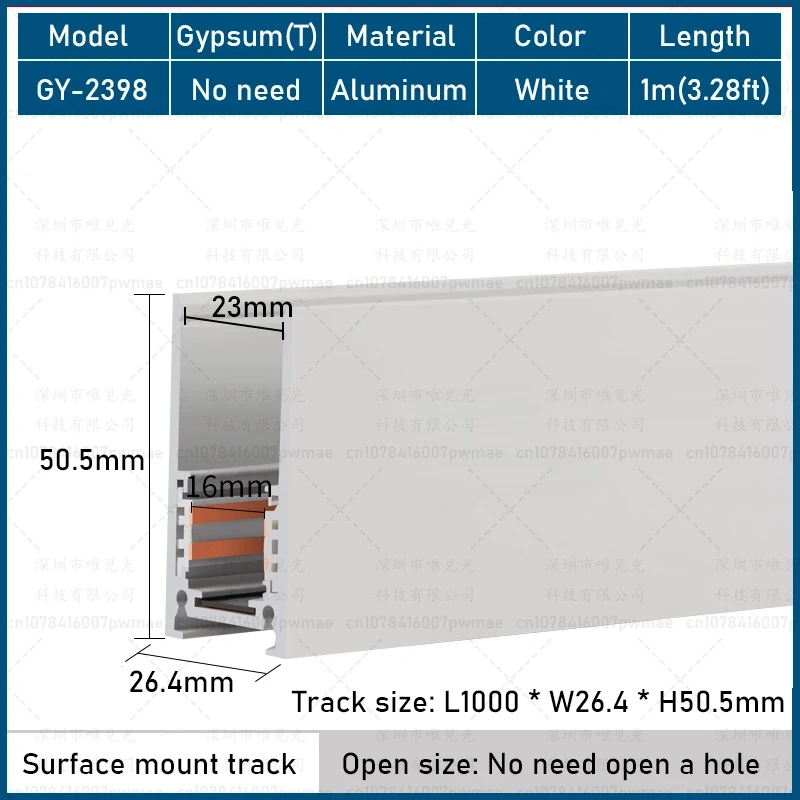

- Surface Mount Track

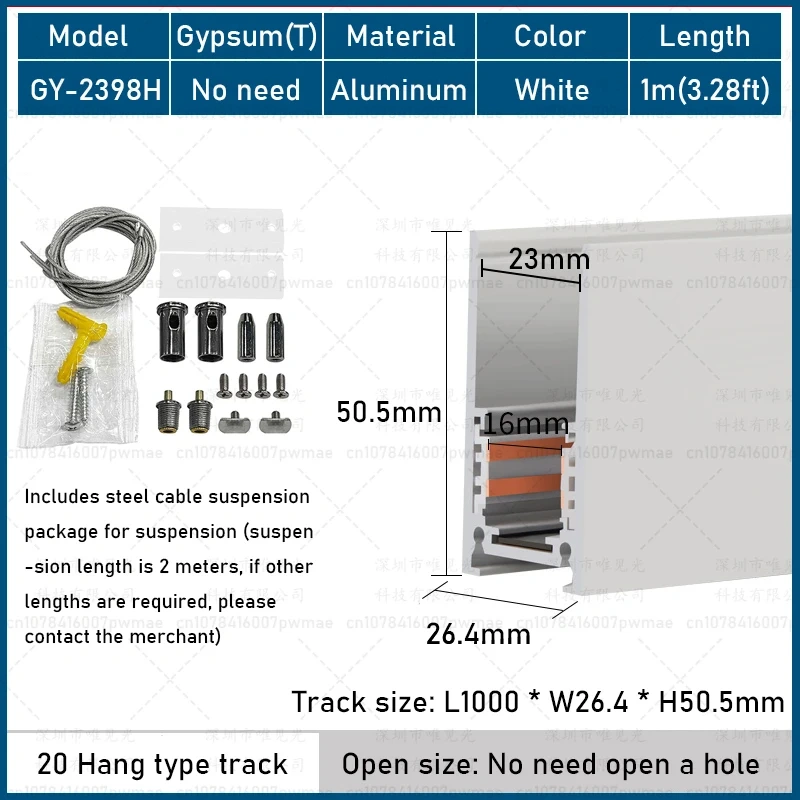

- Hang Type Track
The current page lists these configurations directly as selectable product variants.

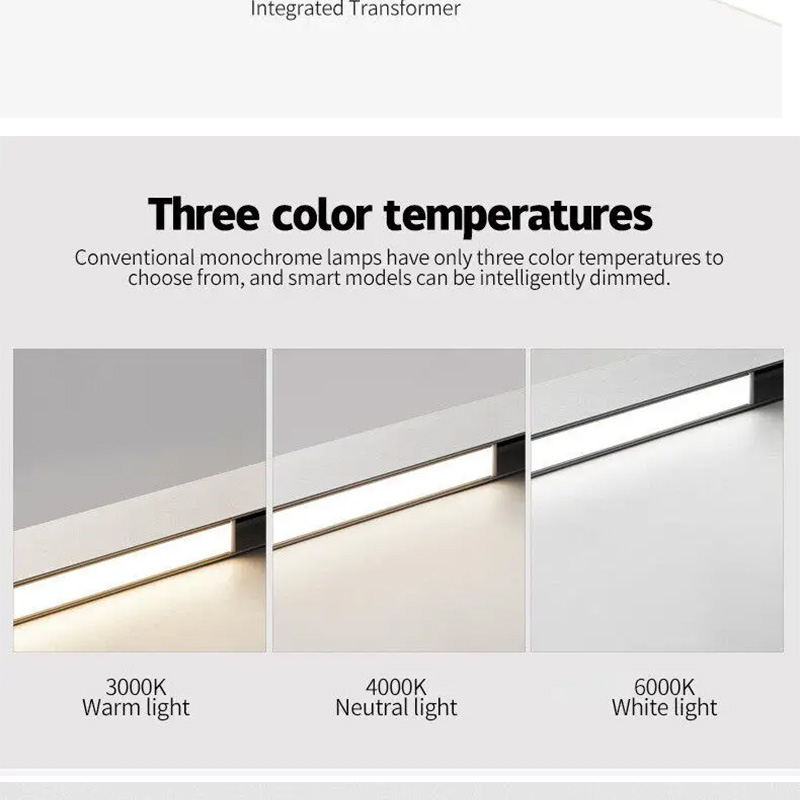

H3 Lighting Options
Available color temperatures include:
- 3000K Warm White
- 4000K Neutral White
- 6000K Cool White
The system is also available with different fixture types and power levels depending on the required lighting effect.

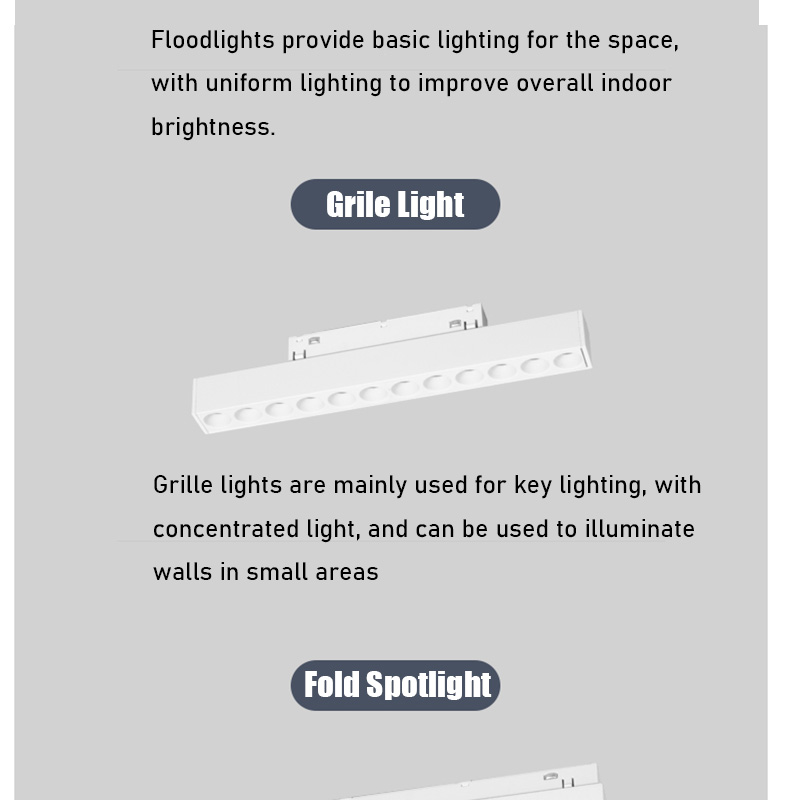

For example:

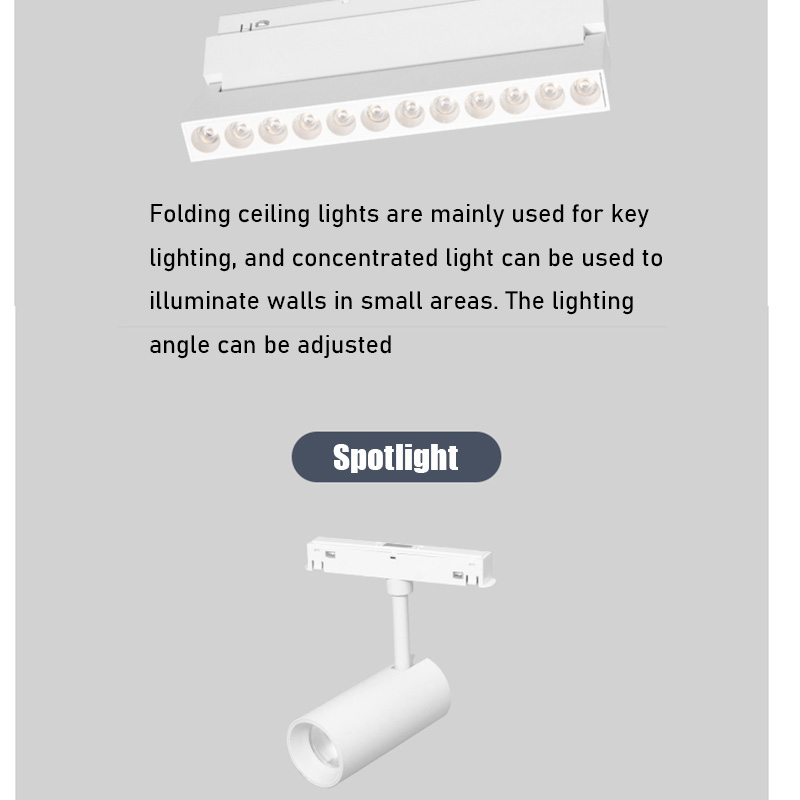

Spotlight — focused accent lighting
Grille Light — directional and controlled illumination

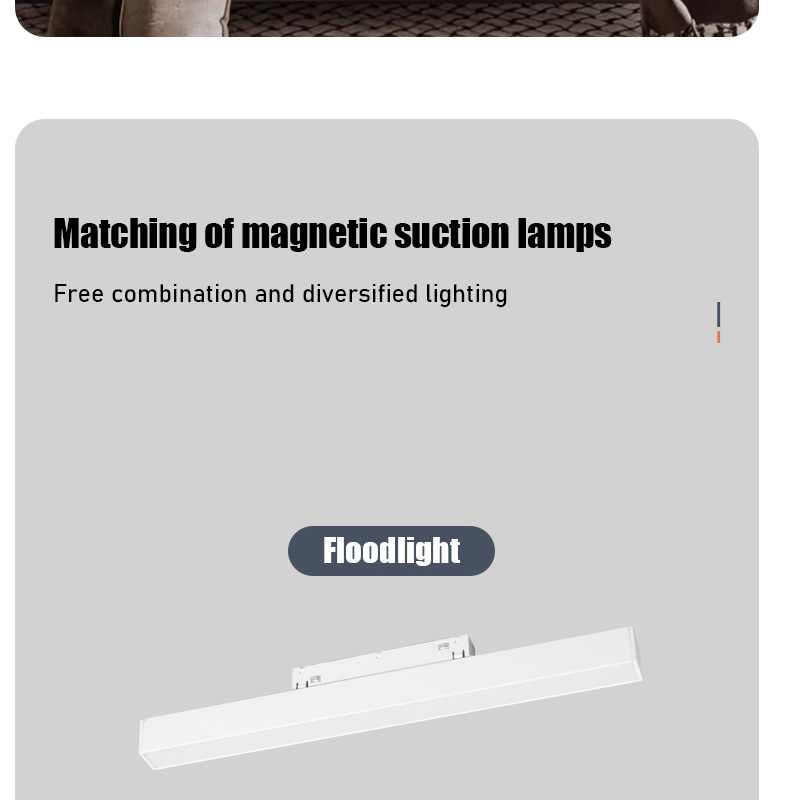

Floodlight — wider-area illumination

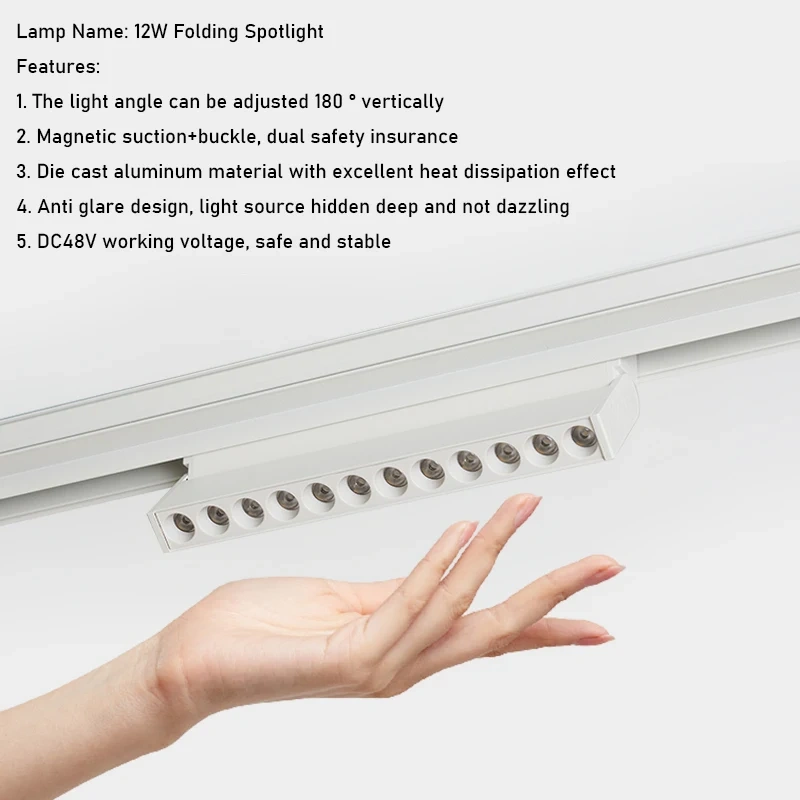

Fold Spotlight — adjustable directional lighting

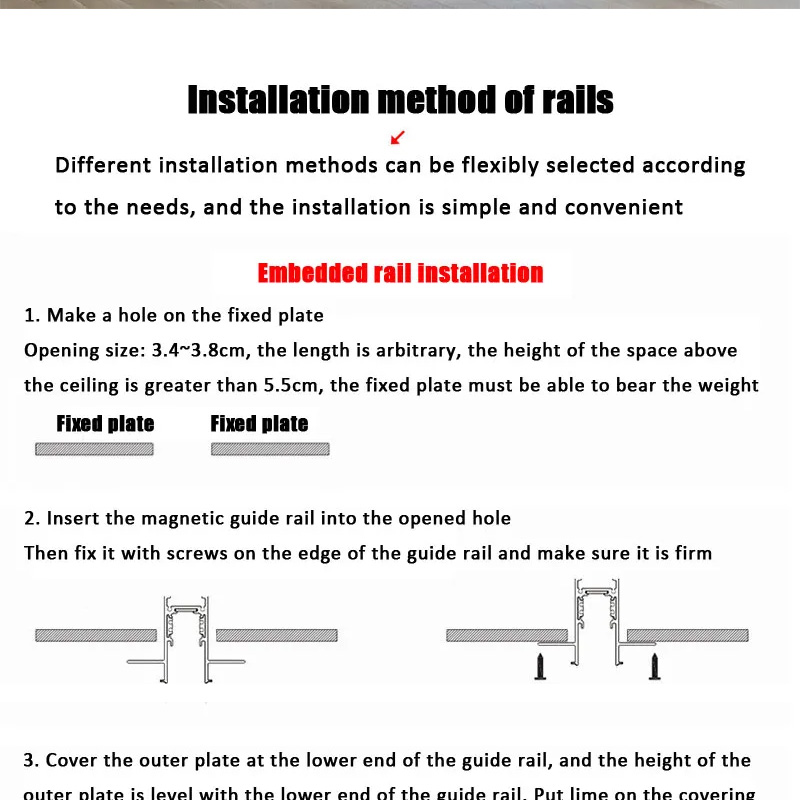

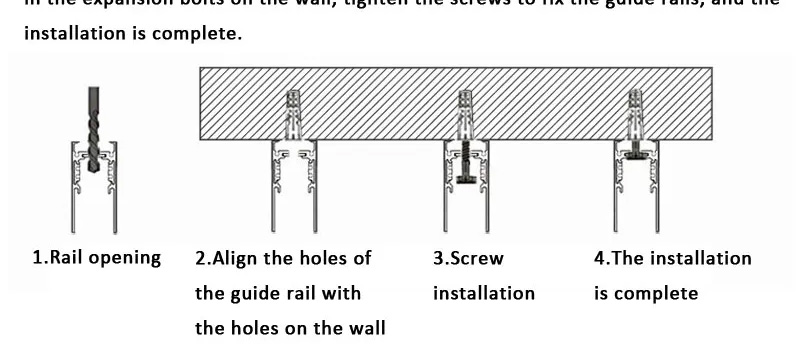

H3 Installation

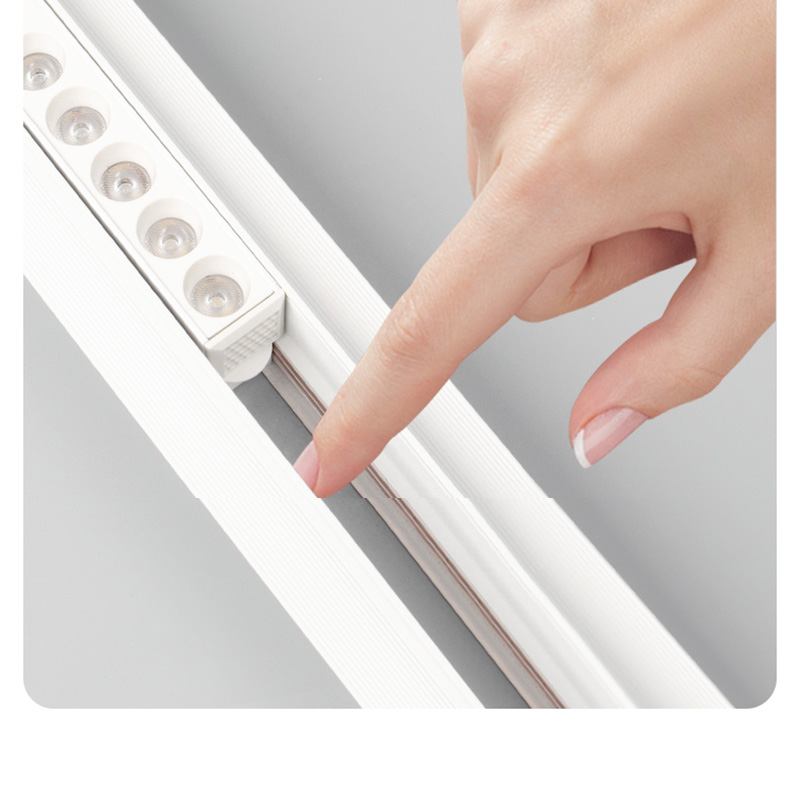

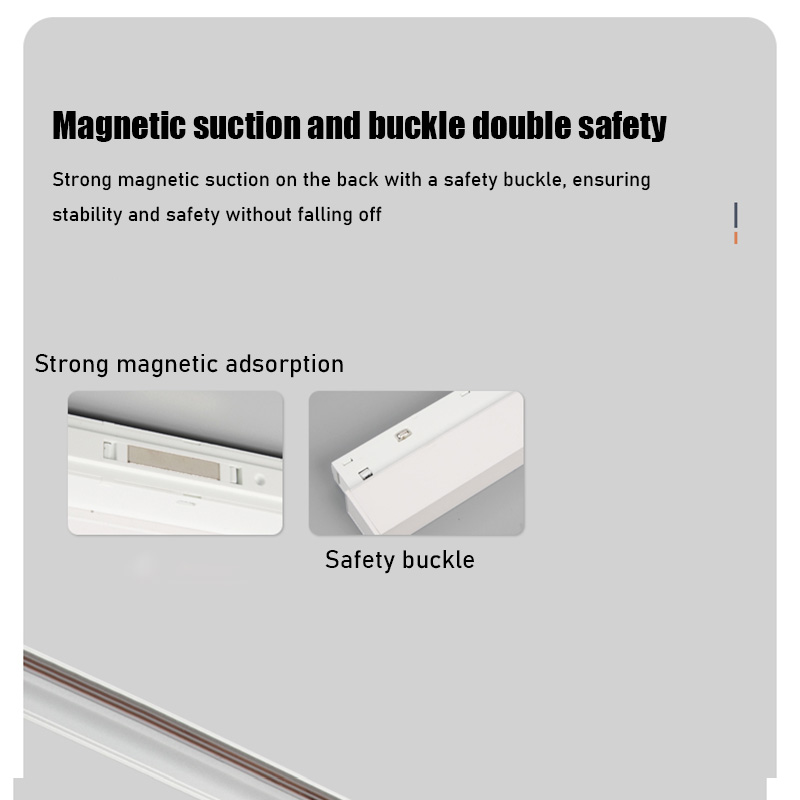

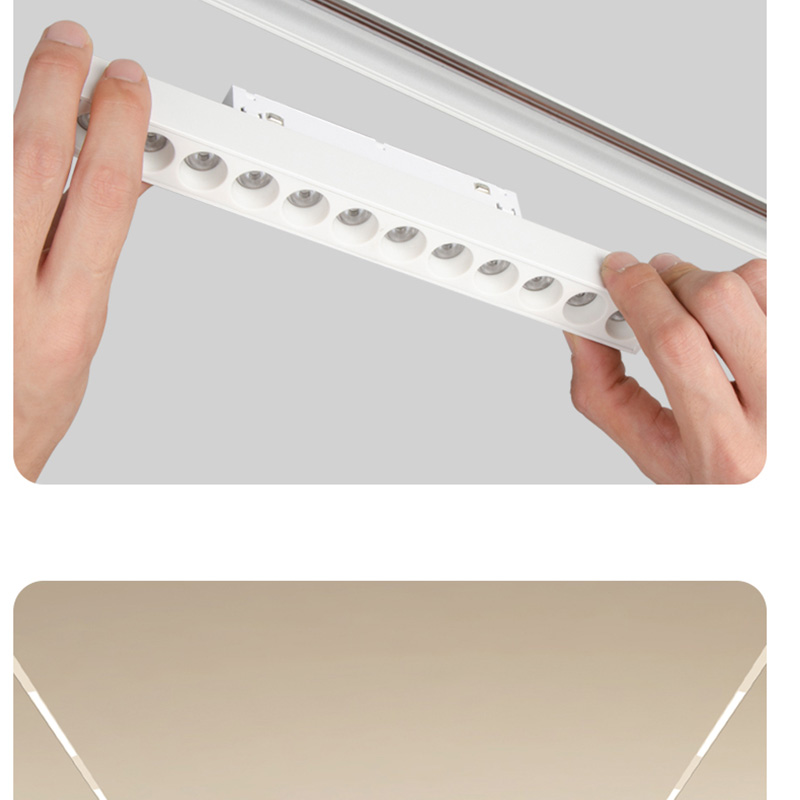

The magnetic lighting modules are designed to work with compatible magnetic track rails.
A complete system can include:
Magnetic Track Rail + DC48V Transformer + LED Magnetic Track Lights + Connectors

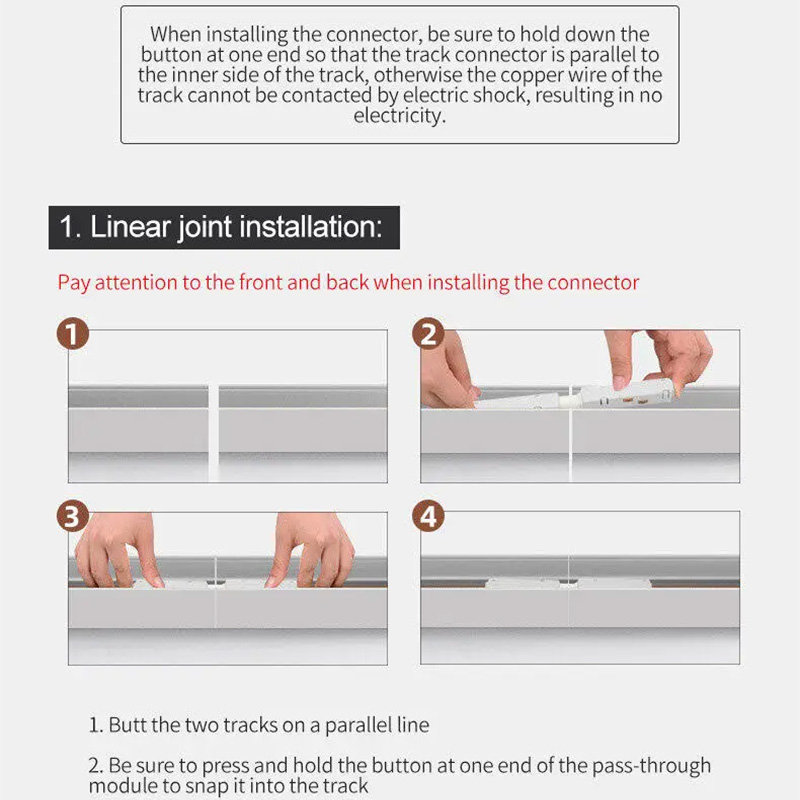

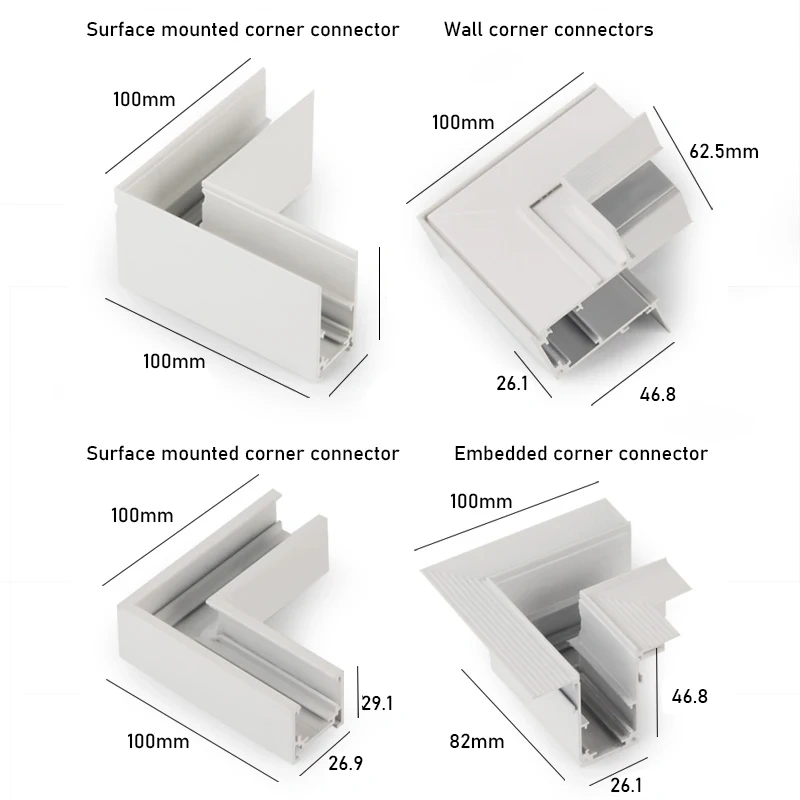

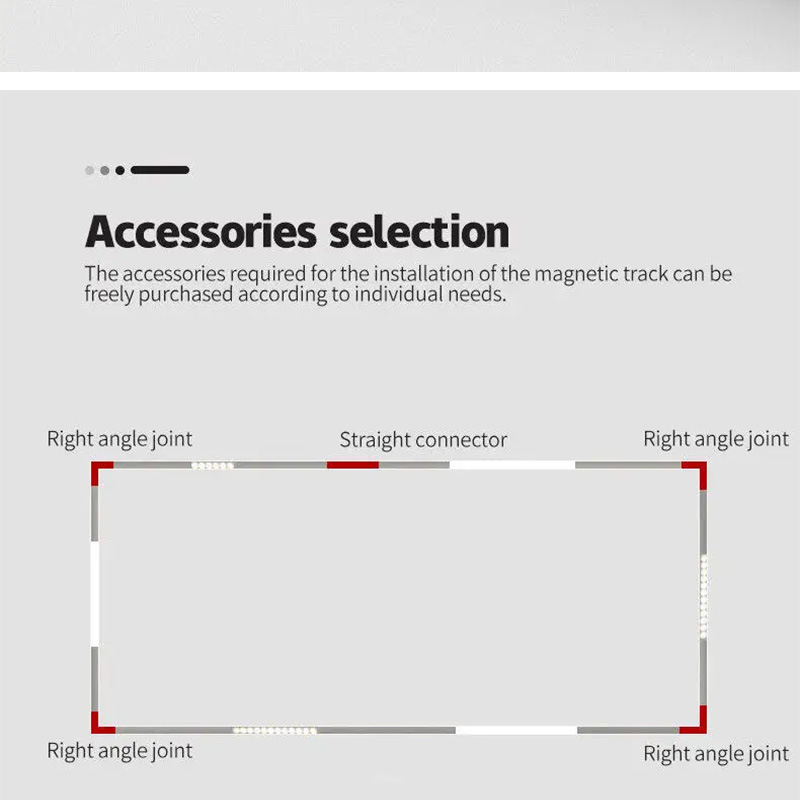

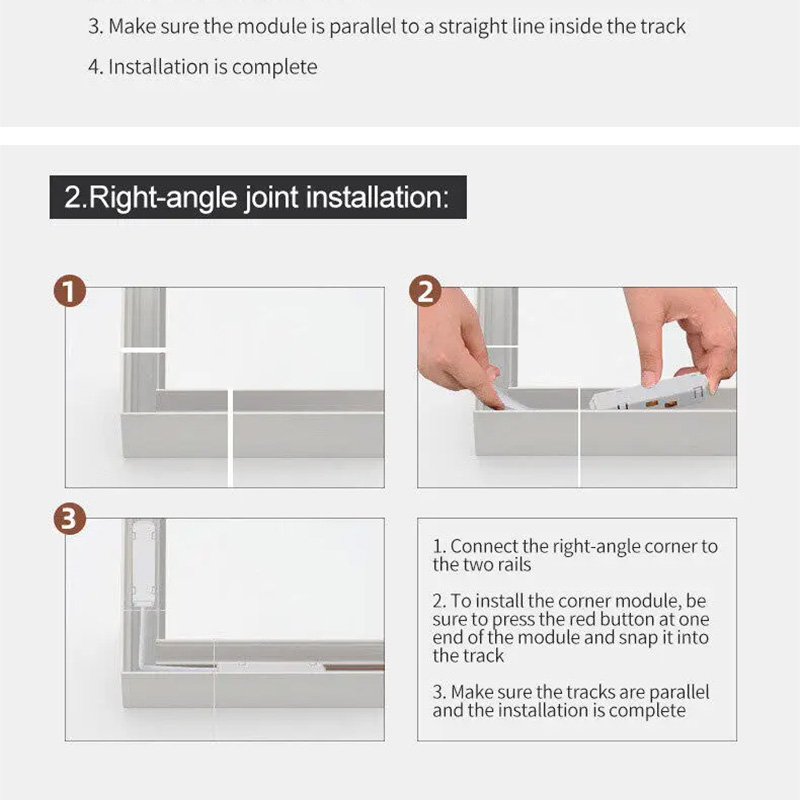

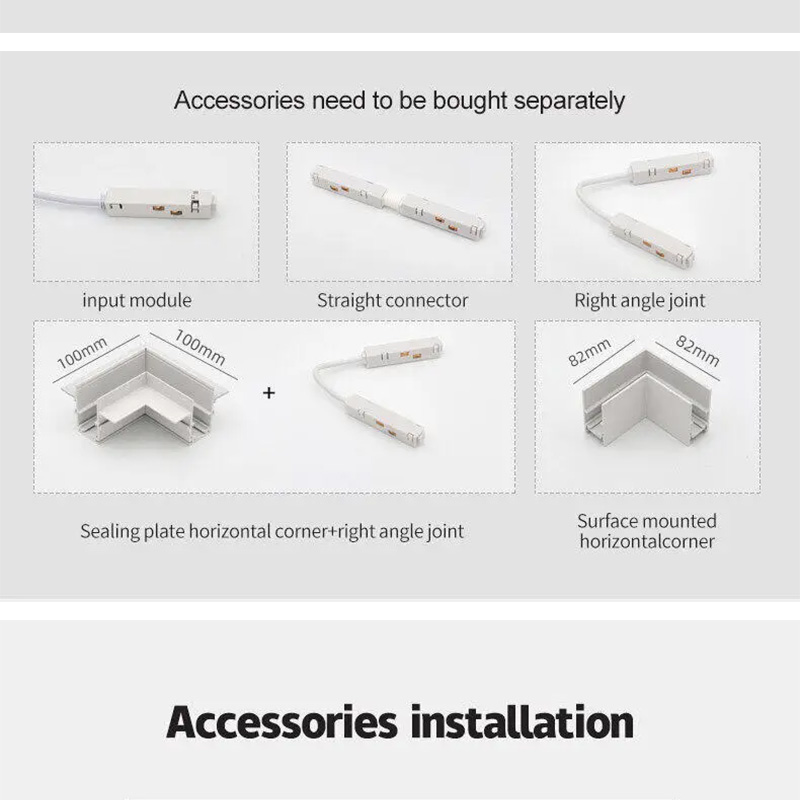

The current product page lists a 1m embedded magnetic track rail, transformer, LED magnetic track lights and a right-angle connector as system components. The right-angle connector is used when the track layout needs to change direction.

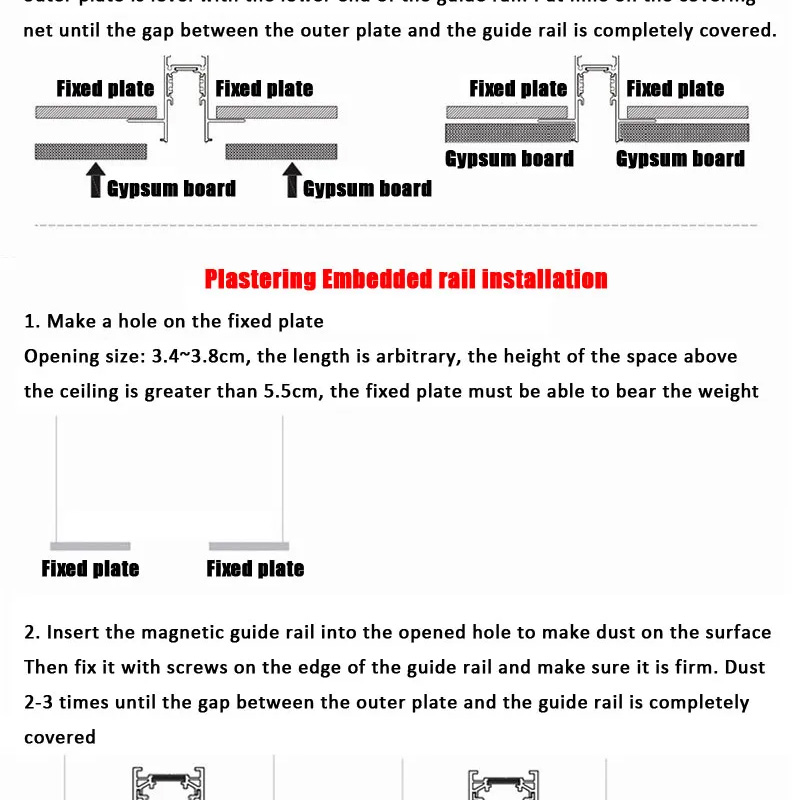

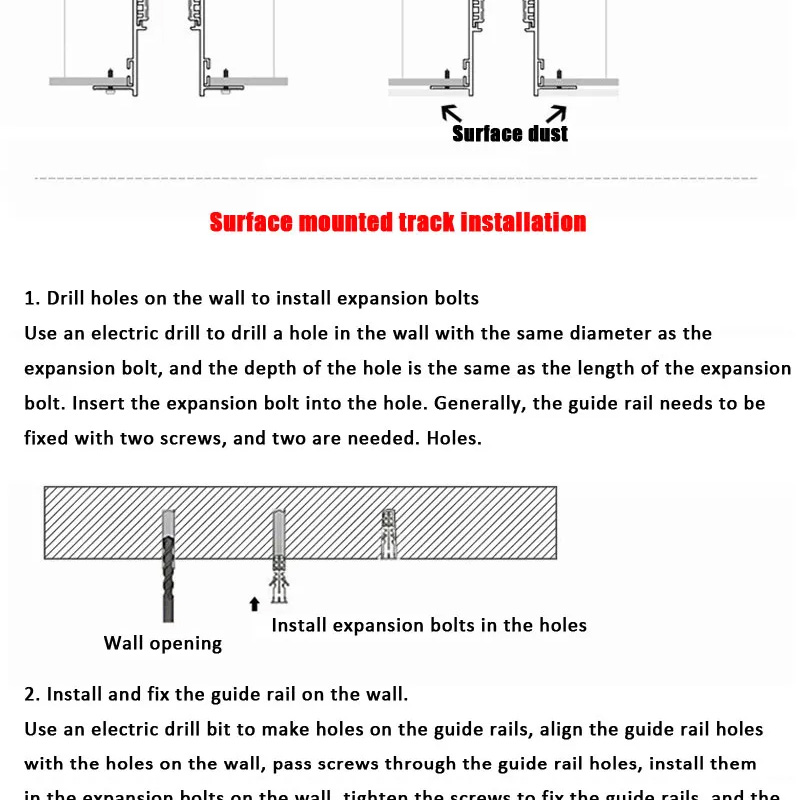

For project installations, the rail type should be selected according to the ceiling construction and desired lighting layout.
H3 Technical Specifications
| Specification |
Details |
| Product Type |
Recessed Magnetic Track Light System |
| System Voltage |
DC48V |
| Transformer Input |
AC220–240V |
| Transformer Output |
DC48V |
| Light Source |
LED |
| LED Chip |
OSRAM |
| CRI |
Ra >90 |
| Housing Material |
Die-cast Aluminum |
| Fixture Color |
White |
| CCT |
3000K / 4000K / 6000K |
| Fixture Power |
5W–36W |
| Fixture Types |
Spotlight / Grille / Floodlight / Fold Spotlight / Fold Floodlight |
| Track Types |
Embedded / Plastering / Surface Mount / Hang Type |
| Track Length |
1m embedded track option |
| Installation |
Magnetic Track |
| MOQ |
1pcs |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
H3 Project Applications
The system is suitable for projects requiring flexible directional lighting and a clean architectural ceiling.
Typical project applications include:
Residential Projects
- Apartments
- Villas

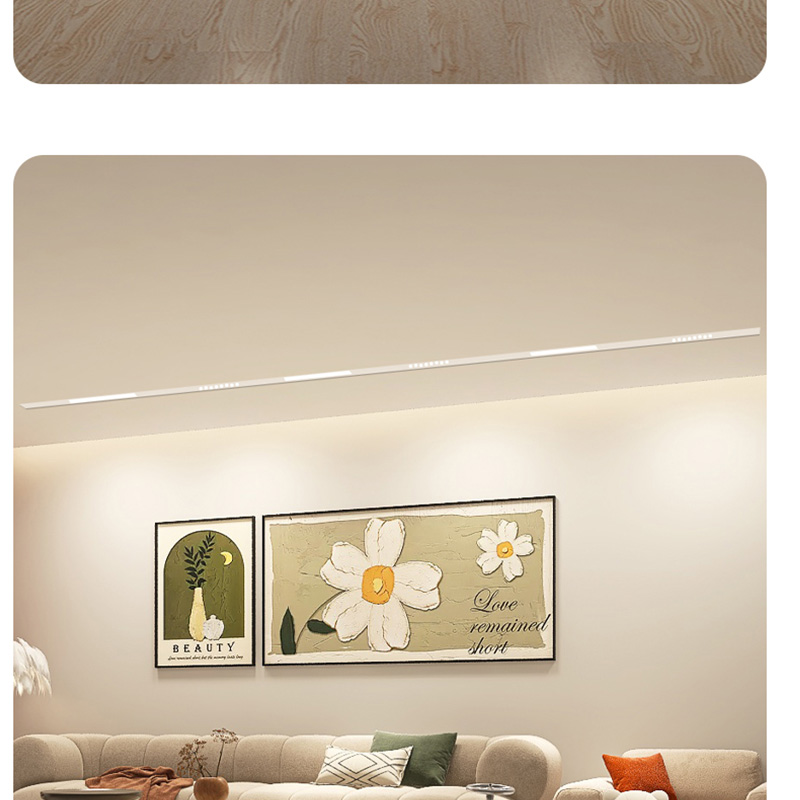

- Living rooms
- Bedrooms
- Home studies
- Kitchens
Commercial Projects
- Retail stores
- Boutiques
- Shopping malls
- Showrooms
- Cafés
- Bars
Hospitality Projects
- Hotels
- Hotel lobbies
- Restaurants
- KTVs
Cultural & Display Projects
- Museums
- Exhibition halls
- Display areas
- Art and retail environments
H3 OEM/ODM
USKYLED can support OEM and ODM requirements for magnetic track lighting projects.
Available customization can include:
- Product branding
- Fixture appearance
- Housing color
- Lighting configuration
- Beam angle
- CCT
- Power options
- Track configuration
- Transformer specification
- Packaging
- Project-specific lighting combinations
For overseas projects, buyers can also discuss alternative transformer input specifications according to the destination market.
CTA
Looking for a DC48V recessed magnetic track lighting supplier for your next project?
USKYLED provides magnetic track lighting solutions for residential, retail, hotel and commercial projects.
MOQ: 1pcs
Sample Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
Contact USKYLED for OEM/ODM, wholesale pricing, project quotations and customized magnetic track lighting solutions.
Application Scene
Hotel,supermarket,display hall,museum,boutique,KTV, bar, cafe, shopping mall, etc.
