Product Introduction

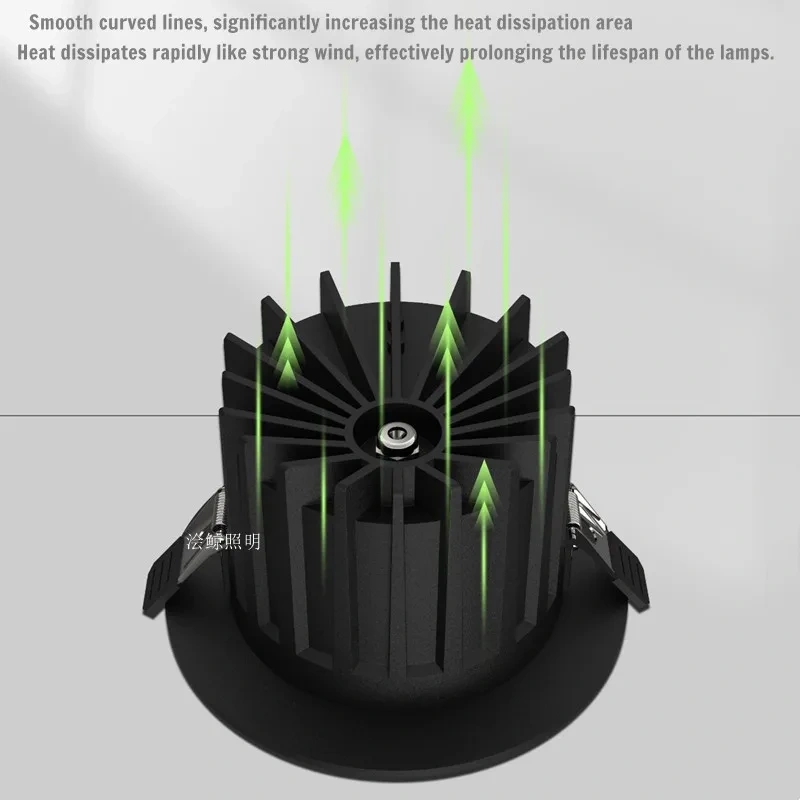

The USKYLED IP65 waterproof anti-glare LED recessed downlight provides a high-reliability lighting solution for humid and wet architectural spaces. Conventional indoor downlights frequently fail in bathrooms due to vapor ingress, driver short circuits, and corrosion. Engineered with hermetic IP65 sealing and a high-purity aluminum heat sink, this fixture protects internal optical components against moisture deterioration while delivering gallery-level, low-glare ceiling illumination.
Design
-

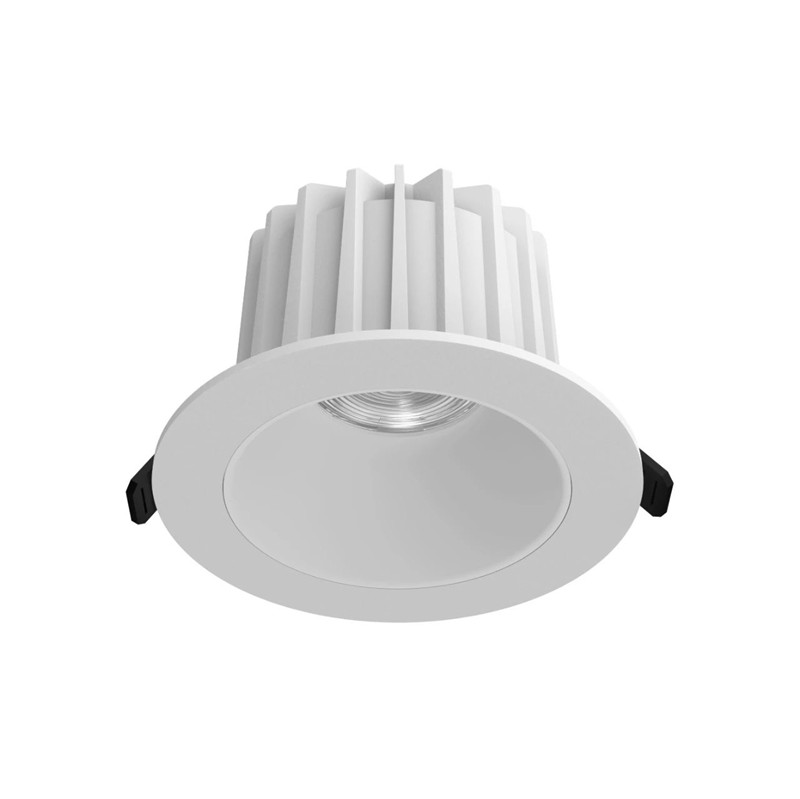

Deep Anti-Glare Baffle Chamber: Sunken optical architecture shields the light source from direct visual contact, achieving UGR < 16 visual comfort without harsh glare.
-

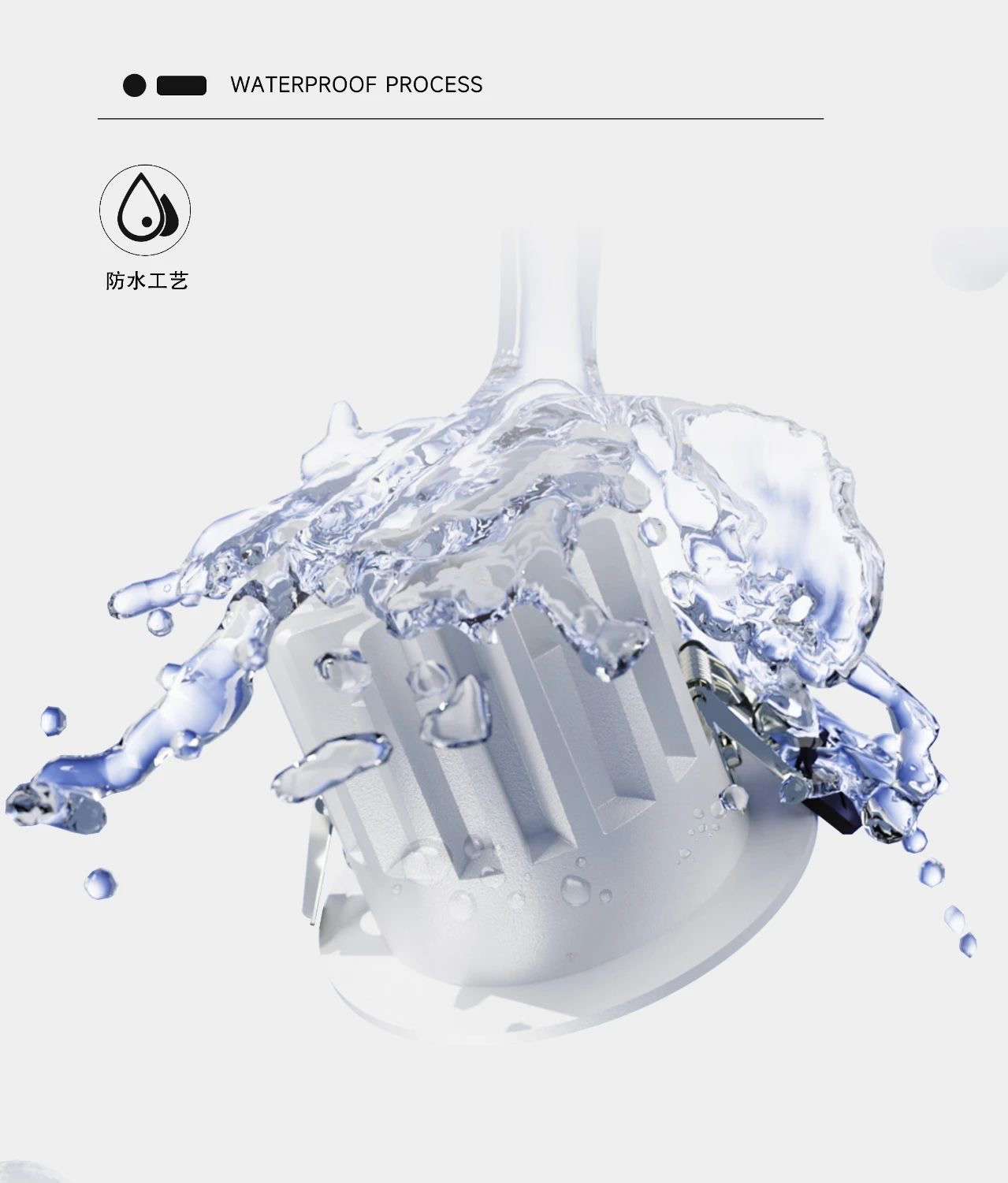

Hermetic Moisture Barrier: Precision-molded high-temperature silicone O-rings paired with clear tempered glass prevent steam and water spray from penetrating the housing.
-

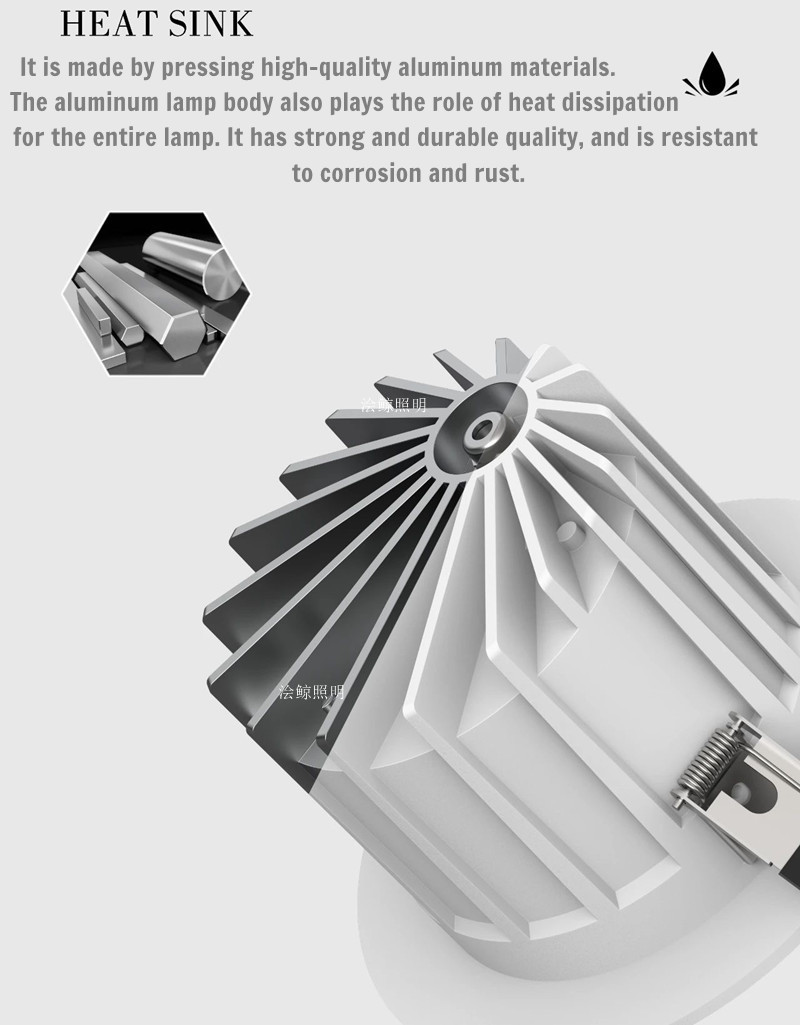

Corrosion-Resistant ADC12 Aluminum: Heavy-duty die-cast aluminum chassis with an outdoor-grade electrostatic powder coat prevents oxidation in saline or humid bathroom atmospheres.
Main Features
-

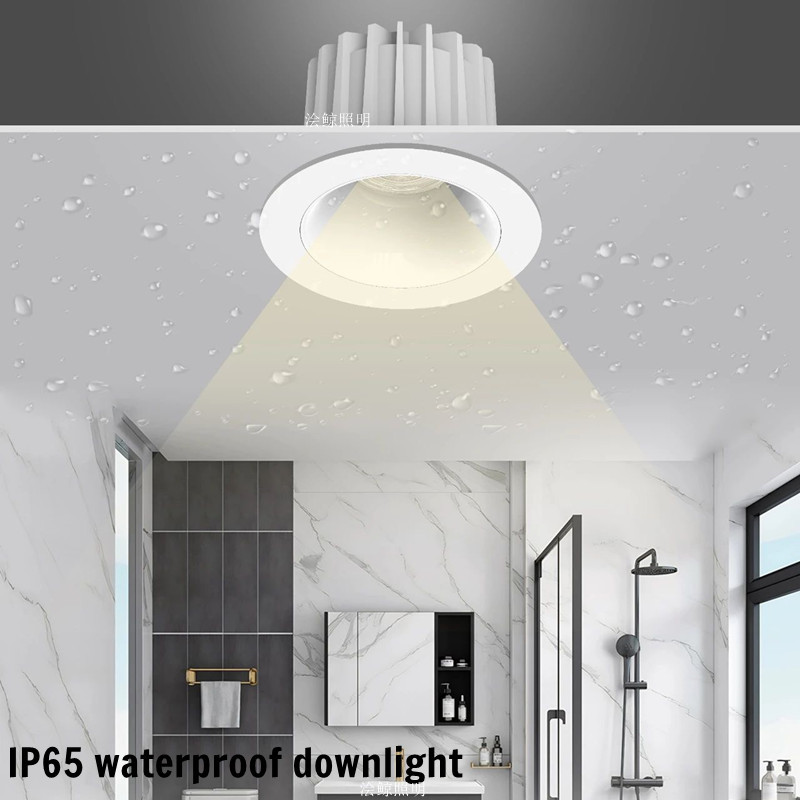

Certified IP65 Ingress Protection: Fully rated for shower enclosures, bathroom splash zones, covered exterior eaves, and commercial spa environments.
-

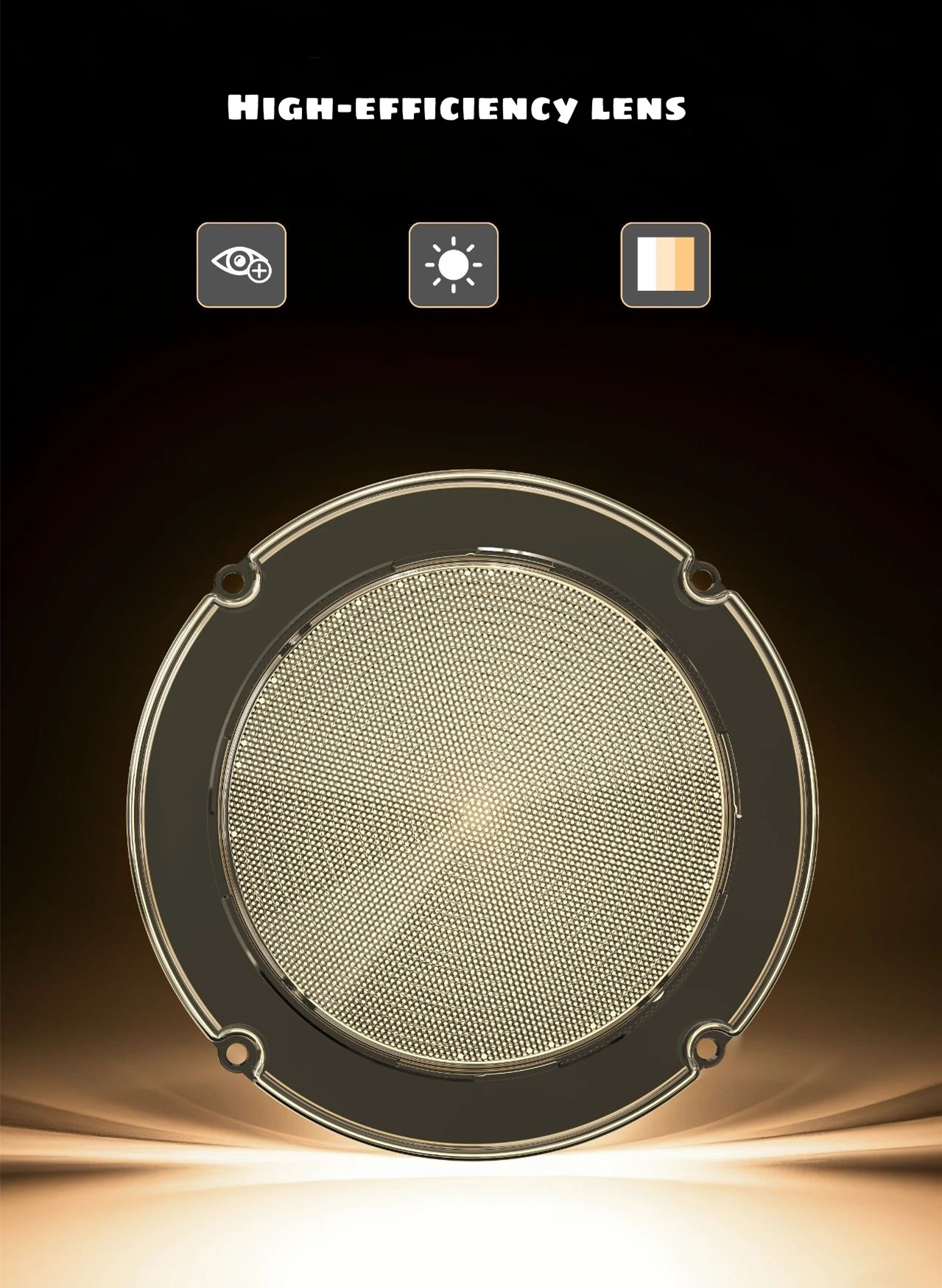

High-Efficacy COB Light Source: High-lumen COB chip delivers uniform, hotspot-free downlighting with minimal lumen depreciation over time.
-
Universal AC 85–265V Isolated Driver: External moisture-resistant, flicker-free driver ensures long operational stability and electrical safety across global power grids.
-
Superior Color Fidelity (CRI ≥ 90): Faithfully reveals accurate skin tones, marble textures, and porcelain surfaces in vanity and bath zones.
Application

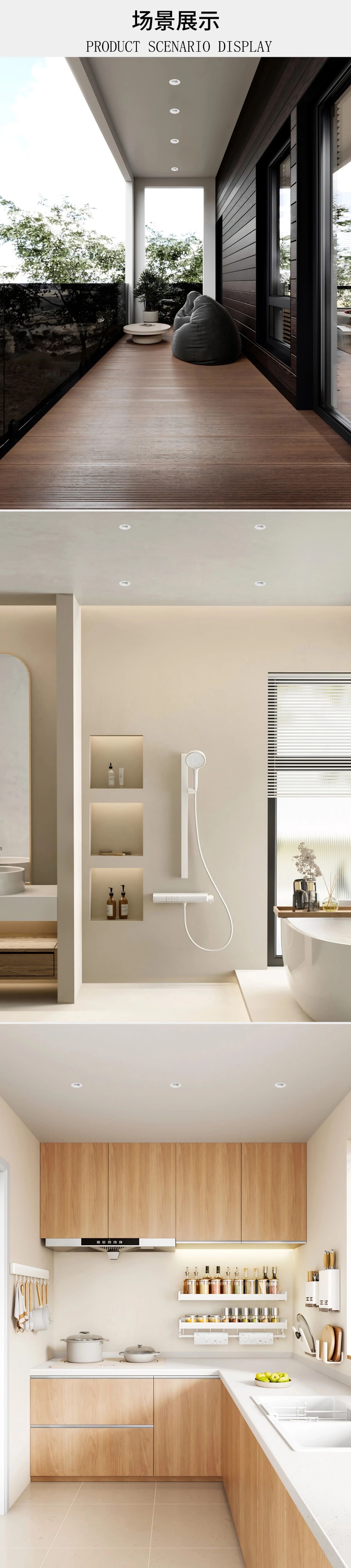

Widely specified across residential bathrooms, master suite walk-in showers, luxury hotel en-suites, indoor swimming pool perimeters, sauna prep zones, and exterior balcony soffits.
Size / Options
-
Faceplate Diameter: Approx. Ø 85mm – Ø 100mm.
-
Ceiling Cutout Diameter: Standard Ø 75mm / Ø 85mm / Ø 90mm options.
-
Power Ratings: 7W / 10W / 12W / 15W.
-

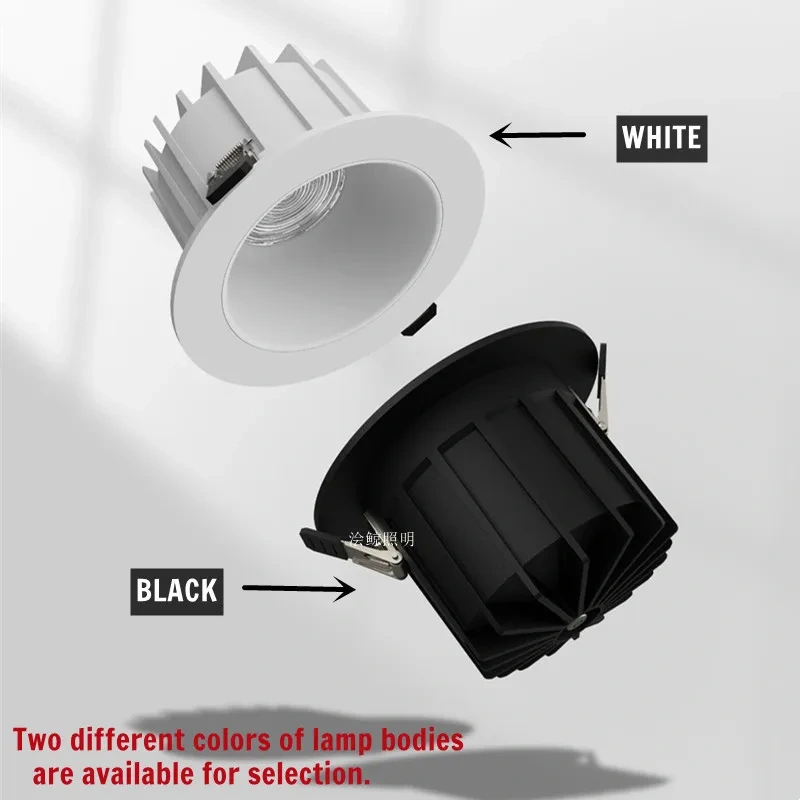

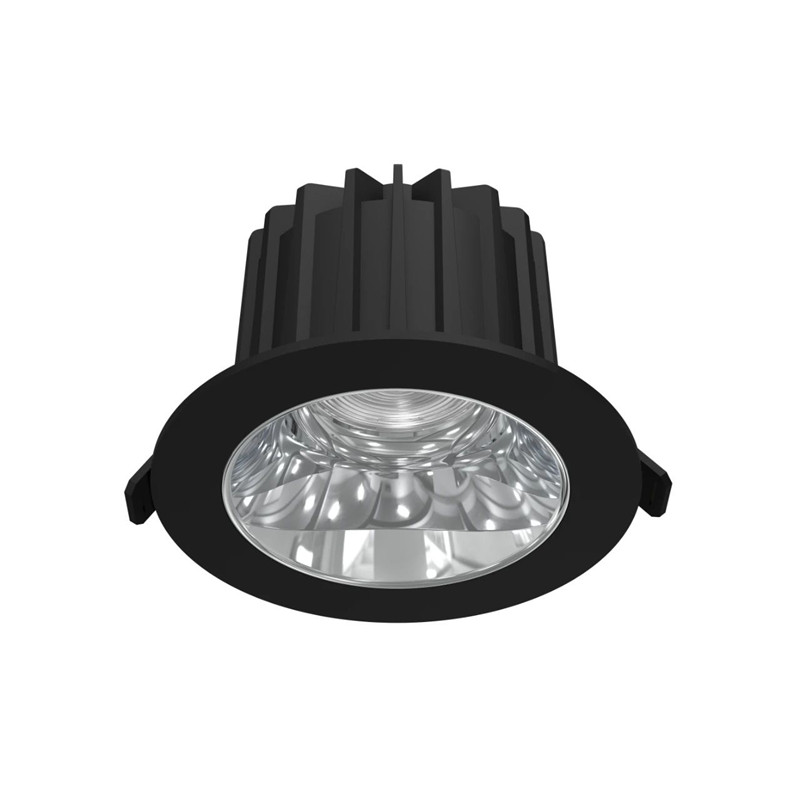

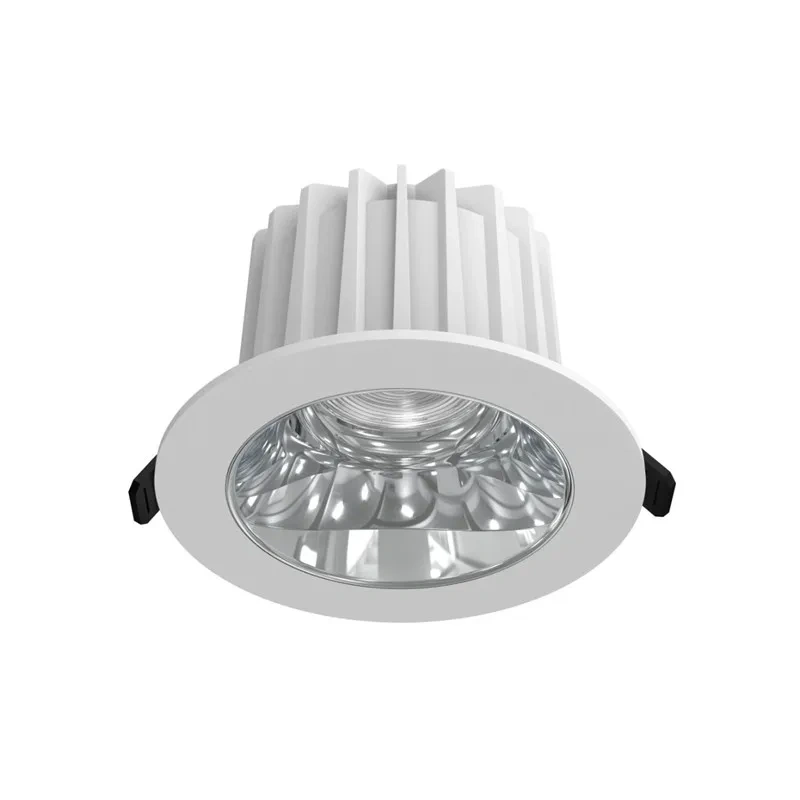

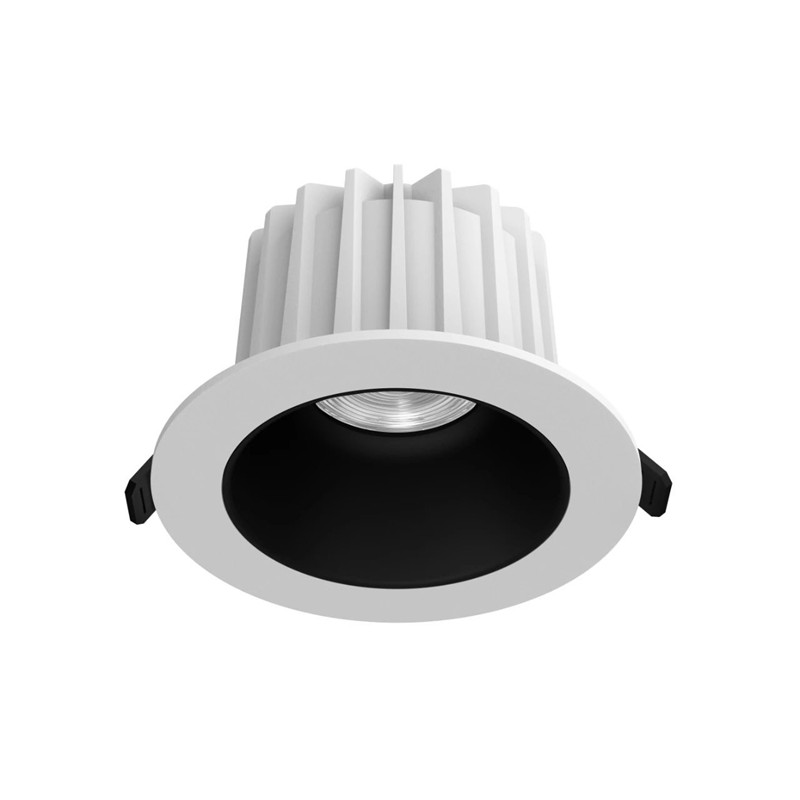

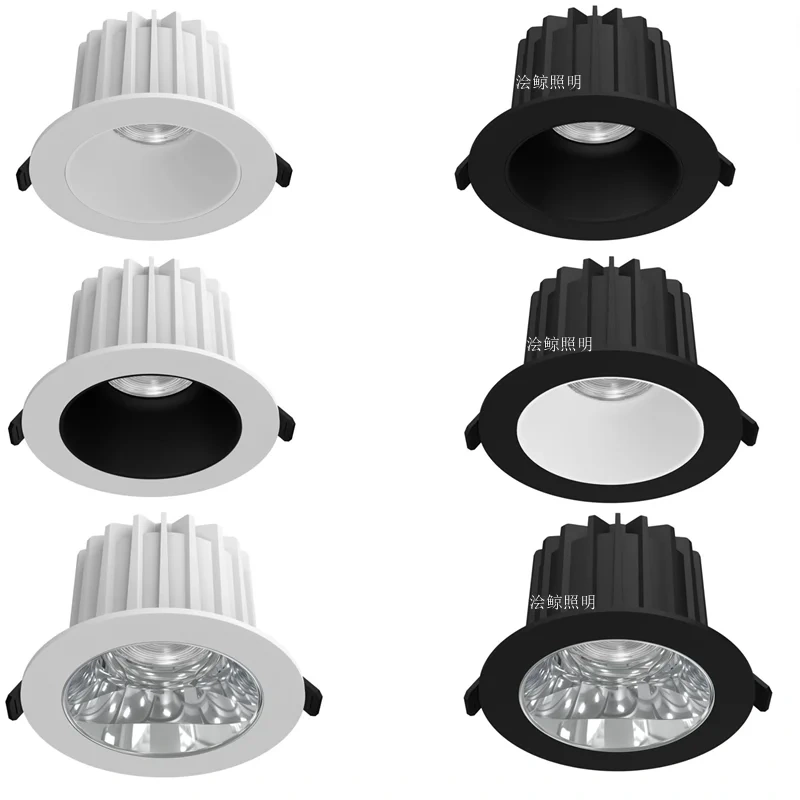

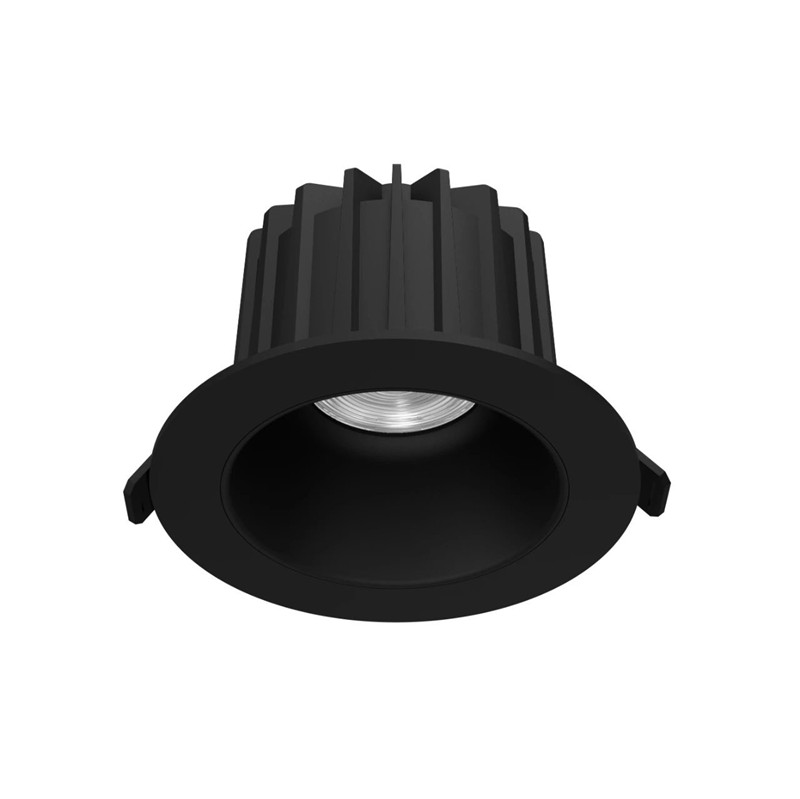

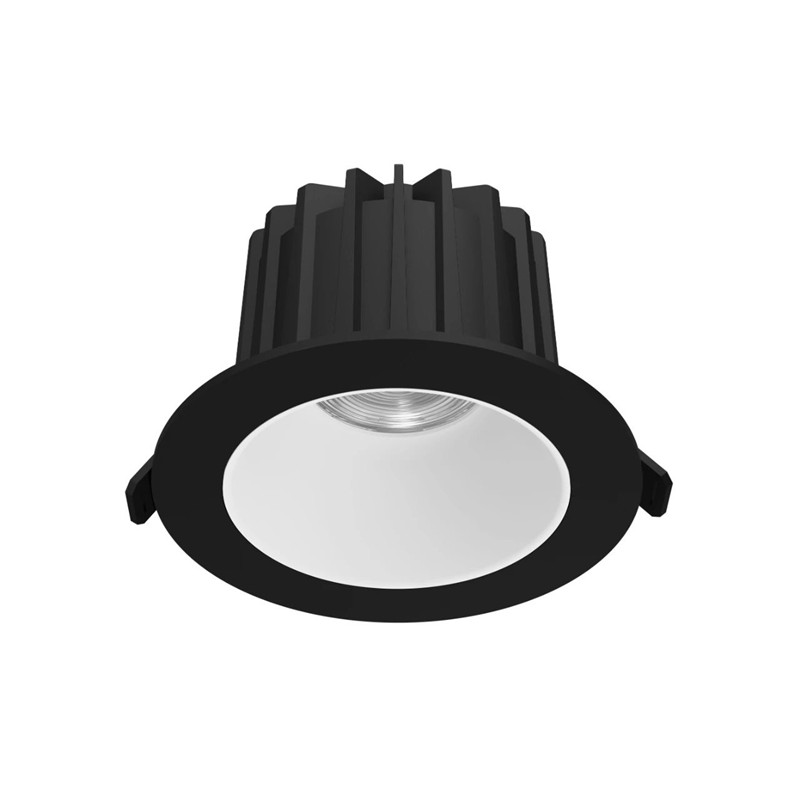

Finish Options: Architectural Matte White, Matte Black, and White Frame with Black Anti-Glare Cone.
Lighting Options
-
Warm White (3000K): Creates a relaxing, serene spa atmosphere ideal for residential bath areas and luxury hotel en-suites.
-
Natural Neutral White (4000K): Clean, shadow-free daylight balance recommended for grooming, makeup vanities, and modern shower stalls.
-
Cool White (6000K): Crisp, refreshing visibility suited for public locker rooms, commercial restrooms, and utility wet zones.
Installation
-
Cut a precise round aperture (Ø 75mm or matching model cutout) into the moisture-resistant ceiling drywall.
-
Route the AC mains power through the ceiling and connect to the external isolated LED driver.
-
Plug the secondary low-voltage waterproof DC quick-connector into the downlight luminaire.
-
Retract the heavy-duty stainless-steel spring clips, push the fixture into the aperture, and allow the springs to draw the silicone gasket firmly against the ceiling.
Project Applications
-
Luxury Hotel Guest Bathrooms: Low-glare, water-resistant downlighting directly above deep soaker tubs and walk-in rain showers.
-
Commercial Spas & Wellness Centers: Reliable vapor-proof ceiling illumination for steam preparation corridors and therapy suites.
-
Outdoor Covered Walkways: Weatherproof perimeter soffit downlighting that withstands wind-driven rain and exterior temperature variations.
OEM/ODM
USKYLED supports global architectural brands, electrical contractors, and wholesale distributors with custom production capabilities:
-
Custom trim finishes (e.g., Brushed Nickel, Gunmetal Gray, Rose Gold, or custom RAL coatings).
-
Architectural dimming integration: Leading-edge/trailing-edge TRIAC, 0-10V, and DALI-2 DT6/DT8 protocols.
-
Ultra-high CRI upgrades up to Ra 95+ (R9 > 50) and Tunable White (2700K–6500K) modules.
-
Laser-marked branding on bezels and customized export outer master packaging.
CTA
Upgrading your bathroom, shower, or wet-location lighting project? Contact the USKYLED engineering team today for photometric cut sheets, IP test certificates, and factory-direct volume pricing.
11 Technical Specifications
| Parameter |
Specification |
| Product Model |
US-WDL-IP65 |
| Rated Power |
7W / 10W / 12W / 15W |
| Input Voltage |
AC 85–265V, 50/60Hz (110V / 220V Compatible) |
| Light Source |
High-Efficacy COB LED Chip (CREE / Bridgelux / Citizen) |
| Luminous Efficacy |
~85–95 lm/W |
| Glare Rating (UGR) |
UGR < 16 (Deep Anti-Glare) |
| Beam Angle |

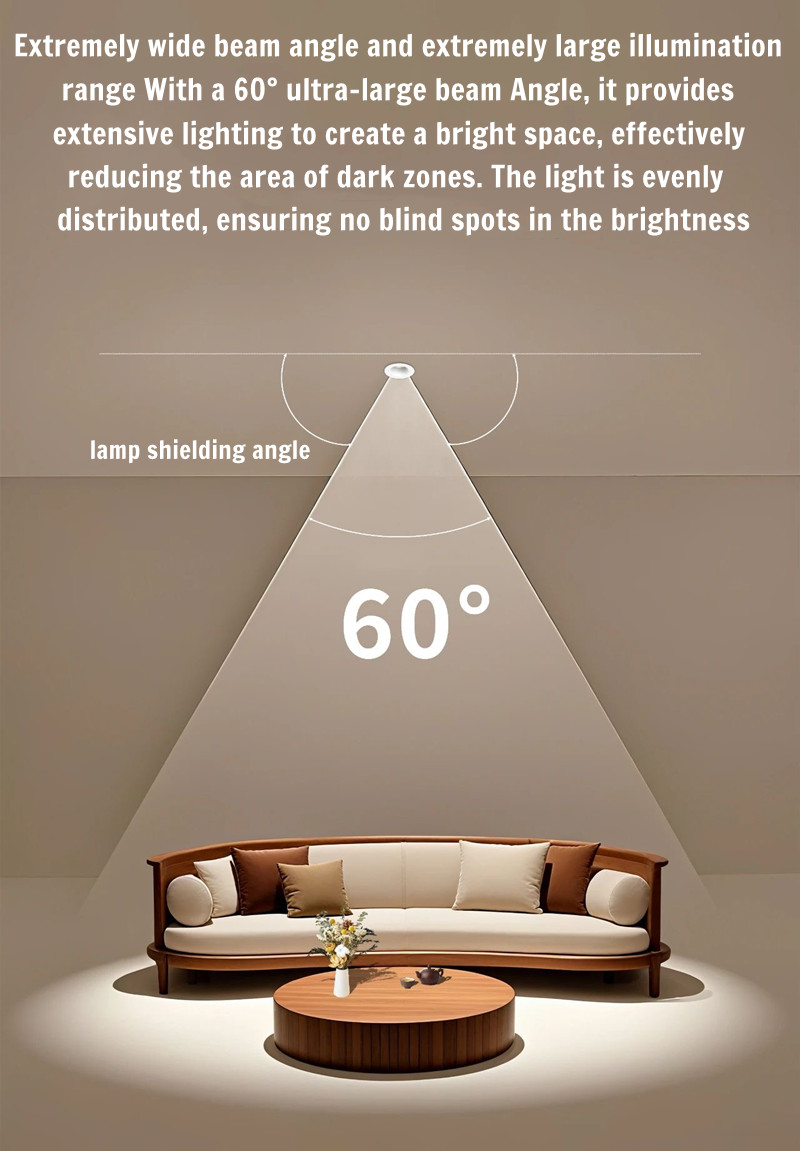

24° / 36° / 60° Precision Optical Lens |
| Color Temperature (CCT) |
3000K (Warm) / 4000K (Natural) / 6000K (Cool) |
| Color Rendering Index (CRI) |
Ra ≥ 90 (High Color Fidelity) |
| Ingress Protection |
IP65 (Waterproof, Vapor-Proof, Dustproof) |
| Ceiling Cutout Size |
Ø 75 mm / Ø 85 mm (Model dependent) |
| Dimensions |
Outer Dia. Ø 85 mm × Height 65 mm (7W/10W) |
| Housing Material |
Die-Cast ADC12 Aluminum + Tempered Glass + Silicone Gasket |
| Finish Options |
Matte White / Matte Black / White + Black Baffle |
| Driver Type |
External Isolated Flicker-Free Constant Current Driver |
| Dimming Compatibility |
Non-dimmable / TRIAC / 0-10V / DALI (Optional) |
| Working Lifespan |
> 50,000 Hours |
| Minimum Order Quantity (MOQ) |
1 pcs |
| Sample Lead Time |
3 – 7 days |
| Mass Order Lead Time |
7 – 15 days |
