3W Mini Recessed LED Spotlight for Ceiling & Display Lighting

Product Introduction

The 3W Mini Recessed LED Spotlight is a compact indoor lighting fixture designed for ceiling, cabinet, showcase, furniture and display applications.

Using a 3W 5050 LED light source, the spotlight delivers approximately 300–320 lumens with a 30° beam angle. Its compact D50 × H30mm body requires a 42mm cutout, making it suitable for installations where a smaller recessed fixture is preferred.

The product supports DC12V and AC100–240V configurations, with the product package providing a driver and RF dimmer according to the selected set. Current package options include 4-light, 6-light, 8-light, 10-light and 12-light configurations.

Design

The spotlight uses a compact aluminum housing with a brushed nickel finish and is designed for recessed installation.

Its adjustable/tiltable spotlight head allows the light direction to be positioned according to the display or interior lighting requirement.

The small housing is suitable for:

• Cabinet interiors
• Display furniture
• Shelving
• Ceilings
• Wardrobes
• Wine cabinets
• Retail displays
• Architectural niches

The current product specification lists a D50 × H30mm fixture and D42mm cutout.

Main Features

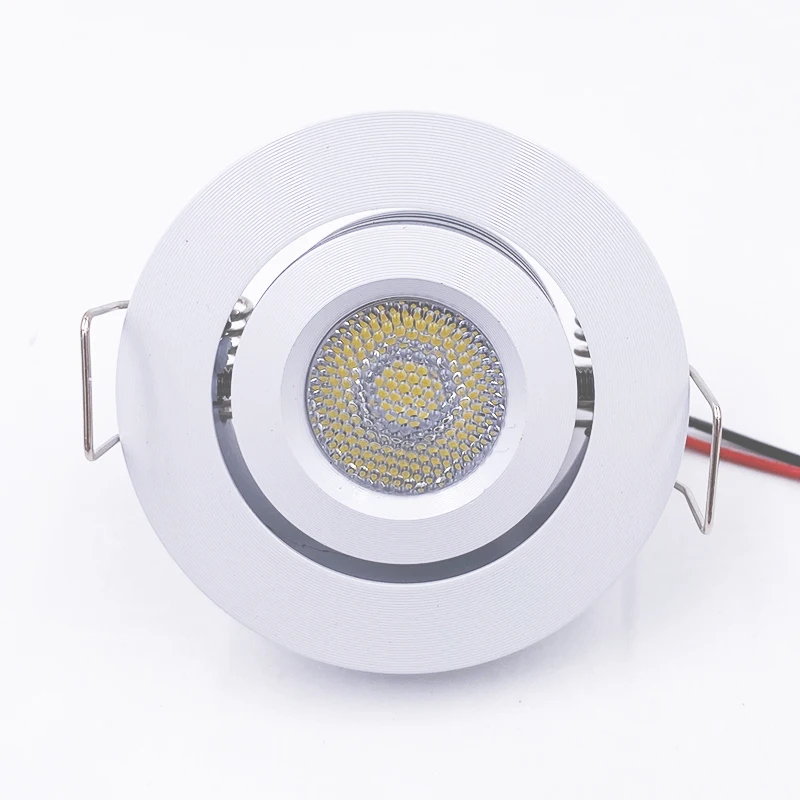

3W LED Light Source

The fixture uses a 3W 5050 LED light source and provides approximately 300–320 lumens.

This output is suitable for localized accent lighting, display illumination and compact indoor lighting applications.

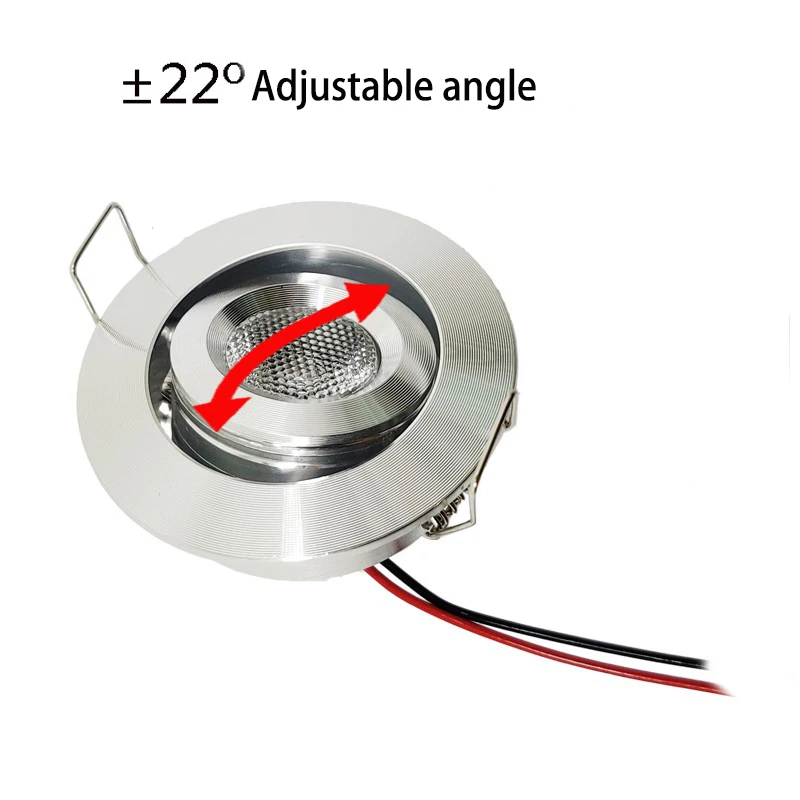

Adjustable Lighting Direction

The tiltable spotlight head allows users to direct the beam toward a selected display object, shelf or architectural feature.

This is particularly useful for retail displays, cabinets and decorative interior lighting.

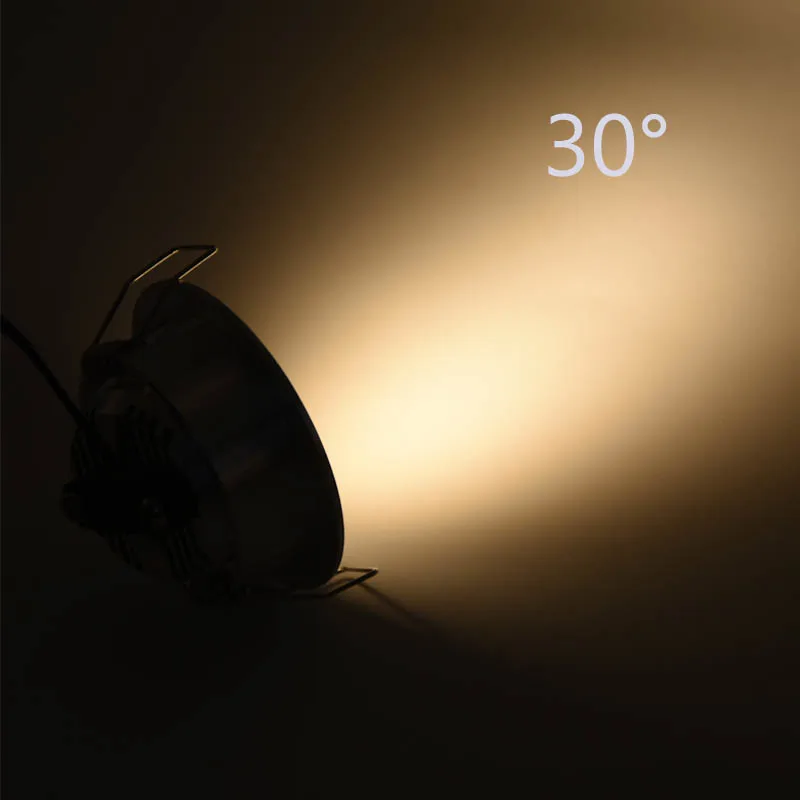

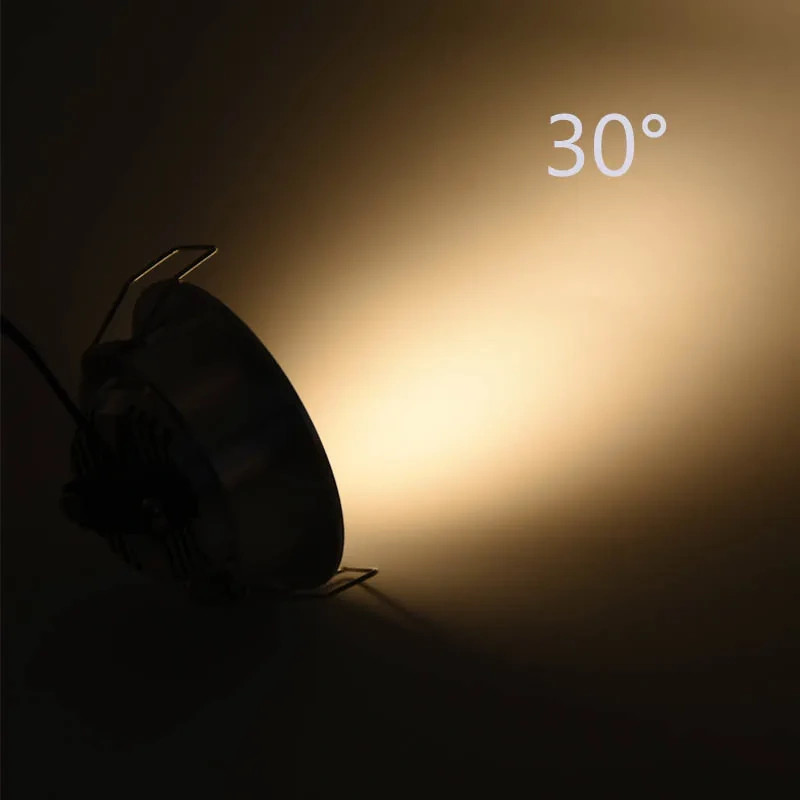

30° Beam Angle

The 30° beam angle provides focused illumination for accent and display lighting.

It is suitable for highlighting merchandise, decorative objects, furniture details and selected areas within an interior space.

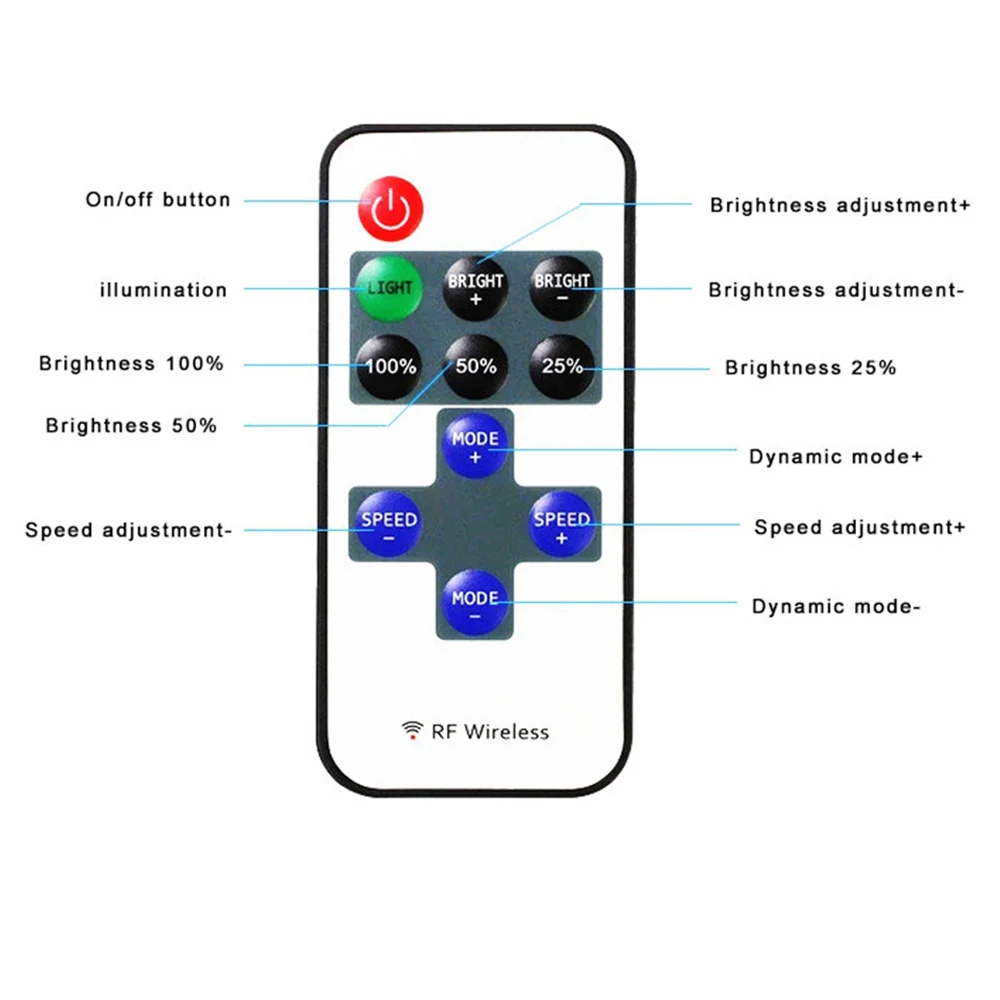

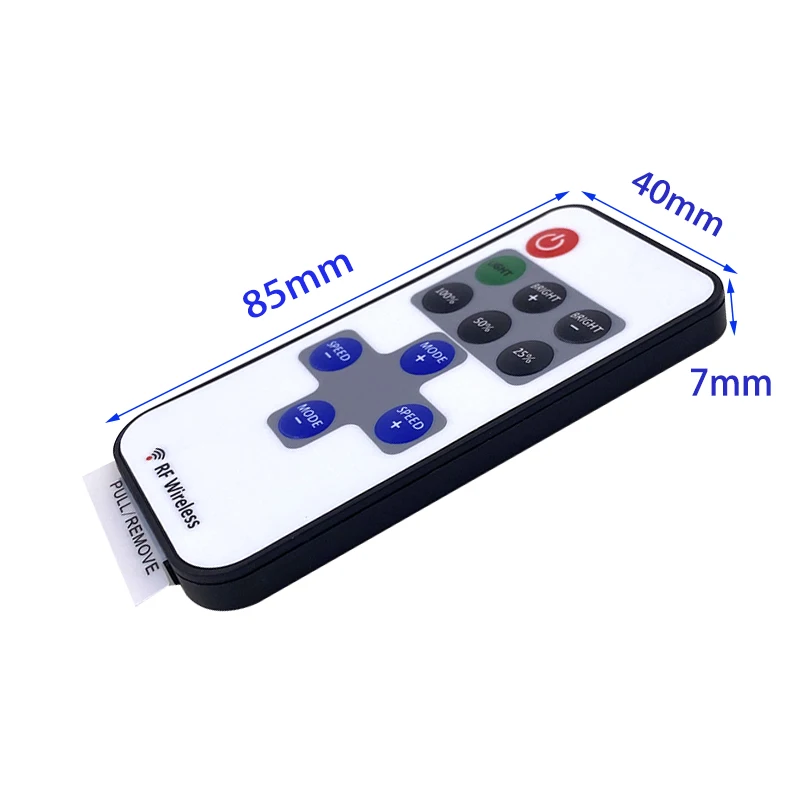

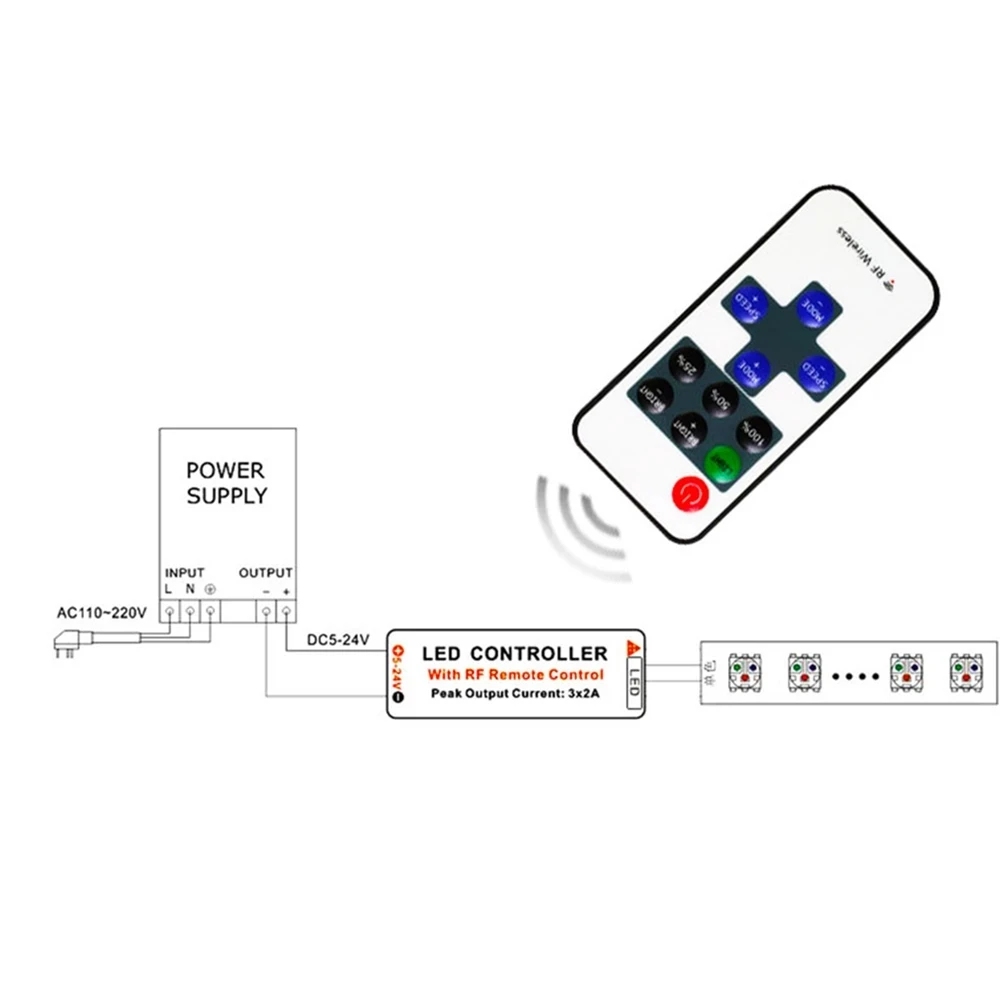

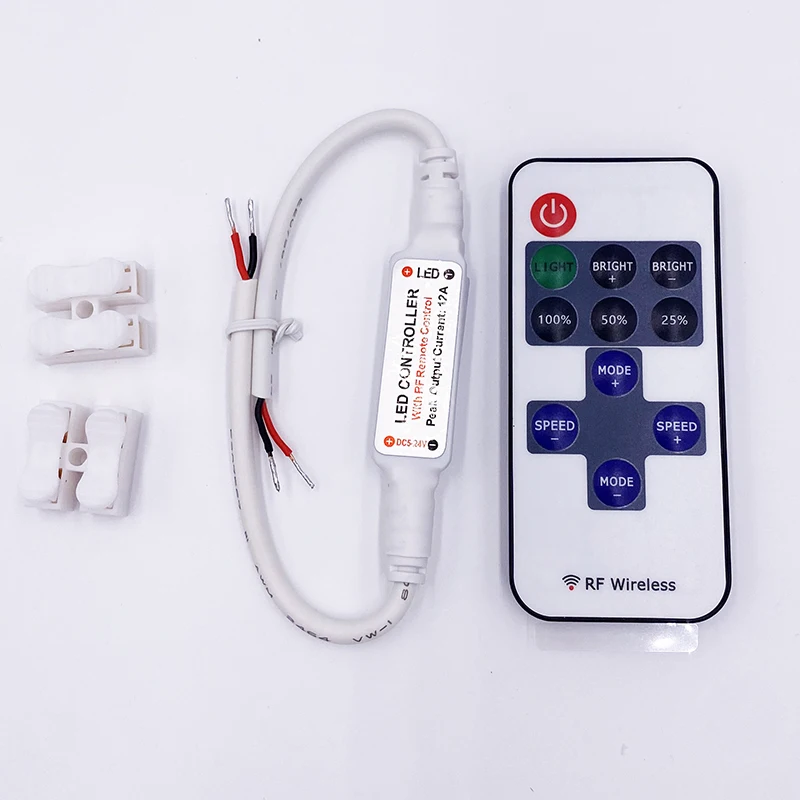

RF Dimming

The product specification lists an 11-button RF dimmer.

This provides convenient brightness adjustment for applications where the lighting level needs to be changed according to the environment or display requirements.

AC100–240V / DC12V Options

The product supports:

• DC12V
• AC100–240V

For the AC version, the product package includes a driver according to the selected set configuration.

IP52 Protection

The product is rated IP52, providing protection against dust and limited water exposure.

It is intended primarily for indoor applications rather than outdoor or wet-location installation.

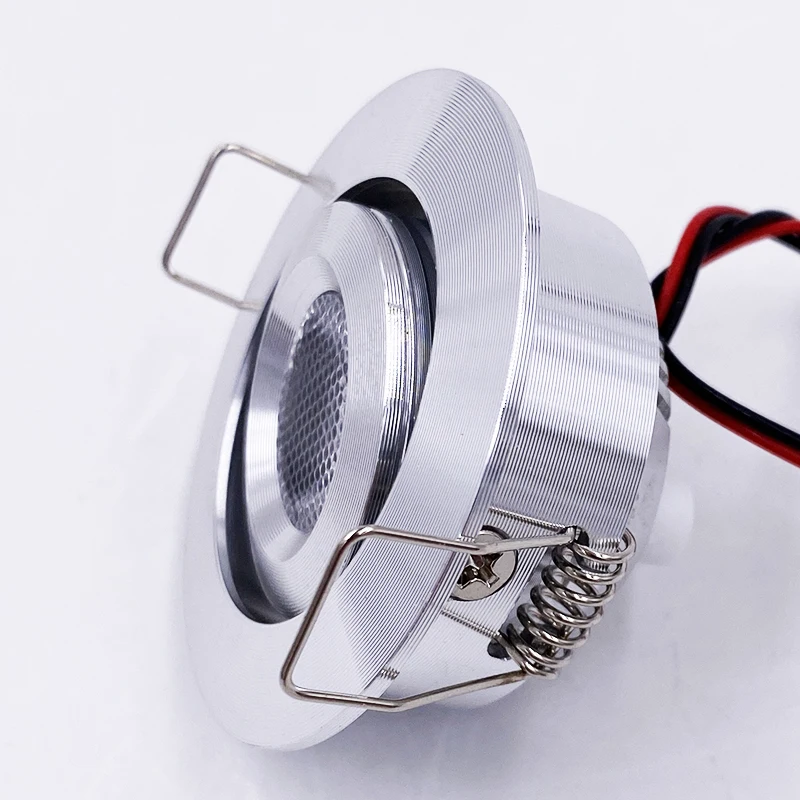

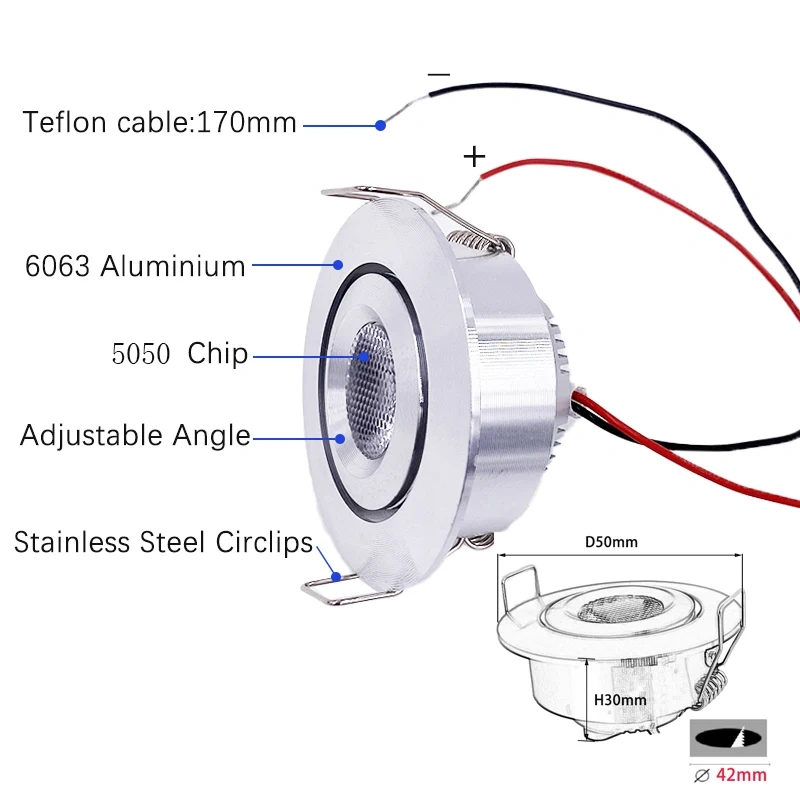

Aluminum Housing

The lamp body is made from 6063 aluminum, providing a compact metal housing suitable for indoor recessed lighting.

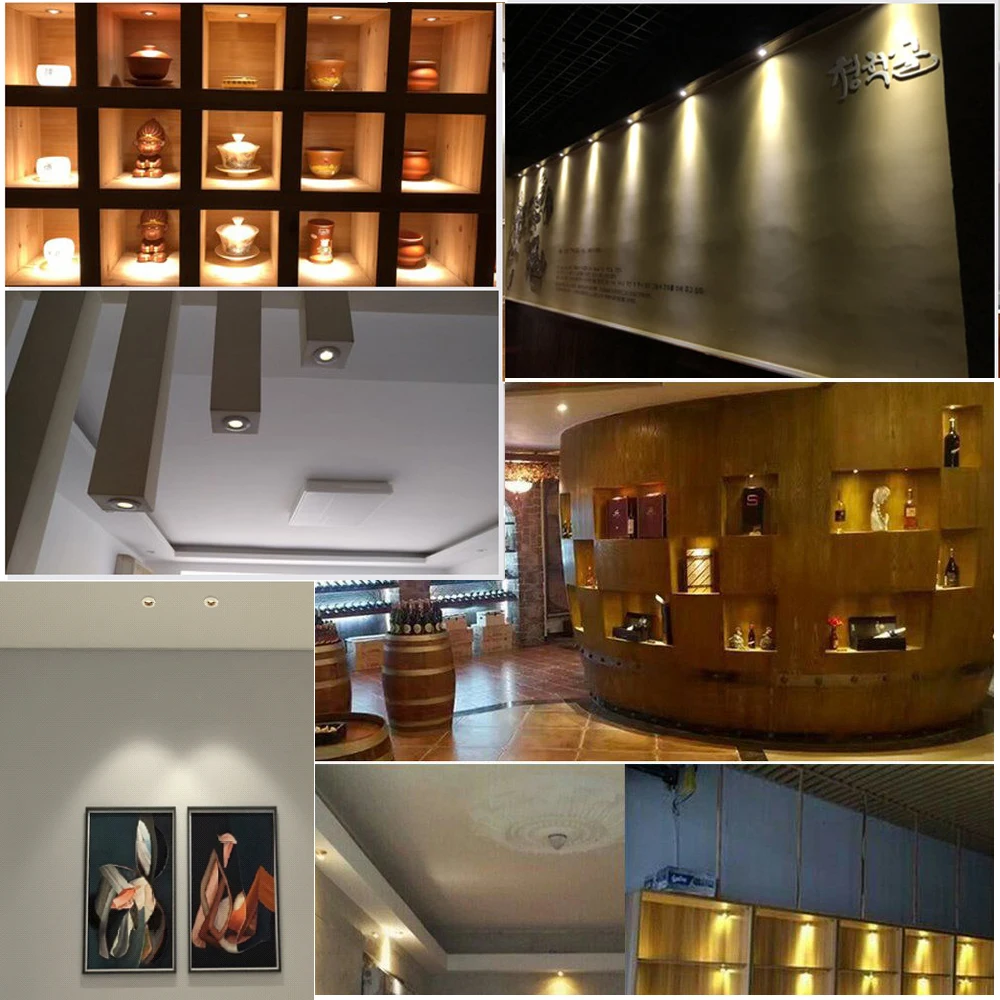

Application

The Mini Recessed LED Spotlight is suitable for:

• Ceiling lighting
• Cabinet lighting
• Display cabinet lighting
• Showcase lighting
• Furniture lighting
• Wardrobe lighting
• Shelf lighting
• Wine cabinet lighting
• Stair lighting
• Bedroom lighting
• Living room lighting
• Retail display lighting
• Restaurant lighting
• Hotel interiors
• KTV interiors
• Bar lighting
• Corridor lighting

The current page specifically lists ceiling, bedroom, kitchen, living room, display cabinet, closet, bookcase, wine cabinet, stairs, entrance, corridor, cars, bar, KTV and restaurant applications.

Size / Options

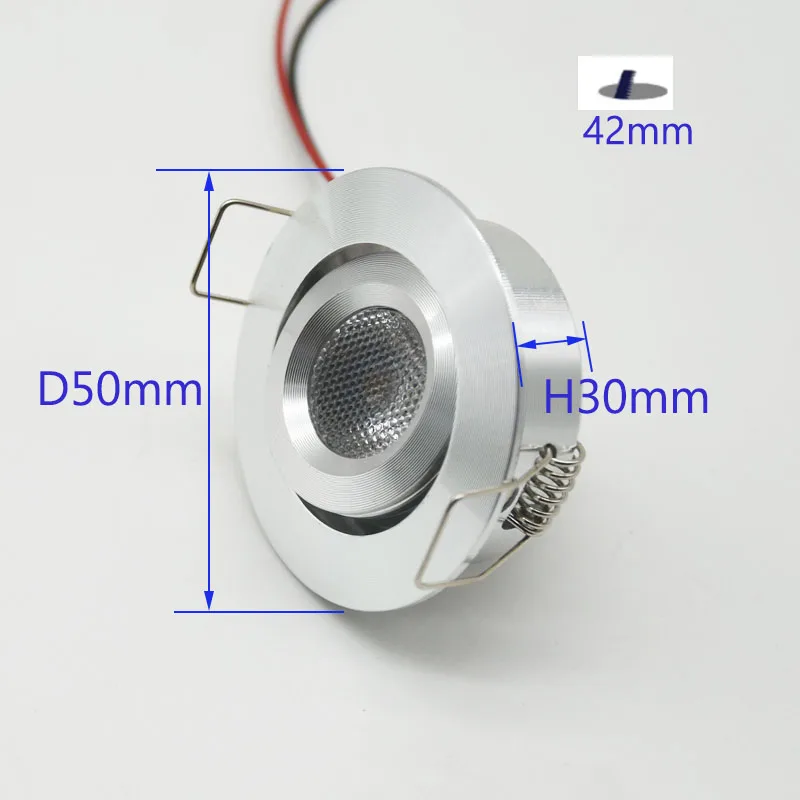

Fixture Size

D50 × H30mm

Cutout

D42mm

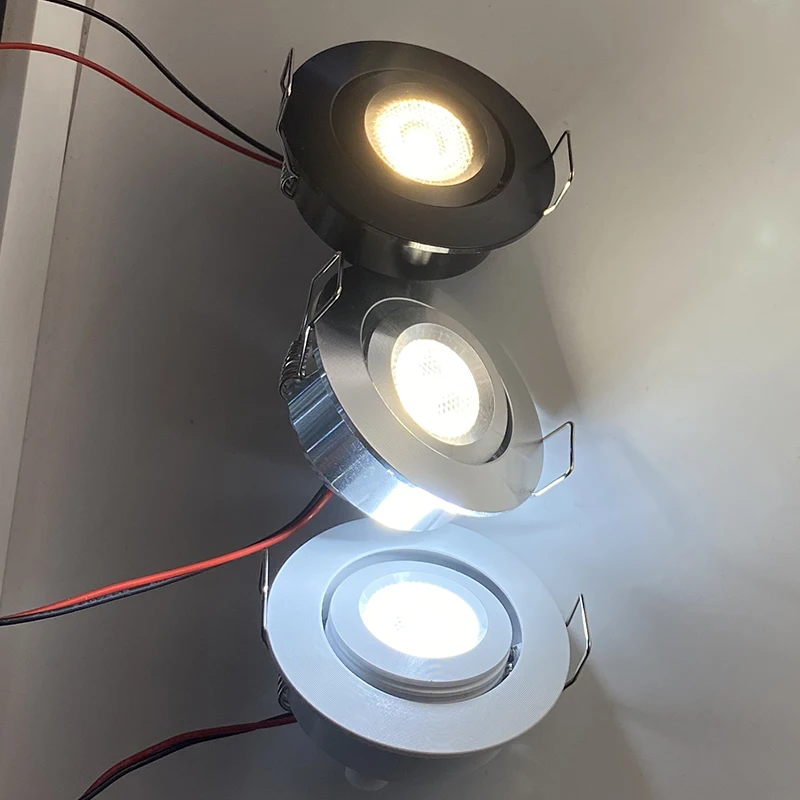

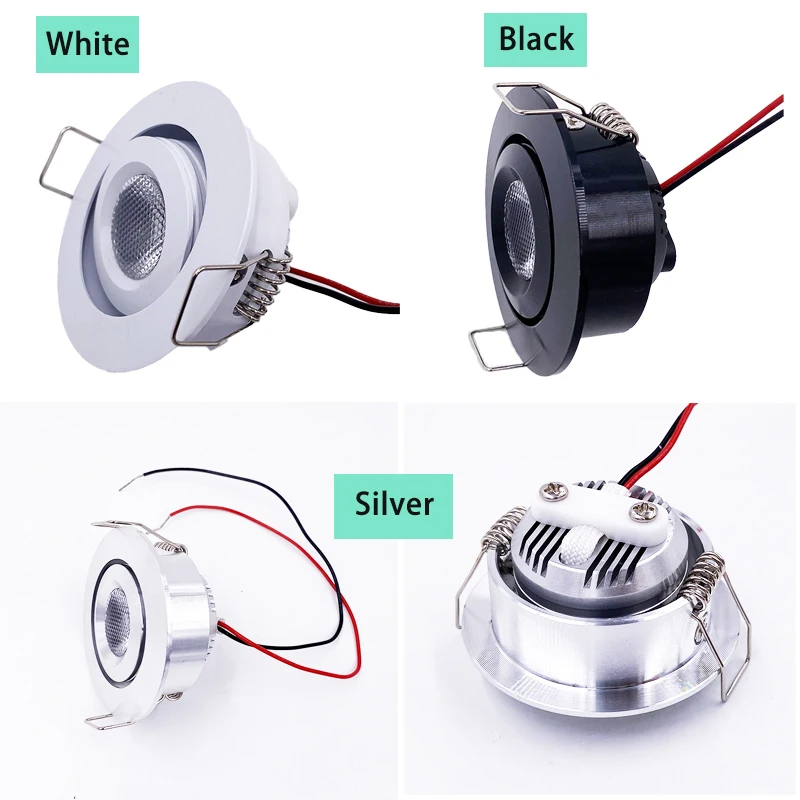

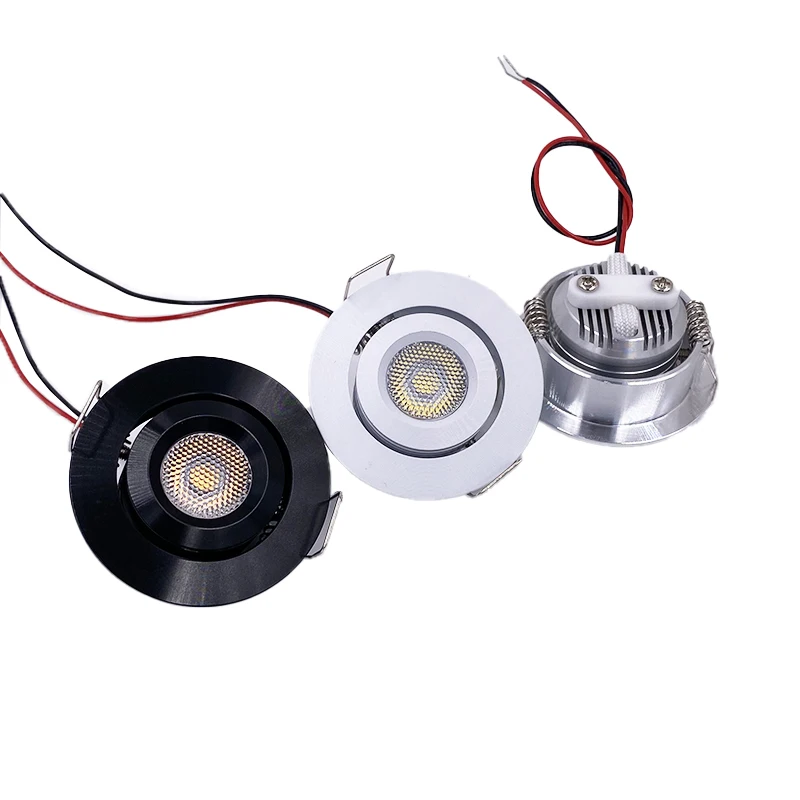

Housing Colors

The current variants list:

• Silver
• Black
• White

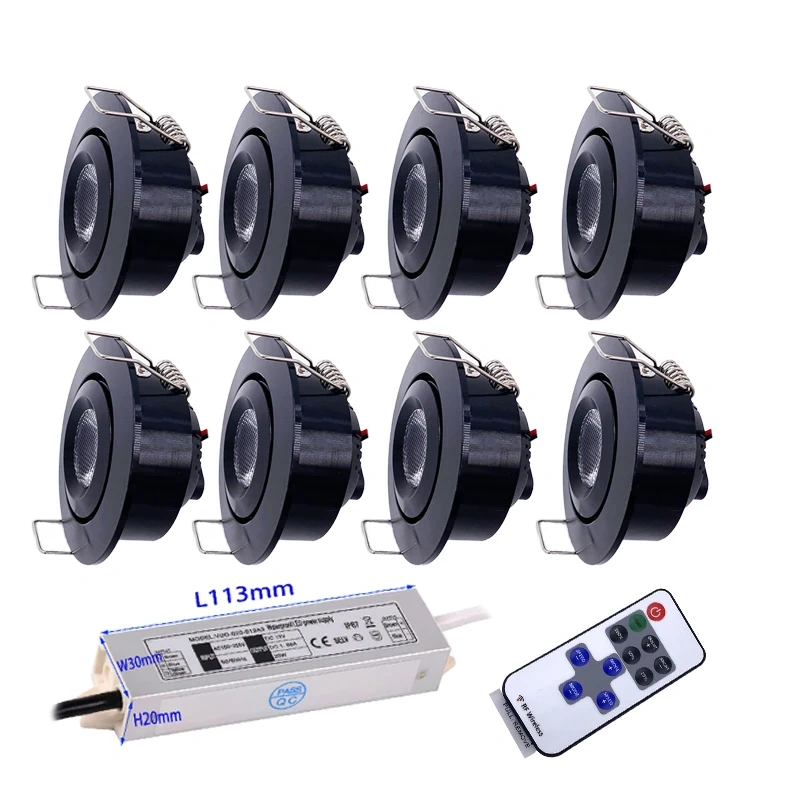

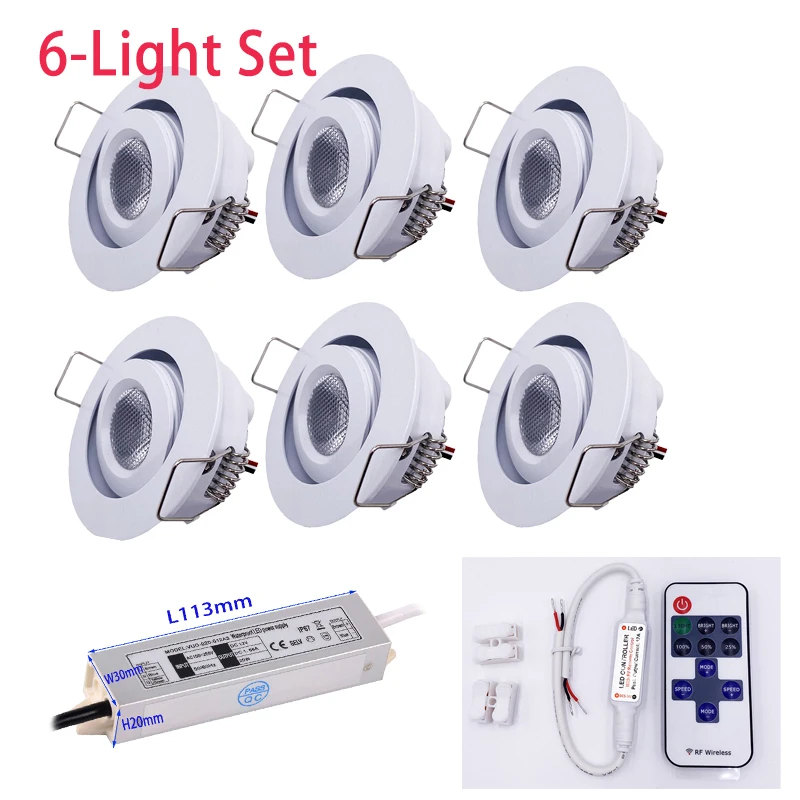

Set Options

The current product page offers:

• 4-Light Set
• 6-Light Set
• 8-Light Set
• 10-Light Set
• 12-Light Set

Each set is specified as including the corresponding number of lights plus one driver and one dimmer.

Lighting Options

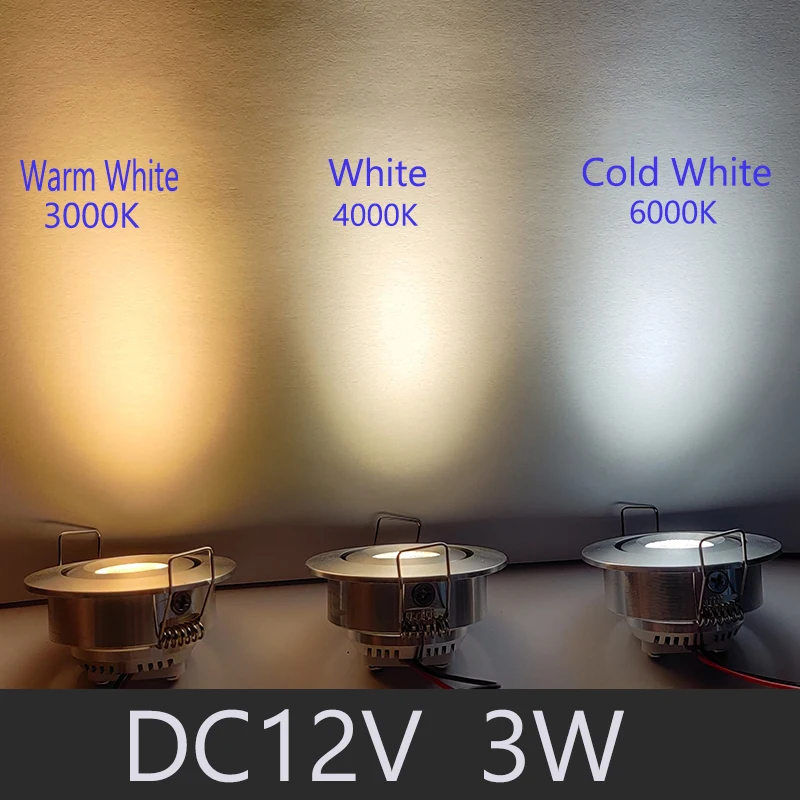

Color Temperature

Available options include:

Warm White

2700–3000K

White / Neutral White

4000–4500K

Cold White

5500–6500K

Beam Angle

30°

This focused beam is suitable for accent and display applications.

Dimming

11-button RF dimming

The selected package includes an RF dimmer according to the current package configuration.

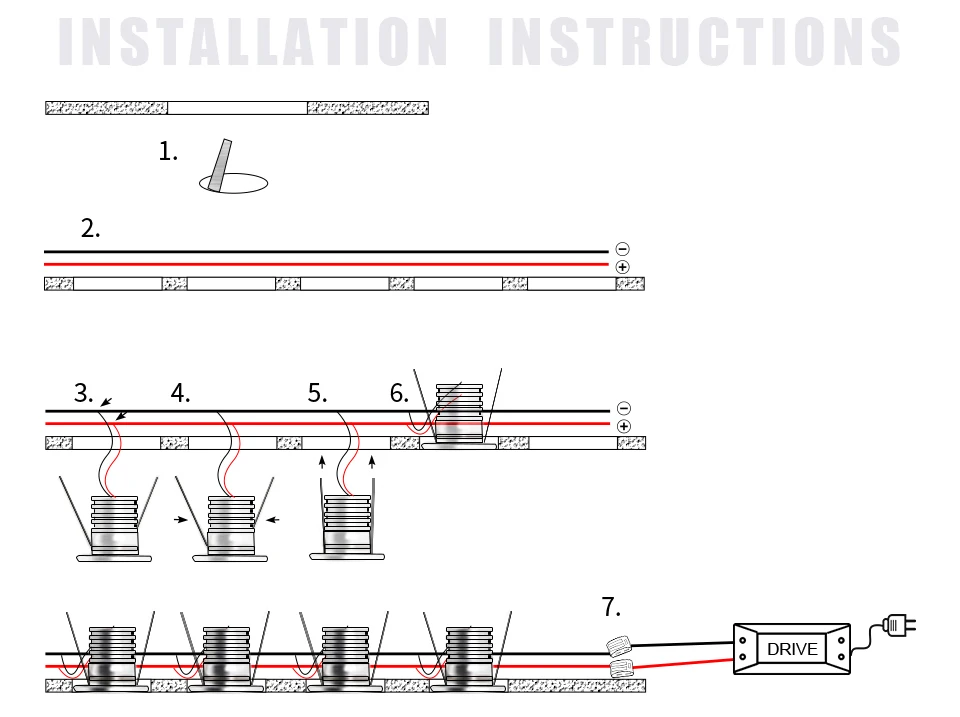

Installation

The product is designed for recessed installation.

Recommended installation process:

1. Confirm the selected voltage and package configuration.
2. Prepare a 42mm cutout.
3. Connect the fixture to the appropriate driver or DC12V supply.
4. Insert the spotlight into the recessed opening.
5. Secure the fixture using the recessed mounting mechanism.
6. Connect the RF dimmer where included.
7. Test brightness and beam direction before completing the installation.

For cabinet, furniture and display projects, the cutout should be confirmed before production or installation.
