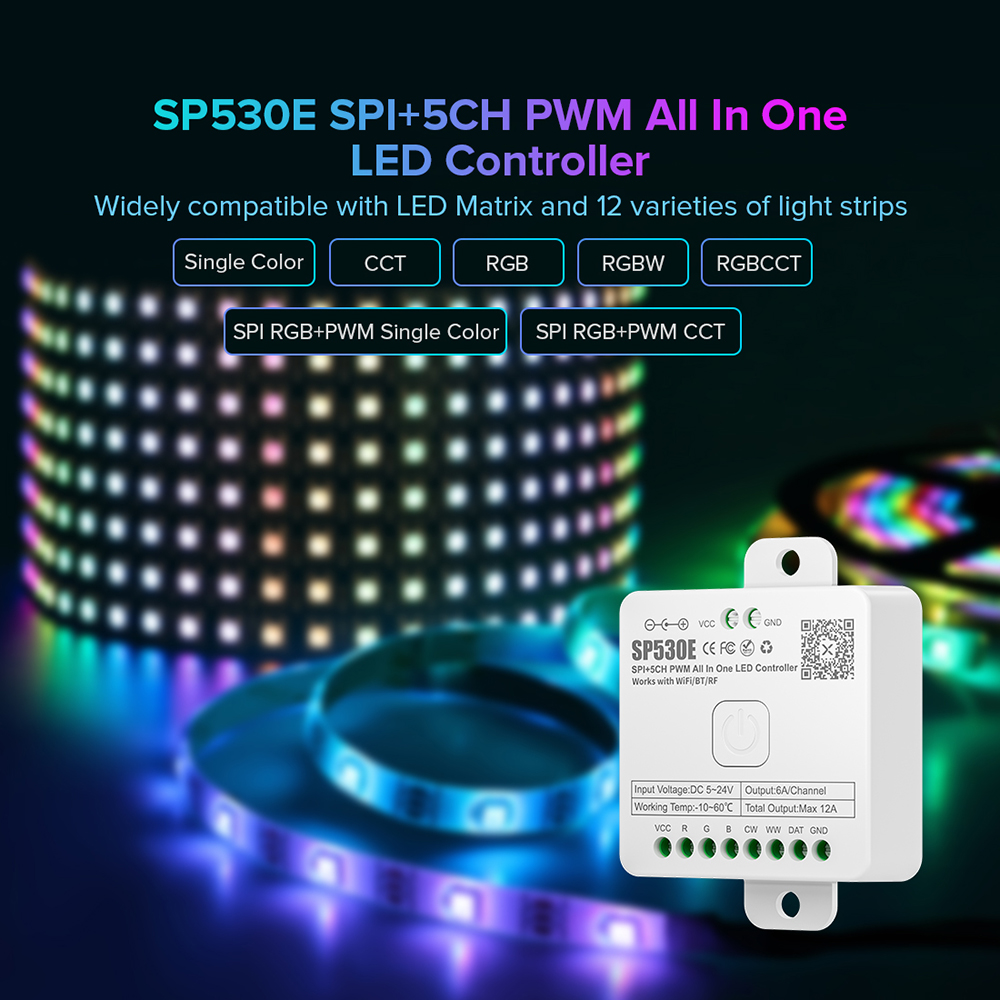

All In One LED Controller SP530E Wifi Alexa Google Home BT SP630E 5CH PWM SPI Pixels LED Strip Light WS2811 WS2812B SK6812 FCOB

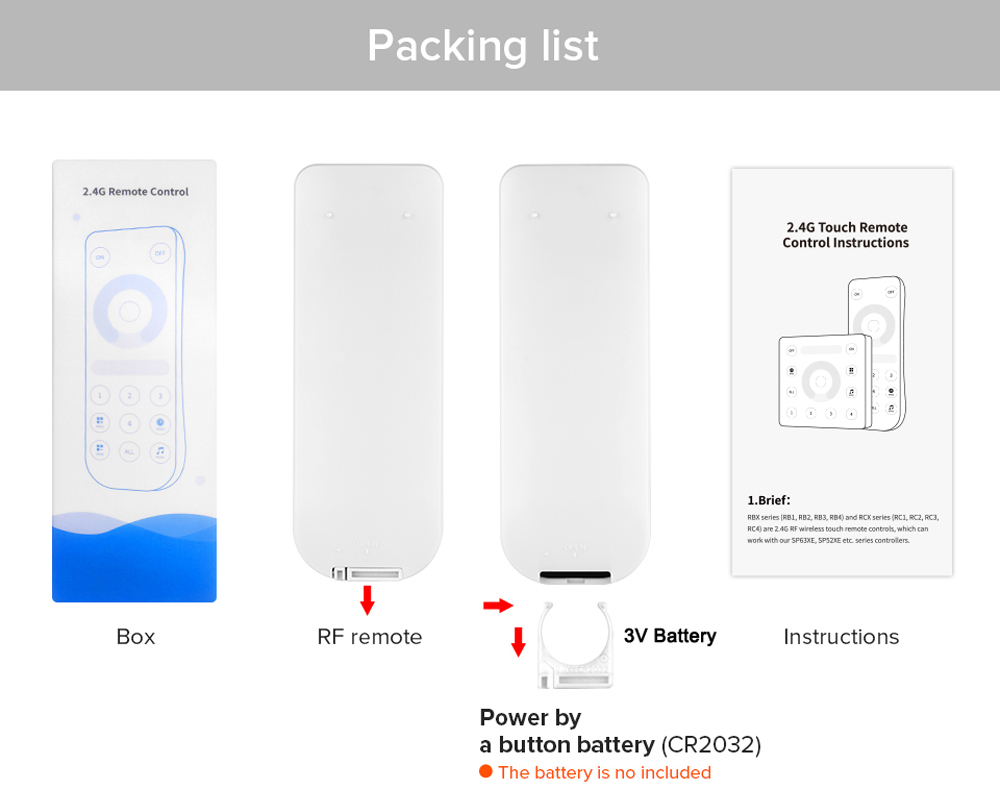

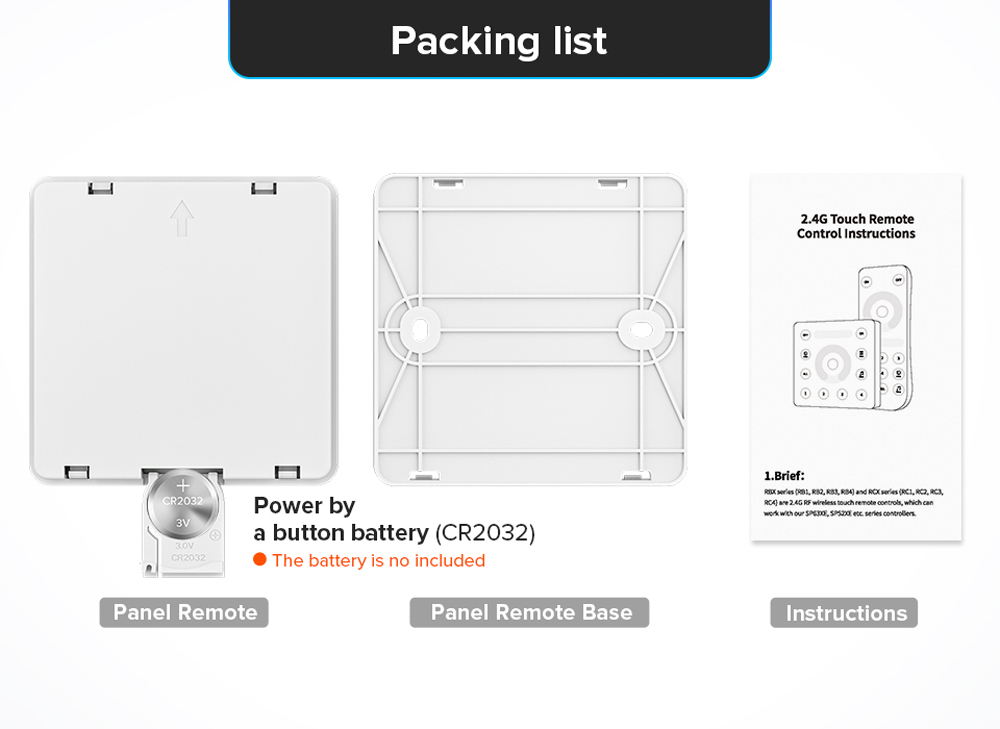

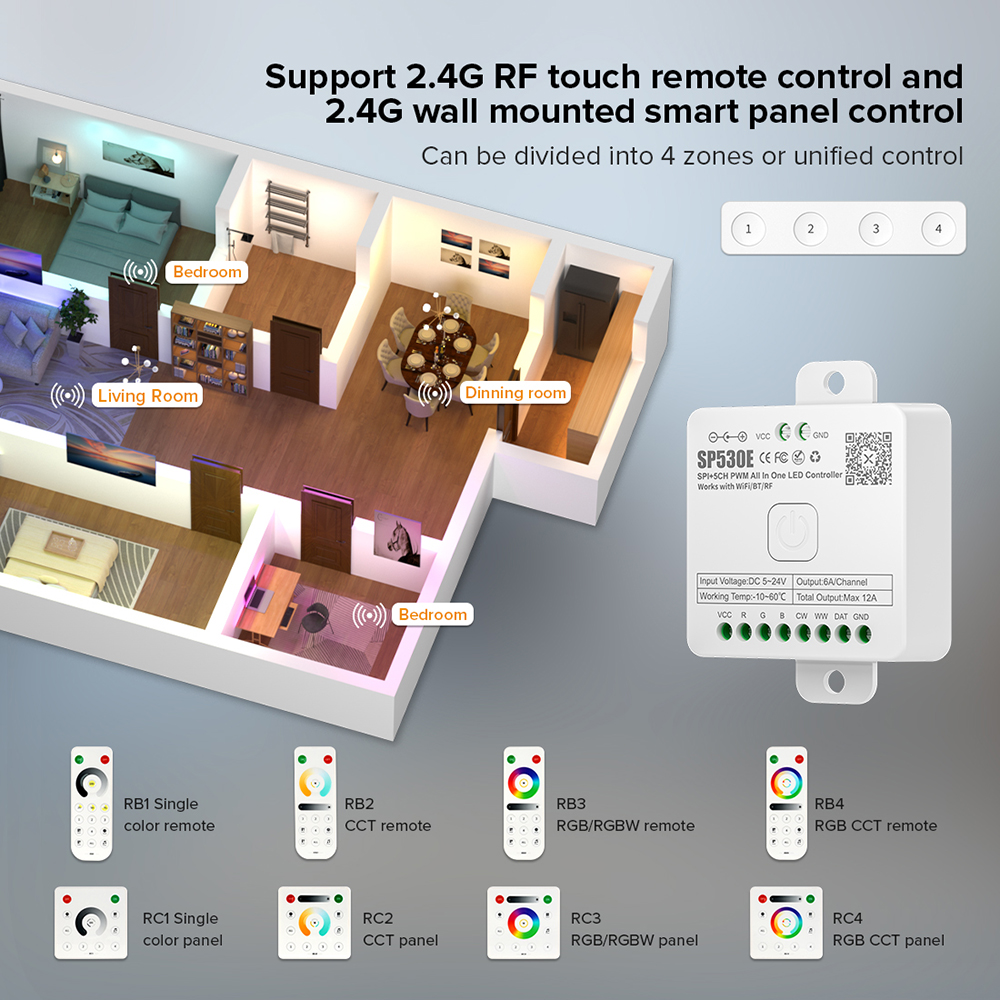

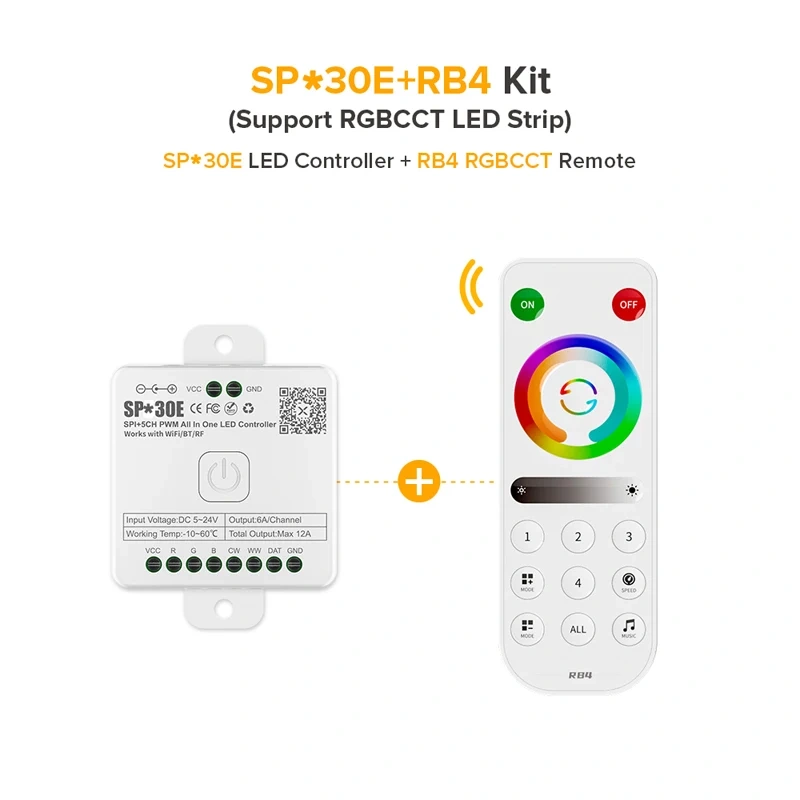

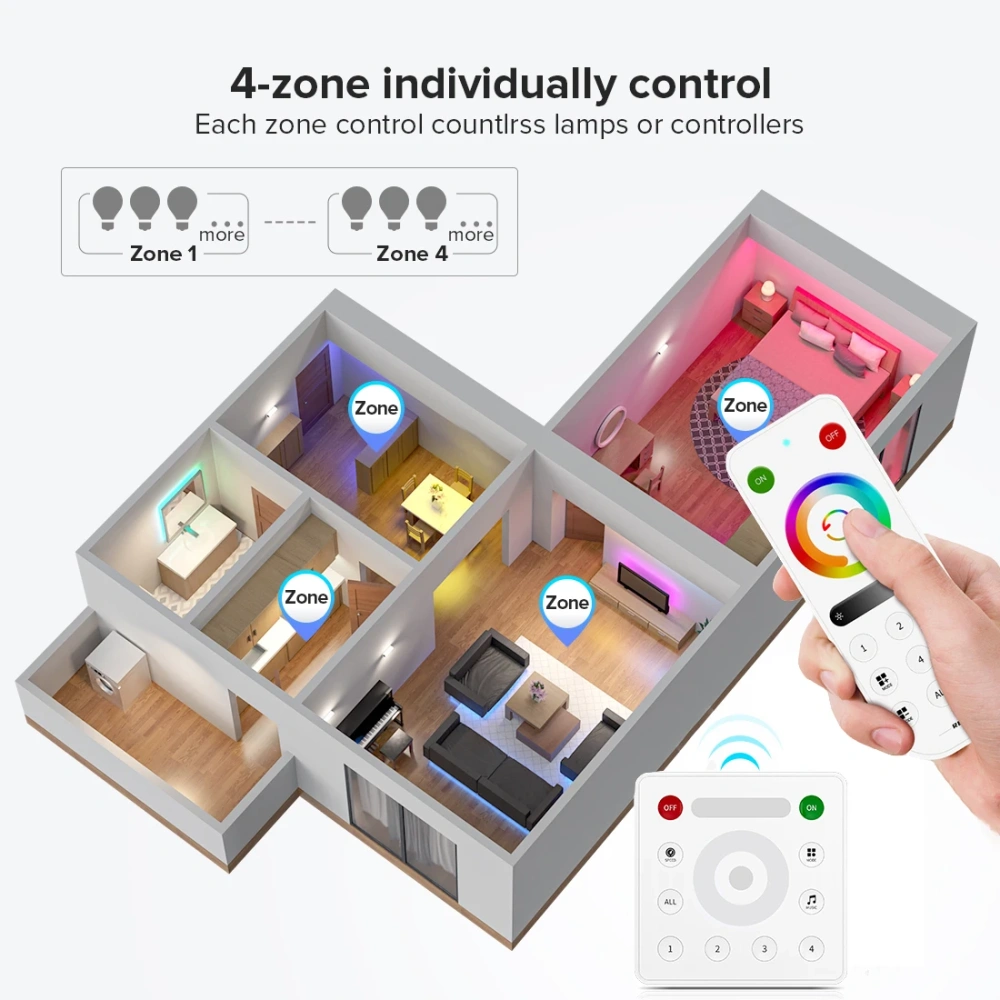

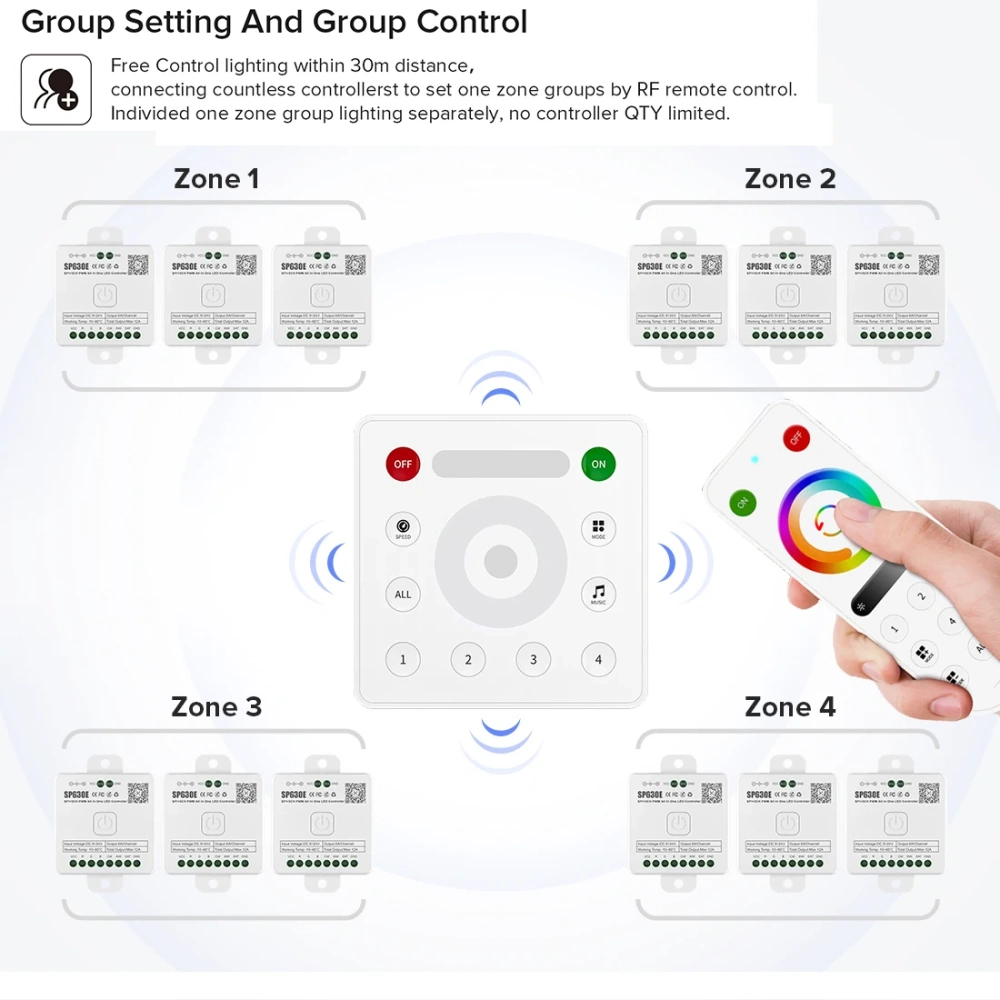

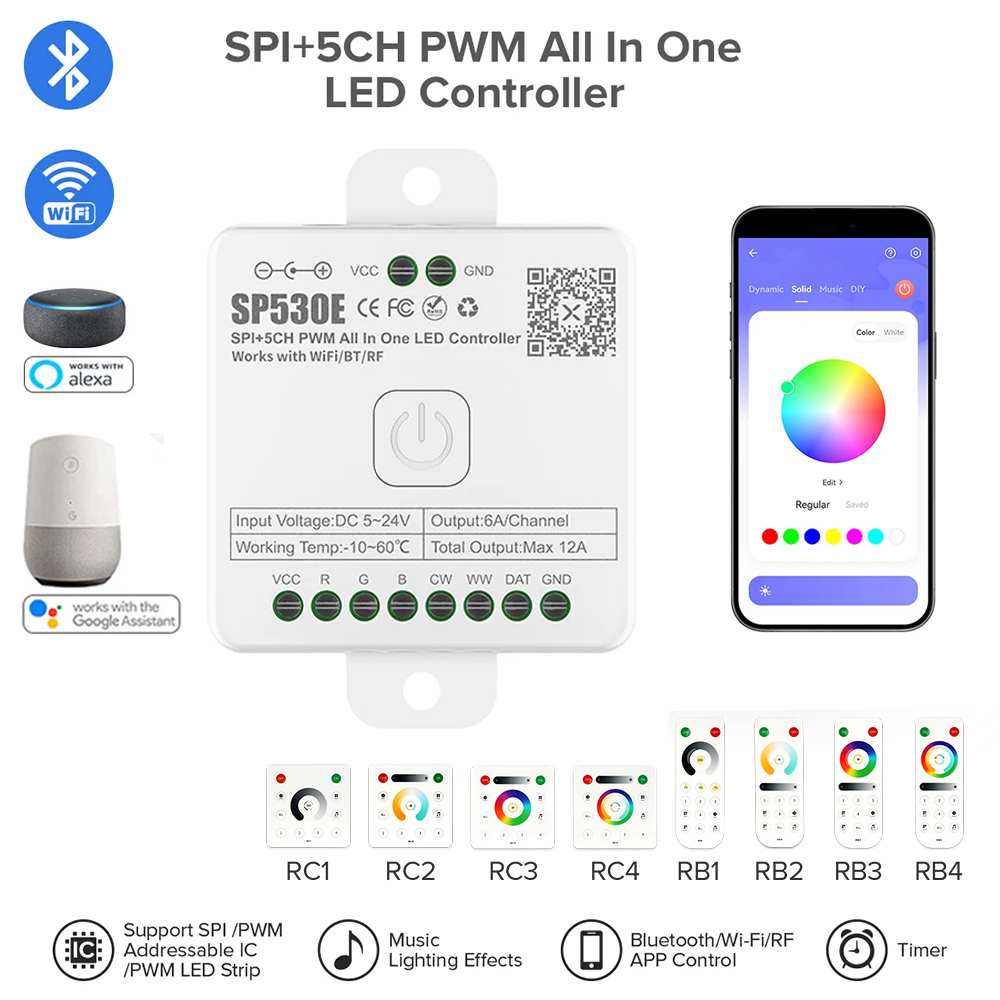

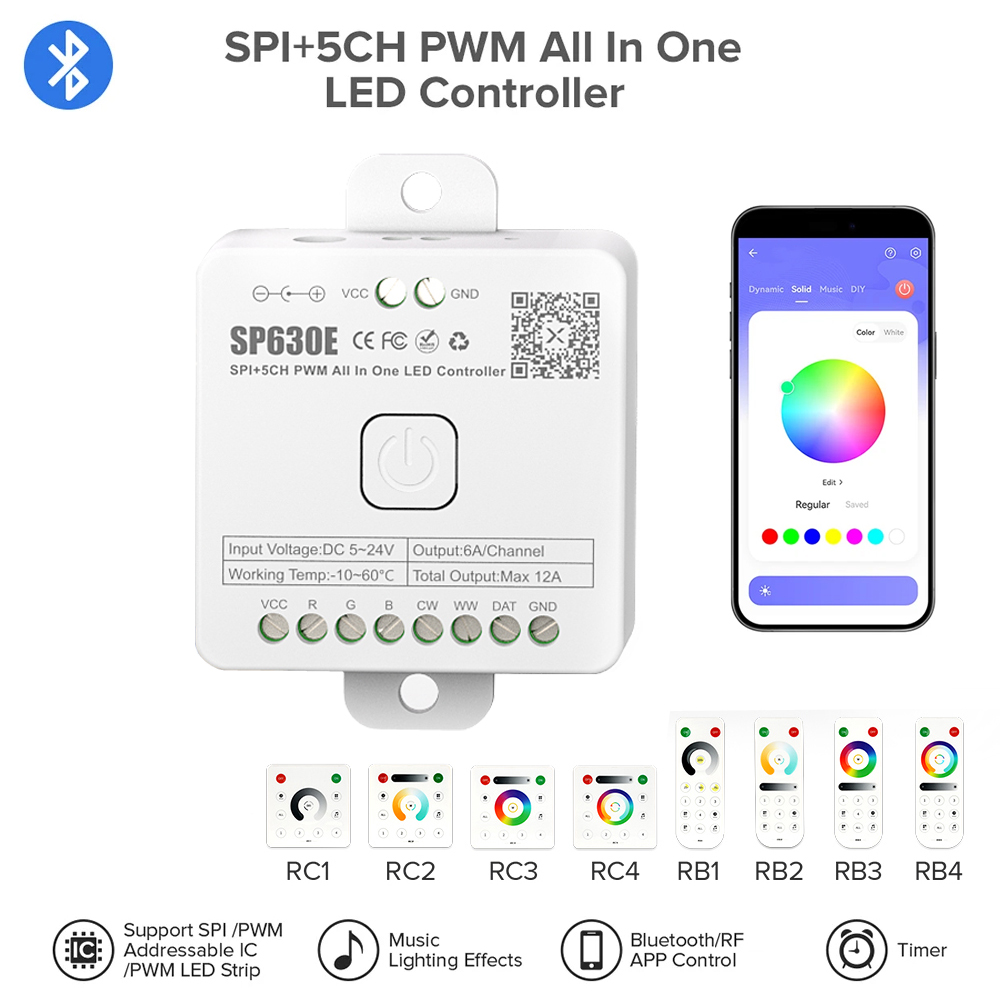

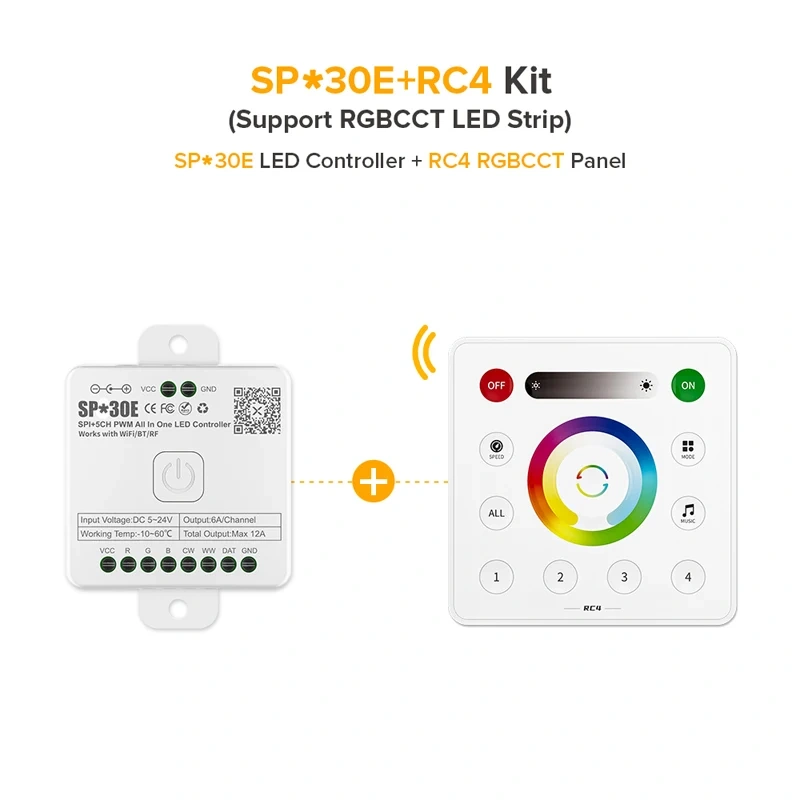

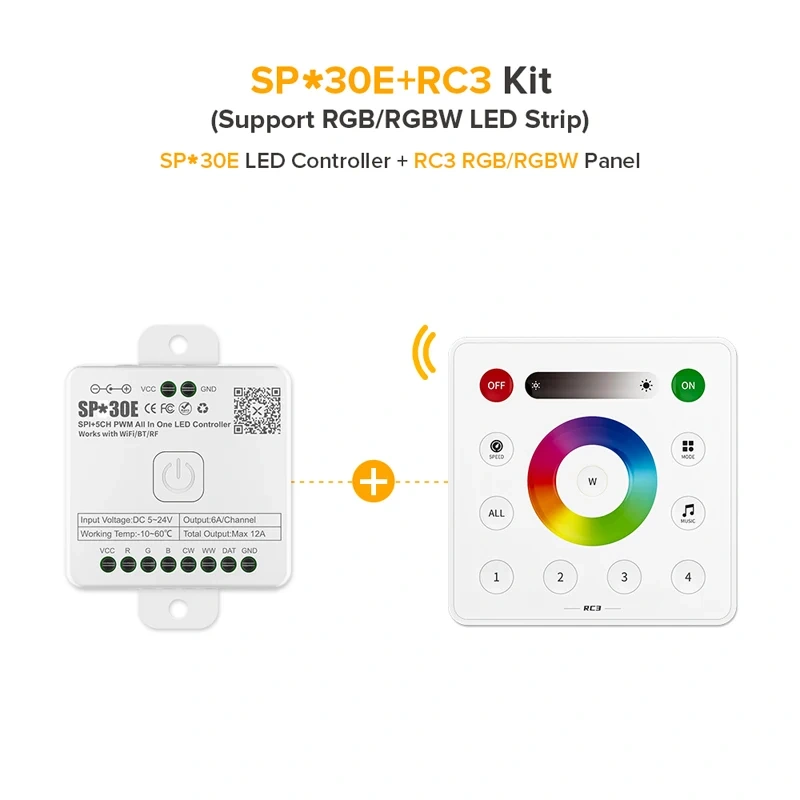

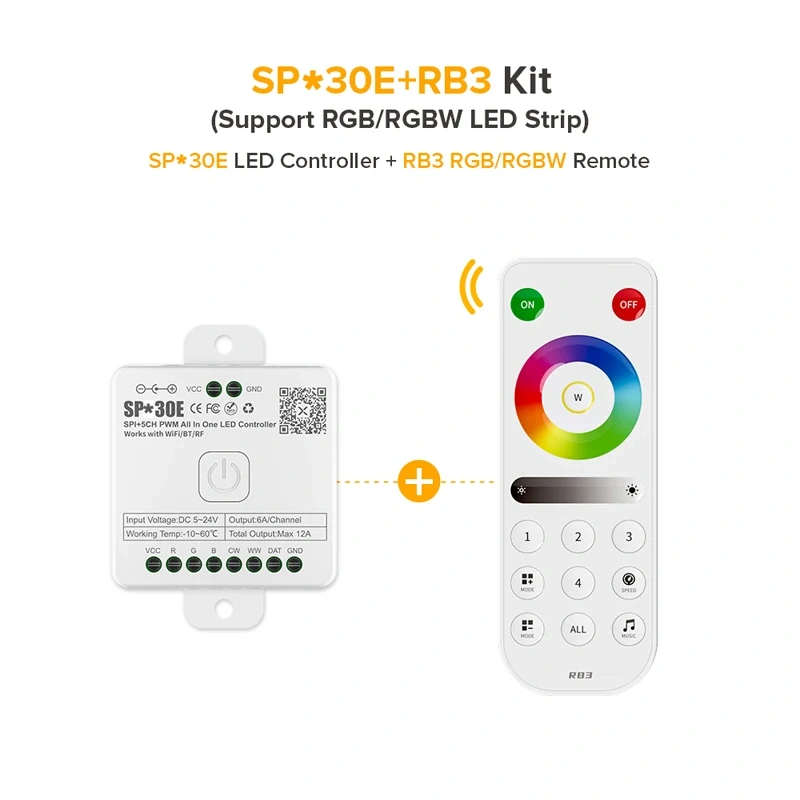

SP530E/SP630E are versatile loT LED controller designed specifically for controlling various types of LED. Both of them supports RF remote control.

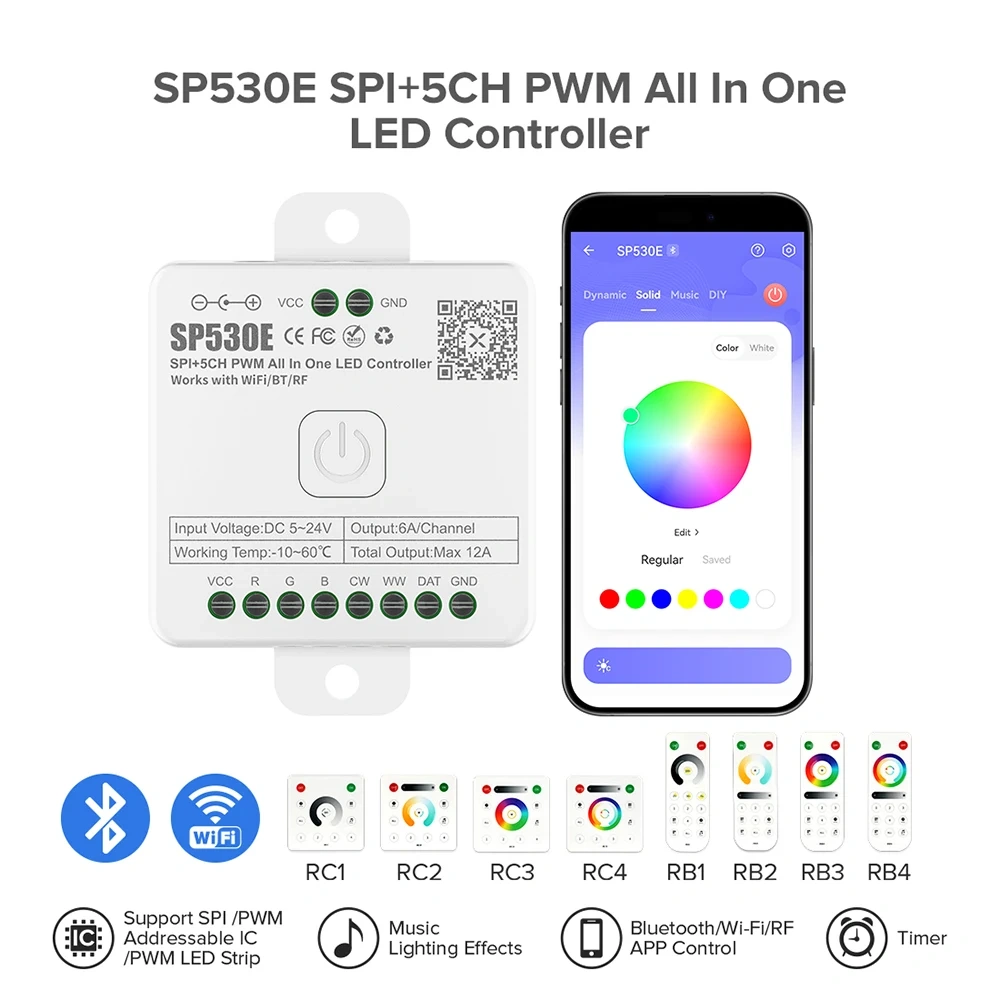

SP530E utilizes a dual-mode(2.4GHz WiFi and Bluetooth LE5.0) chip, enabling Bluetooth, WiFi, local network, or cloud connection via an App.

SP630E utilizes a single-mode(Bluetooth LE5.0) chip, enabling Bluetooth connection via an App.

Parameter Table:

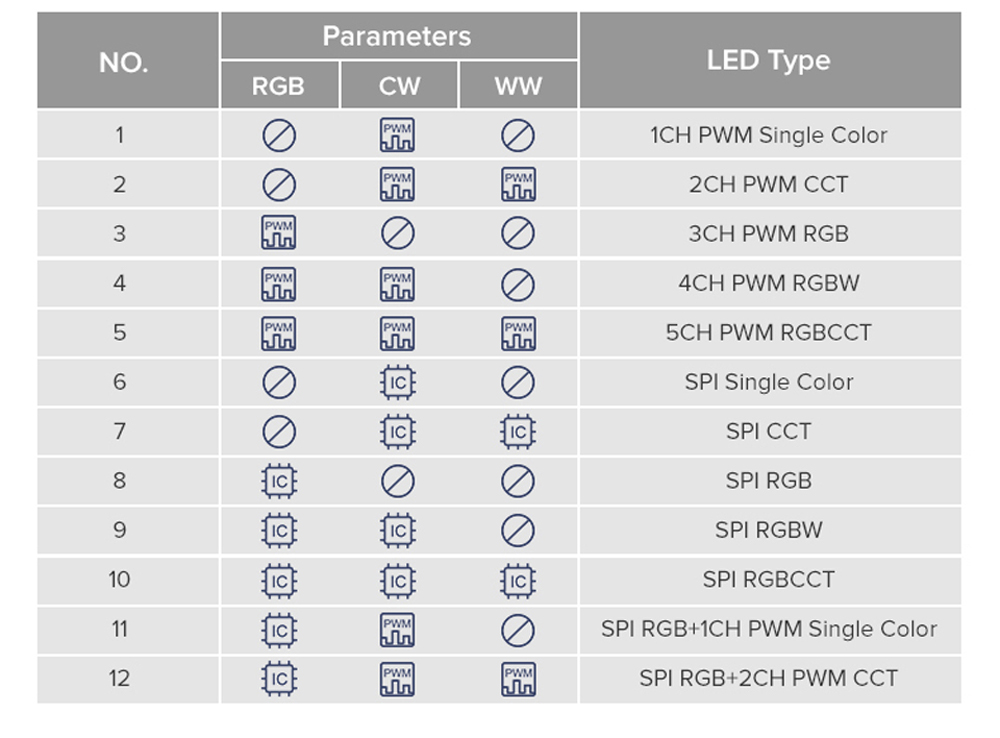

LED Type: SPI IC chip LED strip+PWM LED strip.
Input Voltage: DC5V-DC24V Controller voltage depends on LED strip.

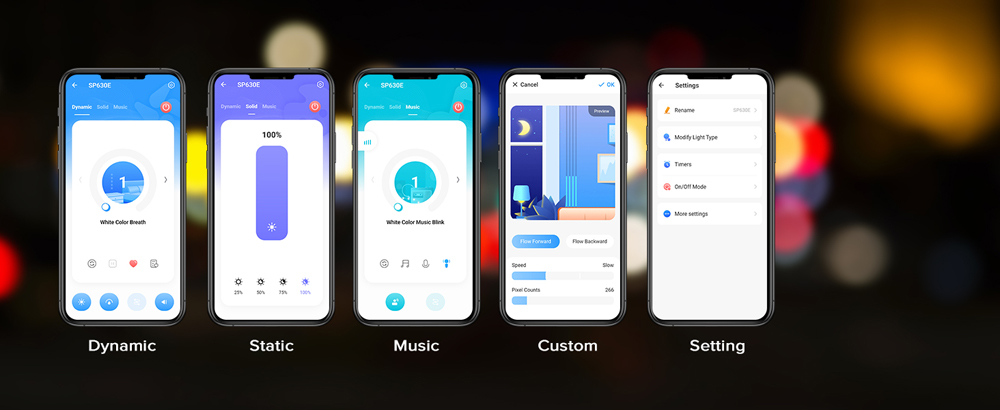

Ways of Working: Match with Wifi Alexa Google Home/ RF remote/Bluetooth APP BalanX.

SP530E Support IC QTY:
SPI DIM: 1800 IC max.

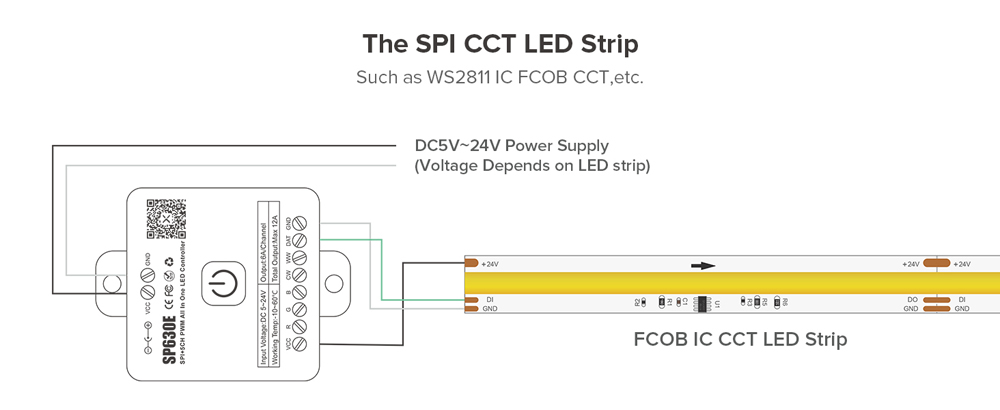

SPI CCT: 600 IC max.
SPI RGB: 1200 IC max.
SPI RGBW: 900 IC max.
SPI RGBCCT: 600 IC max.

SP630E Support IC QTY:
SPI DIM: 600 IC max.
SPI CCT: 600 IC max.
SPI RGB: 600 IC max.
SPI RGBW: 450 IC max.
SPI RGBCCT: 300 IC max.

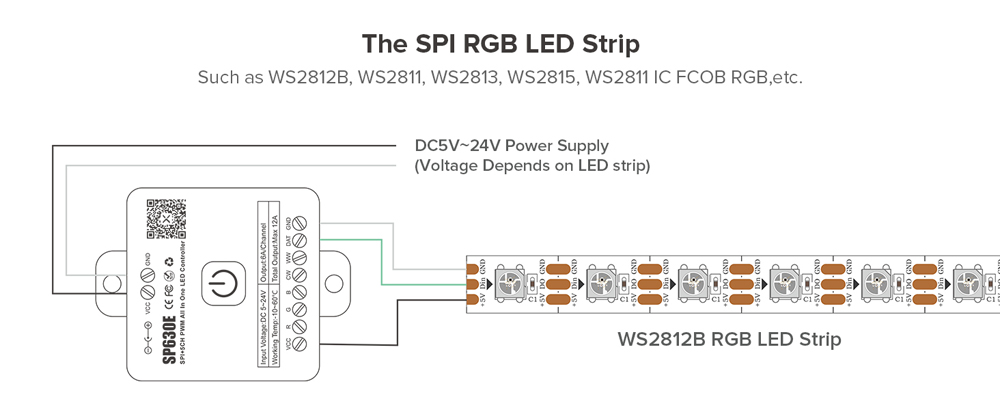

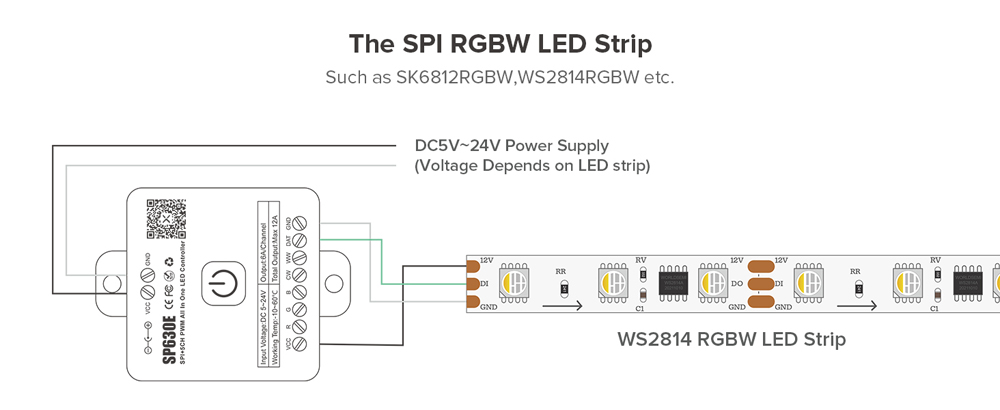

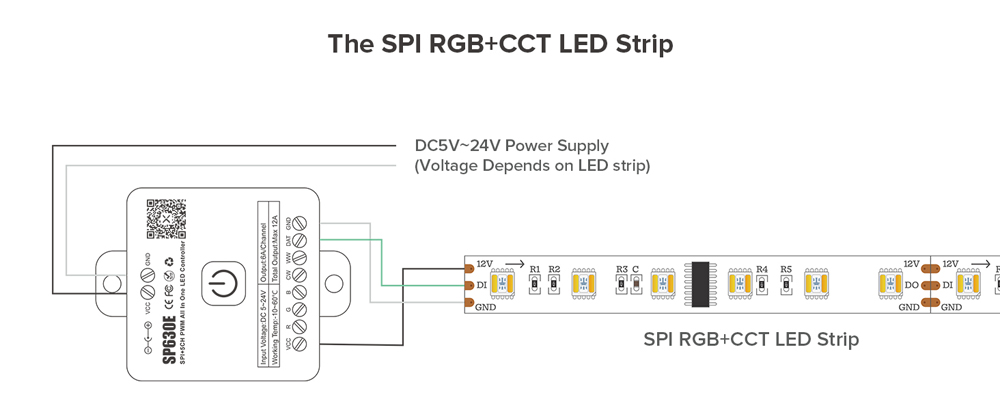

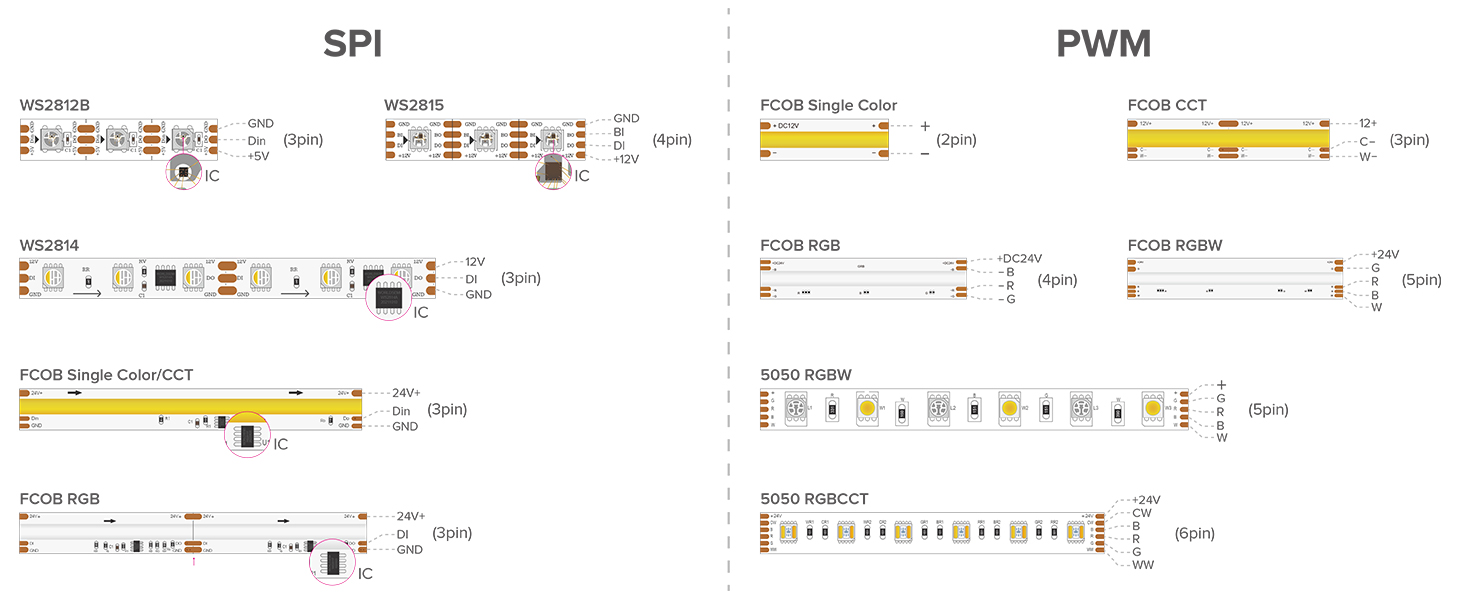

Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.

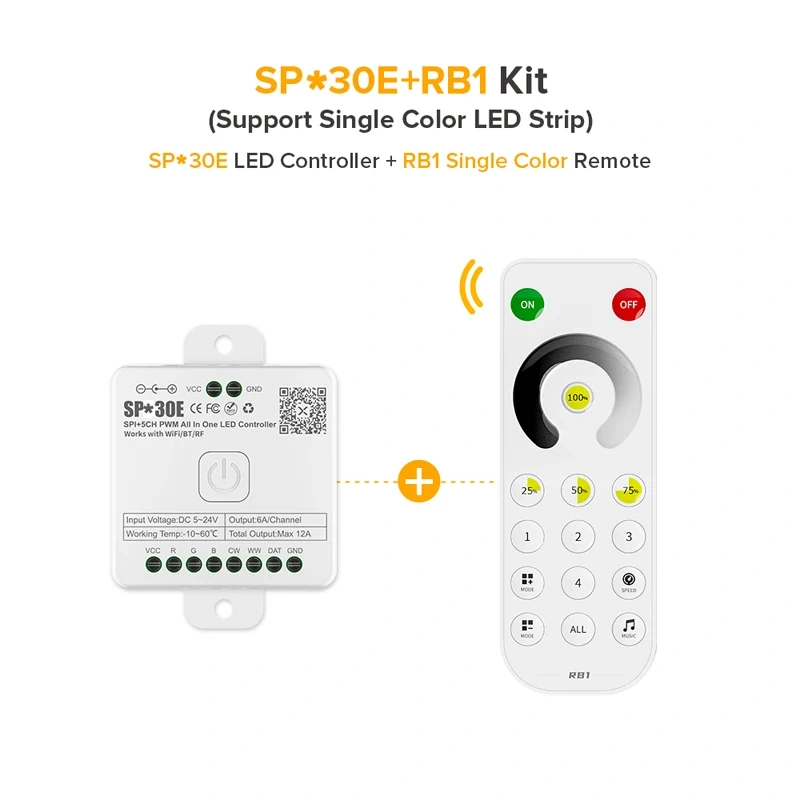

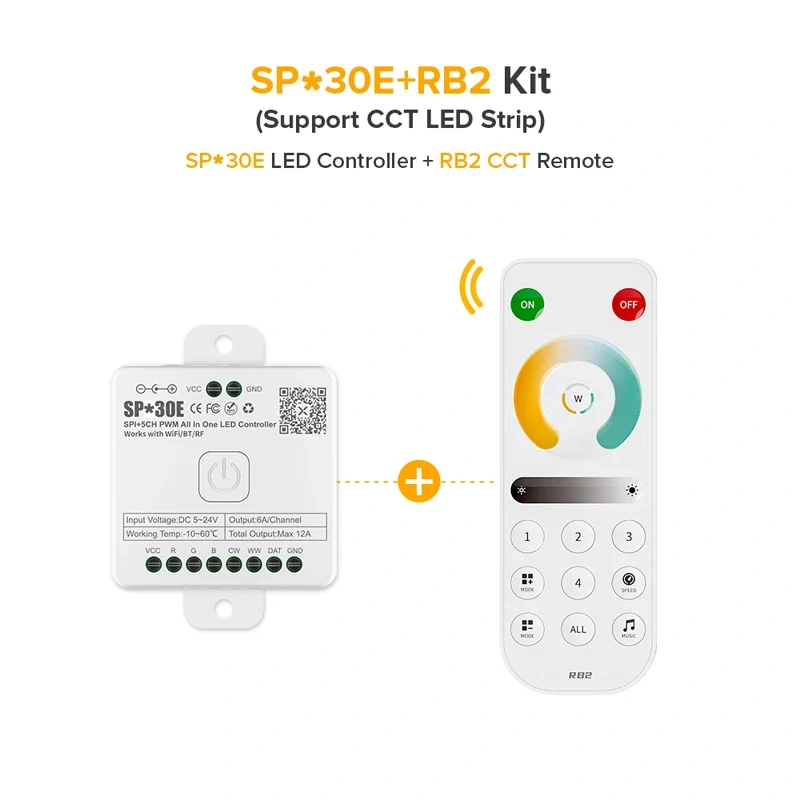

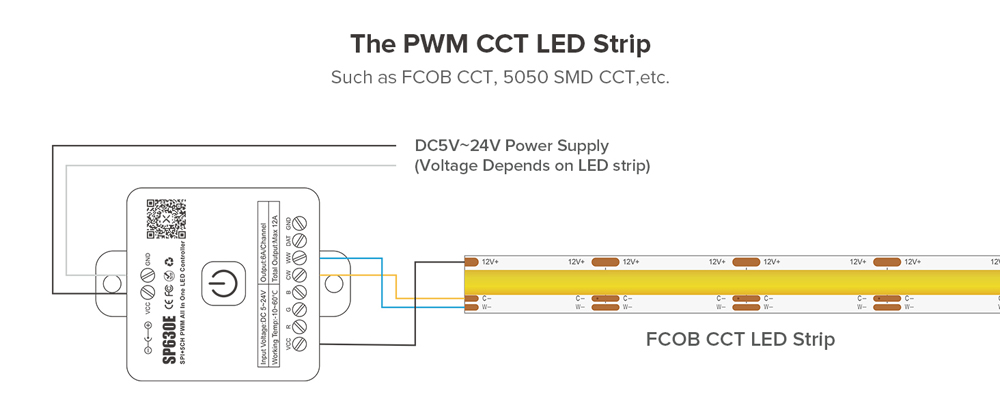

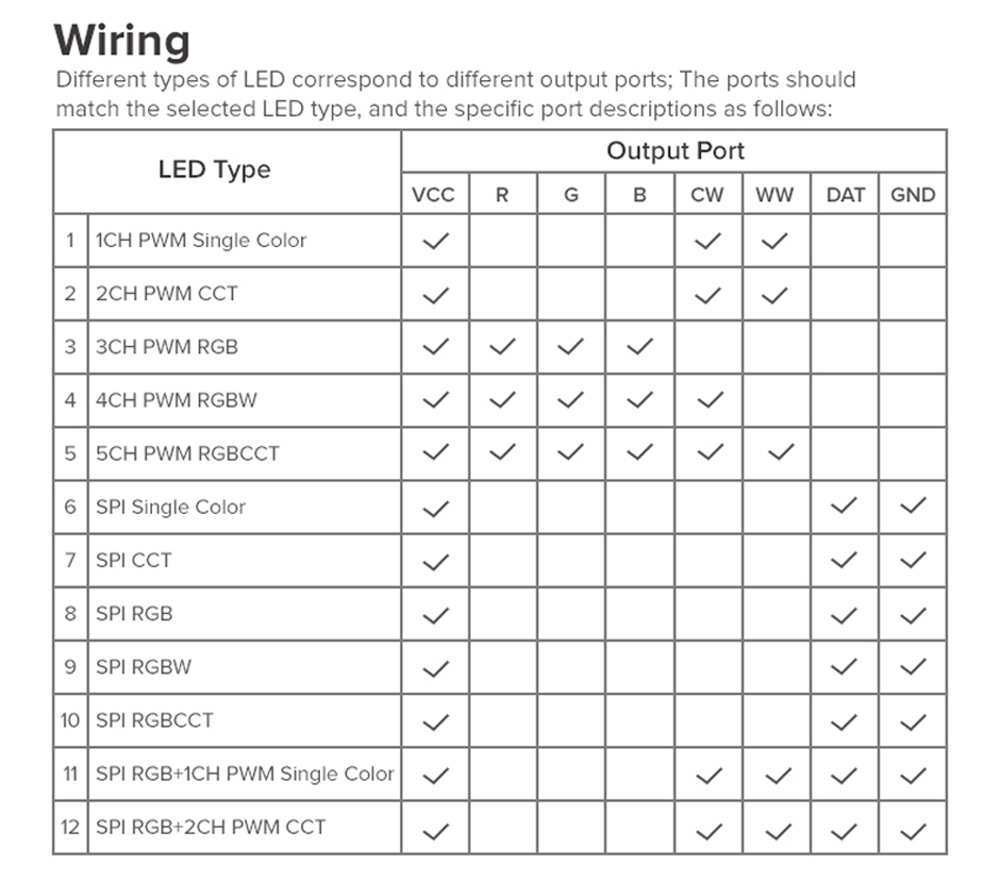

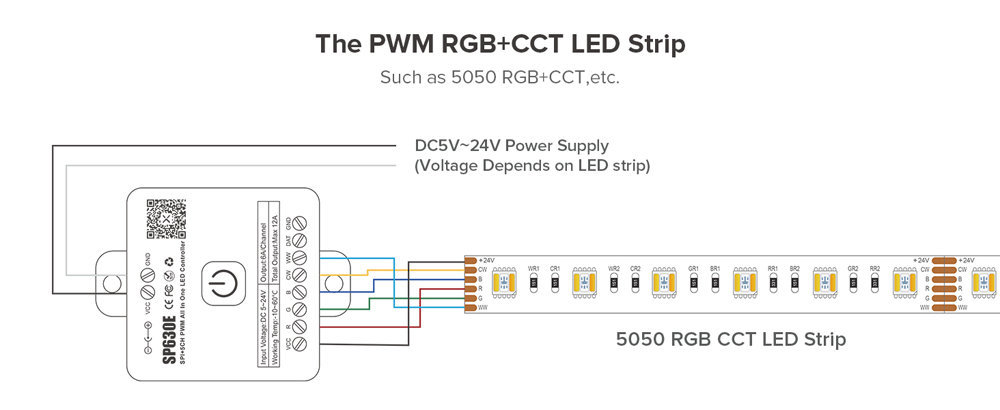

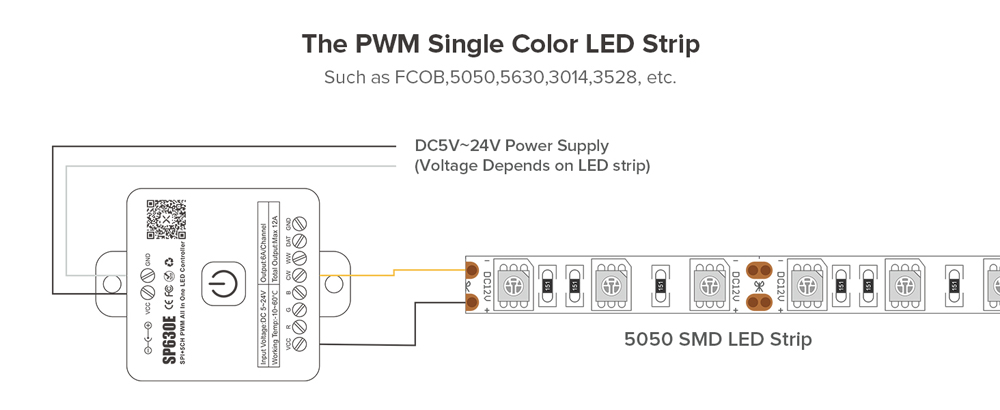

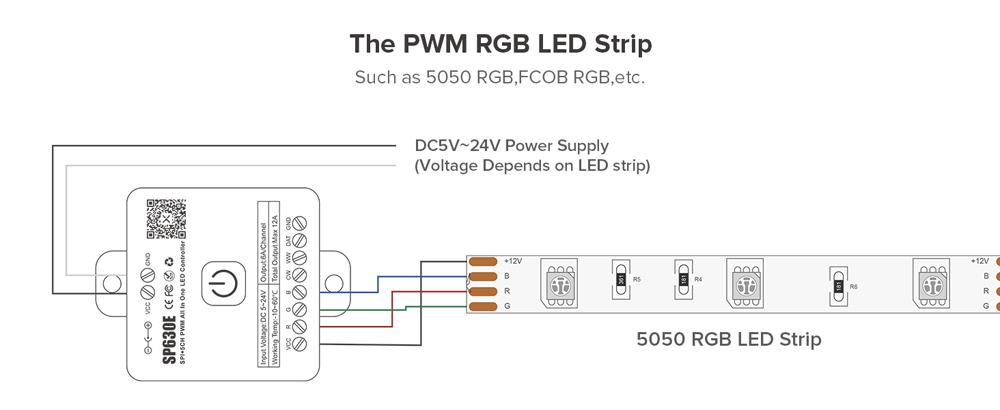

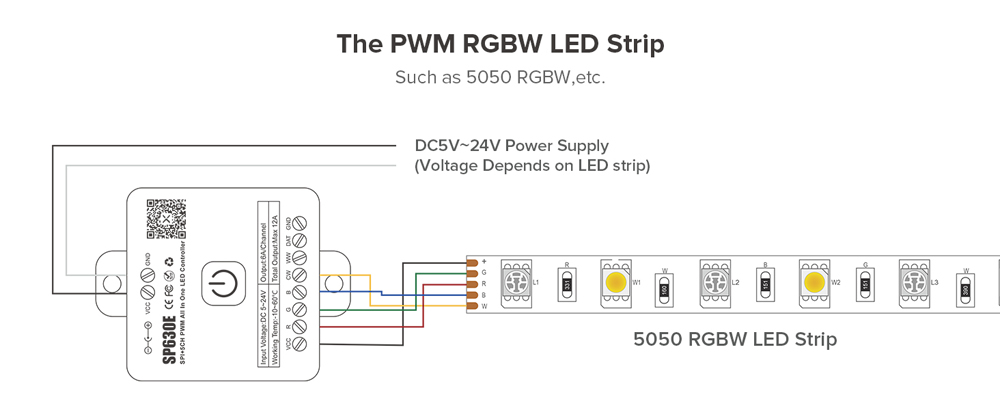

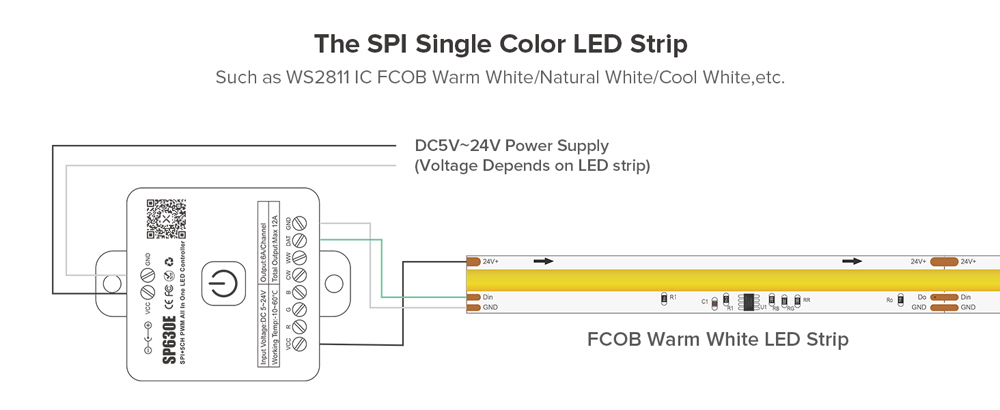

Support PWM Chip No IC: FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
