Product Introduction
The USKYLED 12V Touch Dimmer Switch is a compact touch control solution for low-voltage LED strip and cabinet lighting. It allows users to control LED lights without a conventional mechanical switch.
A quick touch turns the connected LED light ON or OFF, while a long press adjusts the brightness smoothly. This makes the switch suitable for cabinet lighting, kitchen lighting, furniture lighting and other indoor LED applications.
The product is currently presented as a Type B touch dimmer switch and is intended for indoor applications. The product image also indicates that it should not be installed directly with metal materials.
Design

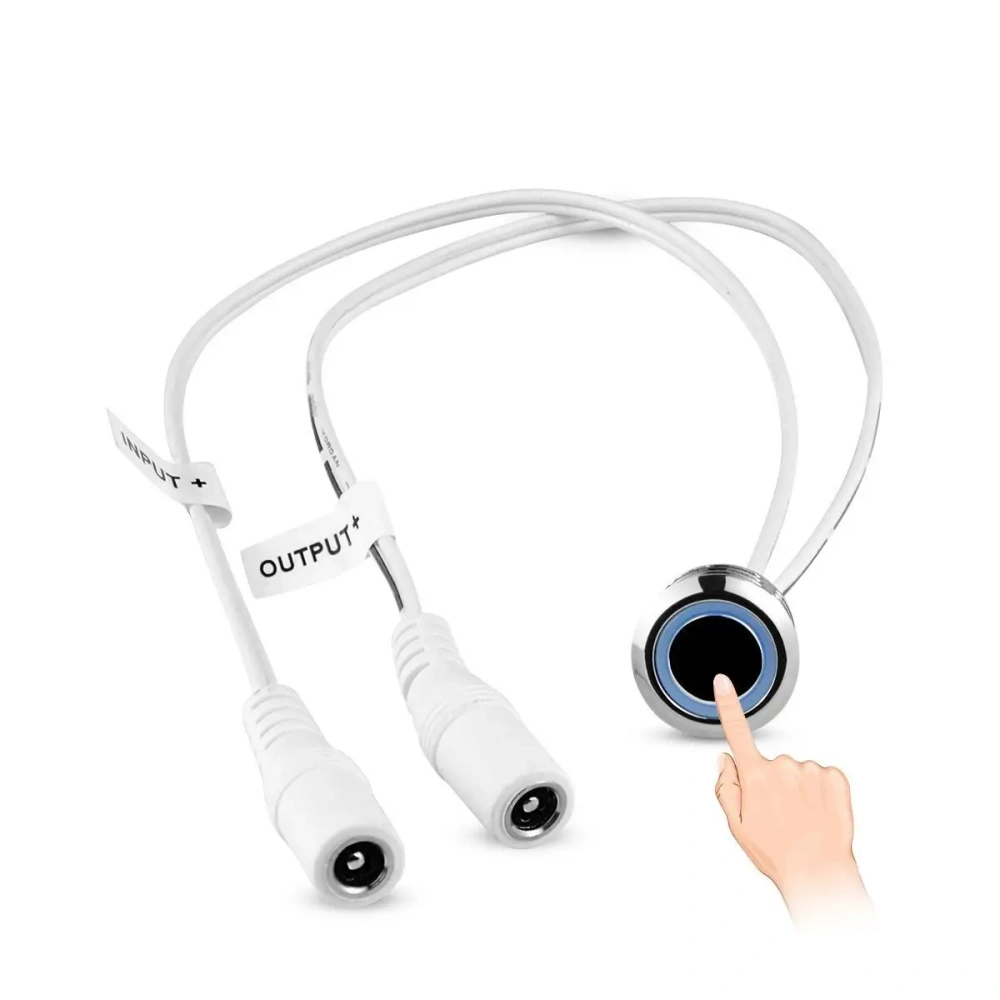

The touch dimmer uses a compact round switch design that can be integrated into cabinet and furniture lighting systems.
The visible front surface provides a simple touch-control interface, while the rear wiring connects the switch with the LED lighting system.
Its compact design is suitable for applications where a conventional wall switch is too large or inconvenient.
Main Features
- 12V low-voltage operation
- Quick touch for ON/OFF control
- Long press for brightness adjustment
- Touch-based lighting control
- Designed for LED strip lighting
- Suitable for cabinet and furniture lighting
- Compact round switch design
- Suitable for indoor applications
- Type B touch dimmer design
- Simple operation for daily lighting control
The page packaging information currently lists 1 × Cabinet Touch Dimmer Switch.
Application
The 12V Touch Dimmer Switch can be used with low-voltage LED lighting systems including:
- Kitchen cabinet lighting
- Under cabinet LED strip lighting
- Wardrobe lighting
- Furniture lighting
- Display cabinet lighting
- Shelf lighting
- Bedroom furniture lighting
- Indoor decorative LED lighting
- Custom cabinet lighting
- LED strip bar lighting
The product page specifically presents the switch together with LED strip lighting and cabinet lighting applications.
Size / Options
Product Type: Type B Touch Dimmer Switch
Operating Voltage: 12V
Control Method: Touch
Switch Function: Touch ON/OFF + Long Press Dimming
Application: Indoor LED Lighting
Lighting Compatibility: LED Strip / Cabinet Lighting
Important: The current product page does not publish detailed dimensions, maximum load/current, cutout diameter or power rating. These parameters should not be added to the SEO specification until confirmed by the factory.
This is important because adding an unsupported “5A”, “30W” or similar specification could create a mismatch between the product page and the actual product.
Lighting Options
The switch supports two primary control operations:
Quick Touch
Touch the switch to turn the connected LED light ON or OFF.
Long Press
Press and hold the switch to adjust the brightness.

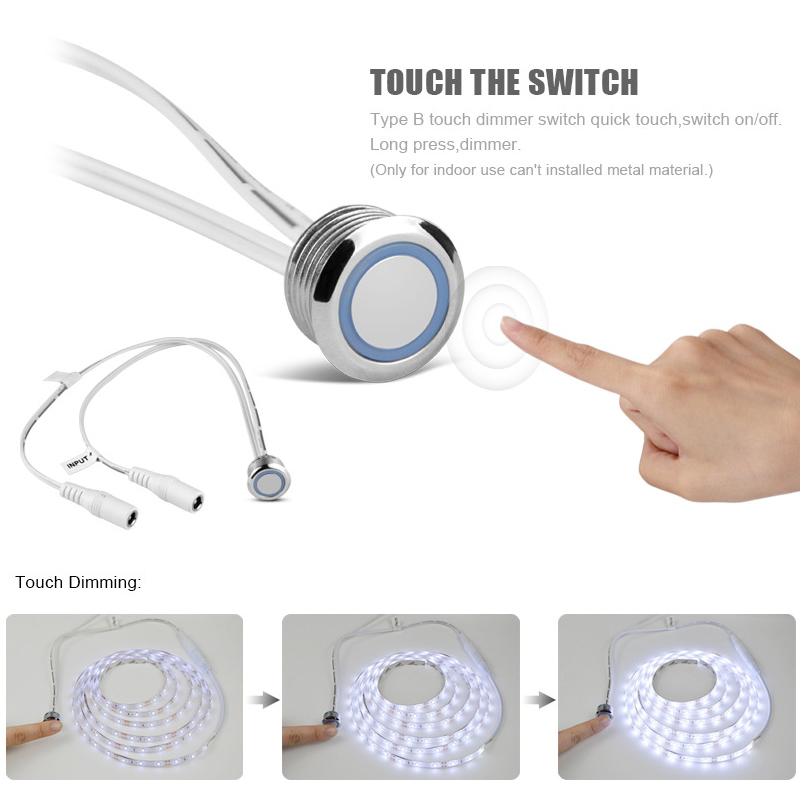

The product image demonstrates the touch dimming process from lower to higher brightness.
It is primarily intended for single-color / brightness-controlled LED lighting, unless additional compatibility information is confirmed by the manufacturer.
Installation

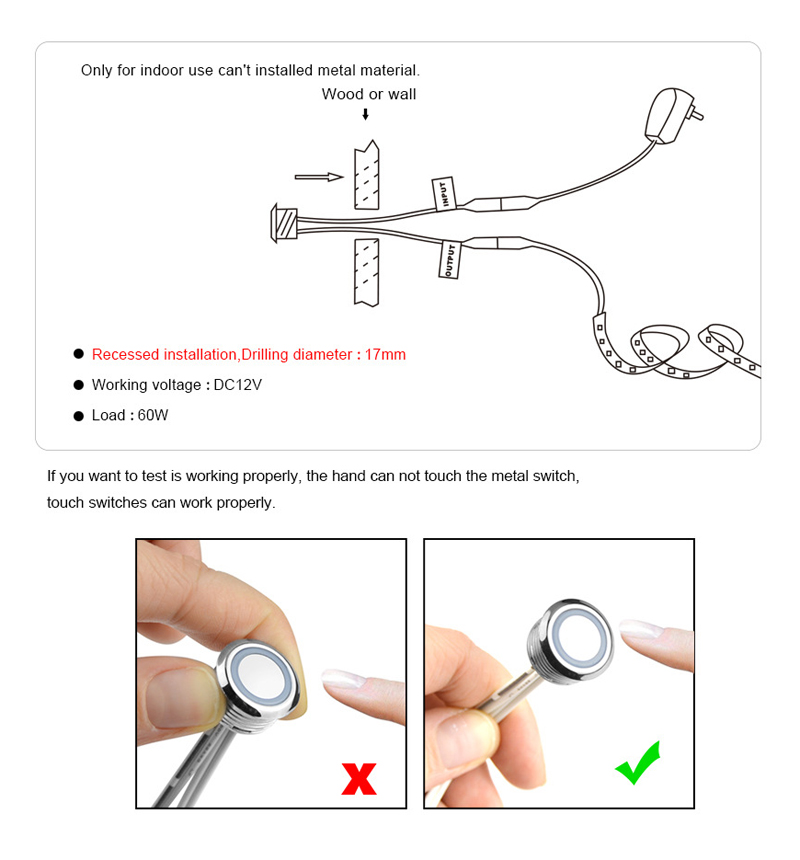

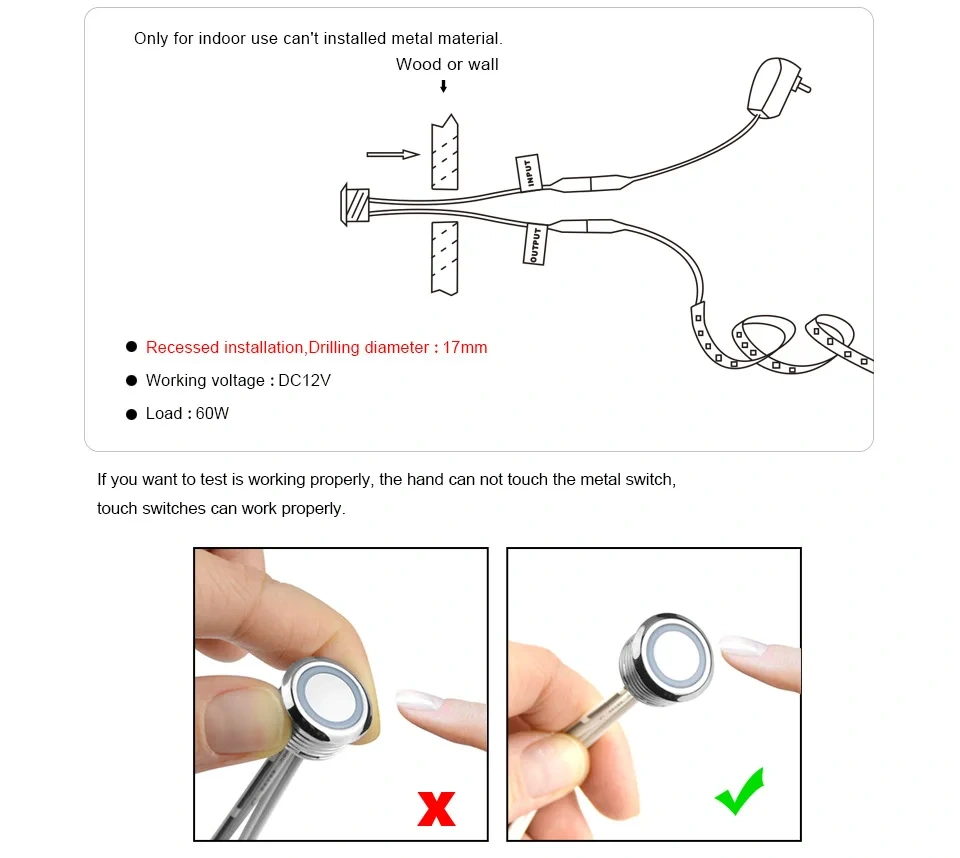

The switch is designed to be integrated into an indoor LED lighting system between the power source and the connected LED light.
Typical installation:

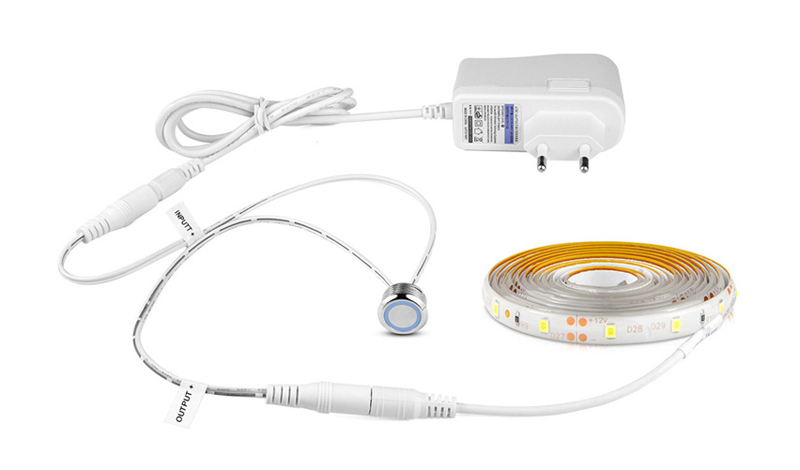

12V Power Supply → Touch Dimmer Switch → LED Strip / Cabinet Light
Before installation, confirm:
- The LED lighting system operates at 12V.
- The connected LED load is compatible with the switch.
- The installation location is suitable for indoor use.
- The switch is not installed directly with unsuitable metal materials, as indicated in the product image.
For cabinet and furniture projects, the switch can be positioned where users can conveniently touch it while keeping the overall installation visually clean.
Technical Specifications
| Parameter |
Specification |
| Product Type |
12V Touch Dimmer Switch |
| Model / No. |
1005009190307719 |
| Operating Voltage |
12V |
| Control Method |
Touch |
| ON/OFF Control |
Quick Touch |
| Dimming Control |
Long Press |
| Application |
LED Strip & Cabinet Lighting |
| Installation Environment |
Indoor |
| Product Type |
Type B |
| Package |
1 × Cabinet Touch Dimmer Switch |
| Maximum Load |
Not specified on current page |
| Maximum Current |
Not specified on current page |
| Product Dimensions |
Not specified on current page |
| MOQ |
1 piece |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
| OEM/ODM |
Available upon project requirement |
Project Applications
The switch is particularly suitable for B2B lighting projects where a simple integrated control method is required.
Kitchen & Cabinet Projects

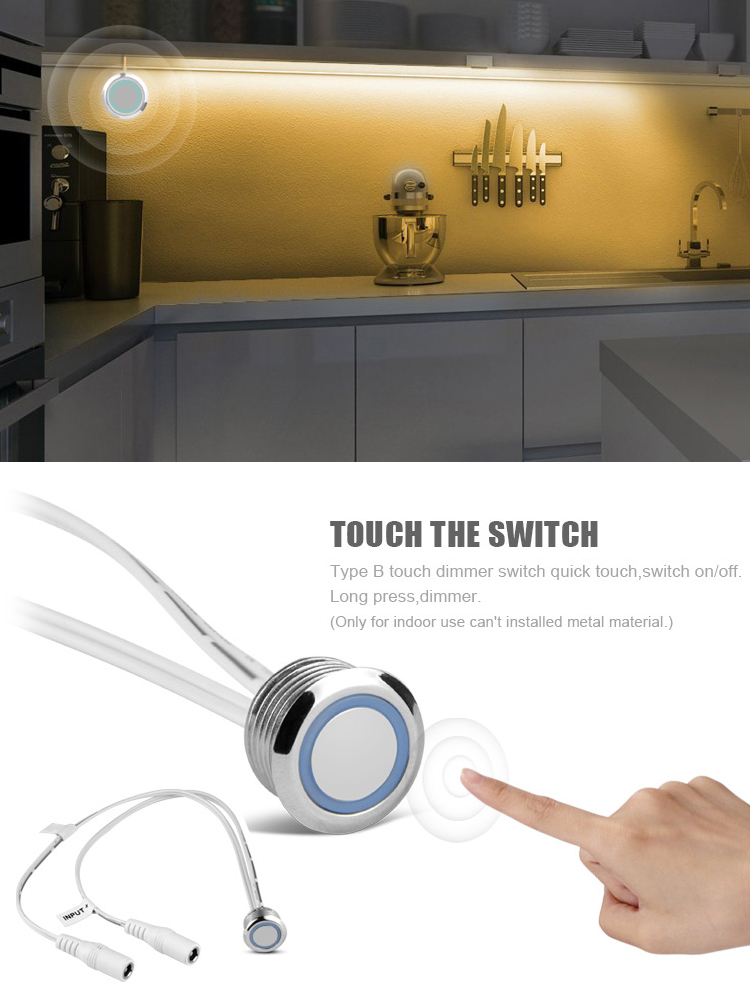

Use the touch switch to control LED strip lighting installed beneath kitchen cabinets, shelves or worktops.
Furniture Lighting
Suitable for furniture manufacturers integrating LED lighting into wardrobes, shelving units, display cabinets and customized furniture.
Retail Display Lighting
The compact touch interface can be used to control LED lighting in indoor display cabinets and product showcases.
Interior Design Projects
Suitable for residential and commercial interior projects requiring discreet control of low-voltage LED lighting.
Custom LED Lighting Systems
Can be integrated into customized LED strip and cabinet lighting systems manufactured according to project requirements.
OEM/ODM
USKYLED can support OEM/ODM requirements for customized LED lighting control solutions.
Potential customization options can be discussed according to project requirements, including:
- Product appearance
- Switch design
- Cable configuration
- Packaging
- Private labeling
- Customized product specifications
- Bulk project orders
For OEM/ODM projects, customers should provide the required LED voltage, lighting type, installation method and expected load so compatibility can be confirmed before production.
CTA
Looking for a 12V touch dimmer switch for cabinet or LED strip lighting projects?
Contact USKYLED for product specifications, samples, bulk pricing and OEM/ODM solutions.
Request a Quote → Contact USKYLED for Your LED Lighting Project
