Home > Aluminum profile Linear lights > Suspended Linkable Modular Led Linear Light White Black Linear Ceiling Light for Workshop

1/1

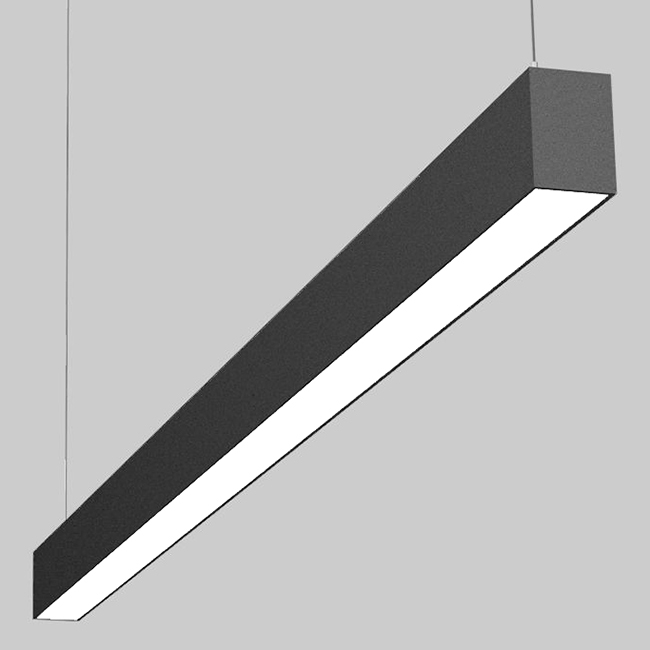

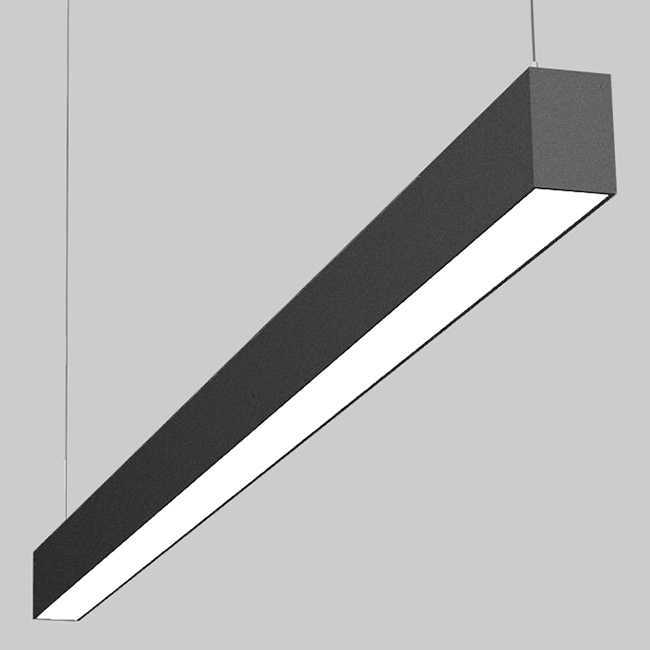

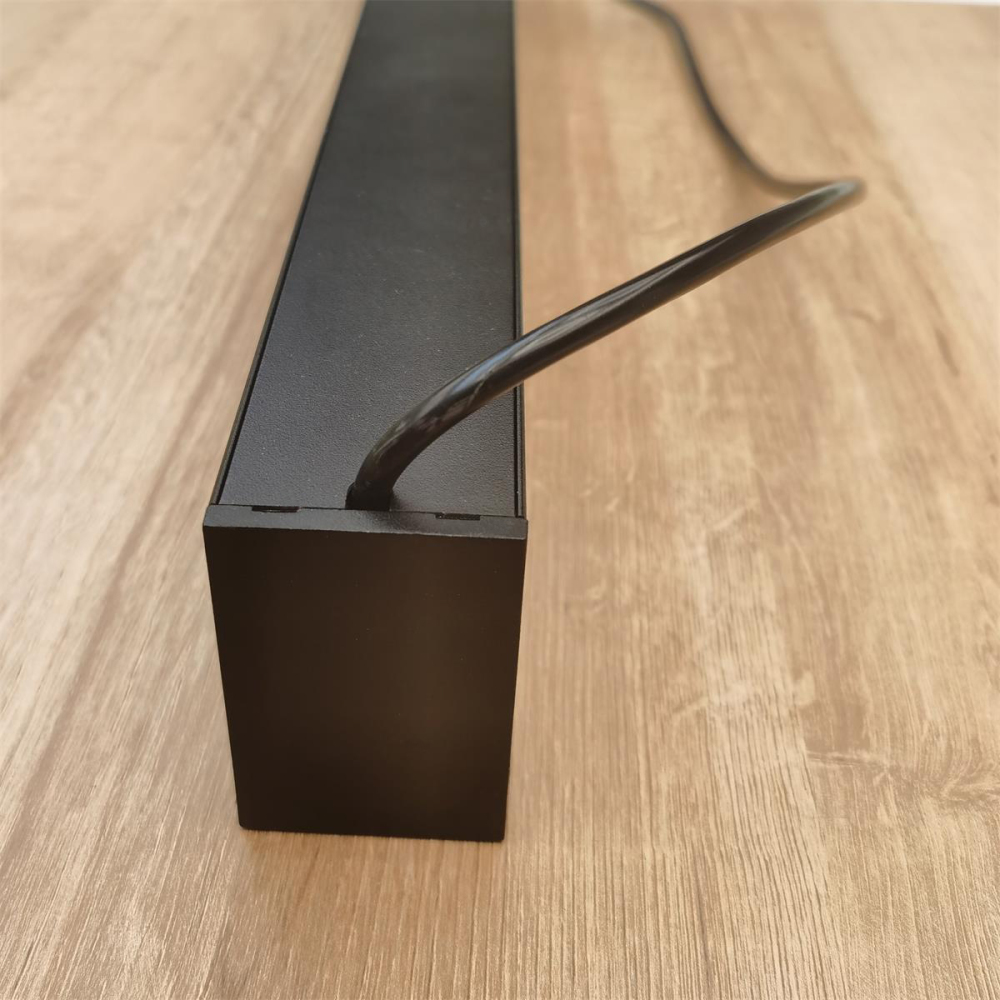

Suspended Linkable Modular Led Linear Light White Black Linear Ceiling Light for Workshop

Name: Suspended Linkable Modular Led Linear Light White Black Linear Ceiling Light for Workshop
Brand: USKYLED China LED lights supplier
SKU: 1600818104216
Price: 35 USD
Availability: InStock

No.1600818104216

4.8 (0 Reviews)

234 Sold

$35.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Lamp Power(W):

Various options, please contact sales
Wattage:

Various options, please contact sales
Emitting Color:

Cold White

Warm White

Neutral White

Quantity:

Add to Favorites (214)

1/1

Description

Key attributes

Application ：Office

Lamp Body Material ：Aluminum profile housing

Lamp Luminous Efficiency(lm/w) ：100lm/w

Warranty(Year) ：5-Year

Place of Origin ：China

Color Temperature(CCT) ：3000K, 4000K,, 6000K

Lighting solutions service ： Lighting And Circuitry Design, Dialux Evo Layout, Auto Cad Layout, Onsite Metering

Model Number ：ON-5075-0.6M

Beam Angle(°) ：120

Color ：Black, White, Silver

Color Rendering Index(Ra) ：83

Dimension ：0.6M, 1.2M, 1.8M, 2.4M

Input Voltage(V) ：AC 85-265V

IP Rating ：IP20

Lifespan (Hours) ：50000

Light Source ：LED

Product Weight（kg）：2.5

Support Dimmer ：Yes

Type ：Straight linear shape

Working Temperature(℃) ：-20 - 40

Product name ：Suspended LED linear profile light

Material ：Aluminum housing and opal PC

Input voltage ：AC110V, AC220V

Wattage ： 20W, 40W, 60W, 80W

Application ：Commercial office, stores, business center

Control options ：on/off, 0~10V dimmable, Dali dimmable, Triac dimmable

Light color options ：3000K, 4000K, 6000K

Housing color options ：Black, White, Silver

IP Rating ：IP20 for indoor only

Packaging and delivery

Selling Units

Single item

Single package size

128X21X21 cm

Single gross weight

16.800 kg

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Description

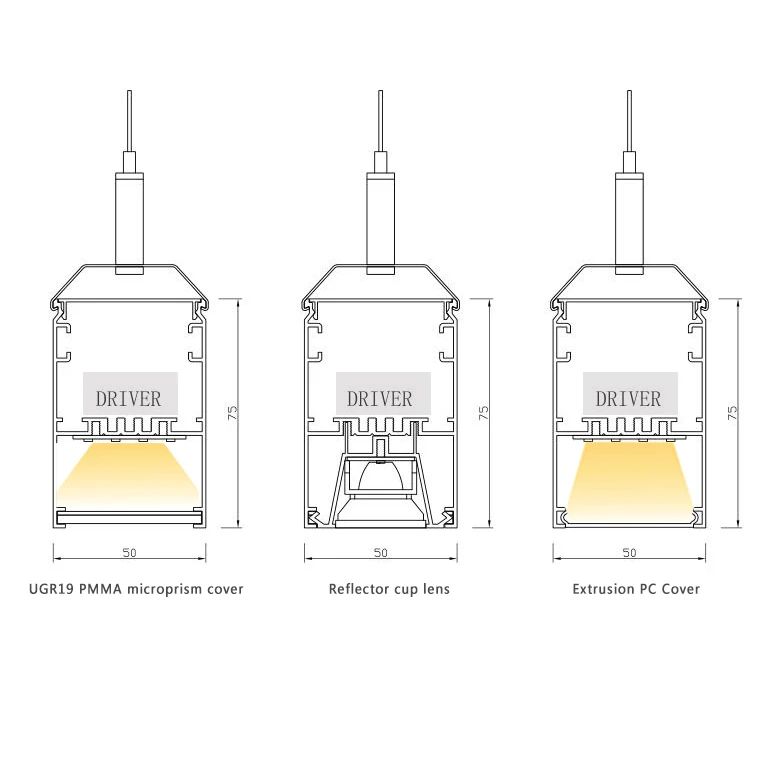

Series W50xH75mm Profile LED linear light, We supply 4 different diffuser options, they are

1. Extrusion PC cover, this is the most normal type, with light lumen efficacy 100lm/w.

2. UGR19 microprism diffuser, URG<19 anti glare and eye protection, with 80lm/w.

3. Reflector cup lens, round spot light type, with beam angle 12°.34°.48° to choose.

4. The combination type of UGR microprism cover and reflector cup, has flood light and spot light, it is a new design and style for modern office desk, office table.

And this lamps is linkable with seamless connection, it is allowed to connect long continuous run linear light such as 3m, 6m, 12m, 20m, 30m, etc.

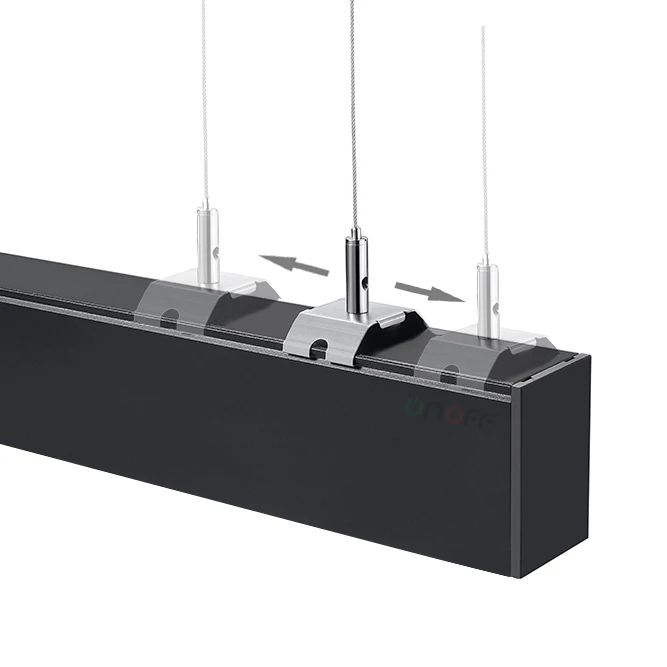

Hanging accessory

With the moveable brackets mounted on the housing back, it is able to adjust the ceiling hole postion expediently. We supply 1.5meter long hanging rope, mounting height is adjustable between 10~150cm from ceiling. There is no visiable screws on end-cap, we have designed it with screws on the top, nice looking.

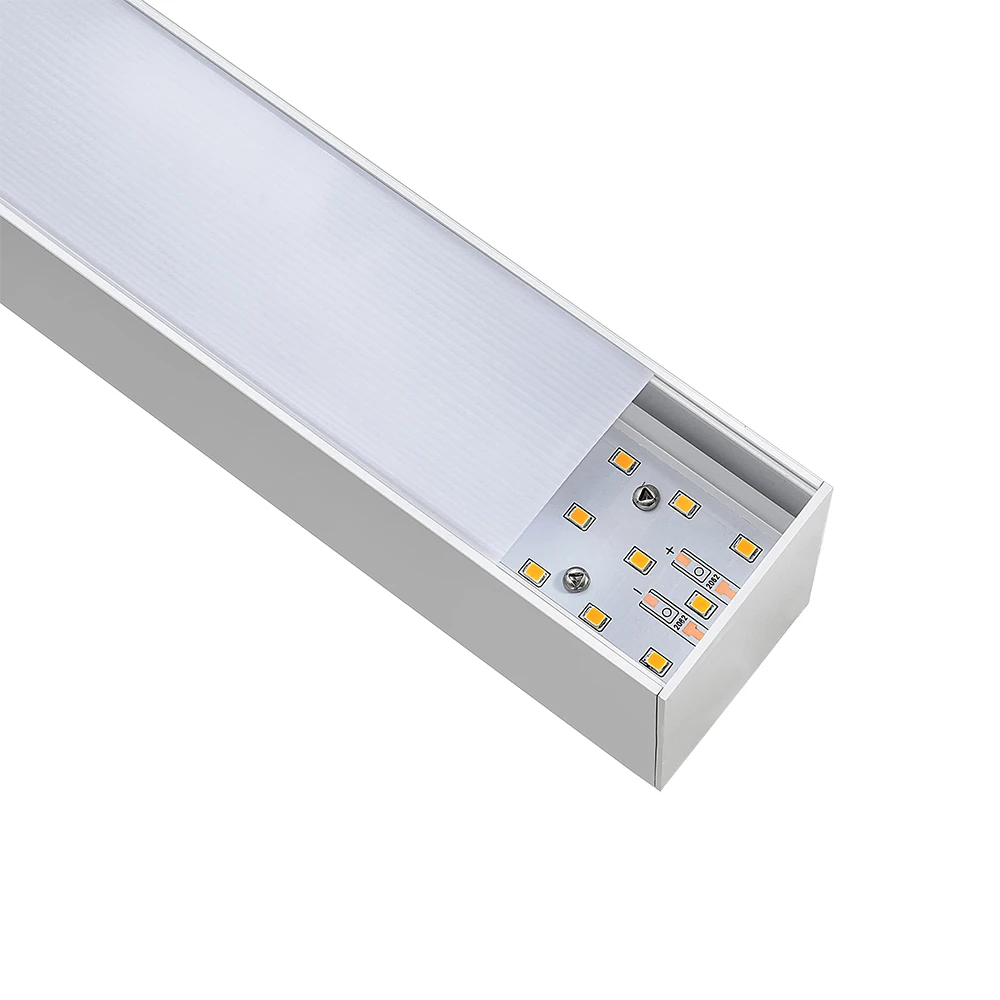

LED PCB board and Improved Aluminum house

SMD2835 PCB LED board as light source, with better heat dissipation and long lifetime 50000 hours. We have improved the aluminum housing structure, to make assemble and maintaince much easier than before.

The matal plate on the top is able to take off and open.

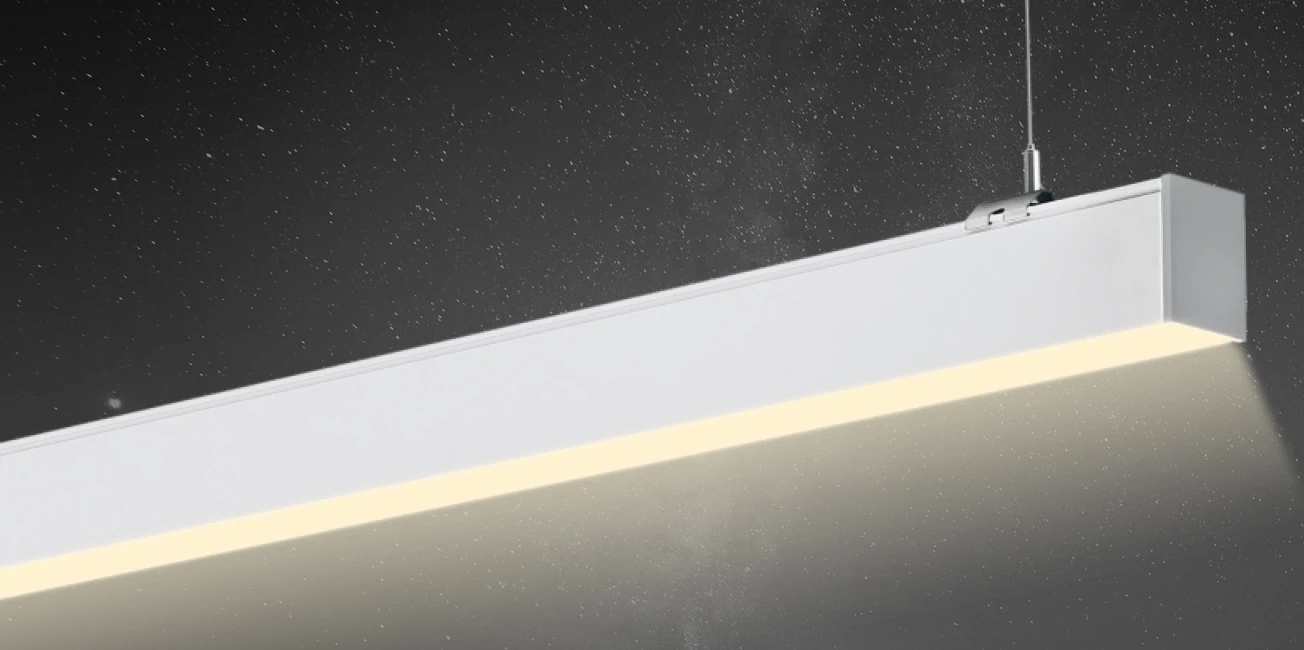

Detailed Images

The lamp profile size is W50mm x H75mm.

Product Advantage:

Its top metal cover is able to take down, very easy to maintain and wiring and connecting.

Branded power driver is built-in, non-flicker.

LED PCB board light source.

Various diffuser to choose from.

Top level aluminum surface finishing.

No visible screws on end cap.

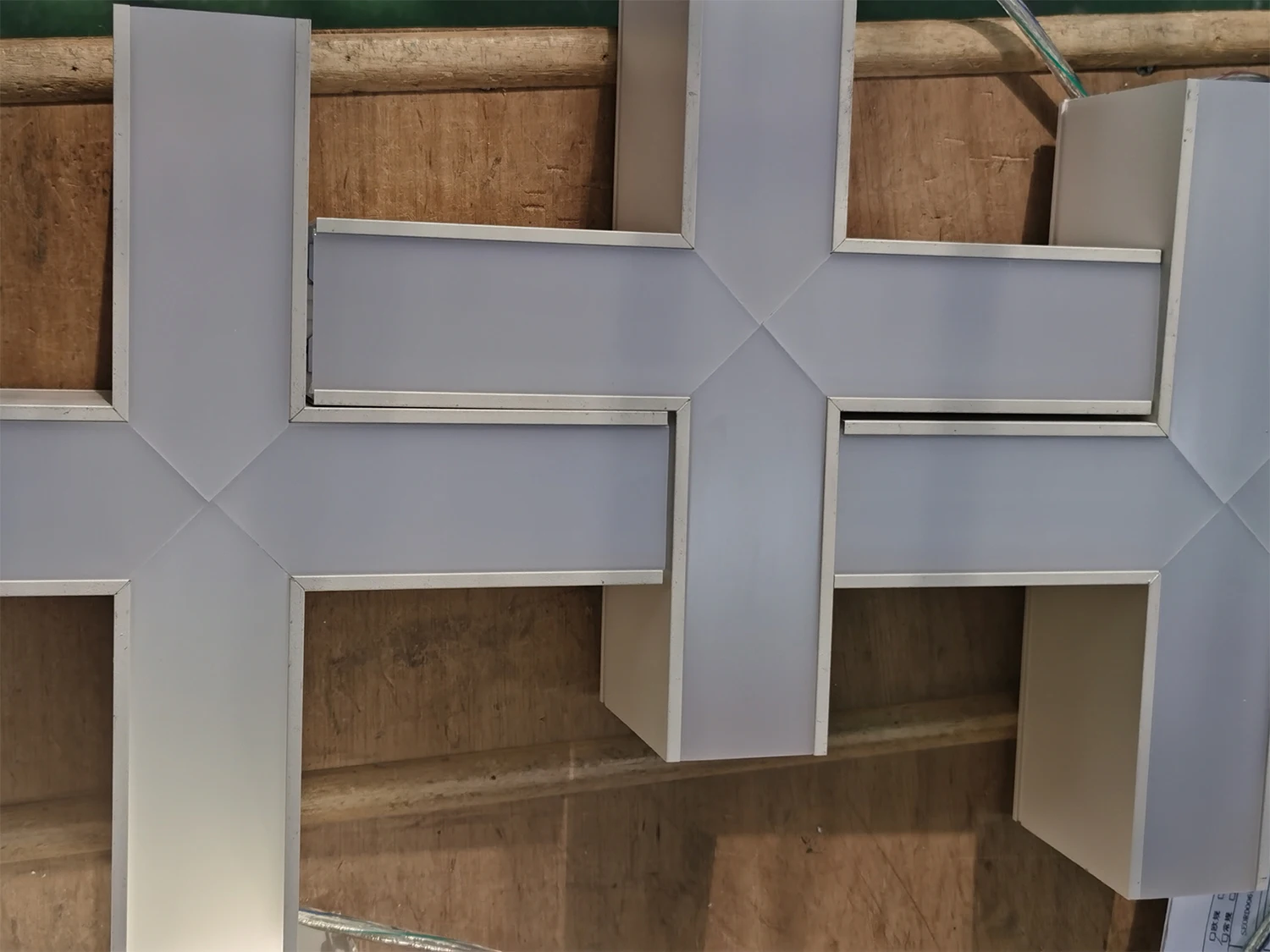

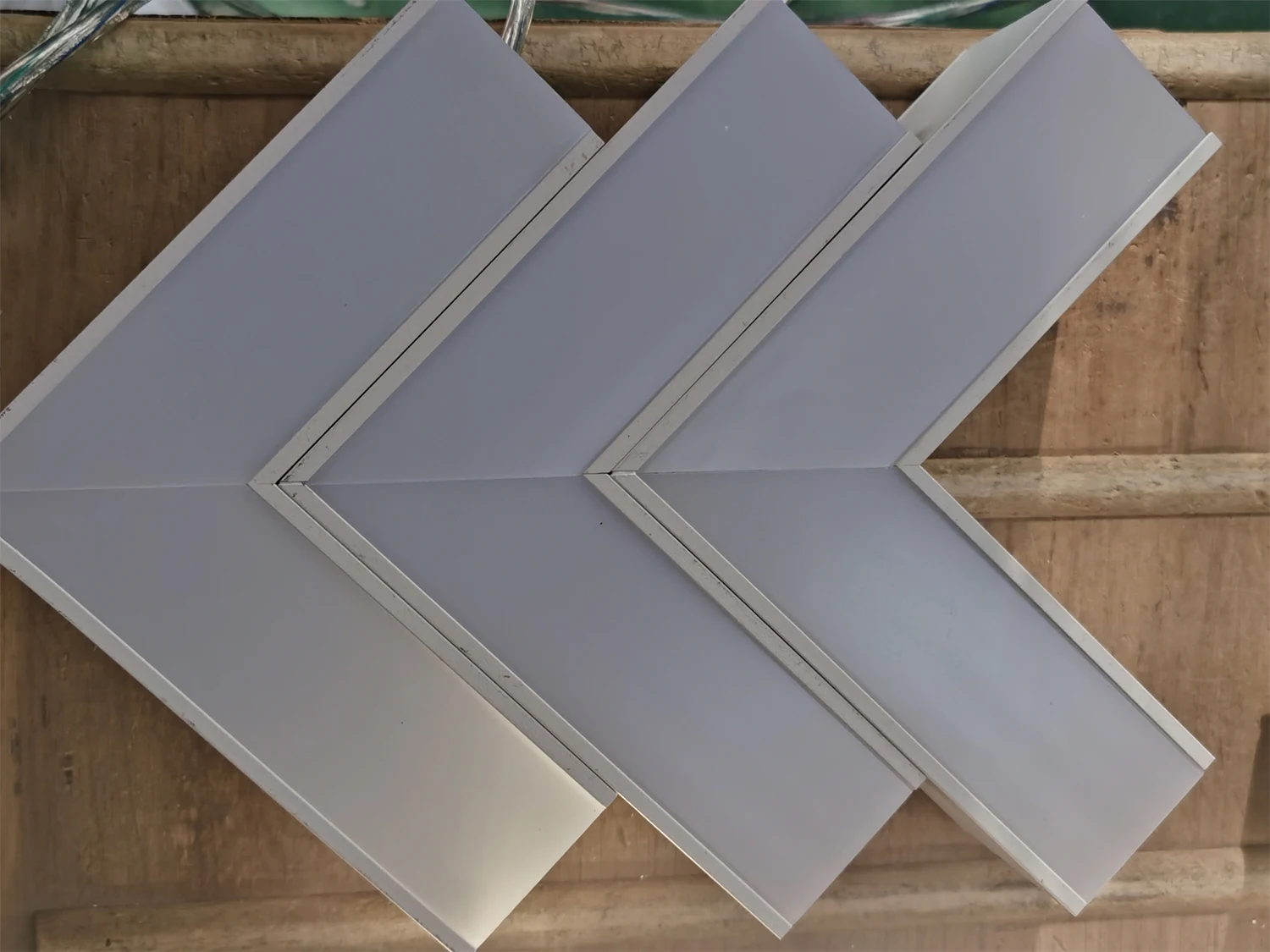

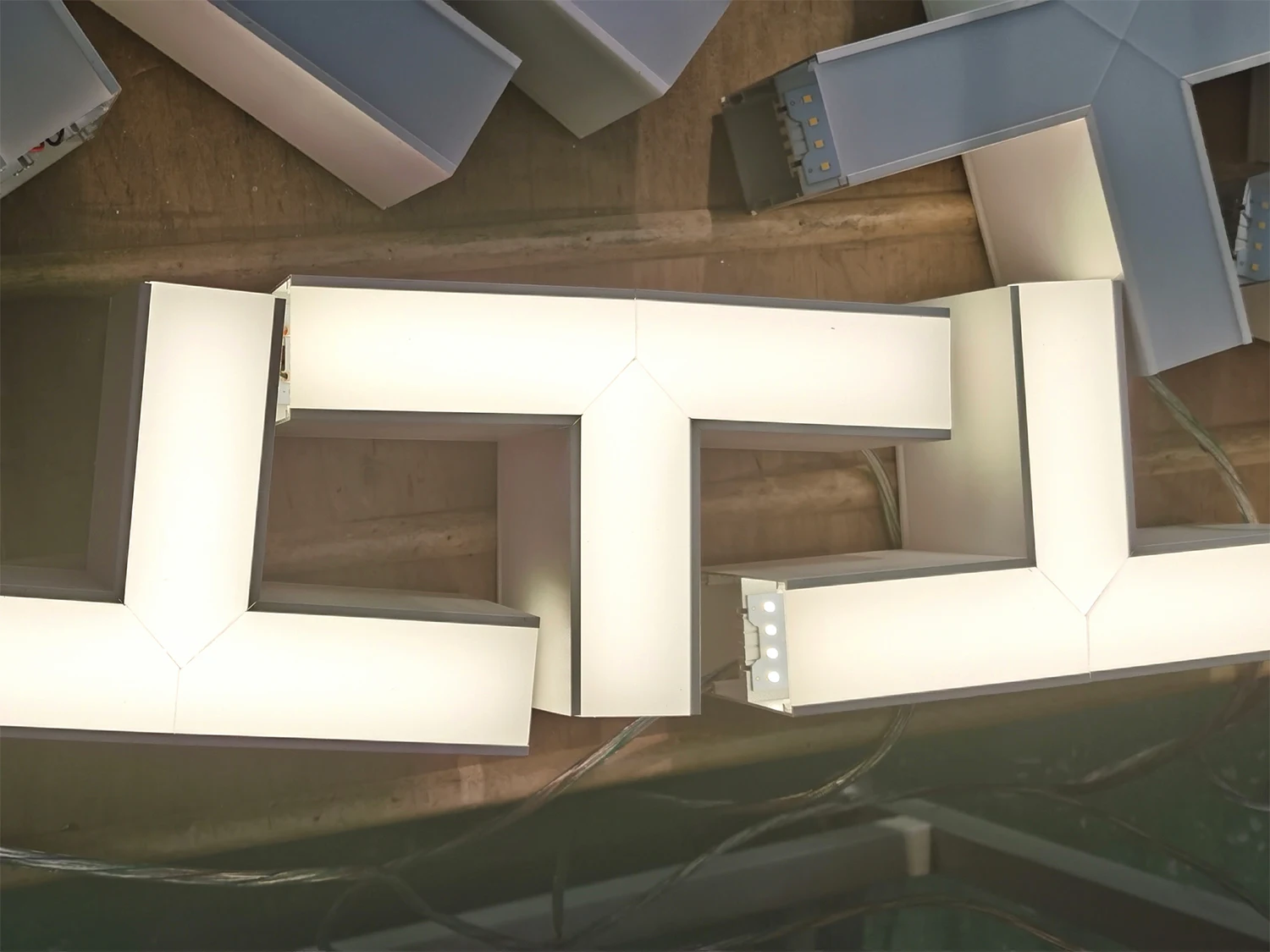

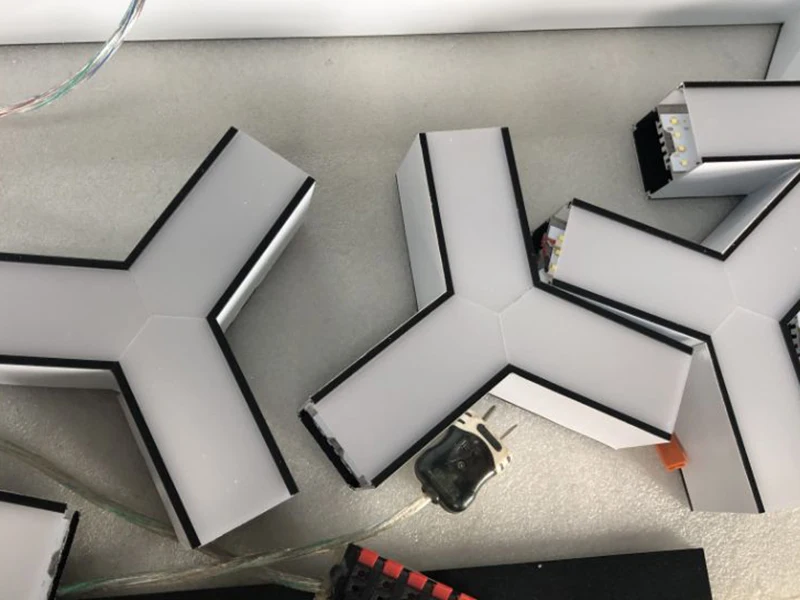

Corner joint accessories:

There are L joint, T joint, Y joint, X joint to design other shapes with seamless connection.

Product Paramenters

Item Number	Dimension	Power	Shell Color	Light color	Other spec
ON-5075-0.6M	L600xW50xH75mm	20W	White Black Silver	3000K 4000K 6000K	PF>0.95, LED PCB board, FLICKER-FREE
ON-5075-1.2M	L1200xW50xH75mm	40W
ON-50751.8M	L1800xW50xH75mm	60W
ON-5075-2.4M	L2400xW50xH75mm	80W

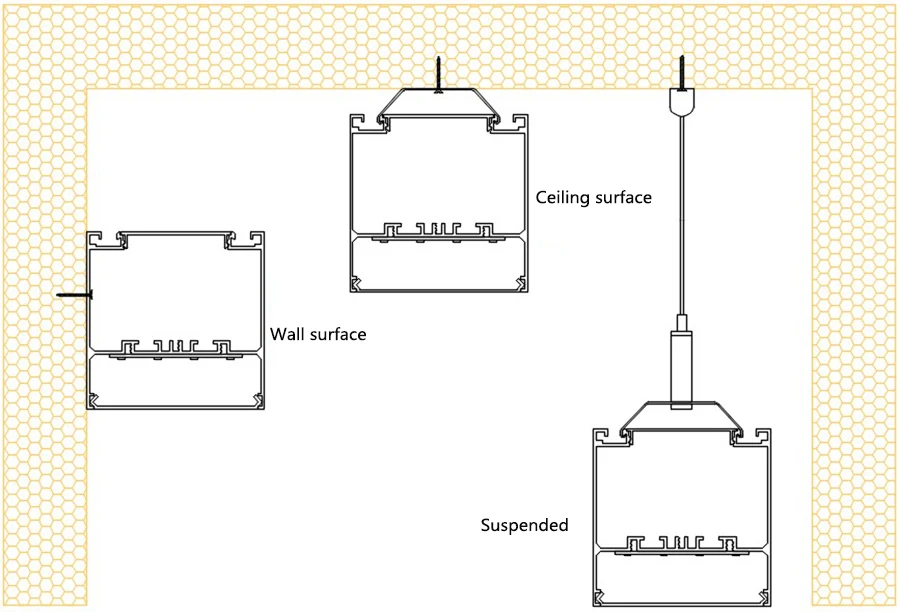

Installation Instructions

There are 3 mounting options.

Wall mounting: it is allowed to install on wall, as a linear wall light.

Ceiling surface mounting: directly mount on ceiling, suitable for low ceiling height.

Suspended mounting: the most popular mounting, hang by steel rope. suitable for most projects.

(Trimless recessed mounting is also allowed, please contact our sales for more details if needed).

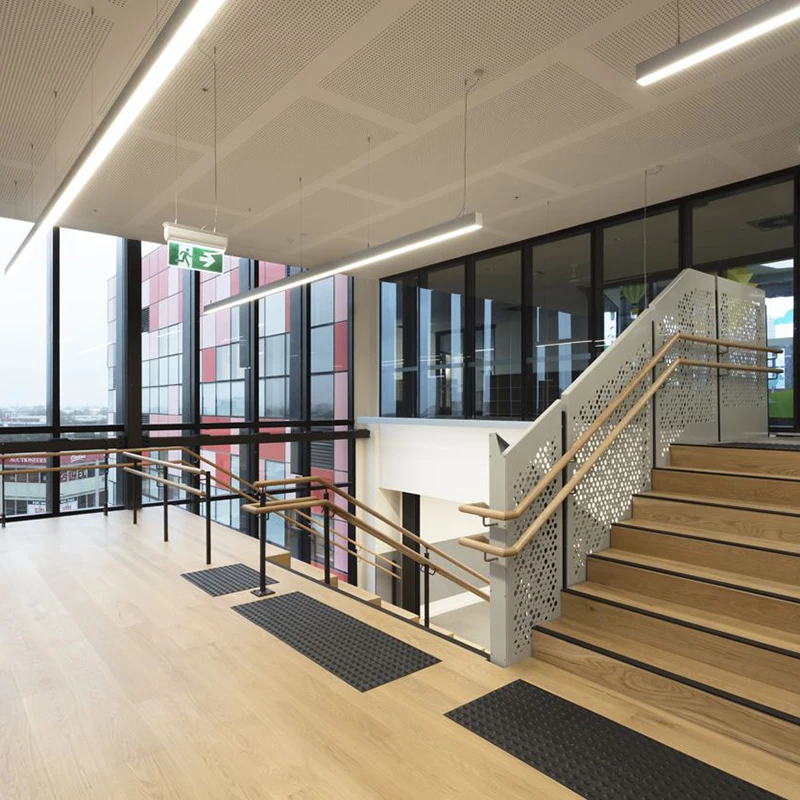

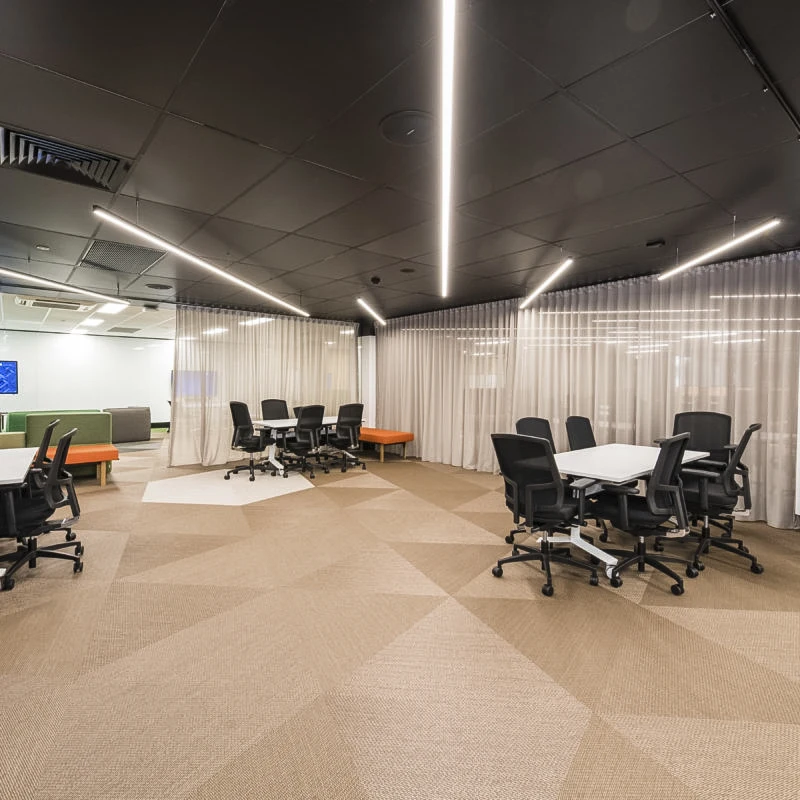

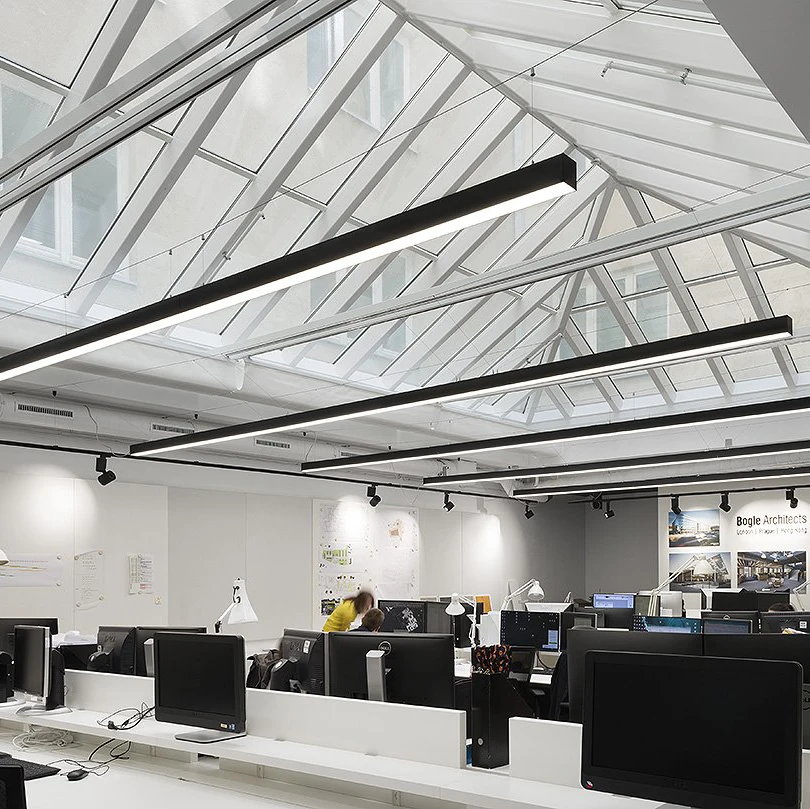

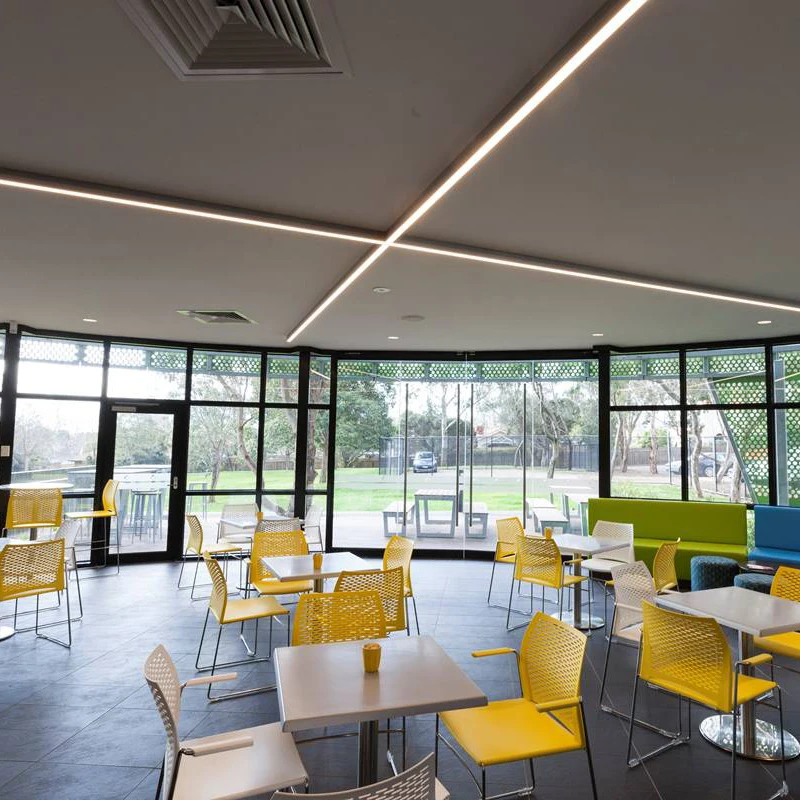

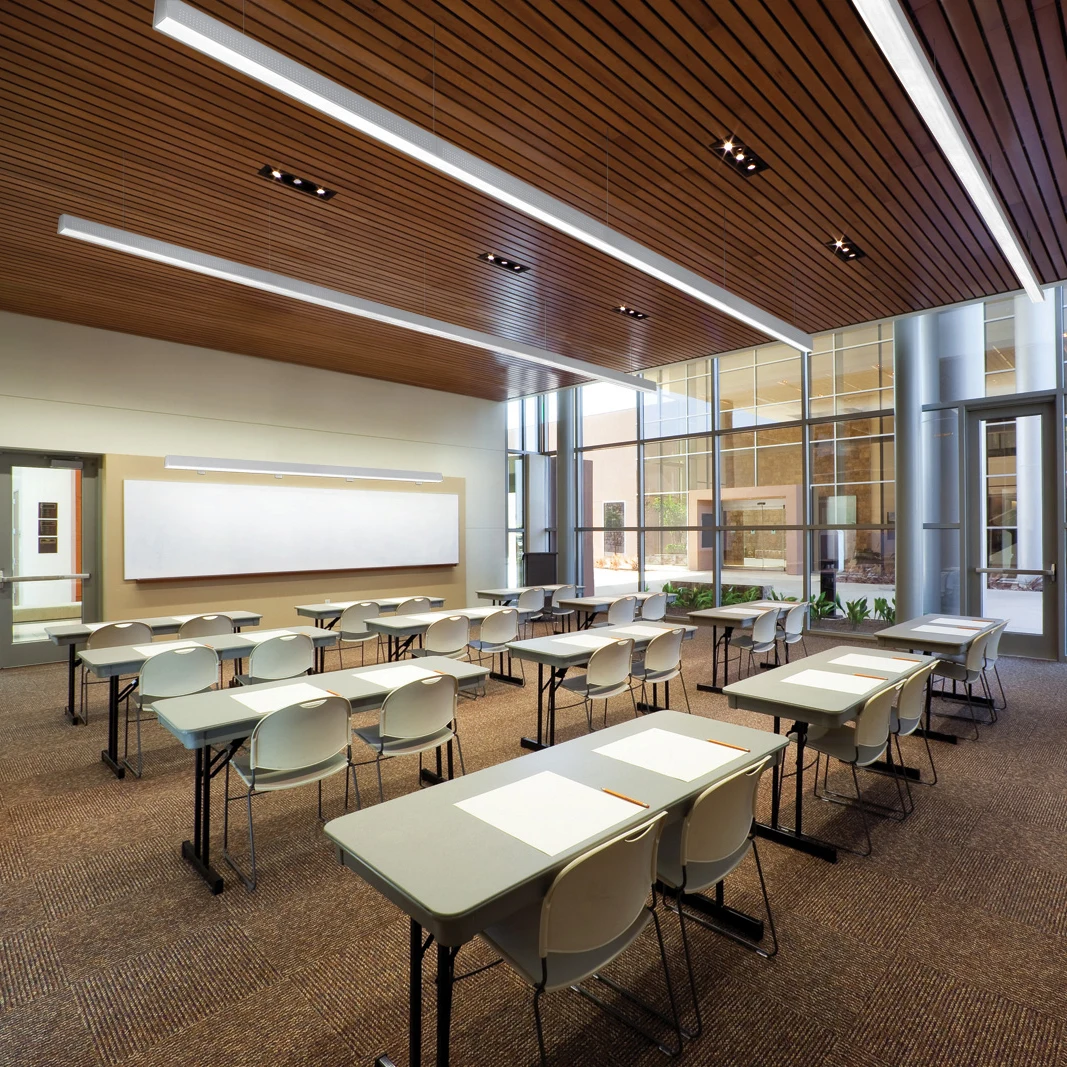

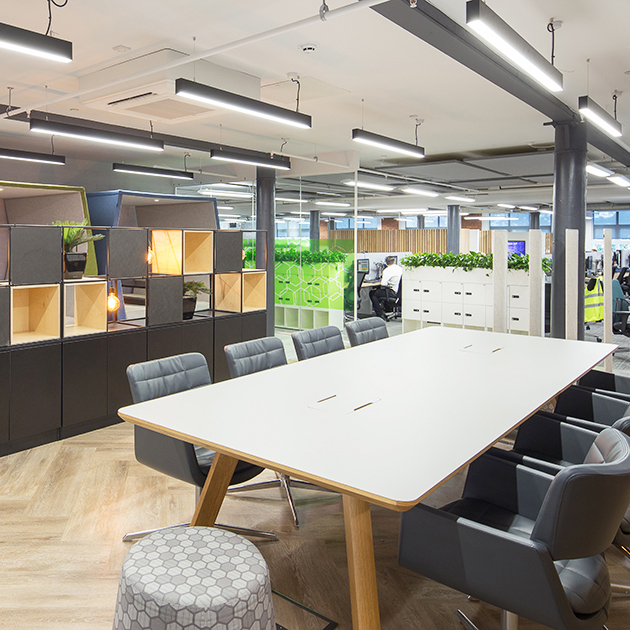

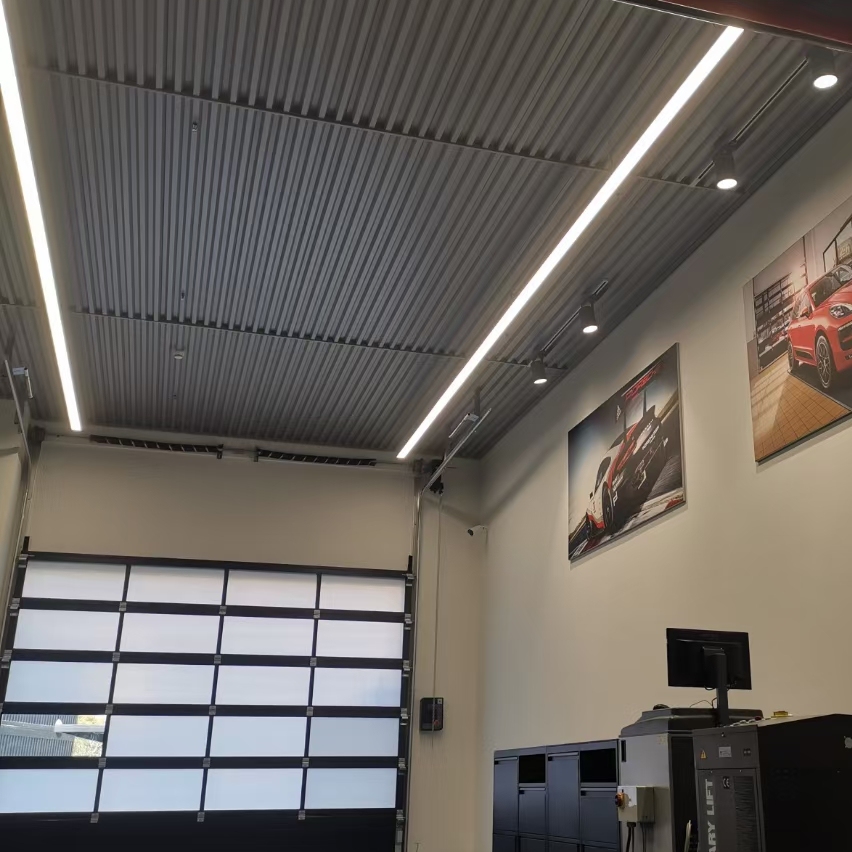

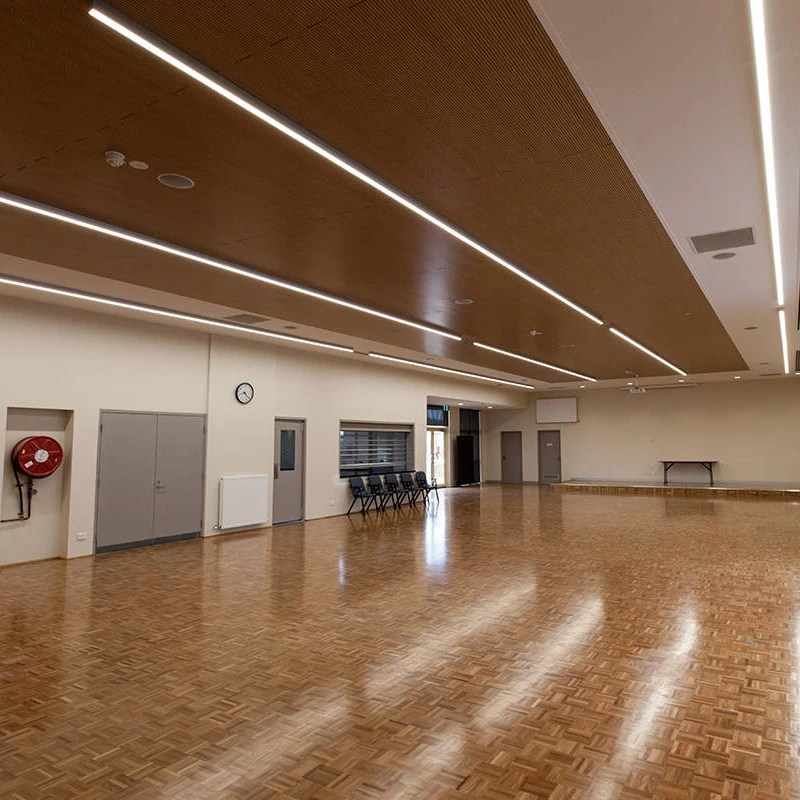

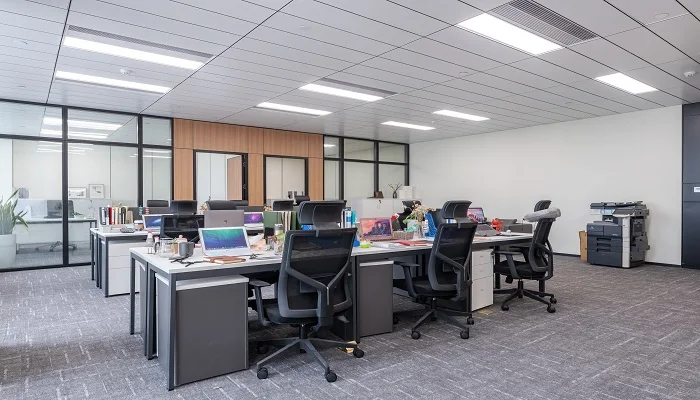

Product Application

Apply to shopping mall, commercial office, school, meeting room, retail store, car dealer display hall, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.

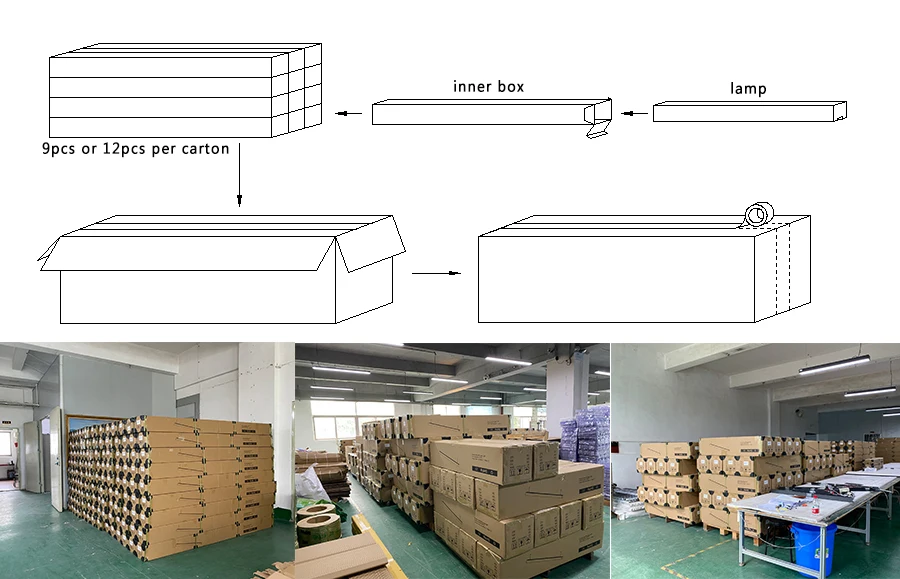

Packing&Shipping

Company Profile

ABOUT US

Shenzhen ONOFF Lighting Co., Ltd. is a professional LED manufacturer in Shenzhen, with over 7 years experience in aluminum profiles LED light producing and supplying, we have handled thousands of projects from over 100 contries and regions. We have expert engineers with ability to supply special solutions, design customized products to meet project demands. Our sales team has fast response to clients’ inquiry, and send professional proposals.

The most important, we always supply highly quality products at the most competitive price, to help clients get more business.

Our vision is to bring possibilities in lighting solution, to provide exceptional value to client.

EFFICIENCY

Excellent Customer Service(fast response, good communication)

QUALITY

Top level surface finishing, branded power driver and LED chip.

PROFESSIONAL

Professional and Focus(over 7 years OEM experience)

If you are interested in this product, welcome to contact us and learn how we can optimize your lighting projects.

Kindly send us an inquiry to start business. Thanks so much.
