Product Introduction
USKYLED Smart LED Grille Downlight is a high-performance recessed ceiling lighting solution designed for modern commercial and residential applications.
With multiple smart control options including Tuya Bluetooth, Zigbee 3.0 and DALI-2, this LED grille downlight allows flexible brightness and color temperature adjustment for different lighting environments.
The recessed grille structure provides a clean architectural appearance while the deep anti-glare optical design helps reduce glare and improve visual comfort.
Available in 10W, 20W and 30W versions with black or white aluminum housing options, this smart recessed LED downlight is suitable for hotels, offices, retail stores, restaurants, showrooms and smart home projects.
Design

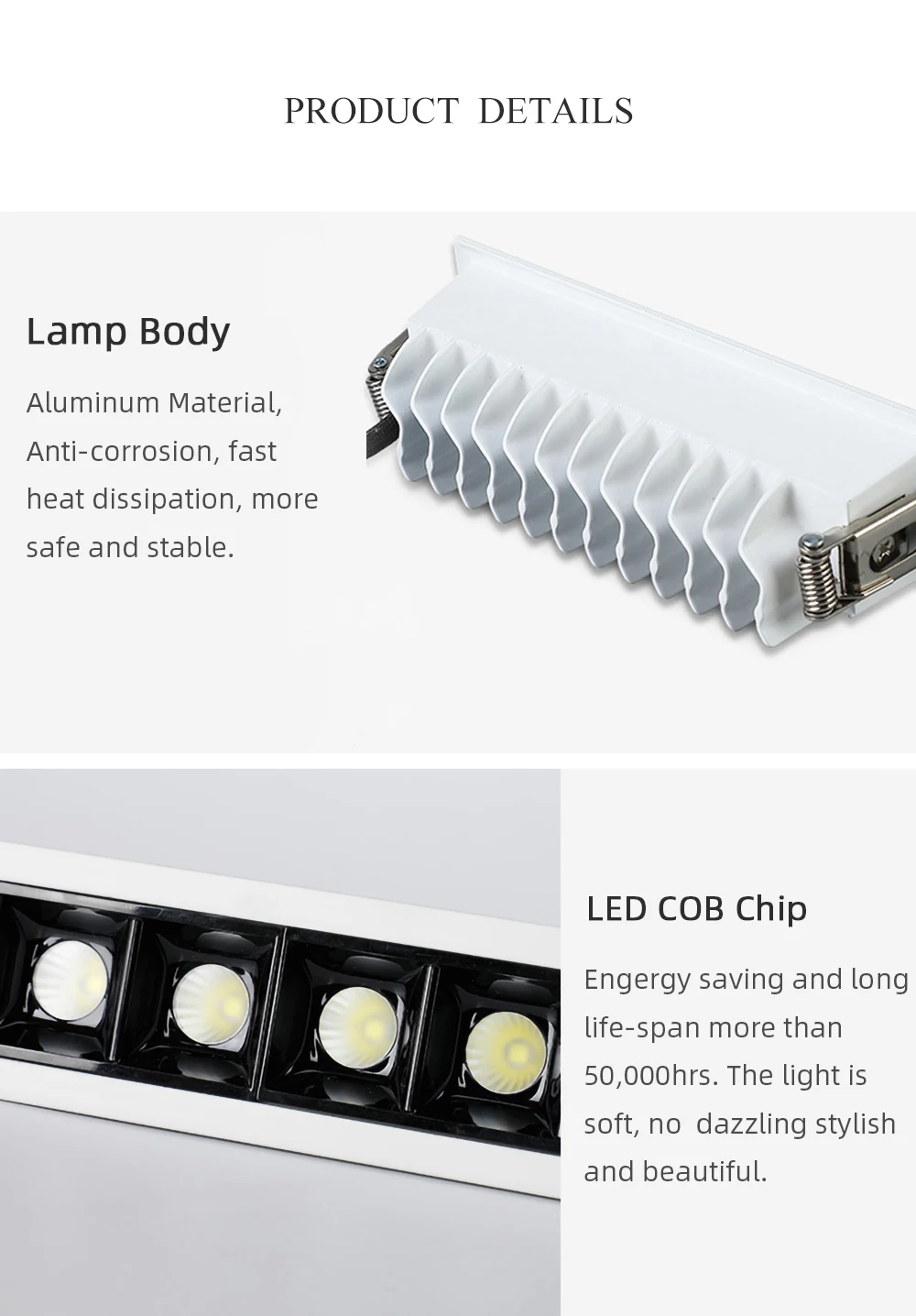

The Smart LED Grille Downlight features a minimalist recessed design with a precision aluminum housing structure.
The deep grille optical system helps control light distribution and reduce direct glare, making it suitable for environments where visual comfort is important.
The slim embedded installation design creates a clean ceiling appearance for modern architectural interiors.

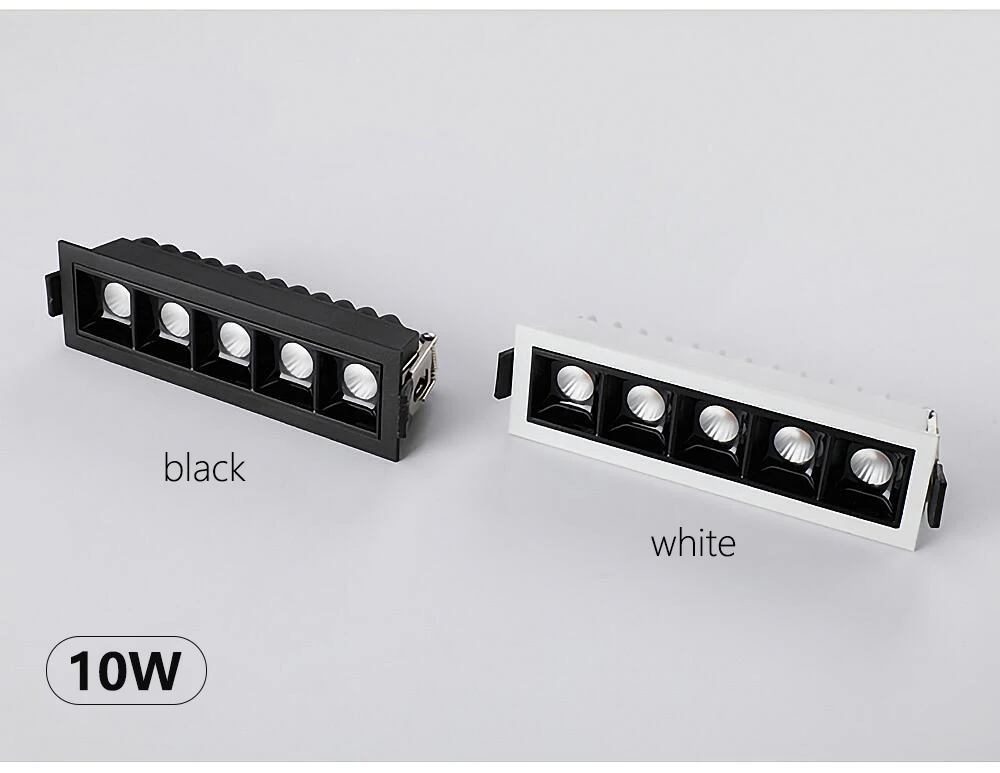

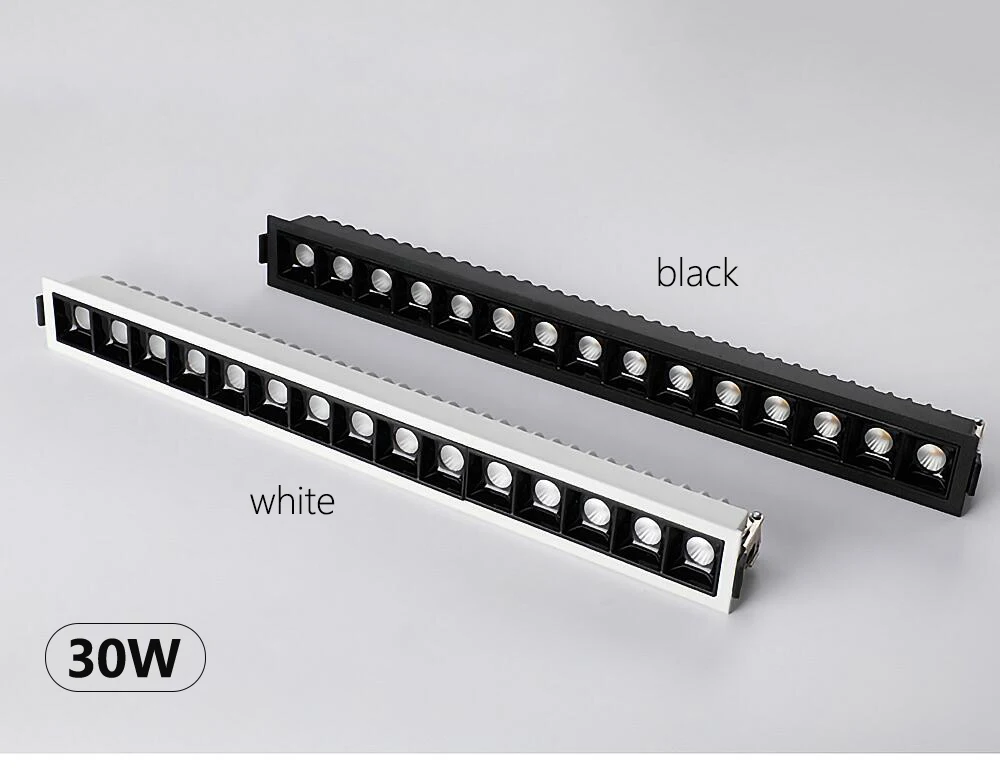

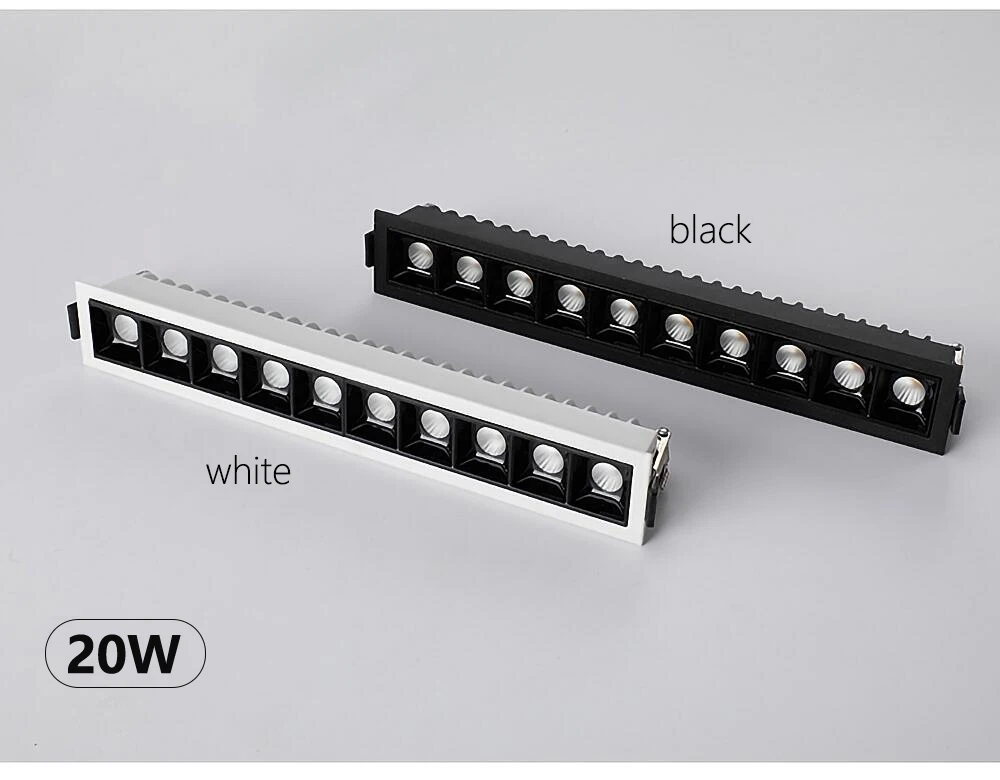

Available finishes:
Main Features
Smart Lighting Control

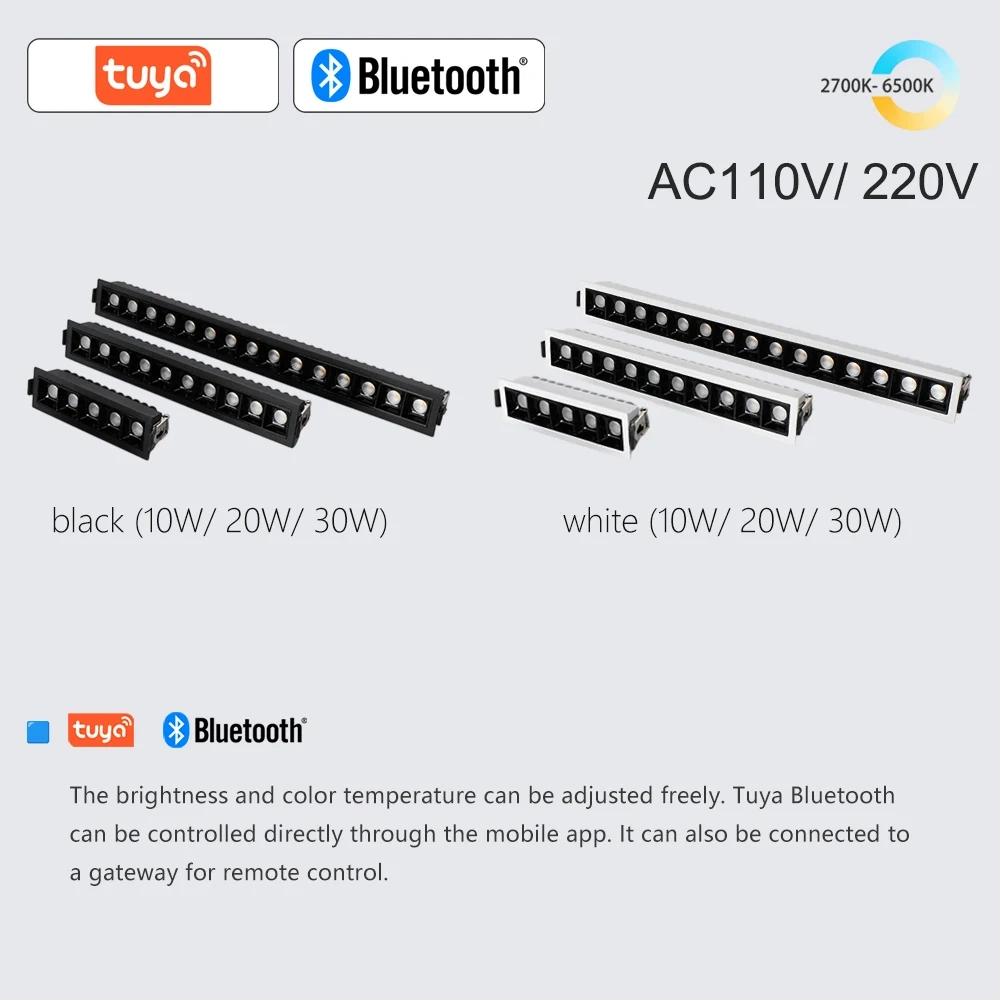

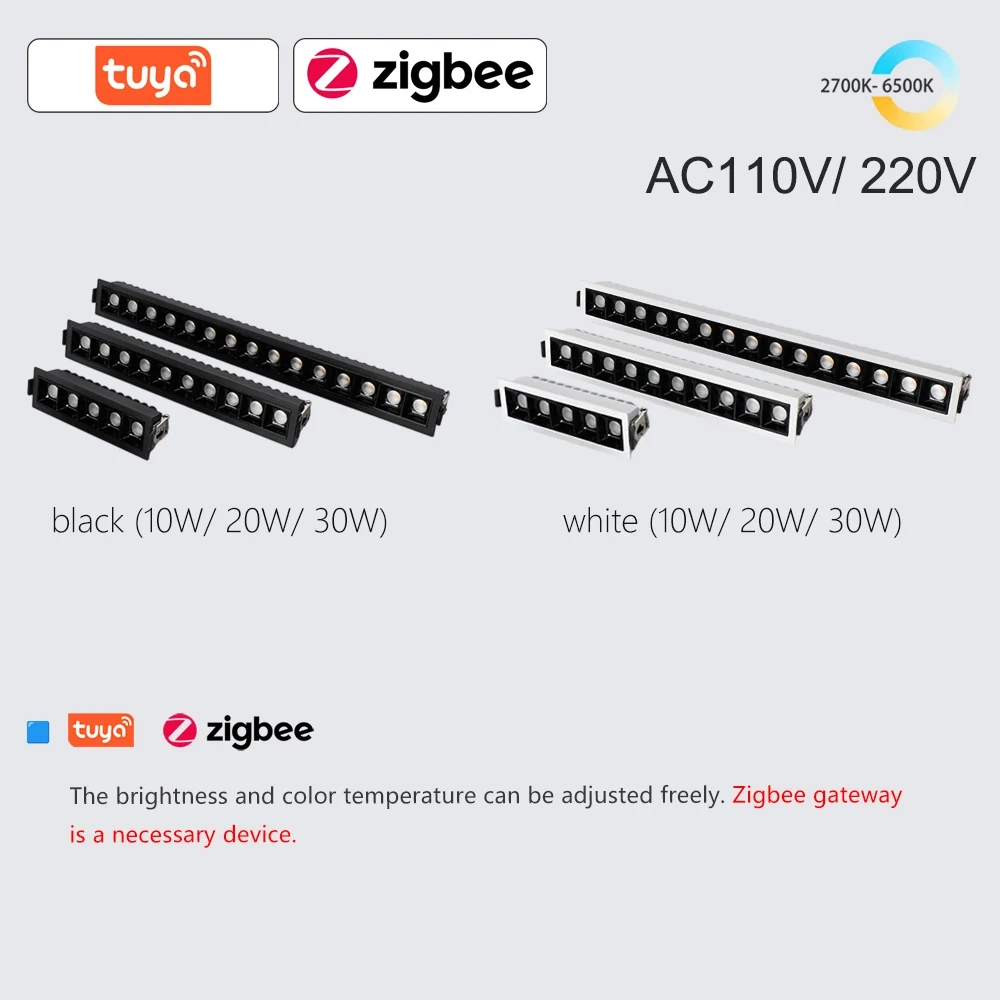

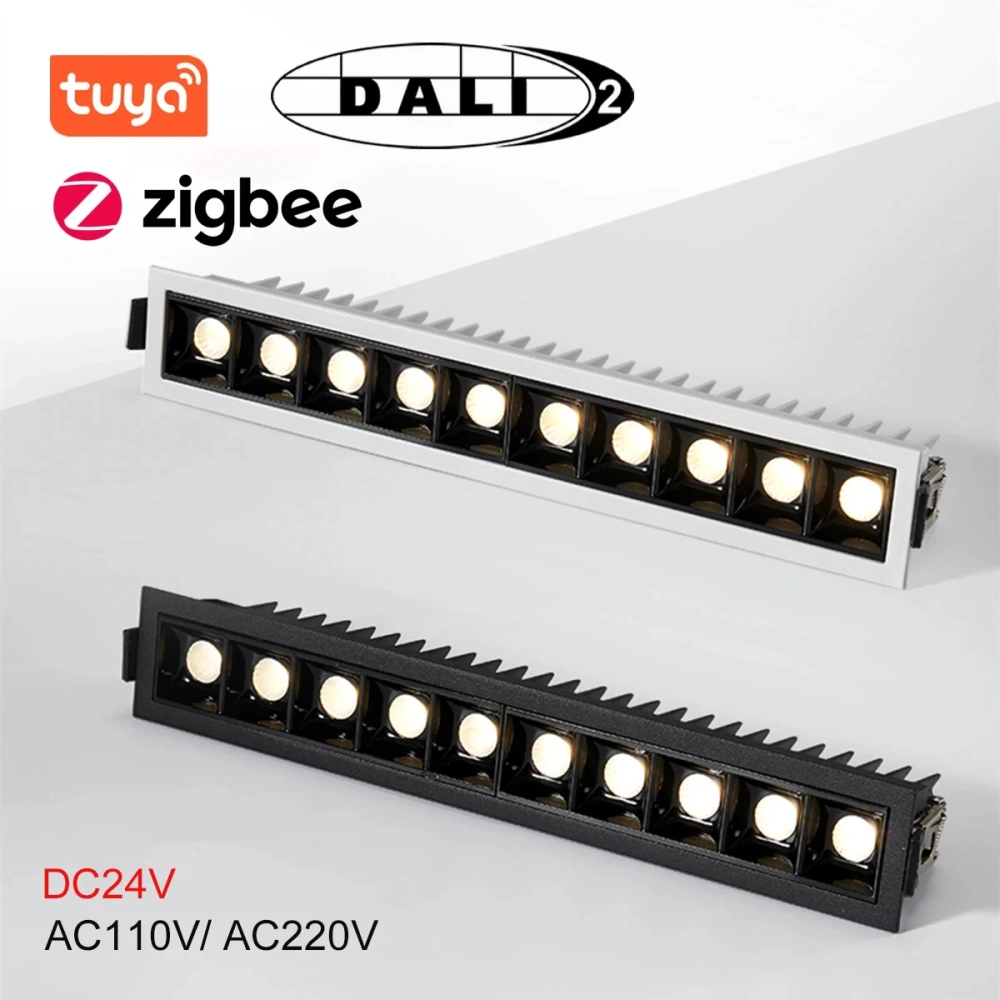

Supports multiple intelligent control systems:
- Tuya Bluetooth (BLE)
- Zigbee 3.0

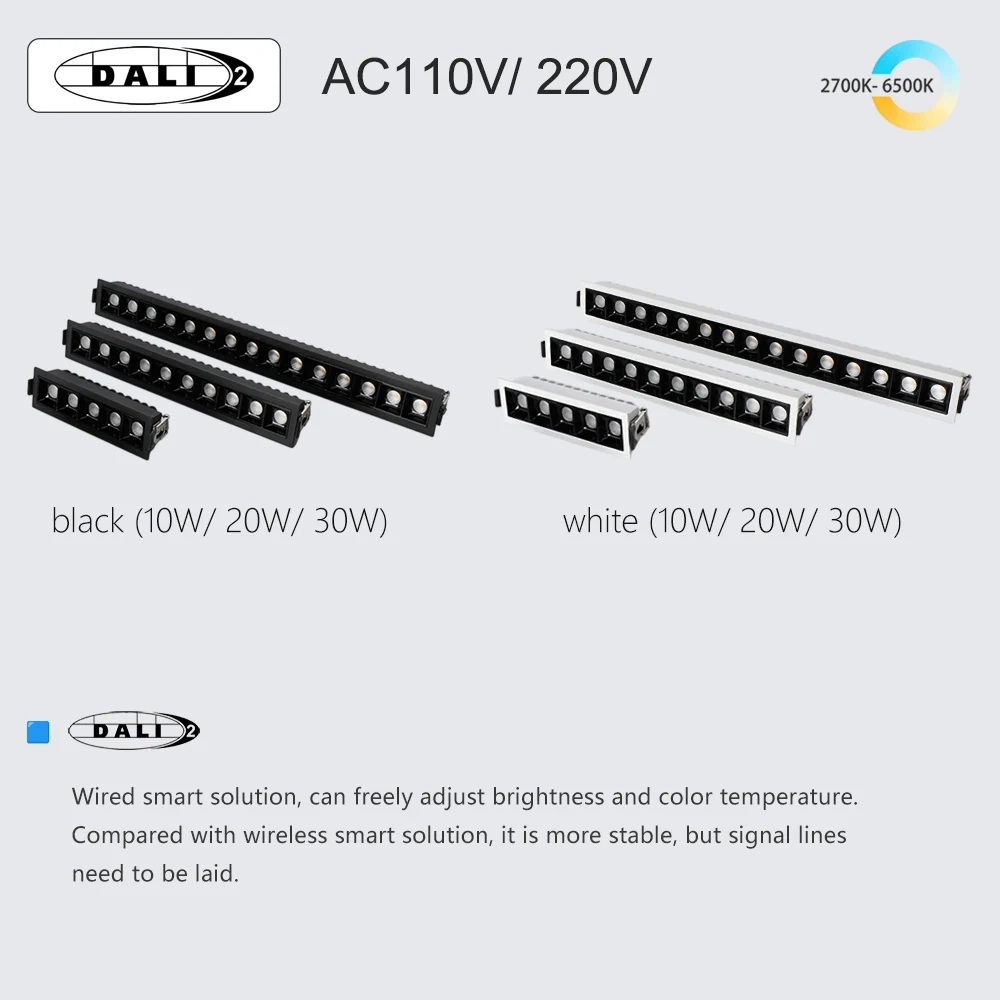

- DALI-2 DT8
Compatible with smart lighting automation systems for residential and commercial projects.

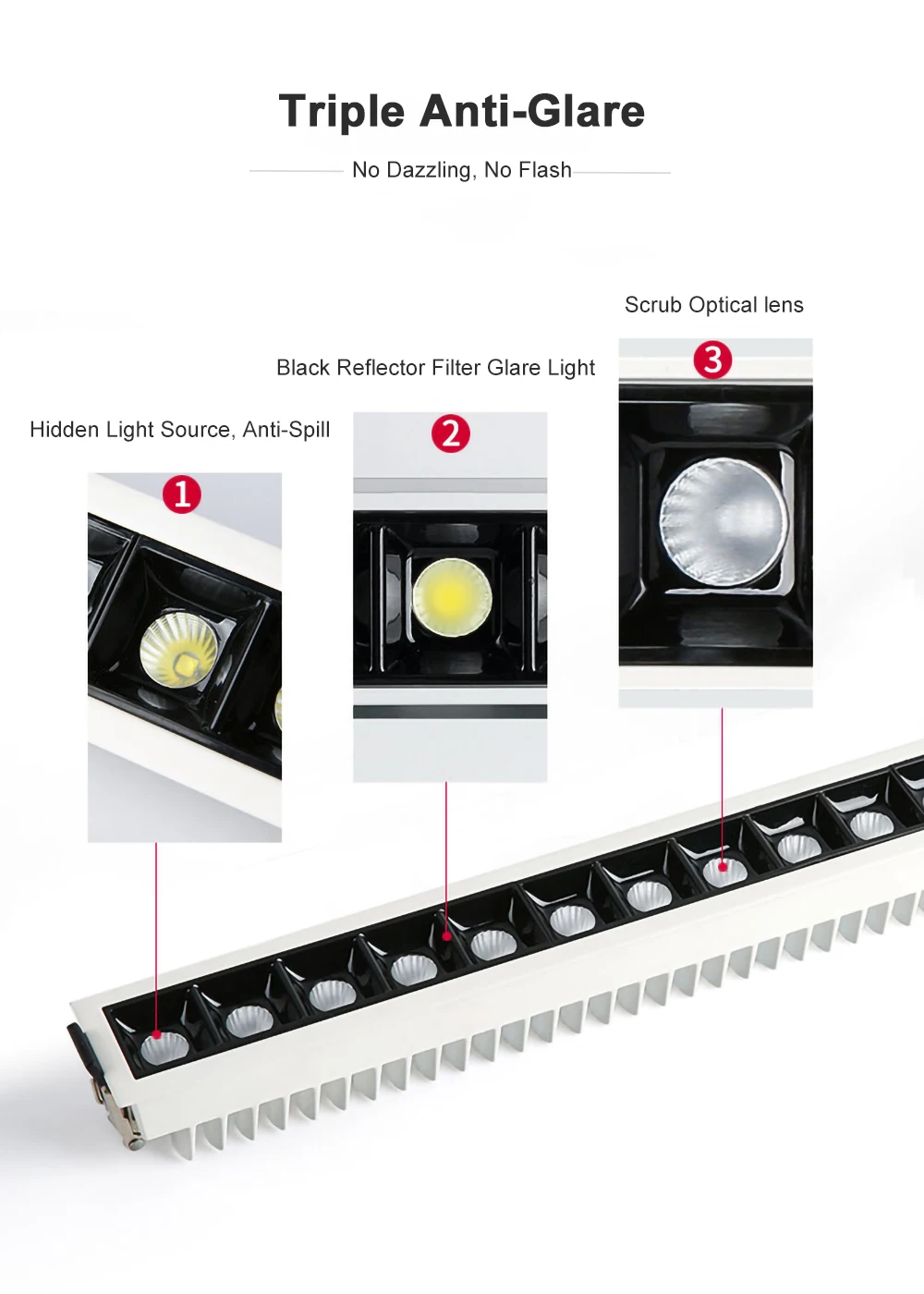

Anti-Glare Optical Design
- UGR<19 low glare performance
- Comfortable indirect visual experience
- Suitable for long-time indoor lighting environments
Smooth Dimming Performance
- 0/1-100% brightness adjustment
- Flicker-free driver technology
- Adjustable lighting atmosphere
High Quality LED Performance
- High CRI >90 / Ra95 option
- Excellent color rendering
- Suitable for retail display and architectural lighting
Application
Commercial Lighting Projects
Suitable for:
- Retail stores
- Shopping malls
- Hotels
- Restaurants
- Offices
- Showrooms

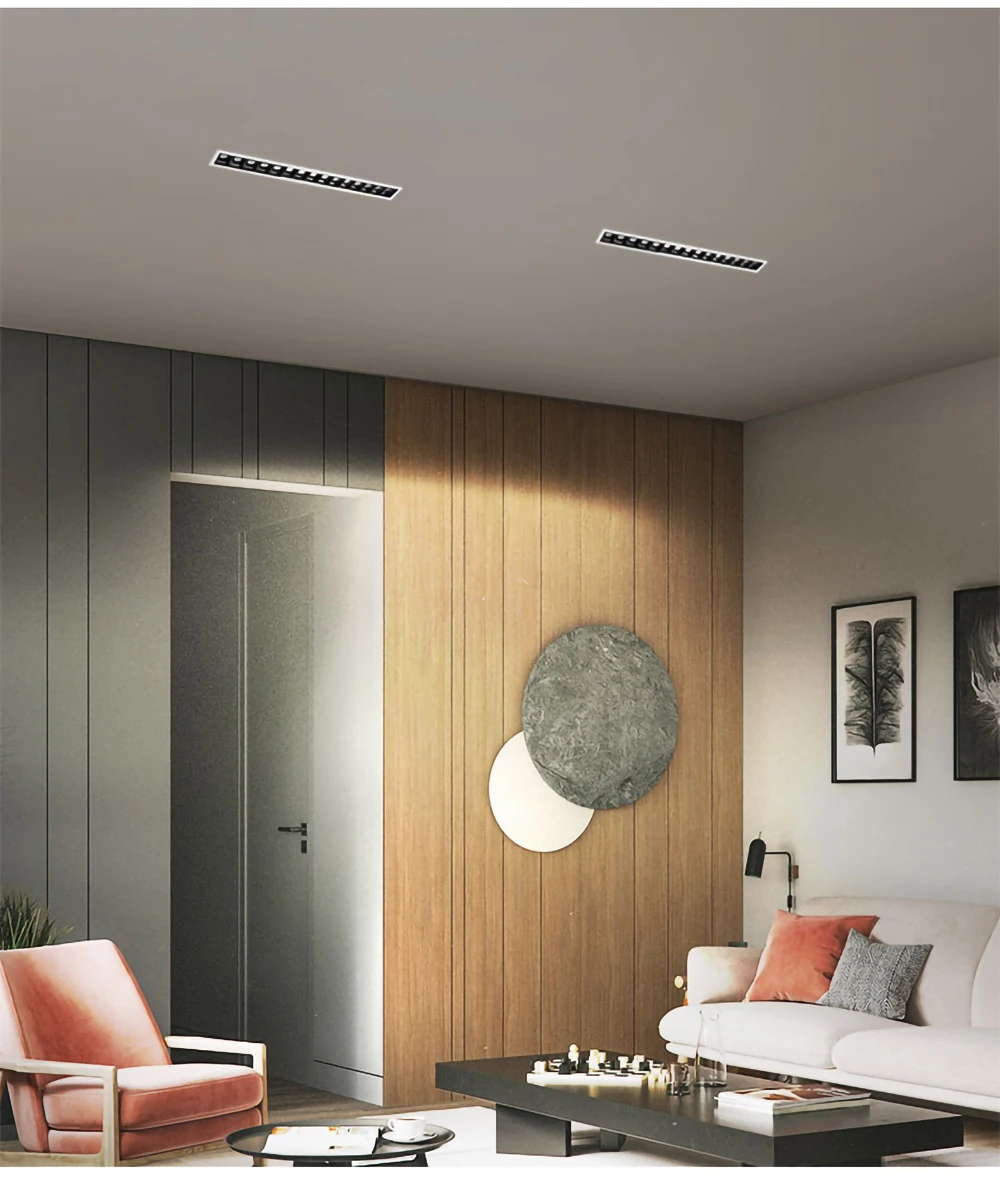

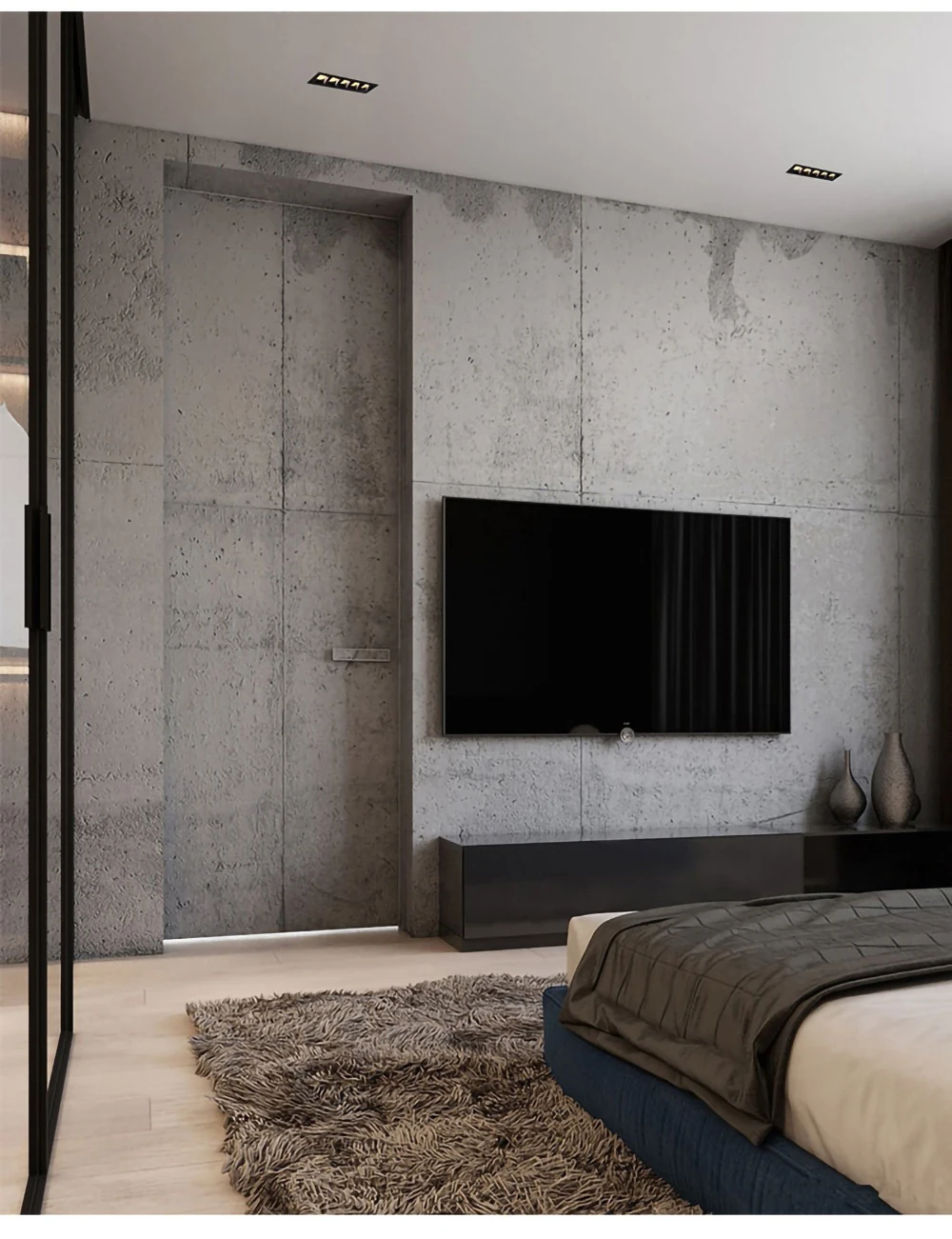

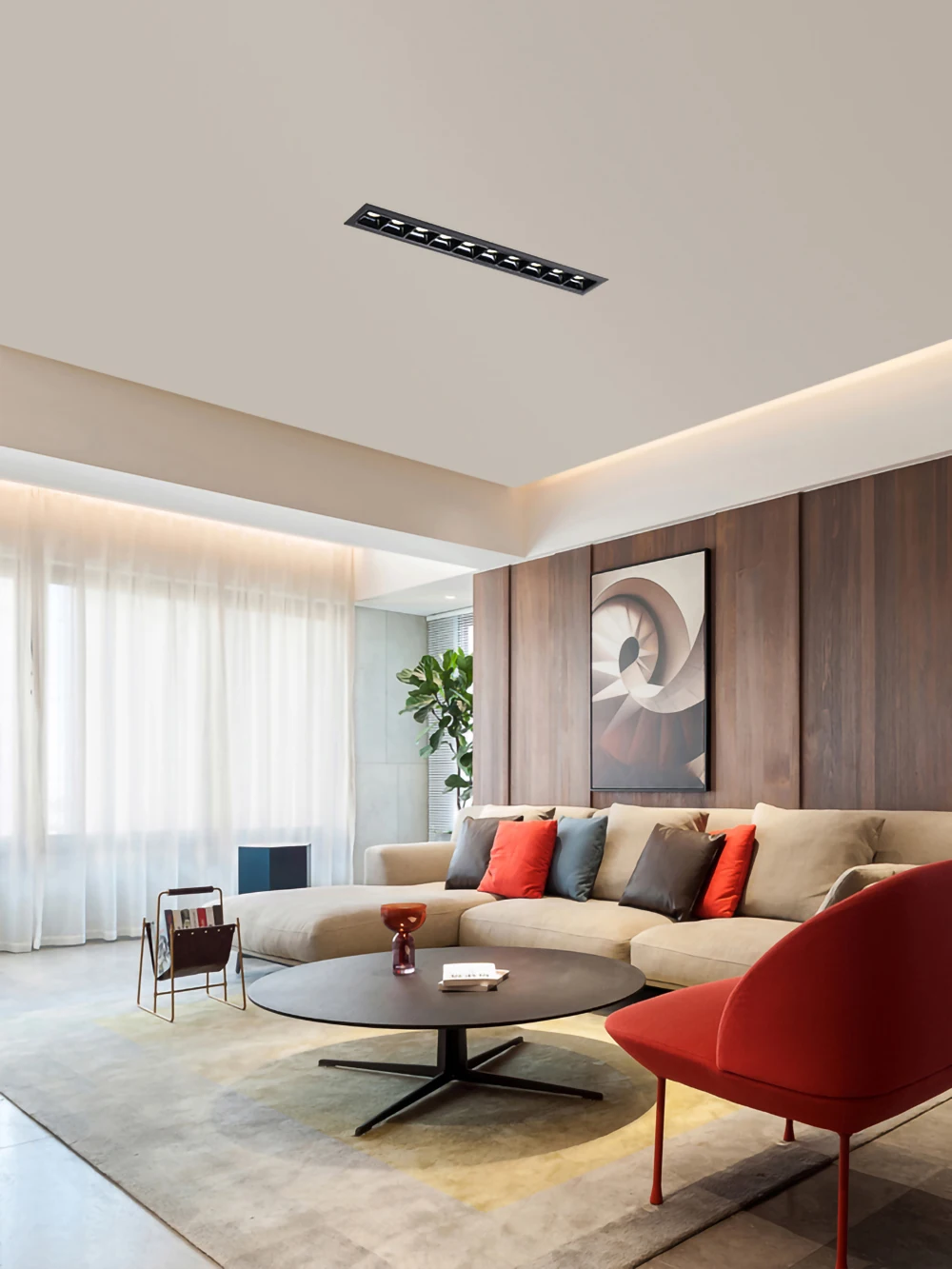

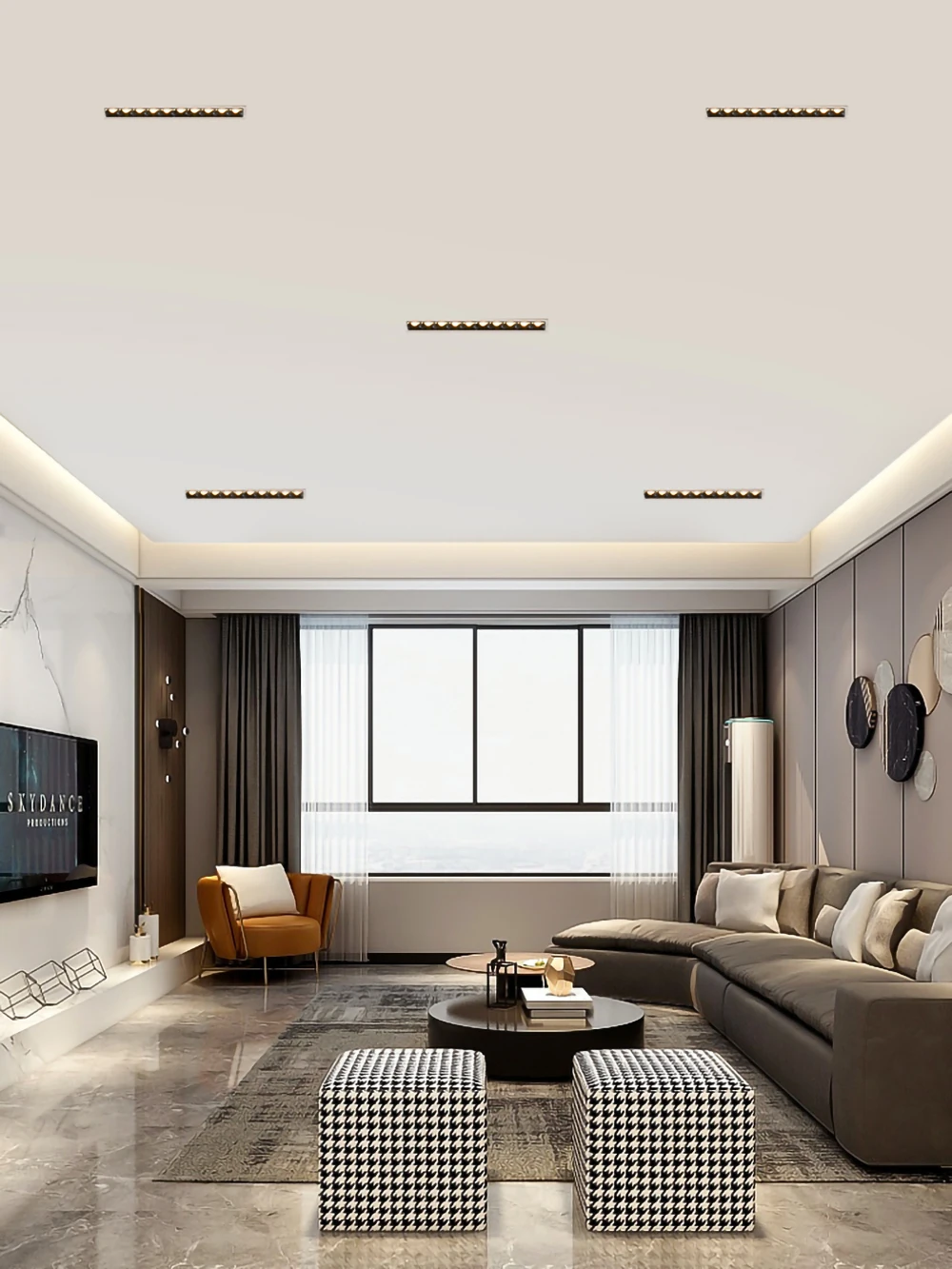

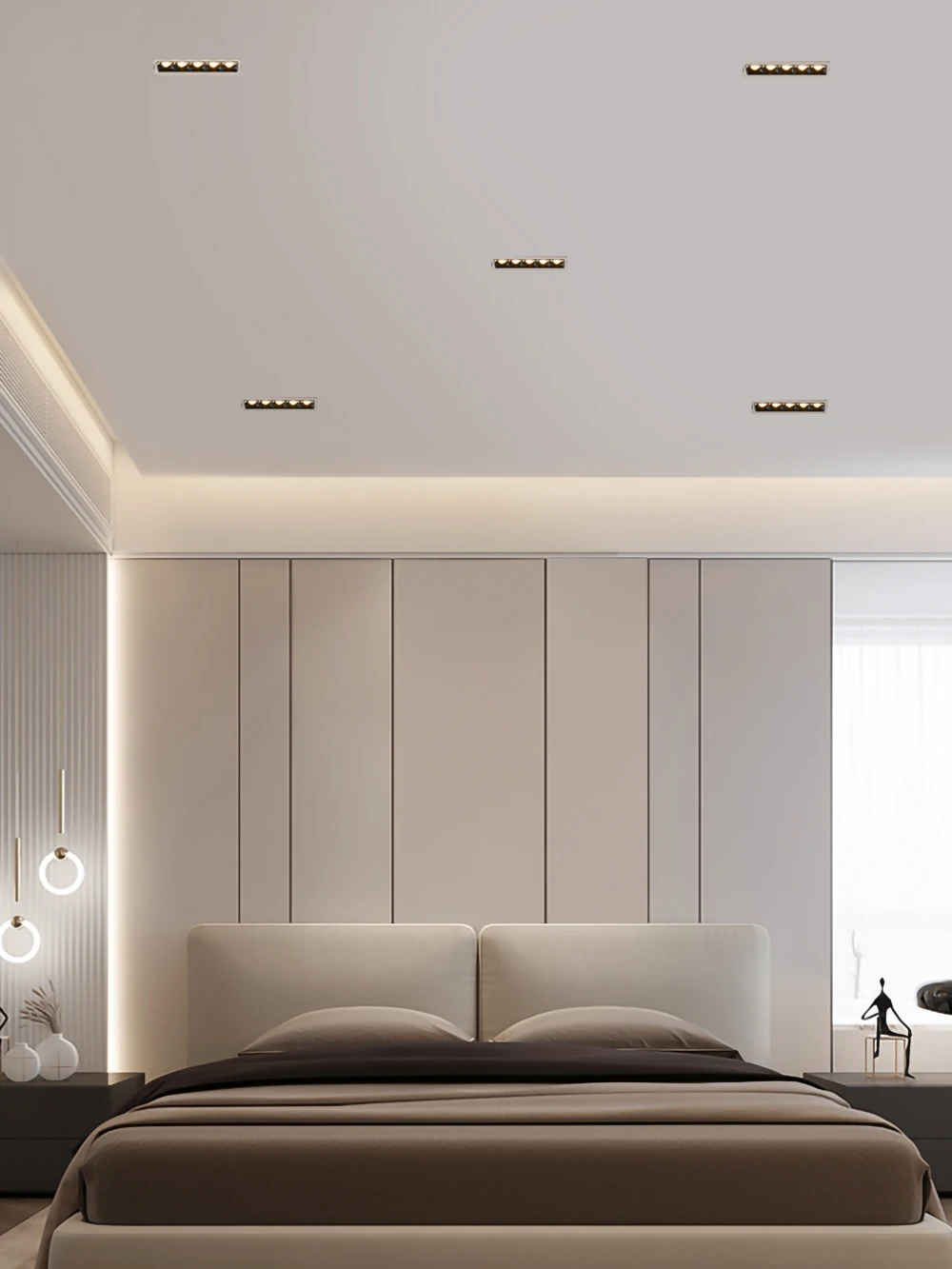

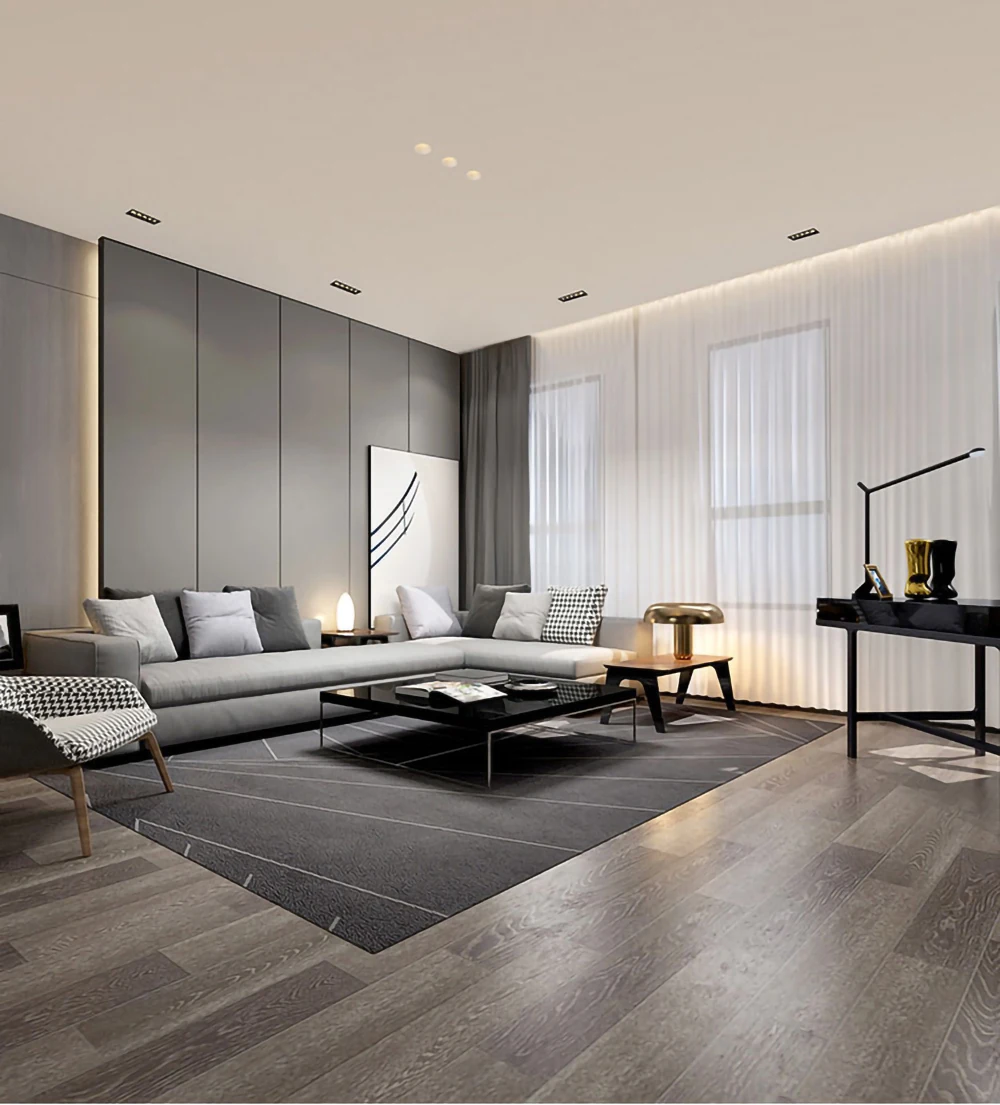

Residential Lighting Projects
Ideal for:
- Living rooms
- Bedrooms
- Kitchens
- Smart homes
- Luxury apartments
Architectural Lighting
Used for:
- Interior decoration lighting
- Gallery lighting
- Display lighting
- Feature wall lighting
Size / Options
Available configurations:
| Item |
Options |
| Power |
10W / 20W / 30W |
| Housing Color |
Black / White |
| Installation |
Recessed Ceiling Mount |
| Voltage |

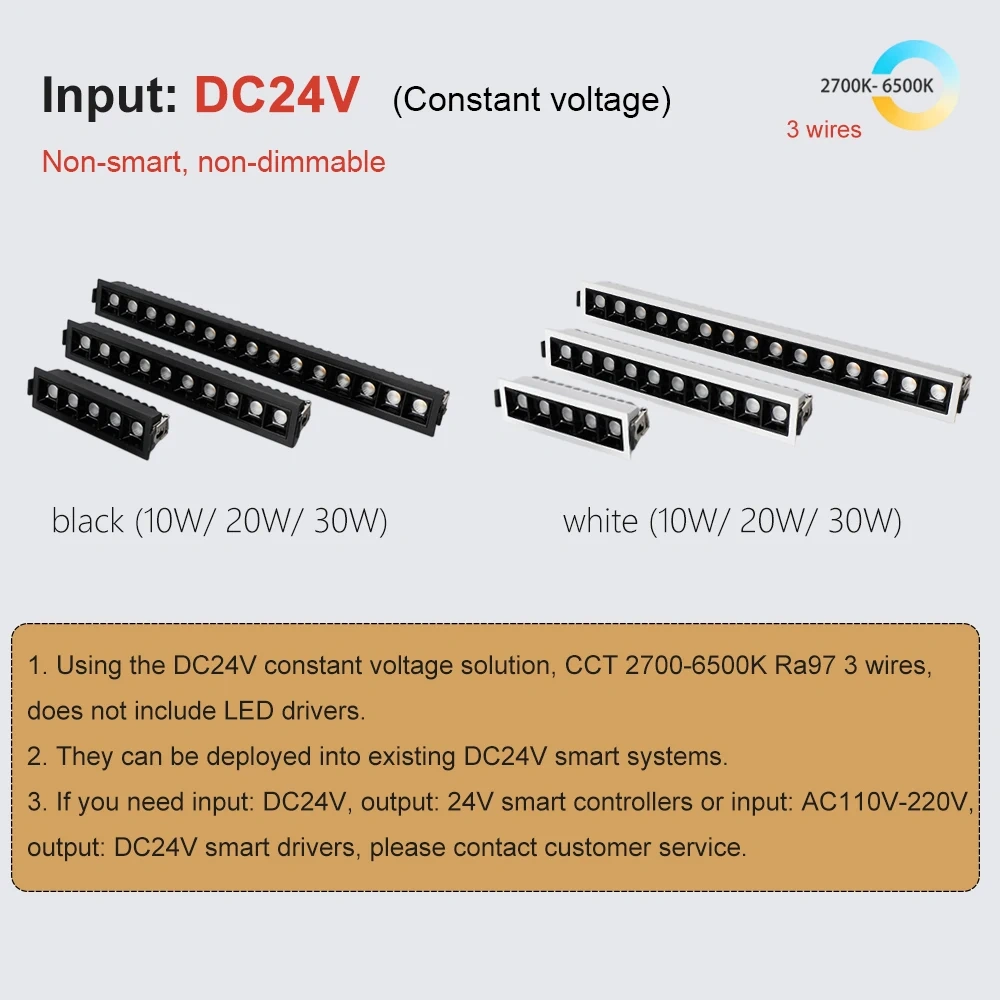

AC110-240V / DC24V |
| Control |
Tuya BLE / Zigbee / DALI |

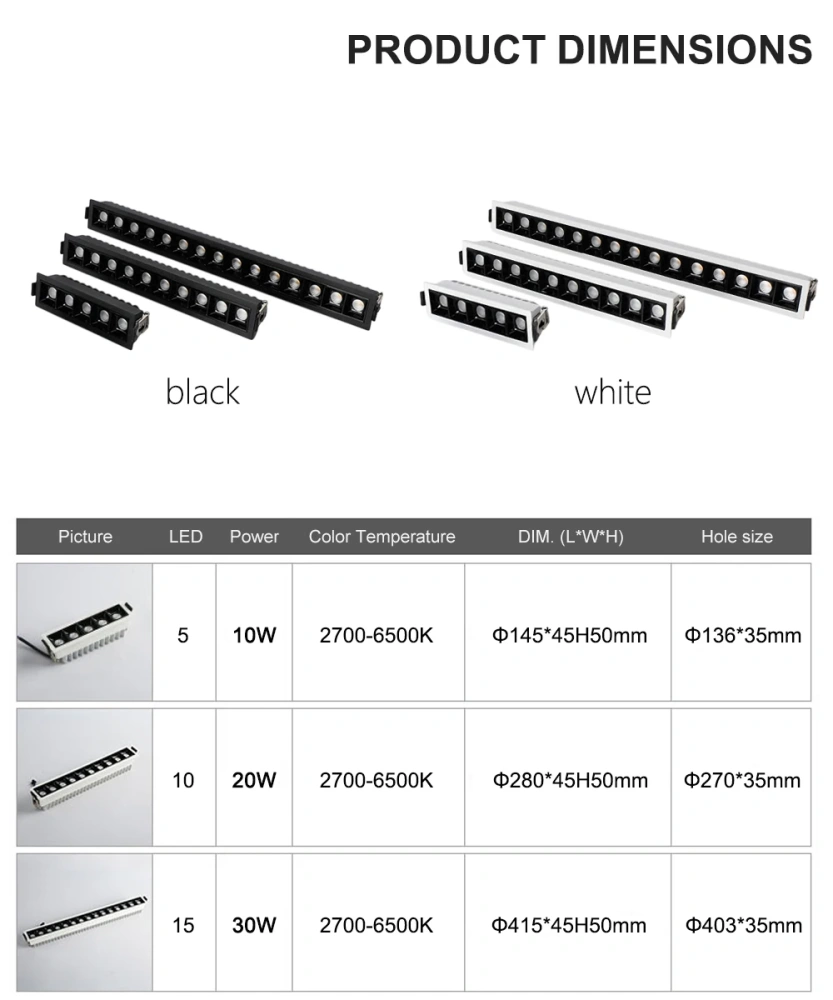

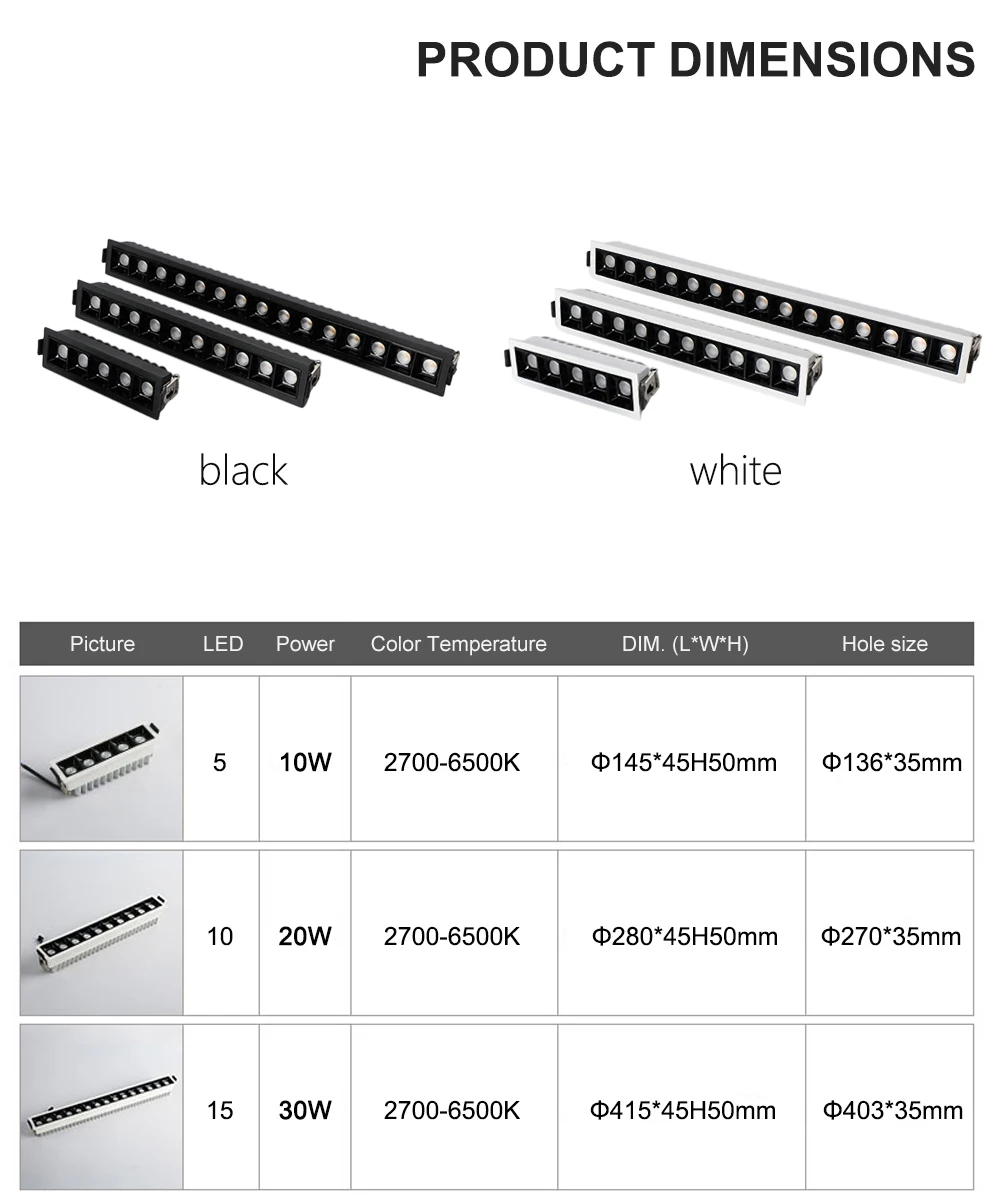

Hole Size:
| Power |
Cut Out Size |
| 10W |
L136mm × W35mm |
| 20W |
L270mm × W35mm |
| 30W |
L403mm × W35mm |
Lighting Options

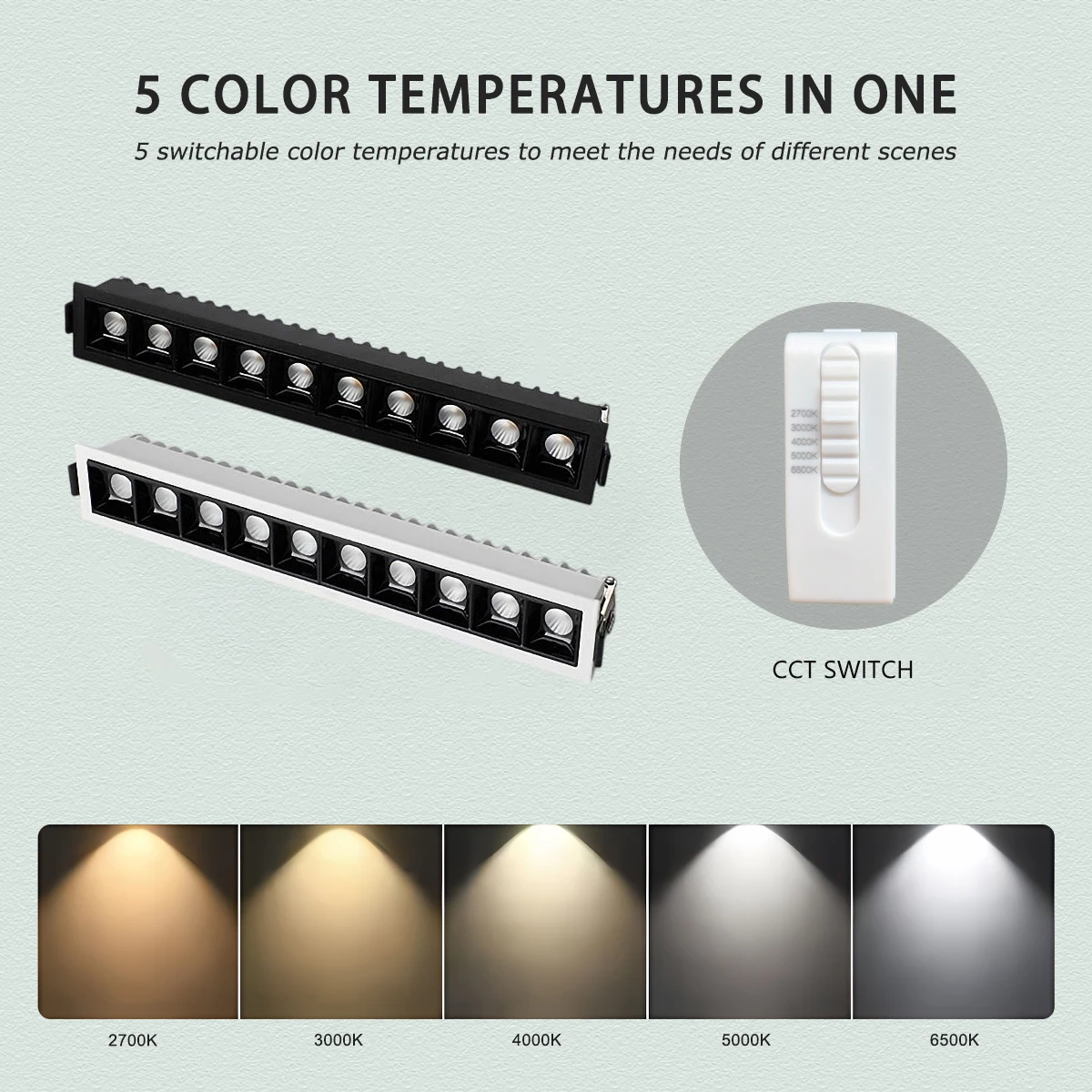

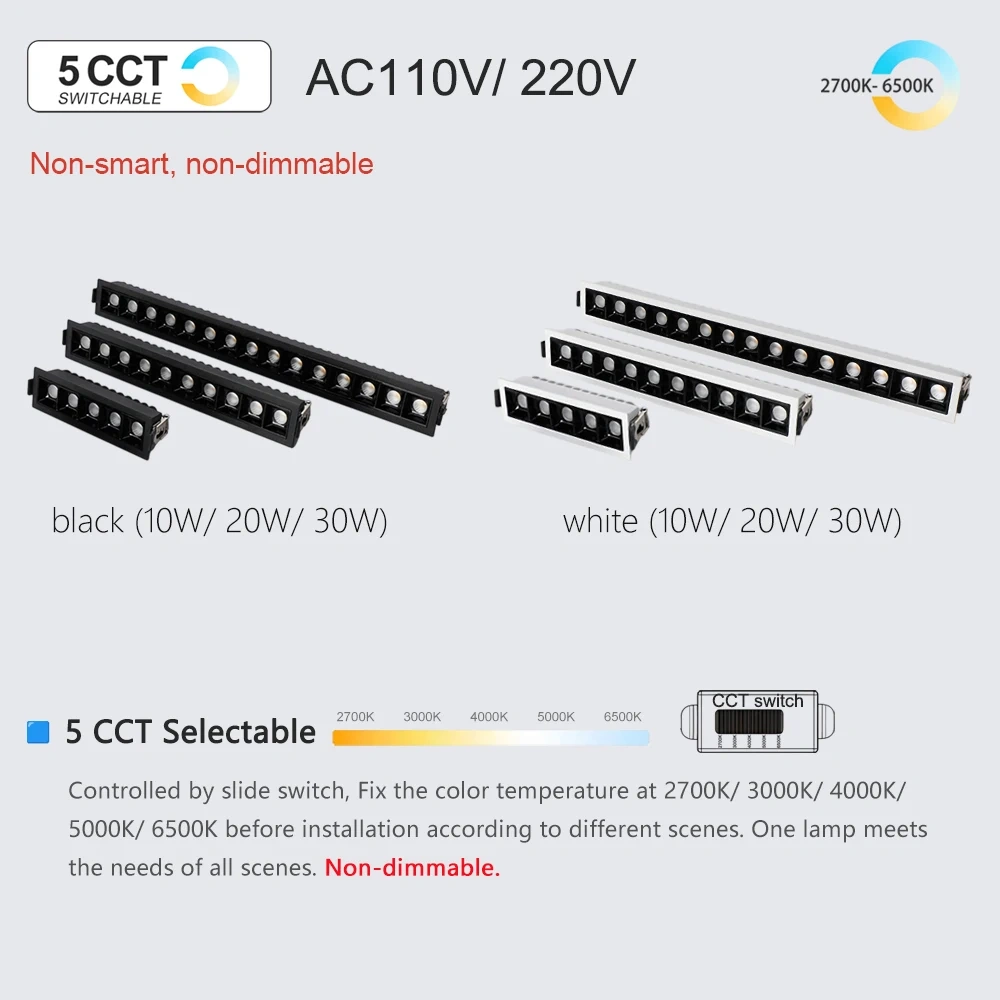

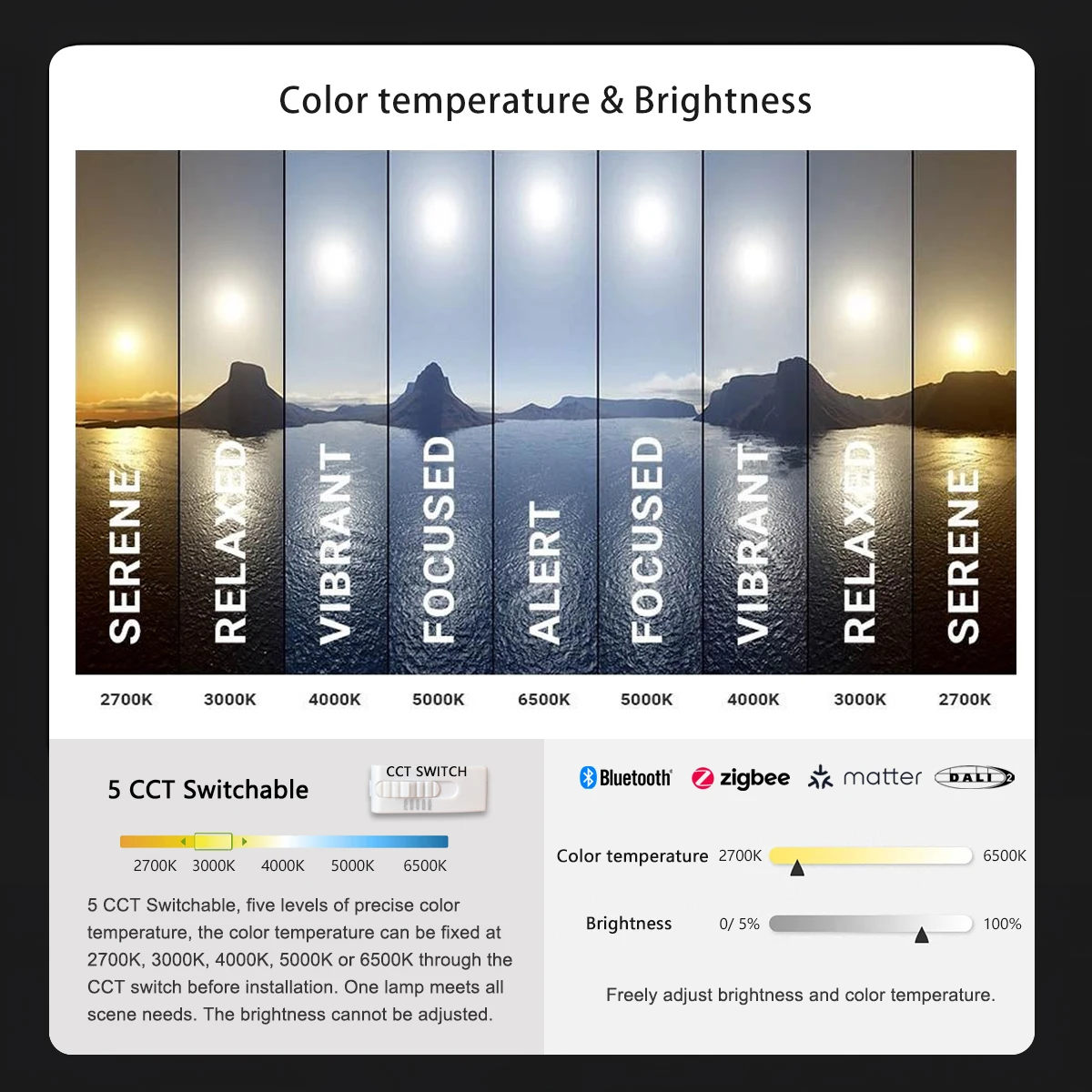

Color Temperature Options
Available lighting choices:
- 2700K Warm White
- 3000K Warm White
- 4000K Neutral White
- 5000K Natural White
- 6500K Cool White
Tunable White Version
Smart versions support:
2700K-6500K adjustable color temperature control.
Beam Angle
Optional beam angles:
Installation
The Smart LED Grille Downlight is designed for recessed ceiling installation.
Installation process:
- Cut ceiling opening according to product size
- Connect power supply and smart control system
- Install recessed fixture with mounting clips
- Configure smart lighting controller
Recommended for:
- New construction projects
- Hotel renovation
- Commercial interior upgrades
- Smart home lighting installation
Technical Specifications
| Specification |
Details |
| Product Type |
Smart Recessed LED Grille Downlight |
| LED Type |
SMD LED |
| Power |
10W / 20W / 30W |
| Input Voltage |
AC110-240V / DC24V |
| Material |
Die-cast Aluminum |
| Control System |
Tuya BLE / Zigbee 3.0 / DALI-2 |
| Dimming |
0-100% Smooth Dimming |
| CRI |
Ra≥90 / Ra95 |
| Beam Angle |
15° / 24° / 36° / 50° |
| Color Temperature |
2700K-6500K |
| Installation |
Recessed Mount |
| Working Temperature |
-25℃ ~ +50℃ |
| Protection |
Indoor Lighting Application |
Project Applications
Hotel Lighting Projects
- Guest rooms
- Corridors
- Lobby areas
- Restaurants
Retail Lighting Projects
- Clothing stores
- Jewelry shops
- Product display areas
- Shopping centers
Commercial Office Projects
- Meeting rooms
- Reception areas
- Workspaces
Residential Projects
- Villas
- Apartments
- Smart homes
OEM/ODM
USKYLED provides OEM/ODM LED lighting solutions for distributors, contractors and project buyers.
Customization options include:
- Wattage customization
- Housing color
- Smart control protocol
- Beam angle
- CCT configuration
- Driver solution
- Packaging design
- Project-specific lighting solutions
For large-scale commercial projects, USKYLED supports lighting design cooperation, sample testing and bulk production.
