Recessed LED Under Cabinet Lamp 45 Degree Oblique Lighting Mini Thin Hidden Embedded Layer Shelf Aluminum Profile Hard Bar Light

Recessed LED Under Cabinet Lamp 45 Degree Oblique Lighting Mini Thin Hidden Embedded Layer Shelf Aluminum Profile Hard Bar Light

Feature:

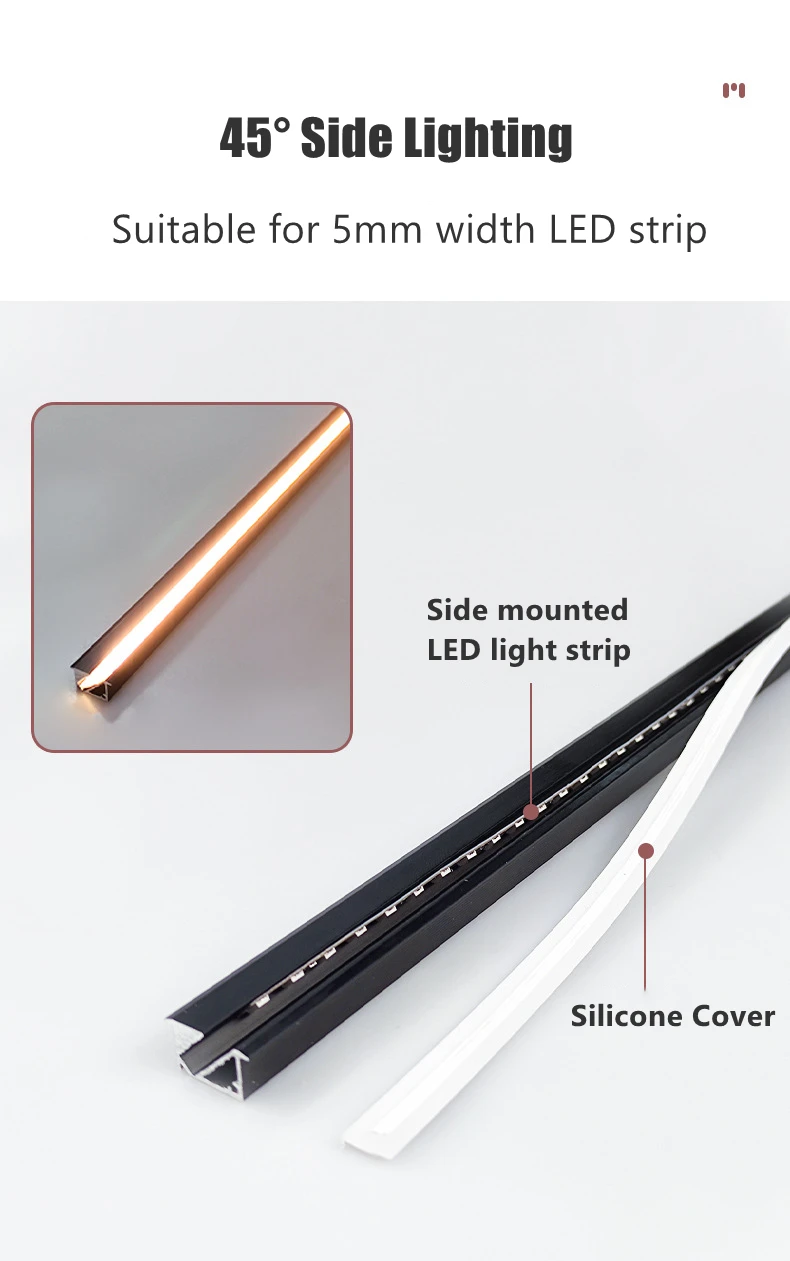

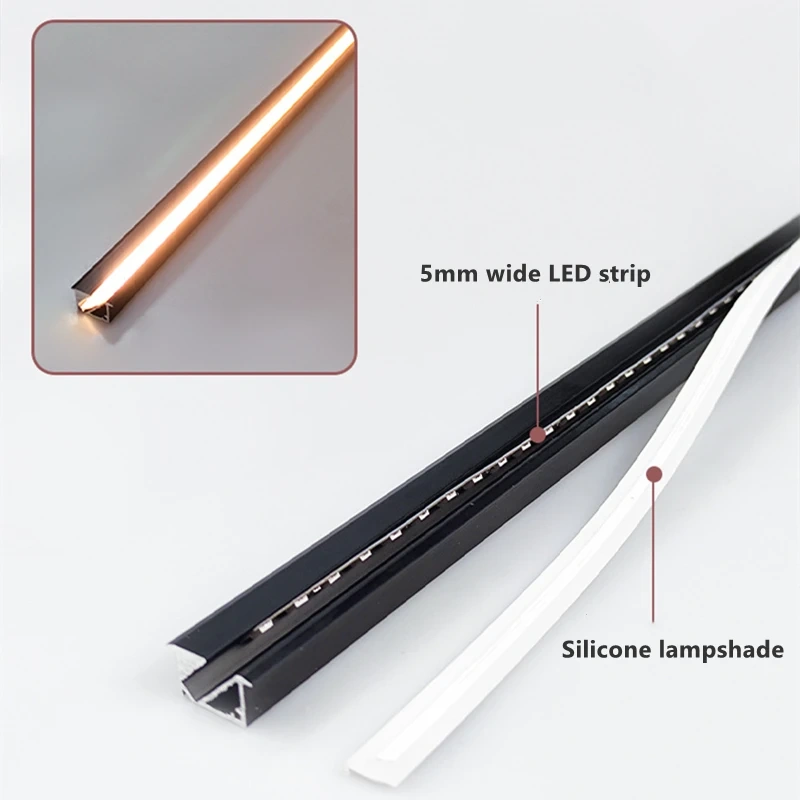

1. Suitable for 5mm wide LED strips.

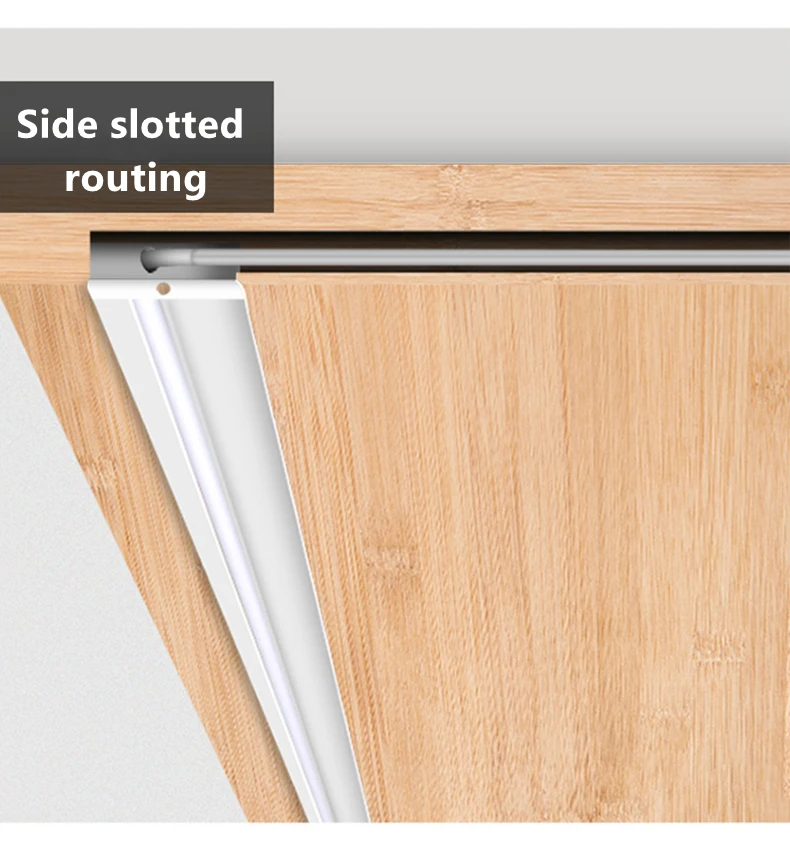

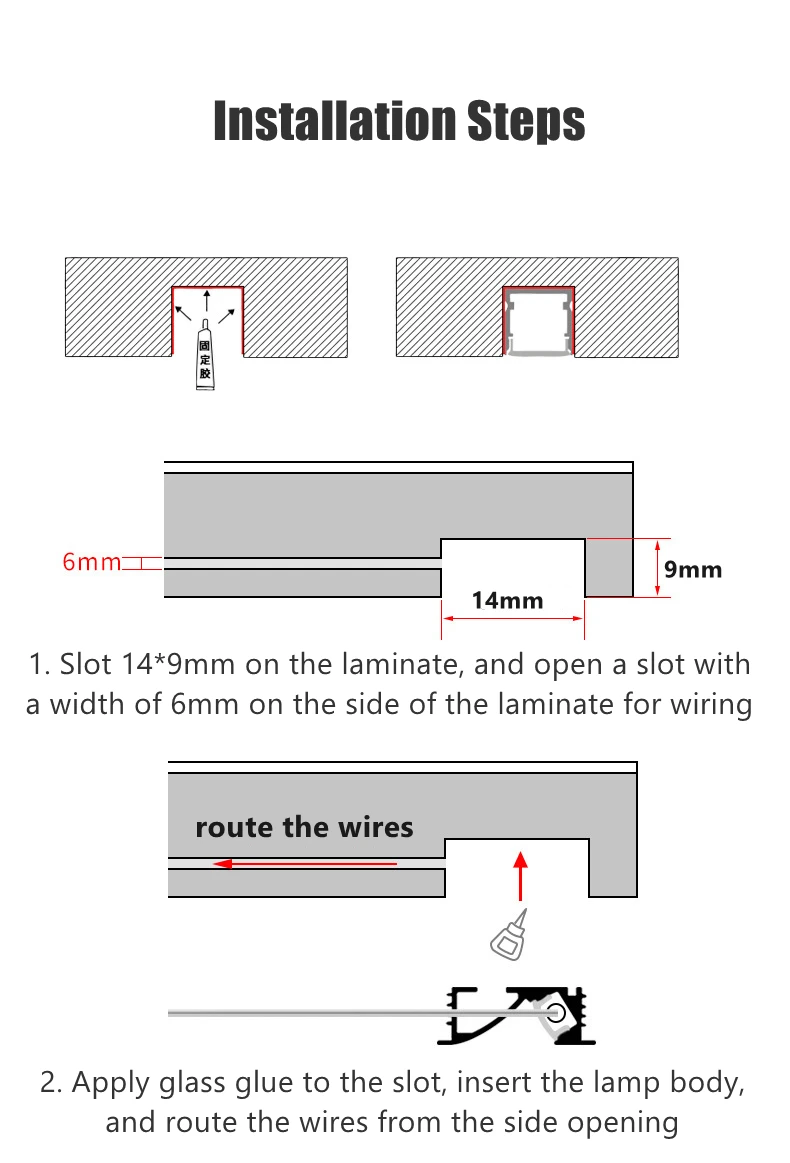

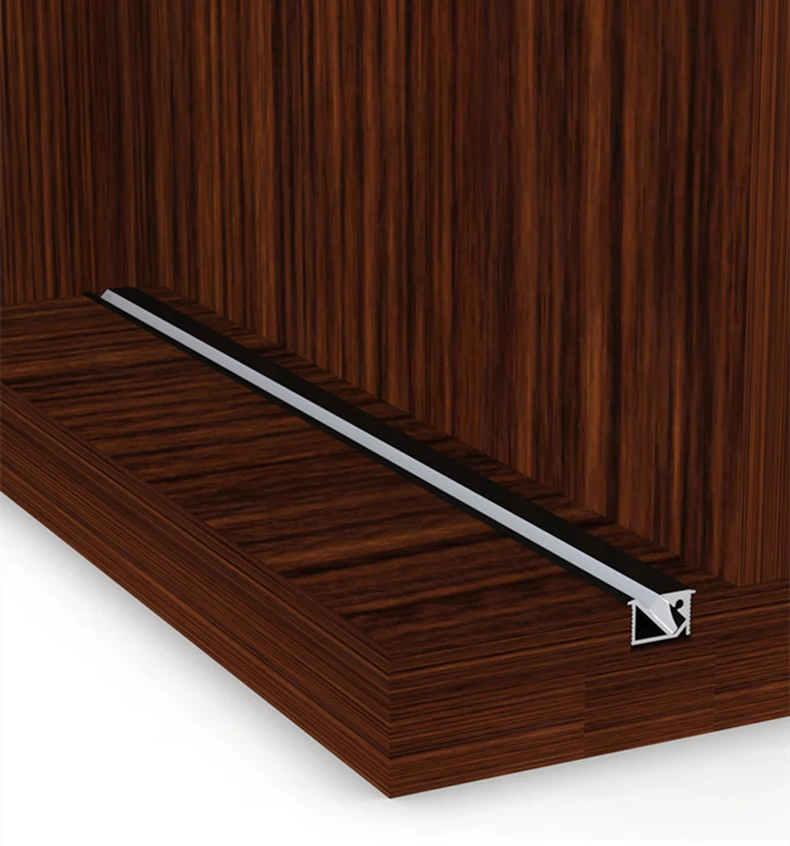

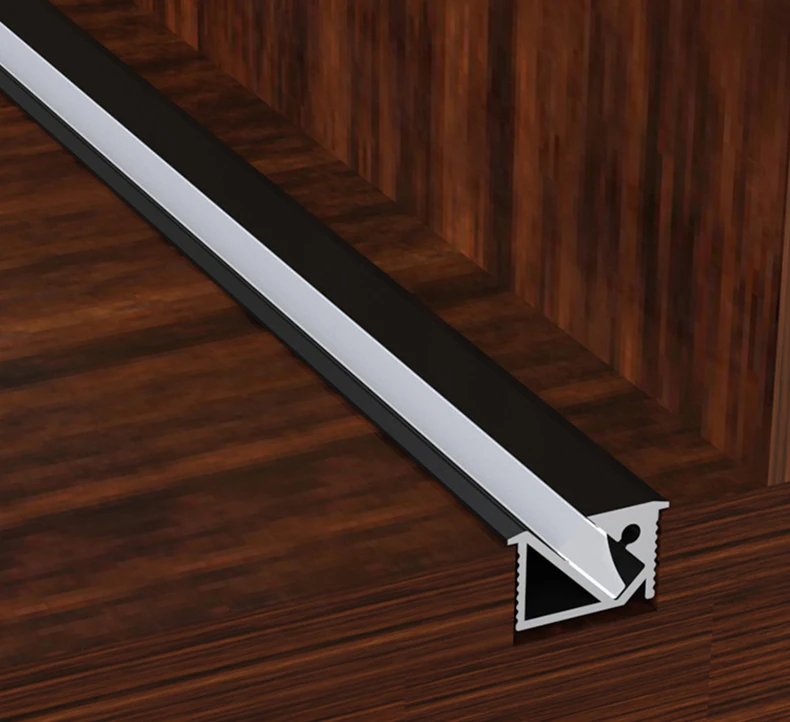

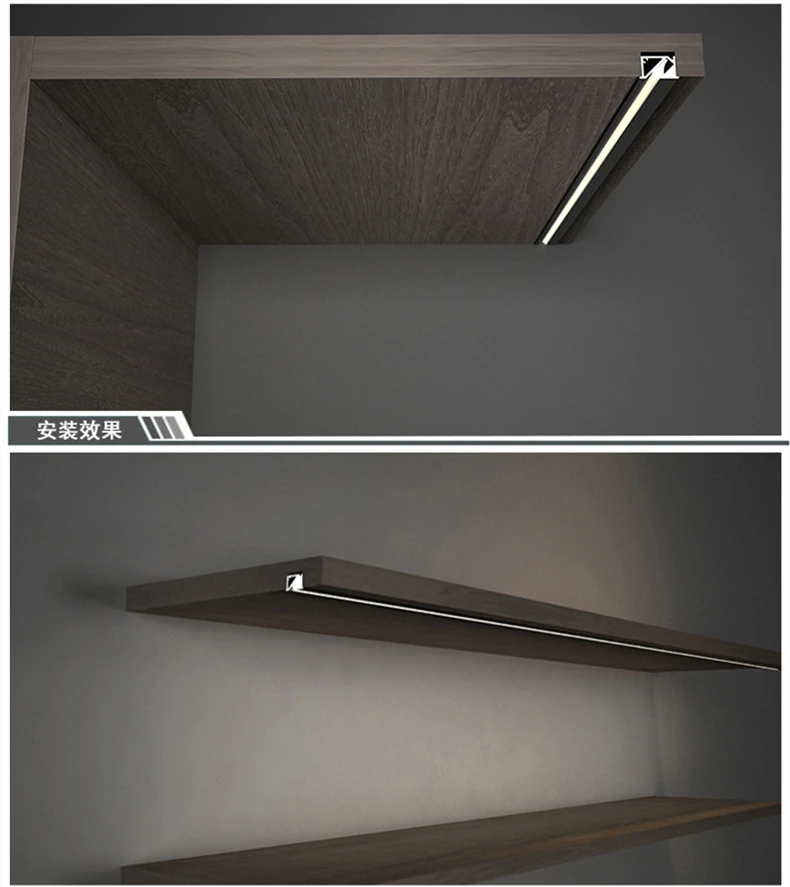

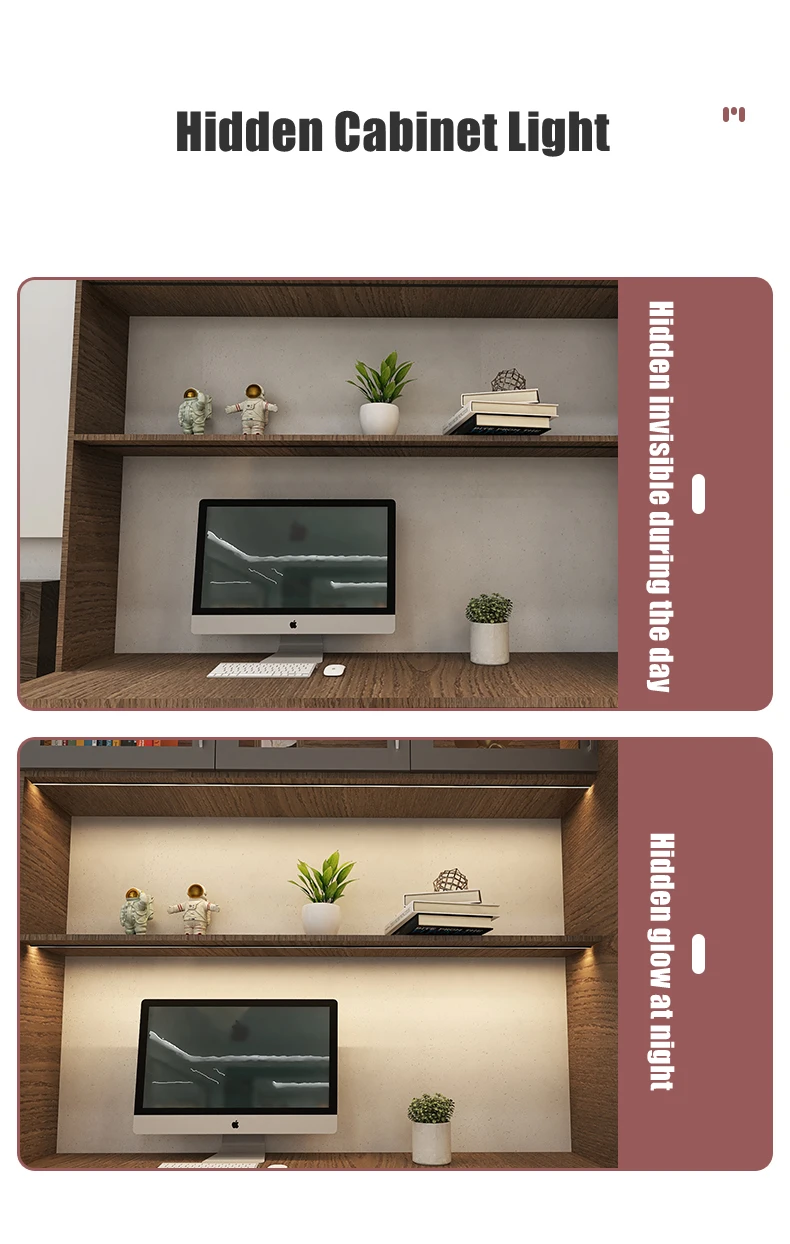

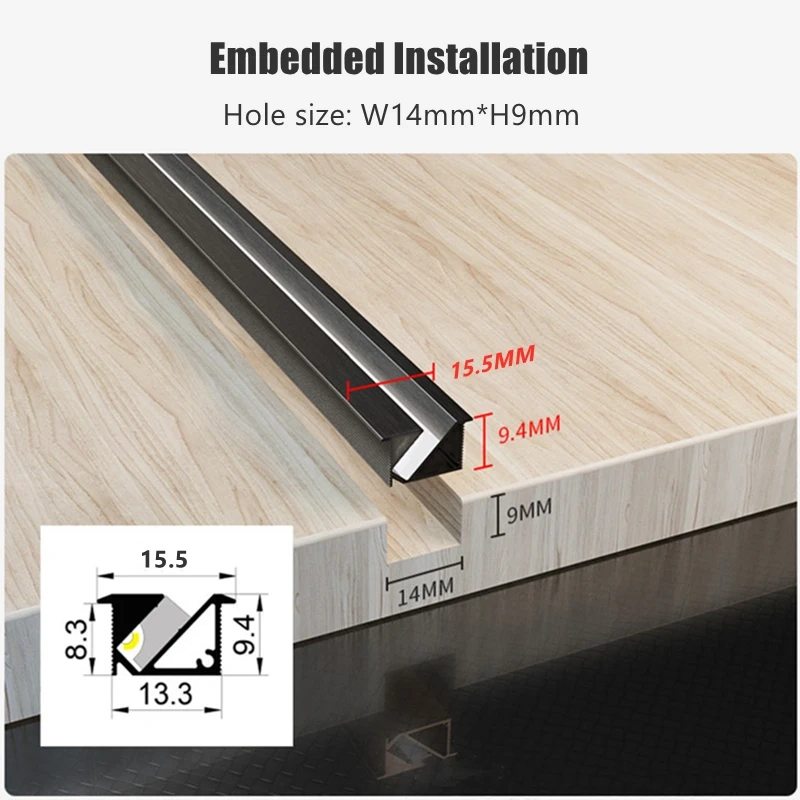

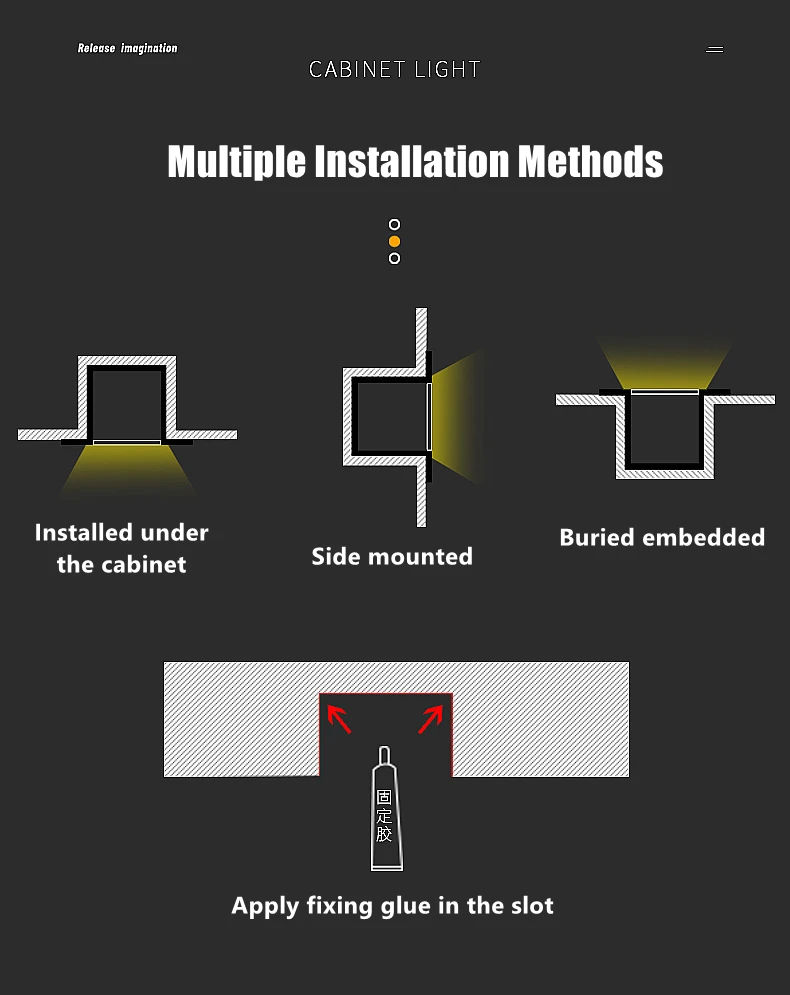

2. Hidden embedded installation, slot size 14*9mm.

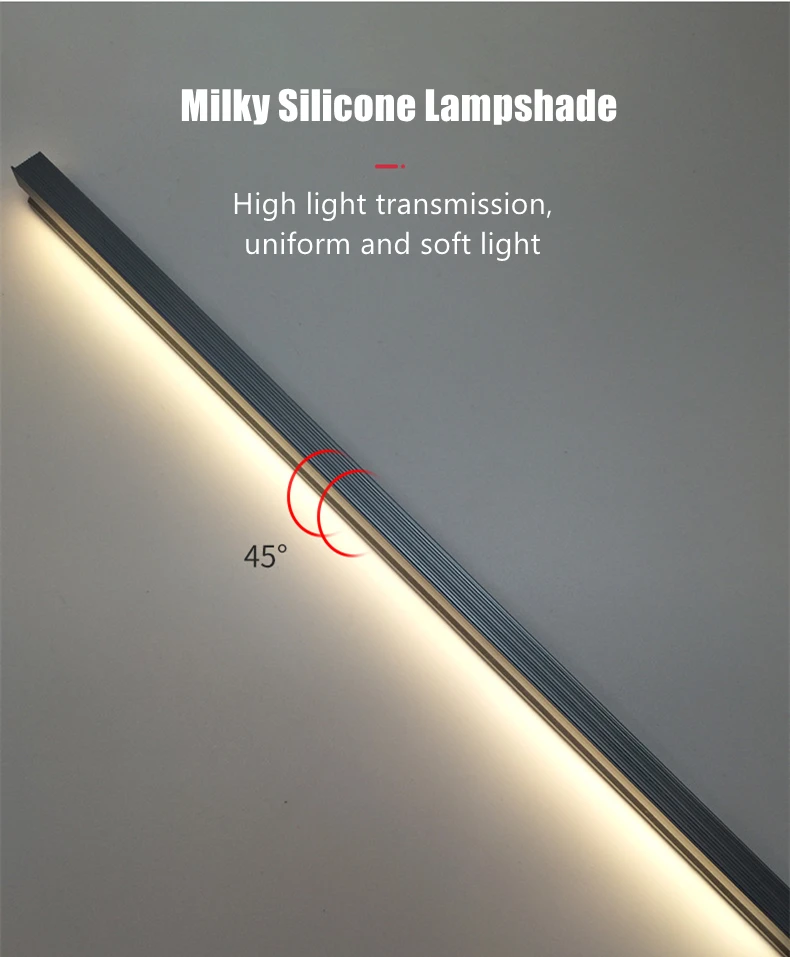

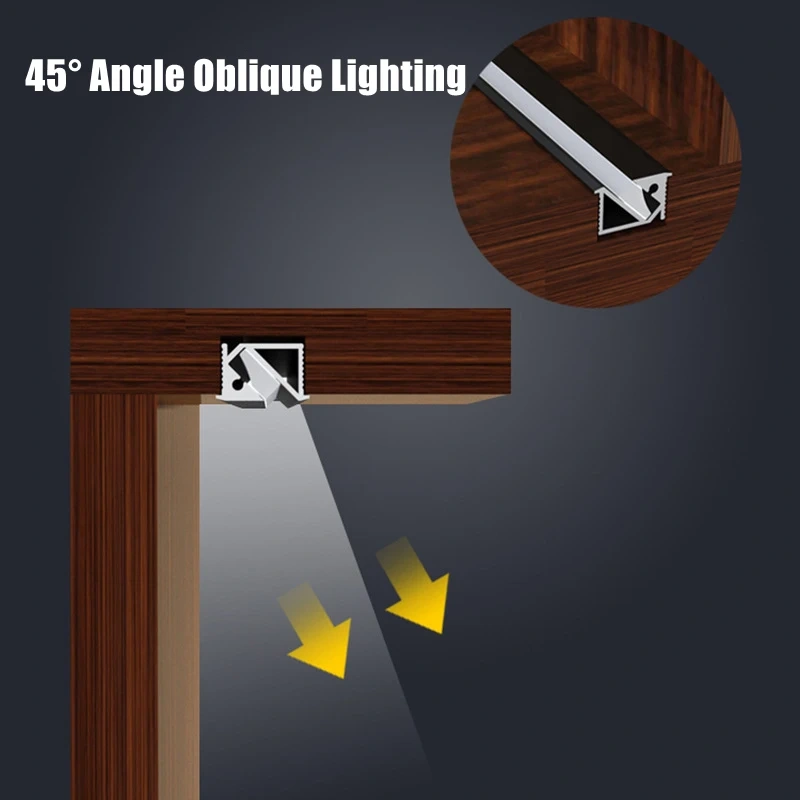

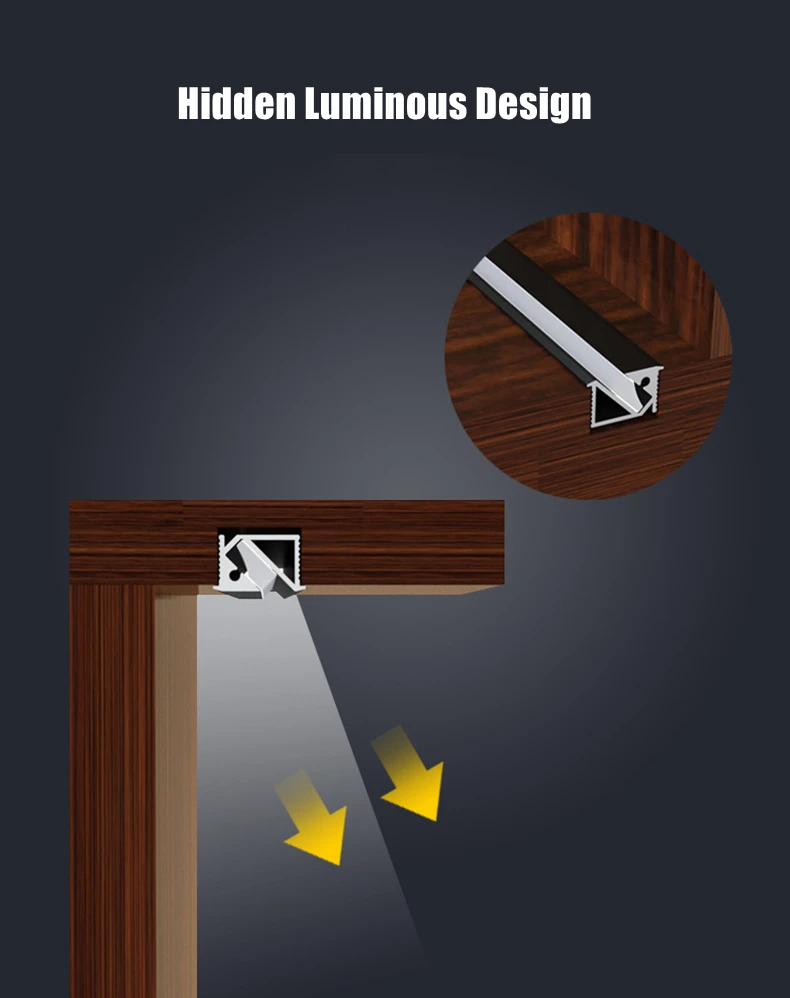

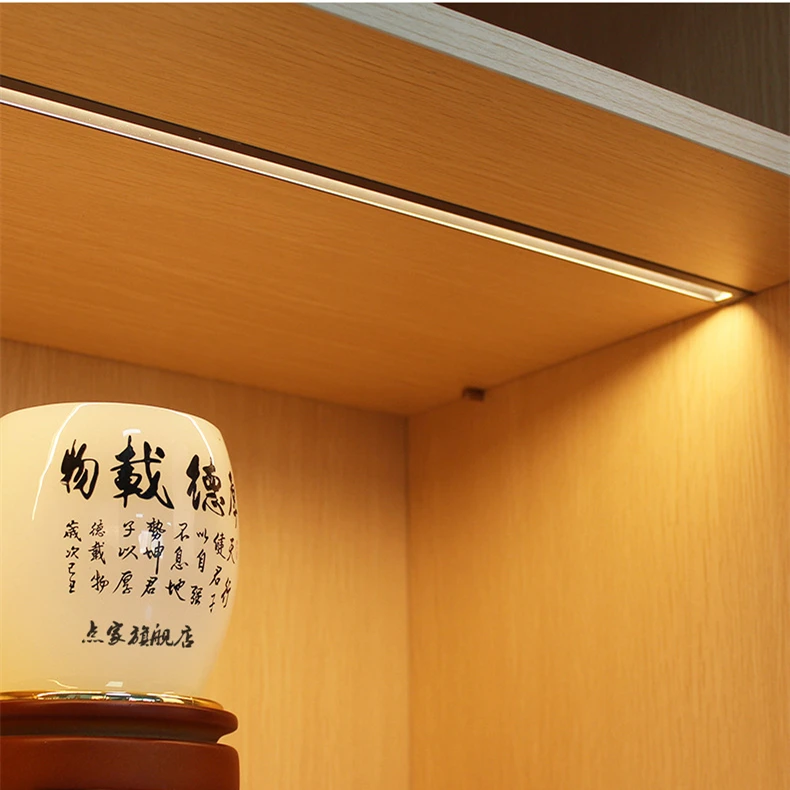

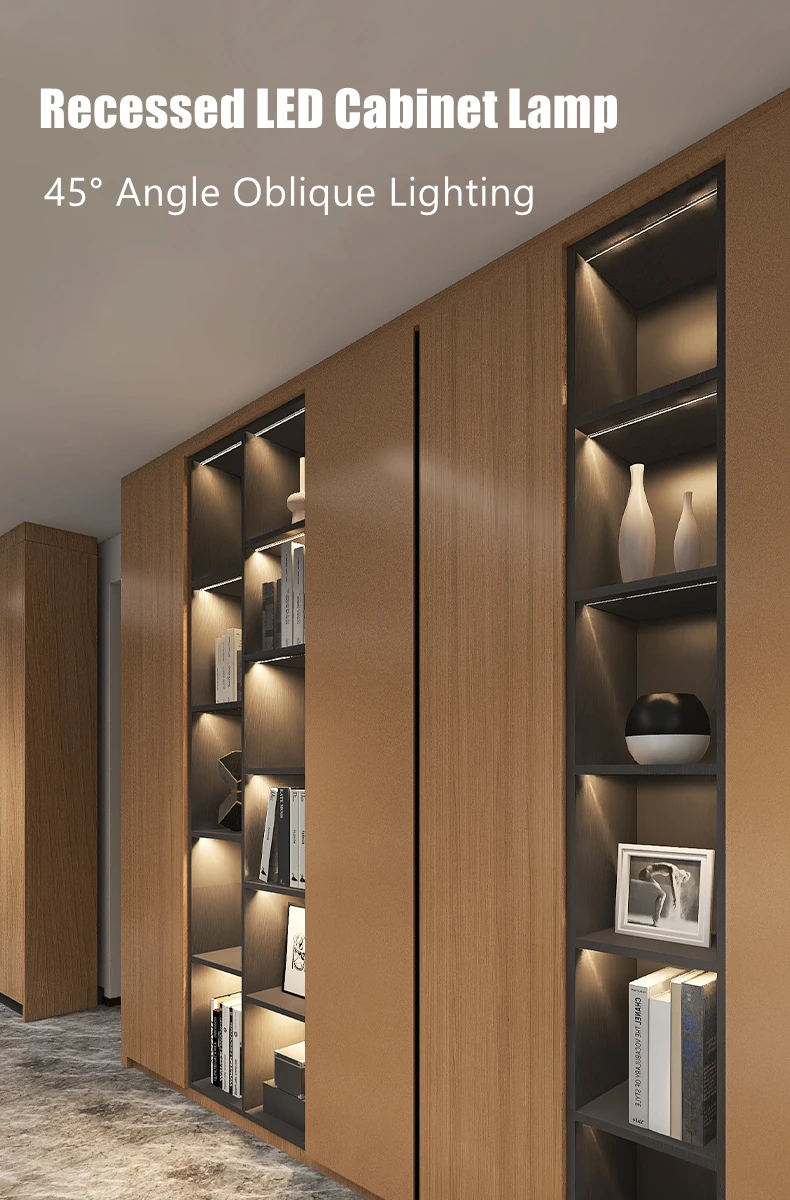

3. The light-emitting angle is 45° inward, hiding the light source and no glare.

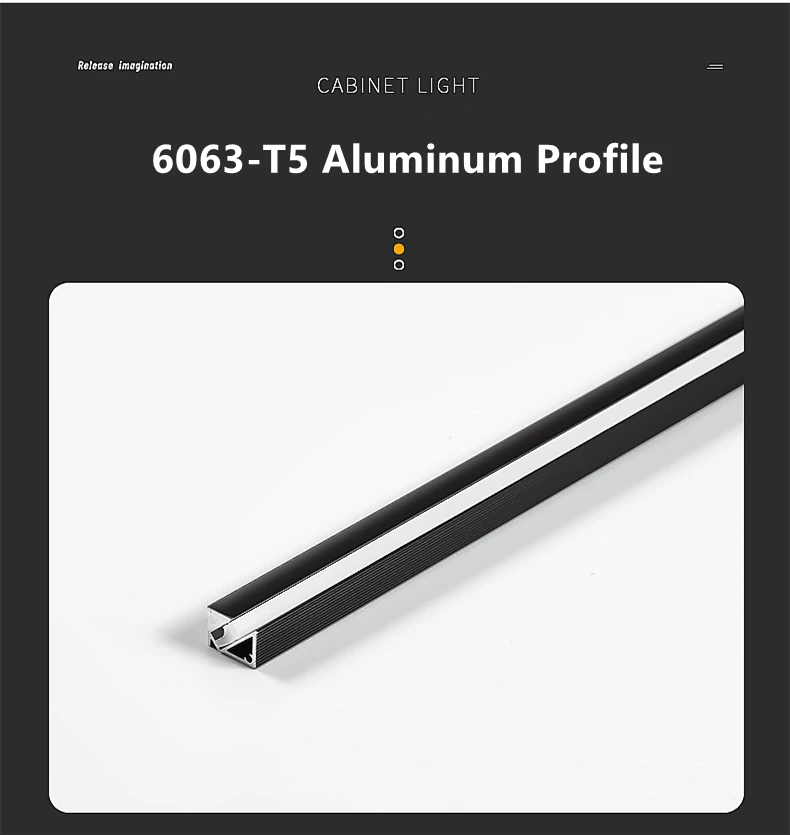

4. The aluminum profile is 6063-T5 material, anodized surface treatment, anti-corrosion and anti-rust.
5. The light bar interface is DuPont port, plug and play.
The power supply comes with a DuPont jack, so there is no need to connect a splitter.

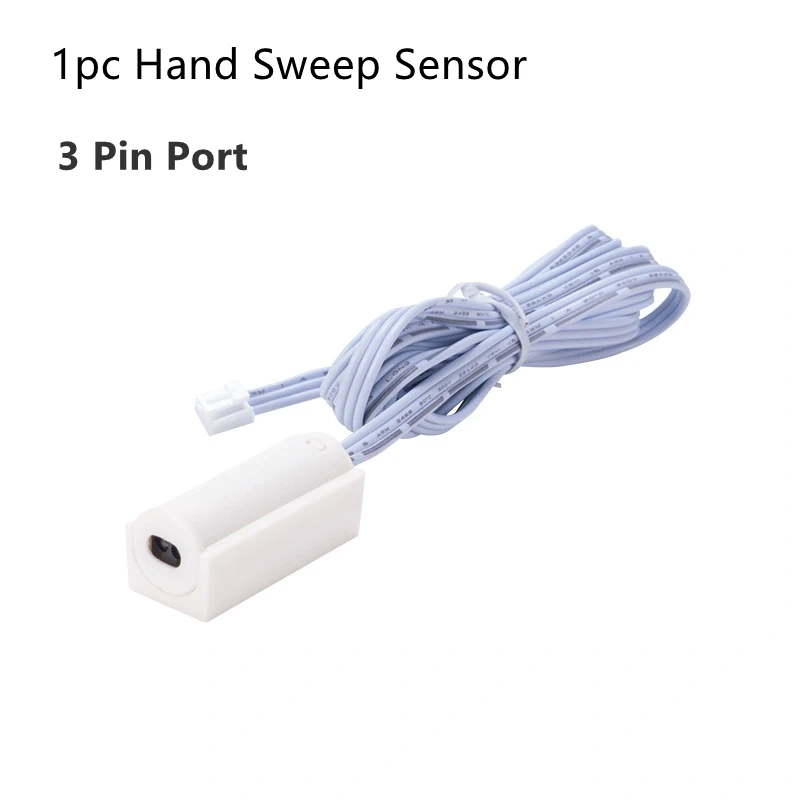

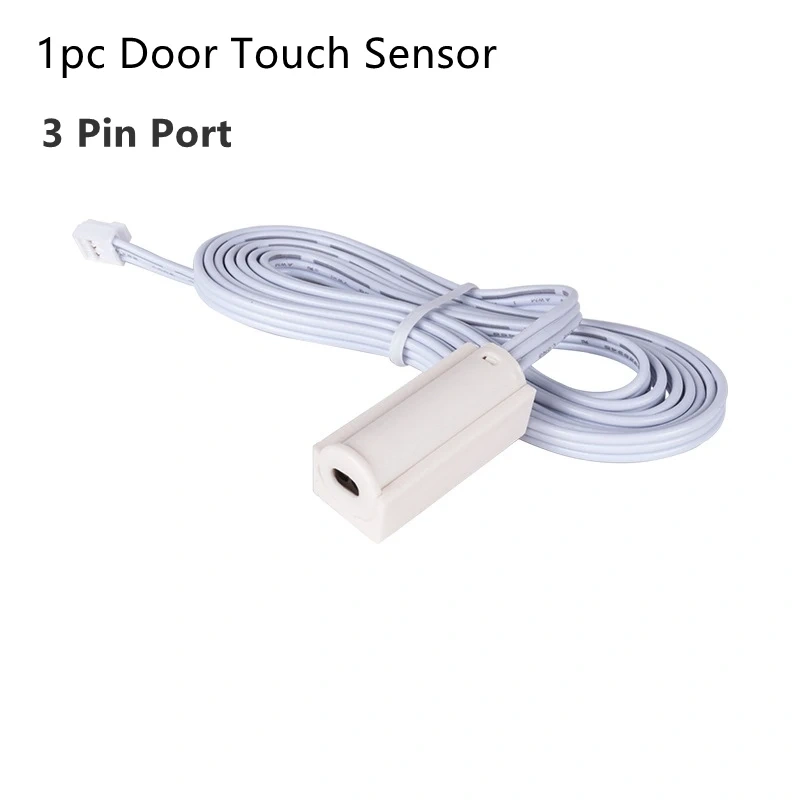

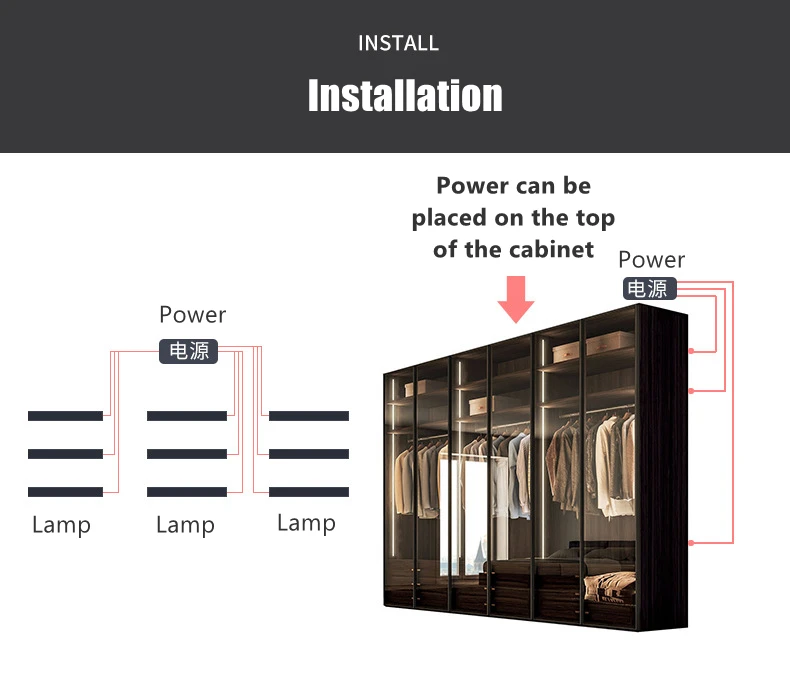

The sensor port is a 3pin integrated port, one sensor controls all the light bars on the power supply

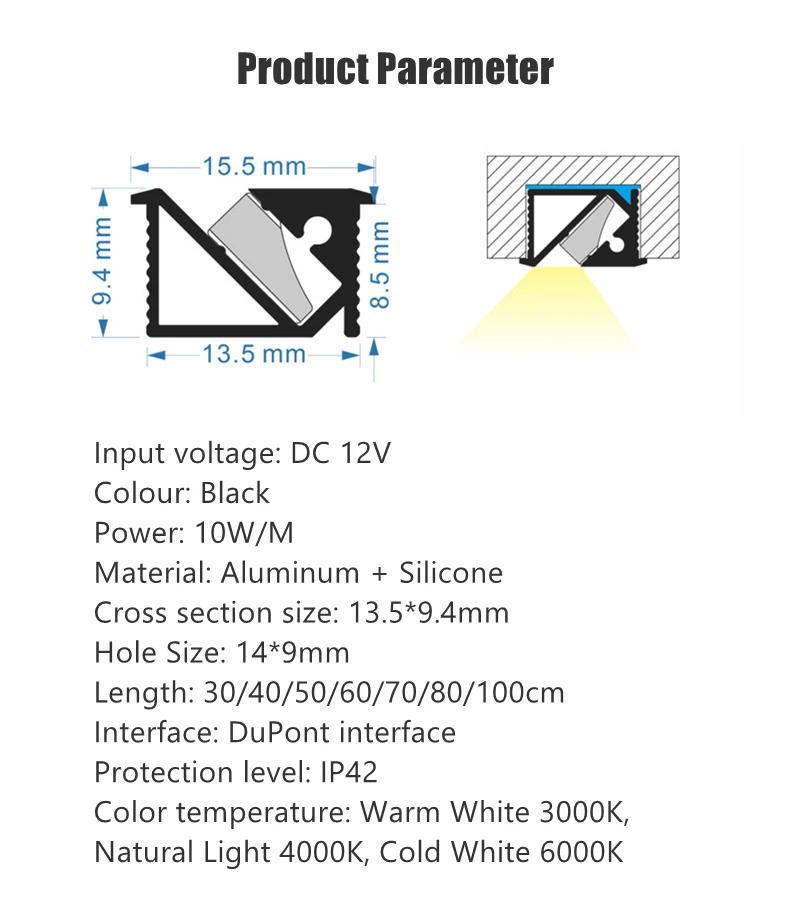

Specification:

Input voltage: DC 12V
Colour: Black
Power: 10W/M

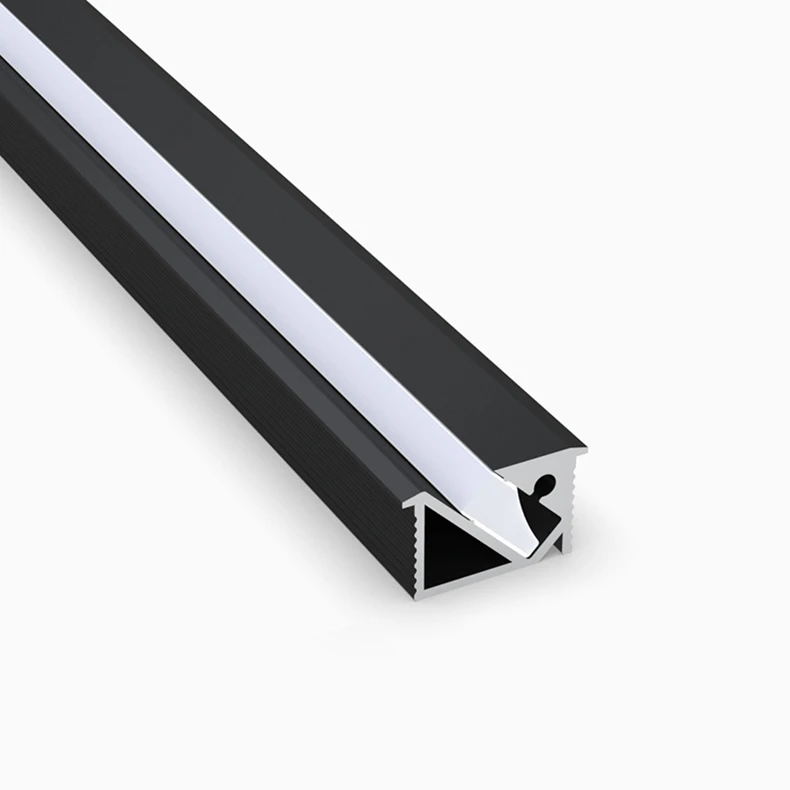

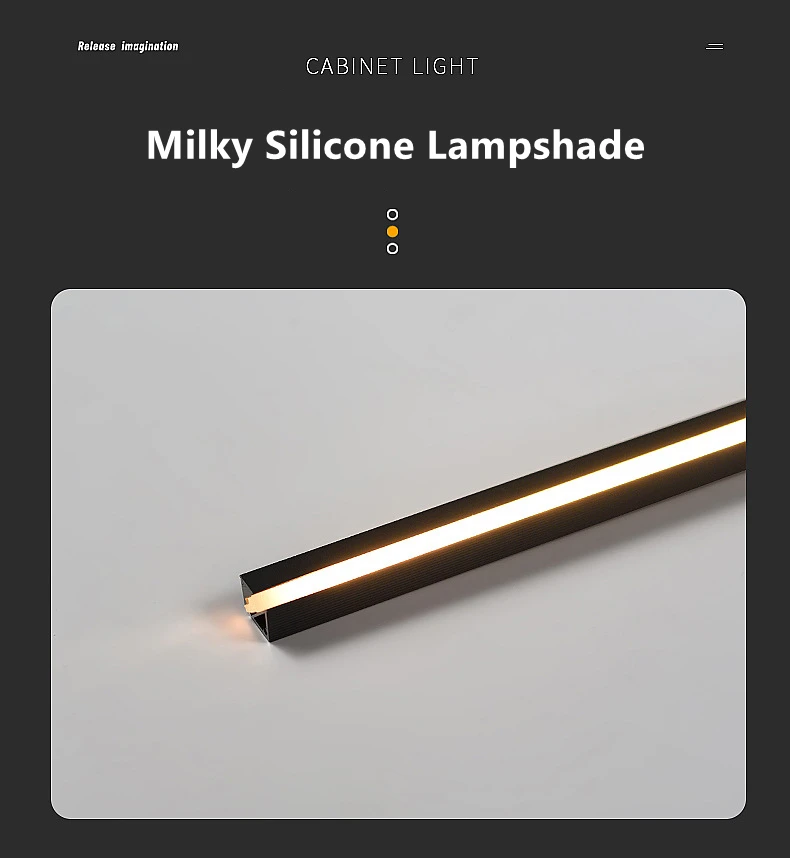

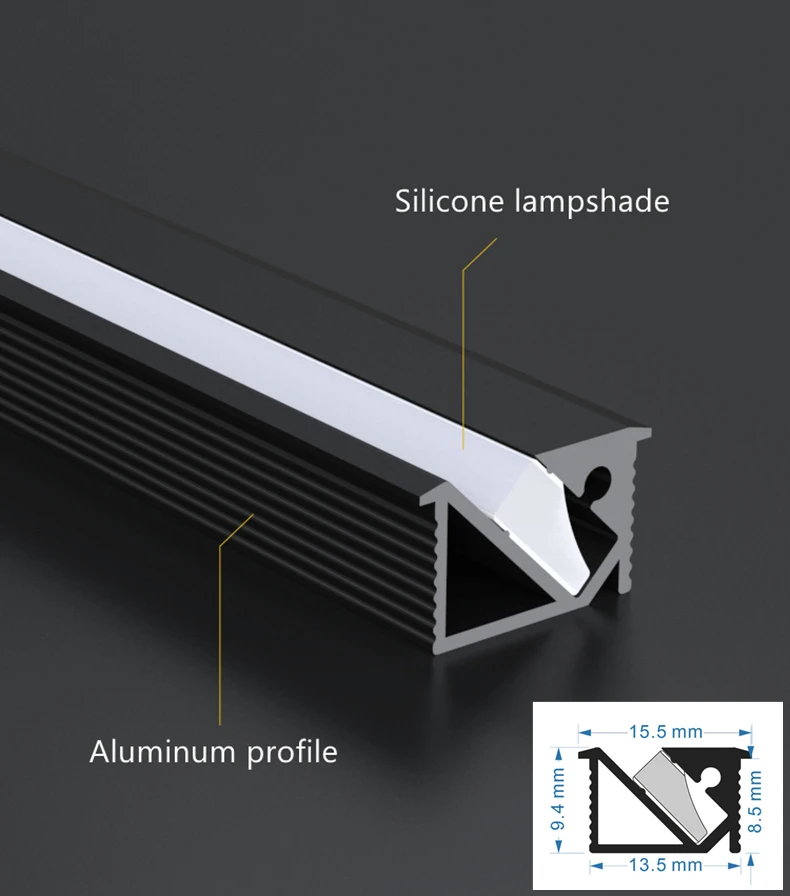

Material: Anodized Aluminum + Silicone Lampshade

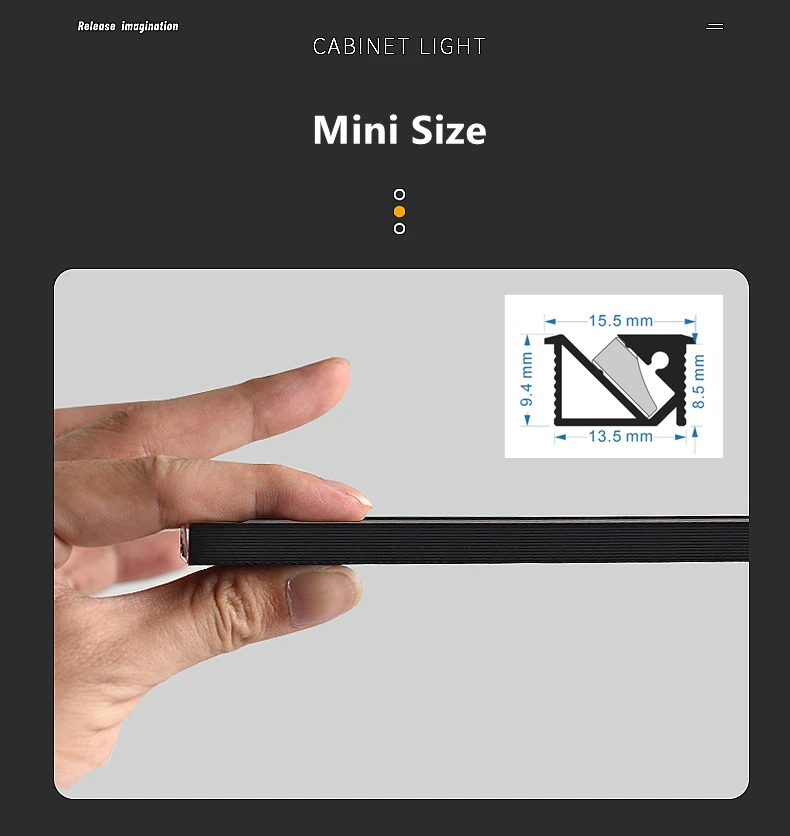

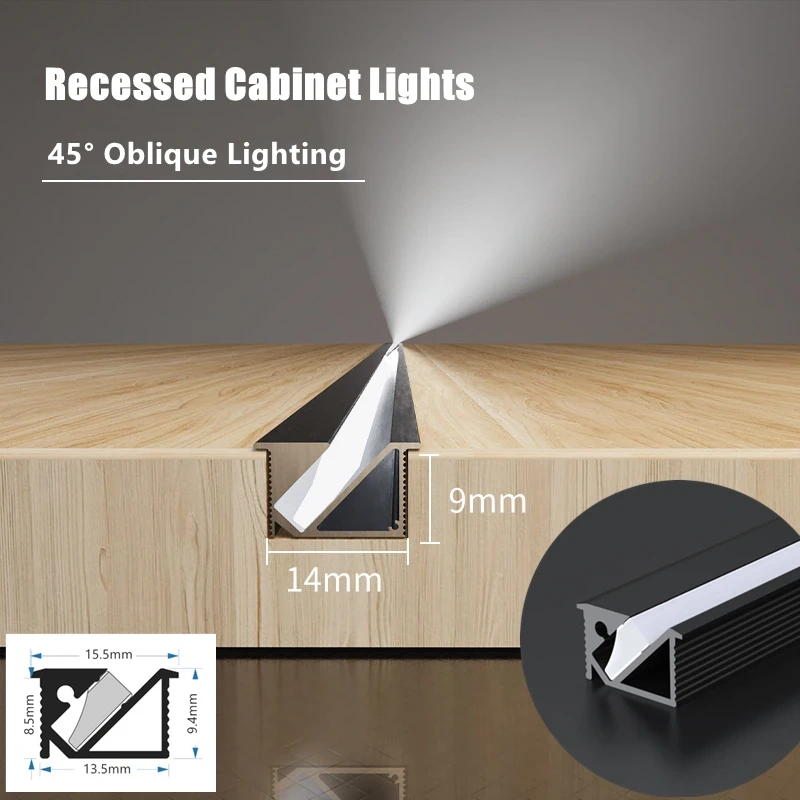

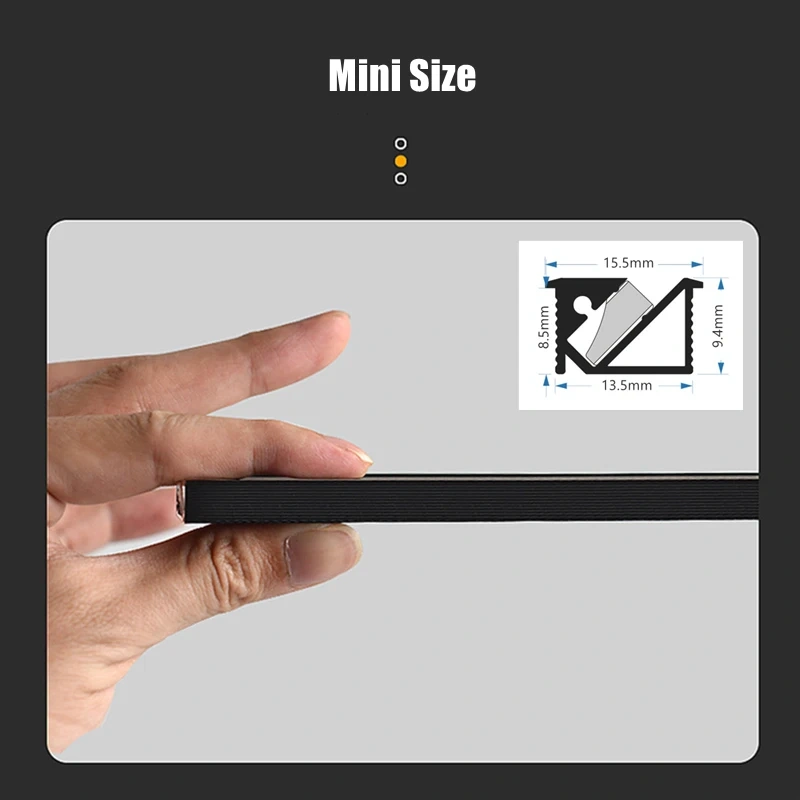

Cross section size: 13.5*9.4mm

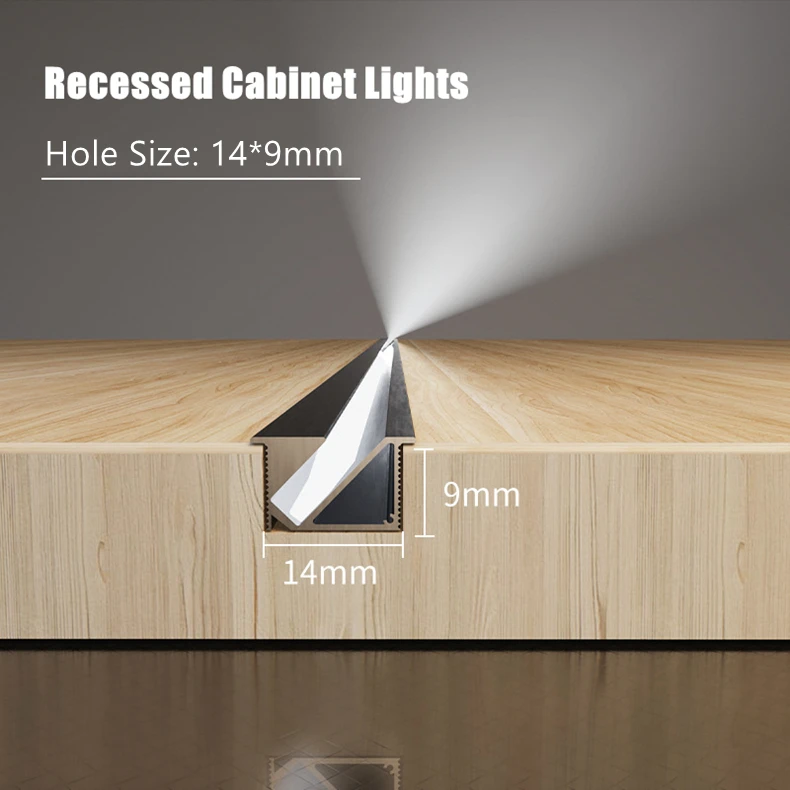

Hole Size: 14*9mm
Length: 30/40/50/60/70/80/100cm
Interface: DuPont interface

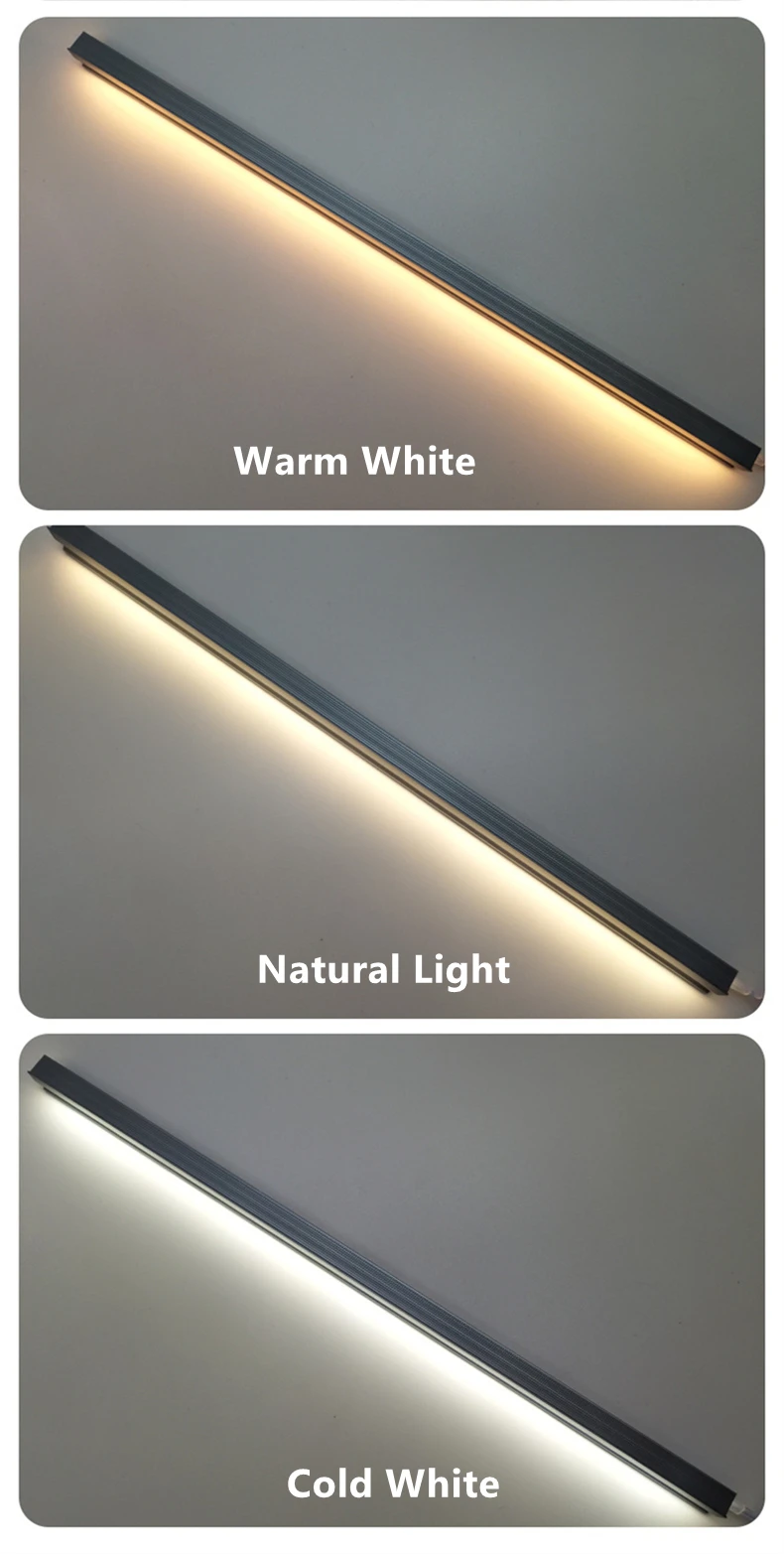

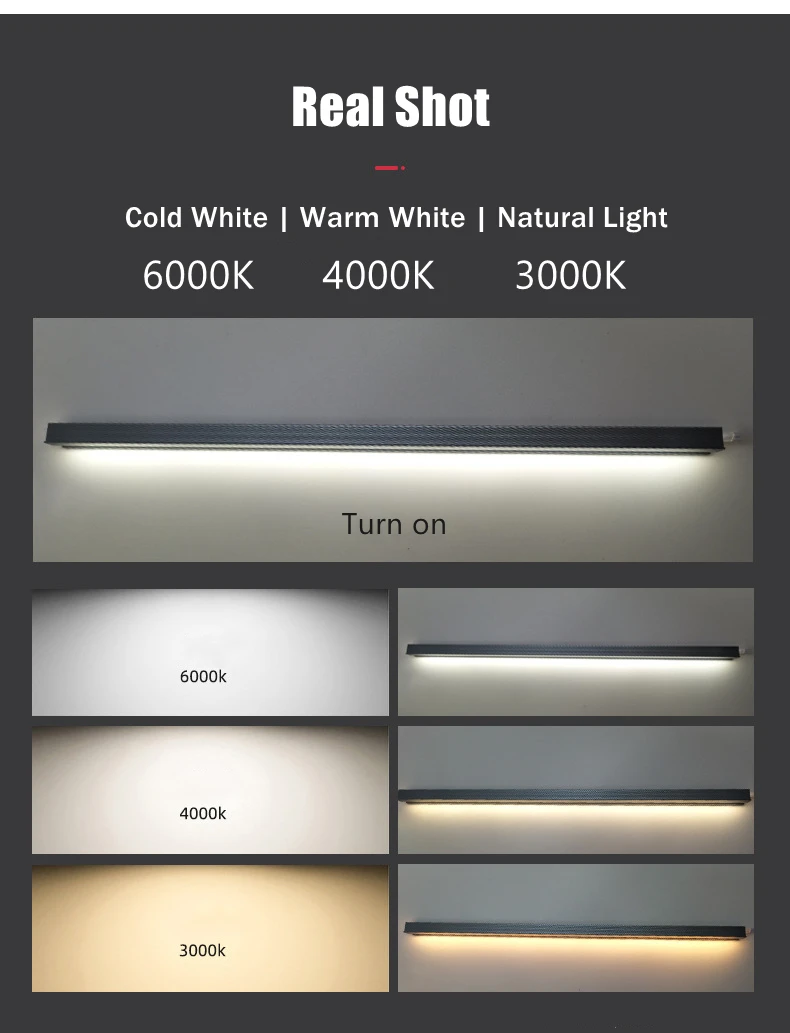

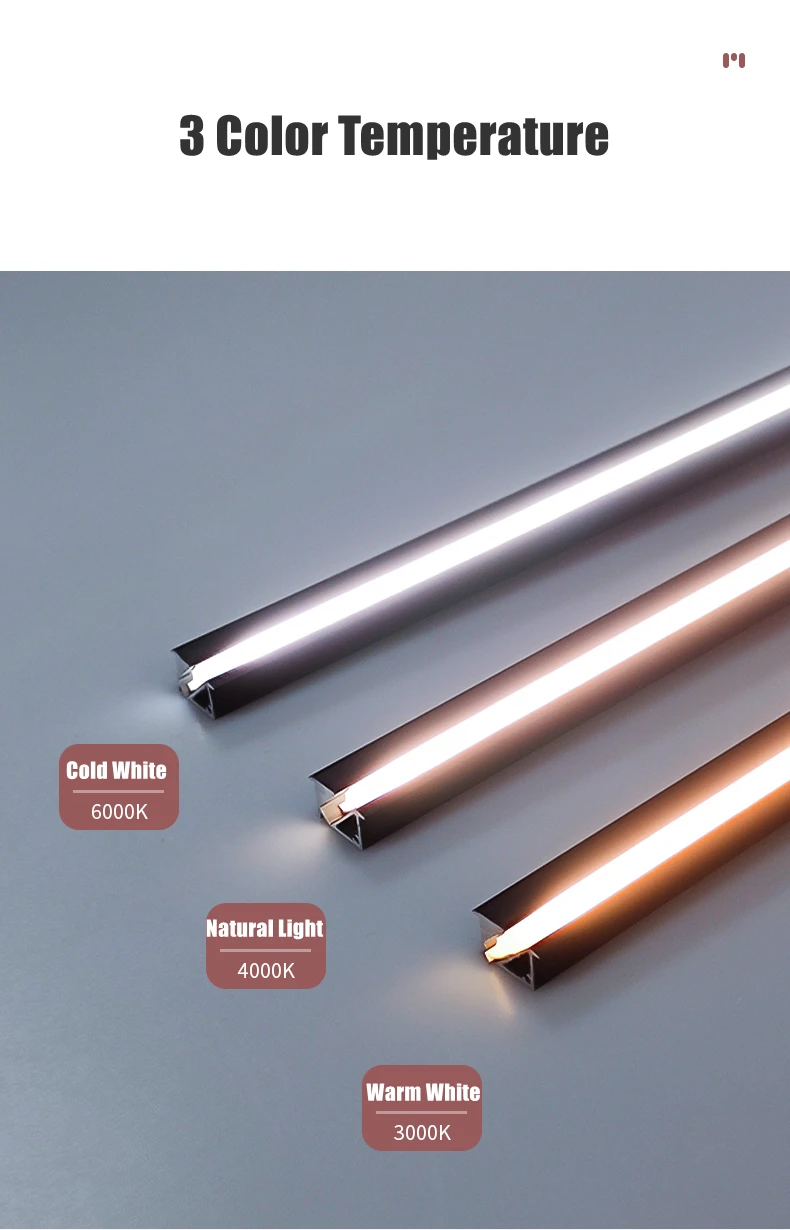

Color temperature: Warm White 3000K, Natural Light 4000K, Cold White 6000K
Protection level: IP42

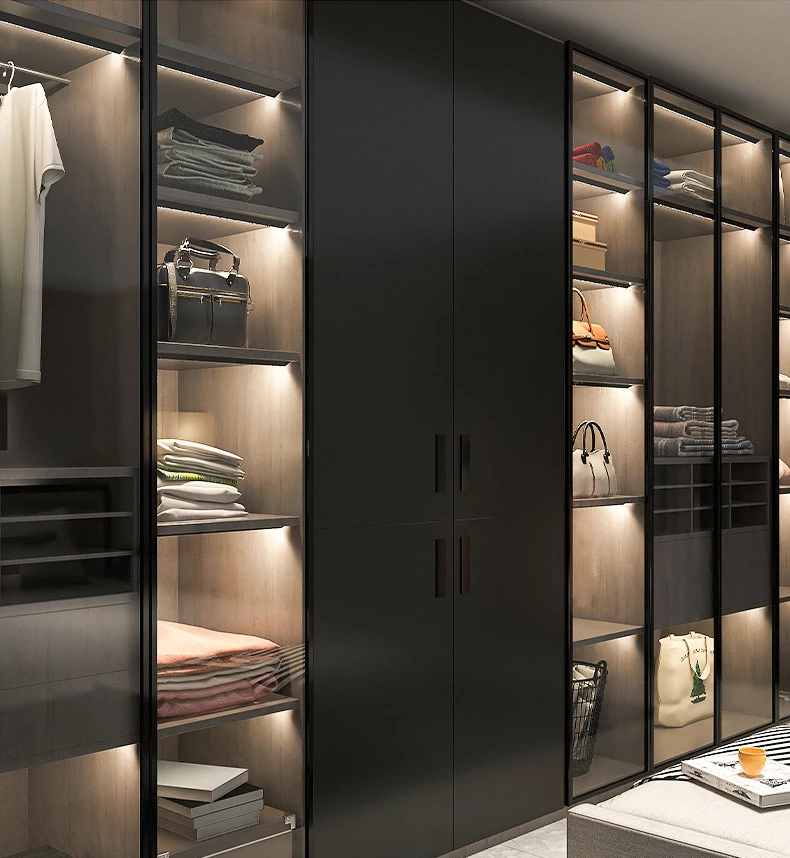

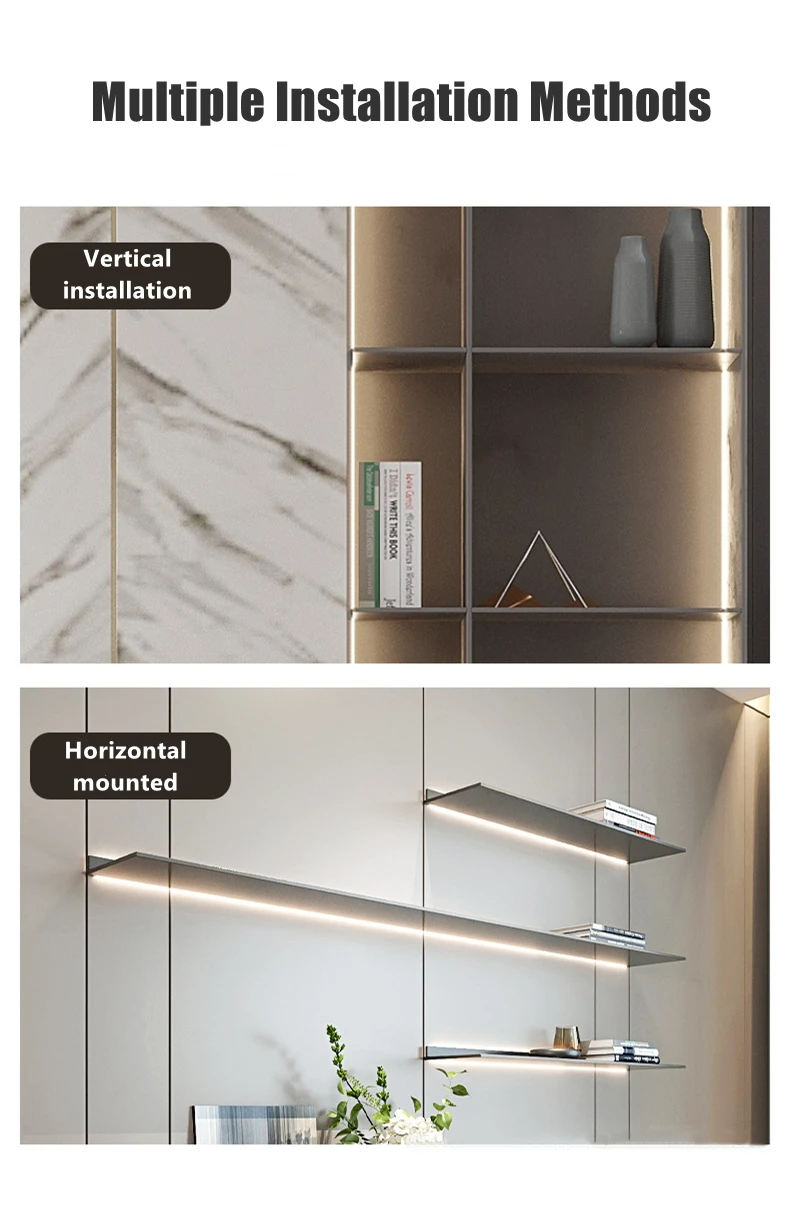

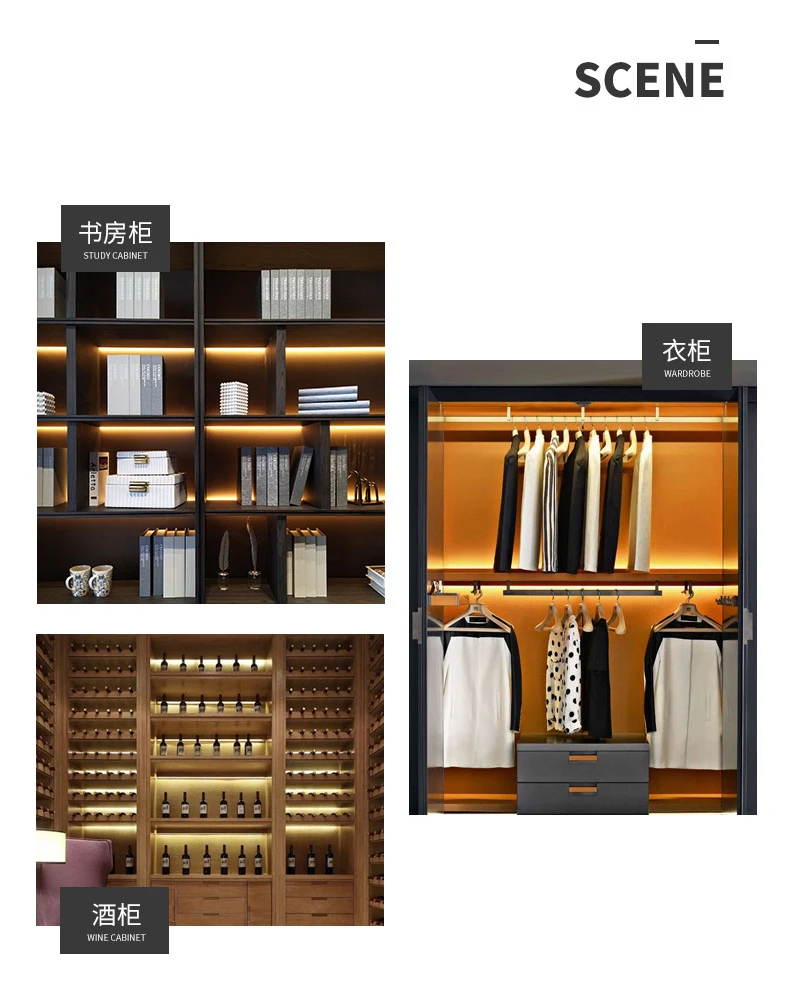

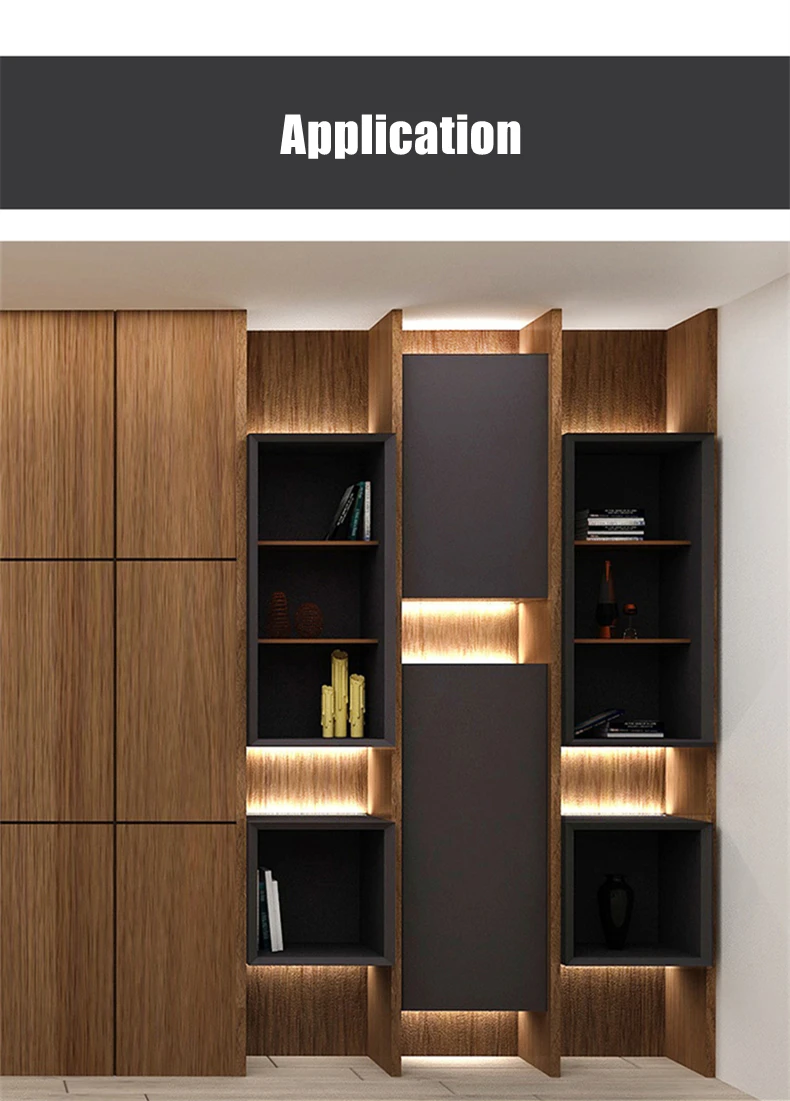

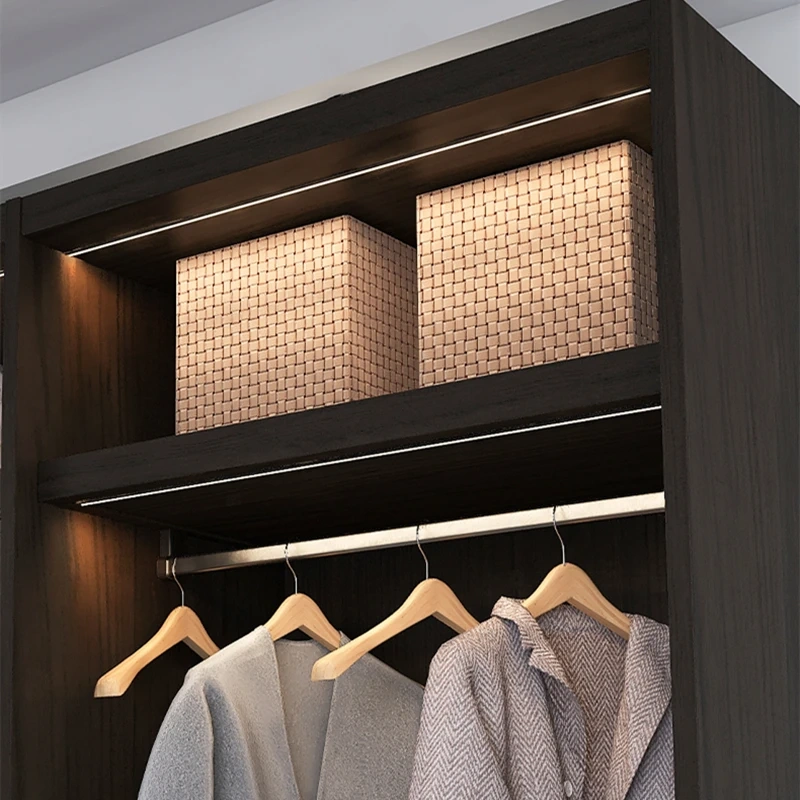

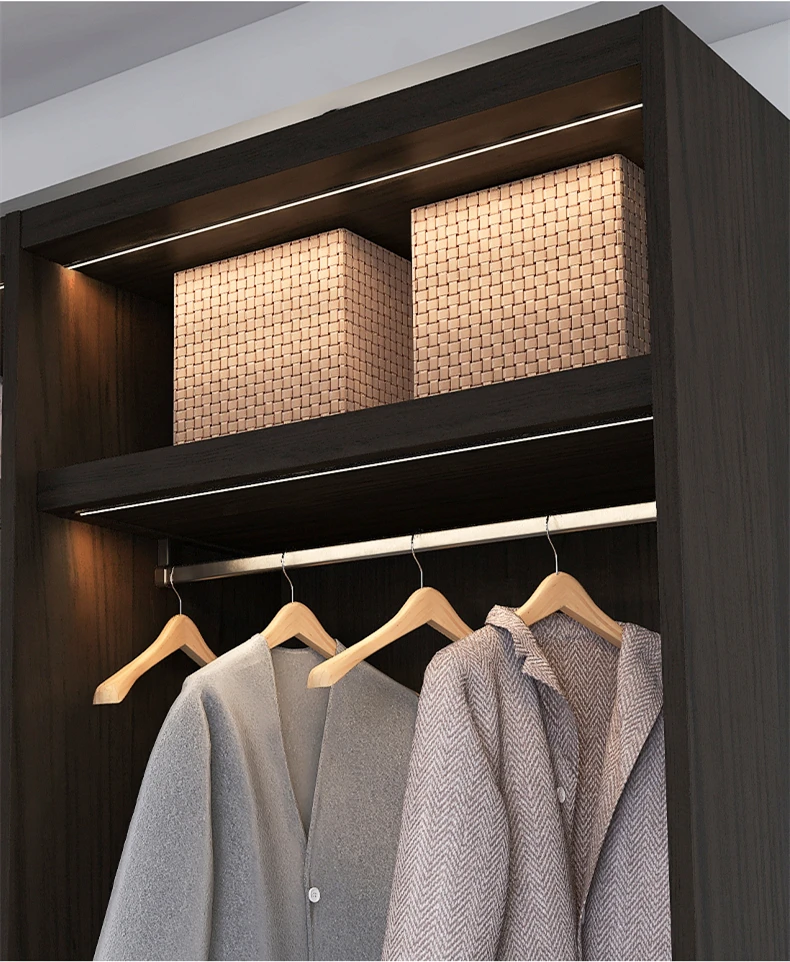

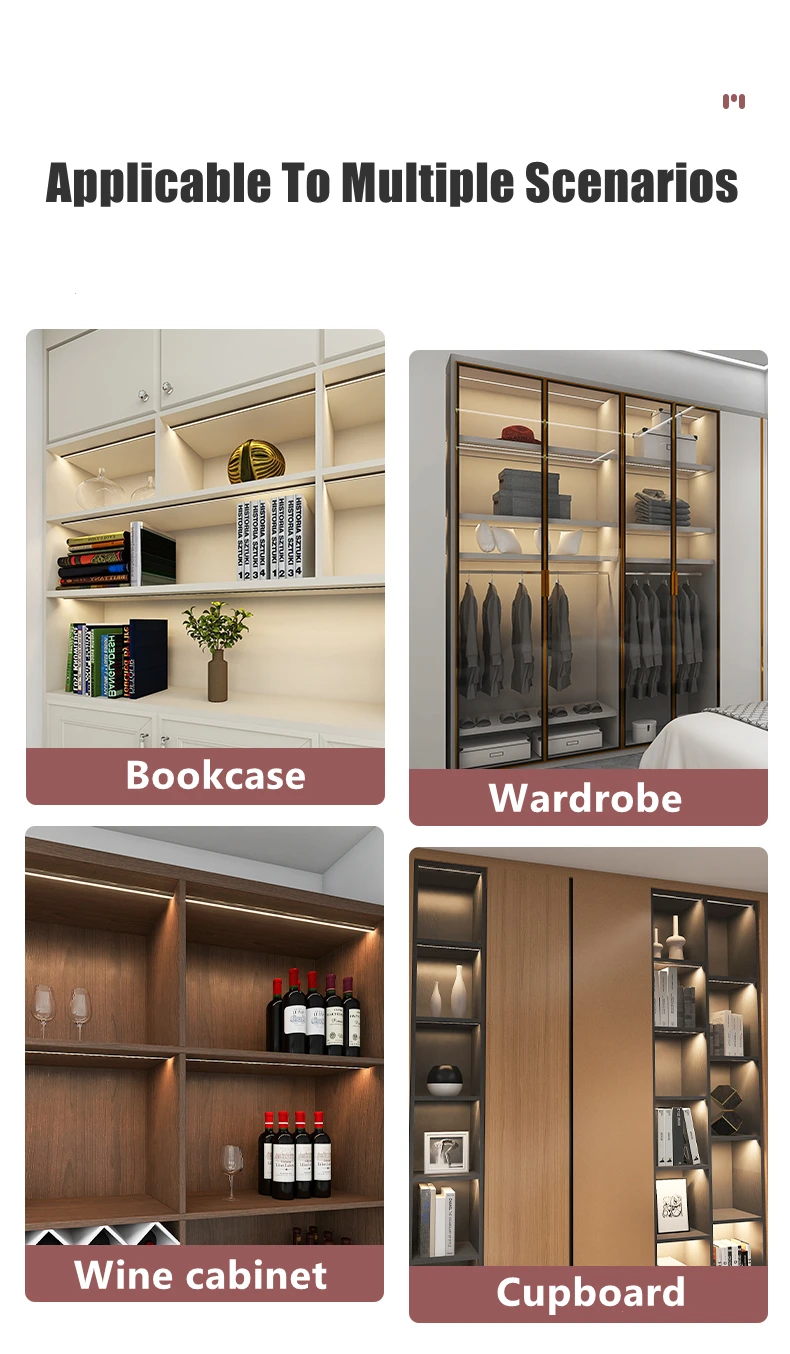

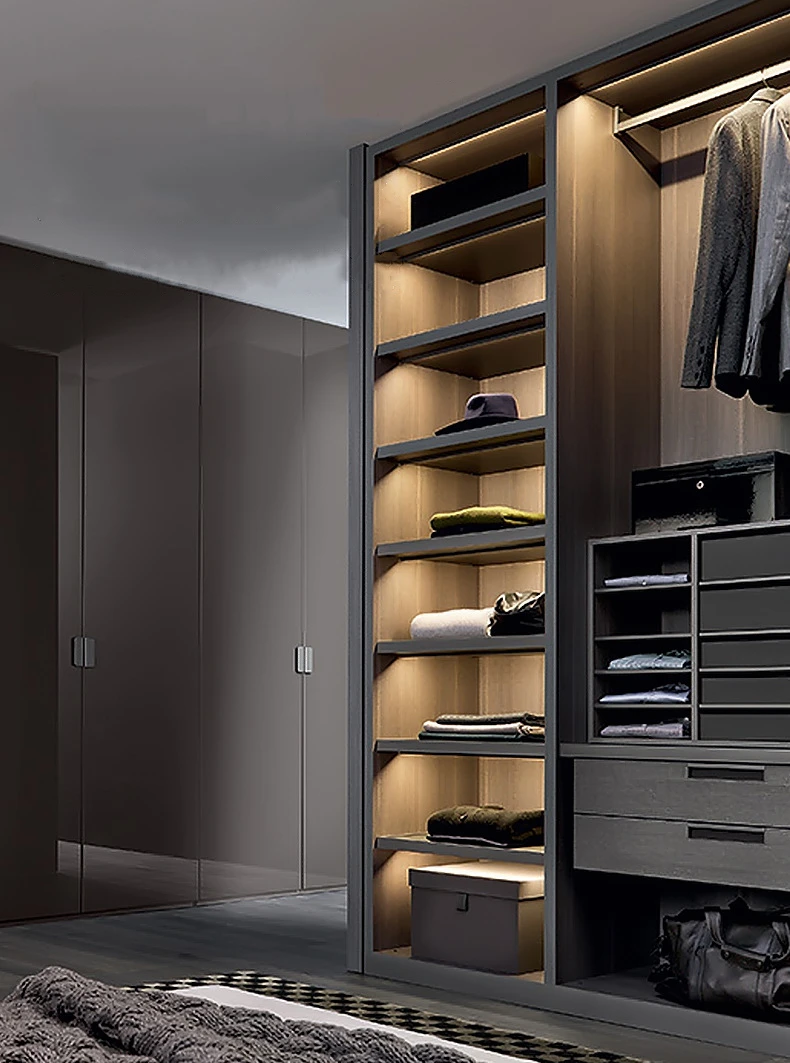

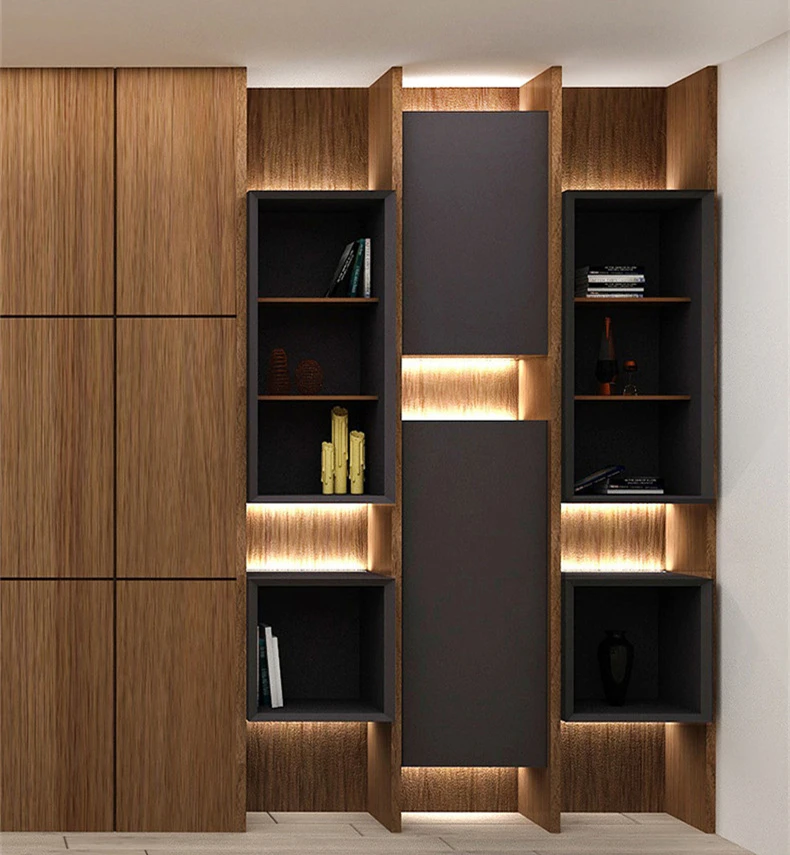

Application: indoor lighting, cabinets, counters, wardrobes, wine cabinets, display cabinets, drawers.

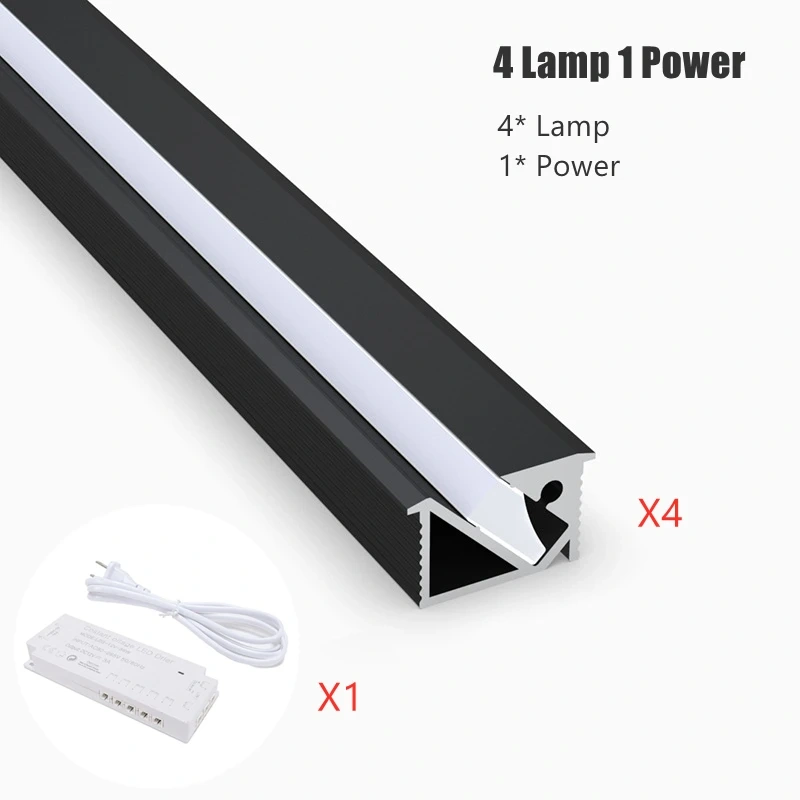

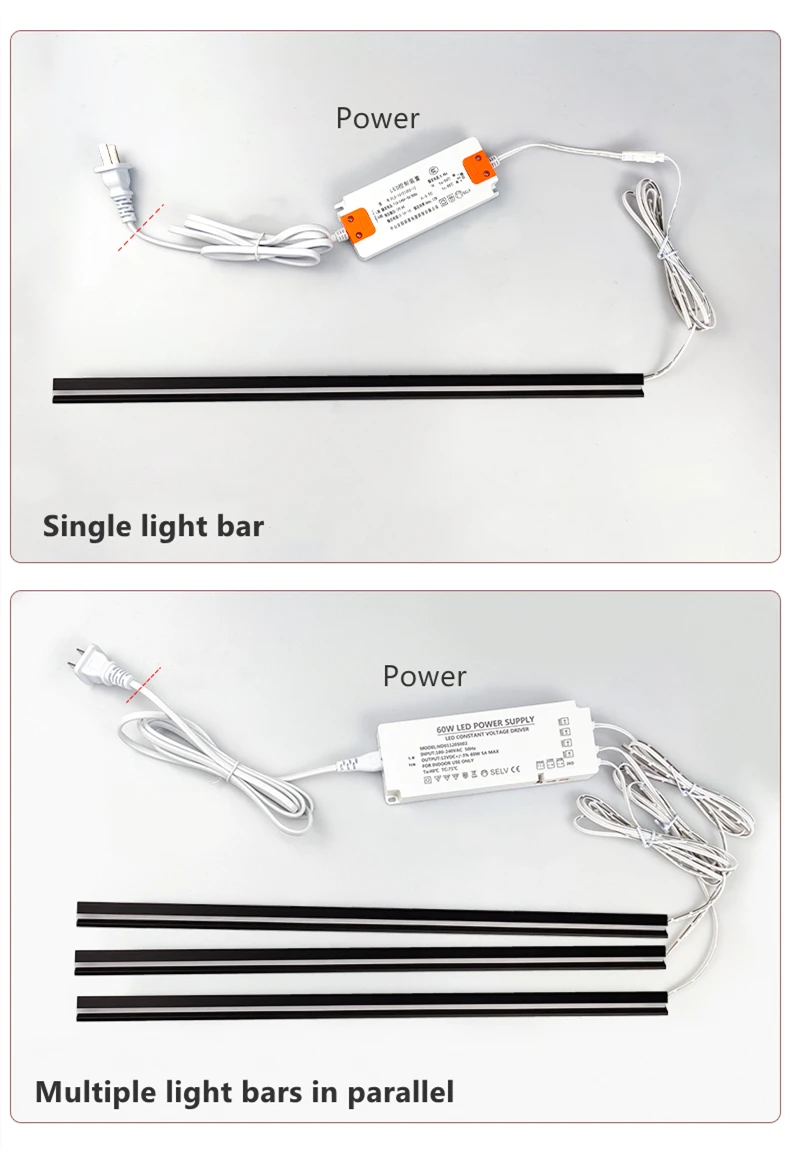

Drive power:
US/EU Plug
DuPont Interface
(Including a 3Pin sensor port)
Input voltage: AC 80-265V
Output voltage: DC 12V

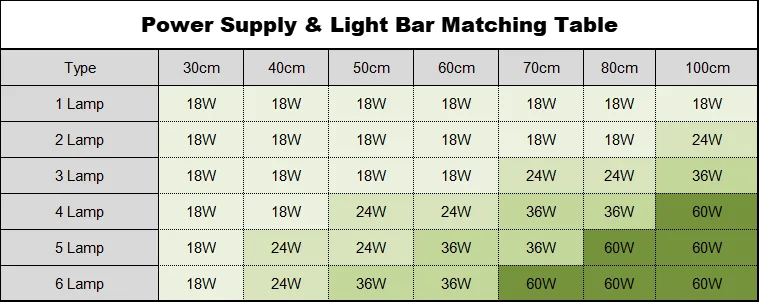

Power: 18W/24W/36W/60W (Match the power supply according to the power of the light bar)

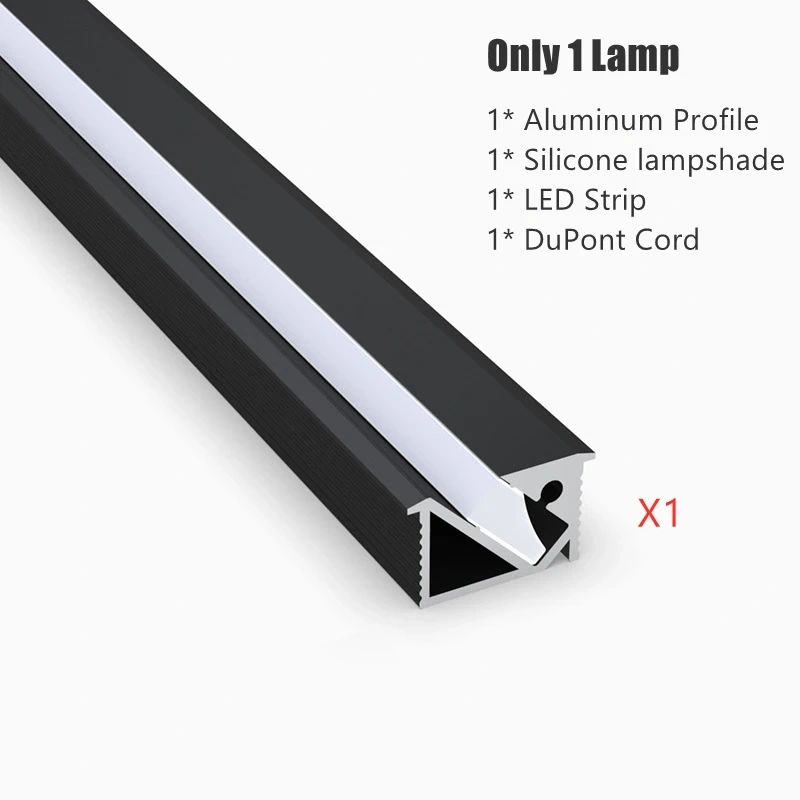

Packing list:

Only 1 Lamp
1* Aluminum Profile
1* Silicone Cover
1* LED Strip Light
