Flexible LED Wall Washer | IP67 DMX Linear Light for Facades

No.1601250091491
SKU:
The USKYLED L9113 Flexible LED Wall Washer is a DC24V architectural linear lighting solution designed for building facades, landscape structures, bridges and outdoor decorative projects. It features an aluminum housing, IP67 protection listed on the product page, multiple beam angles, 3000K/4000K/6000K options and support for dimming and DMX512 control configurations.
4.9 (0 Reviews)
958 Sold
$0.00 $48.90
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Emitting Color:
    L500
    L1000
  • Lamp Power(W):
    12
    16
    26
    52
Quantity:
-
+
  • Flexible LED wall washer for building facade lighting
  • IP67 LED wall washer for outdoor architectural lighting
  • DMX512 flexible linear wall washer for facade projects
  • DC24V LED wall washer with adjustable mounting bracket
  • Flexible LED wall washer for building facade lighting
  • IP67 LED wall washer for outdoor architectural lighting
  • DMX512 flexible linear wall washer for facade projects
  • DC24V LED wall washer with adjustable mounting bracket
1/1
  • Flexible LED wall washer for building facade lighting
  • IP67 LED wall washer for outdoor architectural lighting
  • DMX512 flexible linear wall washer for facade projects
  • DC24V LED wall washer with adjustable mounting bracket
  • Description

Product Introduction

The USKYLED L9113 Flexible LED Wall Washer is an architectural linear lighting solution designed for outdoor facade, landscape and building lighting applications.

The product combines a flexible linear lighting structure with an aluminum housing, adjustable mounting hardware and multiple optical options. It is designed for projects where continuous linear illumination and controlled light distribution are required across architectural surfaces.

The current product page identifies the product as an LED Flexible Linear Wallwasher Light, model L9113, with DC24V input, IP67 protection, 3000K/4000K/6000K CCT options, 60 lm/W listed efficiency, 30,000-hour listed lifetime, and dimming support.

The supplier specification also lists multiple beam angles including 8°, 15°, 30°, 45° and 60°, allowing the optical distribution to be selected according to different facade and wall-washing requirements.

Design

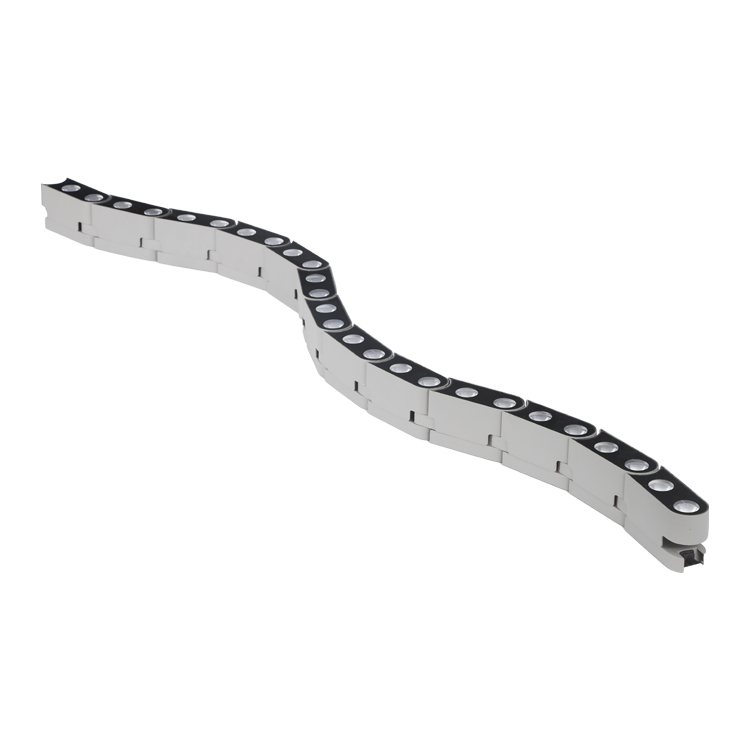

The L9113 uses a structured linear housing designed for outdoor architectural lighting.

The product page identifies 6063 aluminum alloy as the lamp body material and mentions stainless-steel screws, tempered glass with more than 90% light transmittance, and an adjustable slider bracket.

The adjustable mounting structure allows installers to direct the fixture toward building walls, landscape structures and other architectural surfaces.

The linear form is suitable for applications where a continuous visual lighting line is preferred over individual point light sources.

Main Features

  • Flexible LED wall washer design
  • DC24V low-voltage input
  • IP67 protection listed on the main product attributes
  • DMX512 control system configuration available
  • Dimmable
  • 3000K / 4000K / 6000K CCT options
  • 8° / 15° / 30° / 45° / 60° beam-angle options listed
  • 12W / 16W / 26W / 52W power options shown
  • 500mm and 1000mm length configurations shown
  • Aluminum housing
  • 6063 aluminum alloy lamp body
  • Tempered glass
  • Adjustable mounting bracket
  • Stainless-steel screws
  • 30,000-hour listed lifetime
  • -20°C to 60°C working temperature listed
  • 3-year warranty listed
  • CREE / OSRAM LED configuration mentioned by the supplier
  • Suitable for facade, landscape and bridge lighting projects

Application

The L9113 Flexible LED Wall Washer is designed for outdoor architectural lighting where controlled linear illumination is required.

Typical applications include:

Building Facade Lighting

  • Commercial building facades
  • Office buildings
  • Architectural structures
  • Building entrances
  • Exterior walls
  • Decorative facade details

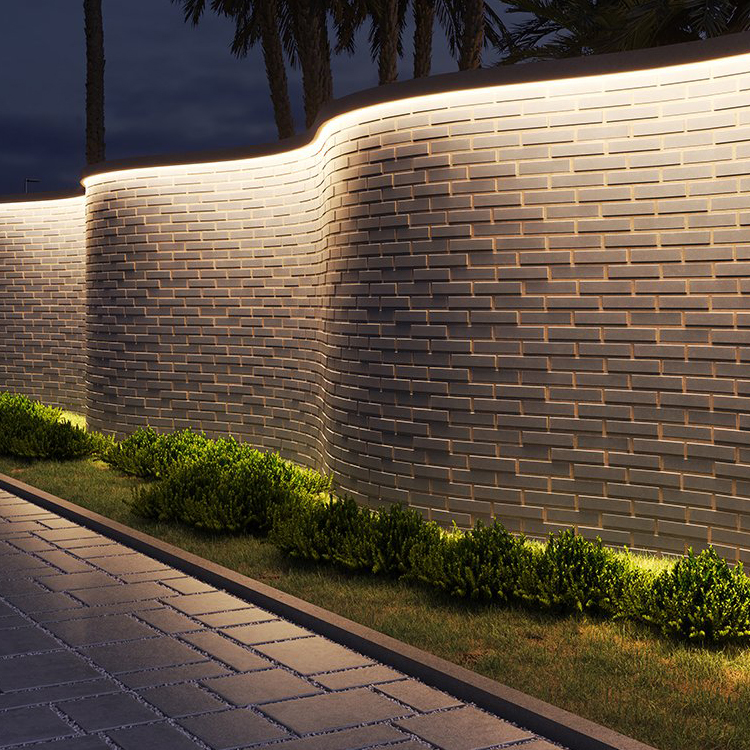

Landscape Lighting

  • Landscape walls
  • Garden structures
  • Outdoor architectural features
  • Landscape installations
  • Decorative structures

Infrastructure Lighting

  • Bridges
  • Architectural structures
  • Public spaces
  • Outdoor infrastructure projects

Entertainment & Hospitality

  • Theme parks
  • Hotels
  • Resorts
  • Entertainment venues
  • Commercial outdoor spaces

The current product page specifically lists theme parks as an application and identifies building exterior walls, green landscape and bridges as application scenarios.

Size / Options

The current product configuration shows:

Option Available Configuration
Model L9113
Length 500mm / 1000mm
Power 12W / 16W / 26W / 52W
CCT 3000K / 4000K / 6000K
Beam Angle 8° / 15° / 30° / 45° / 60°
Input Voltage DC24V
IP Rating IP67 listed
Material Aluminum
Control Dimming / DMX512 configuration

The product page's visible variant selector currently shows L500 and L1000 and power choices of 12W, 16W, 26W and 52W.

Important technical note: the supplier table lists L9113-500 at 12W as IP65, while the main product attributes list the product as IP67. This should be verified with the factory before publishing a single IP rating as applying to every configuration.

Lighting Options

The current page lists:

  • 3000K
  • 4000K
  • 6000K

It also references Monochrome / DMX512 control system configurations. The product title contains RGB, but the visible technical attributes do not clearly establish RGB as the standard configuration for every variant. Therefore, RGB should be presented as a configuration to confirm, rather than as a universal specification.

The supplier information lists several beam-angle options:

  • 8°
  • 15°
  • 30°
  • 45°
  • 60°

This allows lighting designers to select a narrower or wider distribution depending on the facade geometry and desired wall-washing effect.

Installation

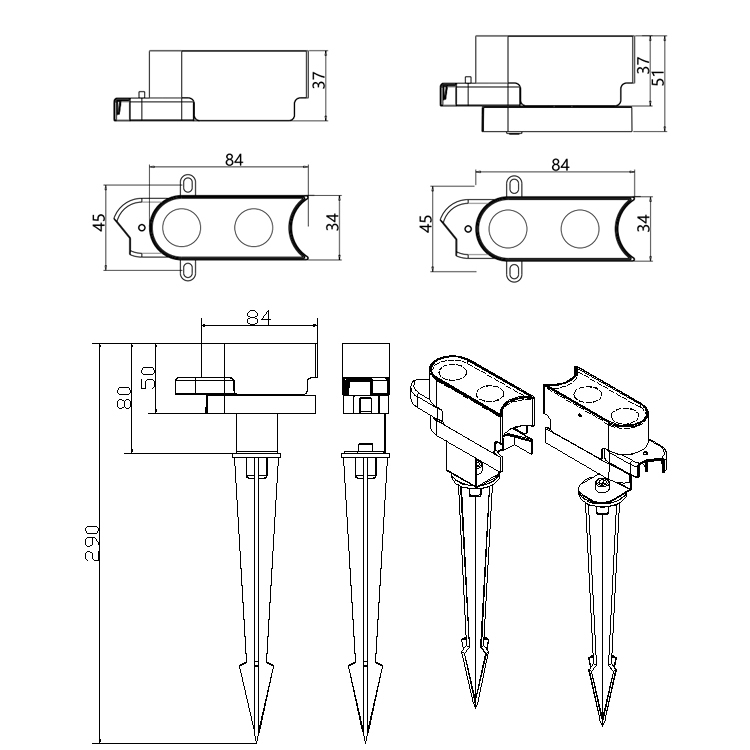

The L9113 uses an adjustable mounting bracket that allows the fixture to be positioned toward the target surface.

Typical installation steps include:

  1. Determine the facade or architectural surface to be illuminated.
  2. Establish fixture spacing and alignment.
  3. Install the mounting brackets.
  4. Position and adjust the wall washer.
  5. Connect the DC24V power supply.
  6. Connect dimming or DMX512 control where required.
  7. Test the lighting direction and beam distribution.
  8. Complete waterproofing and electrical inspection according to the project requirements.

For permanent outdoor installations, mounting, drainage, cable routing and electrical protection should be designed according to local codes and project conditions.

Technical Specifications

Specification Details
Product Type Flexible LED Wall Washer
Model L9113
Application Architectural / Outdoor
Input Voltage DC24V
Power 12W / 16W / 26W / 52W
Length Options 500mm / 1000mm
CCT 3000K / 4000K / 6000K
Beam Angle 8° / 15° / 30° / 45° / 60°
Material Aluminum
Lamp Body 6063 Aluminum Alloy
IP Rating IP67 listed
CRI Ra 80
Luminous Efficiency 60 lm/W
Listed Luminous Flux 720 lm
Light Source LED
Dimming Yes
Control DMX512 configuration mentioned
Lifetime 30,000 hours
Working Temperature -20°C to 60°C
Warranty 3 years
Tempered Glass >90% light transmittance listed
Mounting Adjustable bracket
LED Options CREE / OSRAM mentioned
MOQ 1 pcs
Sample Lead Time 3–7 days
Mass Order Lead Time 7–15 days

The values above are taken from the current page. Because the page contains an IP65/IP67 discrepancy and a 52W/54W discrepancy between sections, final project specifications should be confirmed against the selected L9113 configuration before quotation or technical submission.

Project Applications

Building Facade Projects

The L9113 can be used to illuminate architectural facade surfaces, building edges and exterior wall details.

Potential projects include:

  • Commercial buildings
  • Office buildings
  • Shopping centers
  • Hotels
  • Resorts
  • Public buildings
  • Modern architectural structures

Landscape Projects

The fixture can be integrated into:

  • Landscape walls
  • Outdoor structures
  • Garden architecture
  • Green landscape projects
  • Decorative exterior structures

Bridge Lighting

The product page specifically identifies bridges as an application scenario. Its linear form and adjustable bracket can be used as part of architectural bridge lighting schemes.

Theme Park Projects

Theme parks can use architectural linear wall washers for building facades, entrance structures, themed environments and outdoor decorative elements.

Hospitality Projects

Potential applications include:

  • Hotel facades
  • Resort exteriors
  • Restaurant exteriors
  • Outdoor entertainment spaces
  • Hospitality landscape features

OEM/ODM

USKYLED provides OEM/ODM, wholesale and lighting project services according to the current product page. The page also states that lighting and circuitry design, AutoCAD layout and project installation services are available.

Potential OEM/ODM requirements can include:

  • Product length
  • Power configuration
  • Beam angle
  • CCT
  • Control system
  • Housing finish
  • Mounting bracket
  • Cable configuration
  • Packaging
  • Product labeling
  • Logo
  • Project-specific lighting requirements

For architectural projects, buyers can provide:

  • Facade drawings
  • Lighting layouts
  • Required lengths
  • Beam-angle requirements
  • CCT requirements
  • DMX512 control requirements
  • Quantity

USKYLED can then evaluate the configuration and project requirements.

MOQ: 1 pcs

Sample Order Lead Time: 3–7 days

Mass Order Lead Time: 7–15 days

Final lead time depends on order quantity, selected configuration and customization requirements.

CTA

Looking for a flexible LED wall washer for building facade or outdoor architectural lighting?

Contact USKYLED for specifications, beam-angle options, sample orders, wholesale pricing and OEM/ODM support.

Send your facade drawings, required length, power, CCT, beam angle or DMX512 requirements to discuss a suitable L9113 lighting solution.


Product Description
Model
Power
Lumens
CCT
Beam Angle
Input Voltage
IP Grade
L9113-500
12W
60lm/W
3000K 4000K 6000K
8°/15°/30°/45°/60°
DC24V
IP65
L9113-500
16W
60lm/W
L9113-1000
26W
60lm/W
L9113-1000
54W
60lm/W

Note.

Structural waterproof design cavity type heat dissipationThe light transmittance of tempered glass is >90%6063 aluminum alloy lamp body stainless steel screwsSlider adjustable bracketConfigure CREE/OSRAMMonochrome /DMX512 control system
Application scenario: building exterior wall, green landscape, bridge
One stop solution
Lighting Design
CertificationsOur products certificated by CE, GS, ETL, UL, FCC, RoHS, are applied into large scale of indoor and outdoor lighting.
Our products have CE,RoHs certification in EU market, ETL&UL list for North America including USA and Canada. We accept OEM ODM, wholesale and retail service, meet customers’ different needs.
