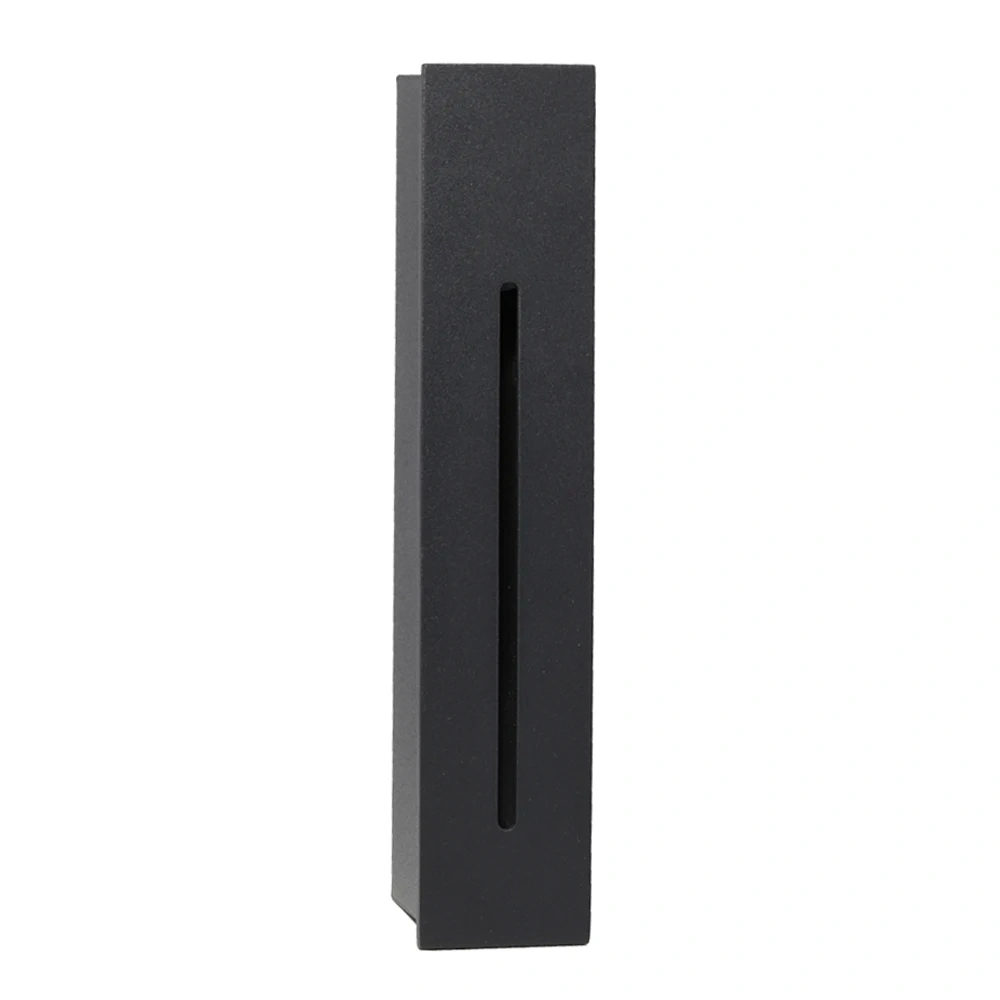

The USKYLED recessed LED stair light is an architectural lighting solution designed to provide discrete safety orientation and ambient walkway illumination. Engineered with a low-profile flush trim, this compact 3W fixture seamlessly integrates into standard drywall or masonry walls, illuminating step surfaces without disruptive upward glare.
Design
-
Flush Architectural Profile: Ultra-slim front plate blends cleanly into drywall, wood paneling, or masonry.
-
Concealed Downward Optics: Recessed light chamber directs illumination directly onto treads and footpaths, minimizing line-of-sight glare.
-

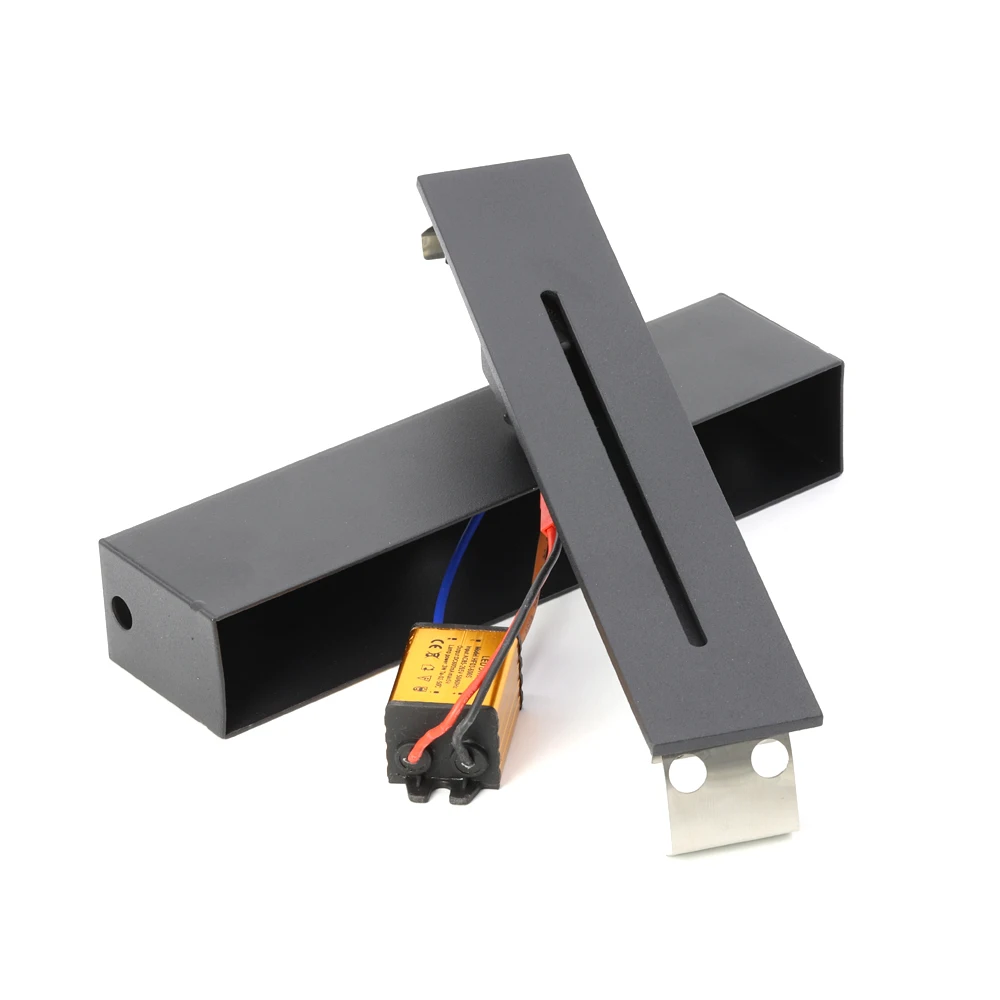

Durable Metal Construction: Sturdy die-cast aluminum frame ensures superior heat dissipation and enduring finish quality.
Main Features
-

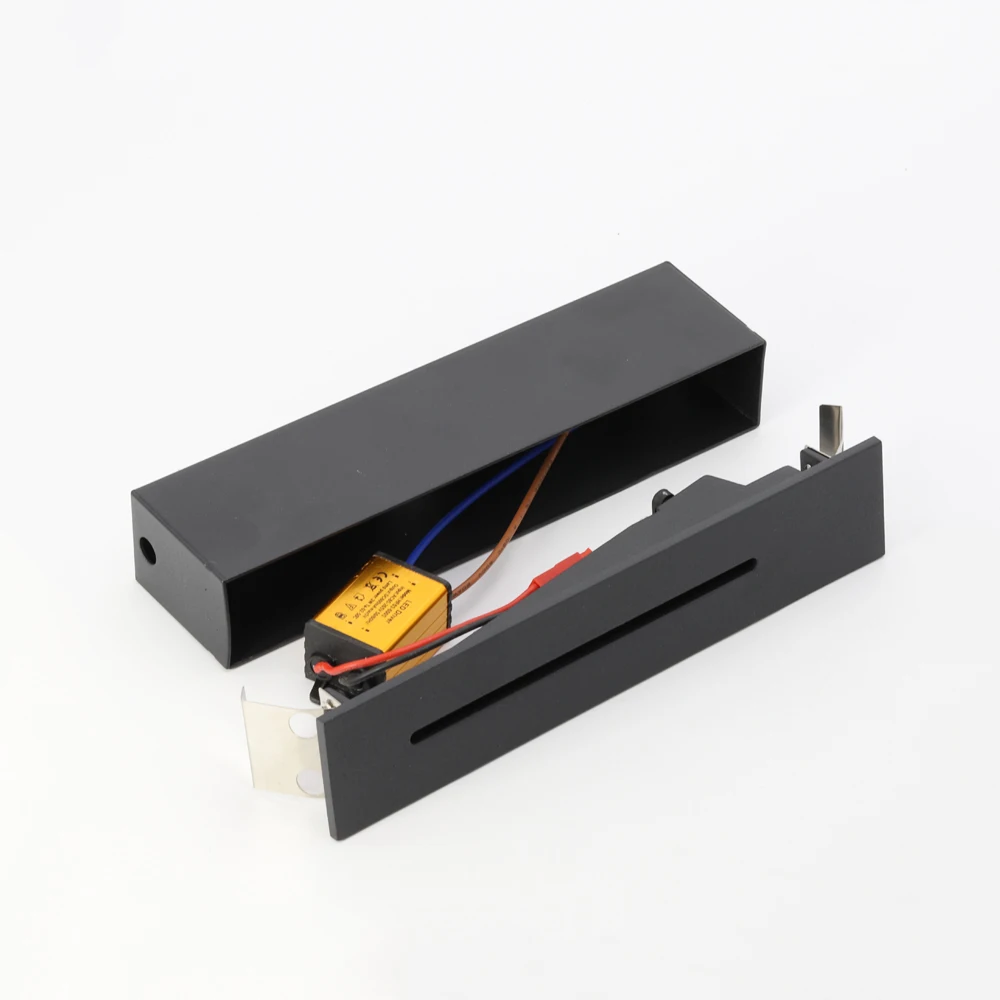

Universal AC85-265V Driver: Integrated wide-voltage internal power supply works smoothly across global electrical grids without external transformers.
-
Energy-Efficient 3W Output: High-efficacy LED chips provide crisp step illumination with minimal power draw and virtually zero heat buildup.
-
Anti-Glare Visual Comfort: Indirect downward cut-off optic ensures smooth illumination suitable for night navigation.
-

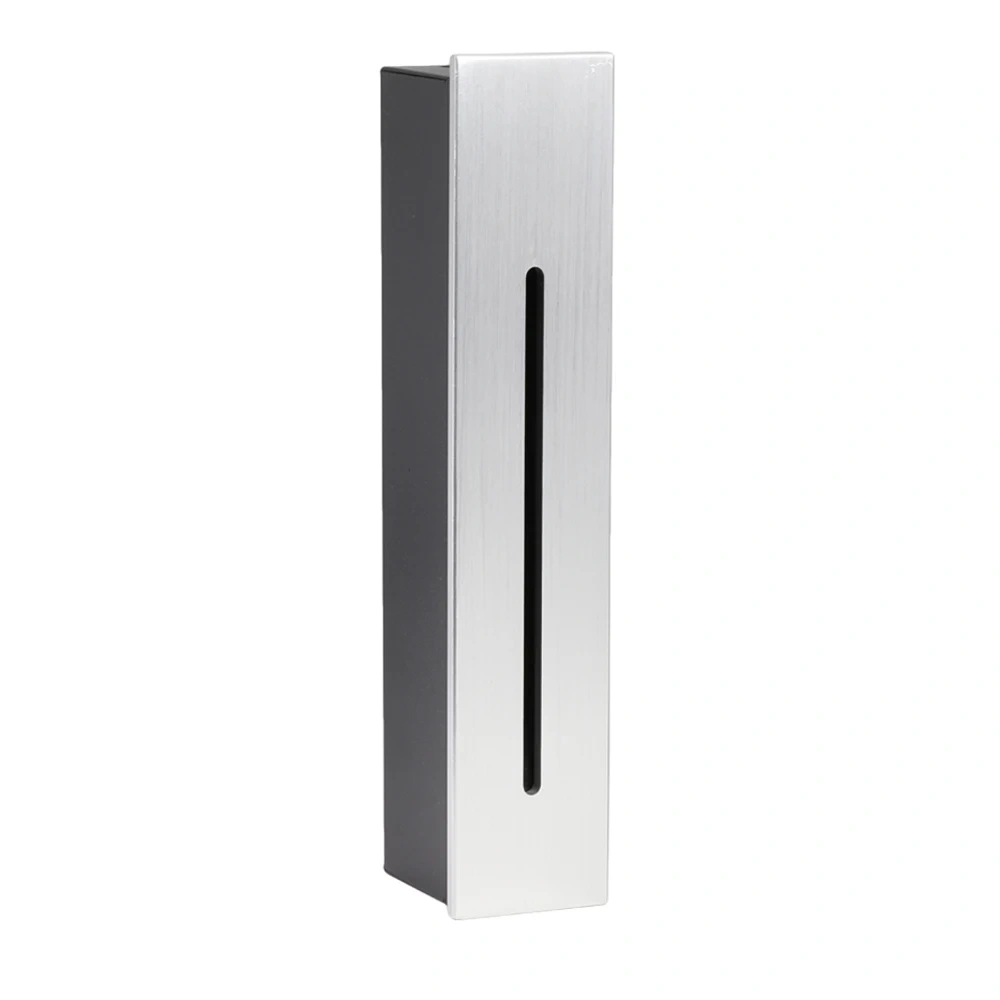

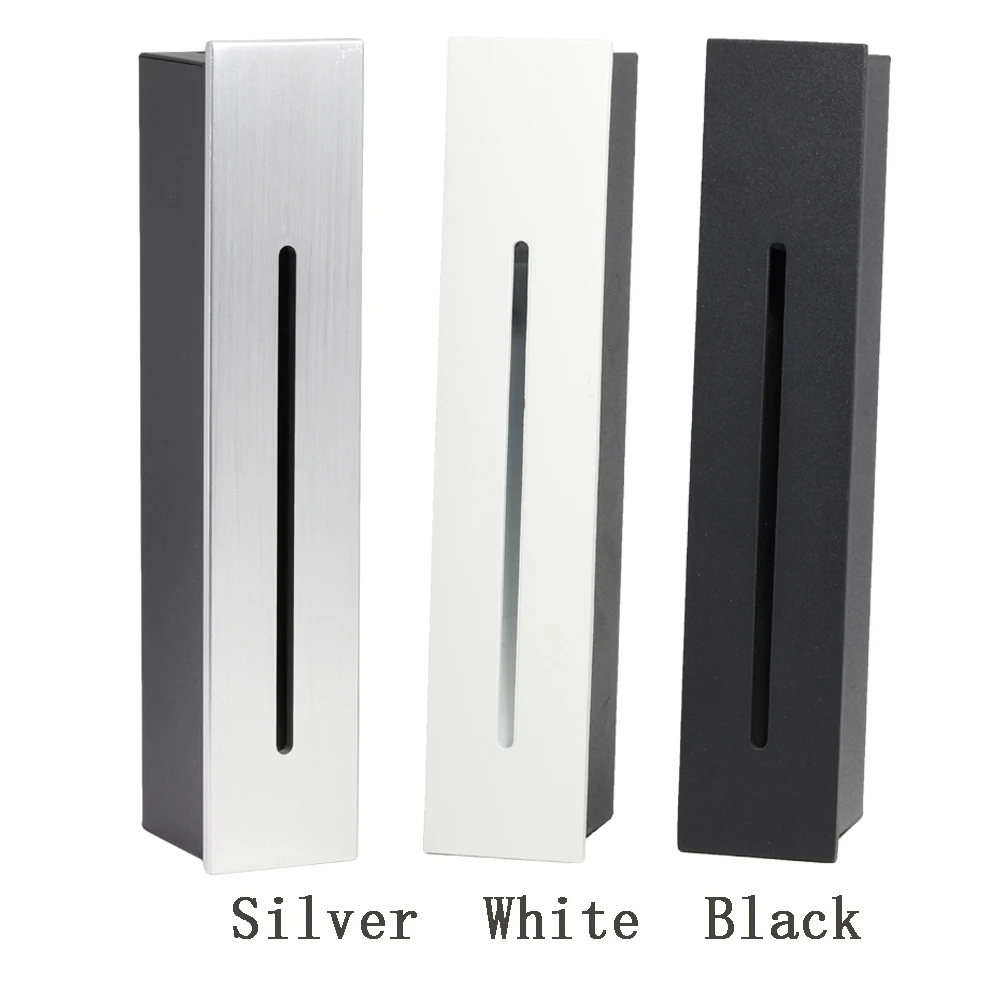

Architectural Finish Options: Available in Matte Black, Pure White, and Brushed Silver.
Application
Ideal for continuous foot-level lighting in residential homes, villas, boutique hotels, commercial offices, movie theaters, and modern apartment corridors.
Size / Options
-
Faceplate Dimensions: Standard 86mm × 86mm square format (or customized project profiles).
-

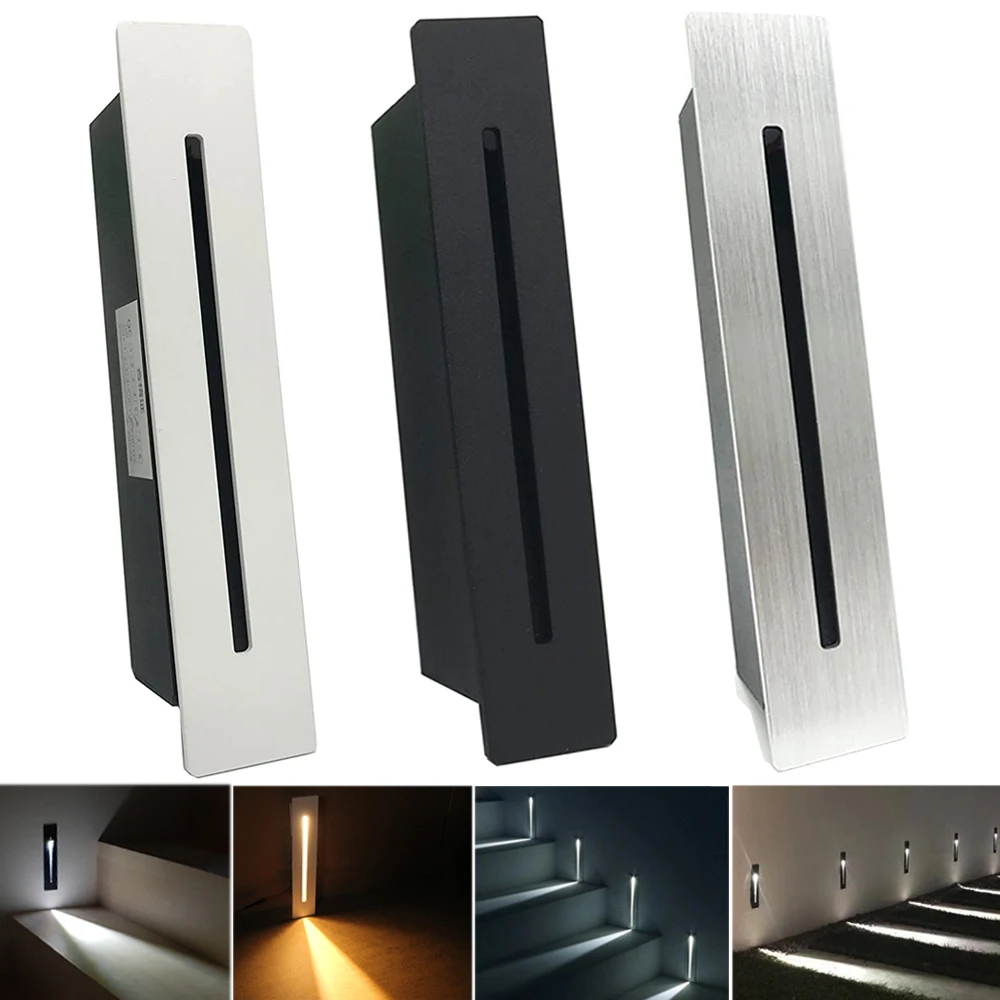

Housing Colors: Matte Black / Clean White / Brushed Silver.
-
Recessed Mounting Box: Compatible with standard 86-type embedded back boxes.
Lighting Options
-
Warm White (3000K): Cozy, welcoming atmosphere ideal for luxury residential living and boutique hospitality.
-
Neutral Natural White (4000K): Balanced clarity for commercial hallways, modern offices, and galleries.
-
Cool White (6000K): Crisp visibility for contemporary public transit corridors and utilitarian pathways.

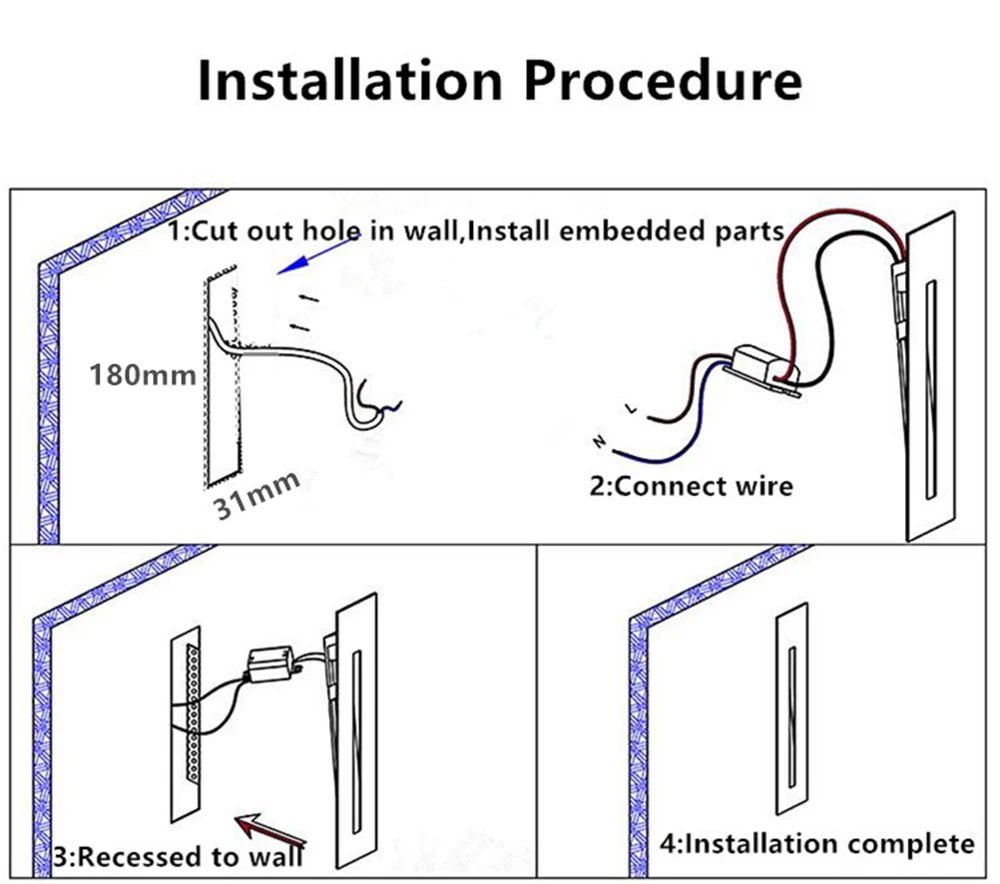

Installation
-
Prepare cutout and install standard recessed back box into drywall or concrete.
-
Connect AC live (L) and neutral (N) leads to the integrated AC85-265V terminal.
-
Secure the fixture into the back box with matching retaining screws/spring clips.
-
Snap on the magnetic or click-lock front decorative faceplate for a screw-free finish.

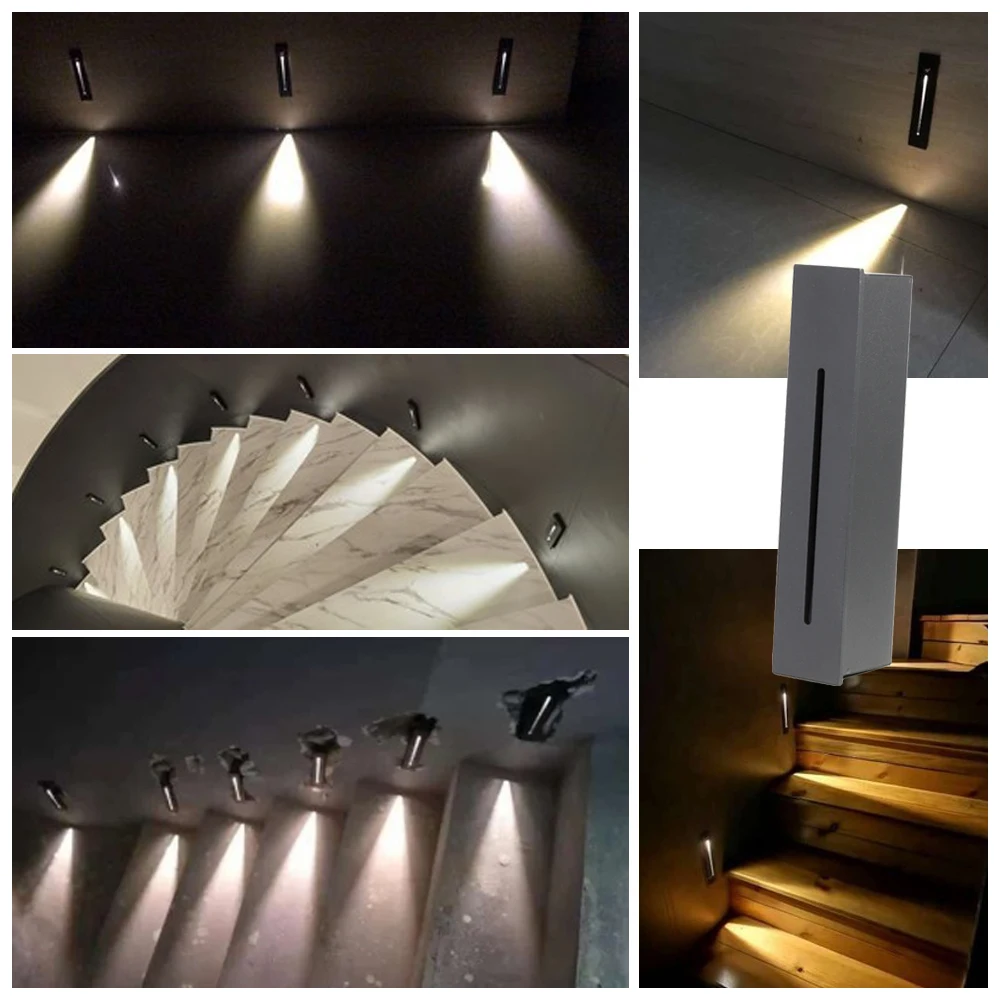

Project Applications
-
Hospitality Corridors: Low-level night navigation in hotel hallways and suite entrances.
-

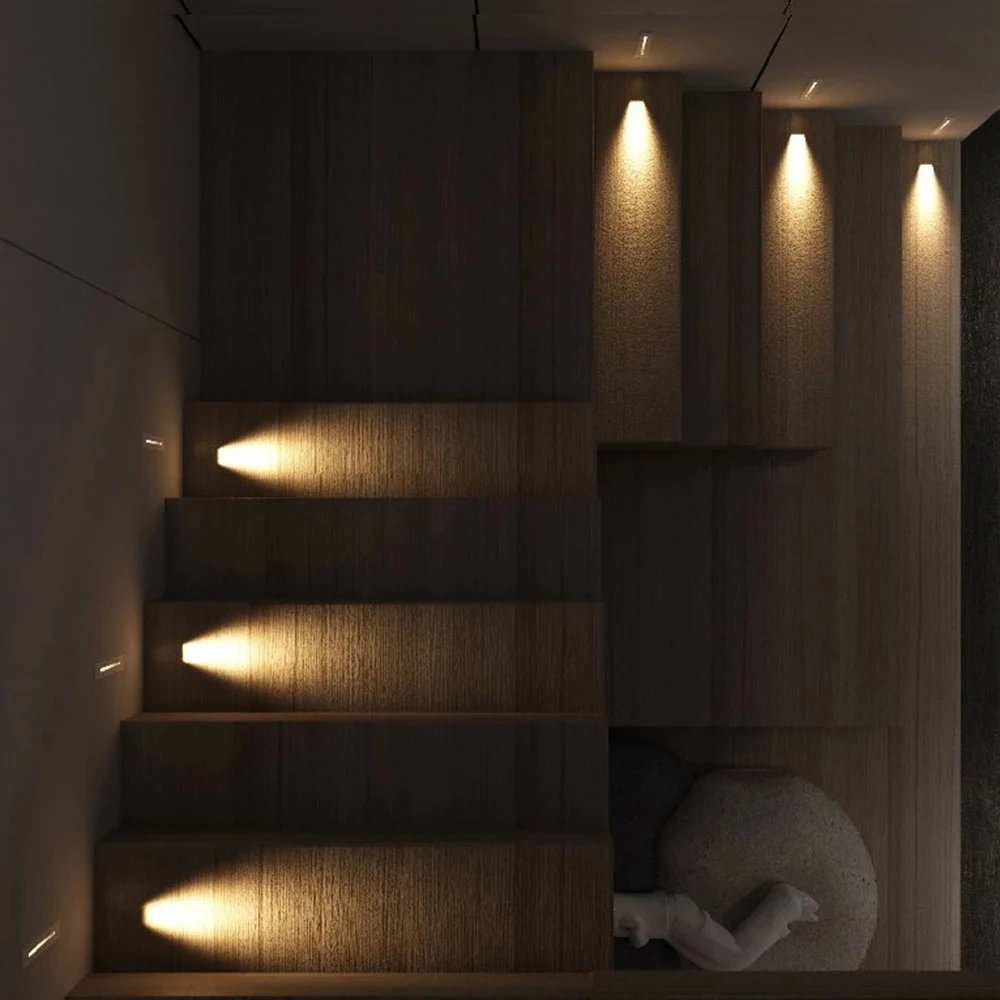

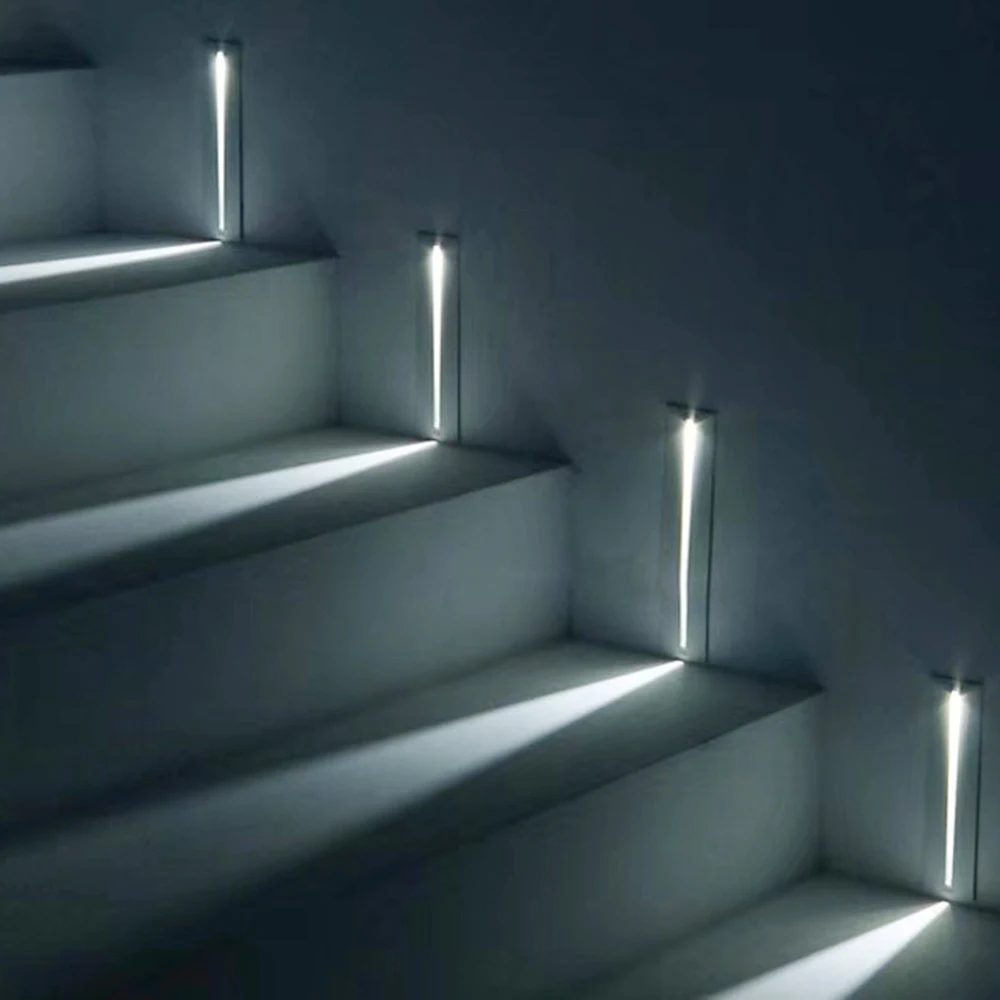

Modern Residences: Indoor multi-level staircases, split-level living rooms, and master suite hallways.
-
Commercial Venues: Theater walkways, auditorium steps, and gallery transition zones.
OEM/ODM
USKYLED supports lighting distributors, project contractors, and brand owners with end-to-end customization:
-
Custom finish powder coating (RAL color matching).
-
Customized CCT, CRI90+ options, and low-voltage DC12V/24V or dimmable drivers (TRIAC/0-10V/DALI).
-
Private laser logo engraving, customized retail packaging, and bulk master carton branding.
CTA
Ready to upgrade your staircase lighting project? Contact our engineering team today for technical data sheets, sample evaluation, or direct factory bulk quotes.

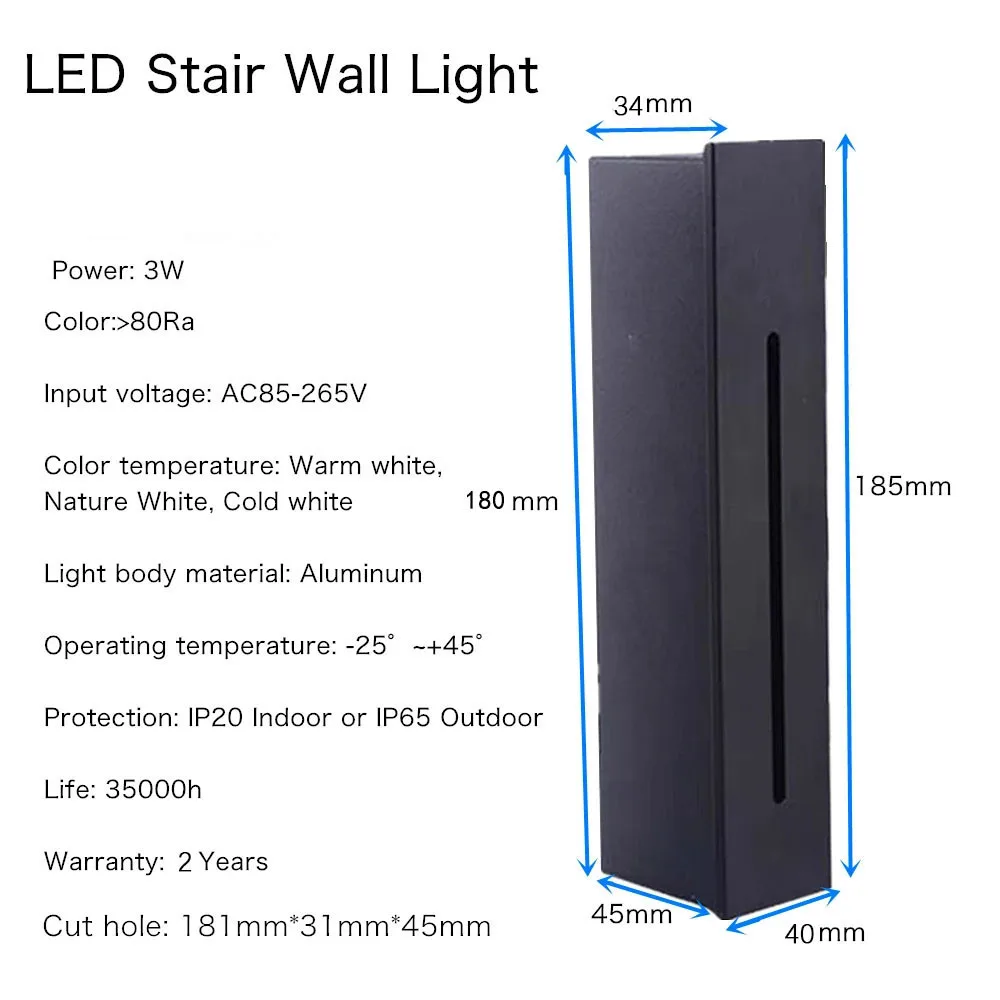

11 Technical Specifications
| Parameter |
Specification |
| Model |
US-ST3W-REC |
| Power Consumption |
3W |
| Input Voltage |
AC 85–265V, 50/60Hz |
| Light Source |
High Lumen SMD LED |
| Luminous Efficacy |
~80–90 lm/W |
| Color Temperature (CCT) |
3000K (Warm) / 4000K (Natural) / 6000K (Cold) |
| Color Rendering Index (CRI) |
Ra ≥ 80 (Ra ≥ 90 available upon request) |
| Beam Angle |
45° Downward asymmetric beam |
| Housing Material |
Die-cast Aluminum + Flame Retardant PC |
| Finishes |
Black / White / Silver |
| Installation Type |
Wall Recessed (Compatible with 86-type junction box) |
| IP Rating |

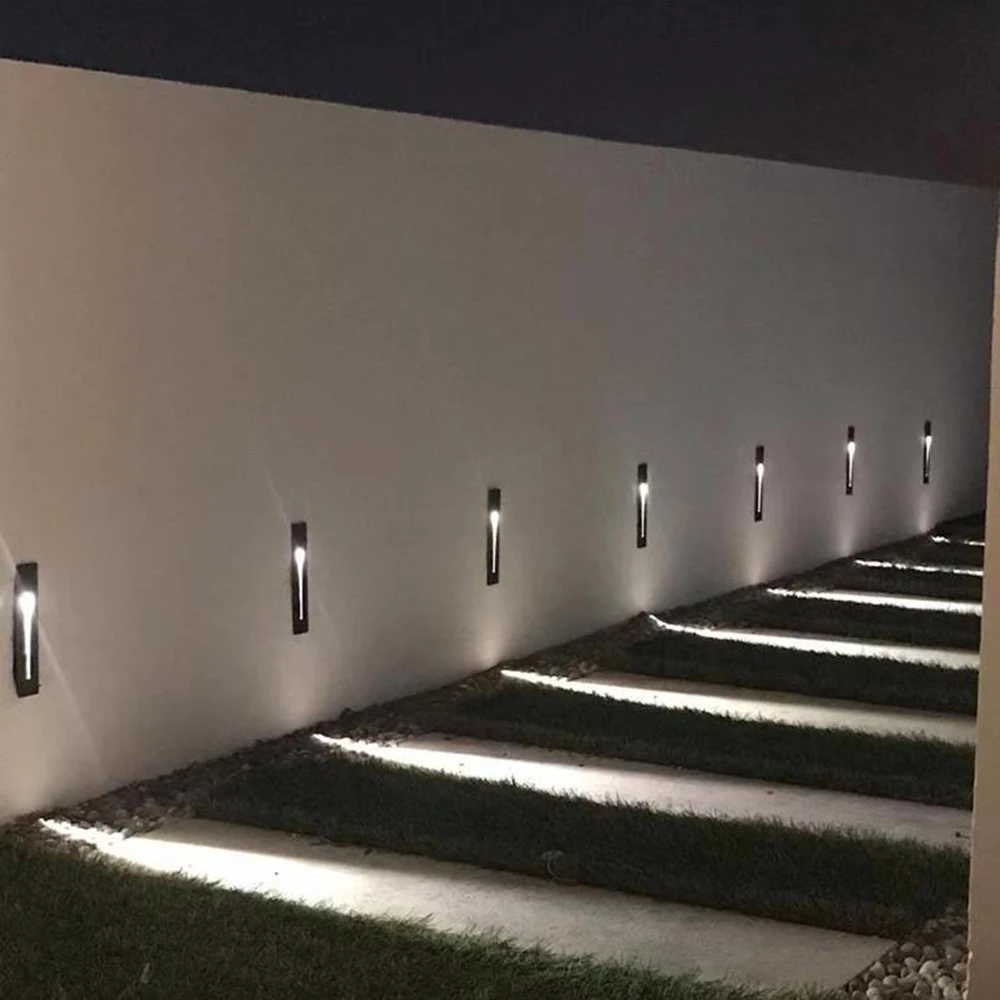

IP20 (Indoor use) / IP65 available for outdoor steps |
| Working Lifespan |
> 30,000 Hours |
| Minimum Order Quantity (MOQ) |
1 pcs |
| Sample Lead Time |
3 – 7 days |
| Mass Order Lead Time |
7 – 15 days |
-

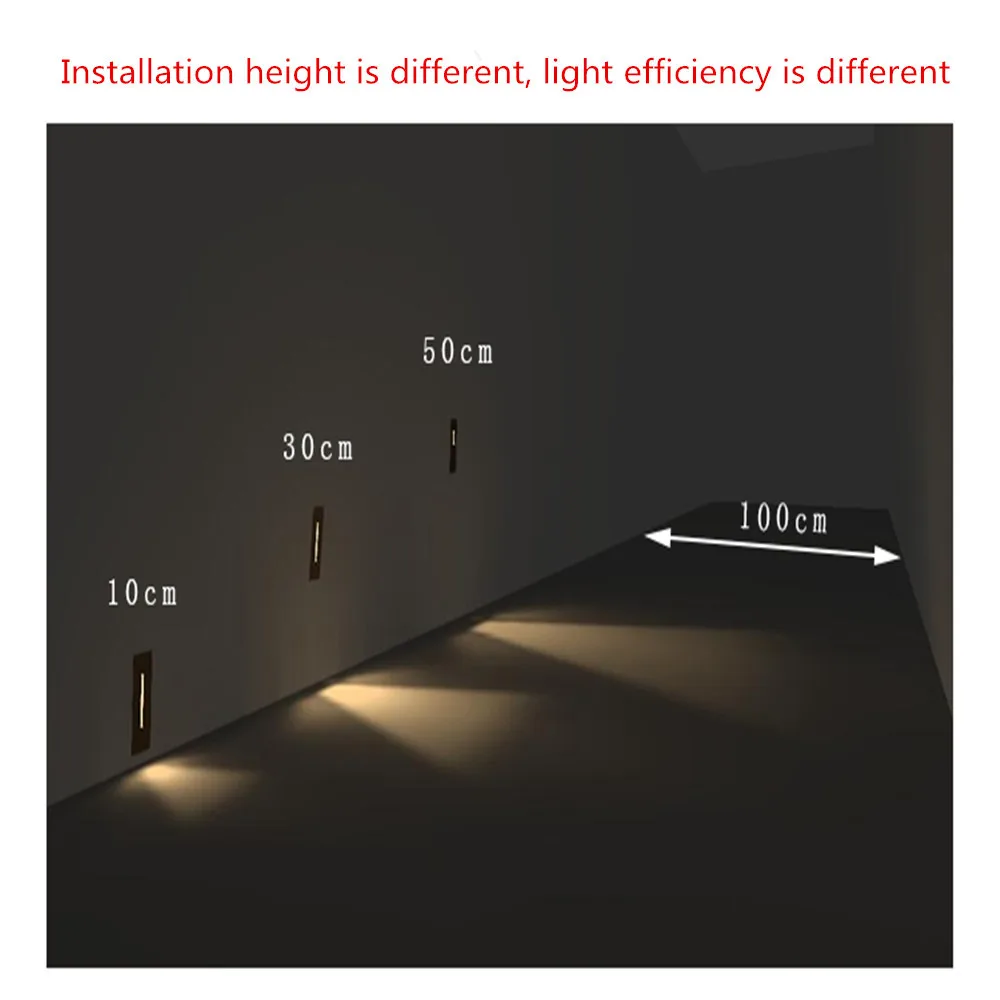

Material: Durable AluminumInstallation Type: Ressessed InWaterproof Rating: Indoor IP20Lighting Area: 1-3 square metersSwitch Type: Touch On/Off SwitchInput Voltage: AC85-265V|Staircase Lighting|Standard Wall Light Height|Stairs Light Height|**Elegant Modern Design**Illuminate your stairway with the LED Recessed Wall Light, a modern marvel that blends seamlessly with contemporary interiors. Crafted from high-quality aluminum, this sleek light fixture boasts a shadeless design that projects light up and down, creating a striking visual effect. With its versatile shade color options—silver, white, or black—you can choose the perfect match to your decor while ensuring optimal lighting in your indoor space.**Versatile and Energy-Efficient**Designed for functionality and aesthetics, this LED light is not only a stylish addition to your staircase but also offers energy-efficient illumination. It's equipped with a touch-sensitive on/off switch, making it effortless to turn on or off. The low power consumption of 3W ensures that you can enjoy bright lighting without the high energy bills. Whether you're looking to enhance your home's ambiance or seeking a practical solution for lighting your stairs, this wall light is the ideal choice.**Easy Installation and Maintenance**Installation of this LED Recessed Wall Light is a breeze, thanks to its self-contained design that doesn't require additional wiring. Its indoor IP20 waterproof rating makes it suitable for use in humid environments, while the 1-3 square meters lighting area ensures ample coverage for stairs and hallways. With a lifespan of 40,000 hours, this wall light is designed to last and provide consistent performance over time. It's a practical and timeless addition to your home that combines durability with a touch of modern elegance.
