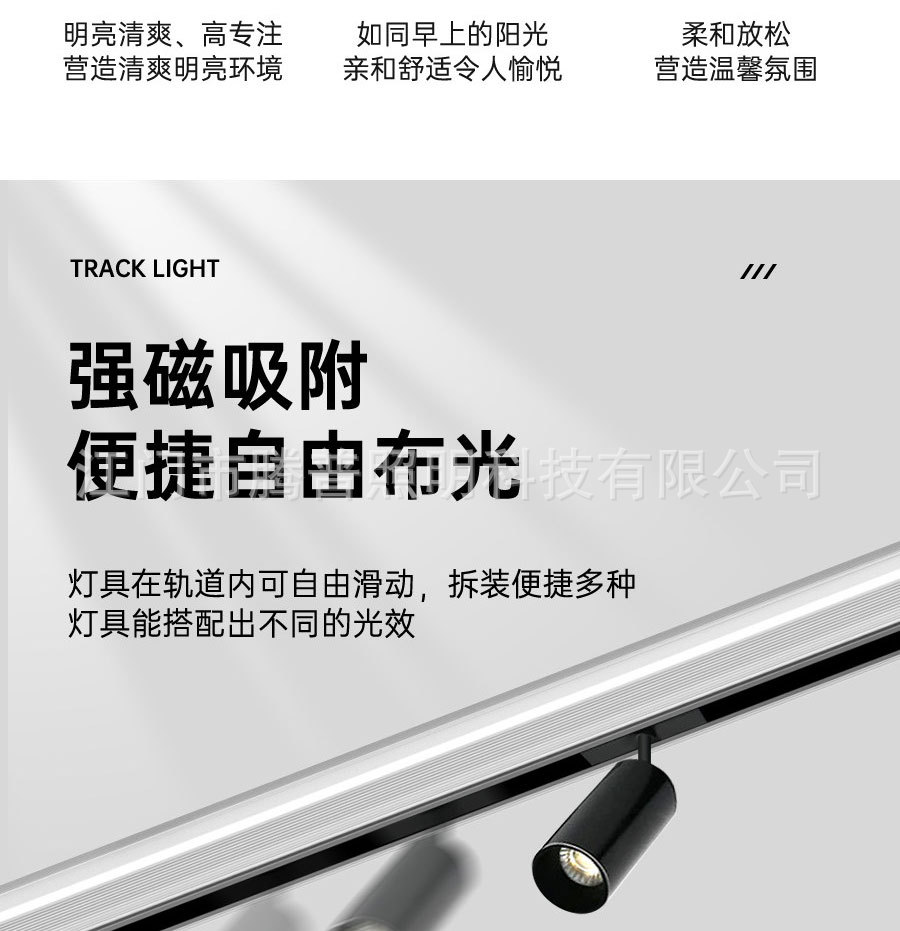

The Topenergy S20 48V circular glowing magnetic track light system combines a continuous 360° luminous track with flexible magnetic lighting modules. Designed for modern residential, hospitality, retail and commercial interiors, it creates a clean architectural lighting language while allowing spotlights, grille lamps, floodlights and linear fixtures to be positioned where light is needed.

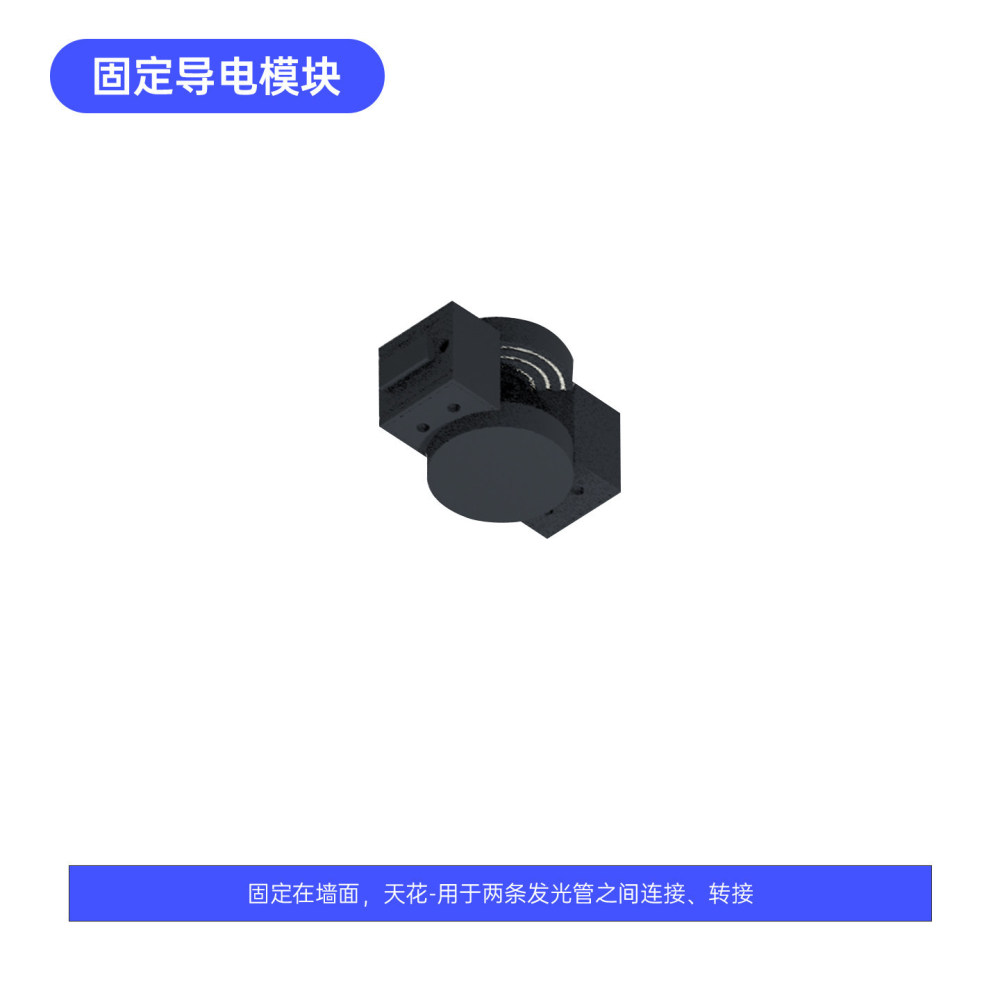

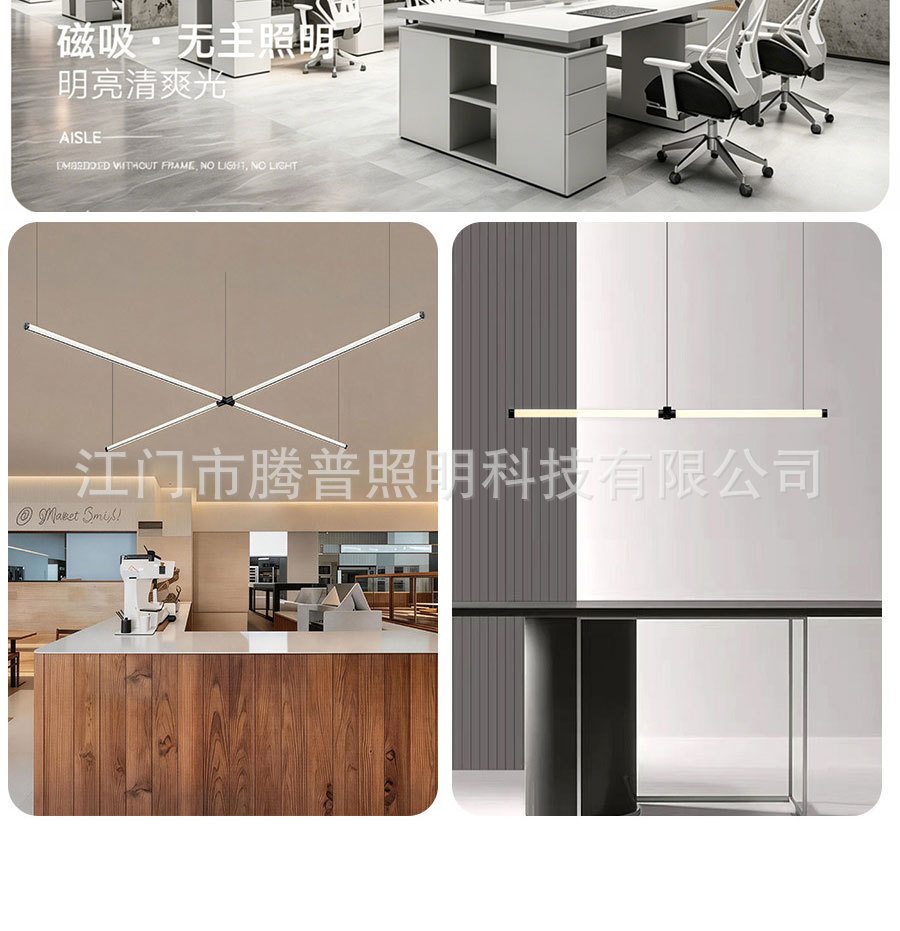

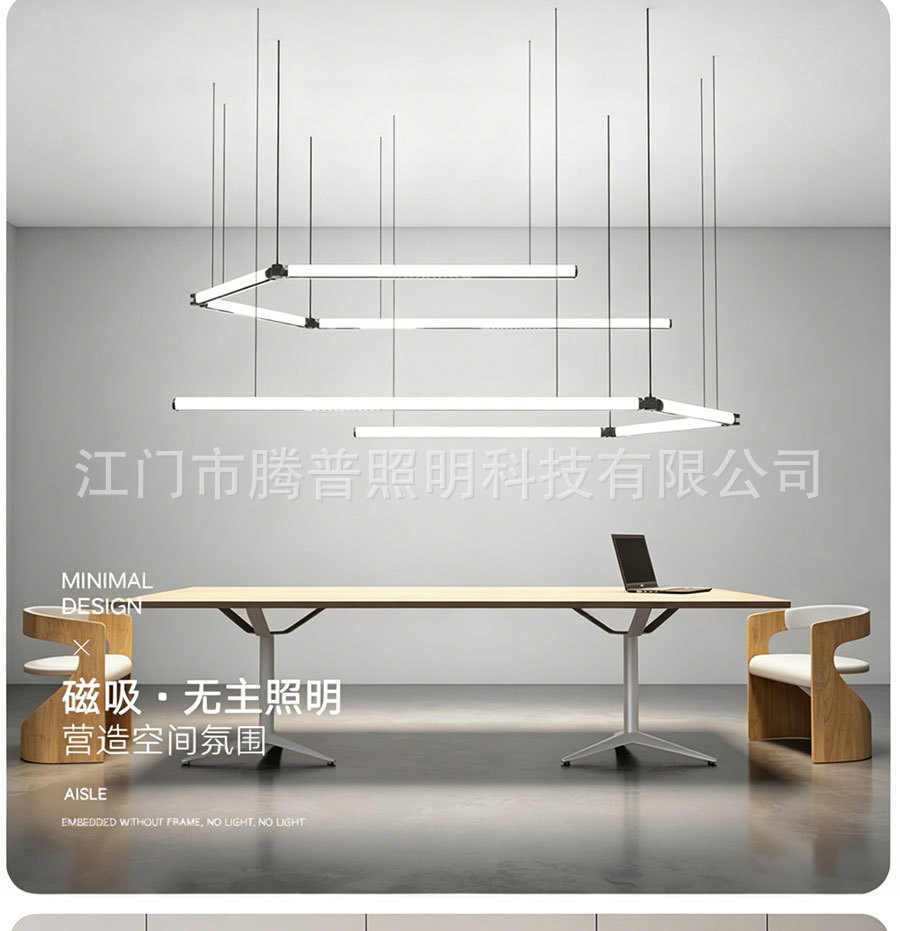

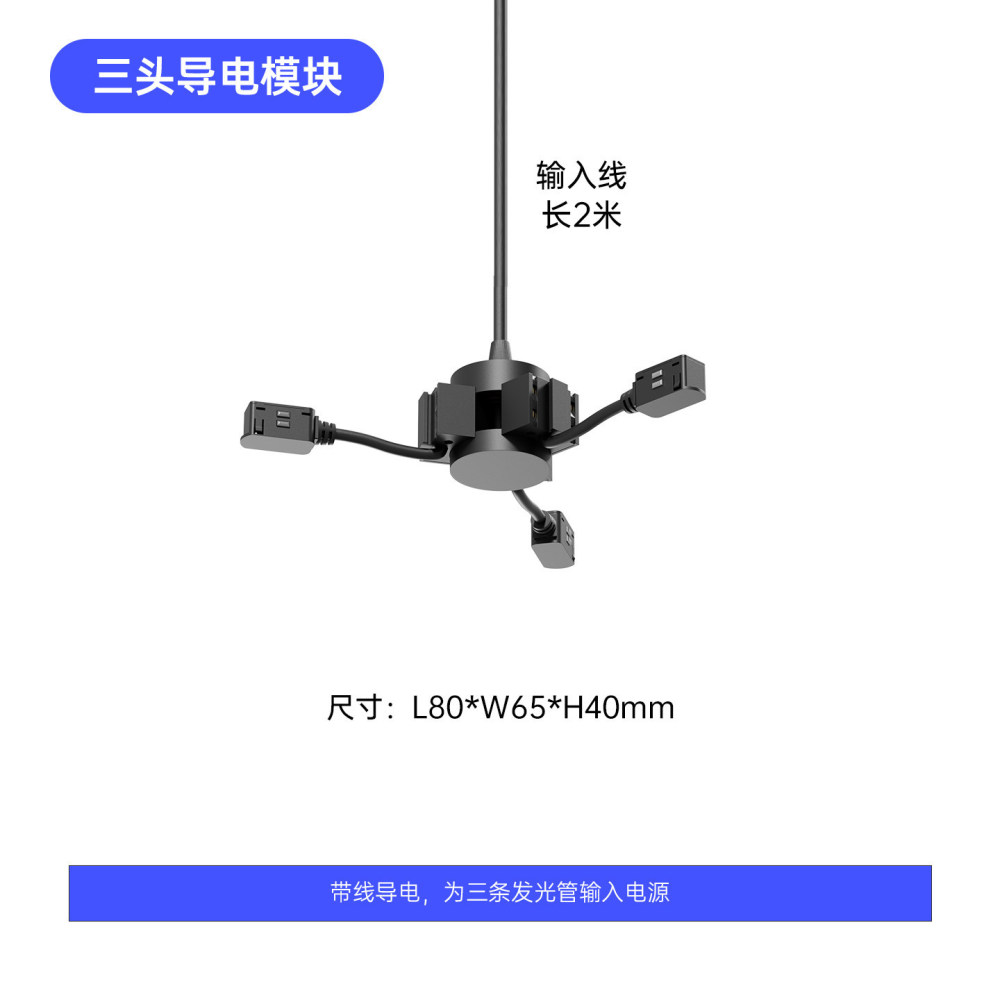

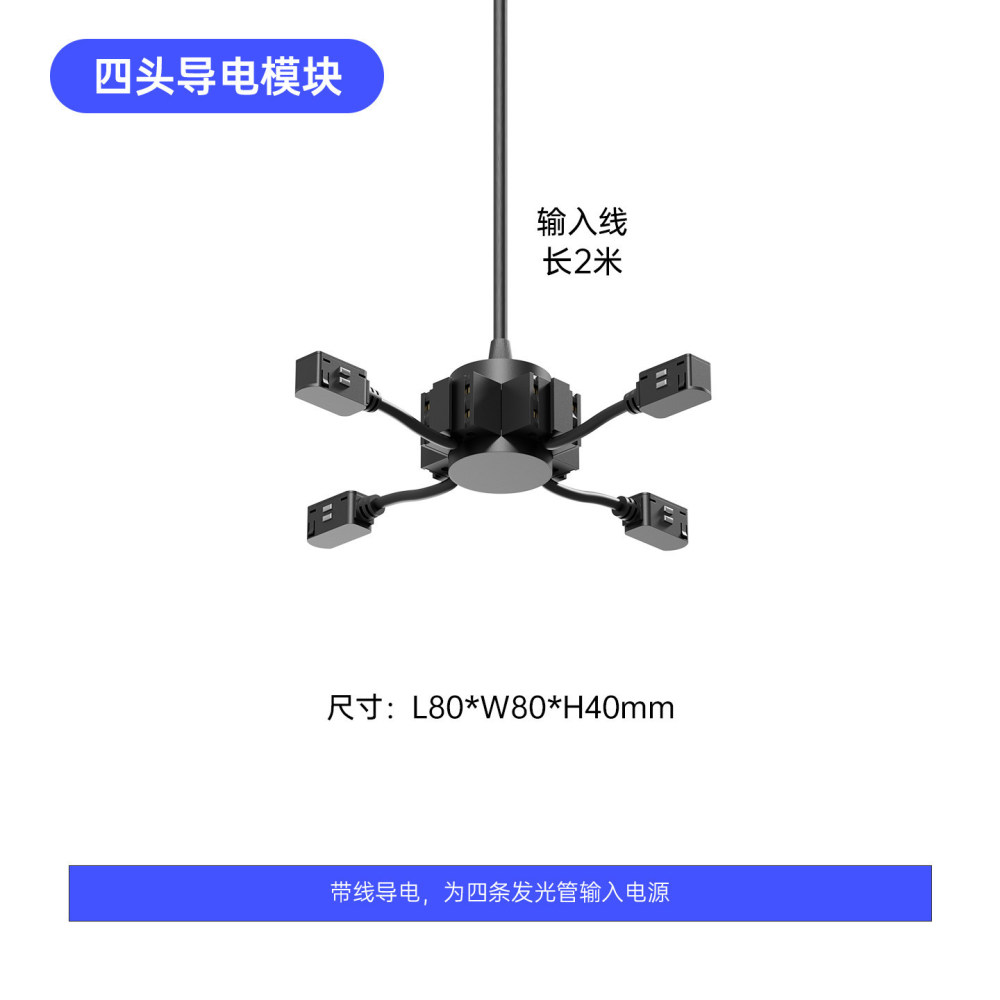

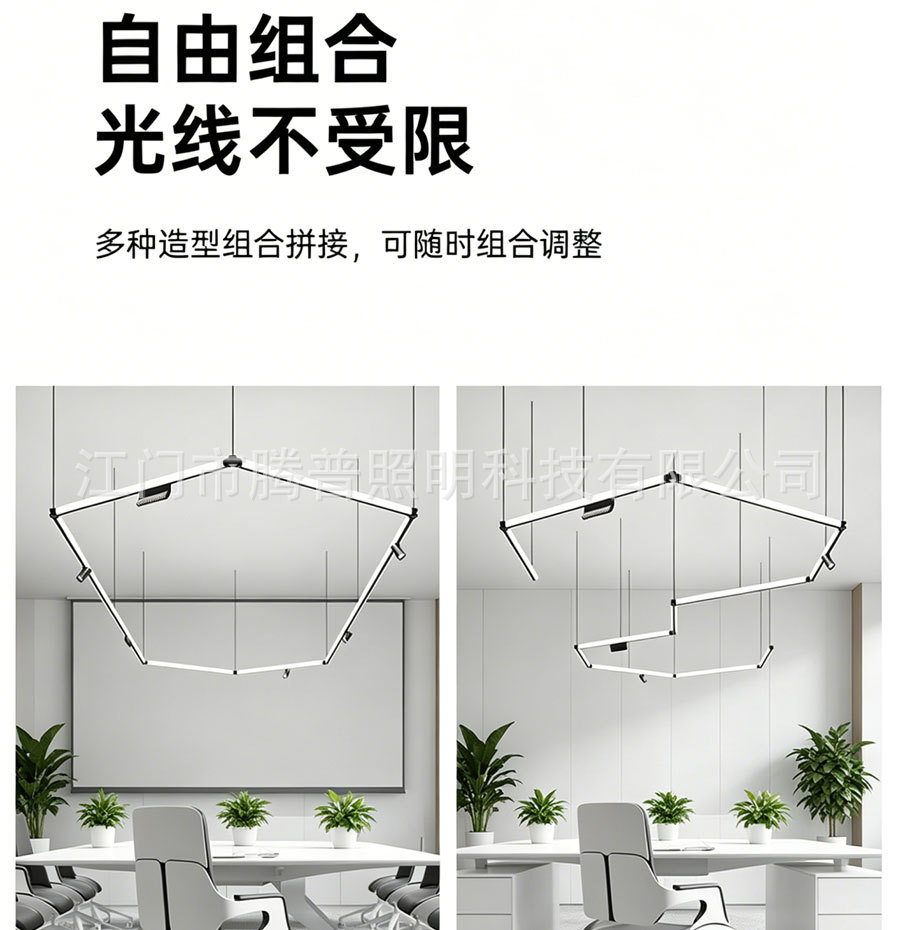

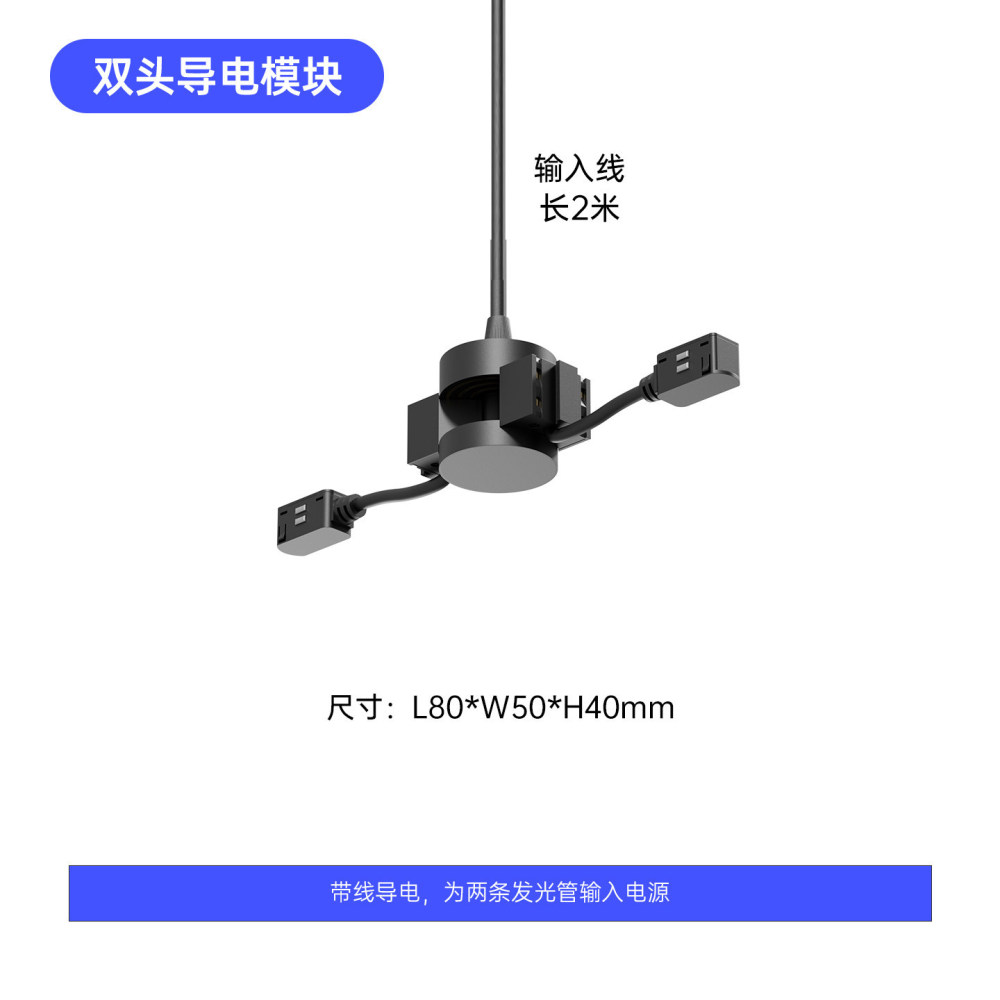

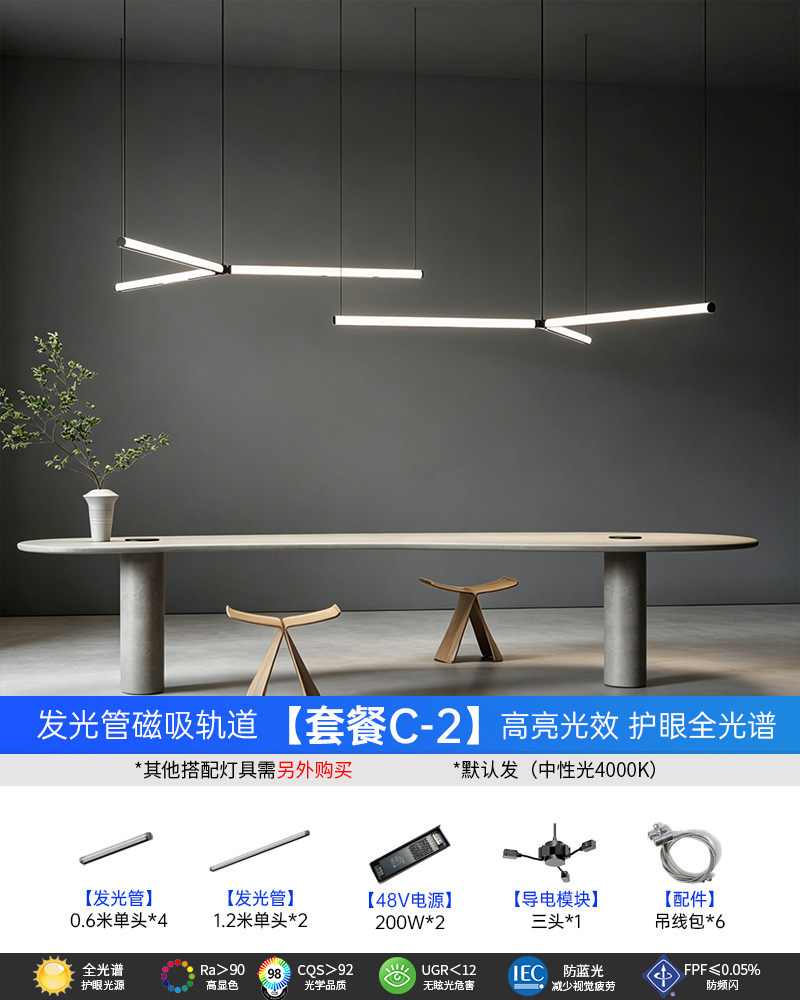

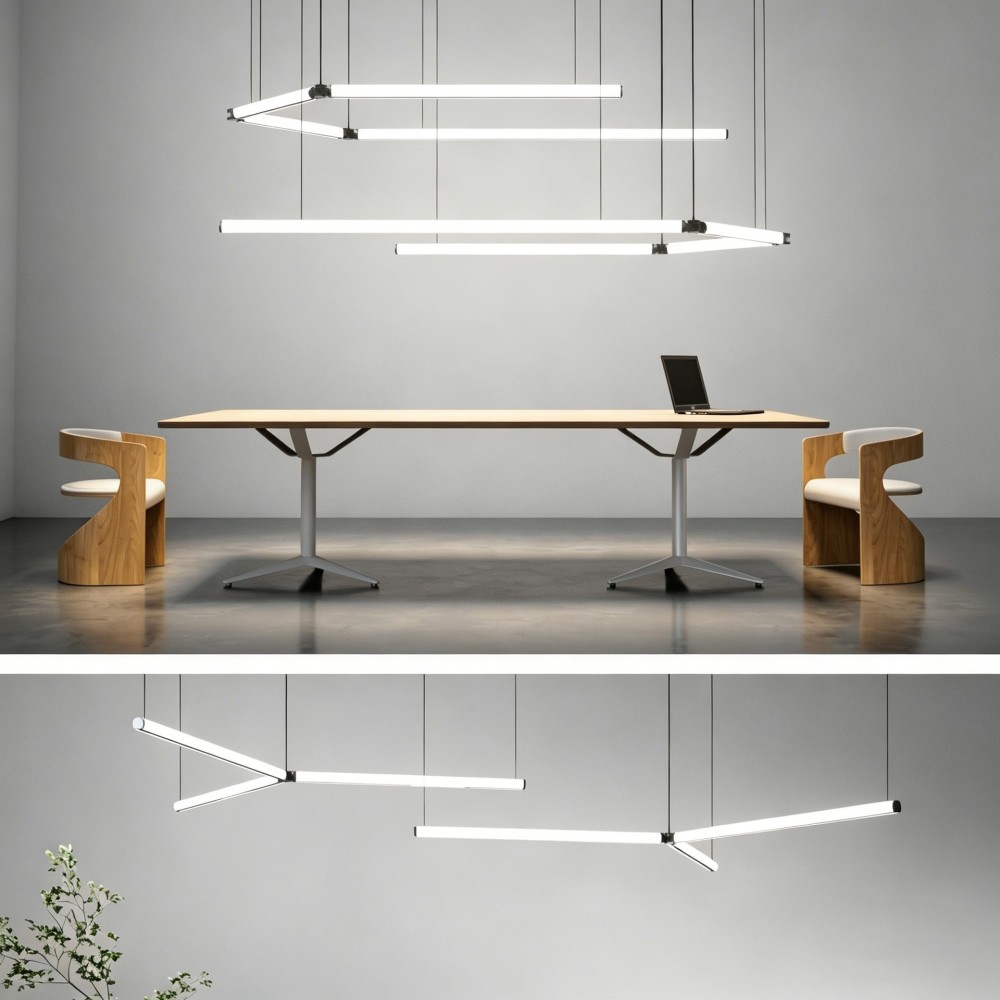

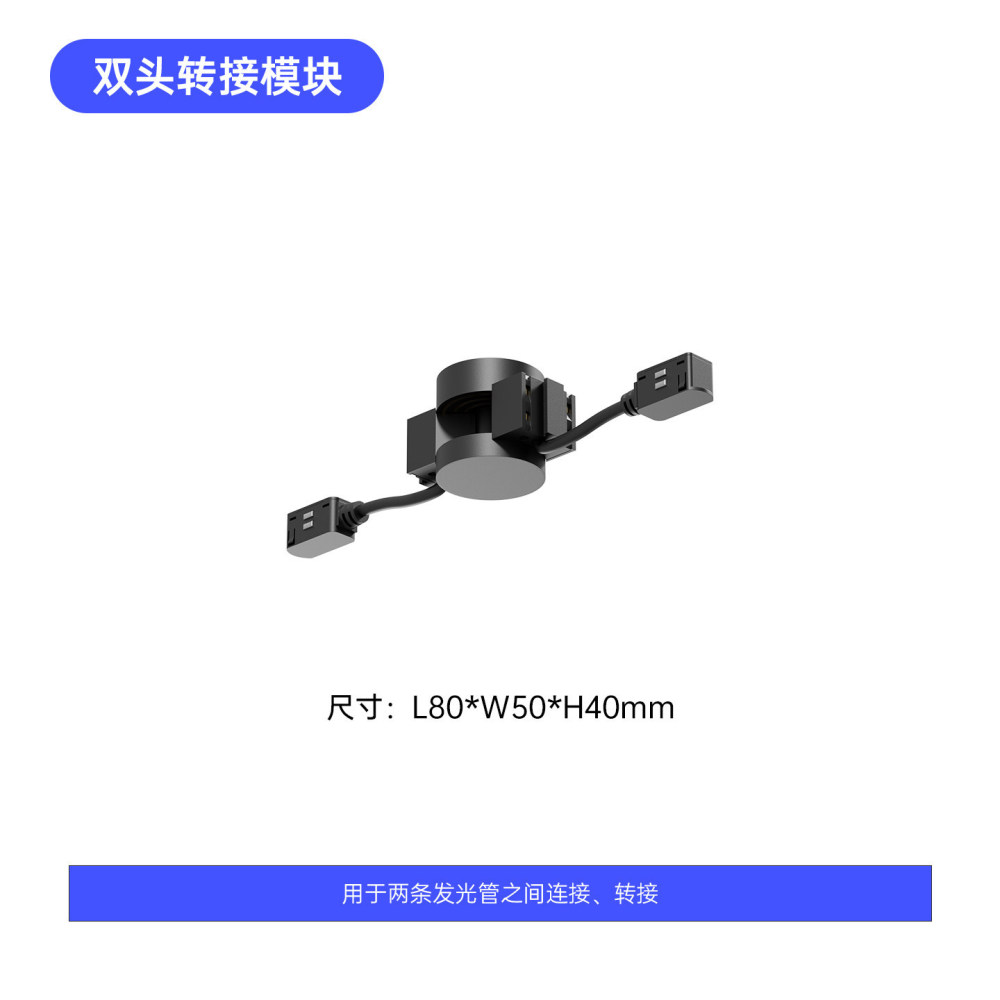

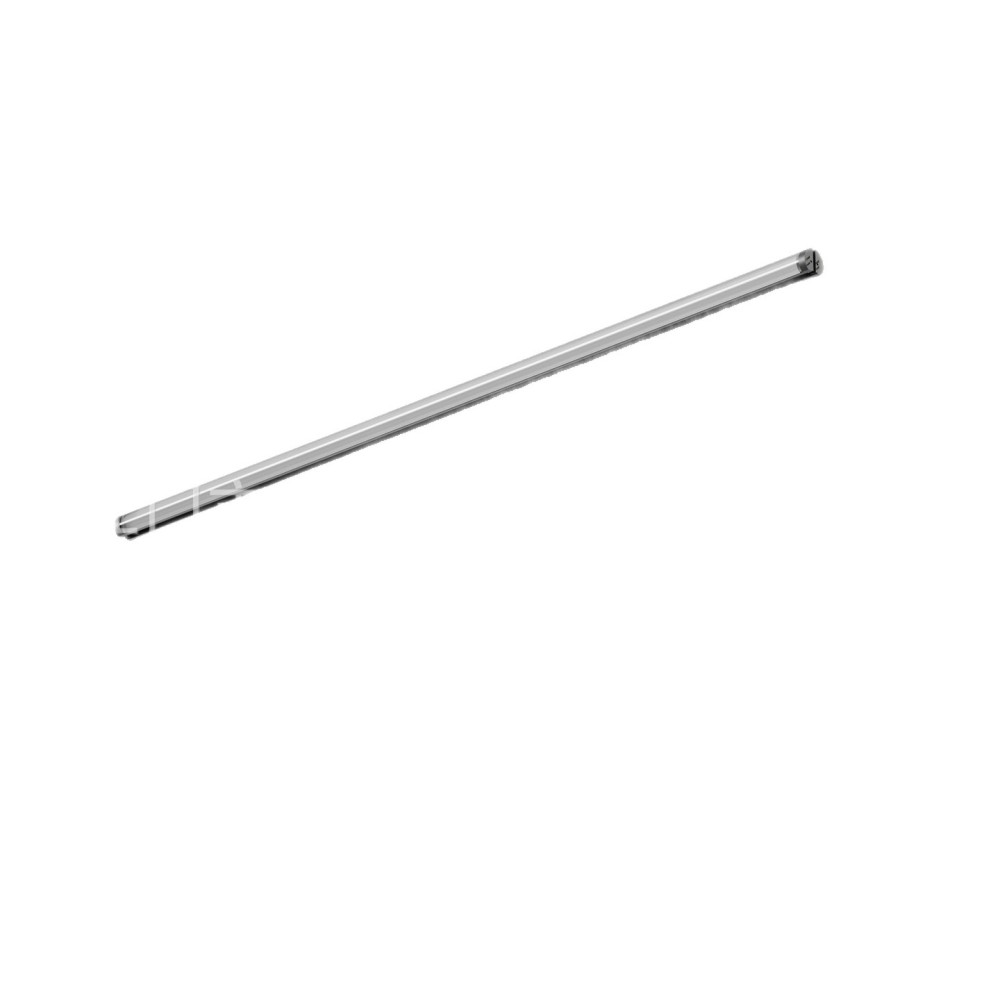

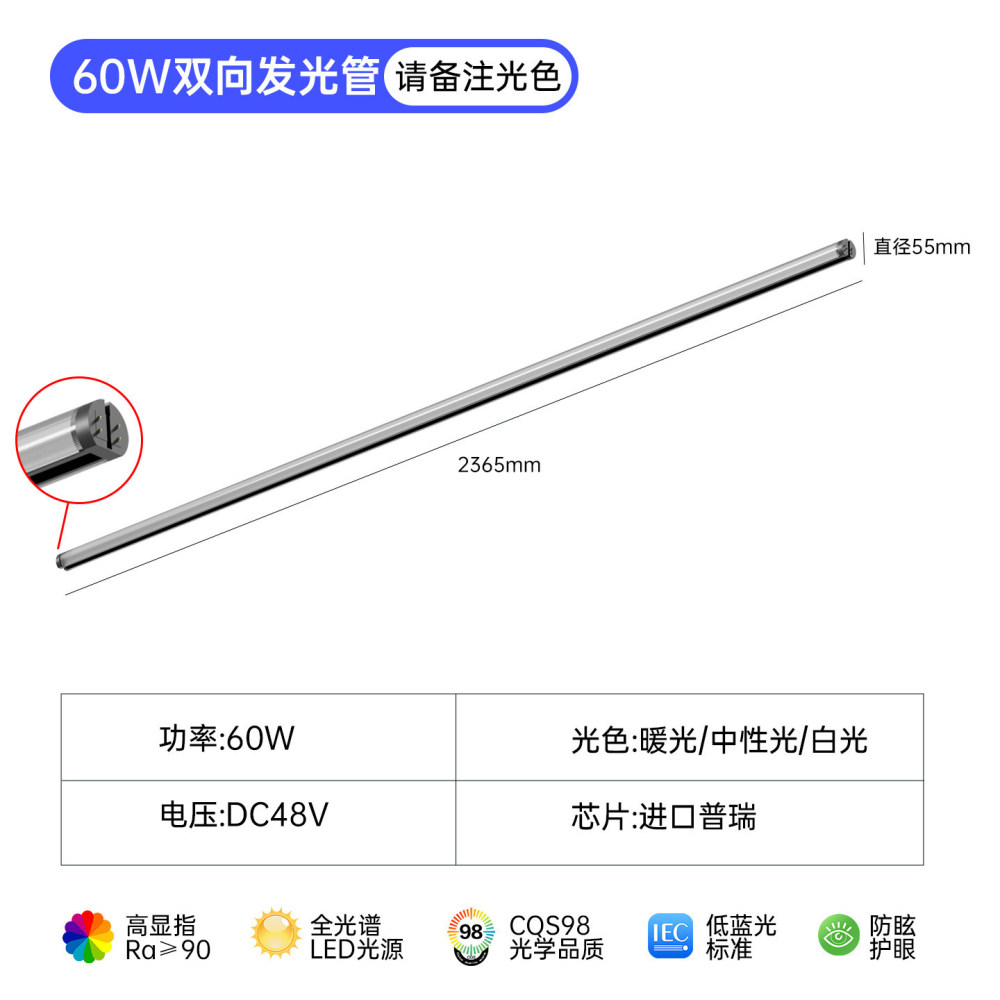

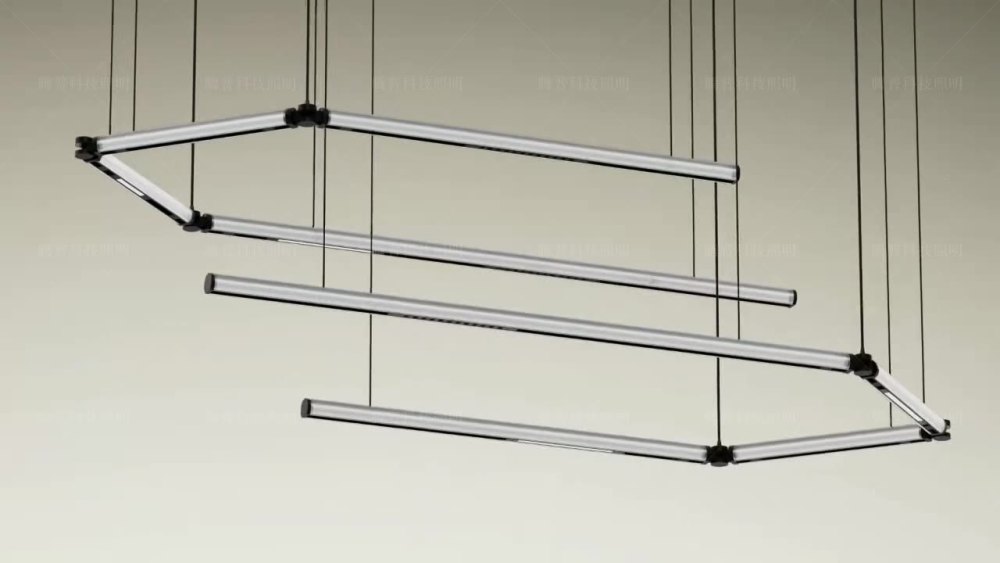

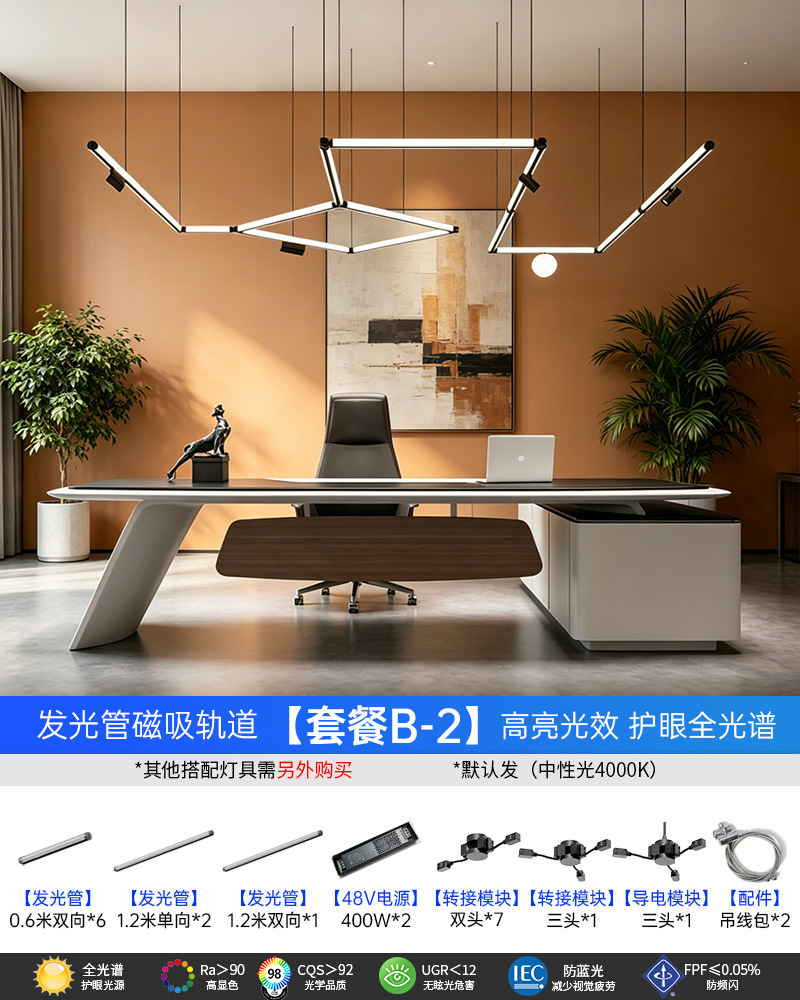

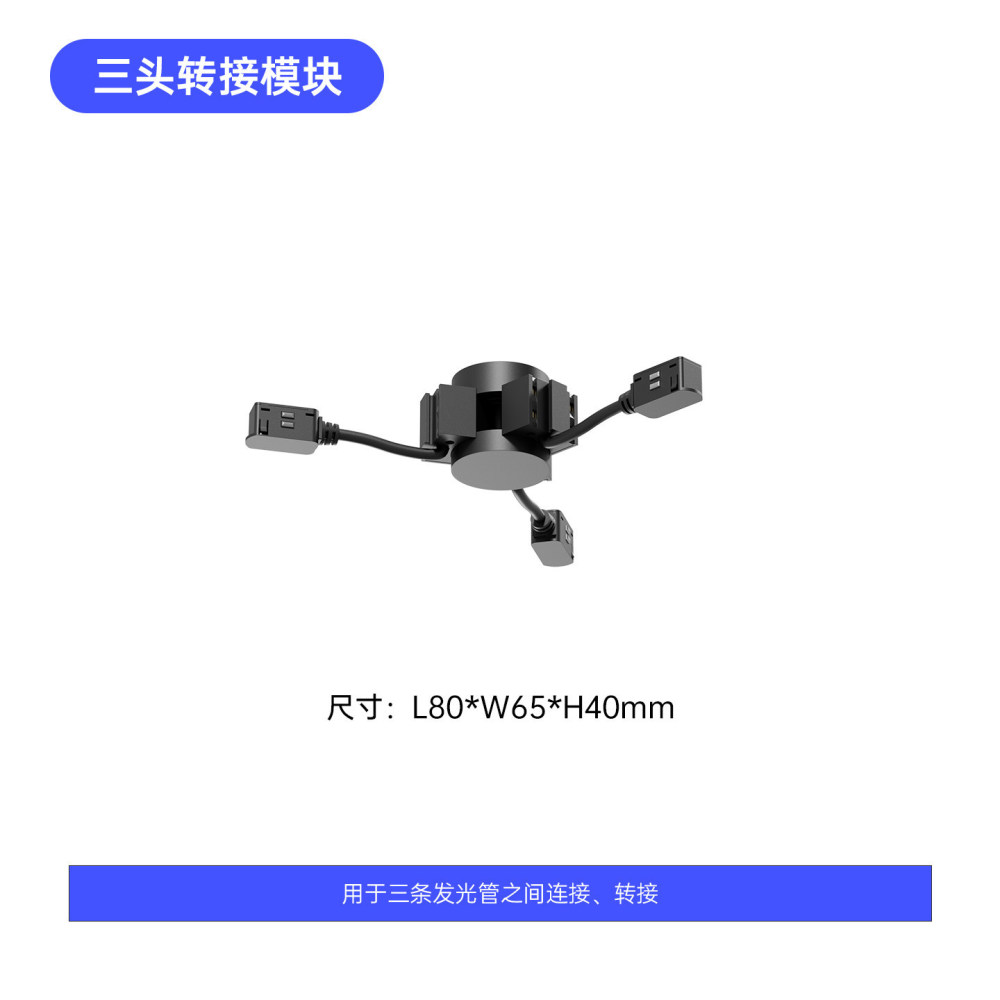

The S20 system is built around a Ø60 mm circular glowing track with compatible input modules, 48V power supplies and magnetic luminaires. I-connectors, two-way, three-way and four-way connectors enable straight runs, corners, T-shaped layouts, X-shaped layouts and geometric suspended compositions. The modular structure makes it easy to scale a lighting installation or adjust the visual arrangement as an interior evolves.

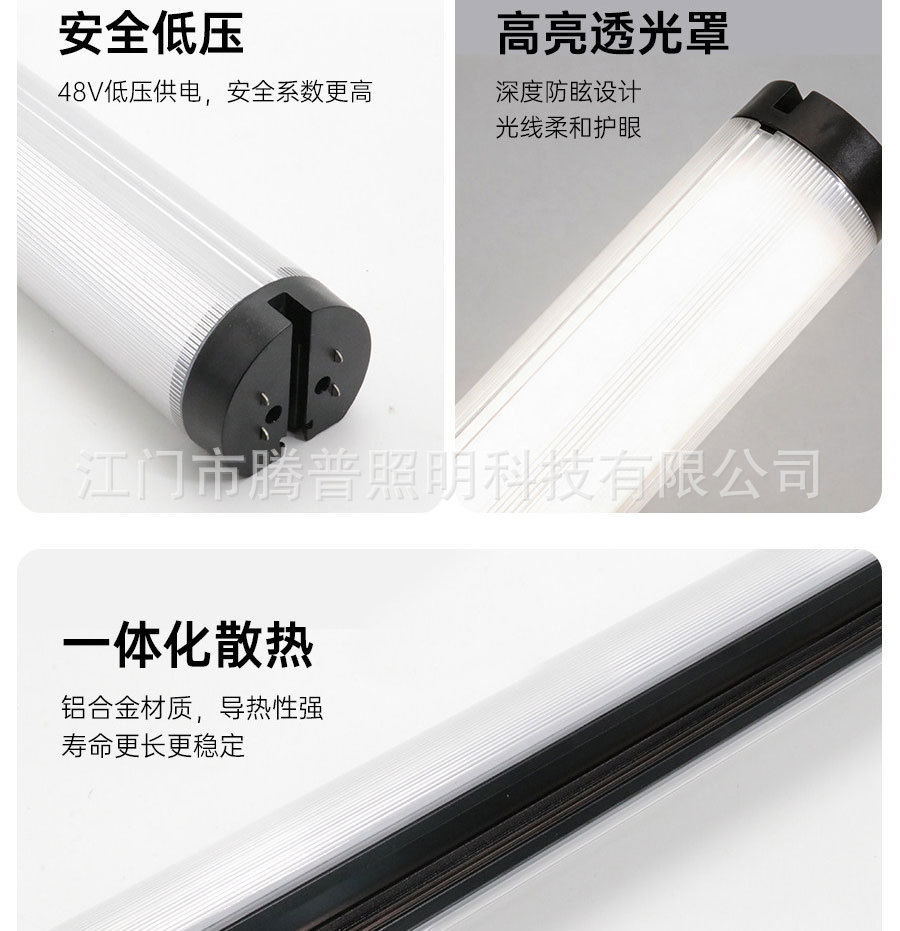

A diffusion cover made from PC works with the aluminum body to deliver a soft, uniform 360° glow. The circular track is specified at CRI ≥90 for natural-looking color rendering, making it suitable for decorative ambient lighting as well as applications where finishes, products and materials need to be presented accurately. The matte black finish and cylindrical profile provide a refined architectural appearance.

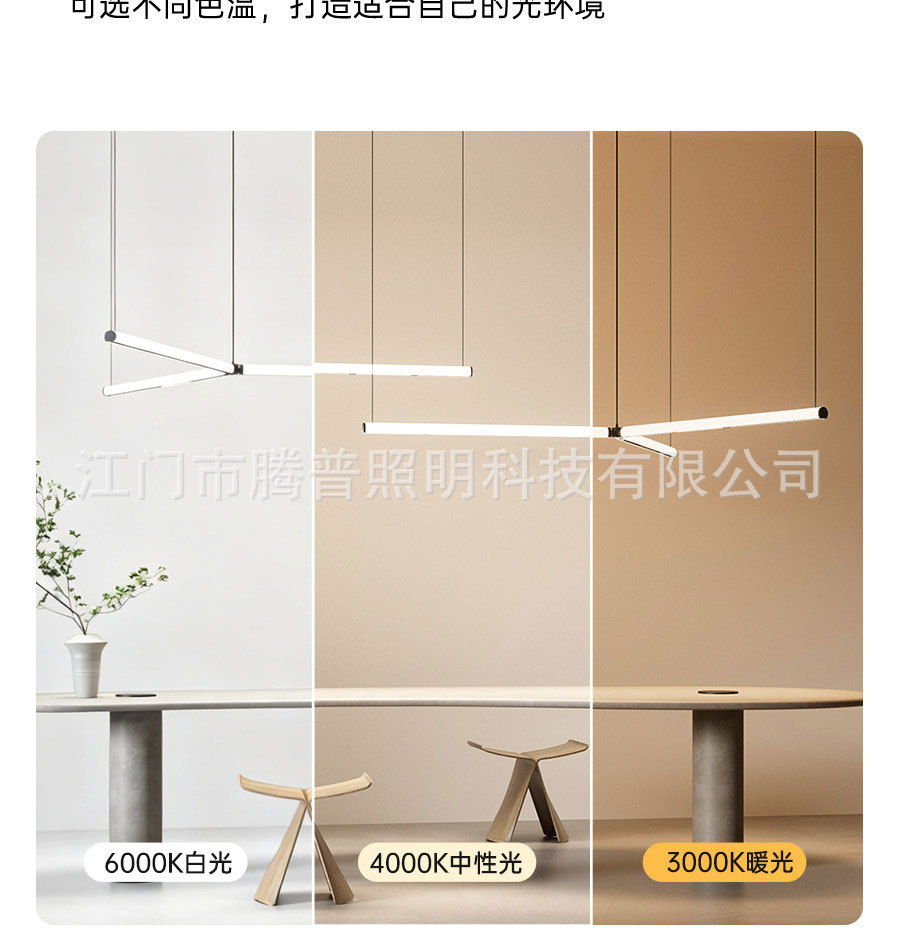

The integrated 5-DIP-switch control provides three selectable color temperatures: cool white 6000K, neutral white 4000K and warm white 3000K. Smart and 2-Smart modes can support dimming and color-temperature adjustment, with the option for coordinated control of the luminaire and glowing track or independent control of each lighting element. Optional 2.4G and Zigbee constant-voltage power supply solutions are available for smart lighting integration; configuration should be confirmed for the project.

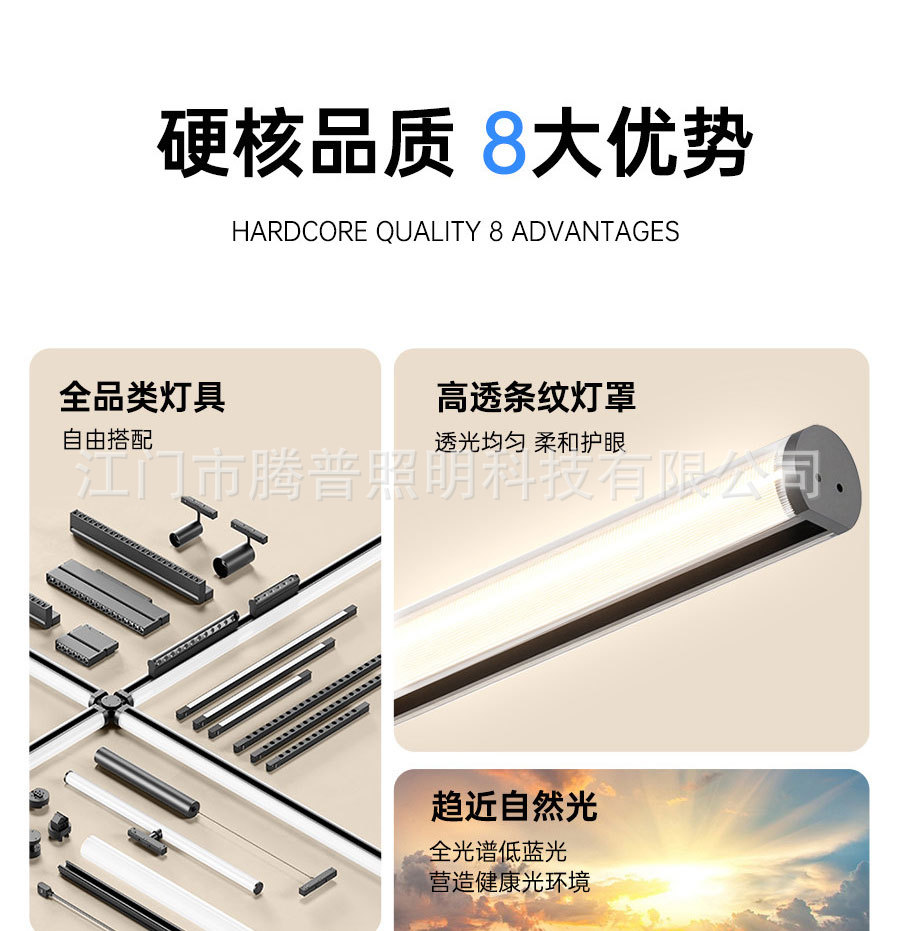

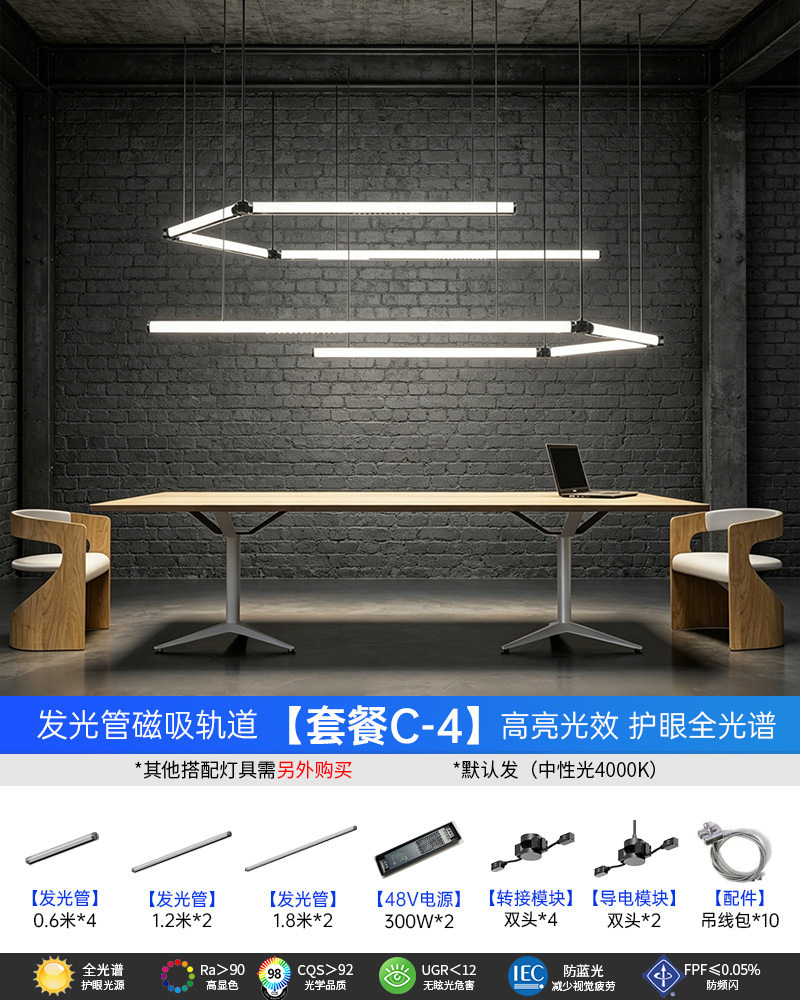

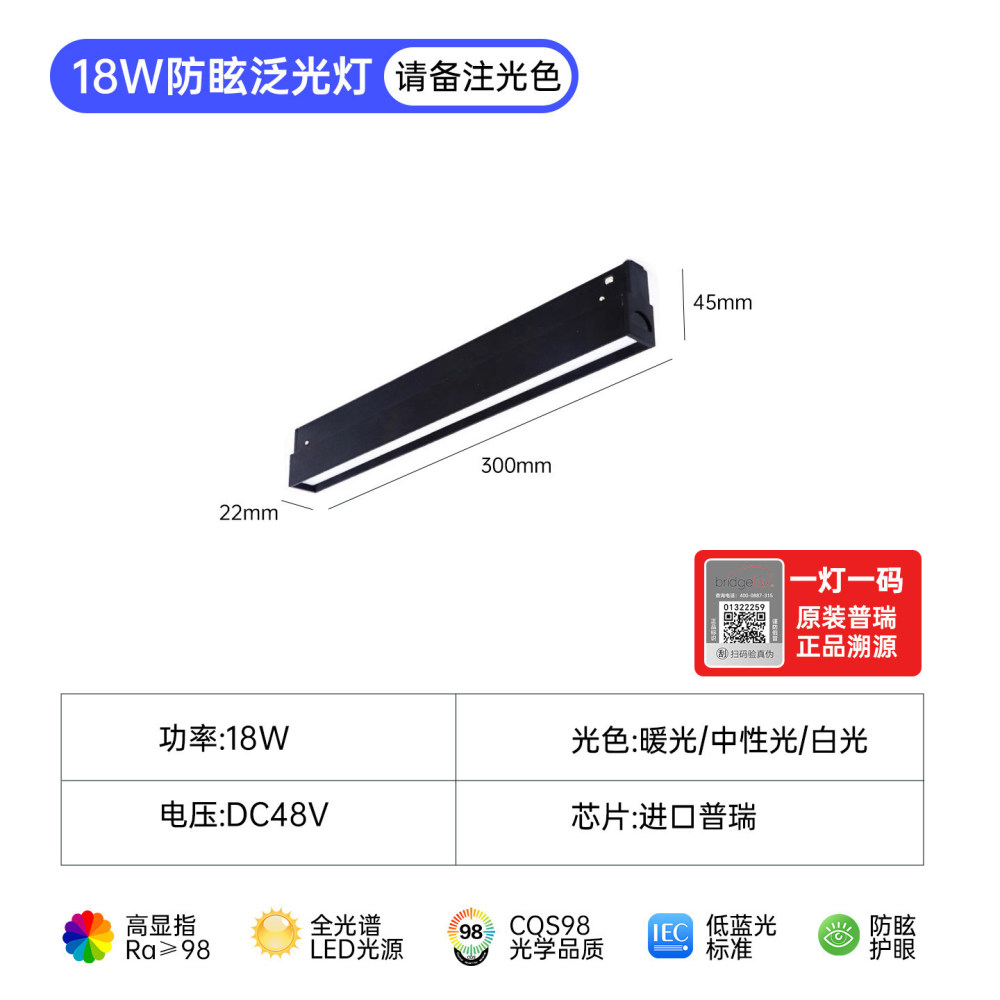

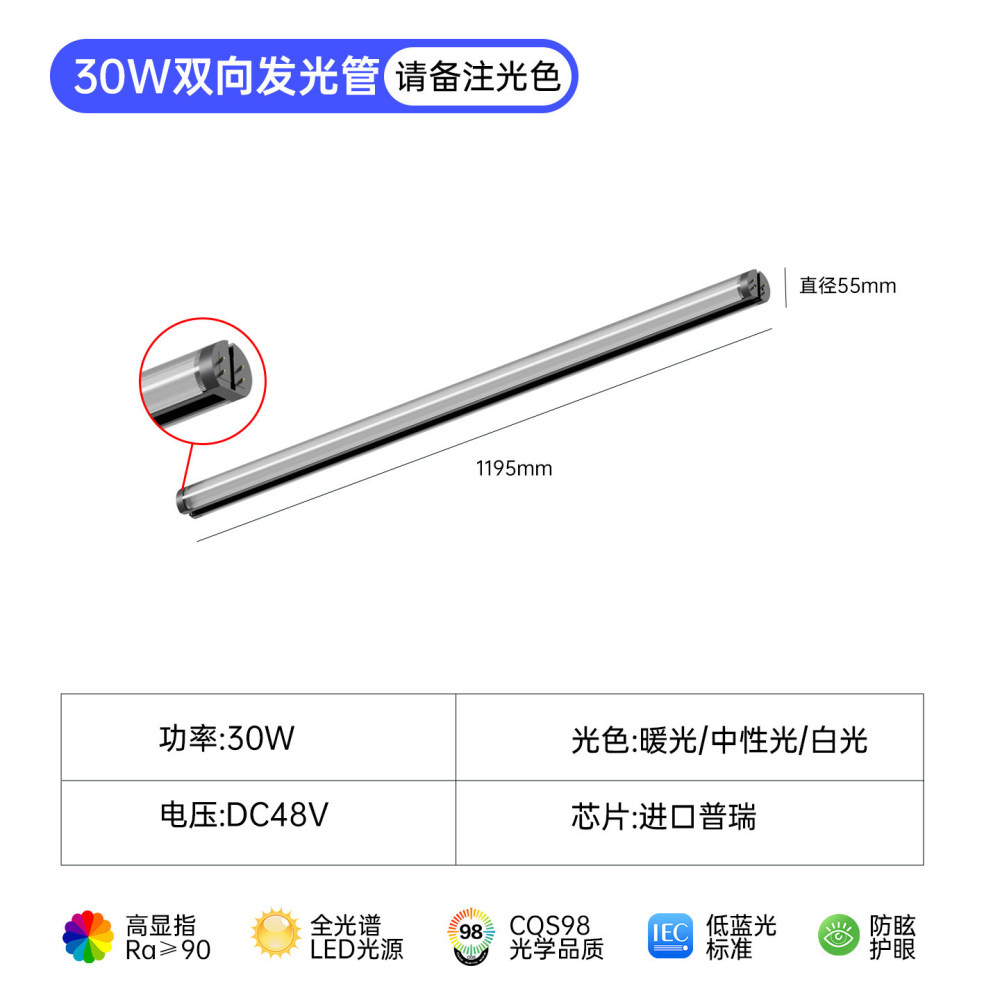

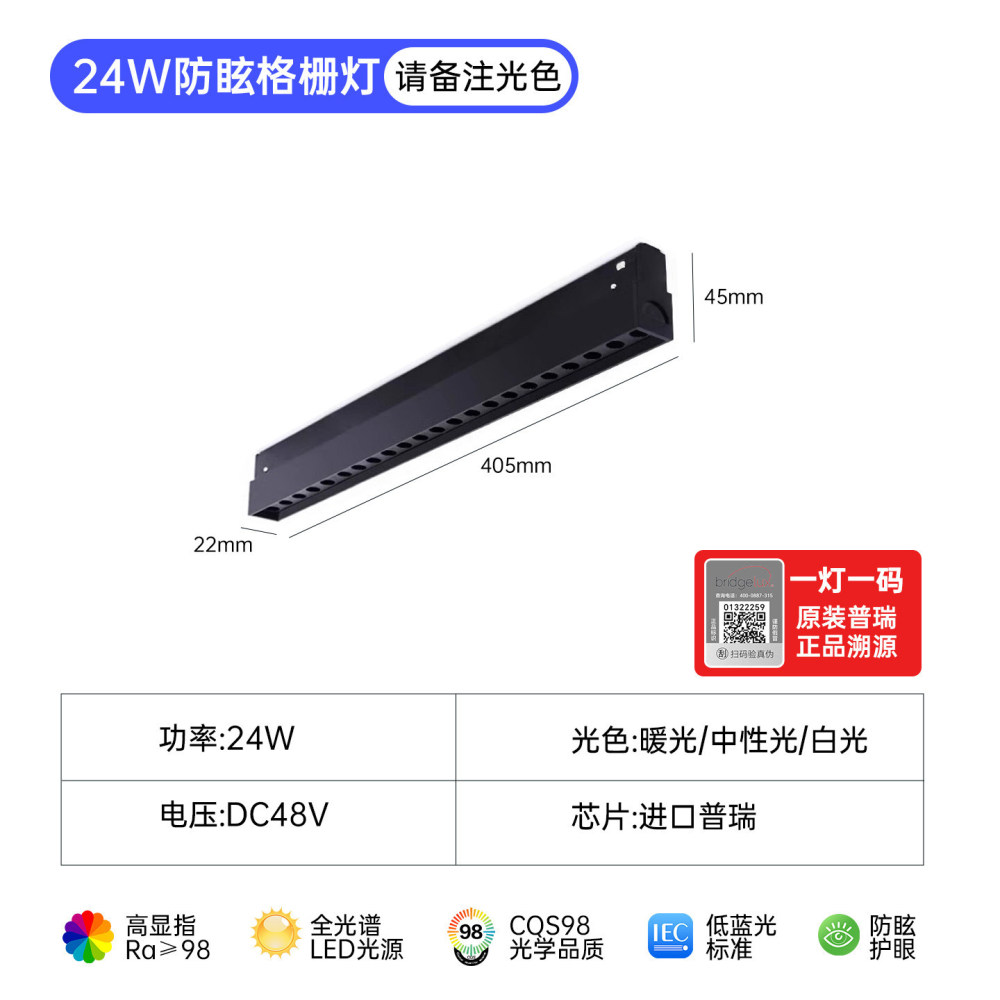

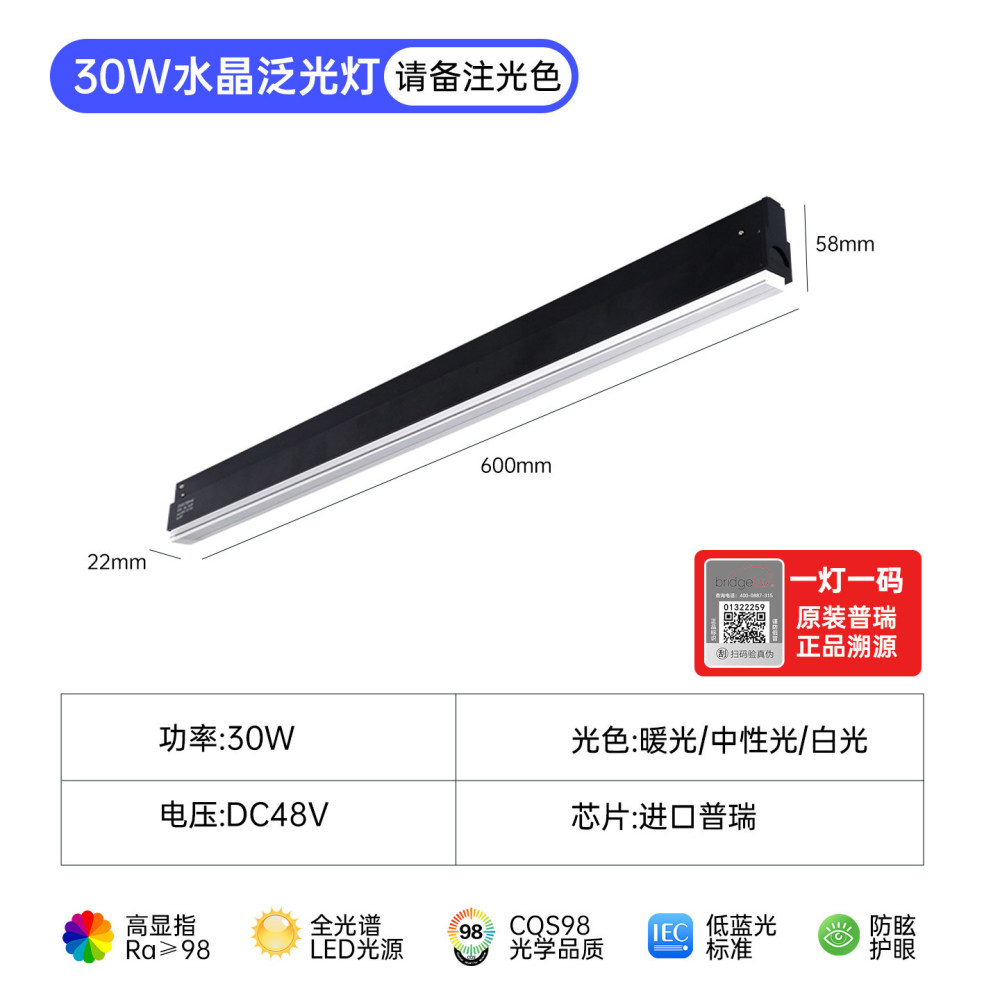

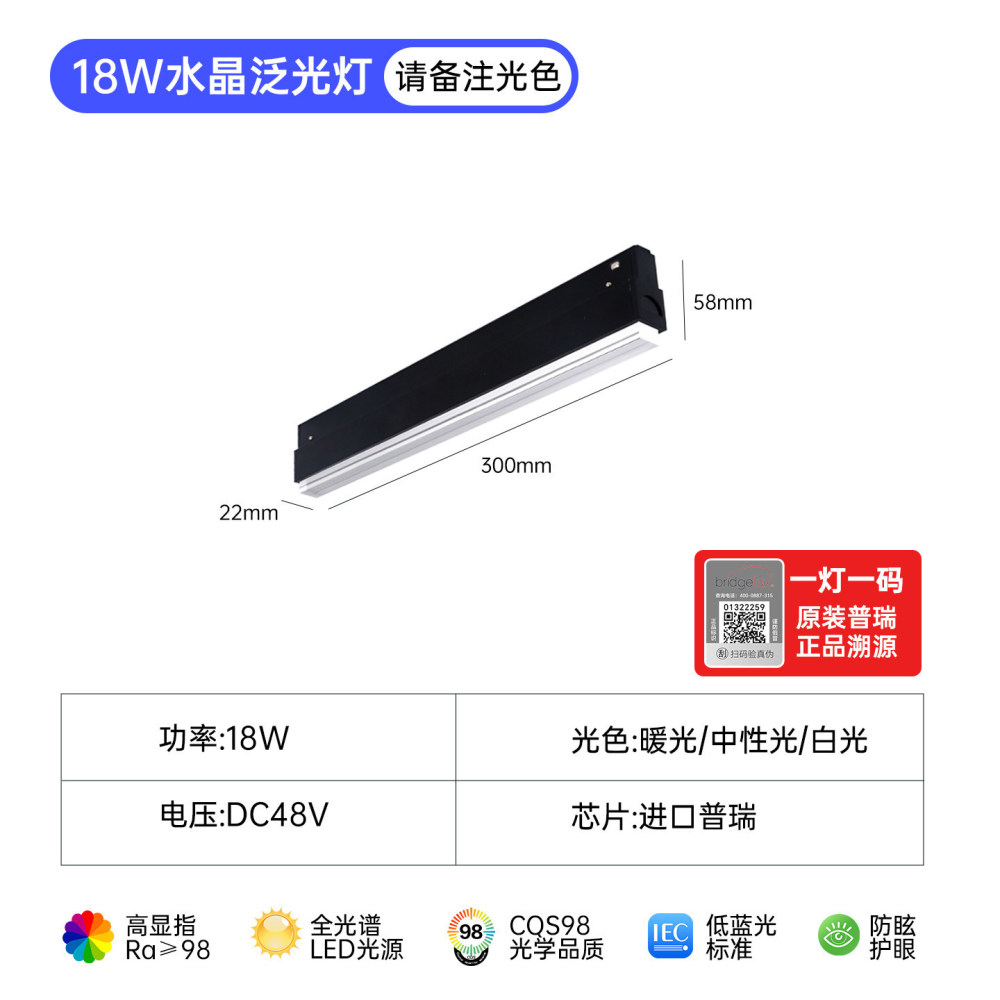

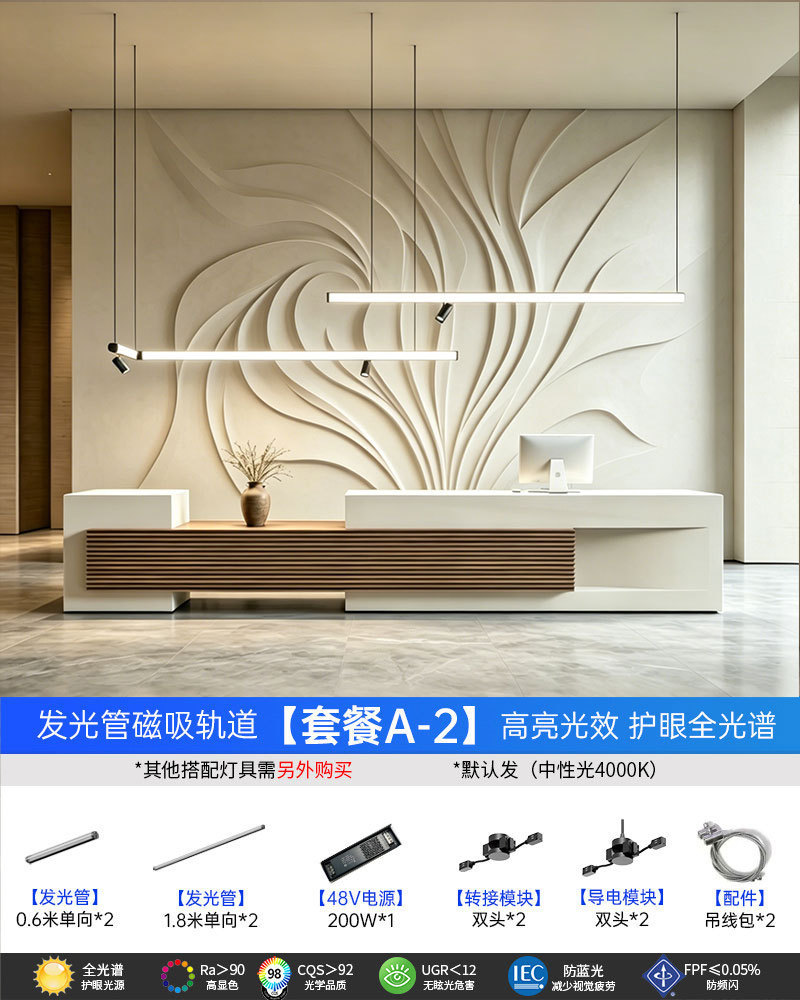

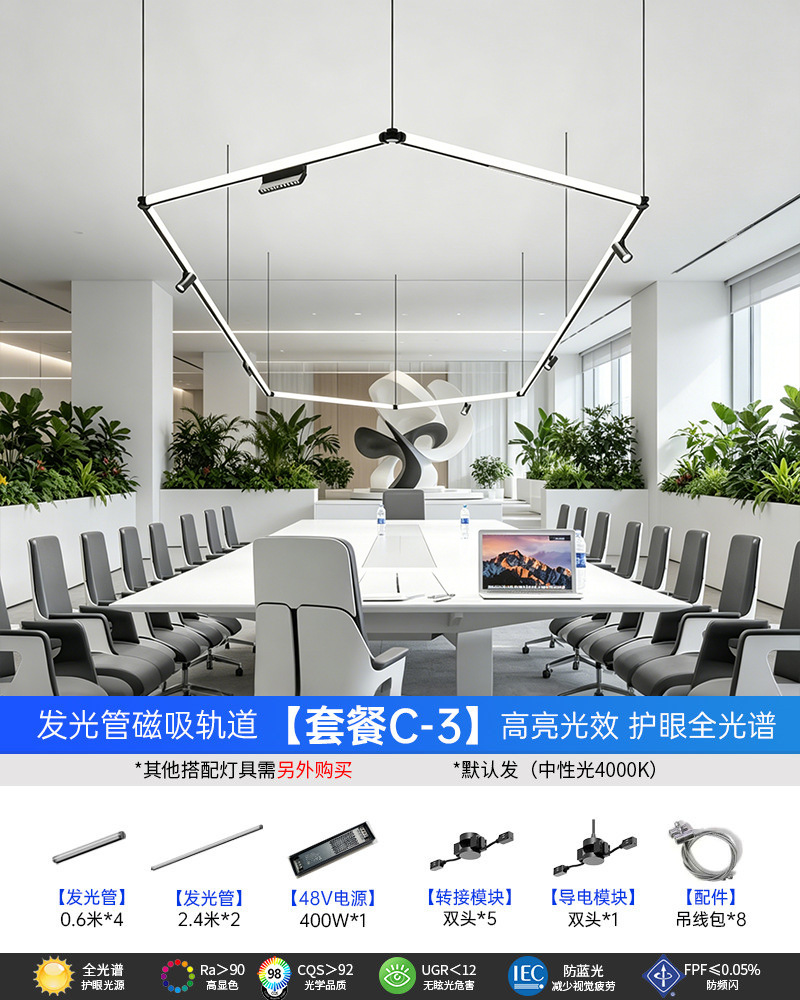

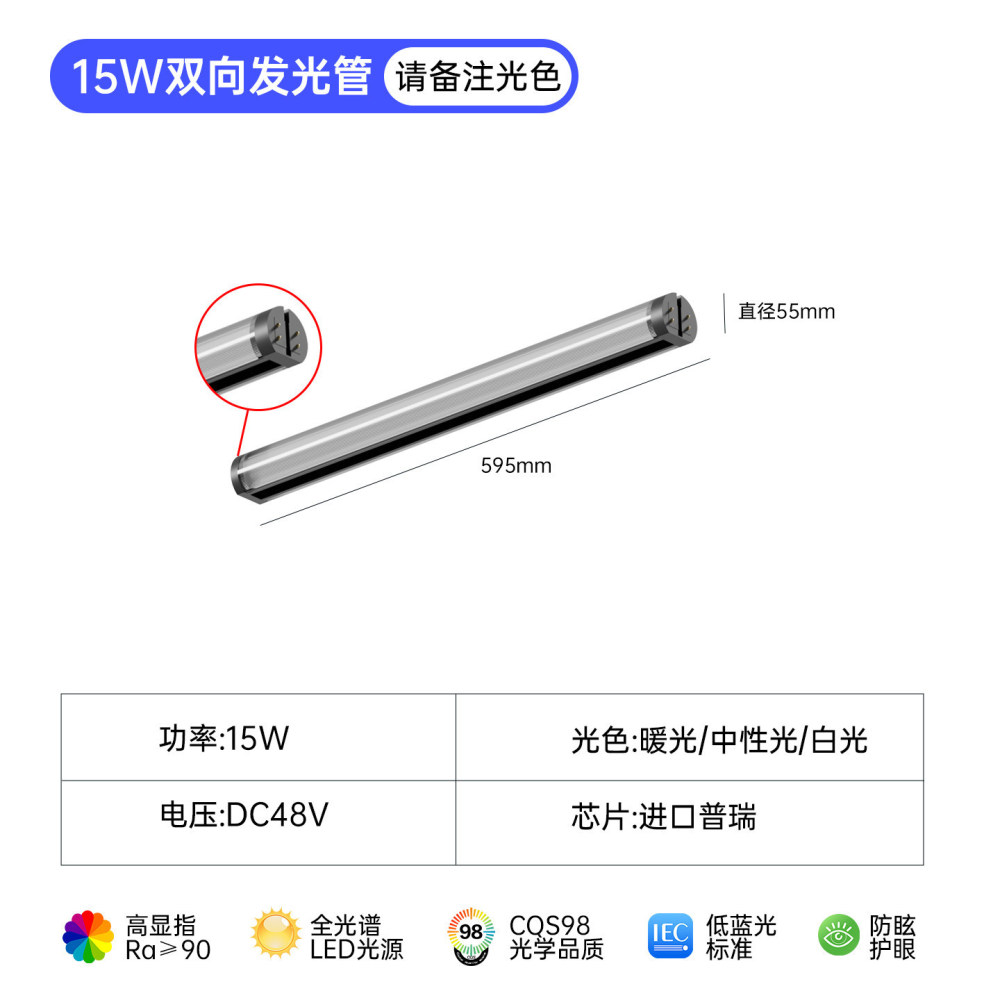

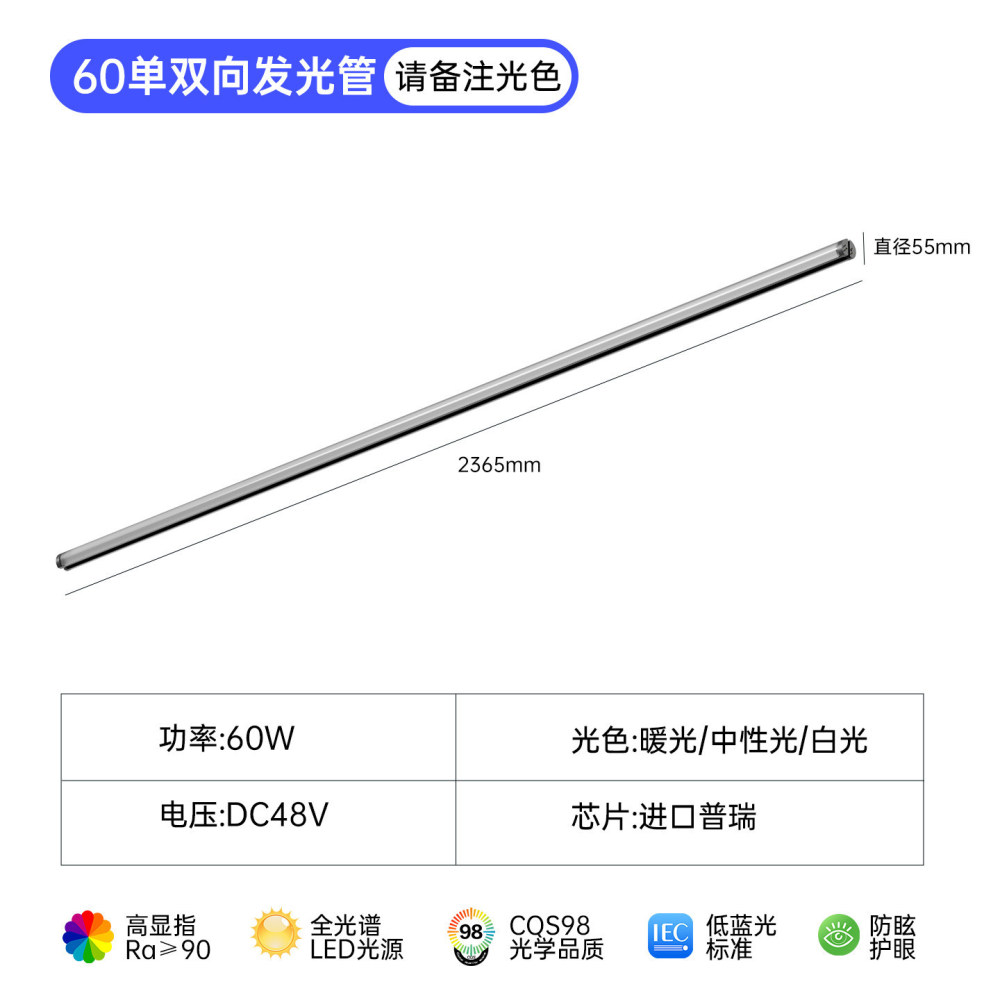

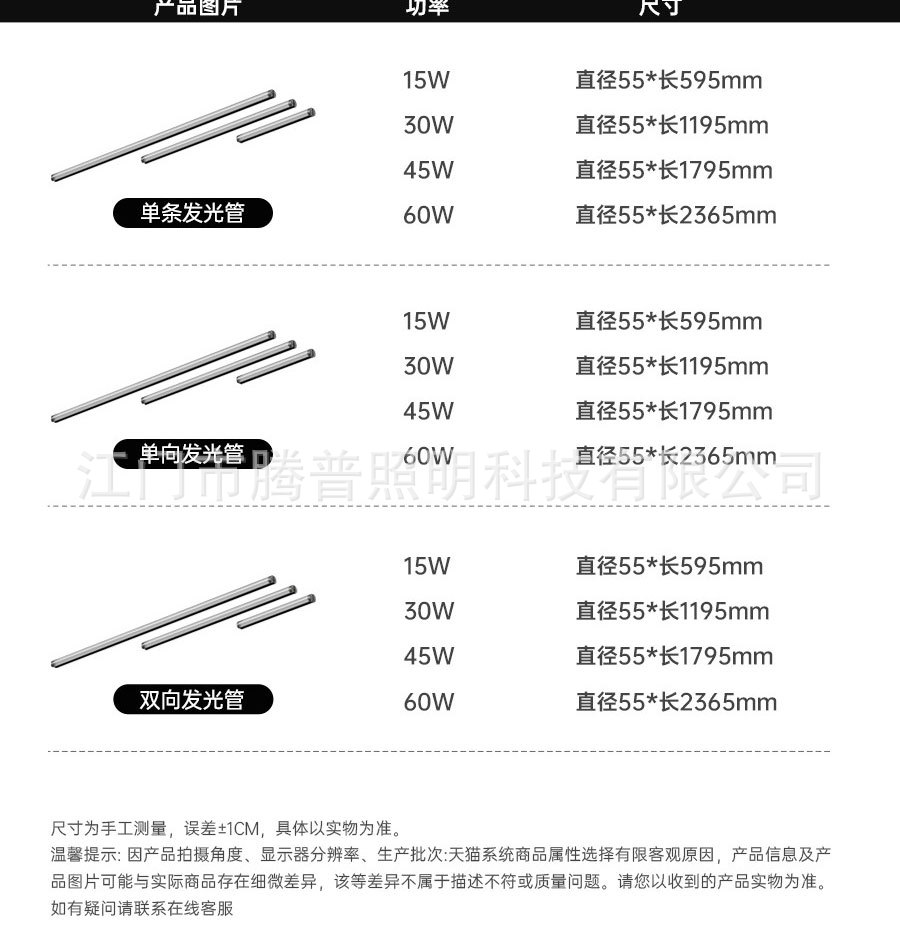

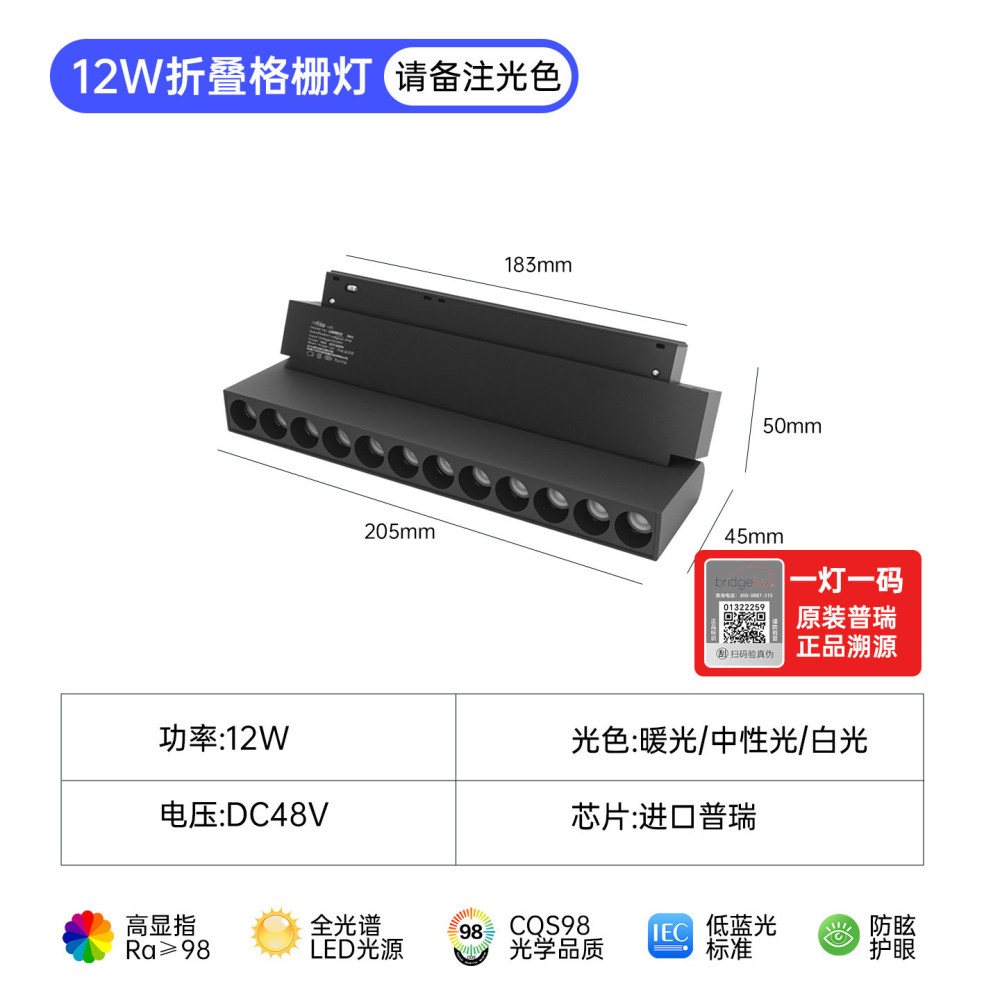

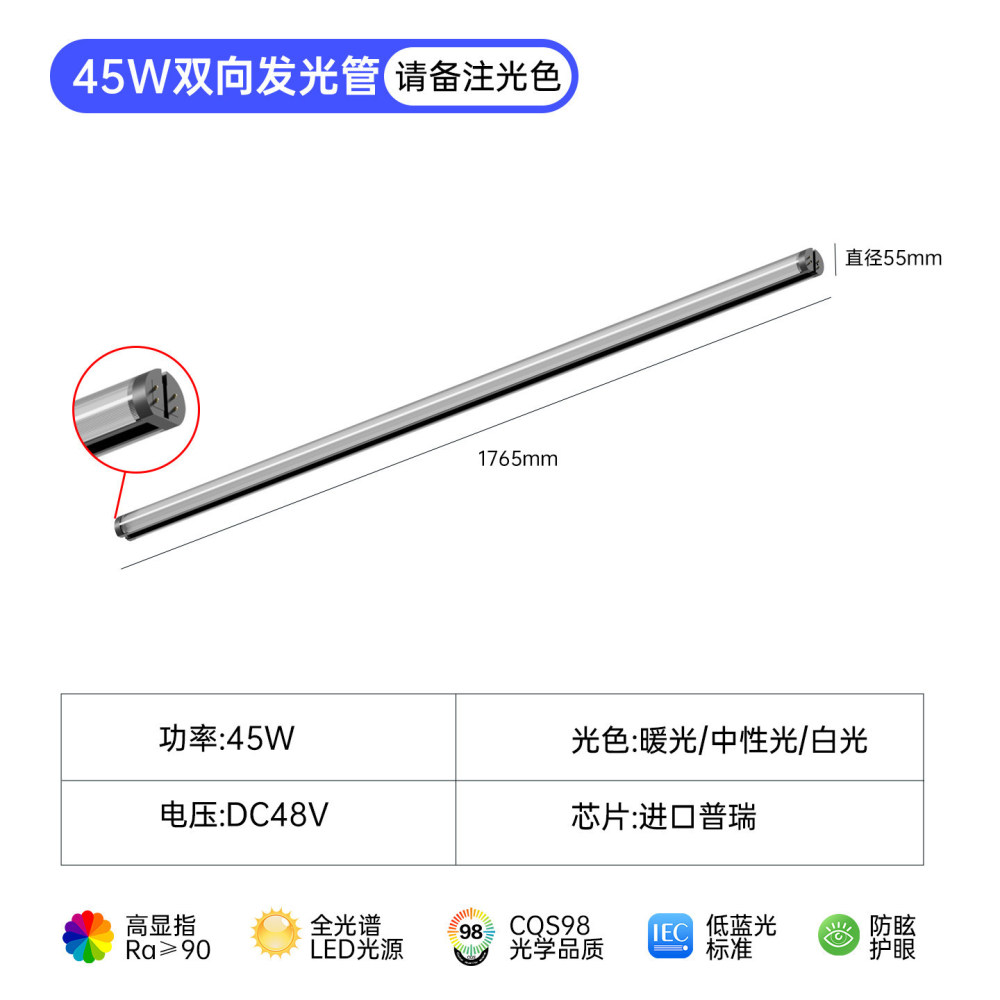

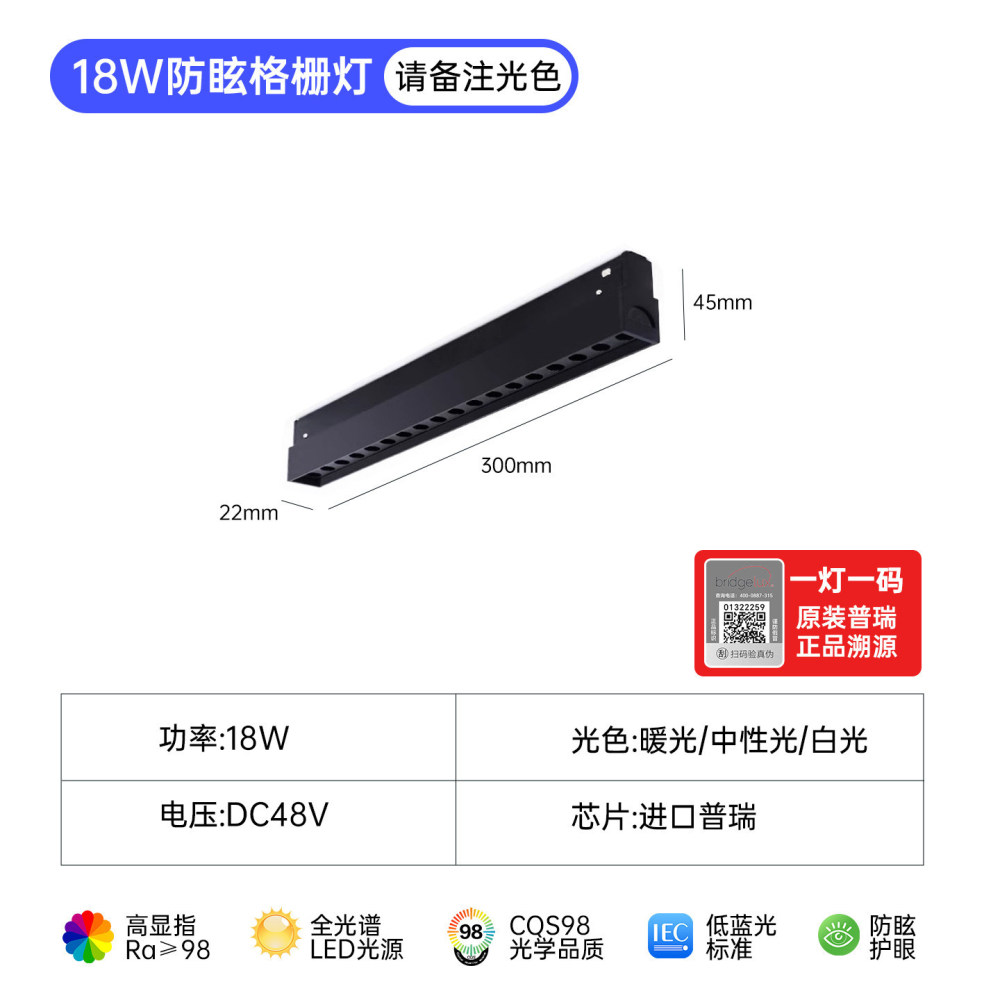

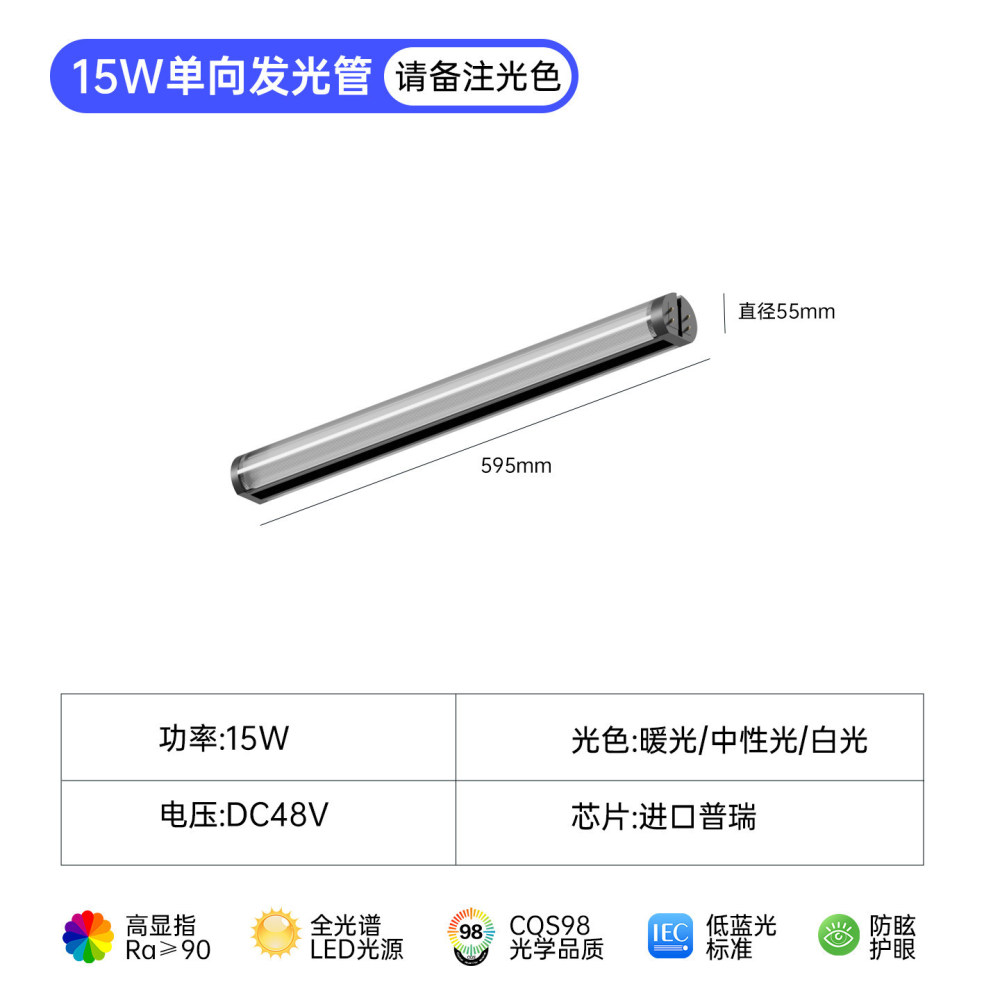

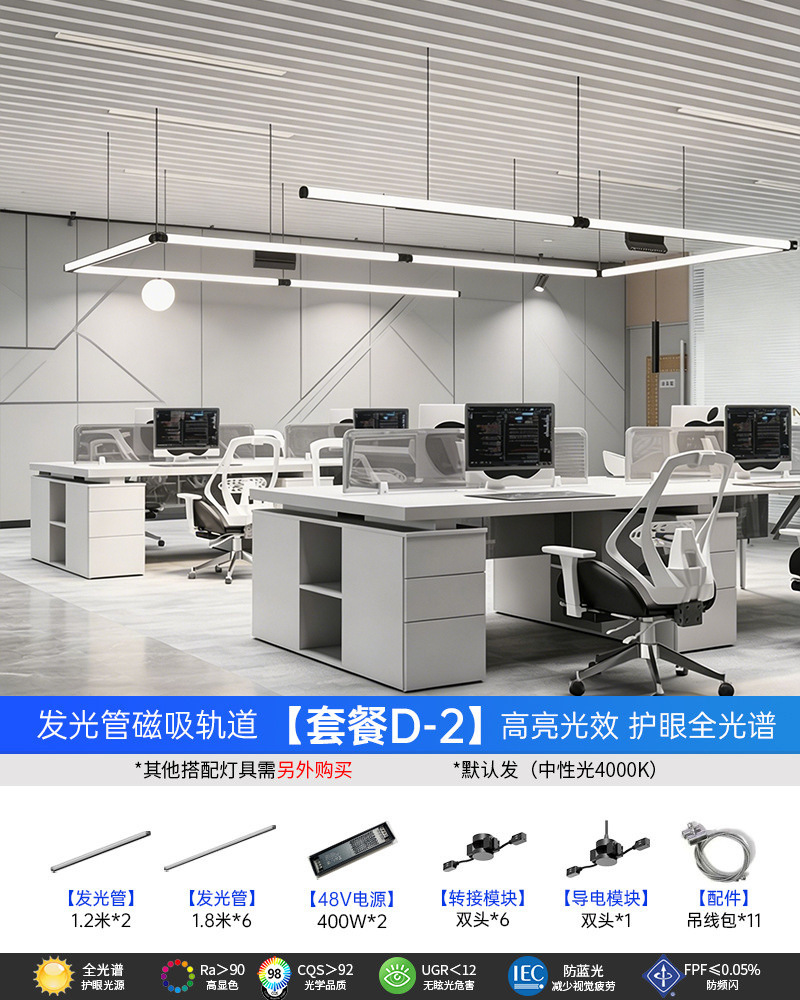

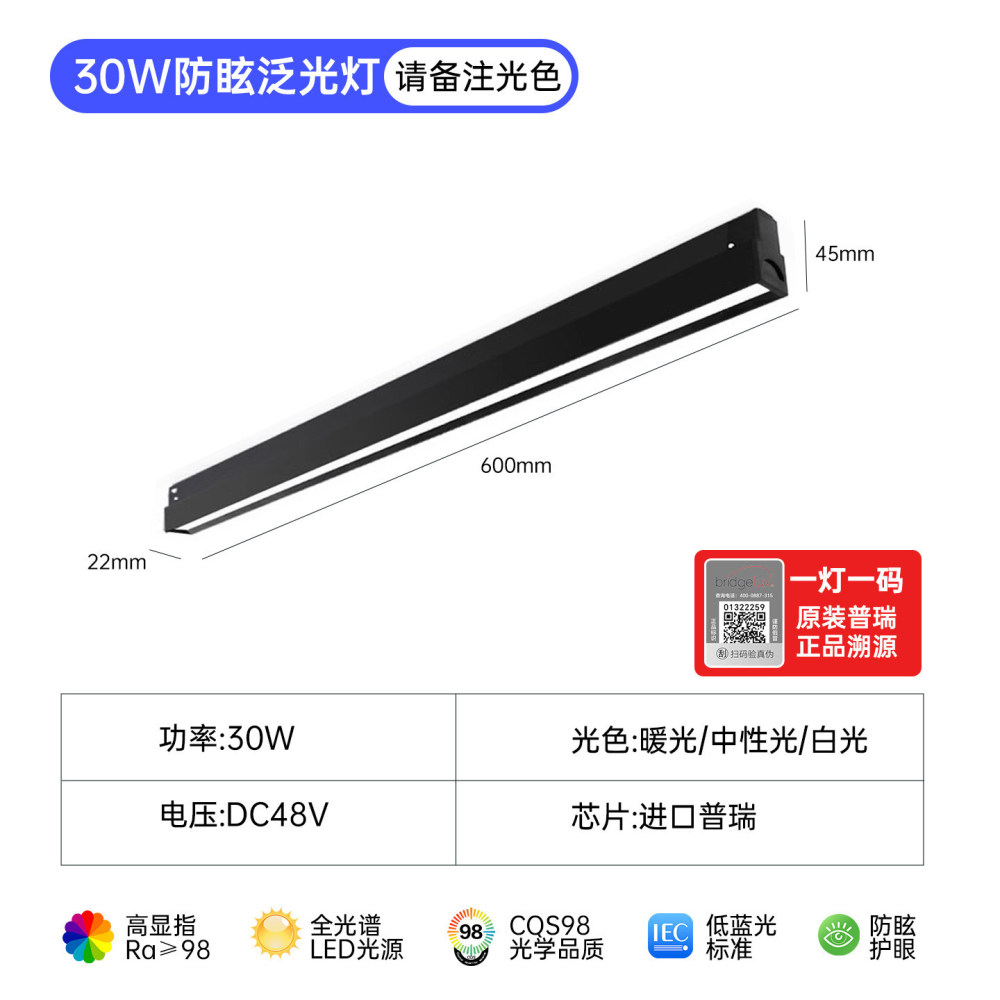

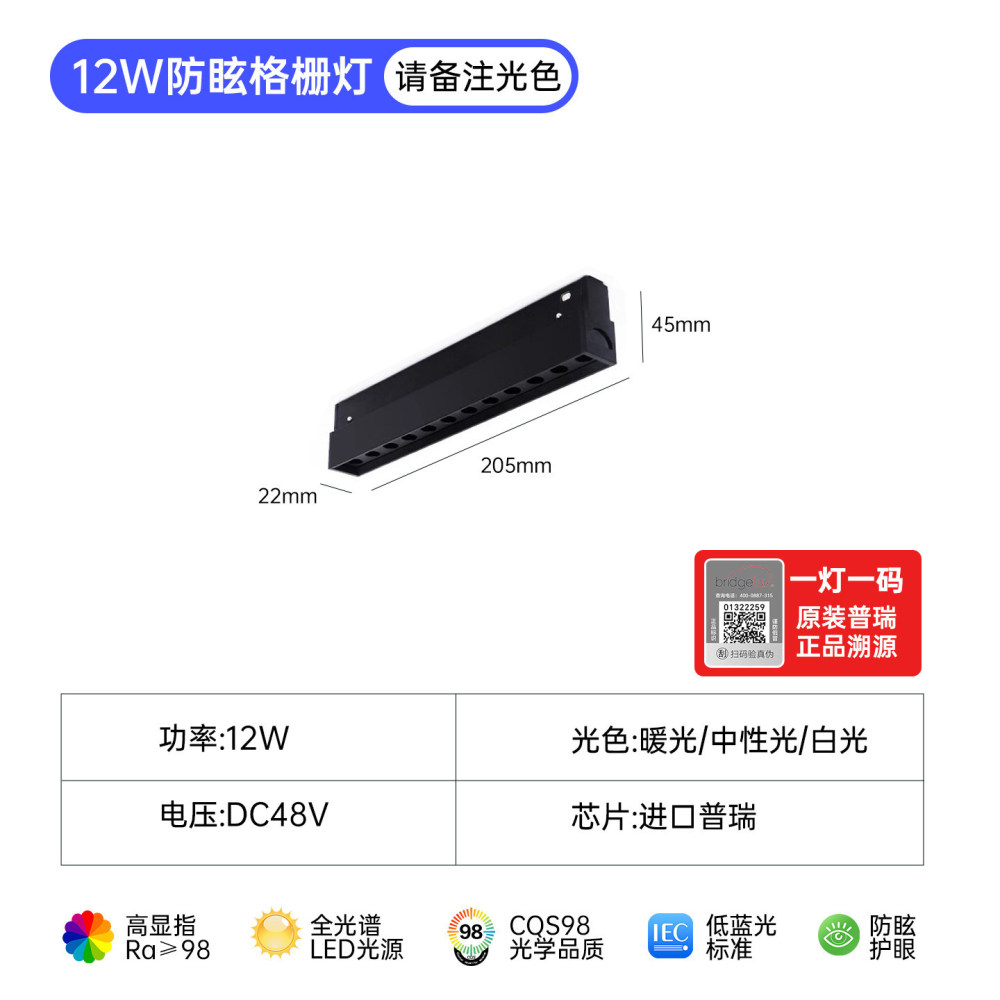

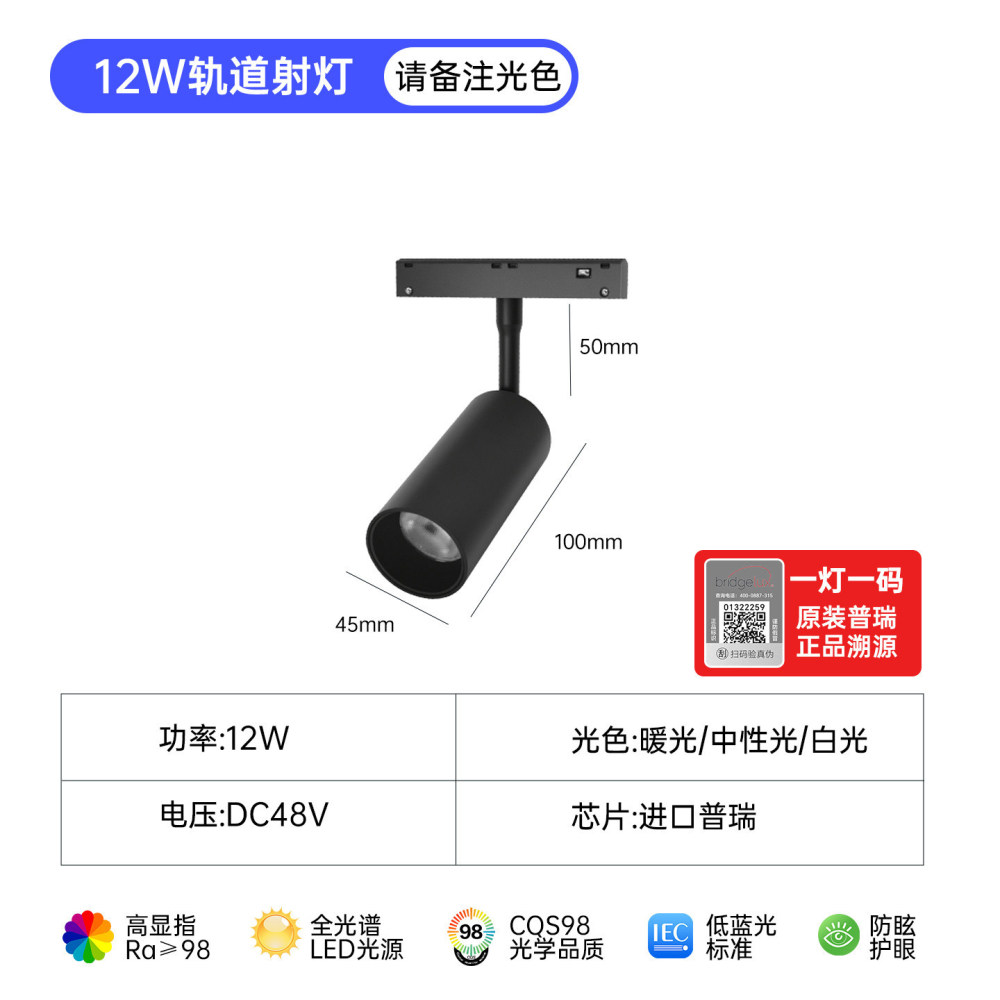

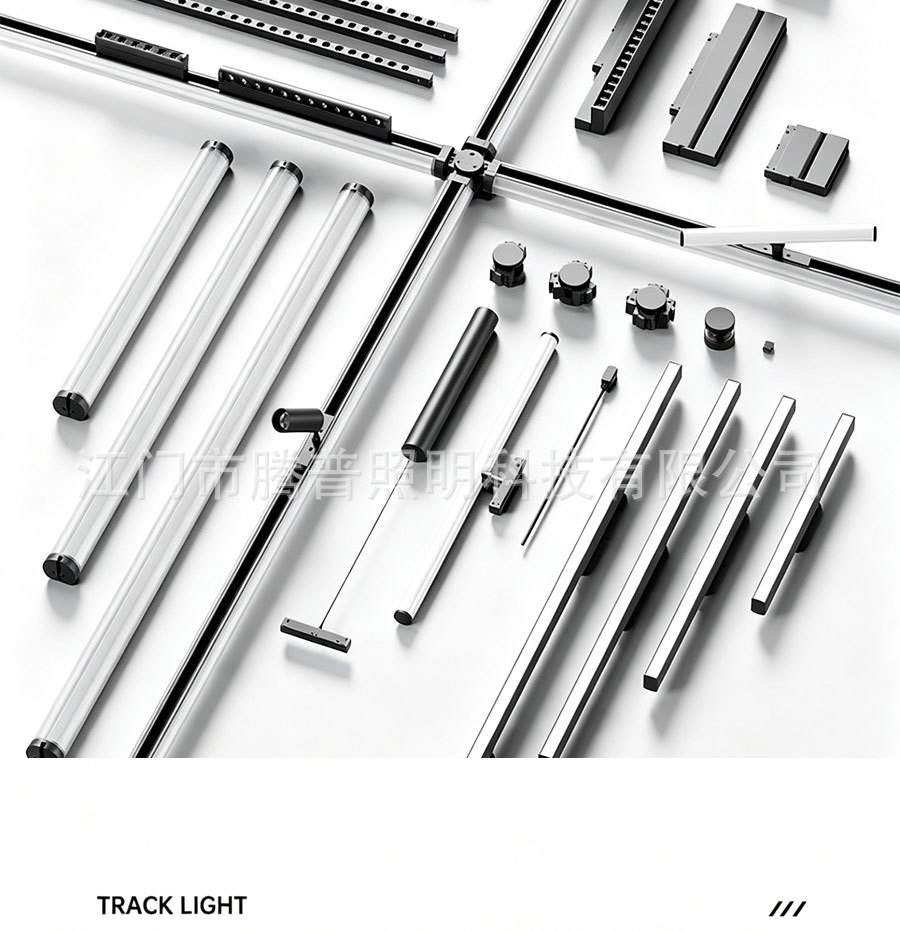

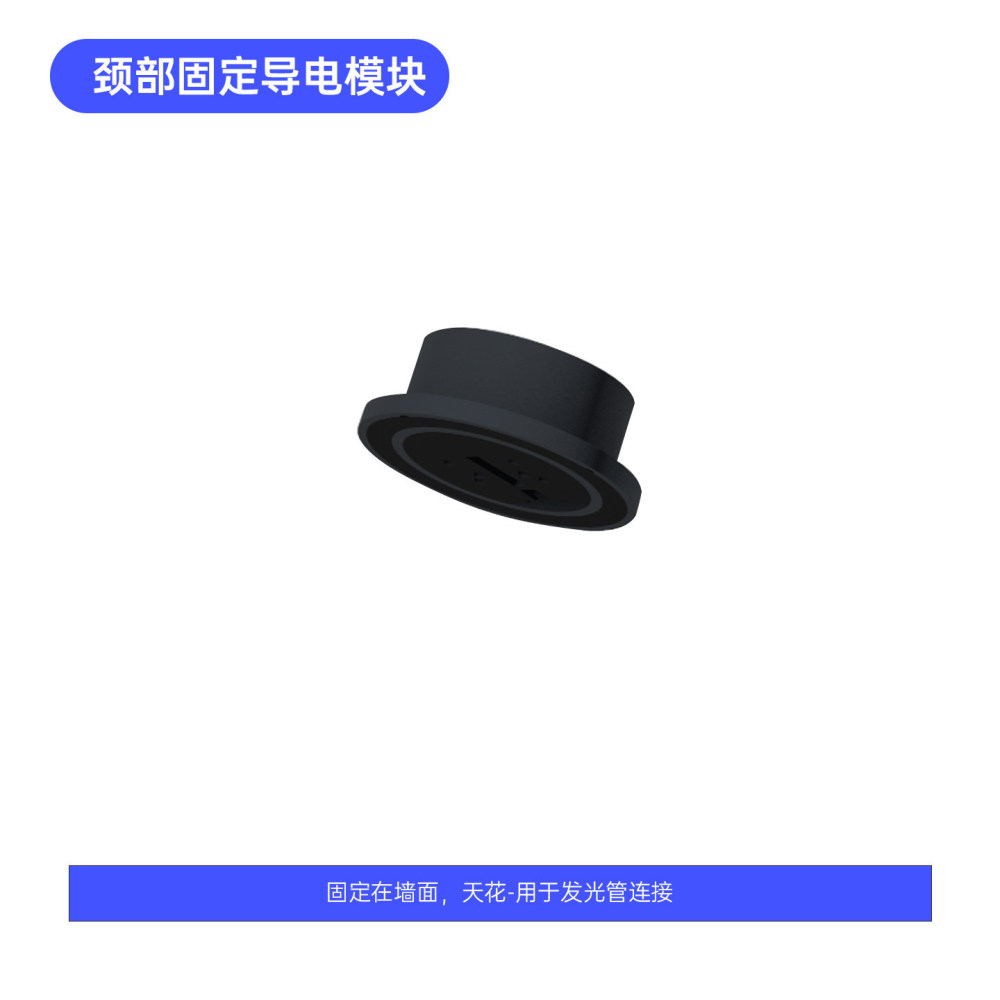

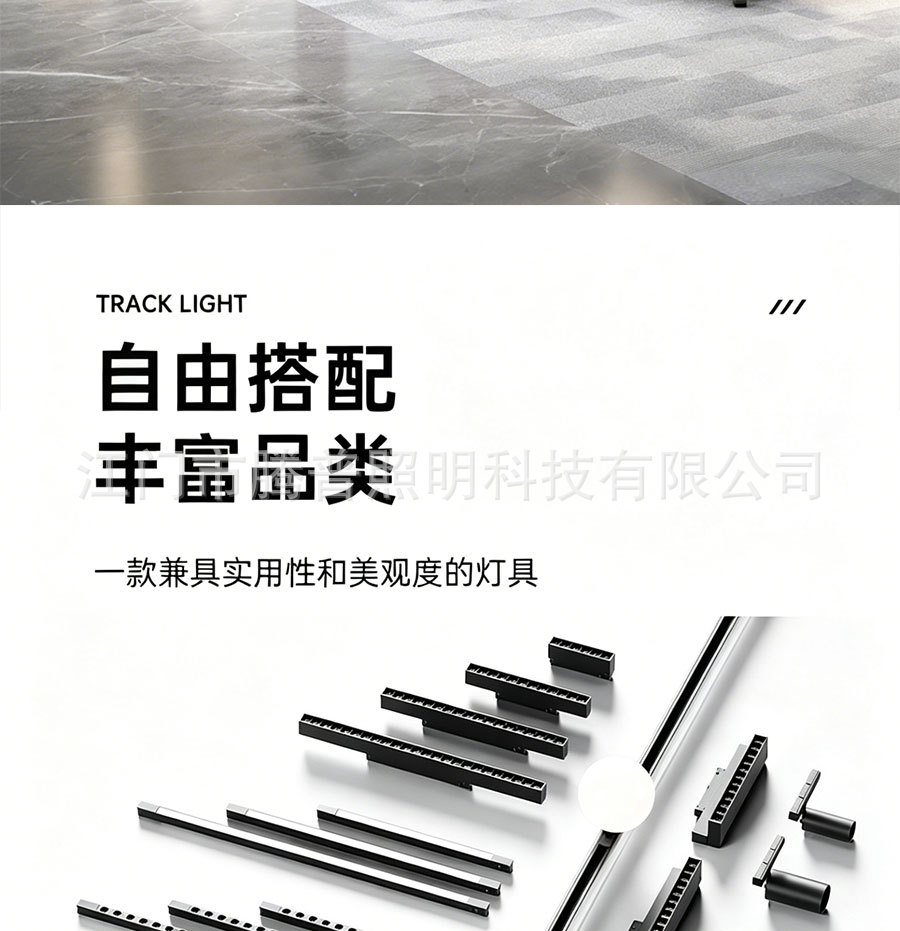

The system can be configured with 360° circular glowing track sections, track lights, line grille lamps, folding grille lamps, floodlights, focusing track lights, input modules, track plugs, suspension wire kits and exposed ceiling mounting accessories. Standard track lengths include 628 mm, 1208 mm and 1788 mm, with corresponding power ratings of 14W, 28W and 42W. A 1500 mm suspension wire kit supports pendant installation, while exposed ceiling accessories support surface-mounted applications.

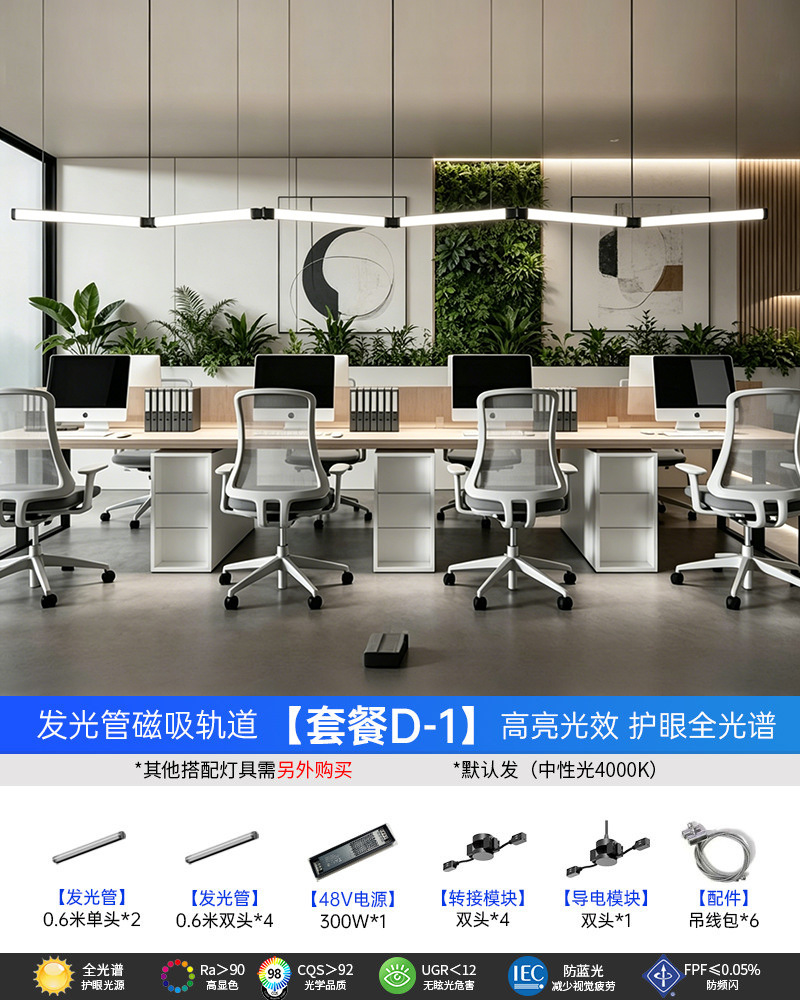

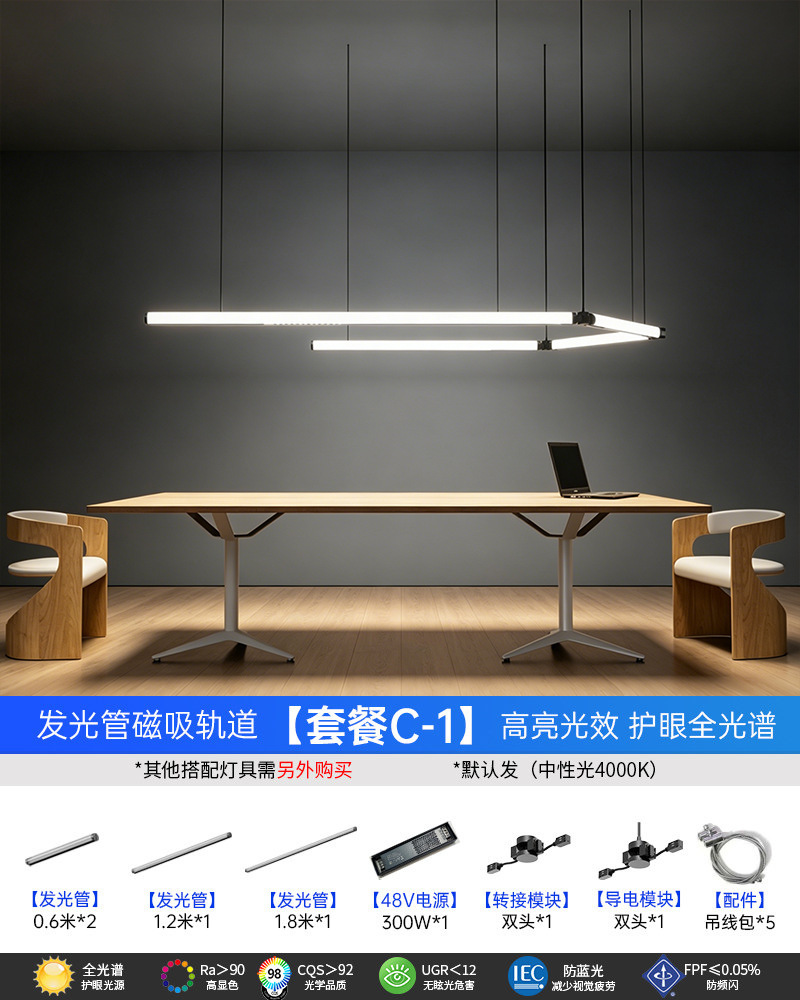

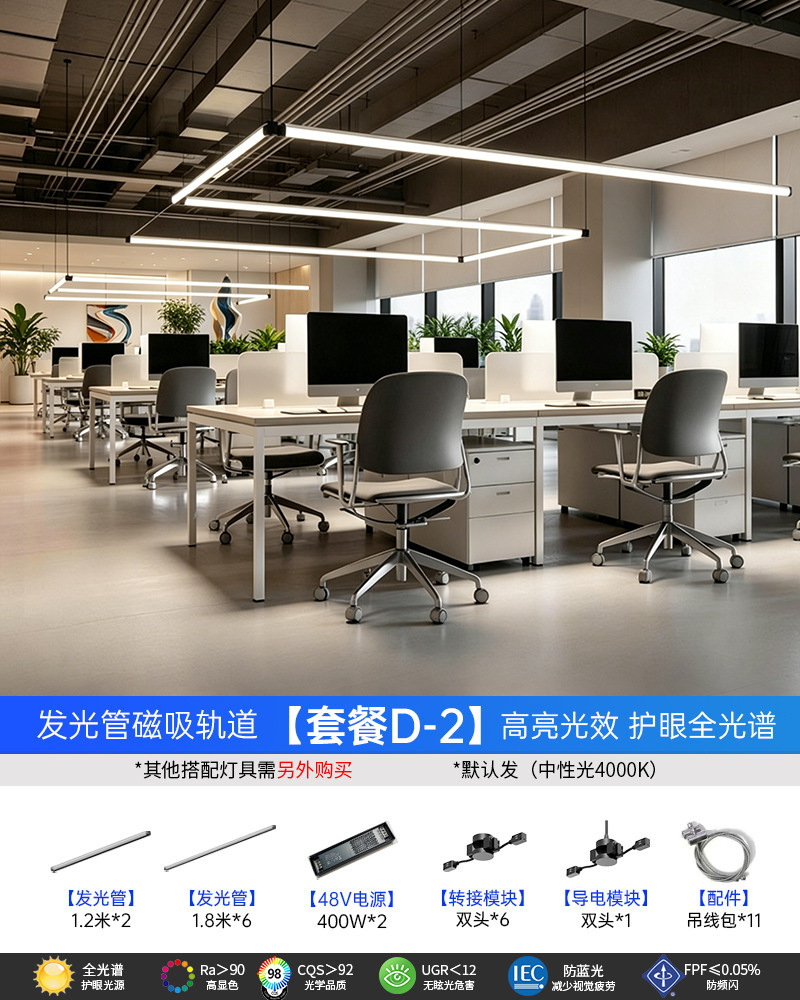

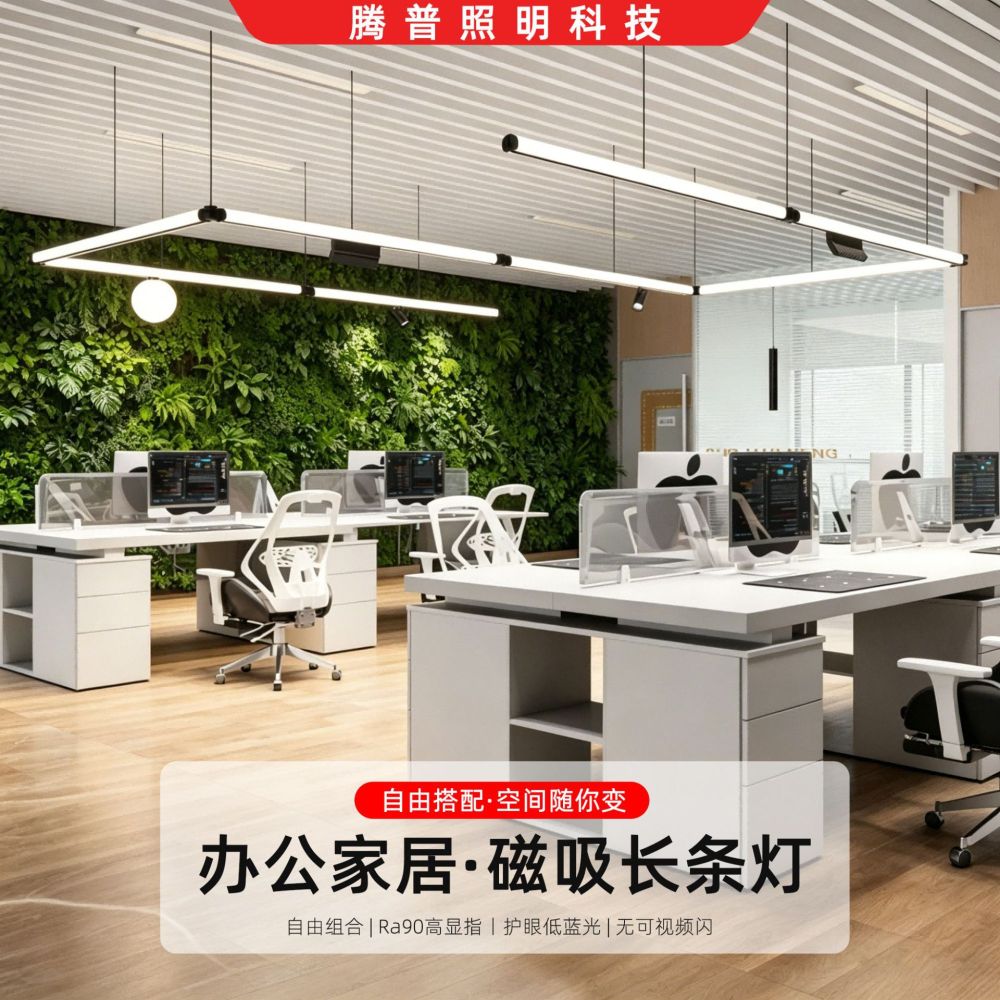

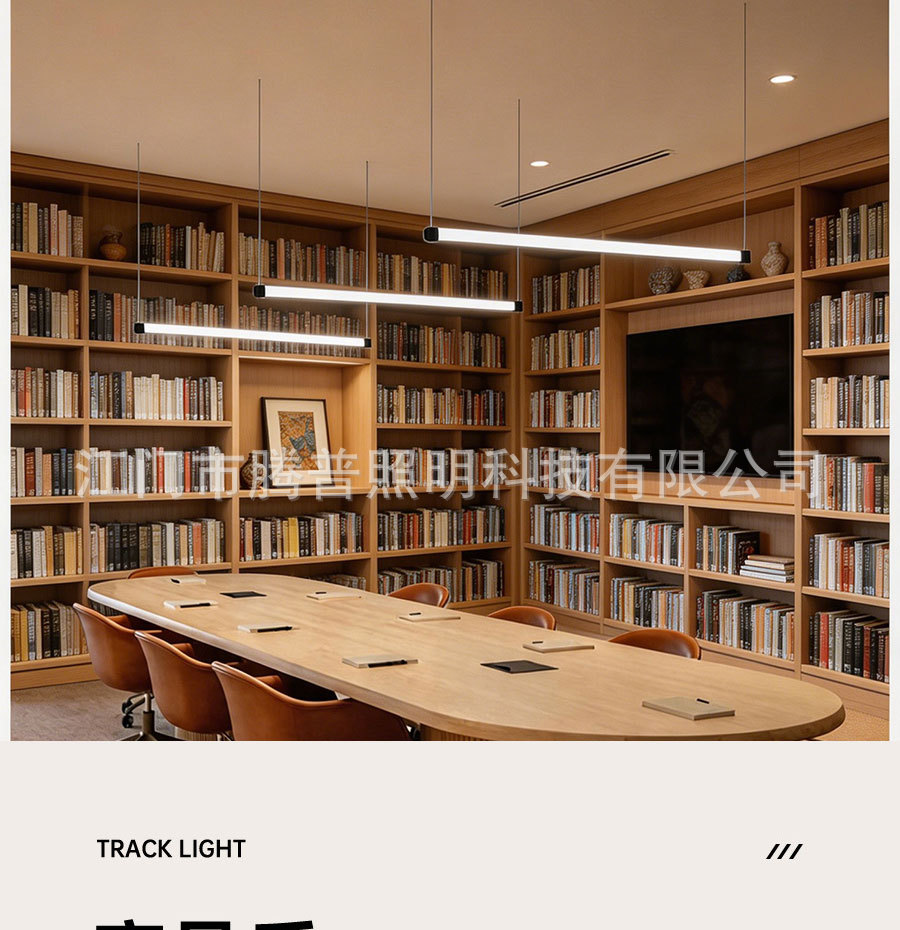

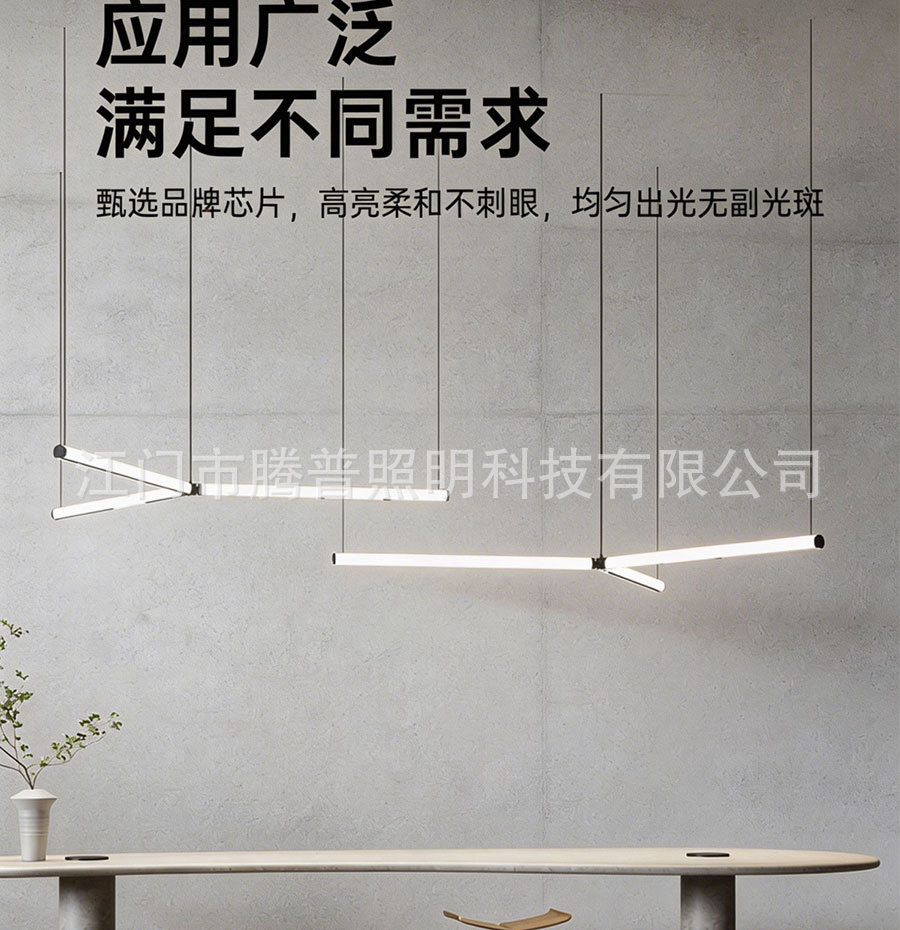

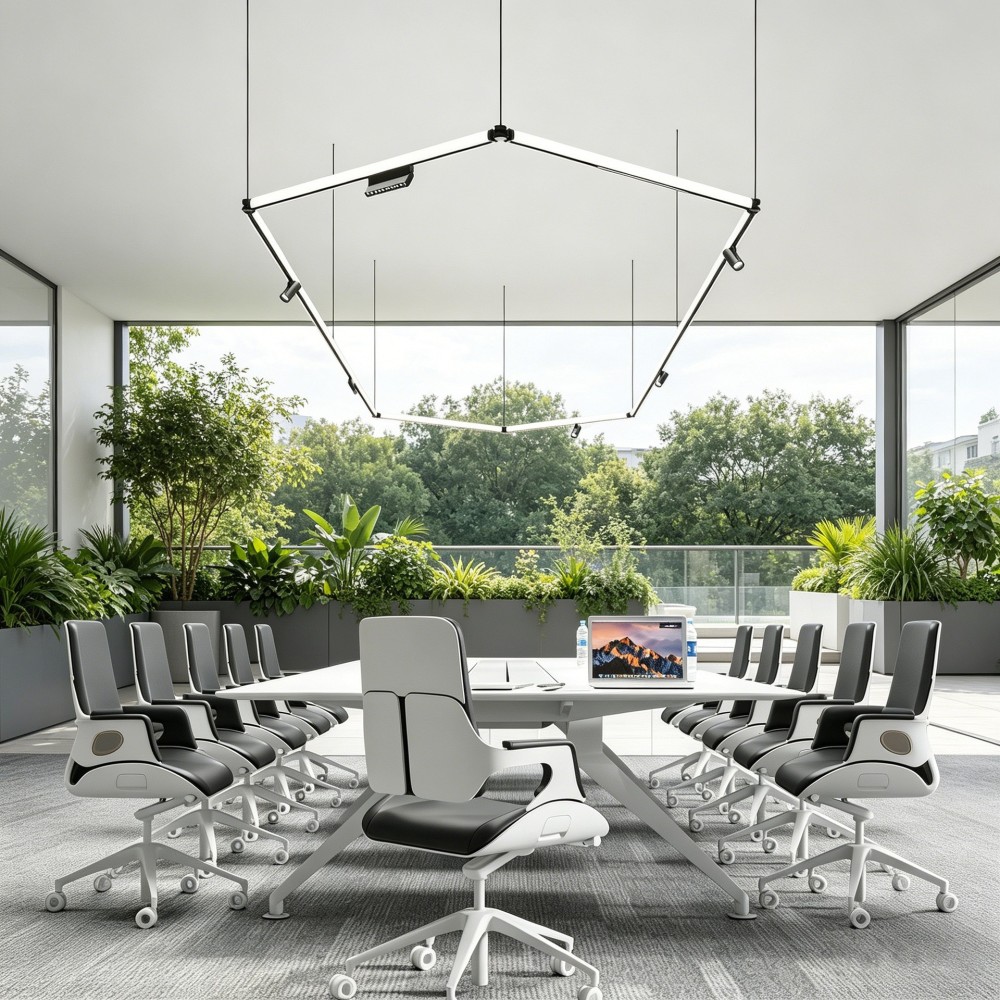

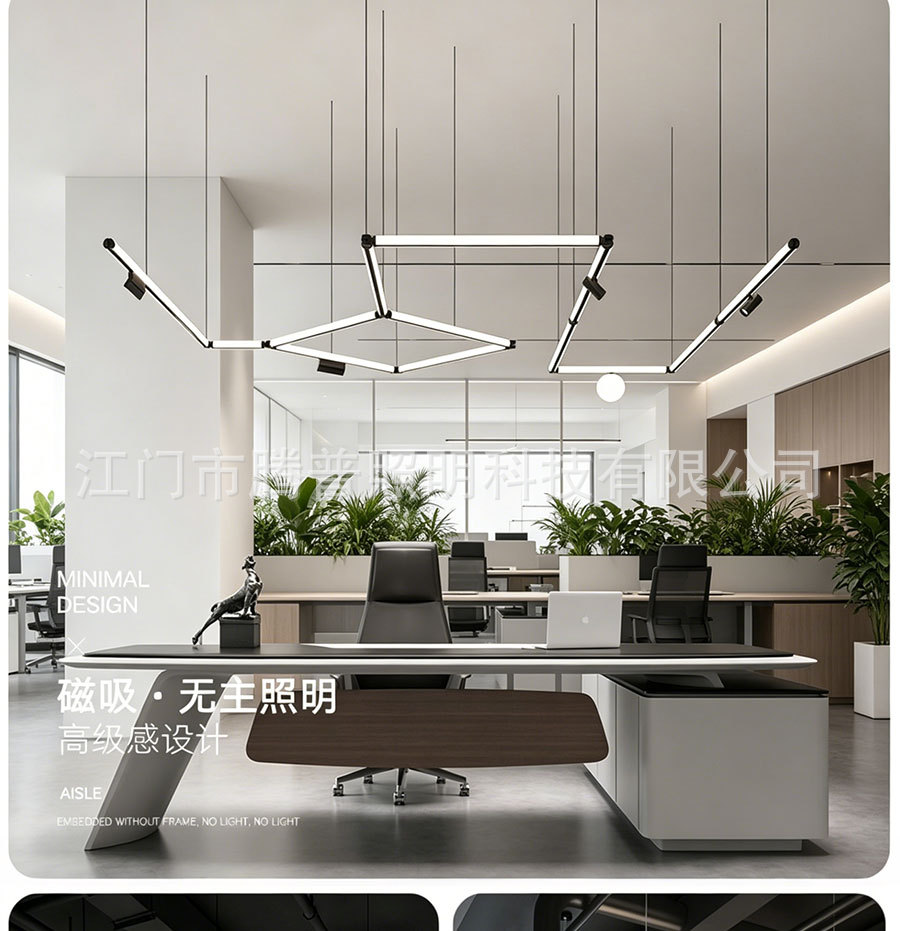

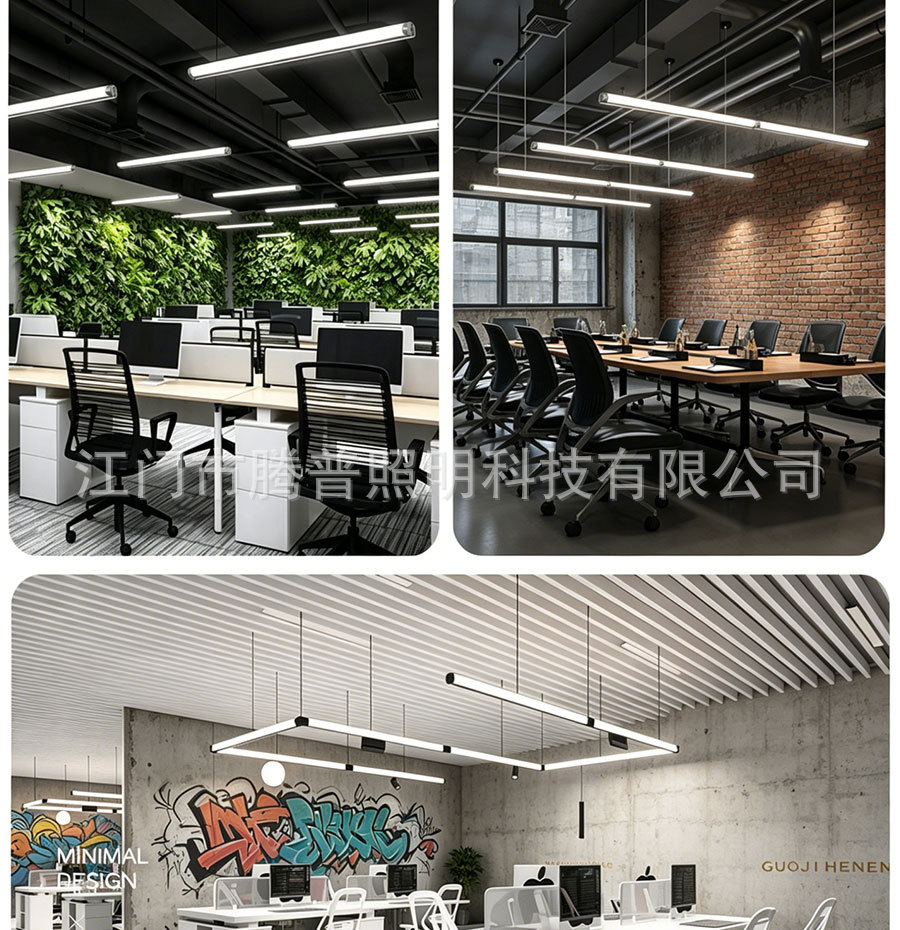

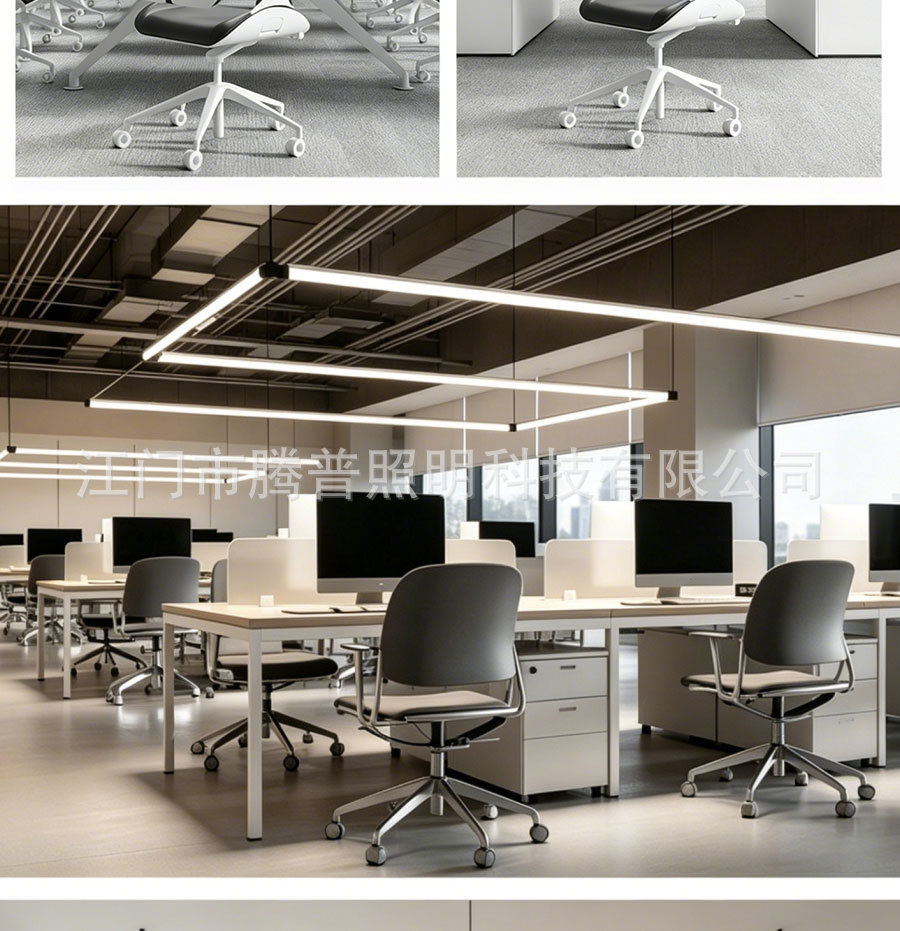

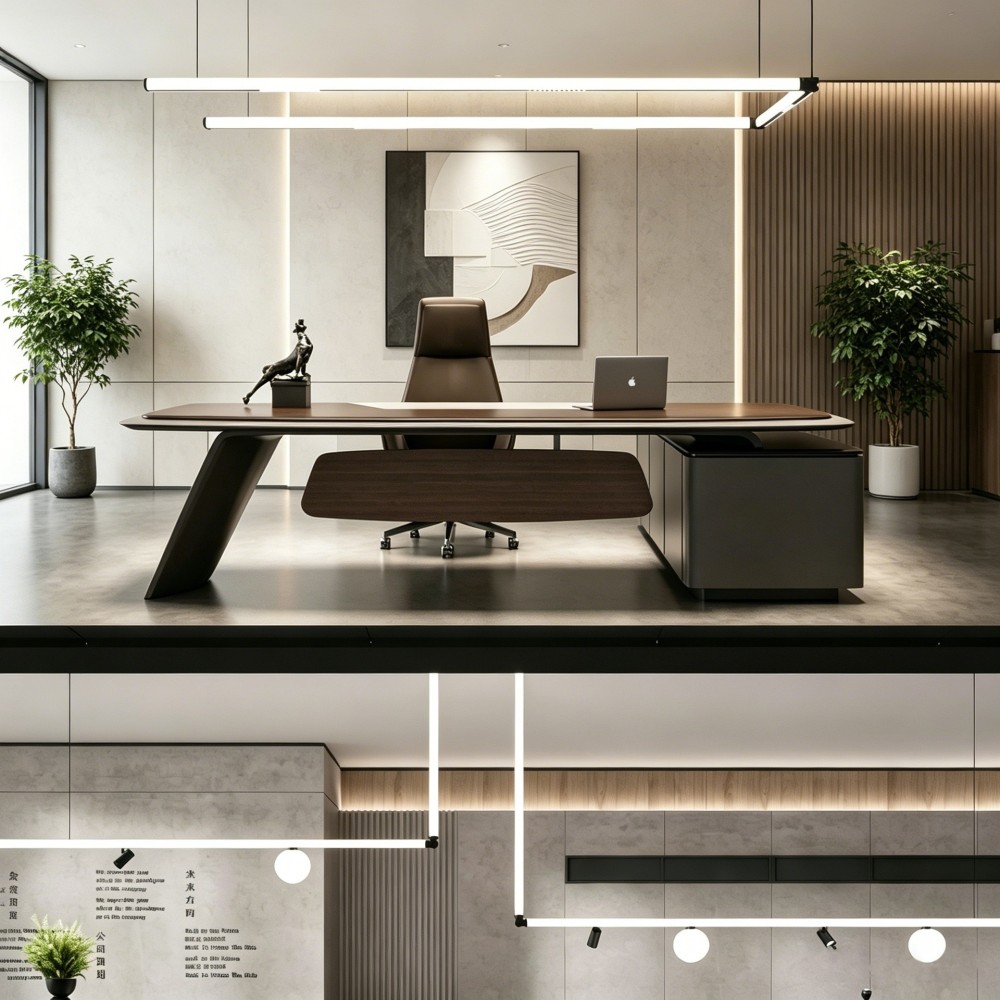

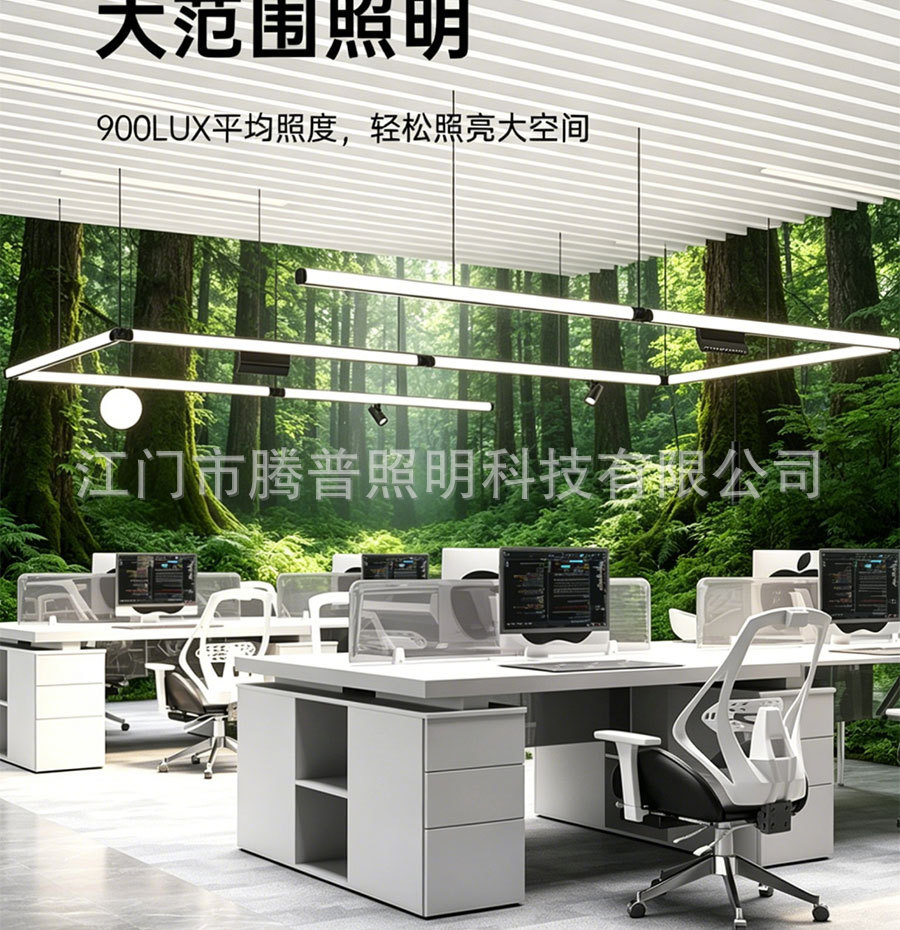

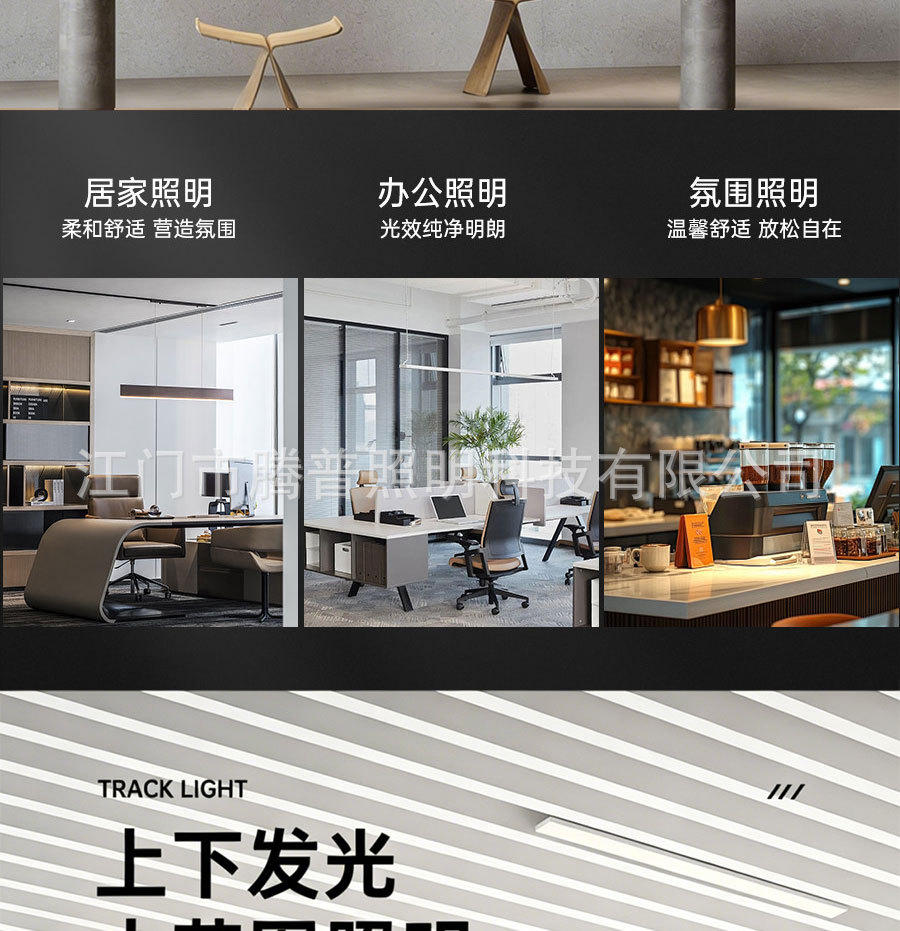

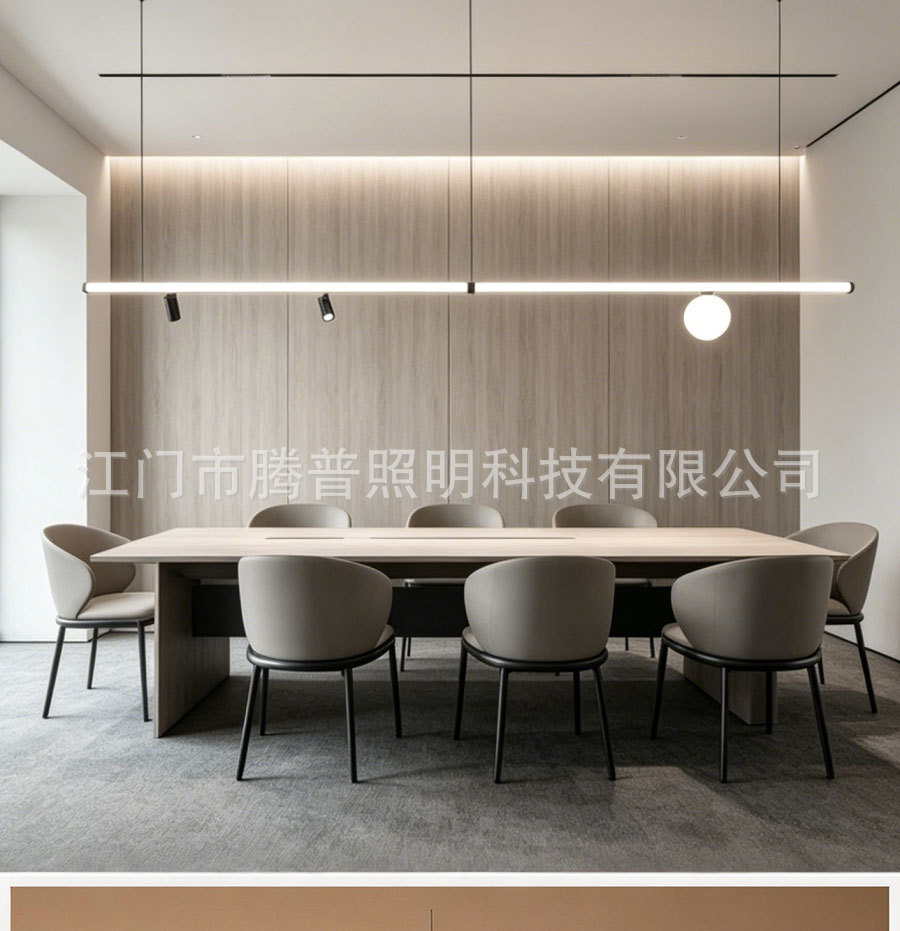

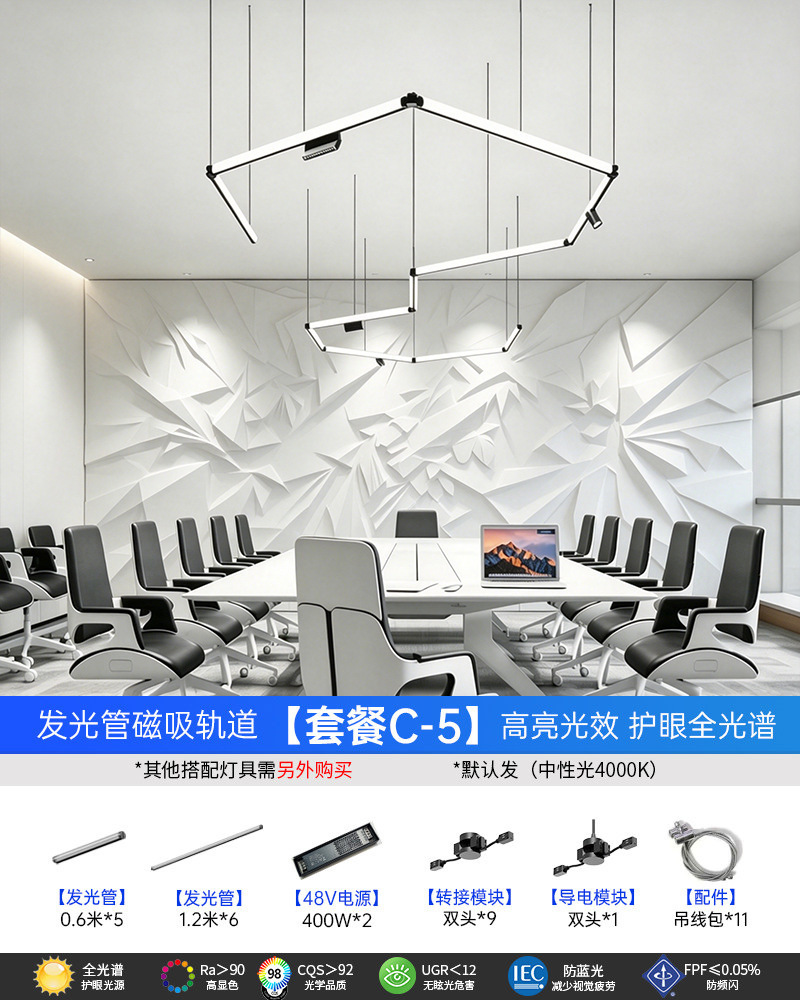

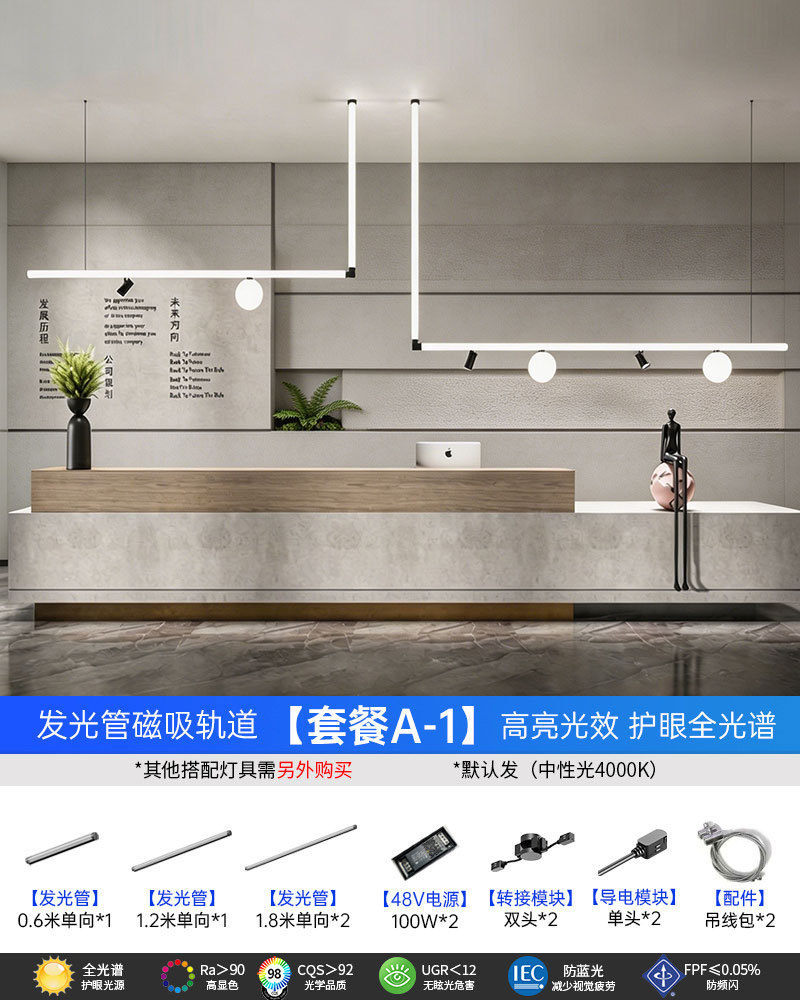

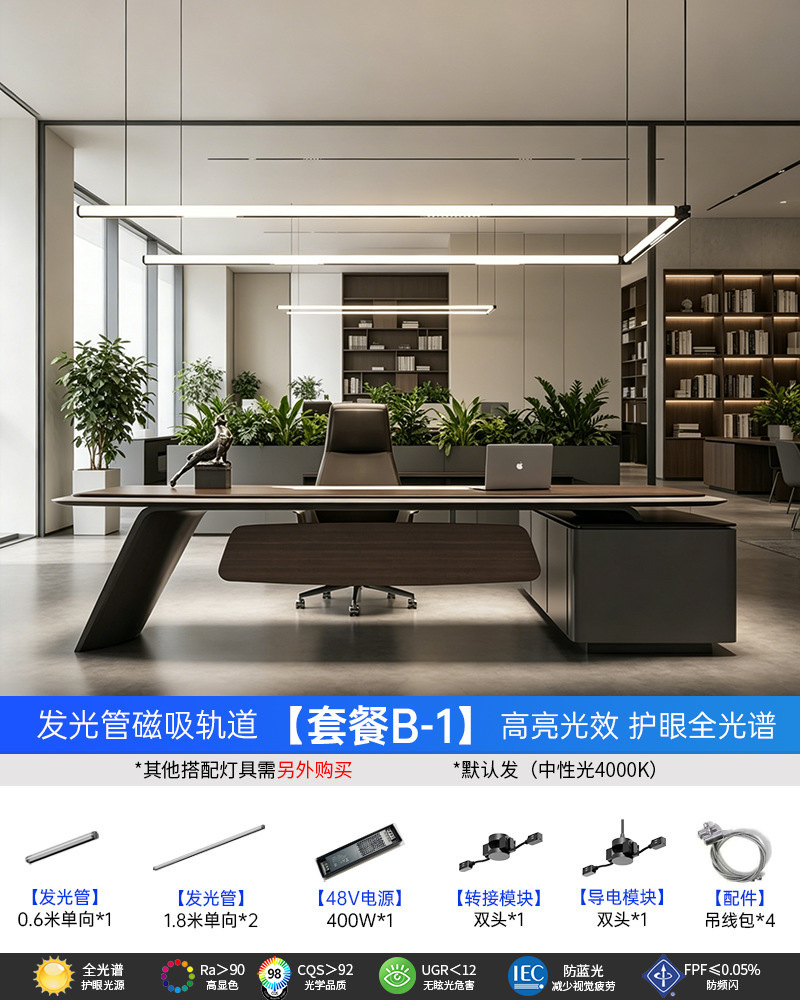

Use the S20 circular magnetic track lighting system for living rooms, dining areas, kitchen islands, cafés, restaurants, boutique retail stores, showrooms, galleries, hotel lobbies, offices and other architectural interiors. Combine ambient 360° glow with directional magnetic spotlights to create layered lighting for general illumination, accent lighting and product display.
Contact Topenergy to confirm the required track length, connector layout, luminaire combination, power supply and smart-control configuration for your project.
| Item | Specification |
|---|---|
| System | S20 48V circular glowing magnetic track light system |
| Track diameter | Ø60 mm |
| Standard track lengths | 628 mm / 1208 mm / 1788 mm |
| Track power | 14W / 28W / 42W |
| Input voltage | 48V DC |
| Beam / glow angle | 360° |
| Color rendering | CRI ≥90 |
| Color temperature | 3000K warm white / 4000K neutral white / 6000K cool white |
| Control | 5-DIP-switch; Smart and 2-Smart dimming and tunable-white modes |
| Material | Aluminum + PC diffusion cover |
| Finish | Black |

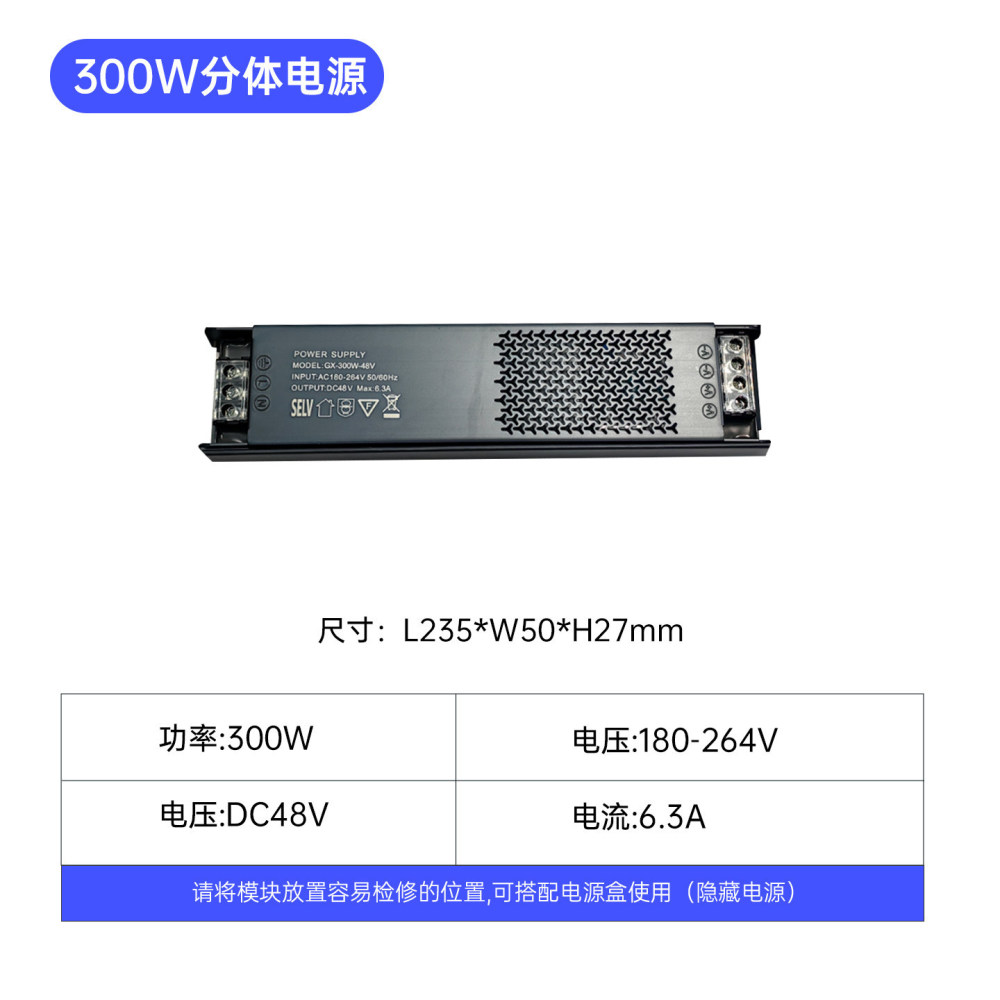

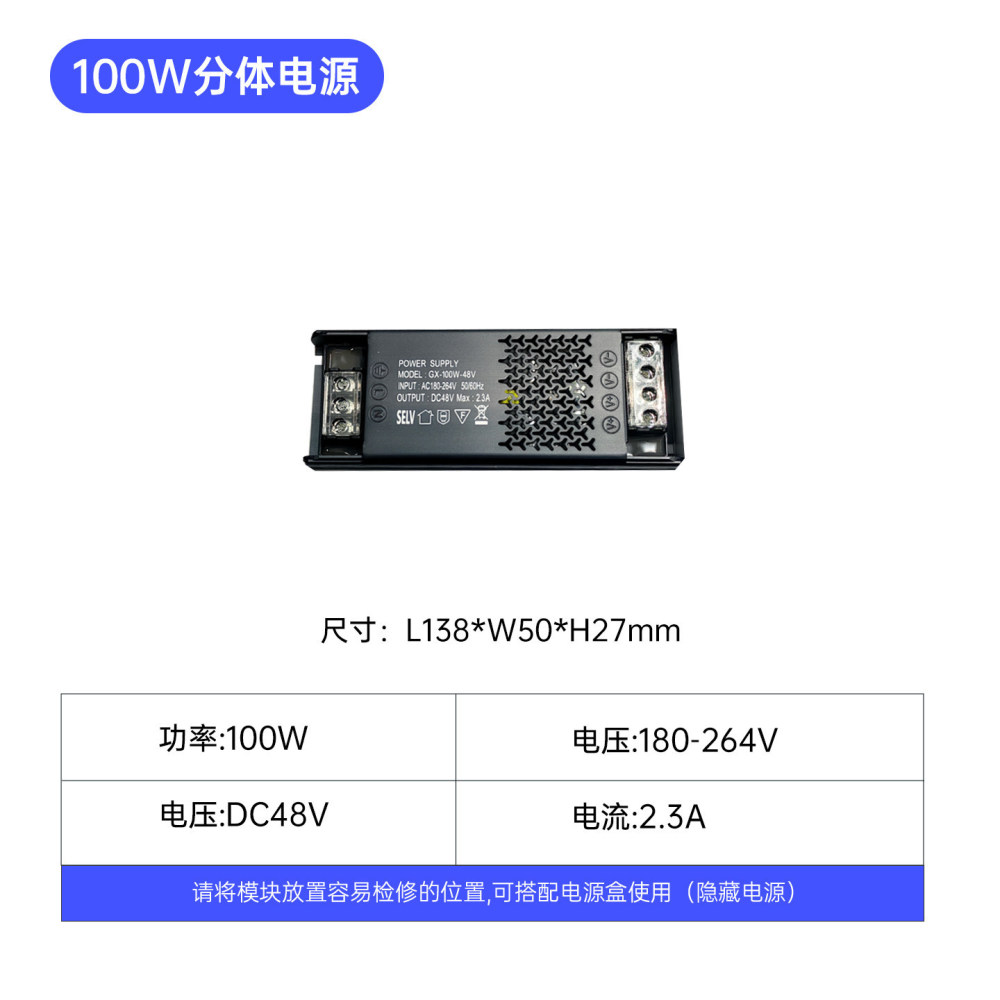

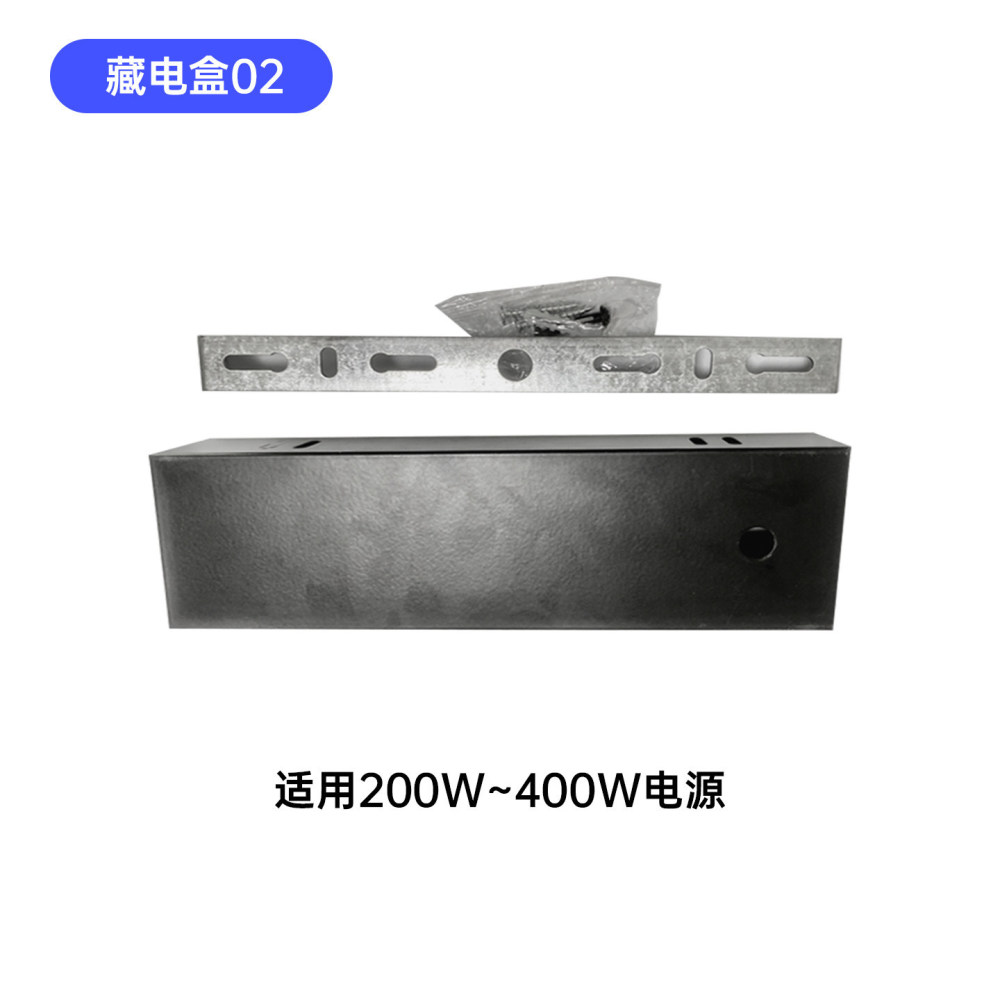

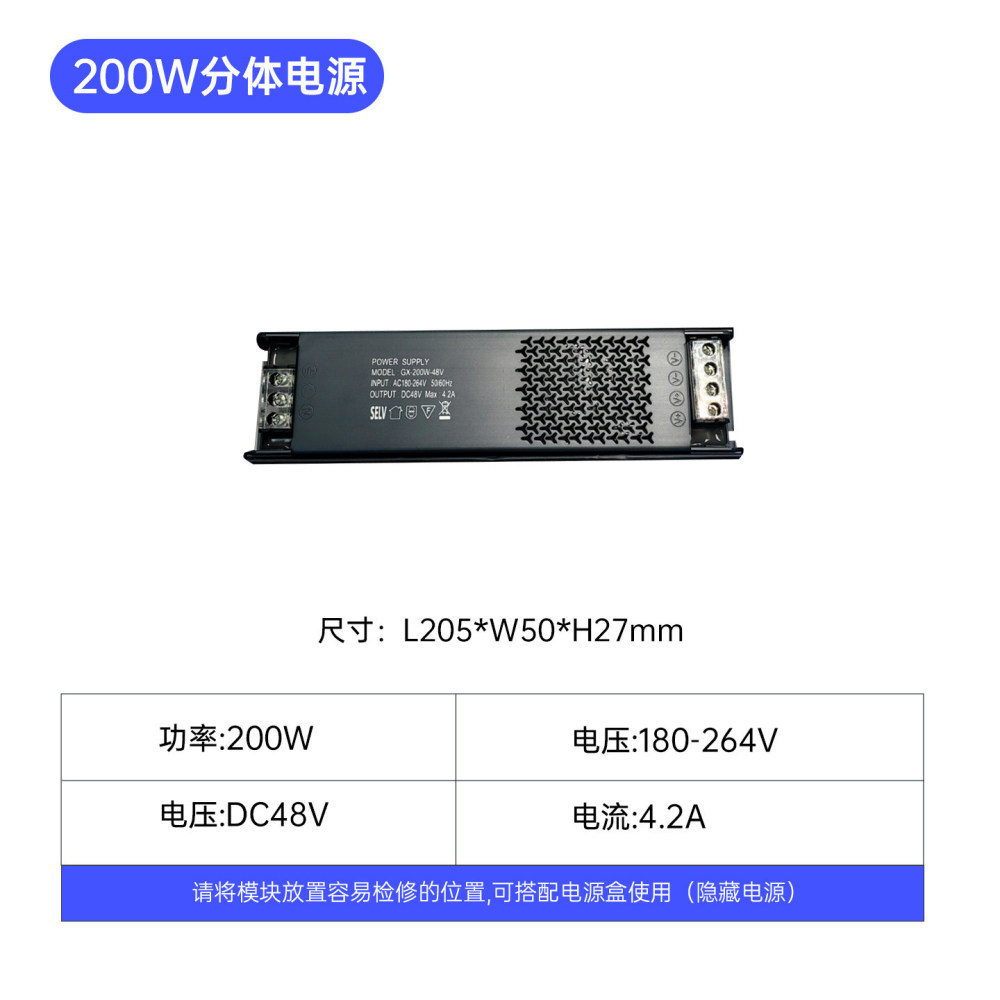

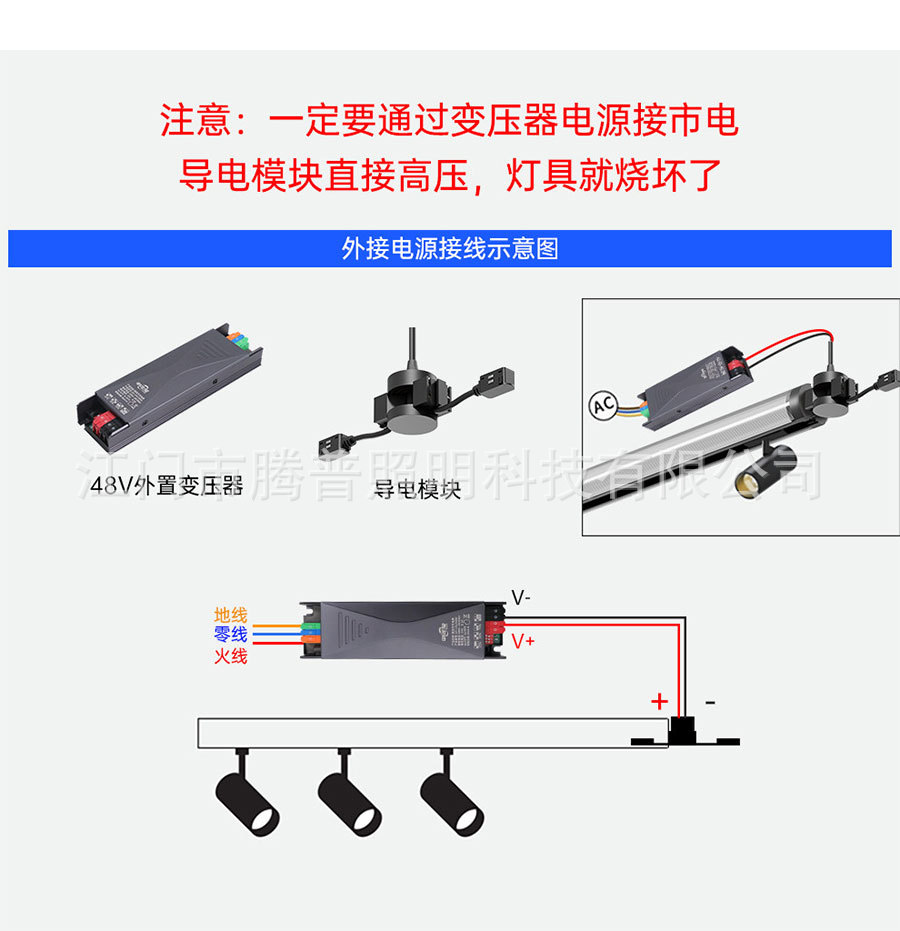

| Power supply options | Built-in 220V-to-48V transformer, 100W / 200W / 300W options; 2.4G and Zigbee options available |
| Suspension accessory | 1500 mm wire kit |

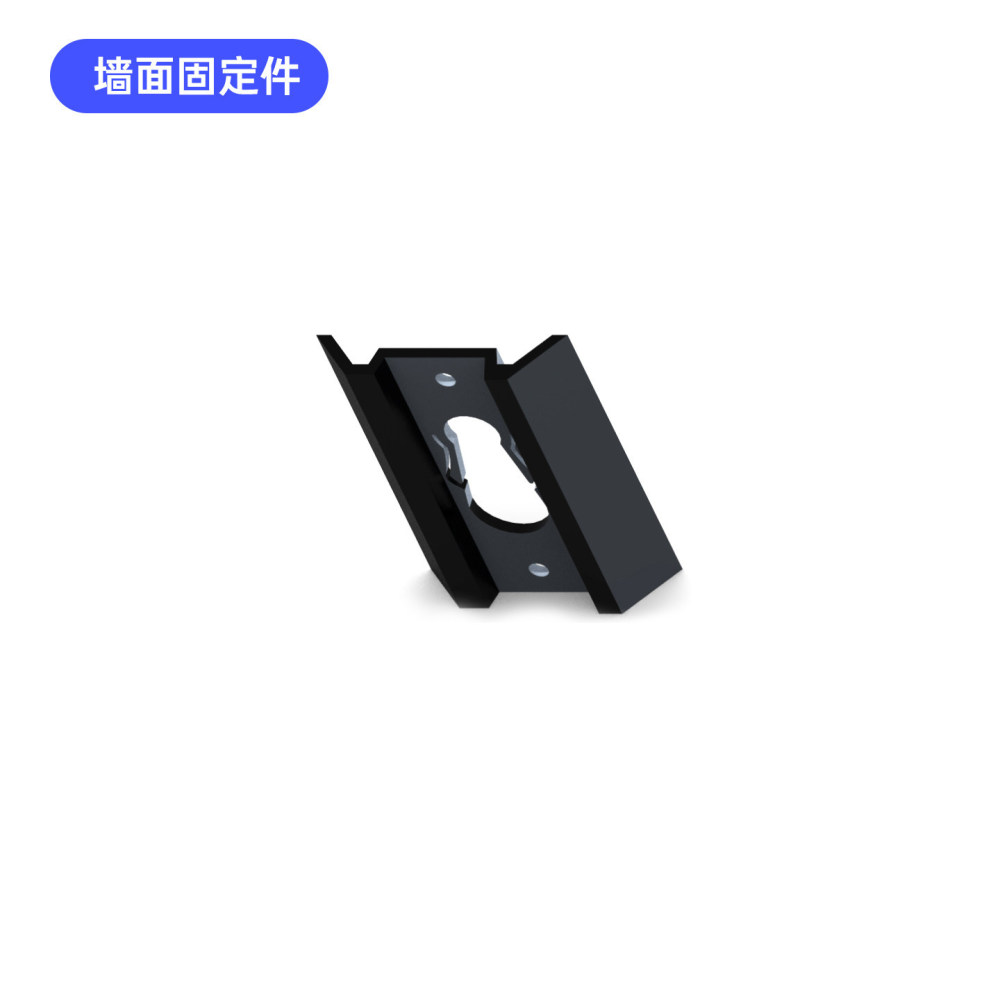

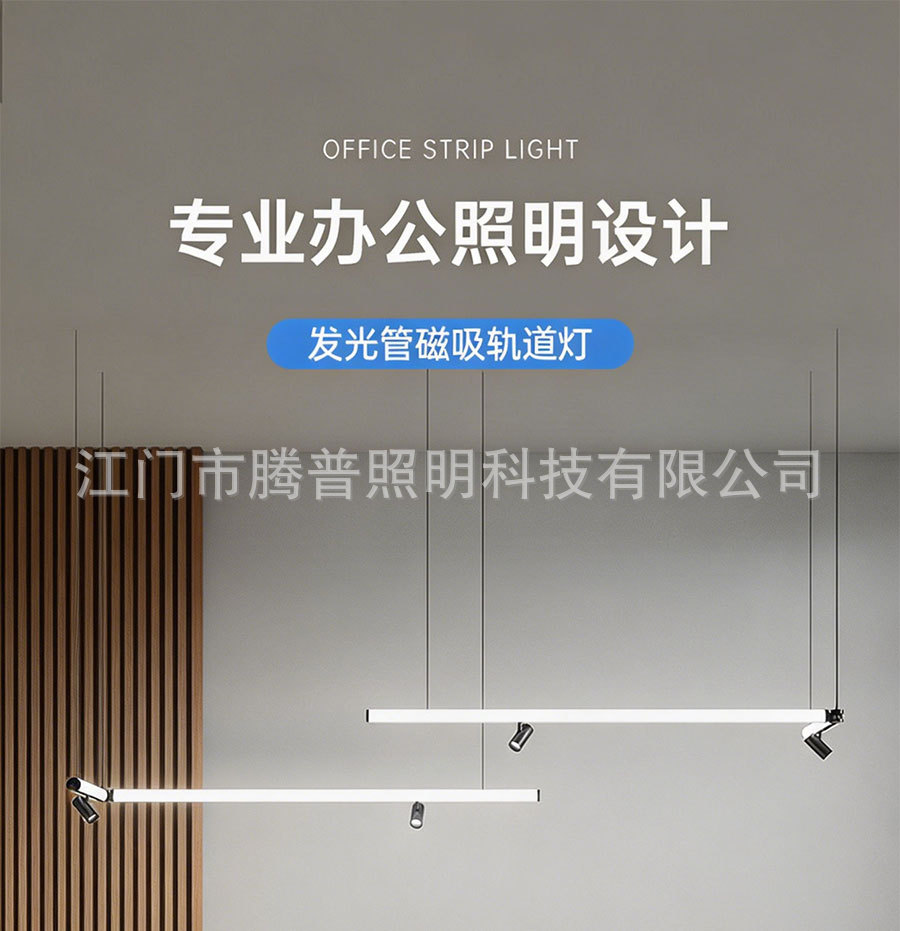

| Mounting | Suspended or exposed ceiling mounted |

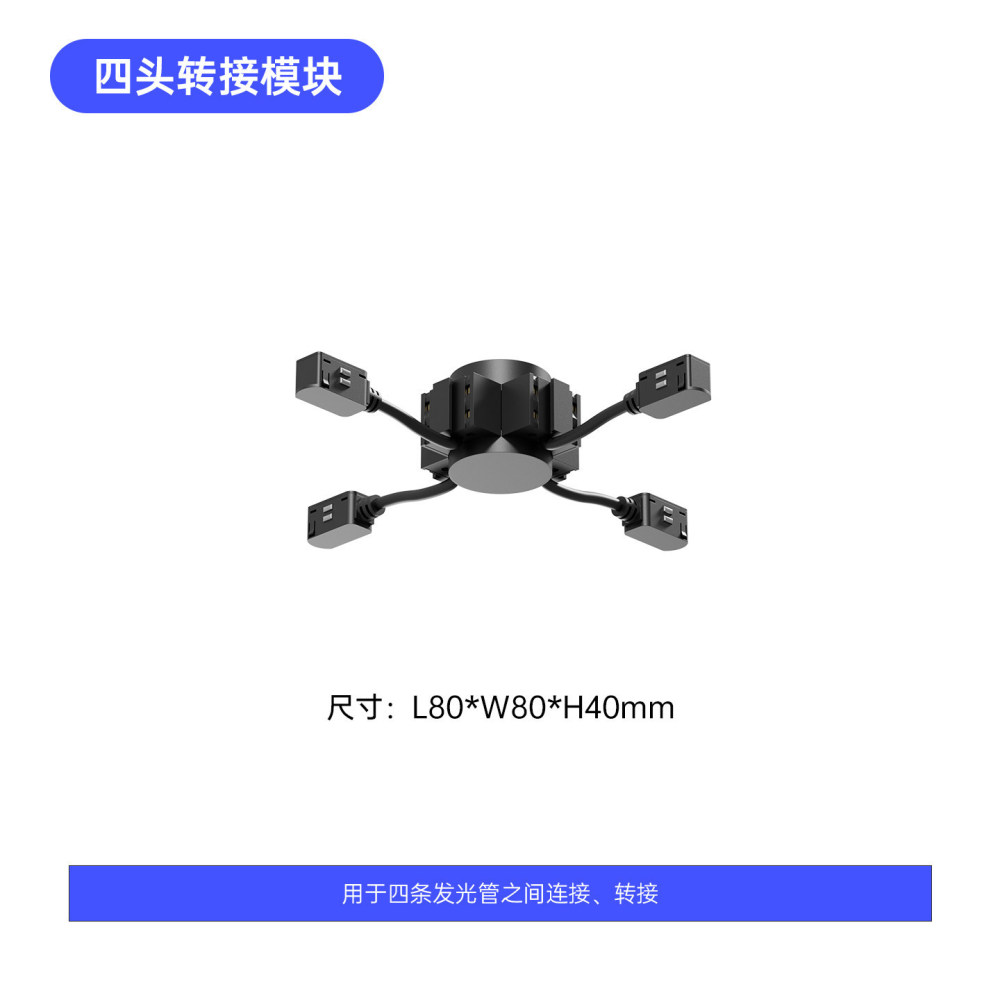

| Connectors | I-connector, two-way connector, three-way connector and four-way connector |
Tags: architectural linear lighting magnetic track light system circular glowing track 48V magnetic track lighting smart track lighting tunable white lighting dimmable LED track commercial lighting
| Item | Specification |
|---|---|
| System | S20 48V circular glowing magnetic track light system |
| Track diameter | Ø60 mm |
| Standard lengths | 628 mm / 1208 mm / 1788 mm |
| Power | 14W / 28W / 42W |
| Voltage | 48V DC |
| Glow angle | 360° |
| CRI | ≥90 |
| CCT | 3000K / 4000K / 6000K |
| Control | 5-DIP-switch; Smart and 2-Smart modes |
| Material / color | Aluminum + PC / Black |
| Power supply | 220V to 48V transformer; 100W / 200W / 300W options |
| Smart options | 2.4G and Zigbee constant-voltage power supply options |
| Mounting | Suspended or exposed ceiling mounted |
| Connectors | I, two-way, three-way and four-way |
