Product Introduction
Design

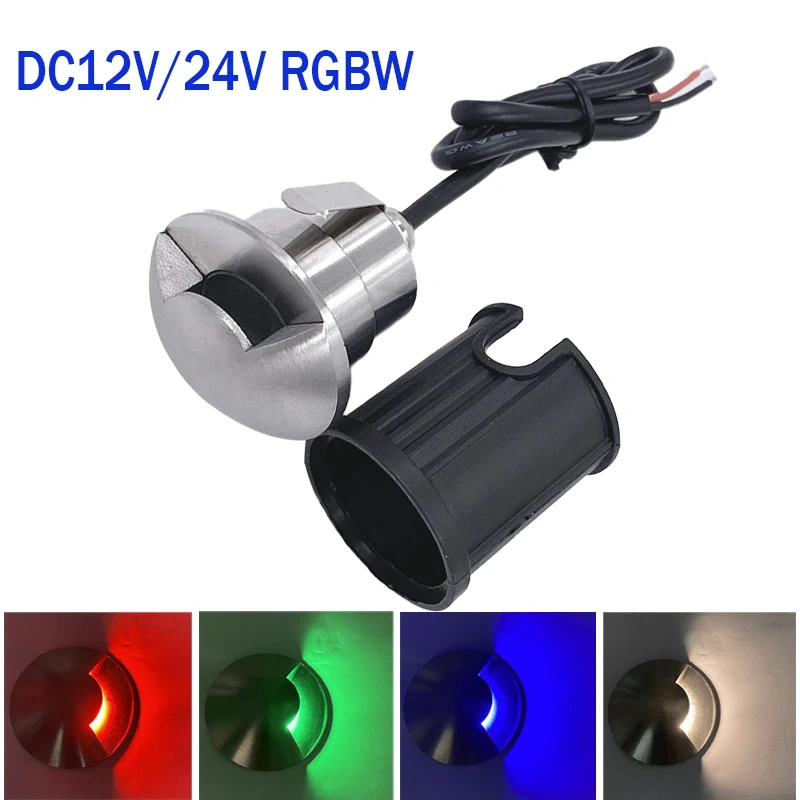

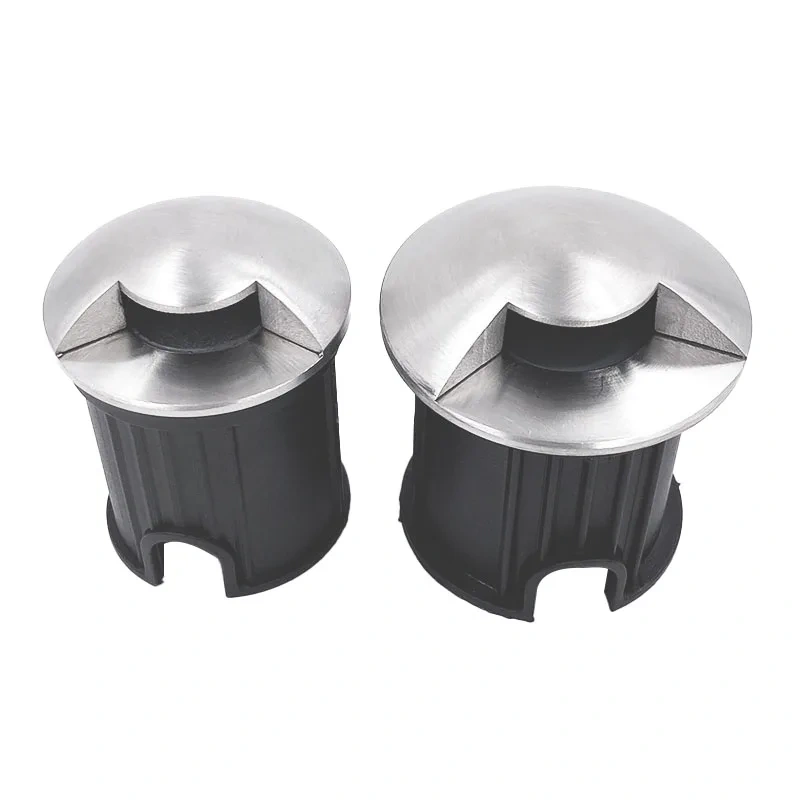

This compact in-ground LED garden light is designed for recessed outdoor installation where a low-profile lighting solution is required. Its stainless steel housing provides a durable finish for landscape and architectural environments, while the compact body helps maintain a clean appearance after installation.

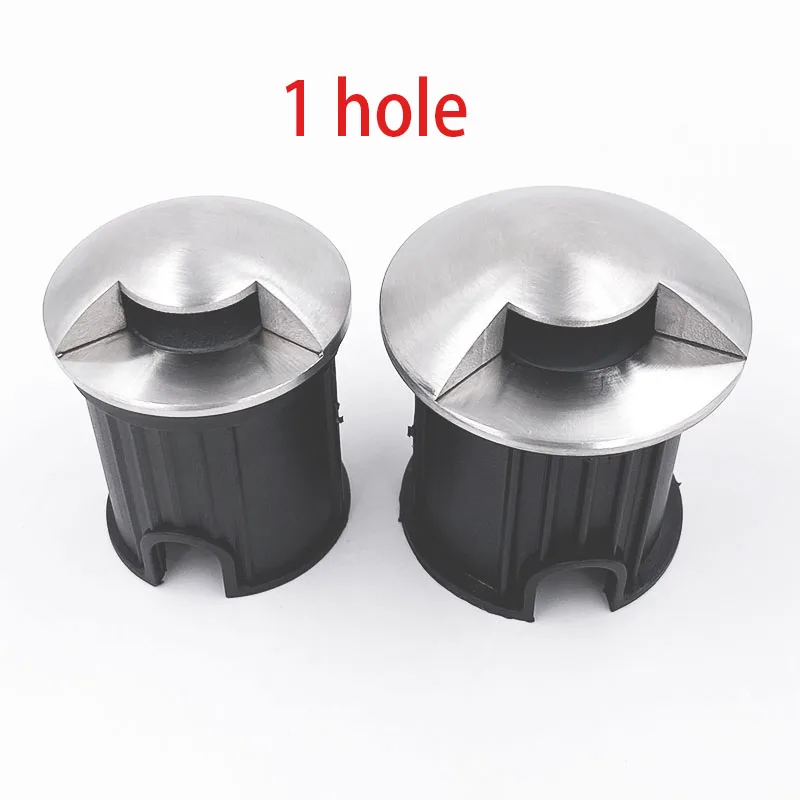

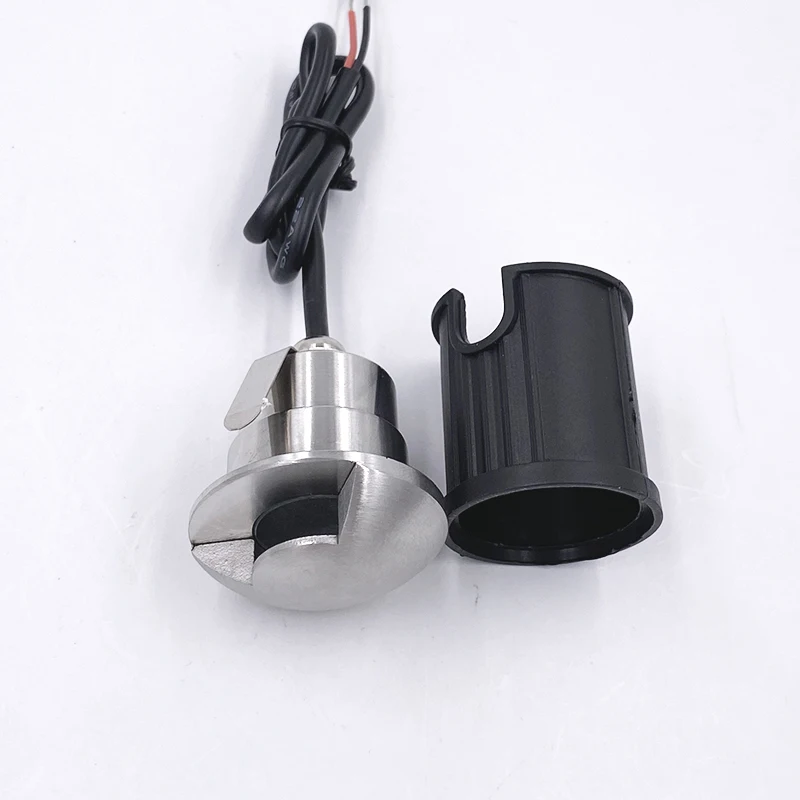

The available D42 and D52 configurations provide flexible options for different recessed installation requirements. A PC recessed housing is included with the light to simplify installation.
Main Features
IP68 Waterproof Construction
The IP68-rated housing is designed for demanding outdoor environments where the luminaire may be exposed to rain, moisture, dust and ground-level conditions. This makes it suitable for landscape lighting applications such as gardens, pathways, patios and driveways.

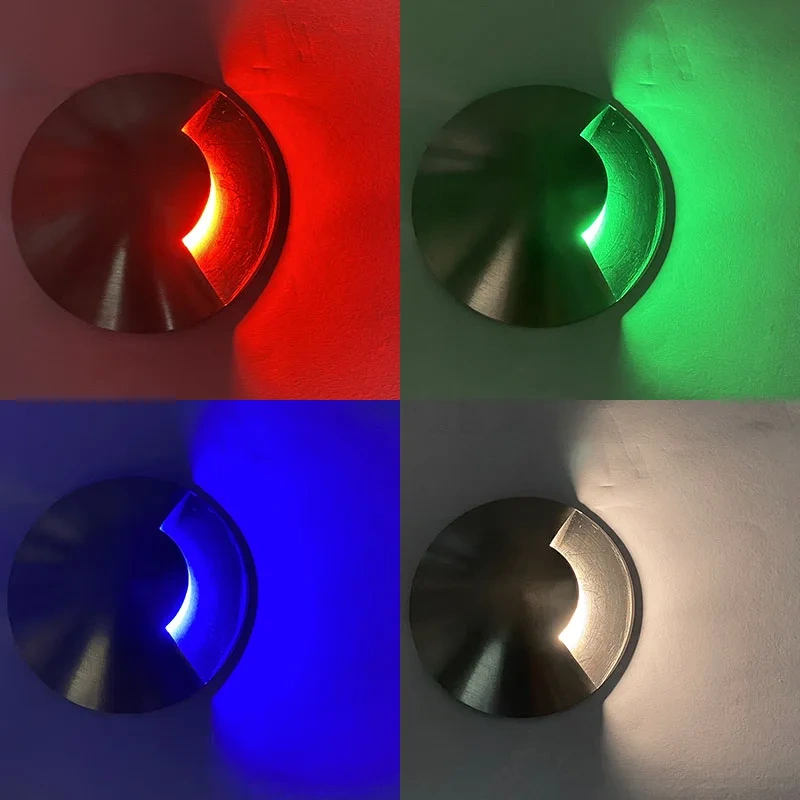

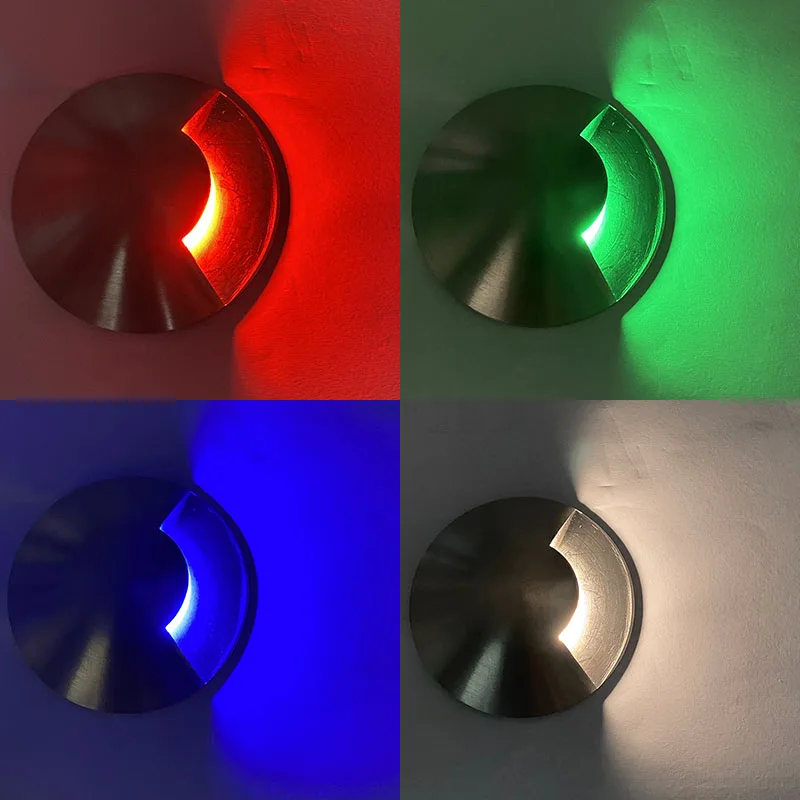

RGB and RGBW Lighting Options
The product supports multiple lighting configurations, including RGB and RGBW options. Available selections shown on the current product page include 3000K warm white, 4000K white, 6000K cool white, red, green and blue.
Low-Voltage DC Input
The light operates from DC12V or DC24V, making it suitable for low-voltage outdoor lighting systems when paired with the appropriate power supply.
PWM Dimming
The built-in LED system supports PWM dimming, allowing lighting designers and system integrators to adjust the output according to project requirements.
Stainless Steel Housing
The stainless steel body is designed for outdoor durability and resistance to corrosion, making it appropriate for long-term landscape and architectural applications.

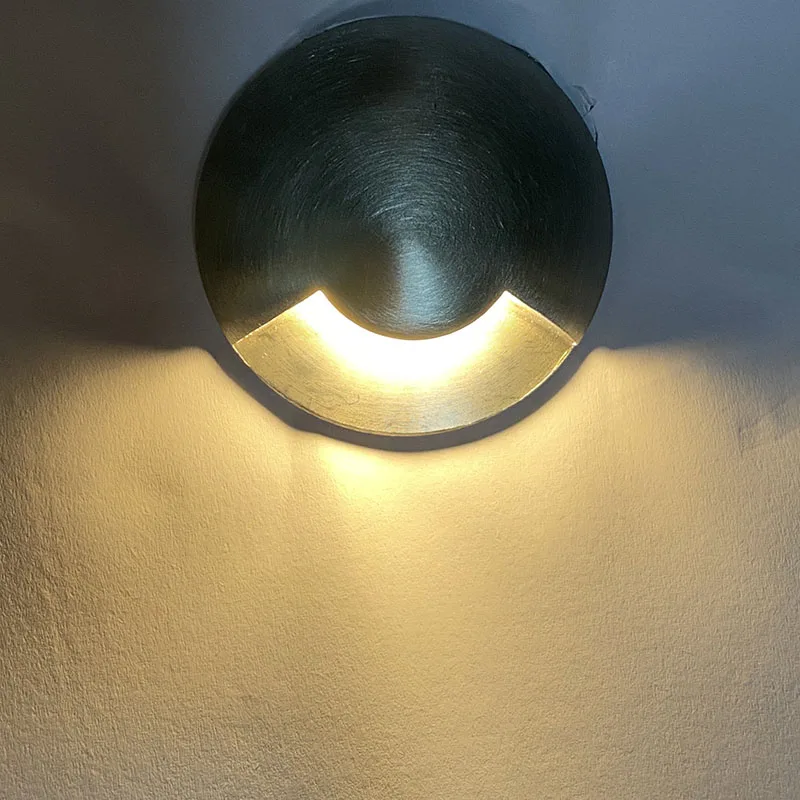

45° Beam Angle
The 45° beam angle provides focused illumination for highlighting plants, landscape elements, pathways, walls and architectural details.
Application

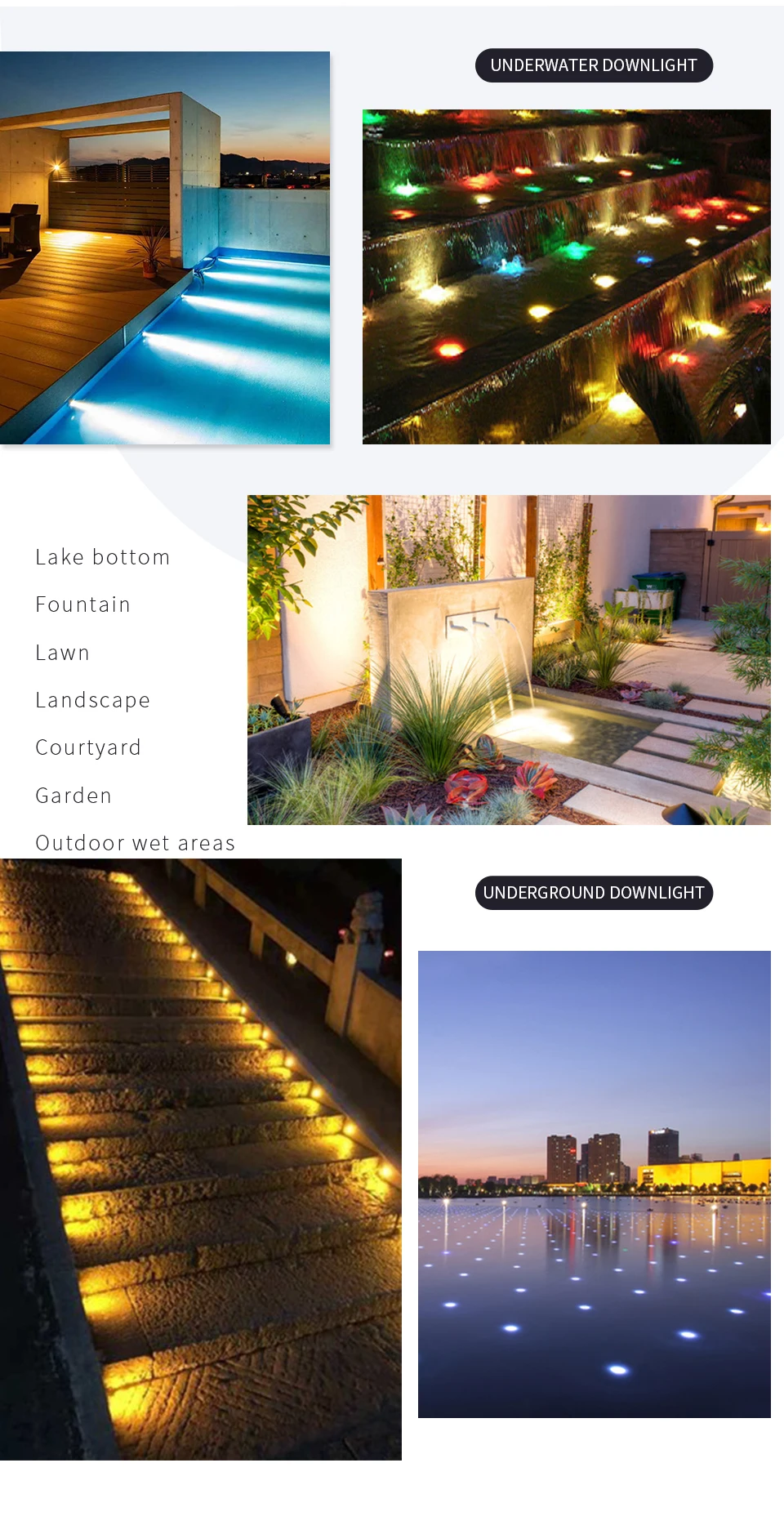

This outdoor LED garden light can be recessed into ground surfaces and used for:
- Garden landscape lighting
- Pathway lighting
- Driveway lighting
- Patio lighting
- Lawn lighting
- Courtyard lighting
- Architectural landscape lighting
- Outdoor decorative lighting
- Hotel and resort landscaping
- Commercial landscape projects
- Residential outdoor lighting
- Building entrance lighting
Its low-voltage DC design and compact recessed format make it suitable for both residential and commercial landscape lighting systems.

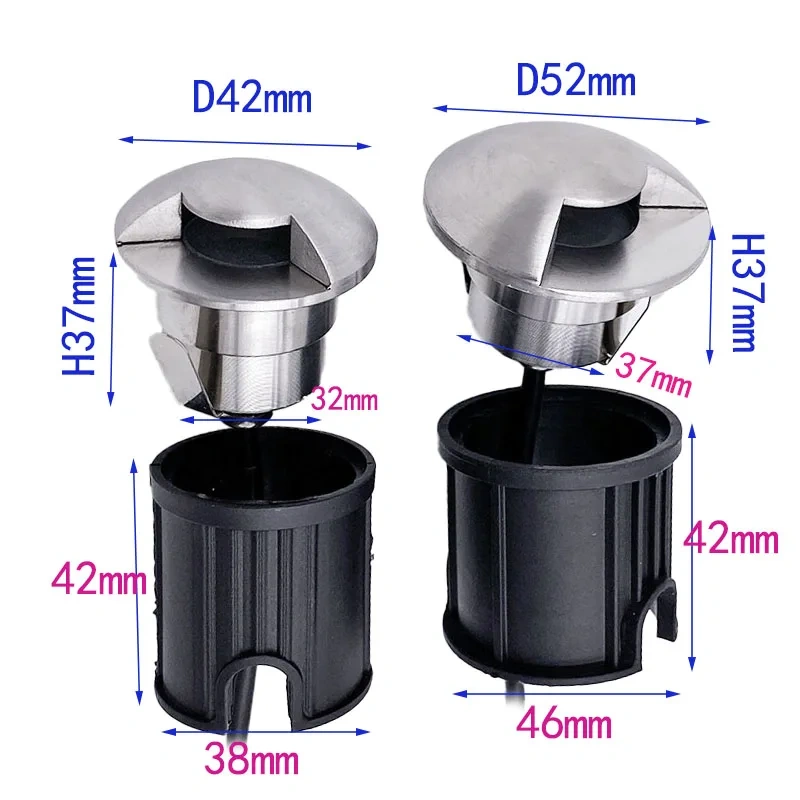

Size / Options

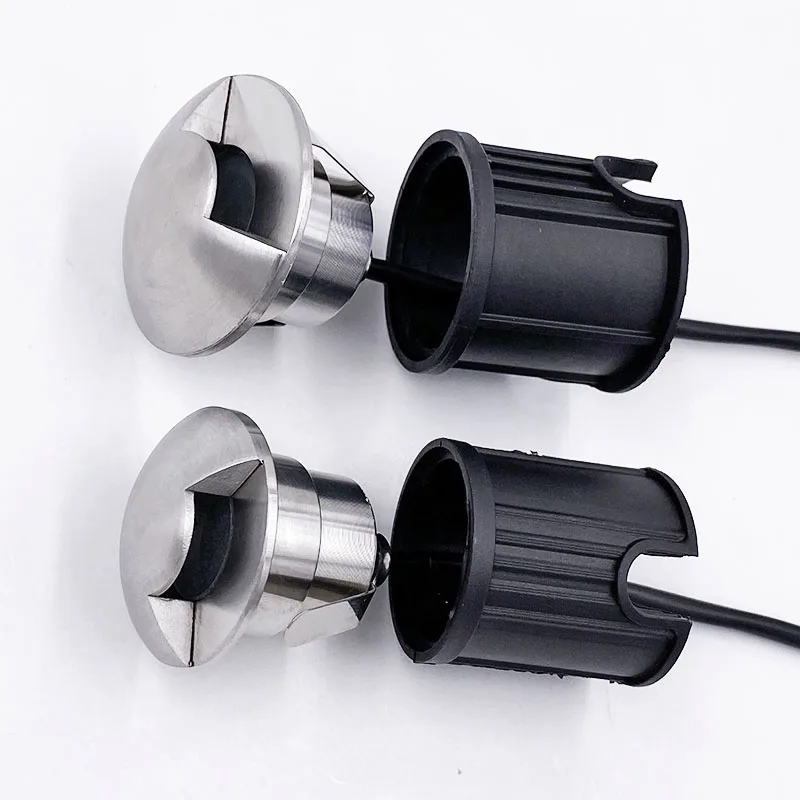

The product is available in two main body sizes:
| Model |
Light Size |
Recessed Housing |
Voltage |
| 63AS |
D42 × 37 mm |
D38 × 42 mm |
DC12V / DC24V |
| 63CS |
D52 × 37 mm |
D46 × 42 mm |
DC12V / DC24V |
The product page currently lists both D42 and D52 configurations in 12V and 24V versions.

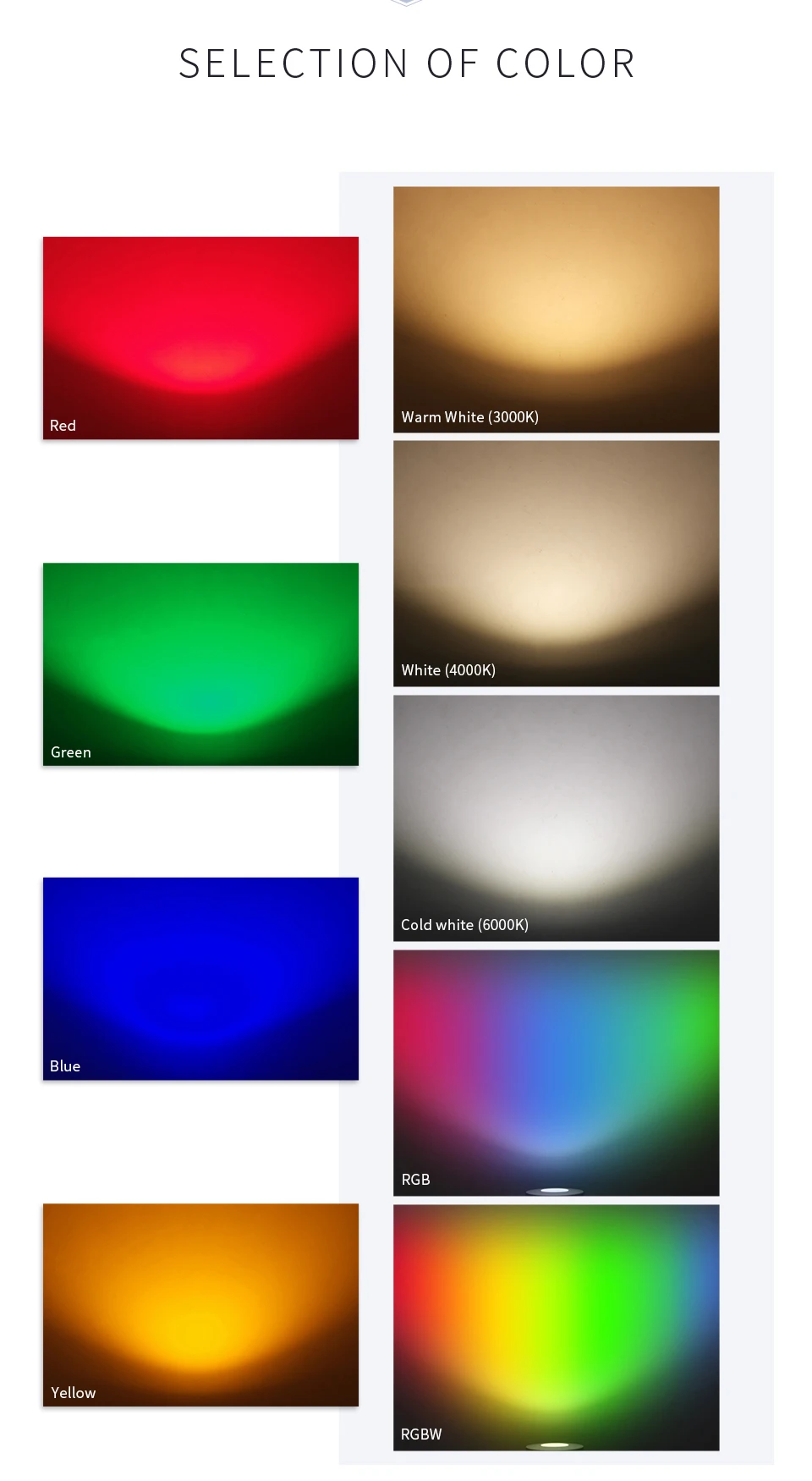

Lighting Options
Available lighting selections include:
- RGB
- RGBW 3000K
- RGBW 6000K
- 3000K warm white
- 4000K white
- 6000K cool white
- Red
- Green
- Blue
The product supports PWM dimming for compatible control systems.

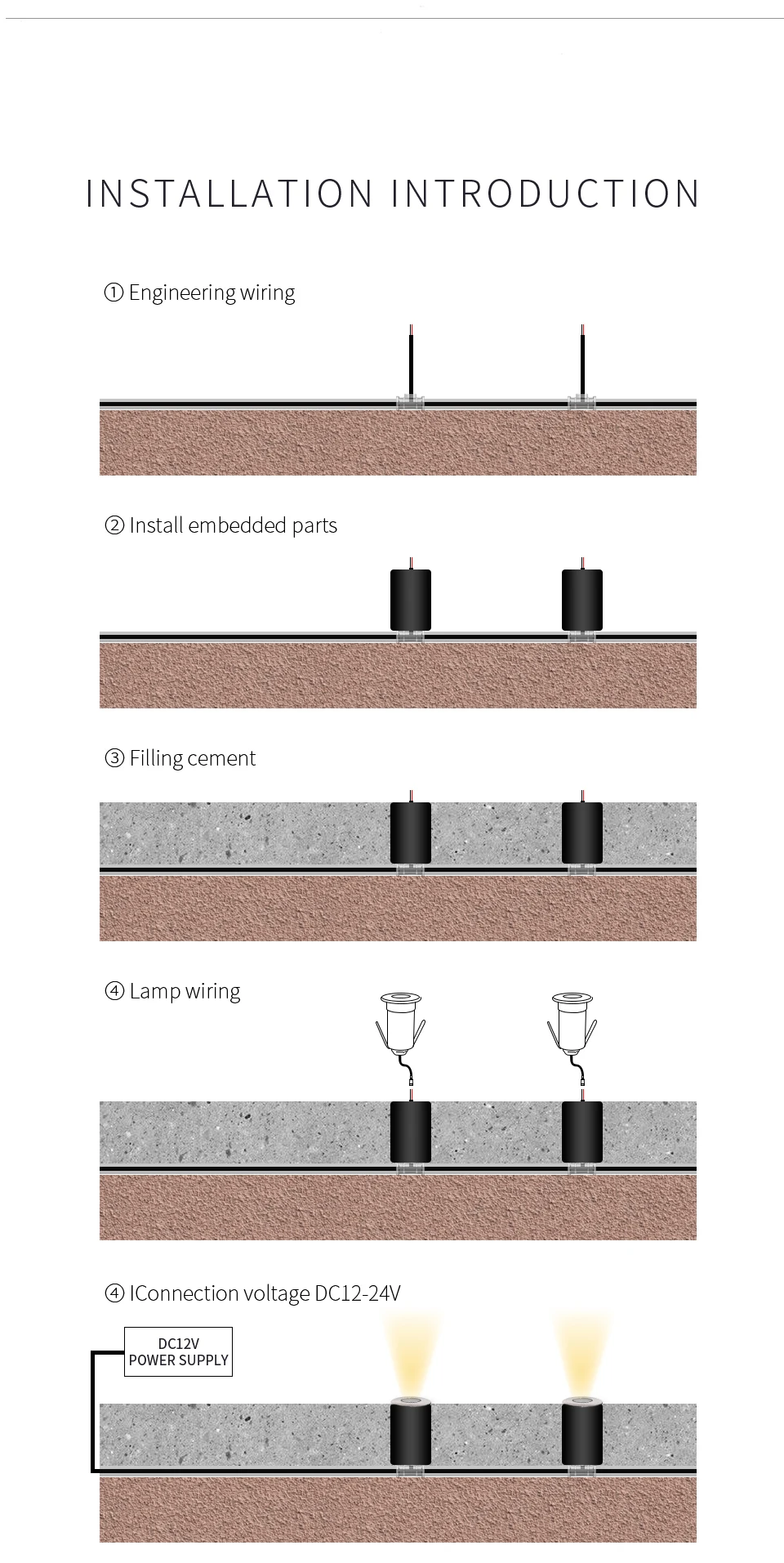

Installation
The light is designed for recessed ground installation.
Recommended installation process:
- Prepare the recessed mounting position according to the selected model.
- Install the PC recessed housing.
- Position the LED garden light inside the housing.

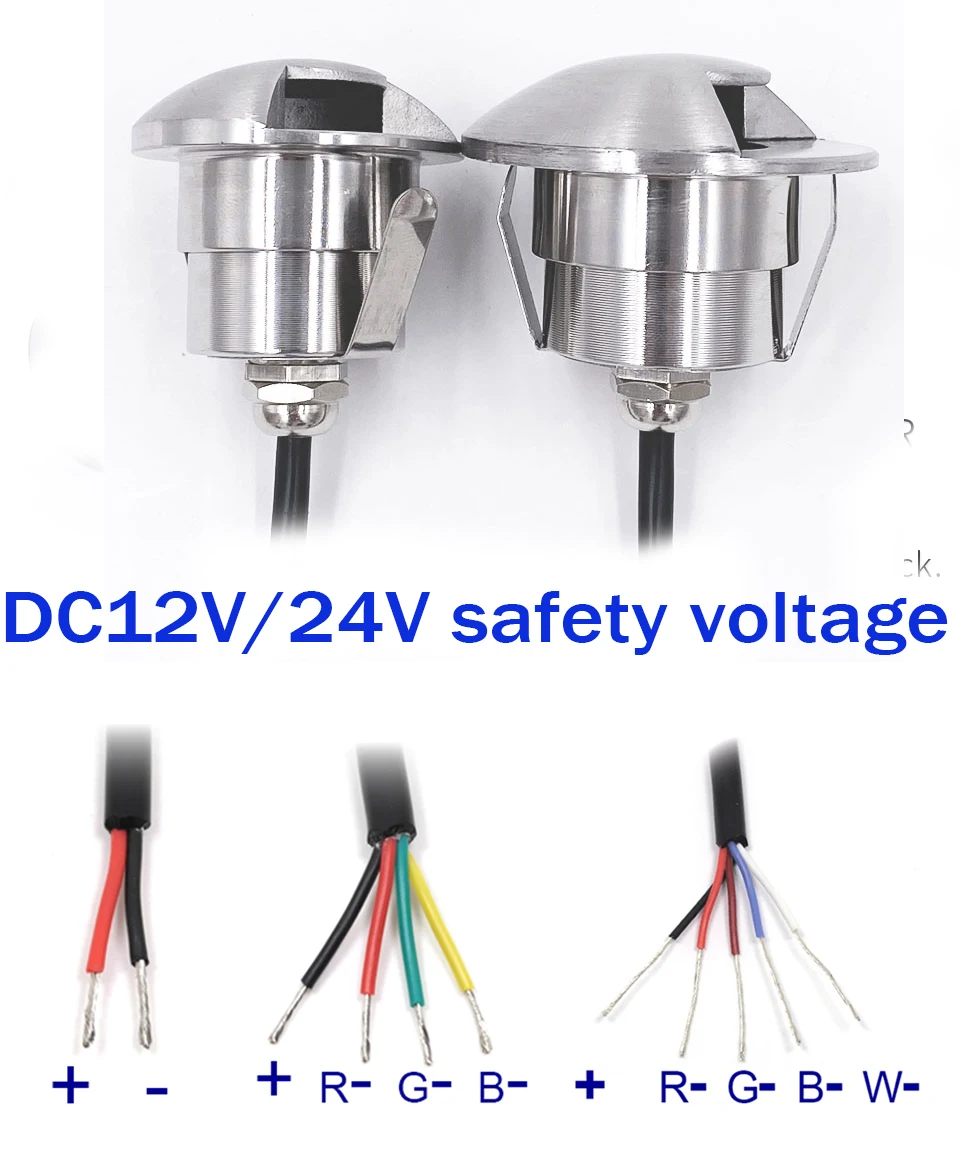

- Connect the DC12V or DC24V power supply.

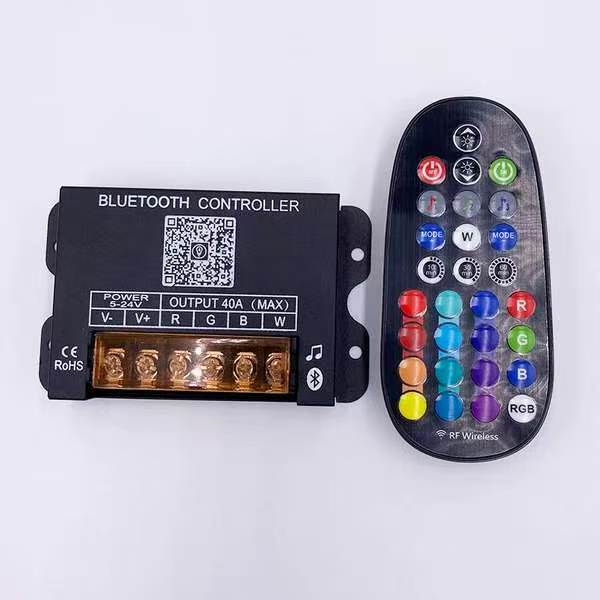

- Connect the appropriate RGB/RGBW controller when required.
- Test the lighting and dimming functions before completing the installation.
The product uses a 500 mm silicone cable for connection.
Technical Specifications
| Specification |
Details |
| Product Type |
In-Ground LED Garden Light |
| LED Chip |
2835 LED |
| Power |
2W |
| Input Voltage |
DC12V / DC24V |
| Dimming |
PWM Dimming |
| Housing Material |
Stainless Steel |
| Protection Rating |
IP68 |
| Beam Angle |
45° |
| Luminous Efficiency |
100–130 lm/W |
| Cable |
500 mm Silicone Cable |
| Model |
63AS / 63CS |
| Light Size |
D42 × 37 mm / D52 × 37 mm |
| Recessed Housing |
D38 × 42 mm / D46 × 42 mm |
| Lifespan |
50,000 hours |
| Certification |
CE, RoHS |
| MOQ |
1 pcs |
| Sample Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |

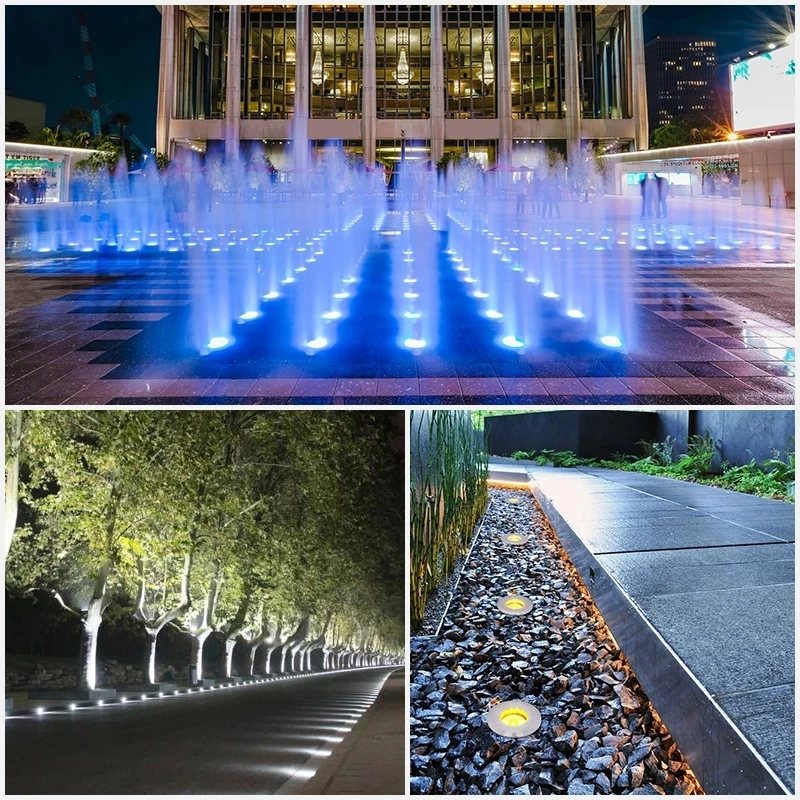

Project Applications
This IP68 in-ground LED garden light can be used in a variety of landscape and architectural projects, including:
Residential Projects
- Private gardens
- Villas
- Courtyards
- Patios
- Driveways
- Walkways
Commercial Projects
- Hotels
- Resorts
- Restaurants
- Shopping centers
- Office buildings
- Commercial landscape projects
Landscape & Architectural Projects
- Garden feature lighting
- Tree and plant illumination
- Building facade accents
- Pathway lighting
- Outdoor architectural details
- Landscape design projects
For projects requiring large quantities, buyers can specify the preferred voltage, size, color configuration and control requirements before ordering.
OEM/ODM
USKYLED supports OEM and ODM outdoor LED lighting solutions for lighting distributors, landscape contractors, project suppliers, wholesalers and lighting brands.
Customization options may include:
- Product dimensions
- LED color configuration
- RGB/RGBW options
- Input voltage
- Cable length
- Housing configuration
- Packaging
- Product labeling
- OEM branding
- Project-specific lighting requirements
For custom projects, please contact USKYLED with the required quantity, lighting specification, installation environment and target application.
MOQ & Lead Time
MOQ: 1 pcs
Samples can be ordered for product evaluation and project testing.
For large projects, please contact USKYLED before placing the order to confirm production capacity, specifications and shipping schedule.
CTA
Looking for IP68 in-ground LED garden lights for your next landscape lighting project?
Contact USKYLED for product specifications, samples, bulk pricing, OEM/ODM options and project support.
MOQ starts from 1 pcs.
Sample lead time: 3–7 days.
Mass order lead time: 7–15 days.
Request a Quote → Contact USKYLED
