Silicone LED Neon Flex for Indoor & Outdoor Lighting
USKYLED Silicone LED Neon Flex is a flexible linear lighting solution designed for indoor and outdoor decorative, architectural and commercial lighting applications. The large-size silicone housing provides a continuous neon-style appearance while protecting the internal LED components during installation and everyday use.
The product is available in DC12V and DC24V configurations and can be supplied in multiple lighting colors, including white, red, yellow, green, RGB and other color options depending on the selected configuration.
The current product configuration includes a 5m length option and a 15 × 25mm size. The product page also lists dimming support, SMD2835 LED technology, 50,000-hour rated life and a working temperature range of -20°C to 60°C.
Design
The large silicone profile provides a clean linear appearance for applications where conventional exposed LED strips are not suitable.
The flexible housing allows the neon light to follow straight or curved installation layouts, making it suitable for architectural contours, decorative structures, signage and custom lighting designs.
The silicone construction also provides a visually continuous light-emitting surface and helps create a more finished appearance than an exposed LED strip.
Main Features
-
Flexible silicone LED neon construction
-
Designed for indoor and outdoor lighting applications
-
DC12V and DC24V configurations
-
5m length option
-
15 × 25mm product size listed on the current page
-
SMD2835 LED technology
-
Multiple single-color and RGB options
-
Dimming support
-
Rated LED life up to 50,000 hours
-
Working temperature listed as -20°C to 60°C
-
CRI 80 listed in the current specification
-
CE and RoHS certification listed
-
3-year warranty listed
-
OEM branding available
-
Lighting design and DIALux-related layout services available
The current page contains conflicting IP information: the product title says IP67, the key attributes list IP33, and the supplier selling point refers to IP66. The final IP rating should therefore be confirmed for the actual production version before publication.
Application
Silicone LED Neon Flex can be used for a wide range of decorative and architectural lighting applications, including:
-
Architectural facade lighting
-
Building contour lighting
-
Landscape lighting
-
Theme park lighting
-
Retail stores
-
Restaurants and bars
-
Hotels and hospitality spaces
-
Commercial interiors
-
Signage and advertising
-
Decorative ceiling lighting
-
Wall and feature lighting
-
Entertainment venues
-
Exhibition and event lighting
-
Custom linear lighting projects
Its flexible form factor makes it particularly useful when the lighting layout includes curves, corners or custom shapes.
Size / Options
The current product page lists:
-

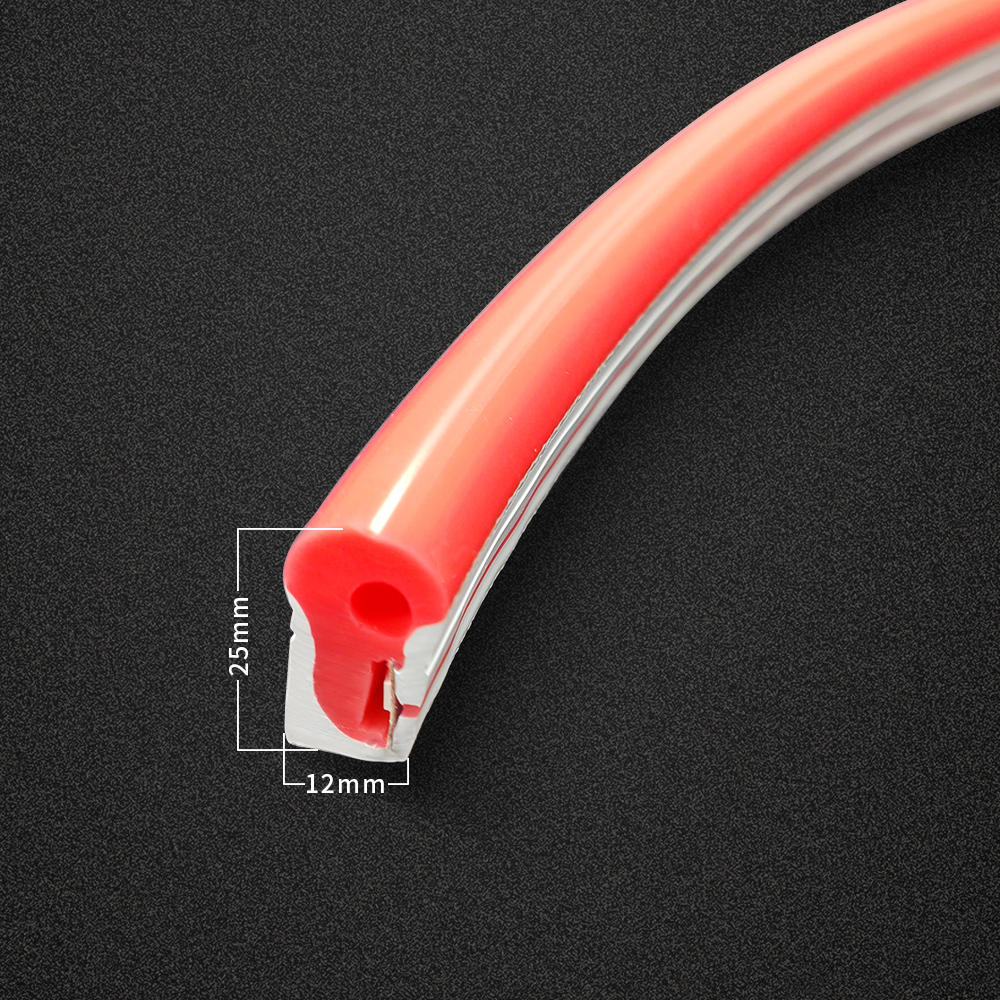

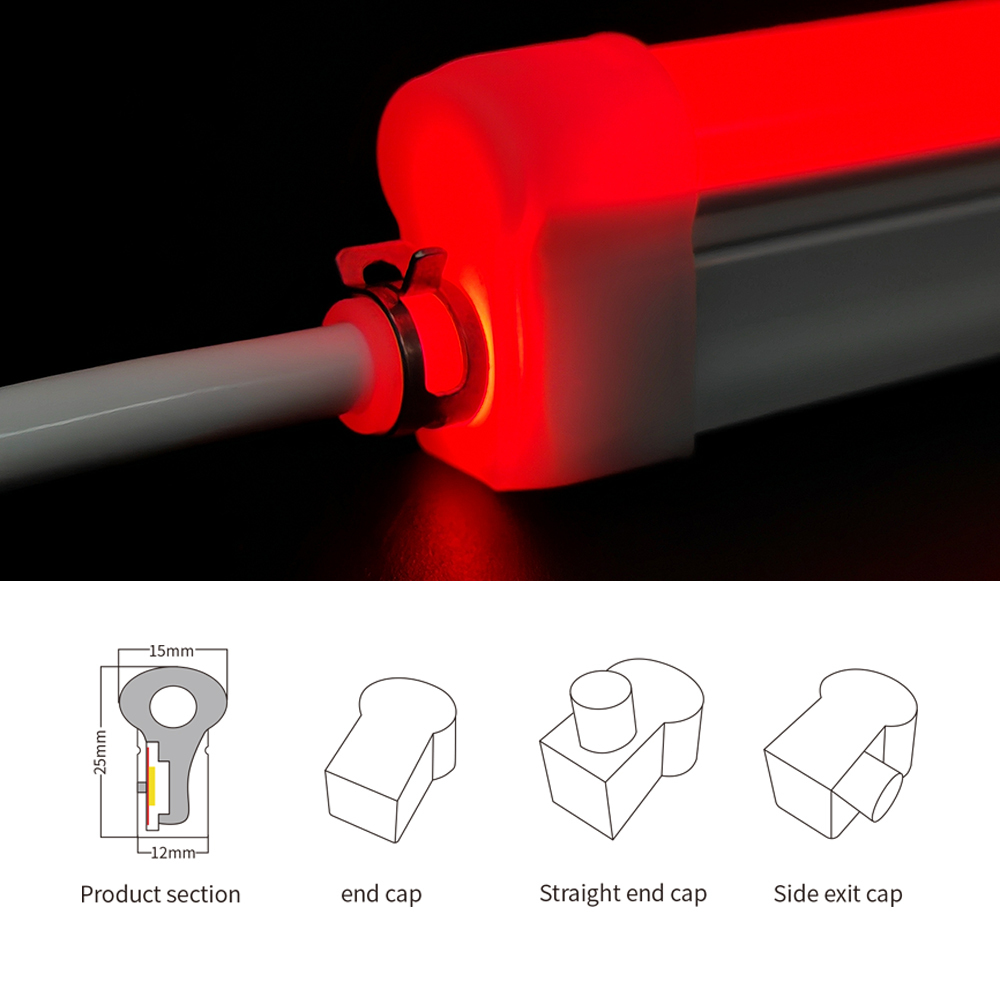

Size: 15 × 25mm
-
Length: 5m
-
Voltage: DC12V / DC24V
-
Power option shown on the product selector: DC12/24V 16W/m
-
Specification section: 11W/m
-
LED quantity listed: 120 LEDs/m
-
Supplier selling point: 240 LEDs/m
Because the page contains different values for power and LED density, the final configuration should be confirmed with USKYLED before the specification table is published.

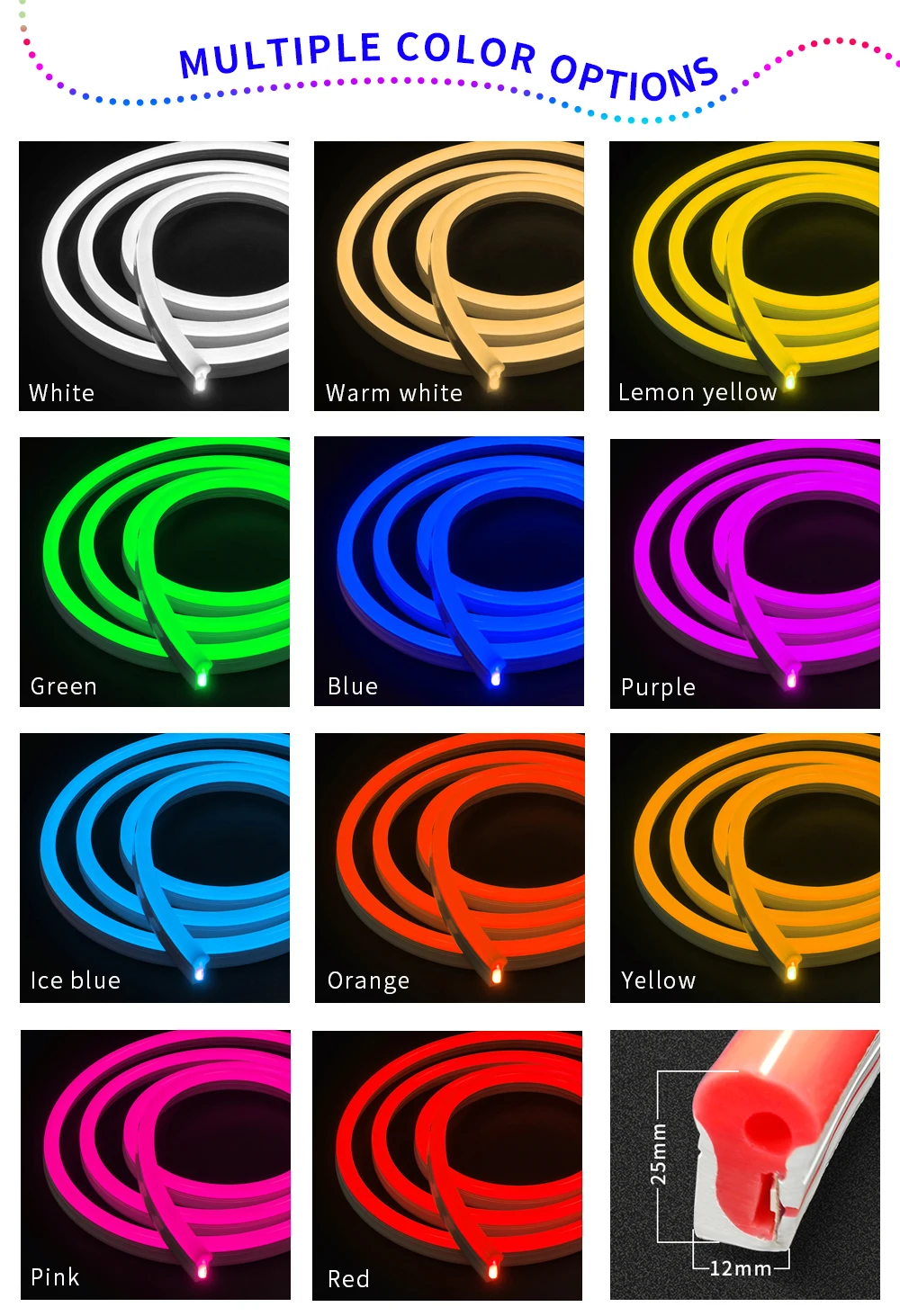

Lighting Options
The product page currently lists multiple emitting-color options, including:
-
Natural White
-
3000K
-
4000K
-
6000K
-
Red
-
Yellow
-
Green
-
Blue
-
Pink
-
Purple
-
RGB
-
Changeable
The exact available colors should be selected according to the product configuration and project requirement.
For commercial projects, color selection can be matched to architectural concepts, brand environments, signage requirements or decorative lighting schemes.
Installation
The flexible silicone neon profile is designed for linear and shaped installations.
Typical installation methods can include:
-
Surface mounting
-
Architectural contour installation
-
Recessed or concealed applications where the selected profile permits
-
Signage installation
-
Decorative feature installation
-
Custom curved lighting layouts
The appropriate mounting accessories, bending radius and installation method should be confirmed according to the selected neon profile and project environment.
For outdoor installations, all connections, end caps, power supplies and controllers should be selected and installed according to the environmental requirements of the project.
Technical Specifications
| Specification |
Details |
| Product Type |
Silicone LED Neon Flex |
| Material |
100% Silicone |
| Size |
15 × 25mm |
| Length |
5m listed |
| Input Voltage |
DC12V / DC24V |
| LED Type |
SMD2835 |
| LED Density |
120 LEDs/m listed |
| Power |
11W/m listed; 16W/m shown in product selector |
| CCT |
2700K–10000K listed |
| Standard CCT Options |
3000K / 4000K / 6000K |
| Colors |
White / Red / Yellow / Green / Blue / Pink / Purple / RGB |
| CRI |
Ra 80 |
| Dimming |
Supported |
| Lifetime |
50,000 Hours |
| Working Temperature |
-20°C to 60°C |
| Material |
100% Silicone |
| Efficiency |
80 lm/W listed |
| Certification |
CE / RoHS |
| Warranty |
3 Years |
| Application |
Indoor / Outdoor Lighting |
| MOQ |
1pcs |
| Sample Order Lead Time |
3–7 Days |
| Mass Order Lead Time |
7–15 Days |
Project Applications
Architectural Lighting Projects
The flexible silicone neon profile can be used to highlight building contours, facade lines, architectural features and decorative structures.
Theme Park & Entertainment Projects
The product page identifies theme parks as an application and lists lighting design services including DIALux Evo, LitePro DLX, AGi32 and AutoCAD-related layout support.
Retail & Commercial Lighting
Use the neon flex for storefronts, display areas, feature walls, counters and branded interior environments.
Hospitality Projects
The flexible linear form can be used in hotels, restaurants, bars, lounges and entertainment spaces where decorative linear lighting is required.
Signage & Advertising
Multiple color options make the product suitable for illuminated signage, brand elements and custom decorative structures.
Landscape Lighting
For suitable outdoor configurations, the silicone neon flex can be integrated into landscape structures, pathways, architectural features and outdoor decorative installations.
OEM/ODM
USKYLED supports OEM/ODM and project-based requirements for LED neon flex and flexible linear lighting products.
OEM/ODM projects can be discussed according to:
USKYLED's current product page also lists lighting and circuitry design, LitePro DLX, AGi32, AutoCAD and DIALux Evo layout services for project support.
CTA
Looking for flexible silicone LED neon flex for an architectural, commercial, signage or outdoor lighting project?
Contact USKYLED for samples, product specifications, wholesale pricing and OEM/ODM support.
MOQ: 1pcs
Sample Order Lead Time: 3–7 Days
Mass Order Lead Time: 7–15 Days
Send us your required voltage, size, color, length and project quantity to discuss the suitable LED neon flex configuration.
