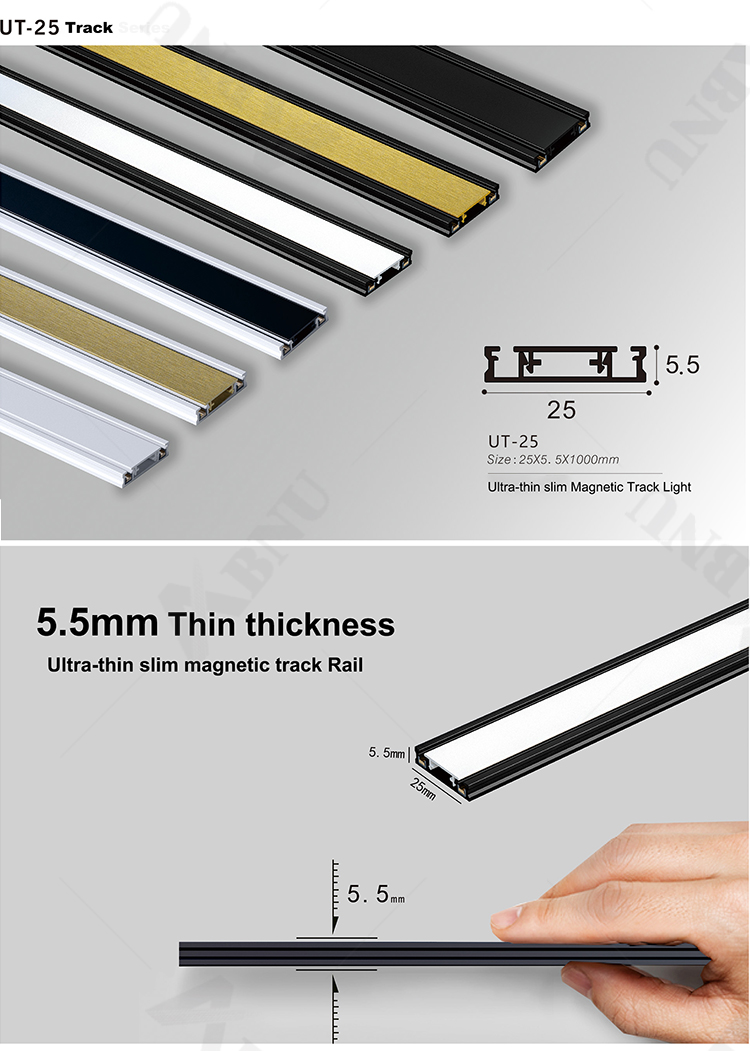

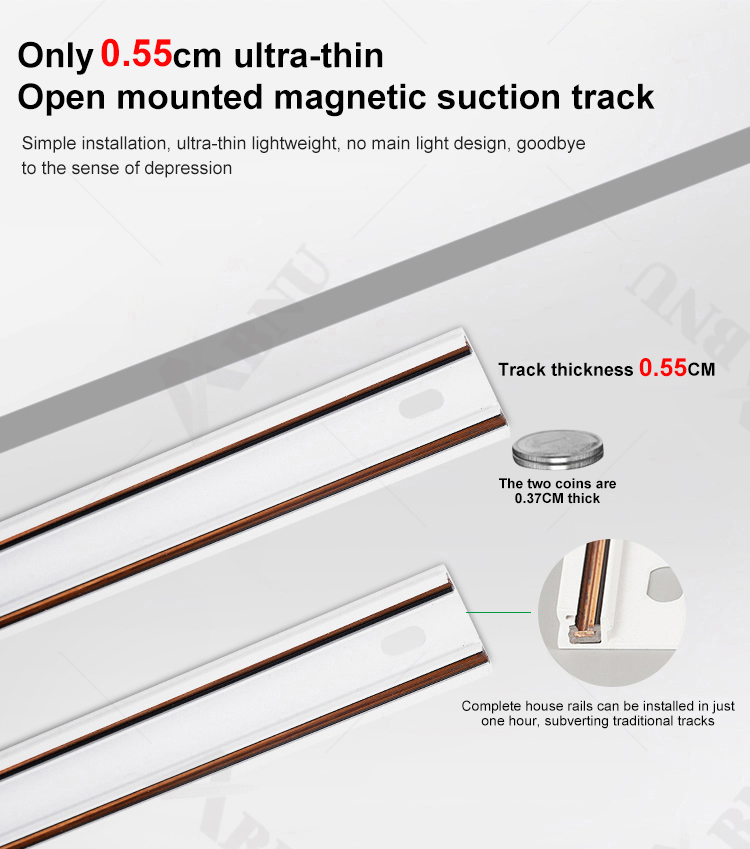

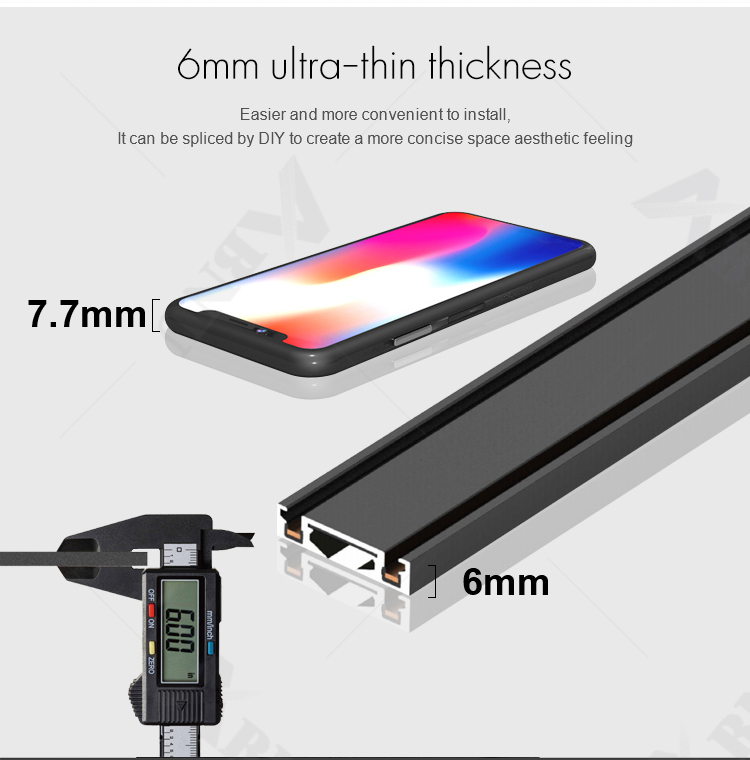

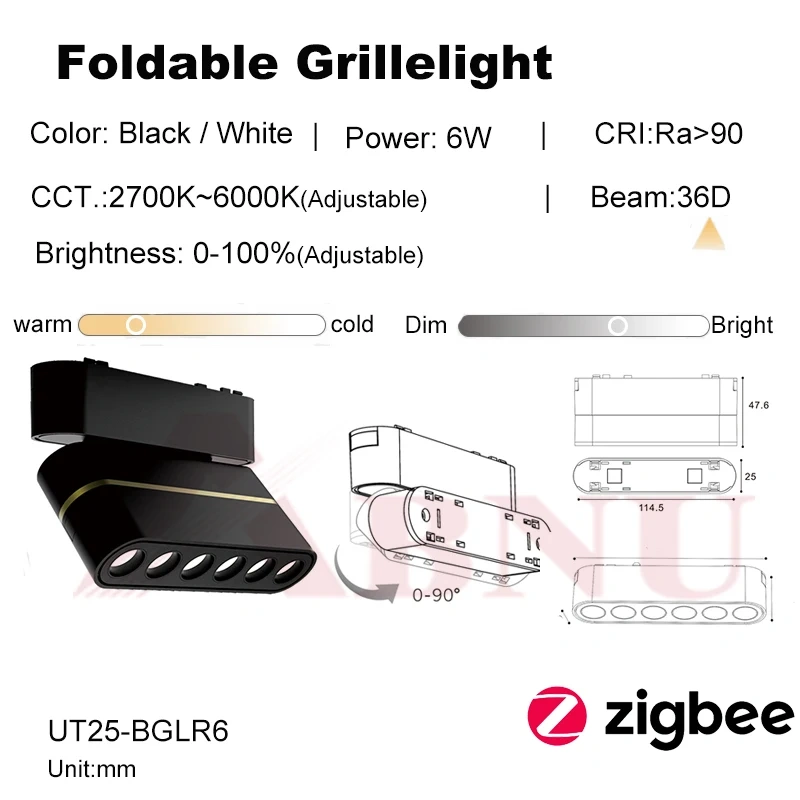

Aluminum Infinity Ceiling Ultra Thin Magnetic Track Light Zigbee Dimming Smart Home Rail System Lamp Retail 6mm Surface Mounted

Technical information

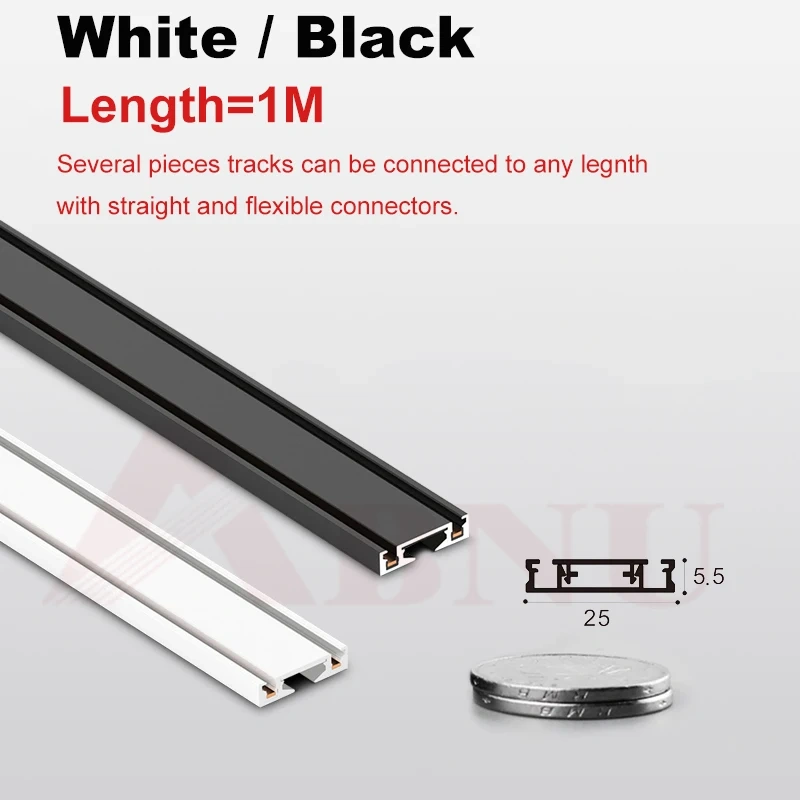

Rail: L=100cm
Material: aluminum
Colour: white, black
Mounting : ceiling or wall
Protection class: I
Application: indoors

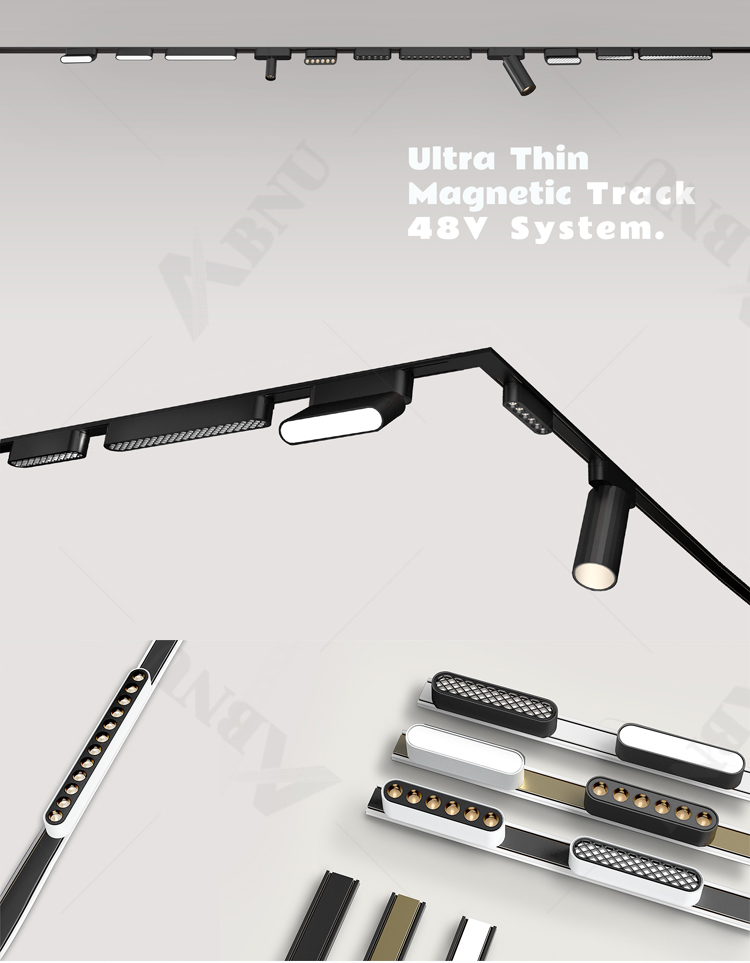

Voltage: 48V

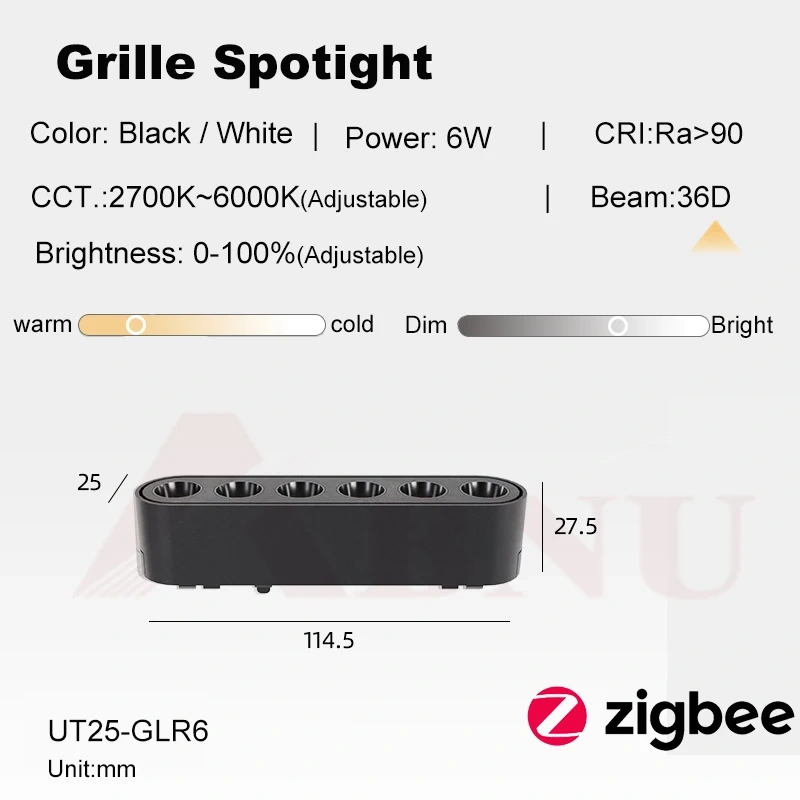

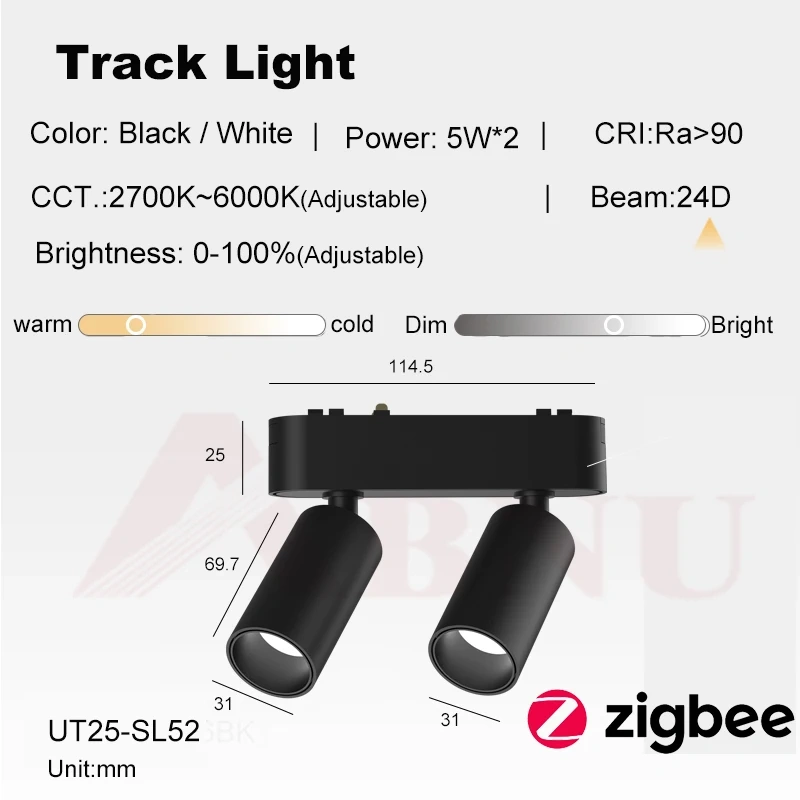

Color Temperature:Diming between 2700K-6000KLight
CRI:Ra>90
Dimming: Brightness changable.
Manufacturer's warranty: 2 years


This track is supplied including end cap. These can be removed if necessary so that you can shorten or extend the rail.

Make the rail as long as you like

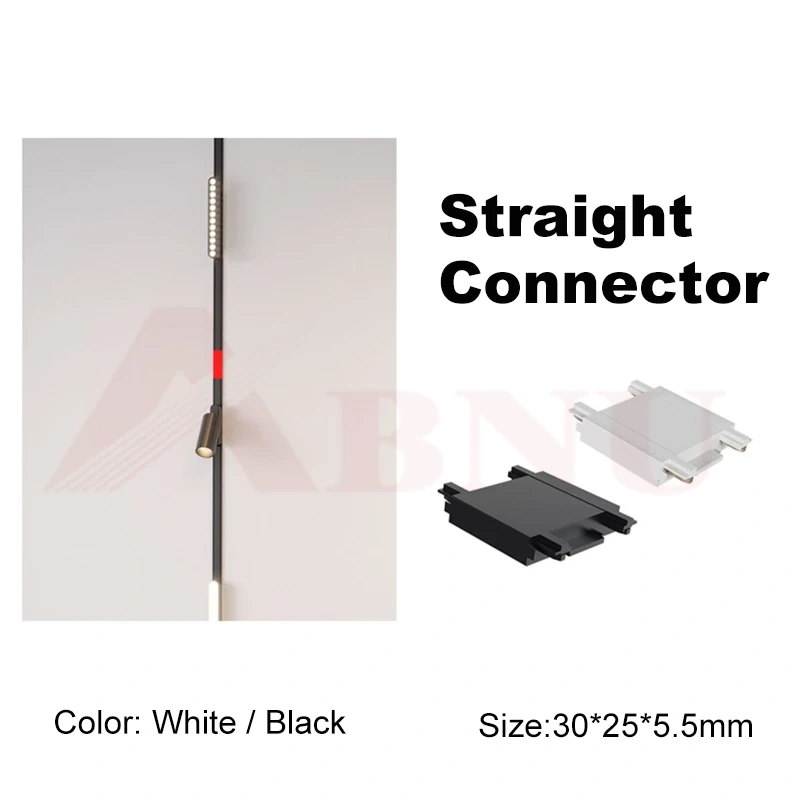

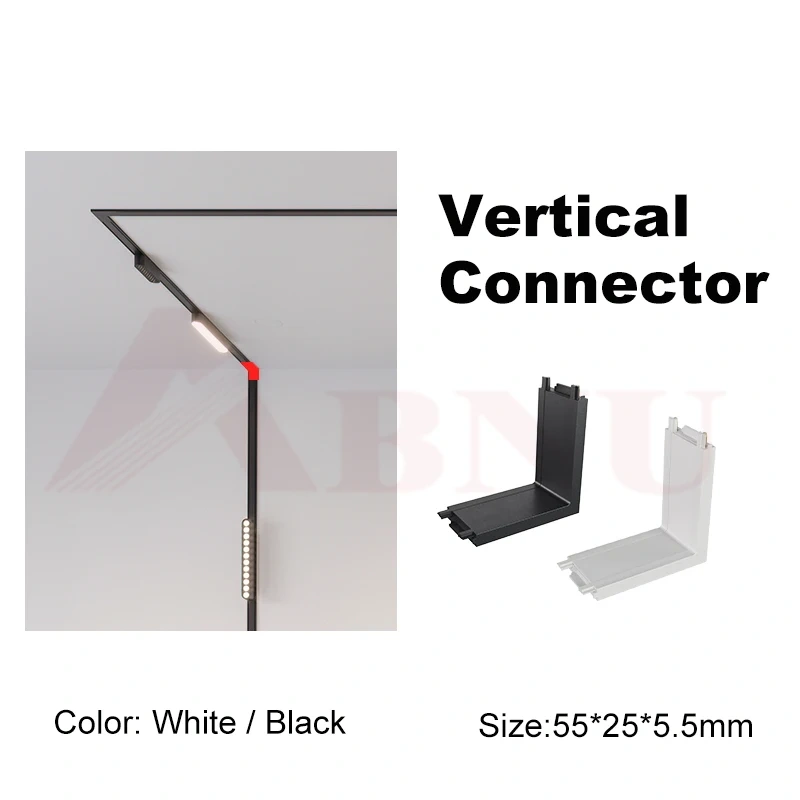

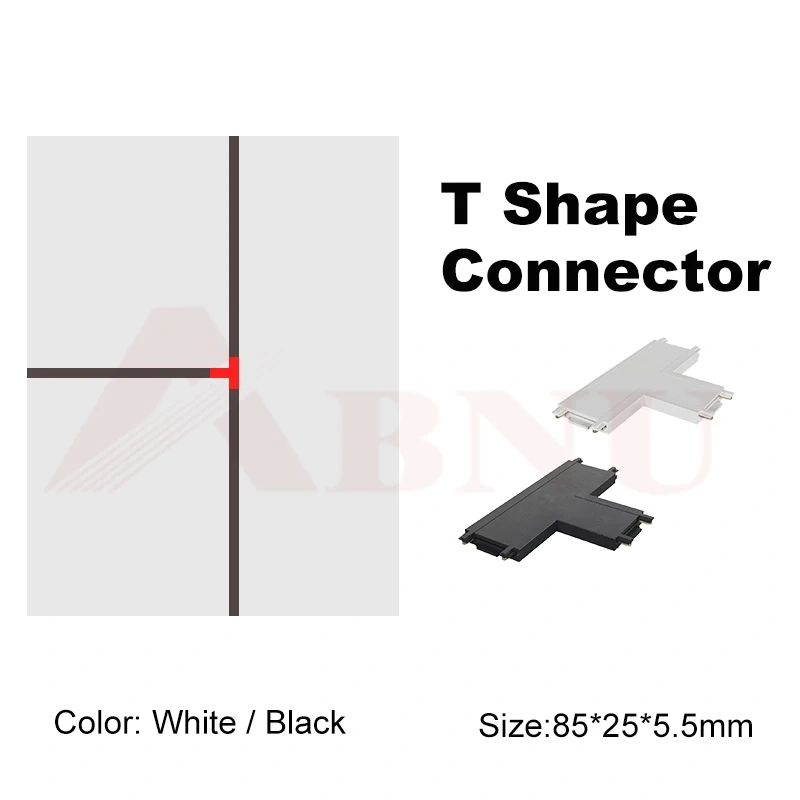

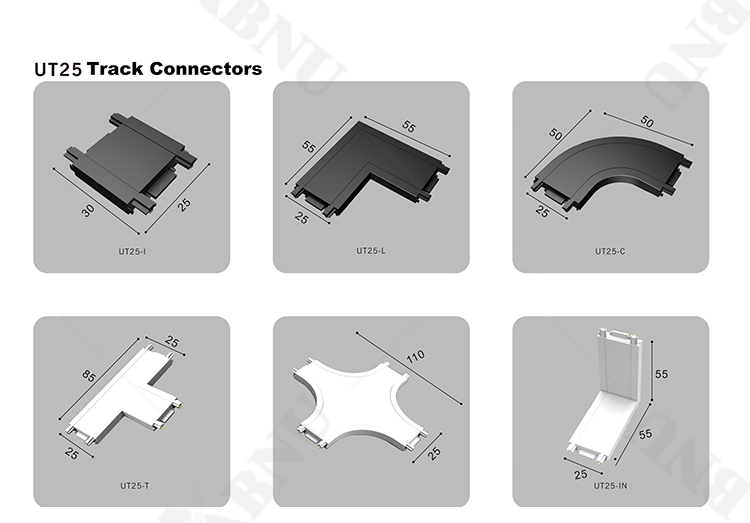

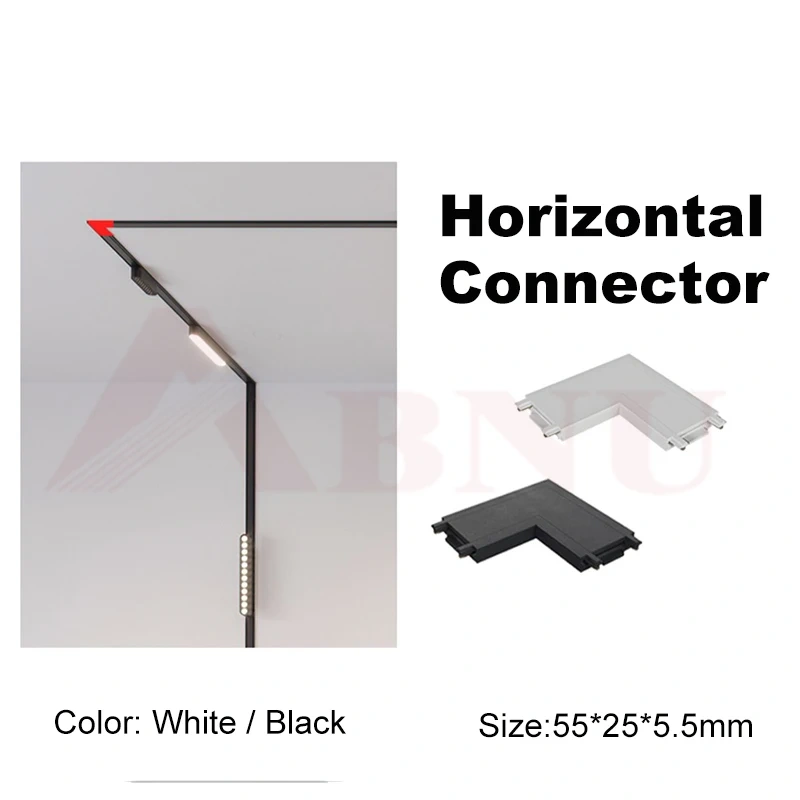

Several pieces of track rail can be connected with straight and flexible connectors.

Example: to make a 3 meter long you need:

3pcsx 1M Rail
2pcs x 1 Rail connector

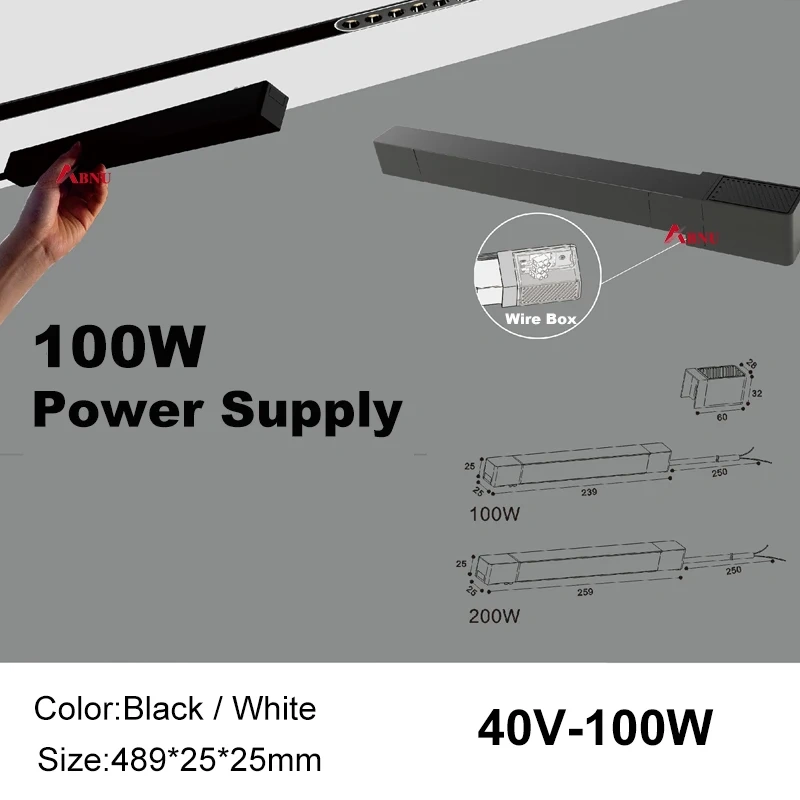

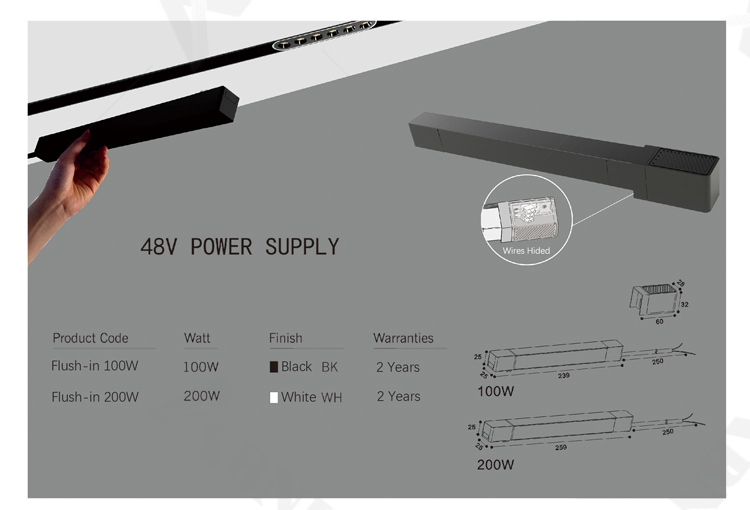

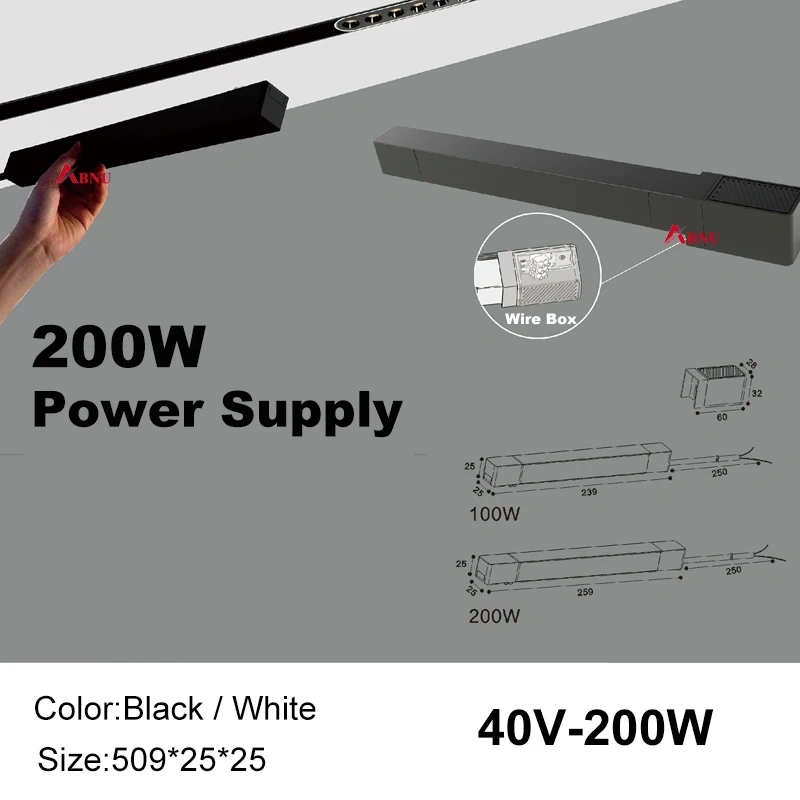

1pcs x 1 power supply
4-6pcs light

Warm Tips: A whole system should includ： Track，Track connector（if length more than 1M), Transformer and the lights.All those parts are indispensable. any parts can not be used separately.

Cut to size and fix

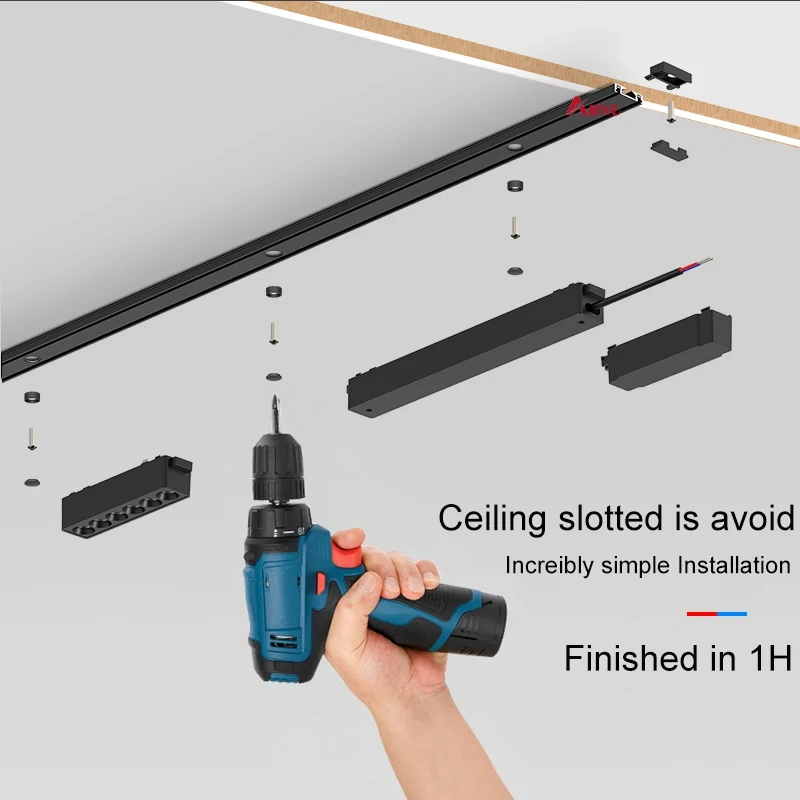

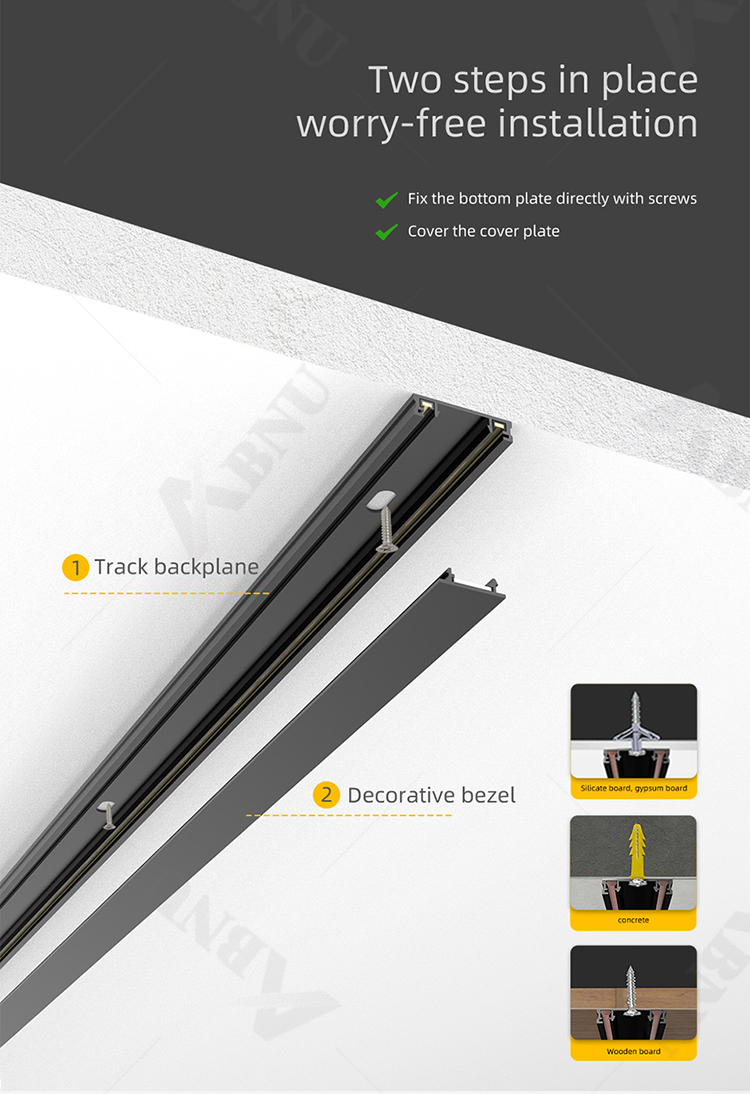

The rail can be cut to the desired length using a hacksaw and a miter box. The rail has pre-drilled holes track back plate so that you can easily attach the rails to the ceiling with screws. You can drill a few holes yourself if you want.

Questions and advice

Feel free to contact us if you want help or advice in putting together a complete system with this produce
