Product Introduction
A dark stair landing or cabinet does not always need a wired lighting installation. This battery powered motion sensor night light adds local illumination using three AA batteries, making it a practical option where a power outlet is unavailable.
The 1W LED light combines PIR motion detection with light-sensitive operation. In automatic mode, it switches on when movement is detected in dark conditions, then switches off approximately 25 seconds after movement is no longer detected. A constant-on mode is also shown in the product instructions.
Use it for everyday indoor lighting around stairs, hallways, wardrobes and cabinets, or order a sample to assess its suitability before purchasing in quantity.
Design

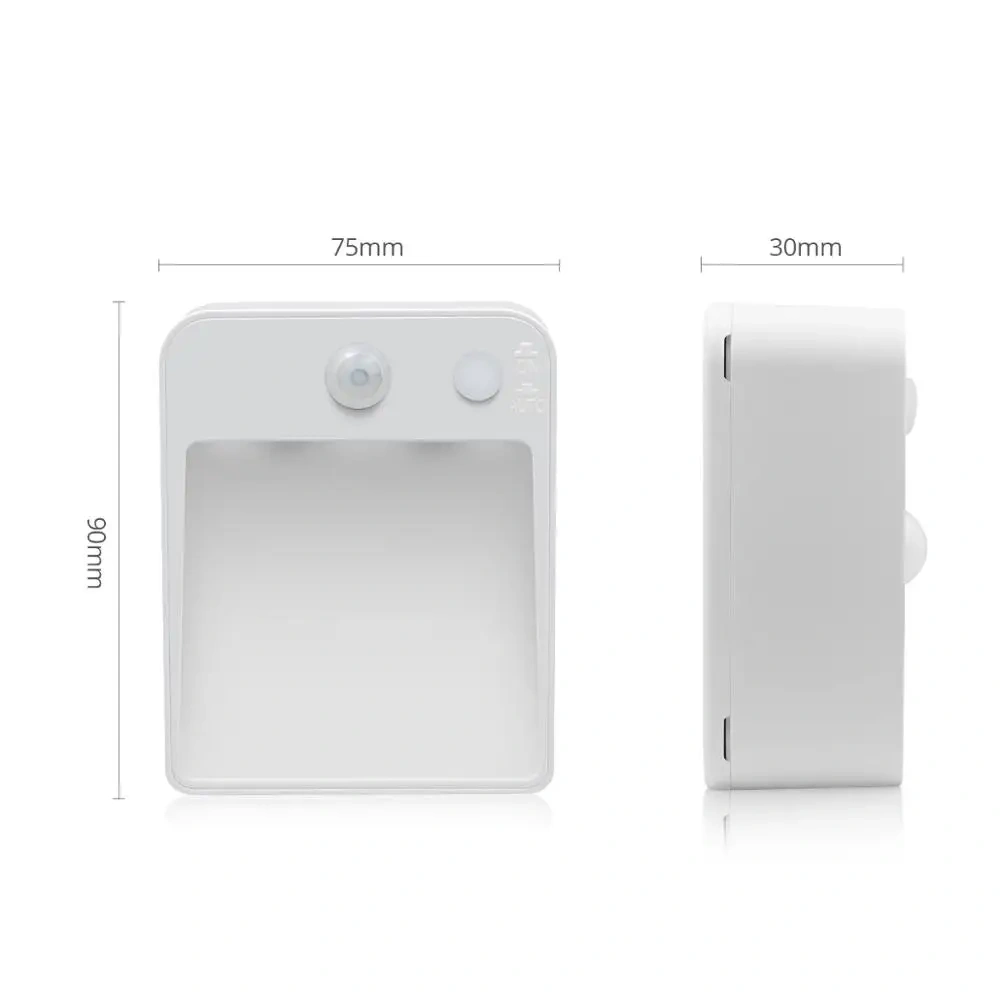

The white ABS and PC housing measures 90mm high, 75mm wide and 30mm deep. Its rectangular shape fits along stair walls and inside storage spaces without requiring a recessed opening.

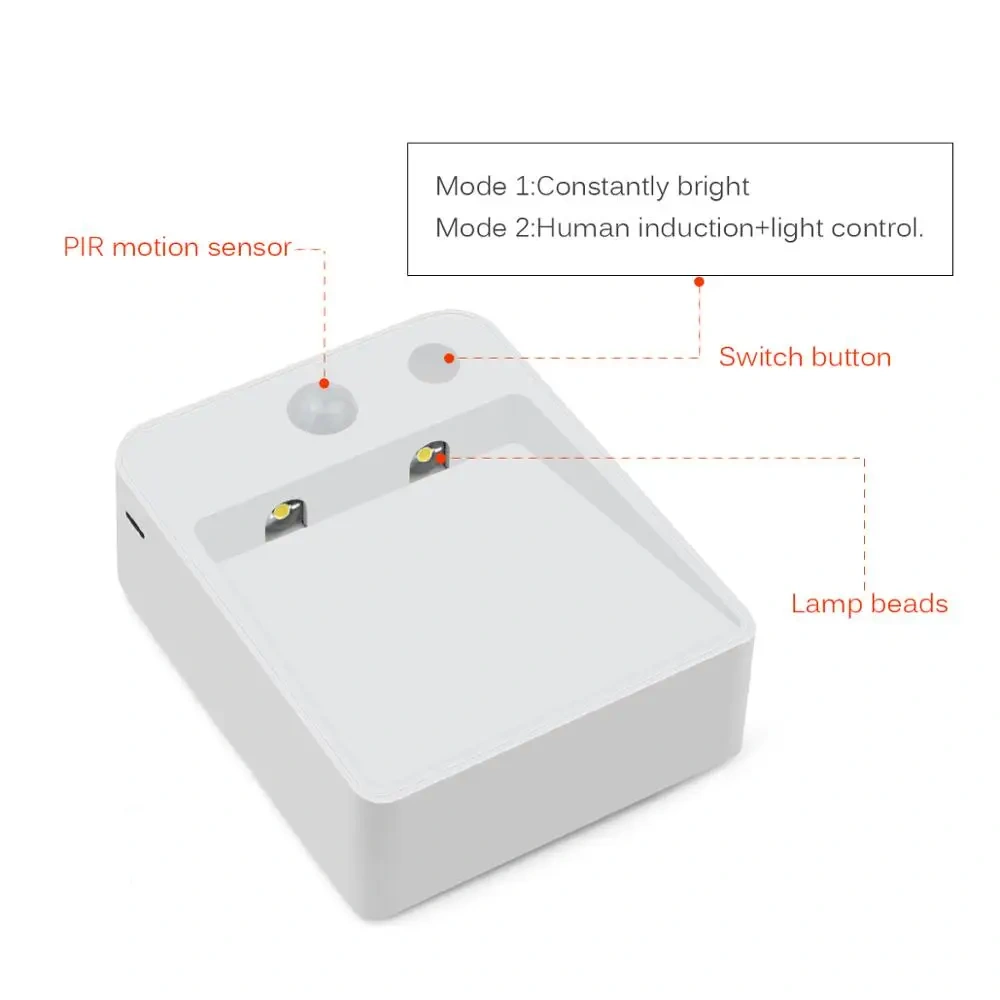

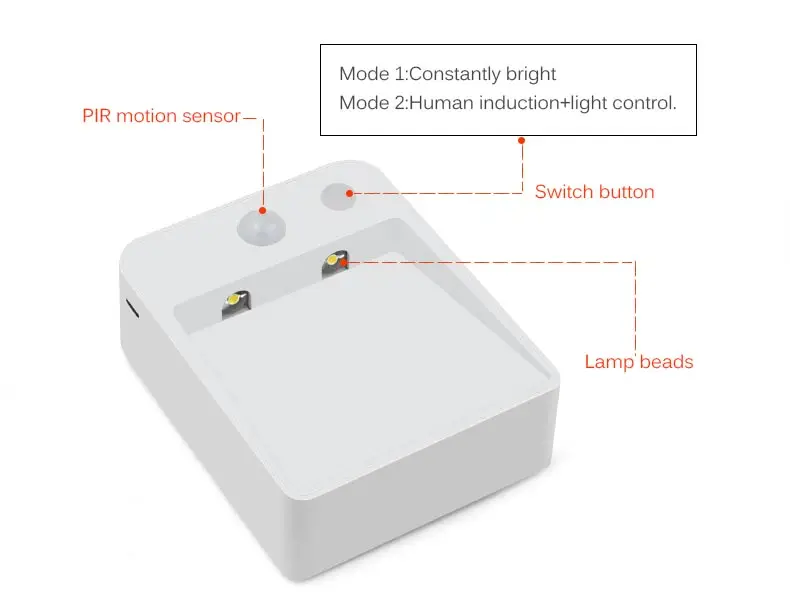

The PIR sensor and control button sit above the recessed LED lighting area. The light is directed towards the nearby surface below the fixture, making placement particularly useful beside steps or above a small cabinet area.
Main Features
- AA battery power: Operates on three AA batteries with a nominal supply voltage of 4.5V.
- PIR motion detection: Listed sensing distance of approximately 3 metres with a 120° detection angle.
- Automatic operation: Activates with movement in dark conditions and switches off after the sensing area is clear.
- Approximate 25-second delay: Shown in the product’s automatic-mode instructions.
- Constant-on option: Provides an alternative to motion-triggered operation.
- Natural white light: Listed colour temperature of 4000–4500K.
- 1W LED light source: Uses two 2835 SMD LEDs.
- No mains wiring: Suitable for locations where routing an electrical cable would be inconvenient.
- Two mounting methods: Product images show an adhesive mounting option and a rear hanging slot.

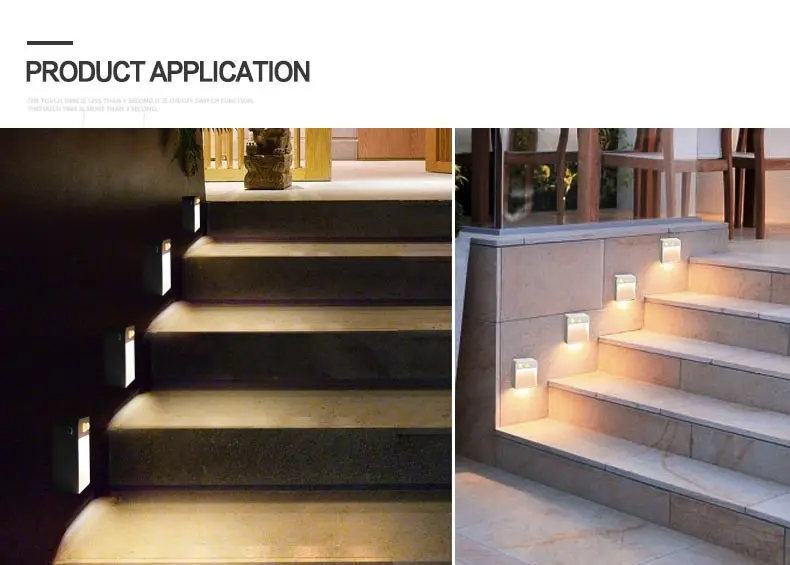

Application
This PIR LED night light is intended for supplementary lighting in indoor spaces, including:

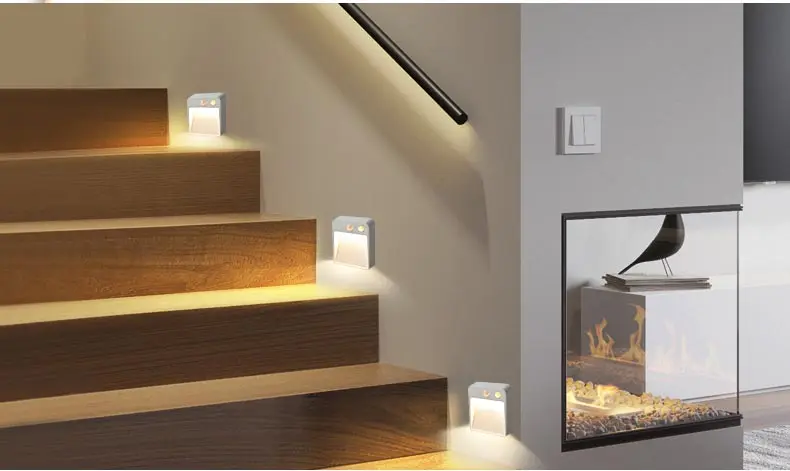

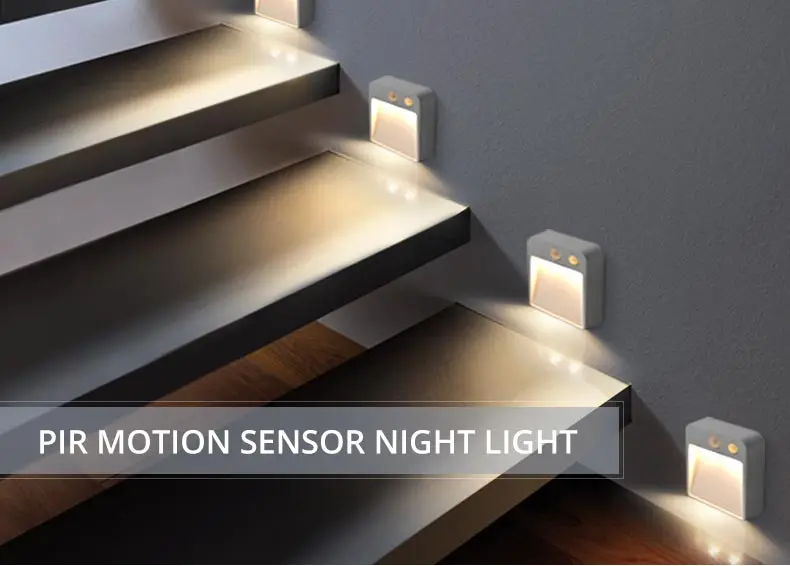

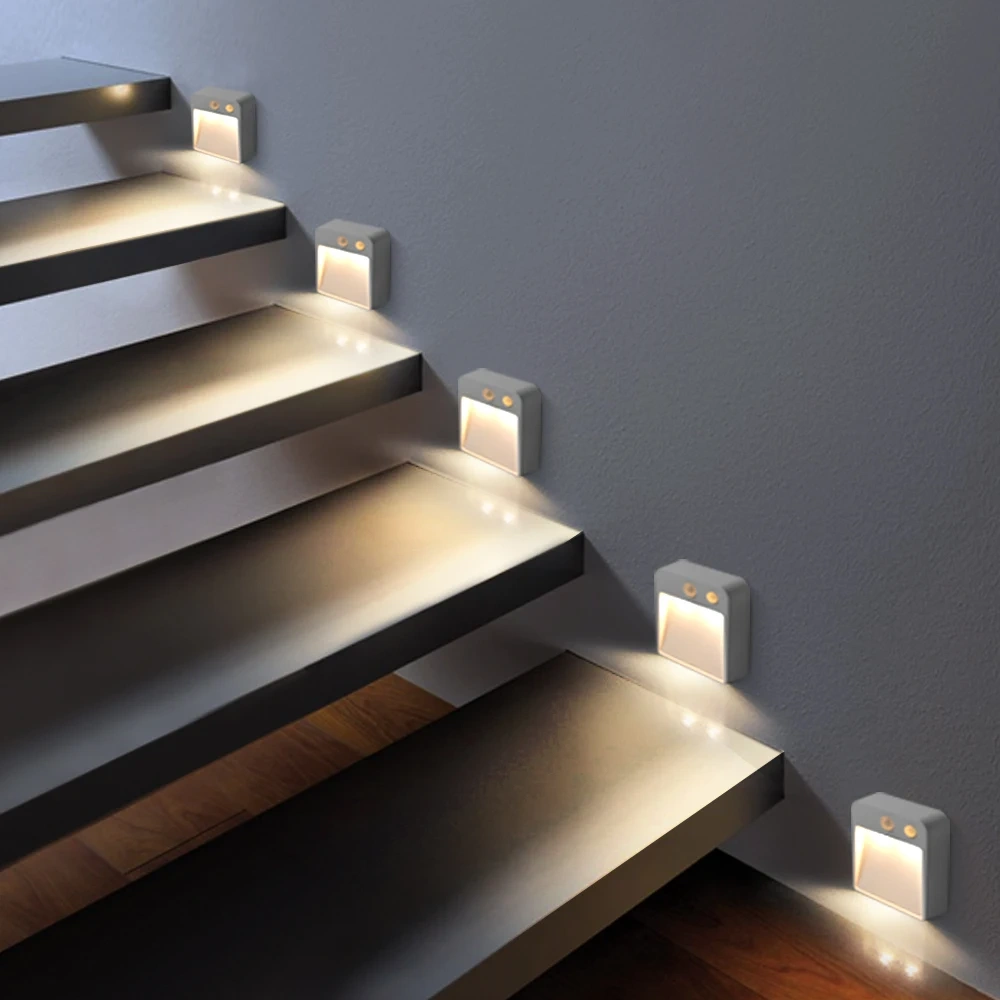

- Residential stairs and landings
- Hallways and bedroom entrances
- Wardrobes and storage cabinets
- Cupboards and small utility spaces
- Apartment interiors where additional wiring is inconvenient
Position the sensor where it can detect people approaching the area. For cabinet installations, avoid placing it behind shelves or stored items that could obstruct detection.
Size / Options

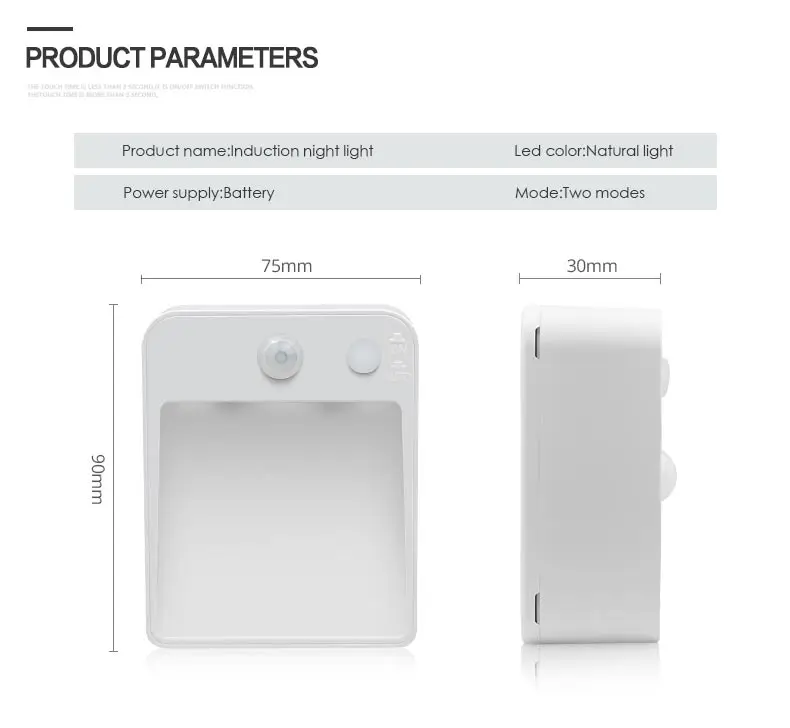

The listed fixture dimensions are 90 × 75 × 30mm (H × W × D).
The current listing shows a white housing and a light-colour option labelled “Nature White,” with a specified colour temperature of 4000–4500K.
Each pack contains one light. Three AA batteries are required and are not included.
Lighting Options

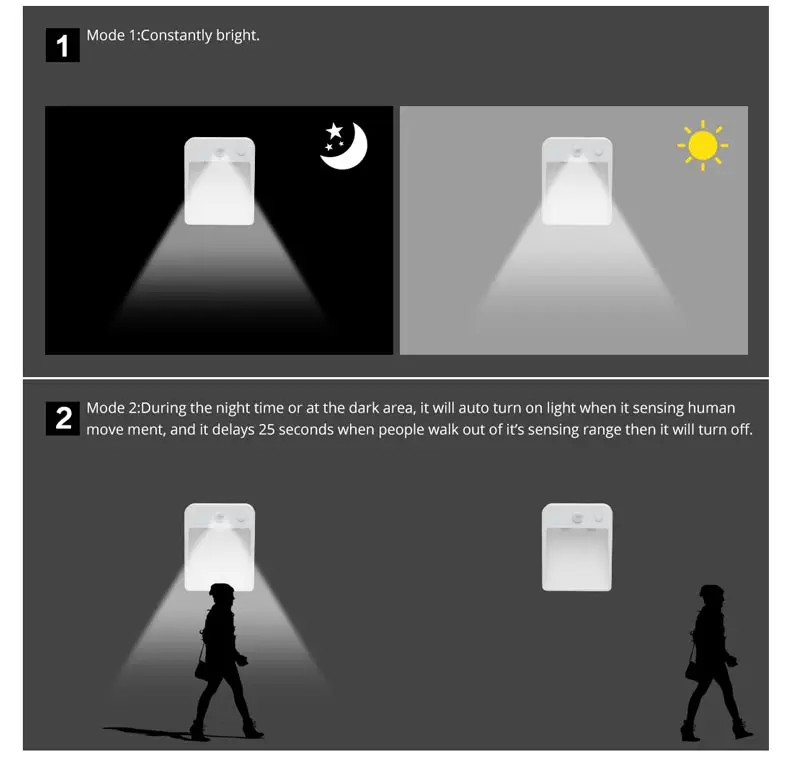

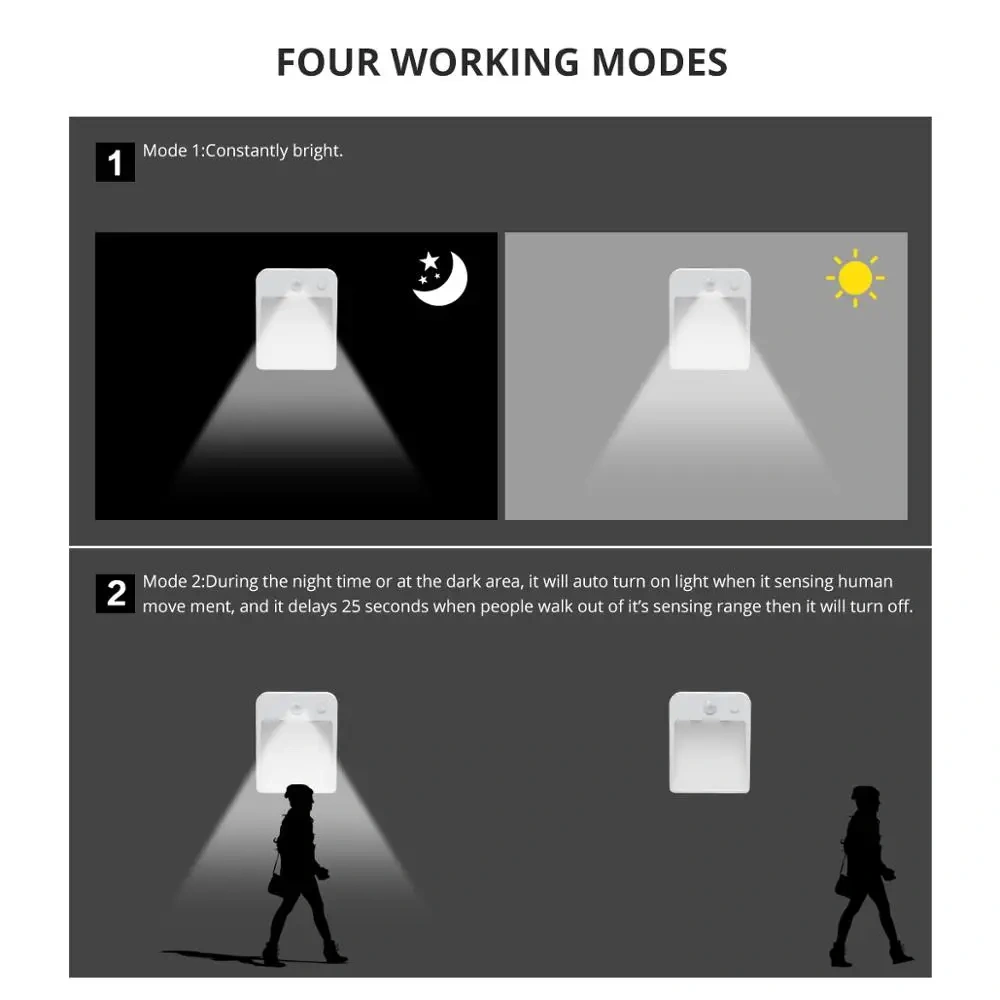

The product instructions show two operating modes:
Constant-on mode: The light remains illuminated until switched off.
Automatic mode: The light activates when movement is detected at night or in a dark area. It switches off approximately 25 seconds after the person leaves the sensing range.
The listed light output colour is natural white at 4000–4500K. Battery runtime will depend on battery capacity, operating mode and activation frequency.
Installation

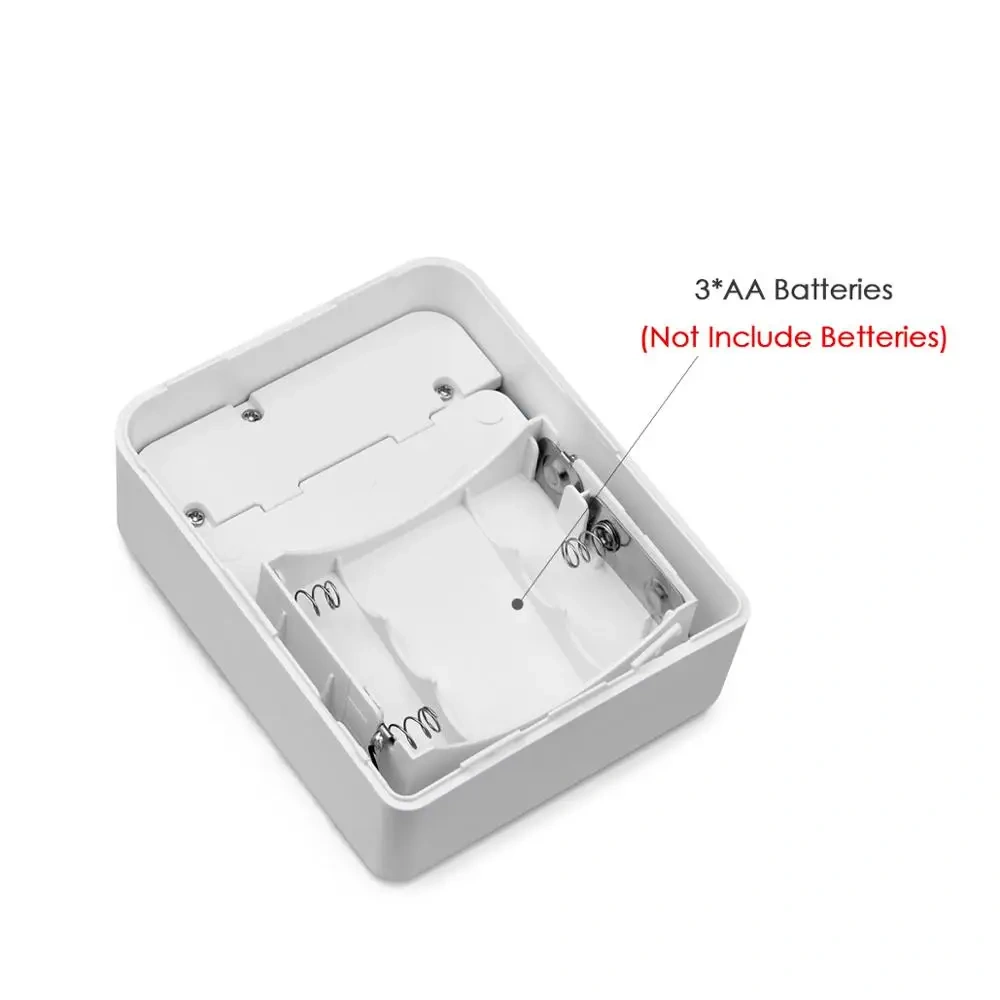

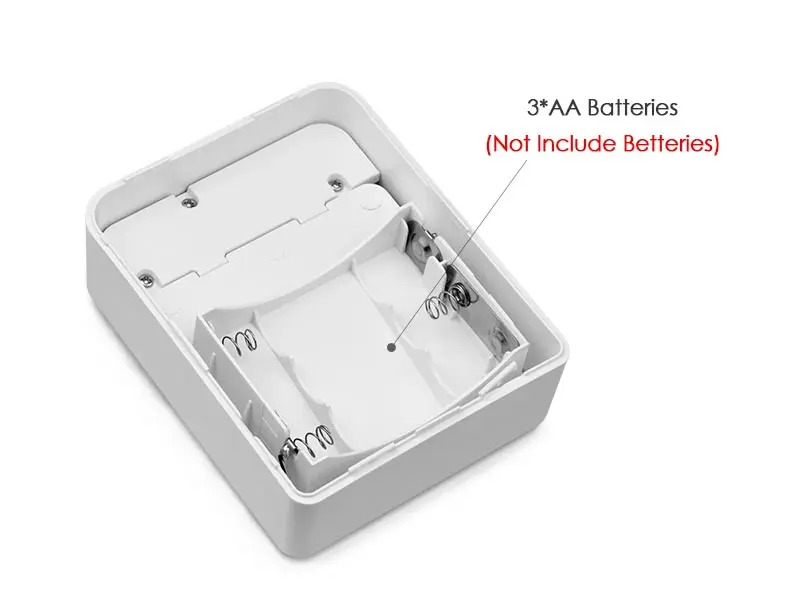

Install three AA batteries according to the polarity markings inside the battery compartment.

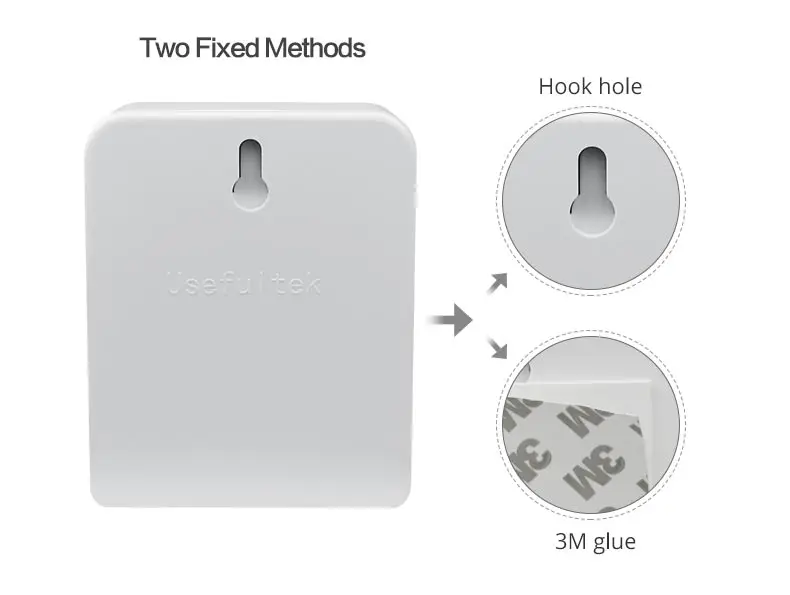

Choose a mounting position with an unobstructed view of the area where motion detection is needed. The product images show two installation methods: adhesive mounting on a suitable surface or hanging the light from its rear mounting slot.
For adhesive installation, clean and dry the mounting surface before fitting. Check that the surface and adhesive are suitable for the fixture.

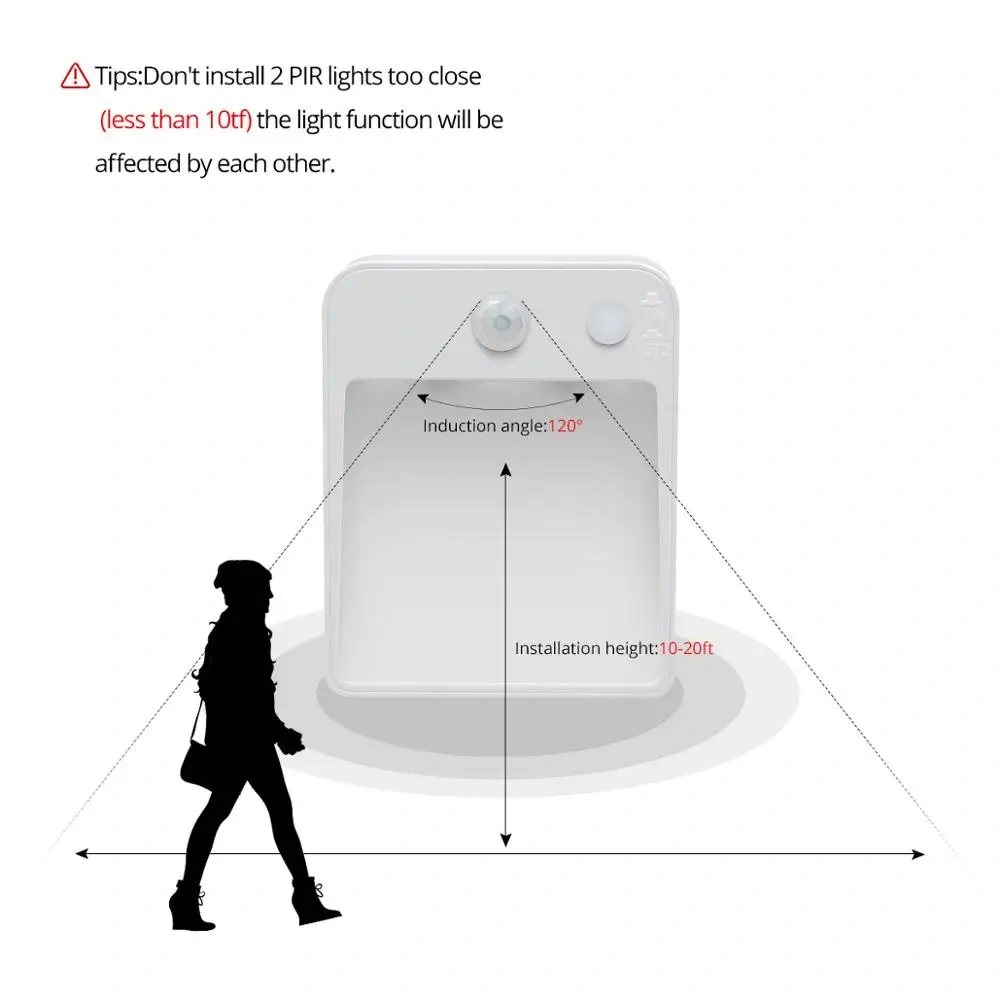

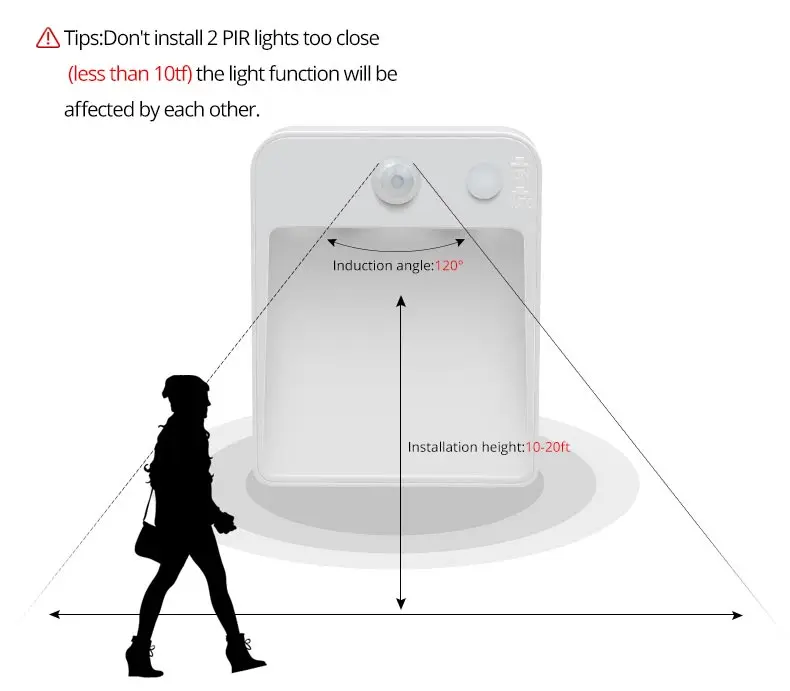

After installation, test automatic operation in dark conditions. Where several lights are installed along stairs, test them together to check that light from a neighbouring unit does not interfere with automatic activation.
Technical Specifications
| Parameter |
Specification |
| Product type |
Battery powered PIR LED night light |
| Product reference |
1005007721718534 |
| Rated power |
1W |
| Nominal voltage |
4.5V |
| Power supply |
3 × AA batteries |
| Batteries included |
No |
| LED type |
2835 SMD |
| LED quantity |
2 LEDs |
| Light colour |
Natural white |
| Colour temperature |
4000–4500K |
| Sensor type |
PIR motion sensor with light-sensitive automatic operation |
| Listed detection distance |
Approximately 3m / 9.84ft |
| Listed detection angle |
120° |
| Operating modes shown |
Constant-on and automatic |
| Automatic switch-off delay |
Approximately 25 seconds after leaving the sensing range |
| Housing material |
ABS + PC |
| Housing colour shown |
White |
| Dimensions |
90 × 75 × 30mm, H × W × D |
| Mounting options shown |
Adhesive mounting or rear hanging slot |
| Pack quantity |
1 piece |
| Minimum order quantity |
1 piece |
| Sample order lead time |
3–7 days |
| Mass order lead time |
7–15 days |
Project Applications
For retailers and distributors, this AA battery night light is a compact addition to indoor lighting and home-accessory ranges. A one-piece minimum order allows buyers to check the housing, sensor response and light appearance before placing a larger order.
For residential refurbishment and property maintenance, the battery-powered design provides an option for adding local lighting without installing a new mains connection. A sample installation is useful for checking sensor coverage and the interaction between multiple units.
This product is intended for supplementary indoor lighting. It should not be specified as a replacement for required emergency or escape-route lighting.
OEM/ODM
Contact USKYLED with your requirements for branding, packaging or other product changes. Customisation availability, minimum quantities, costs and lead times require confirmation for the requested configuration.
For the listed standard product, the minimum order quantity is one piece. Sample order lead time is 3–7 days, and mass order lead time is 7–15 days.
Request a Sample or Bulk Quotation
Looking for an AA battery powered motion sensor night light for your store or indoor lighting project? Contact USKYLED with your quantity and delivery destination to request a quotation.
MOQ: 1 piece | Sample orders: 3–7 days | Mass orders: 7–15 days
