Product Data:

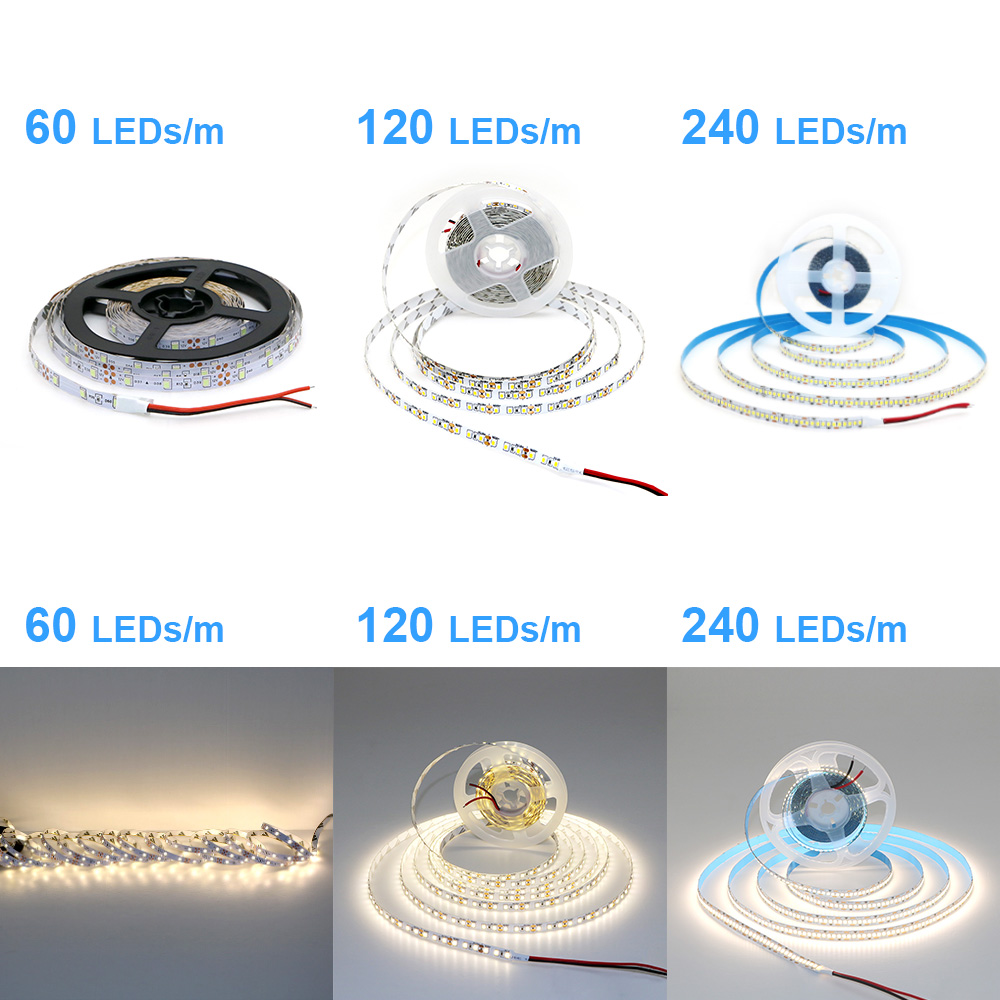

1. LED Quantity:

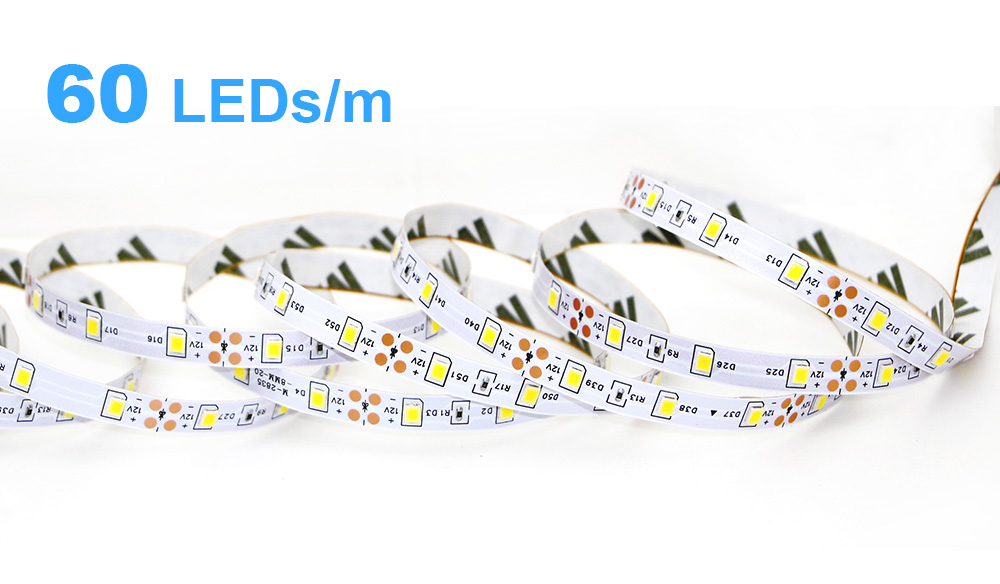

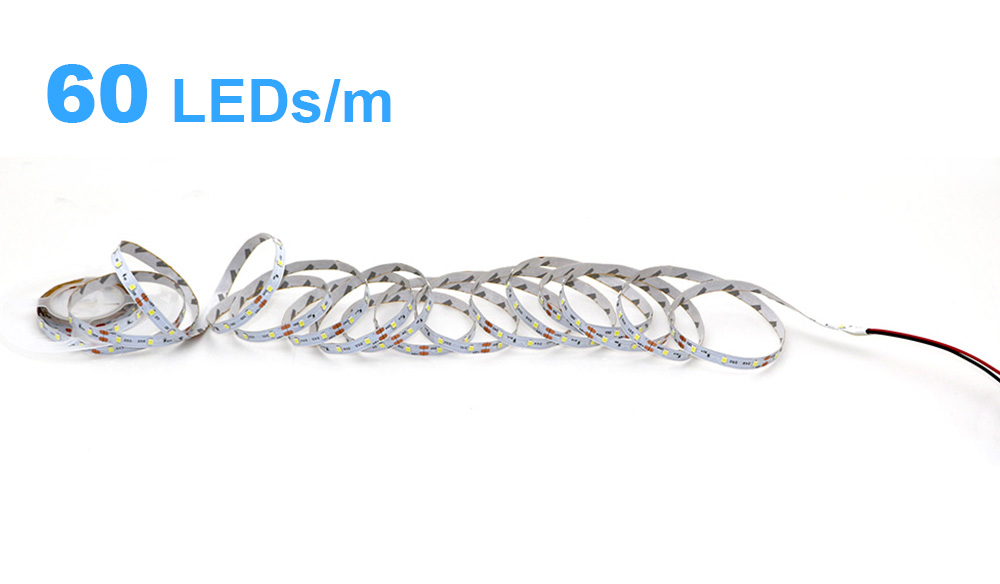

60LEDs/m, 300LEDs/5m/Roll.

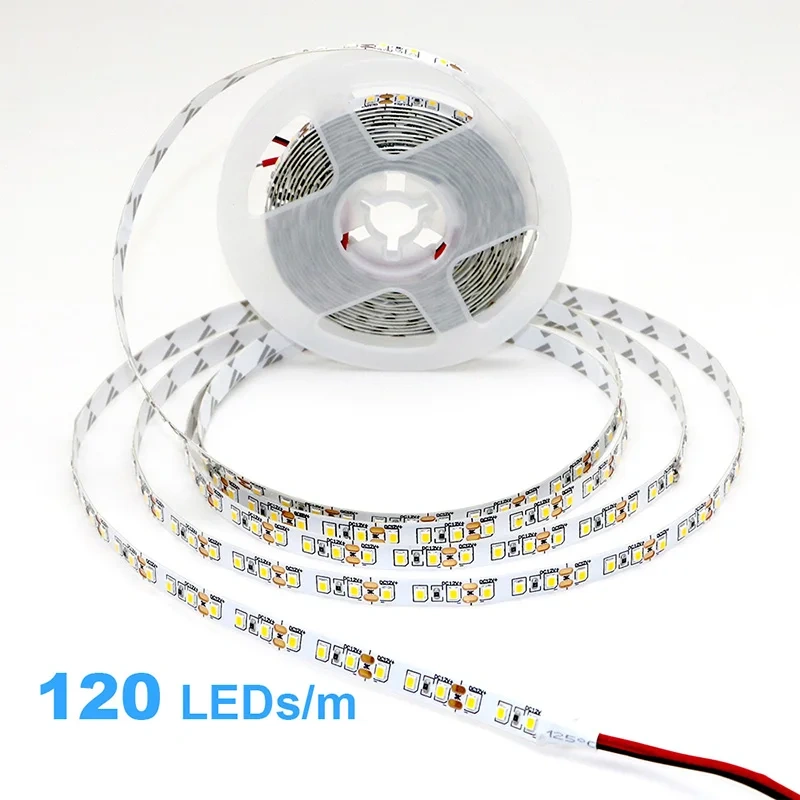

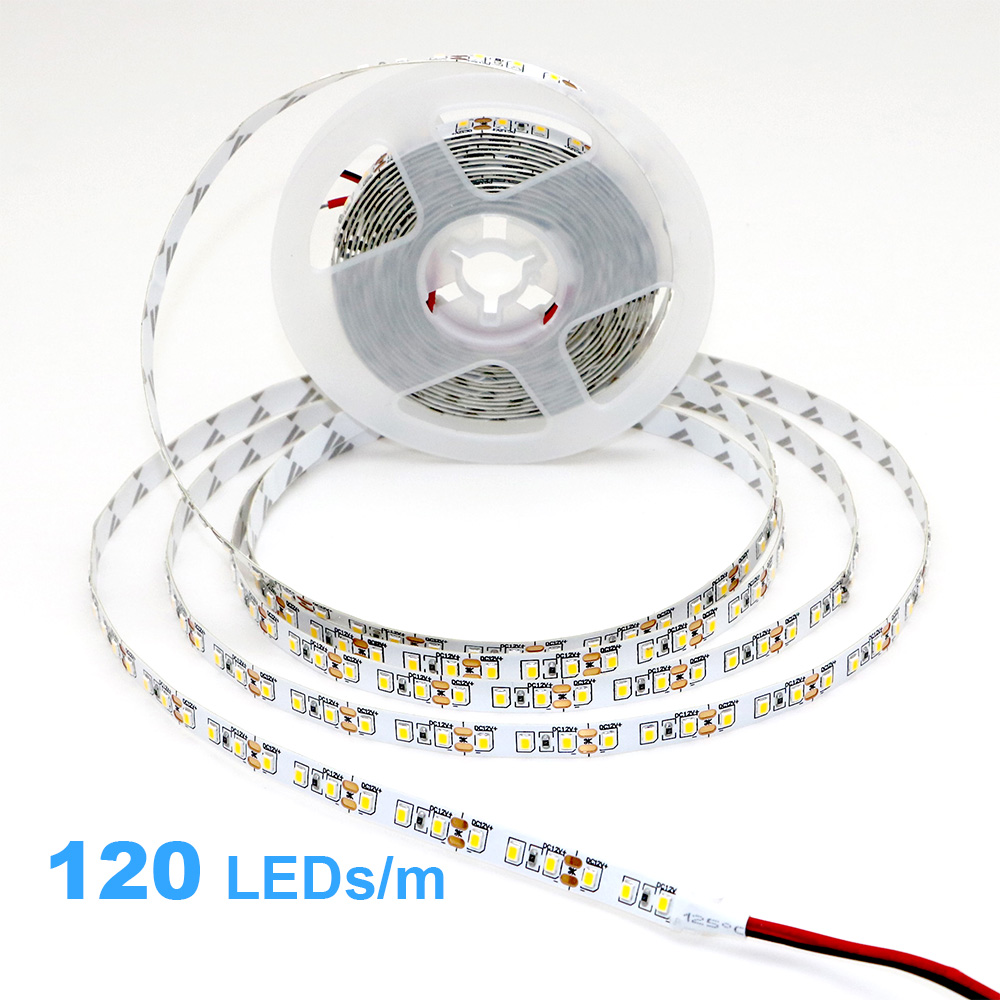

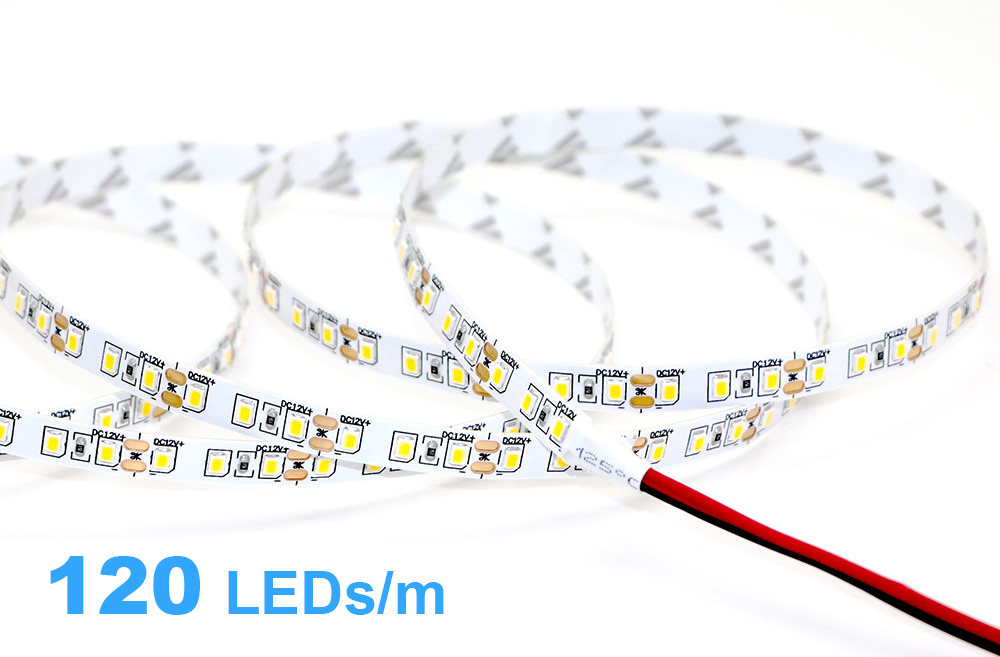

120LEDs/m, 600LEDs/5m/Roll.

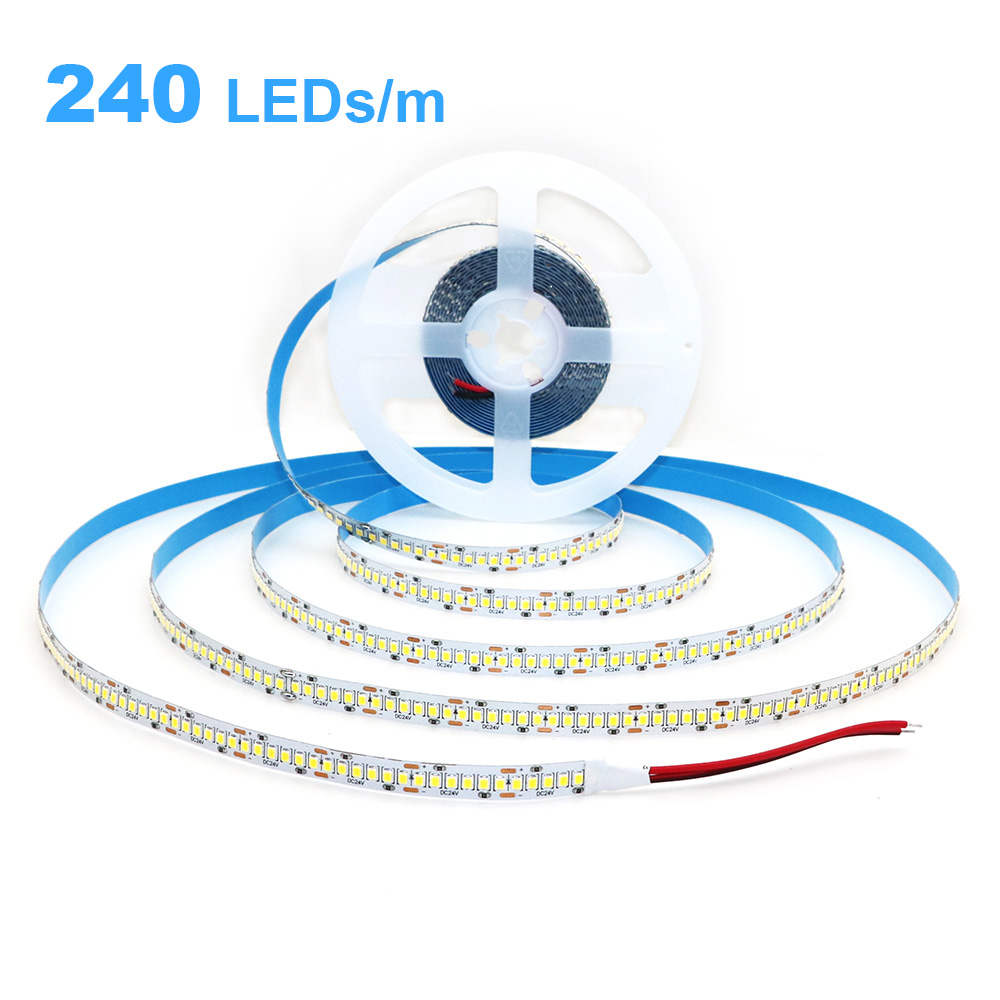

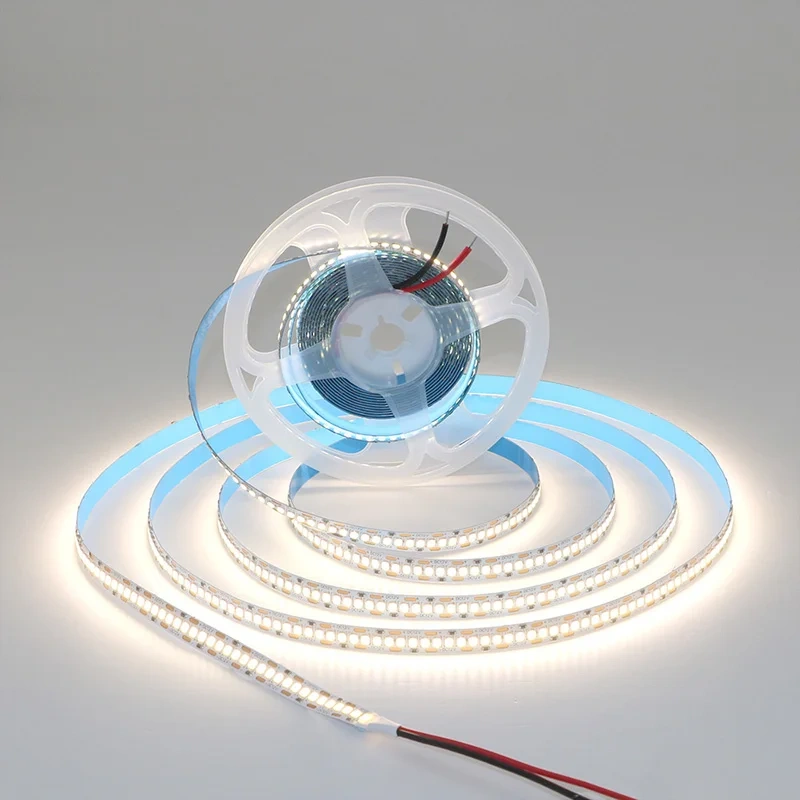

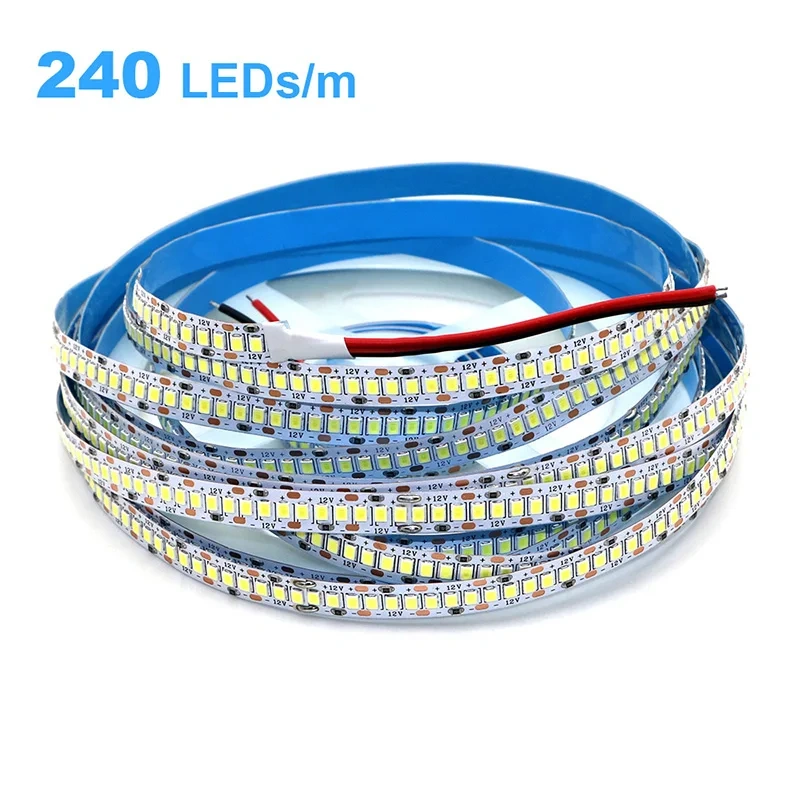

240LEDs/m, 1200LEDs/5m/Roll.
2. SMD type: SMD2835

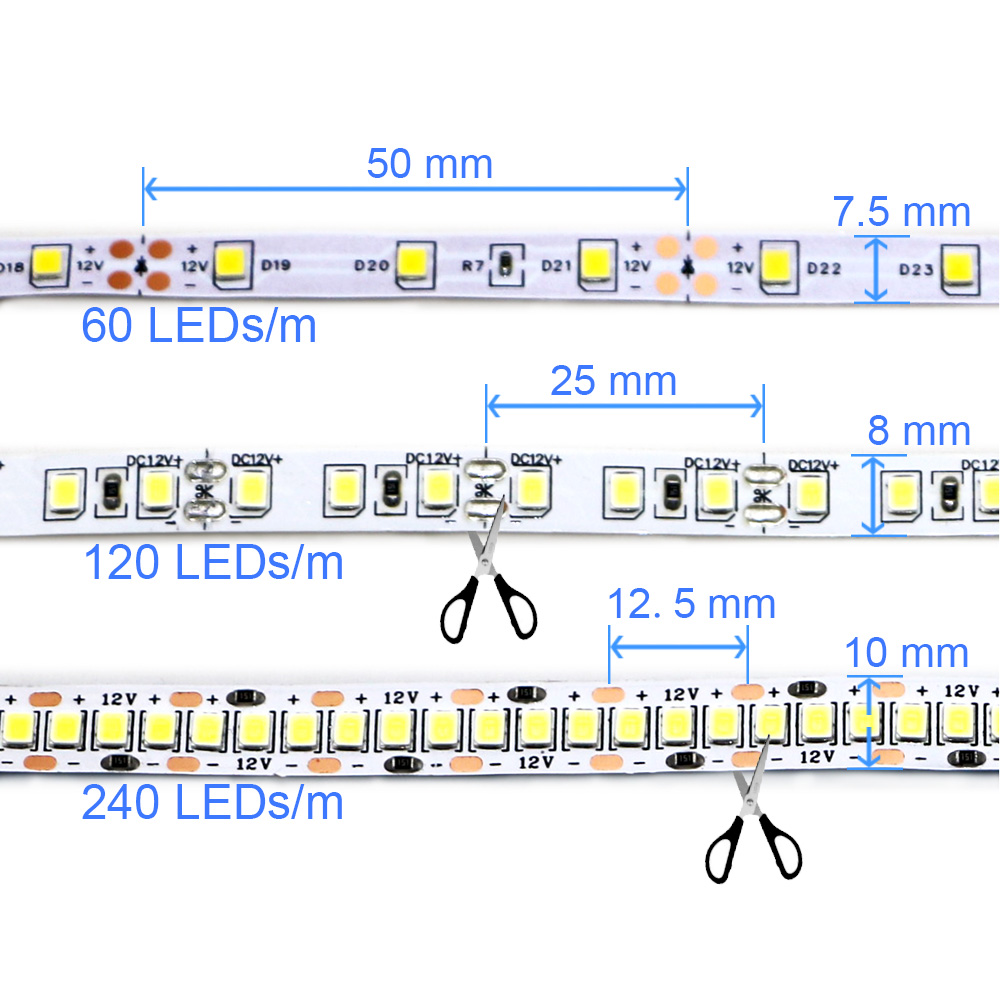

3. LED Strip Size:

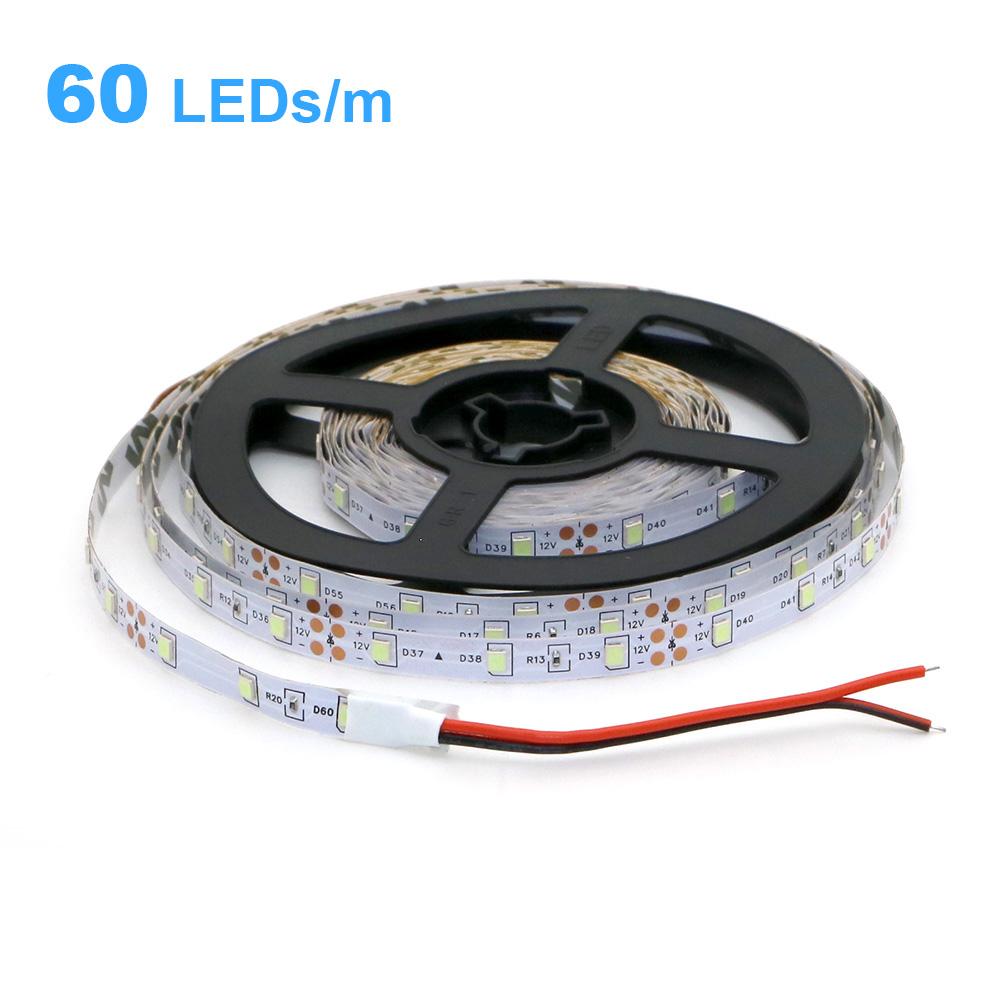

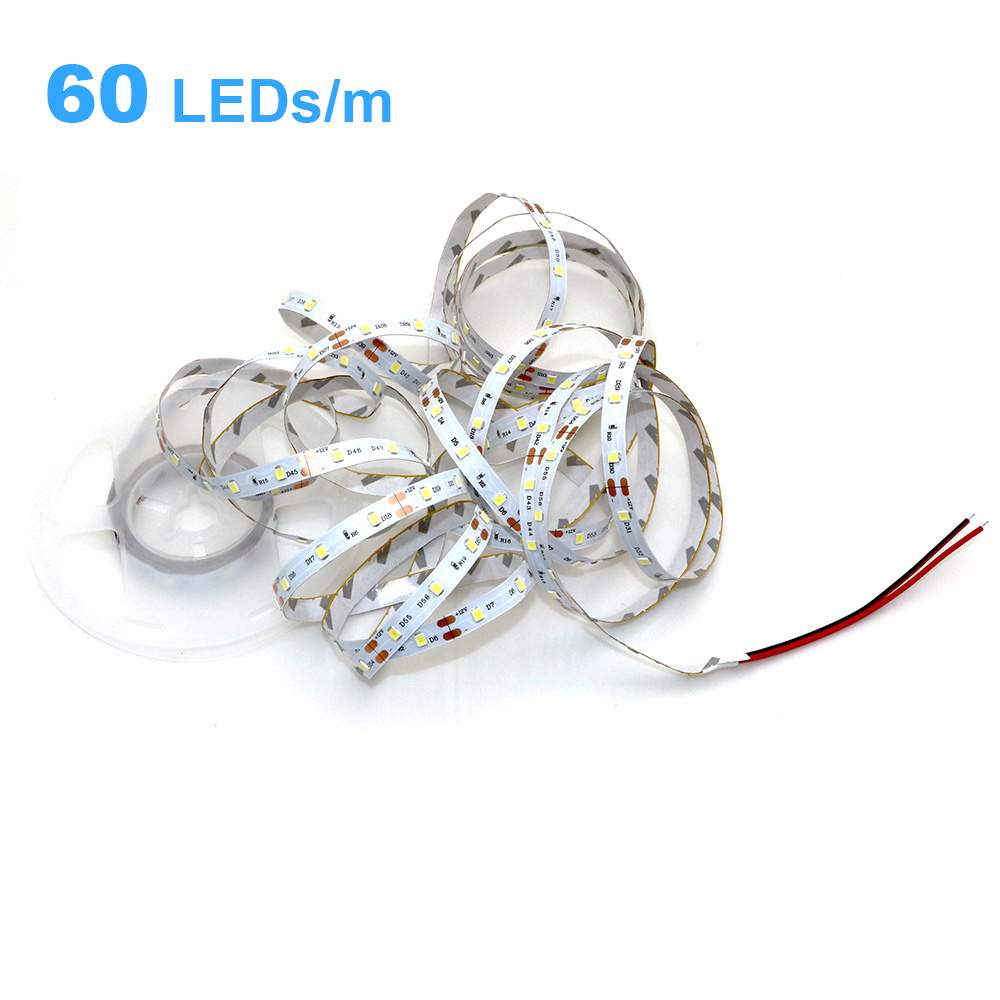

Width of 60LEDs/m LED light strip: 7.5mm ;
Width of 120LEDs/m LED light strip: 8mm ;

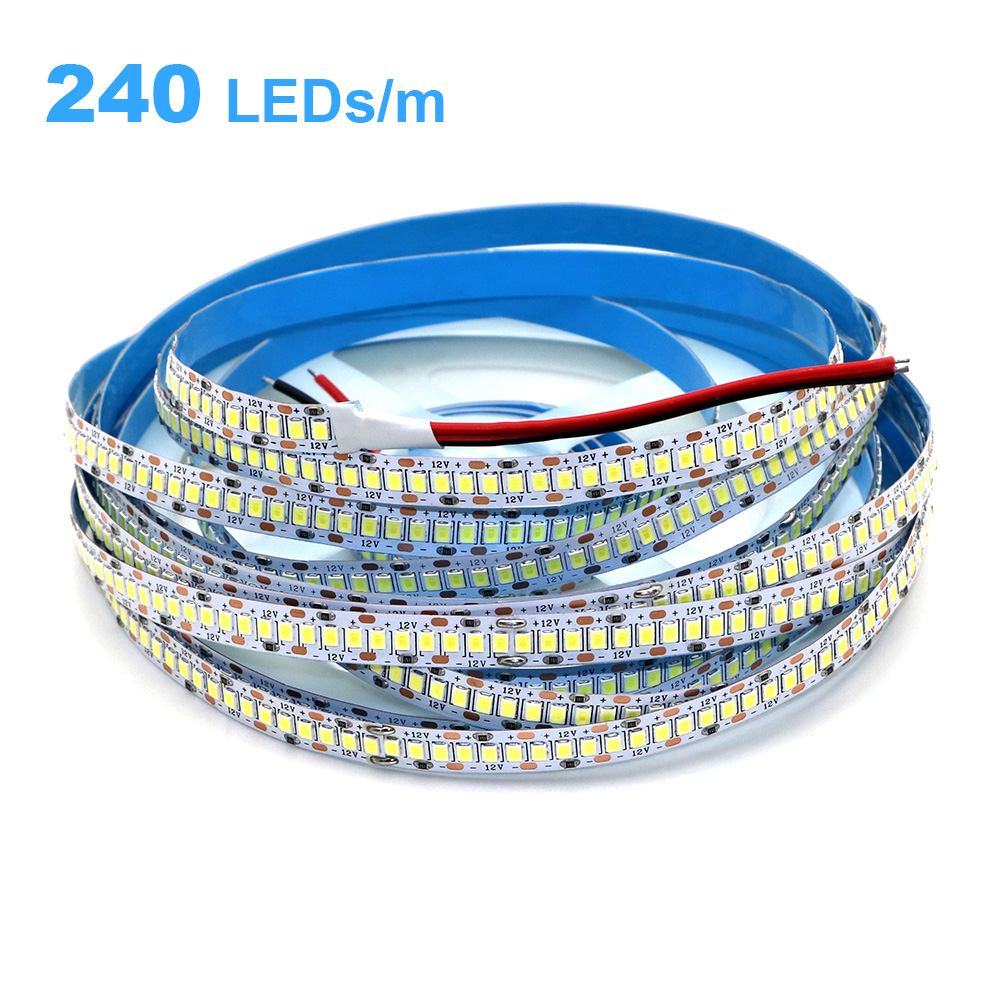

Width of 240LEDs/m LED light strip: 10mm .
Length of LED light strip: 5 meters / 10 meters
4. Input voltage: DC 12V / DC 24V.
5. Light Color:

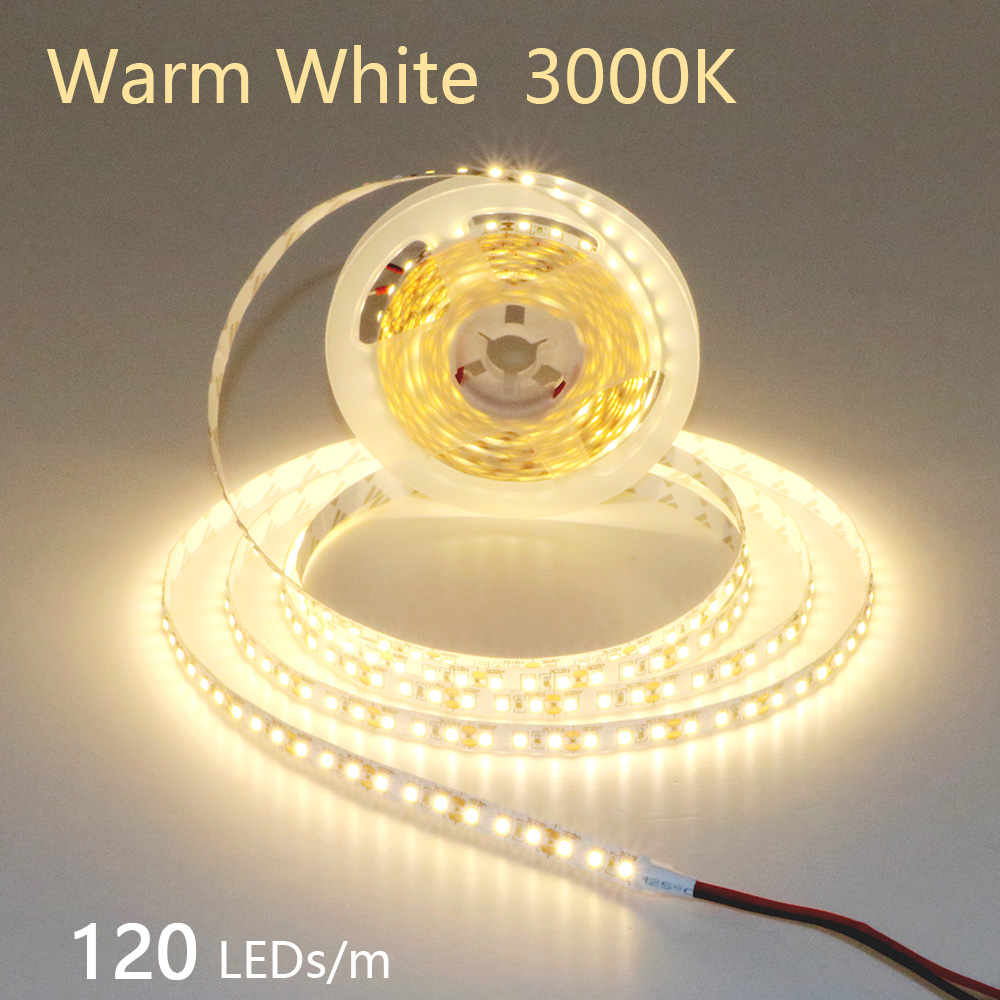

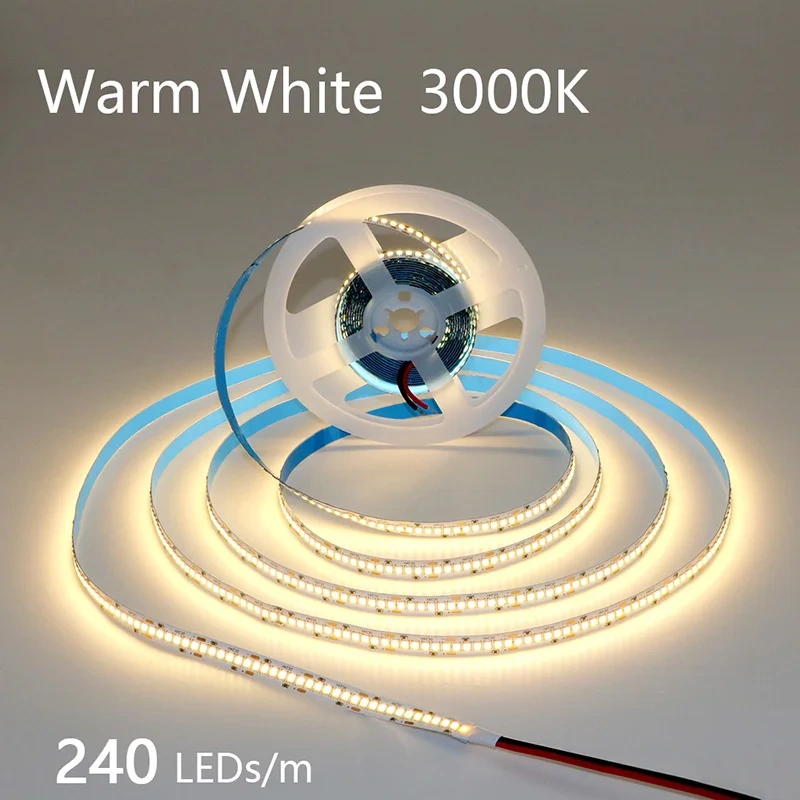

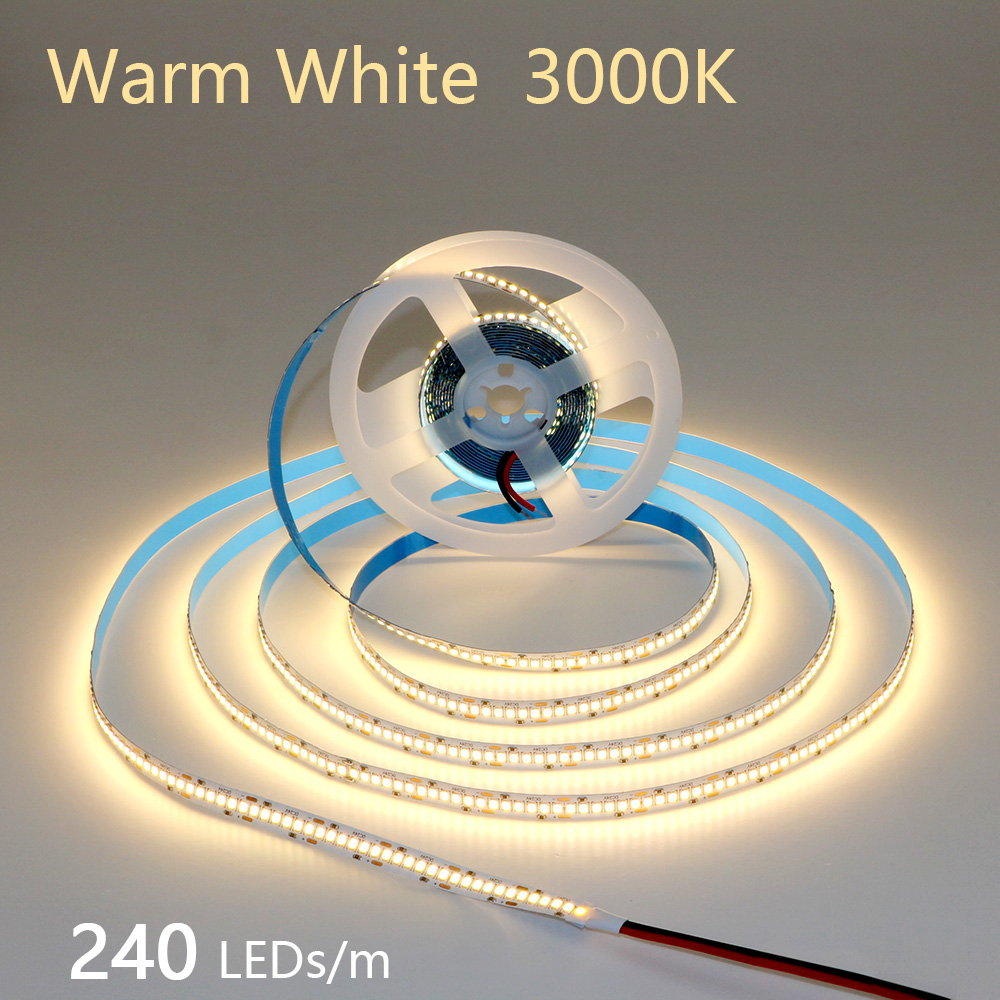

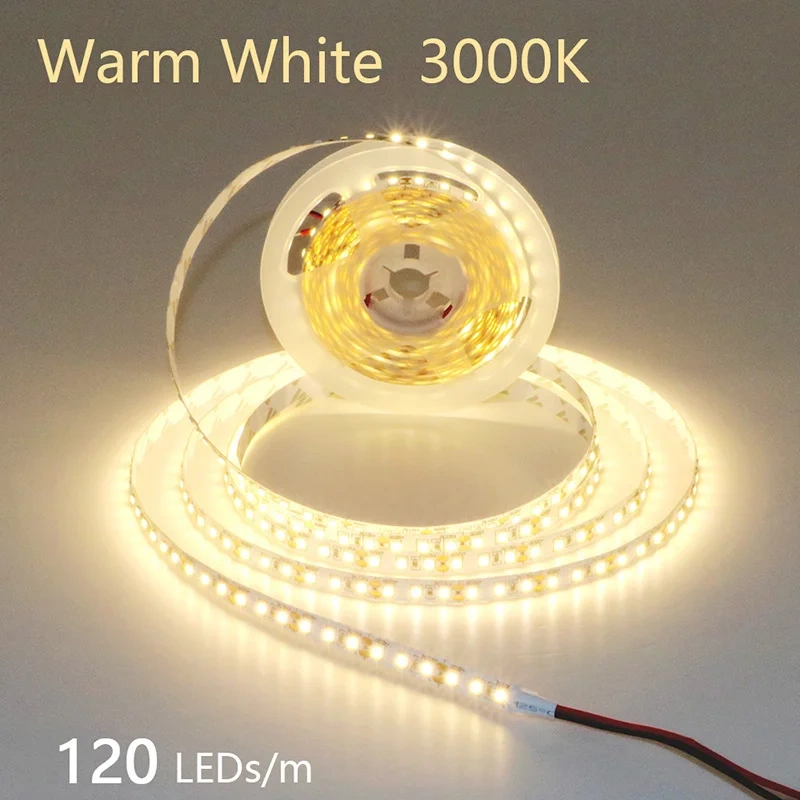

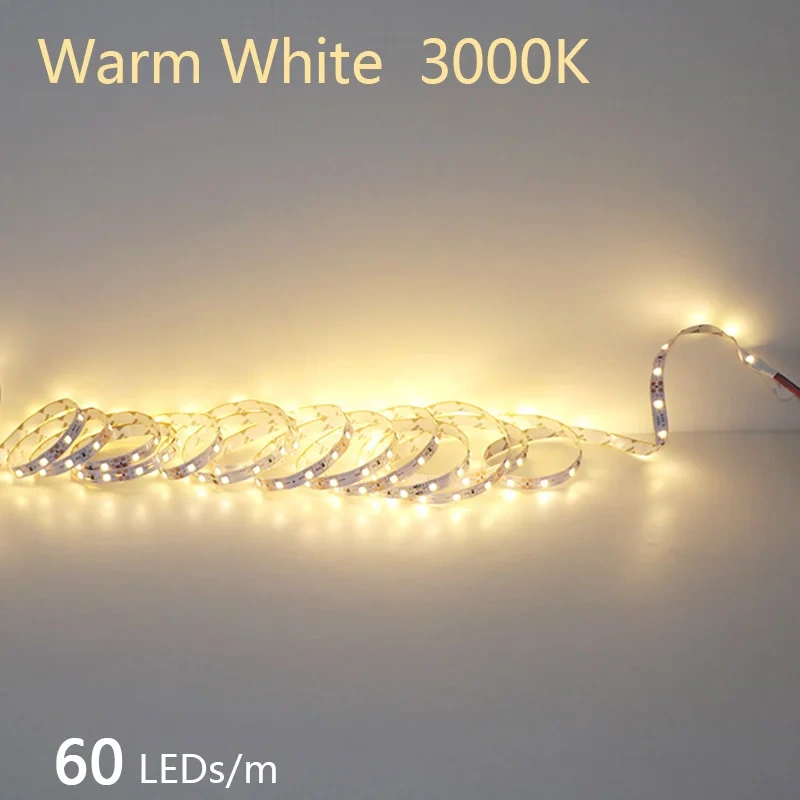

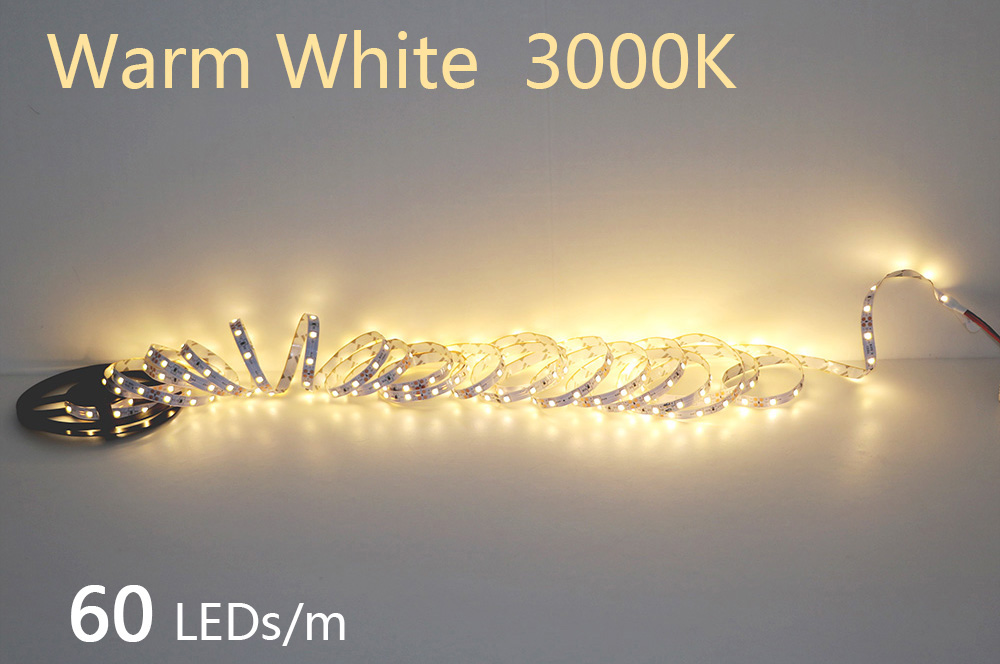

3000K - Warm White,

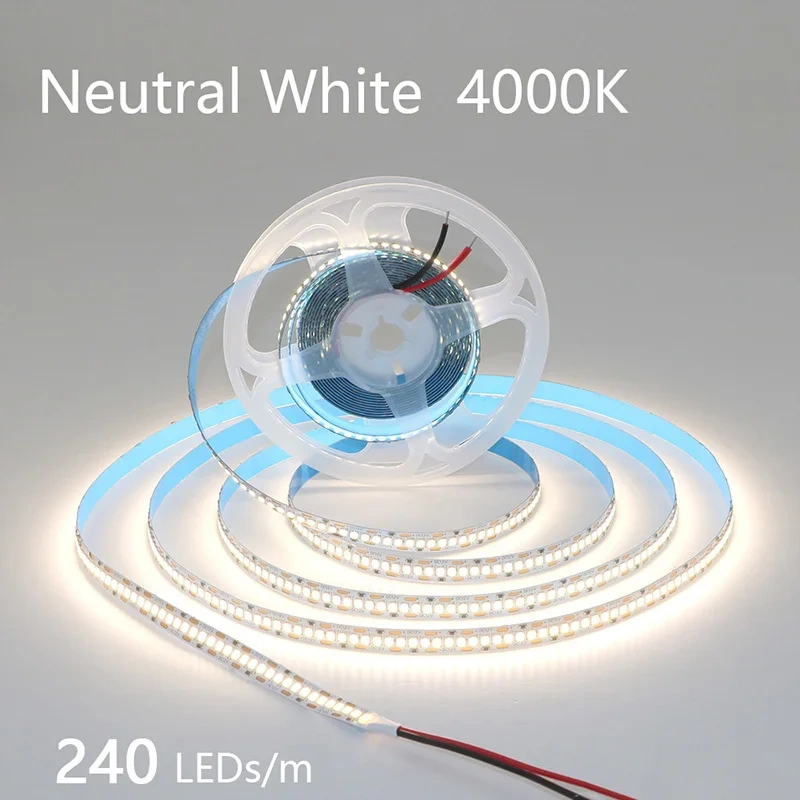

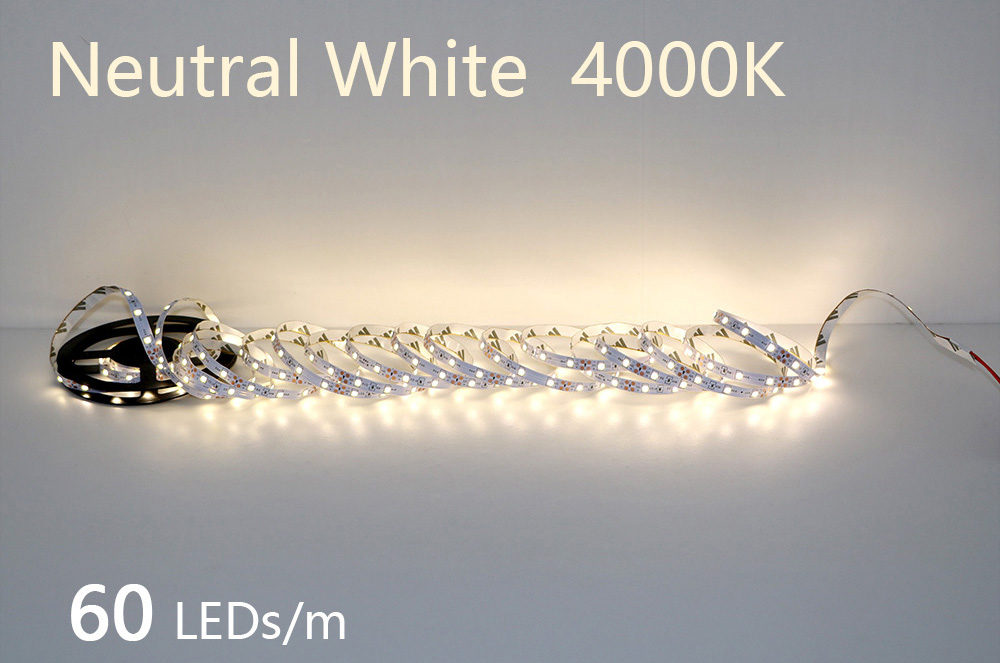

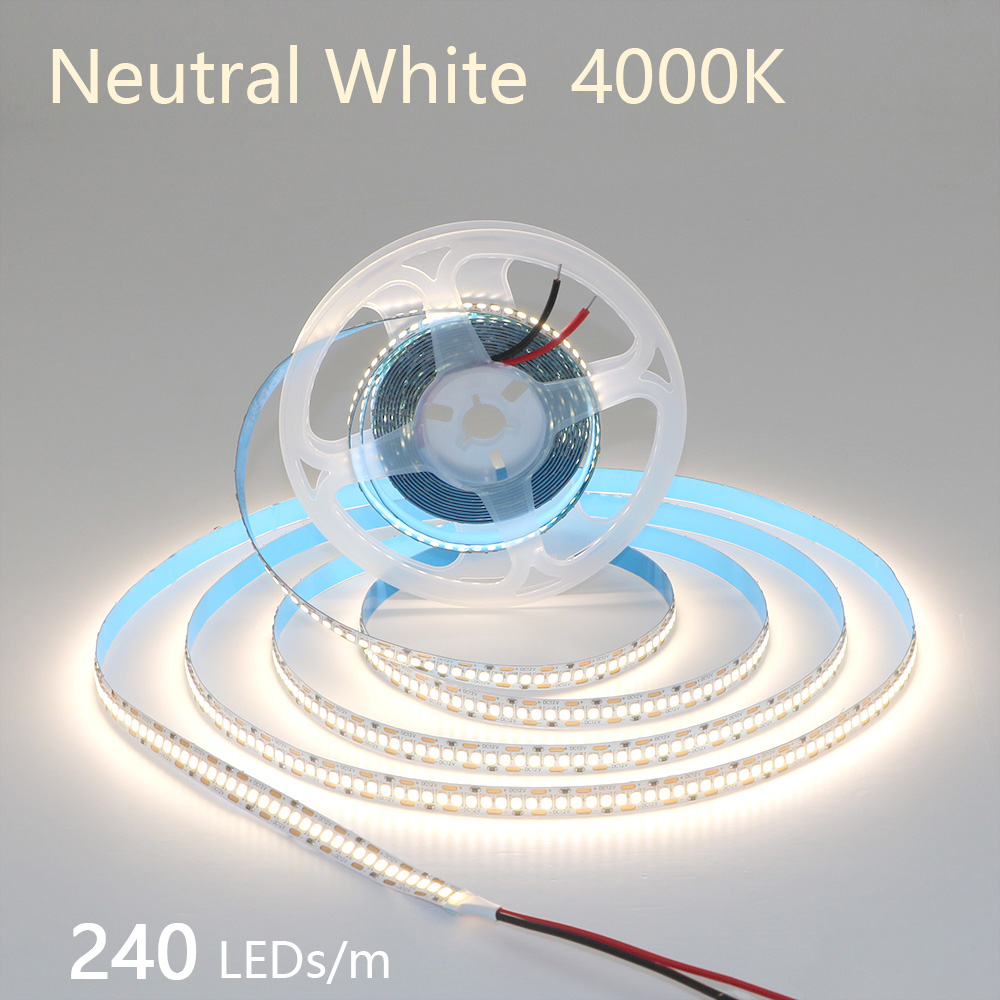

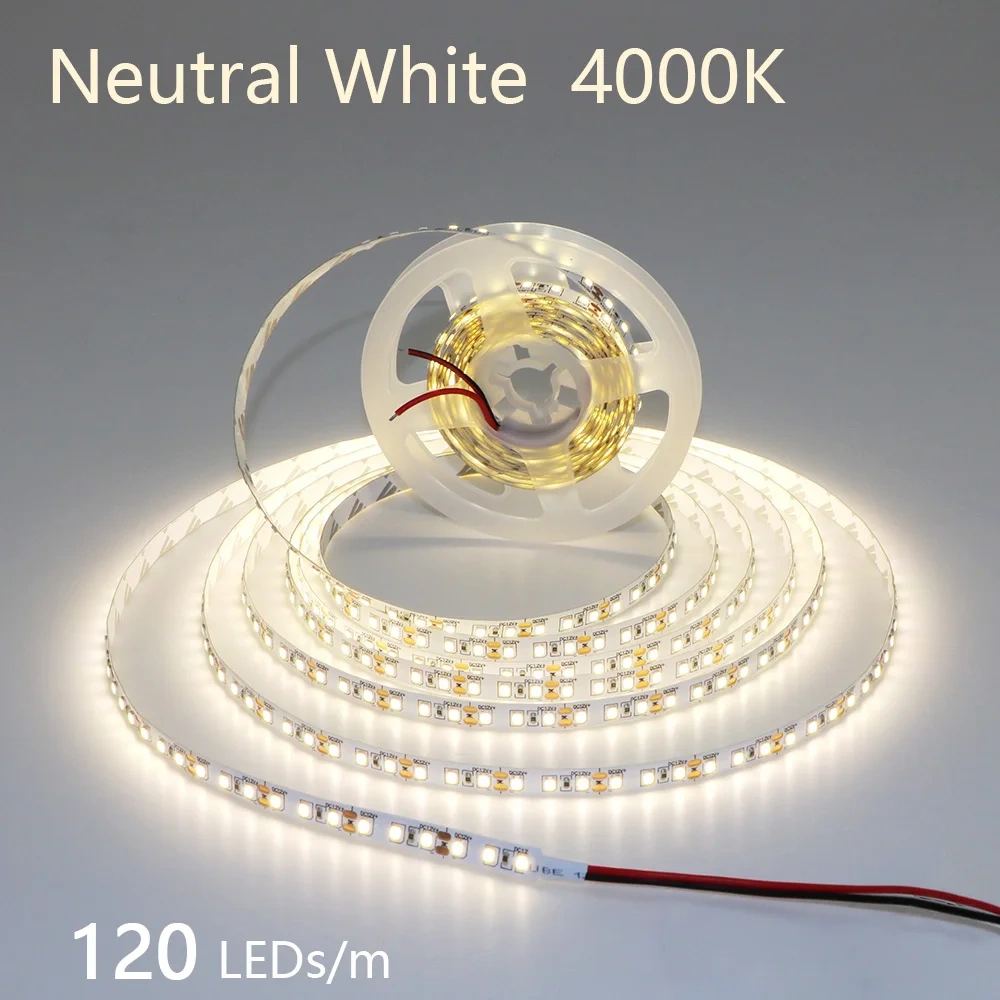

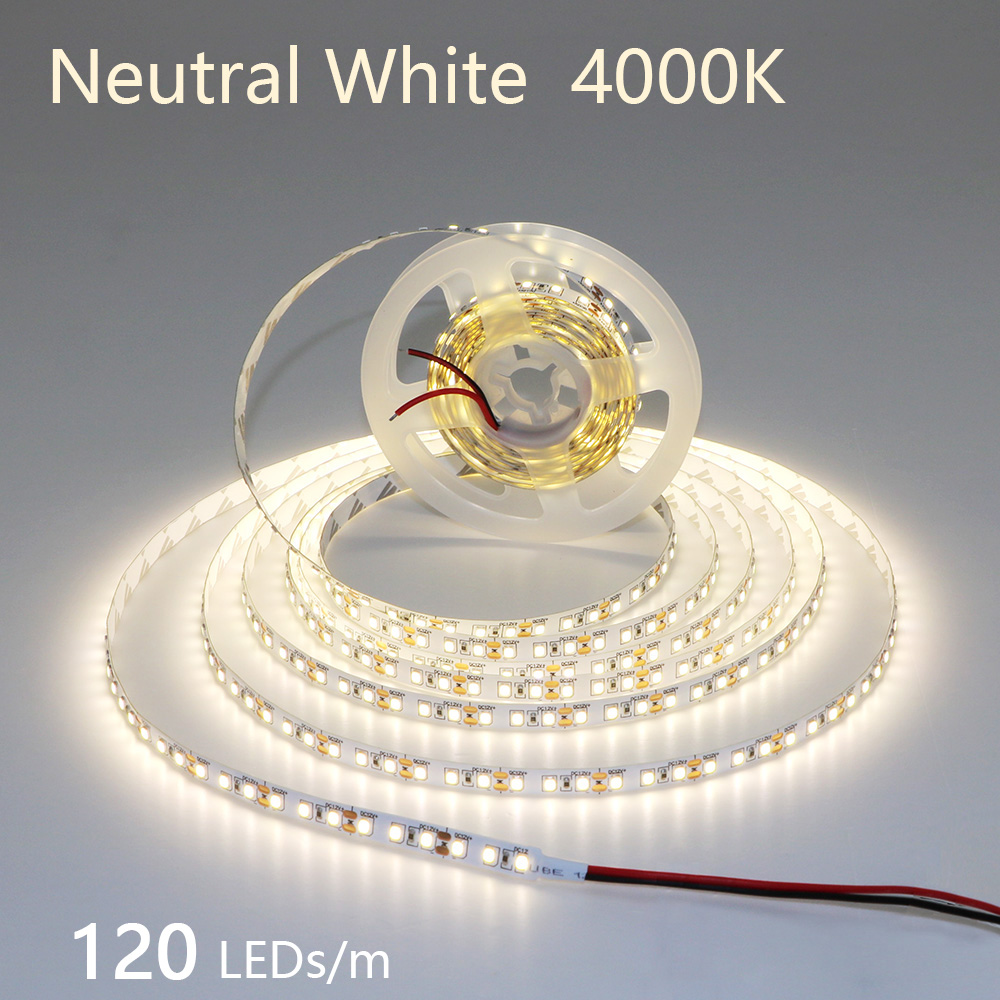

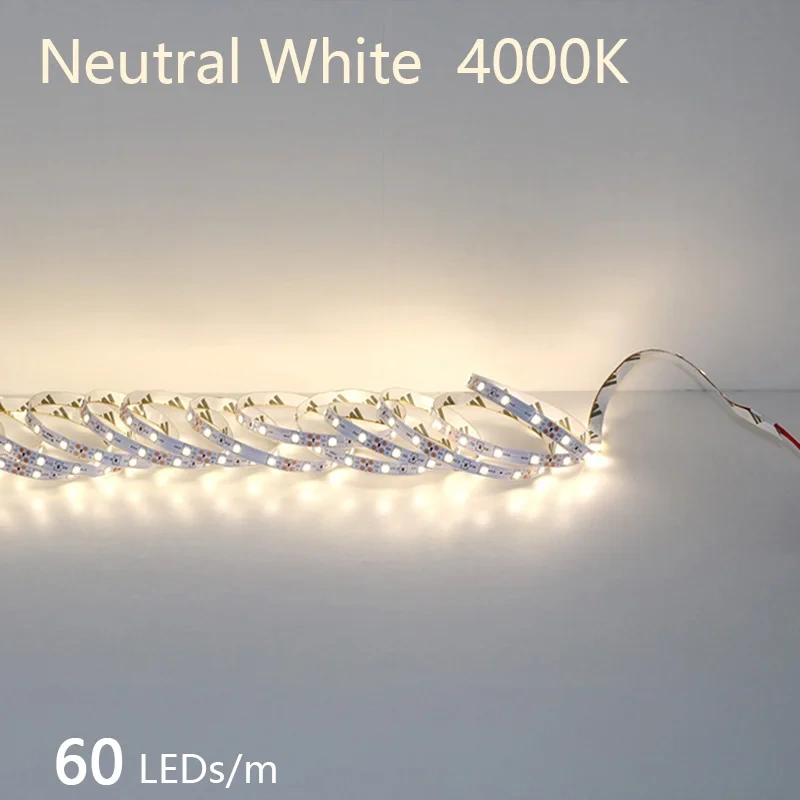

4000K - Neutral White,

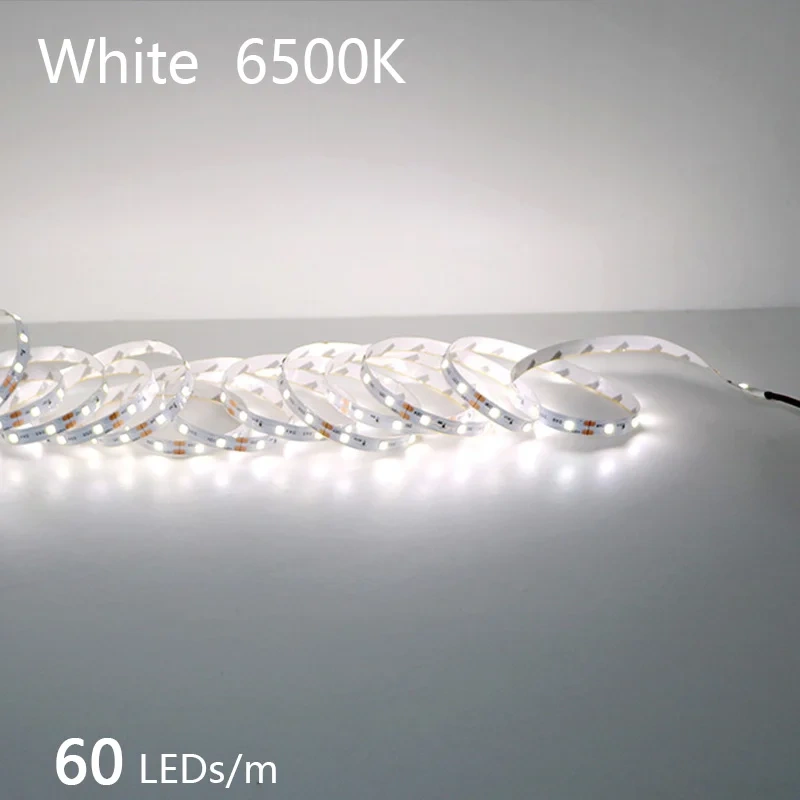

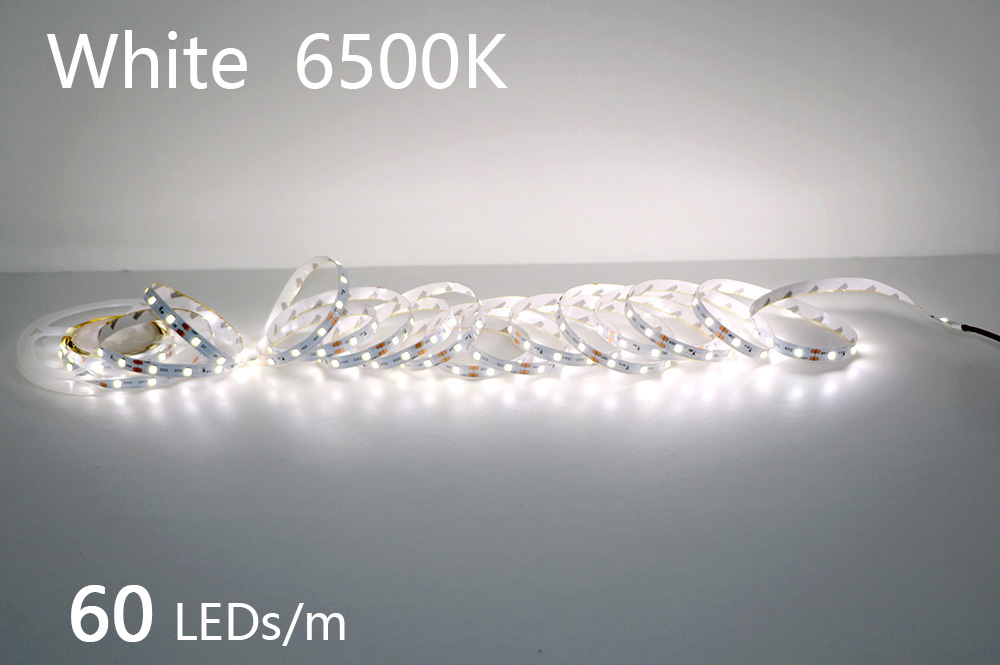

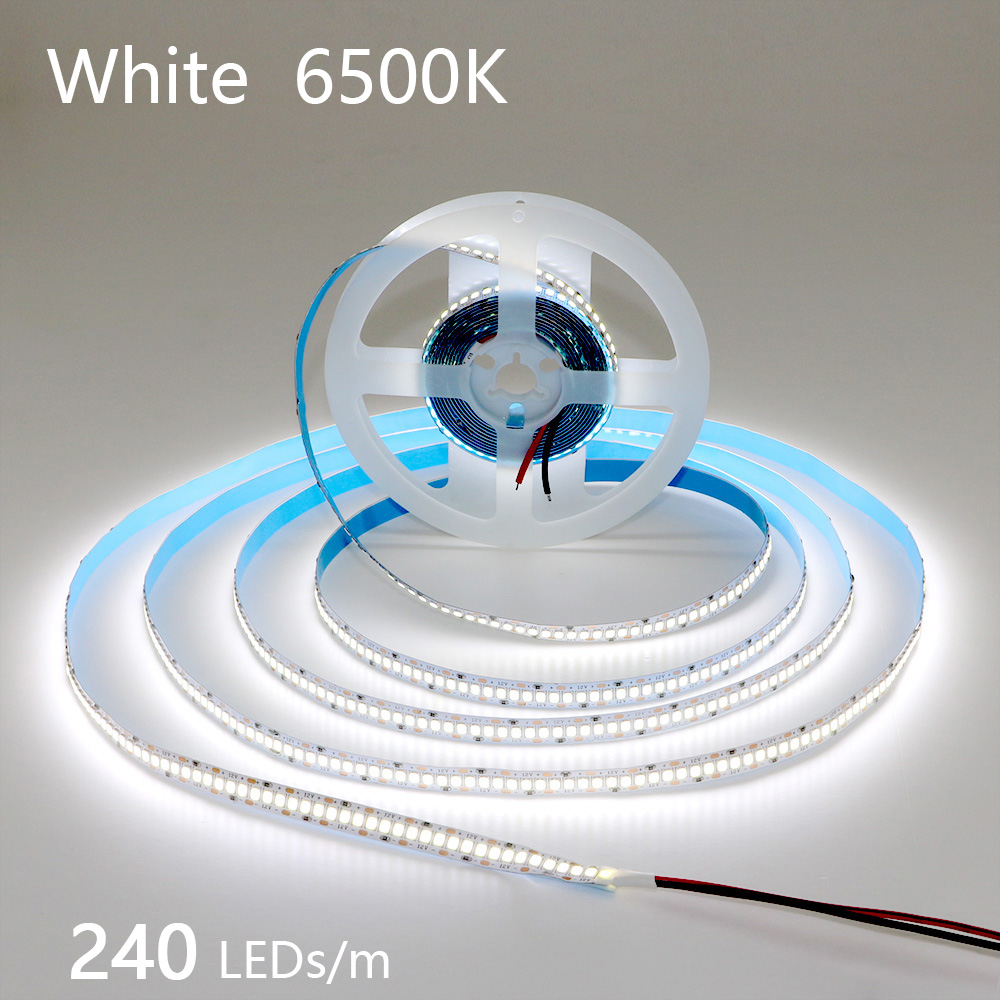

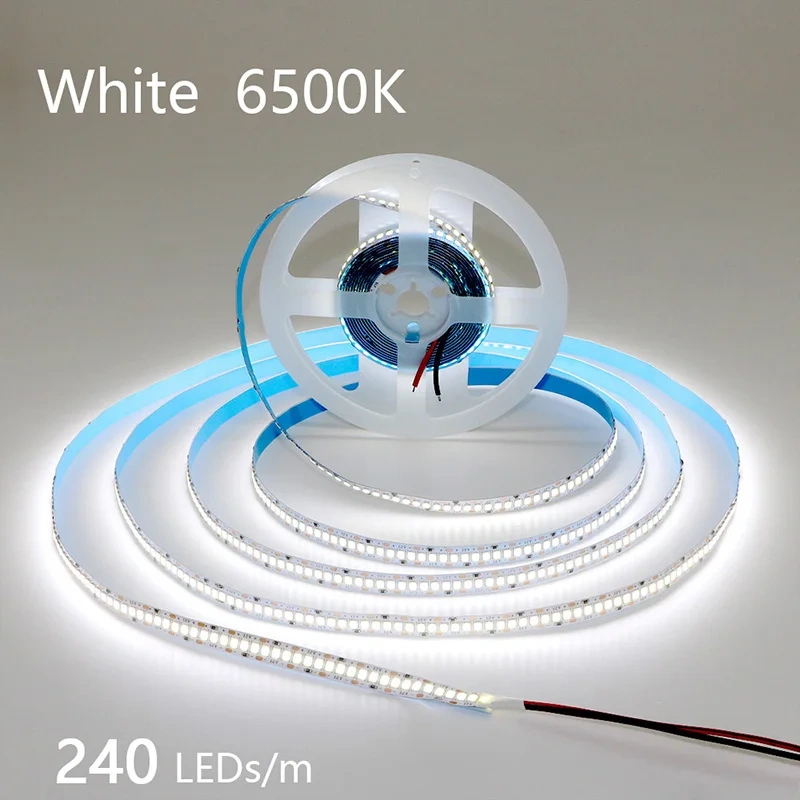

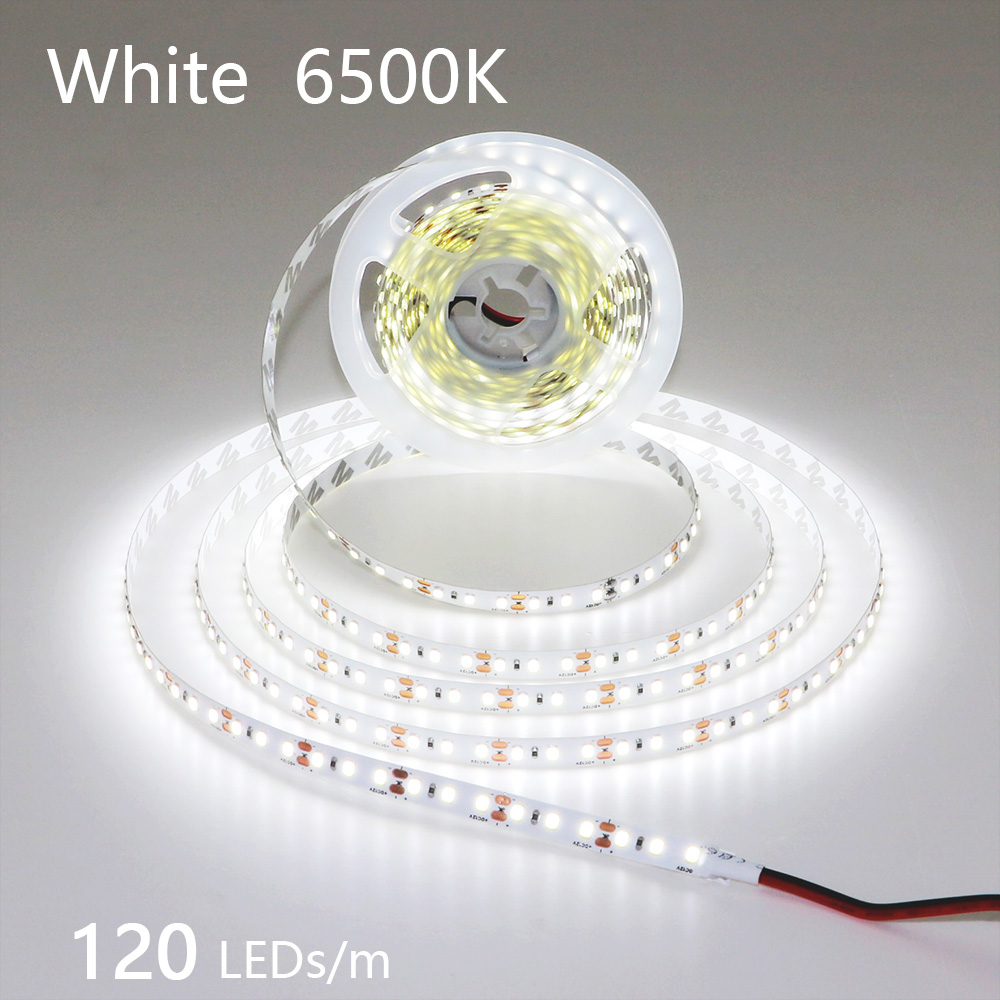

6500K - White (Or Cold White).

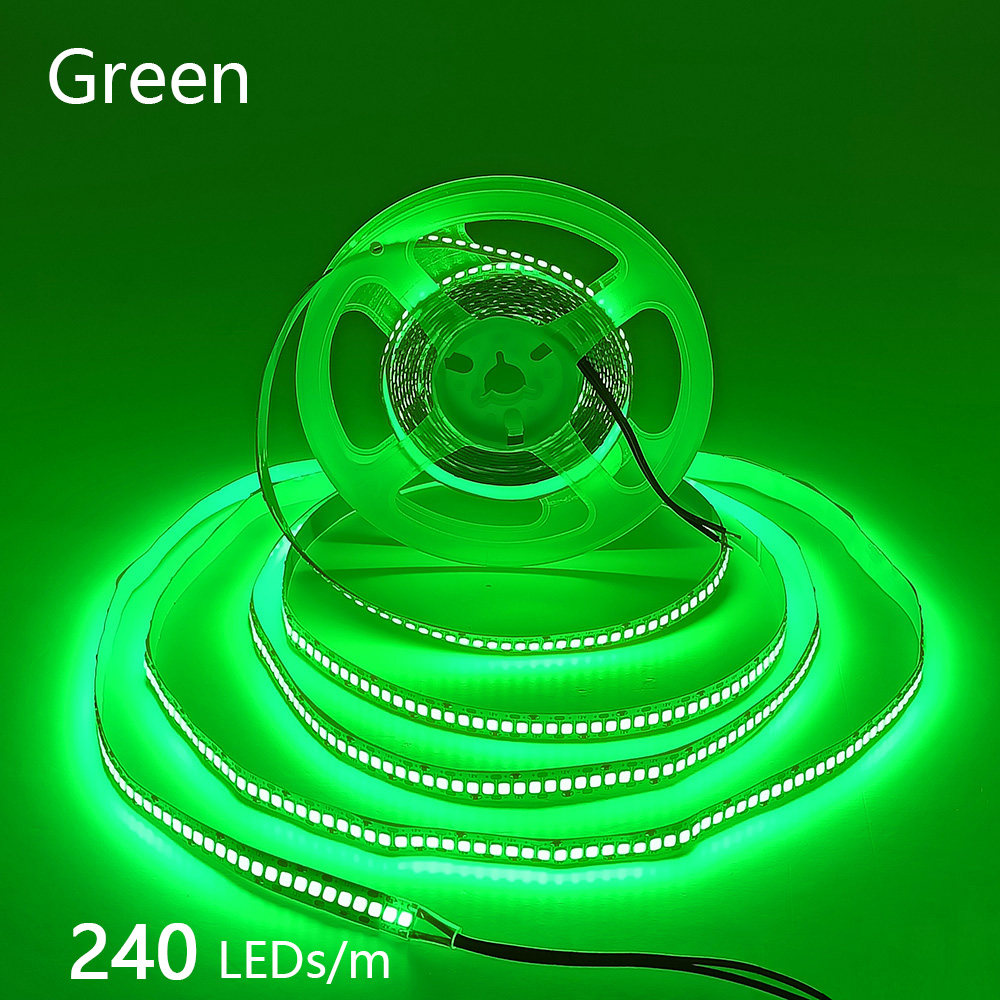

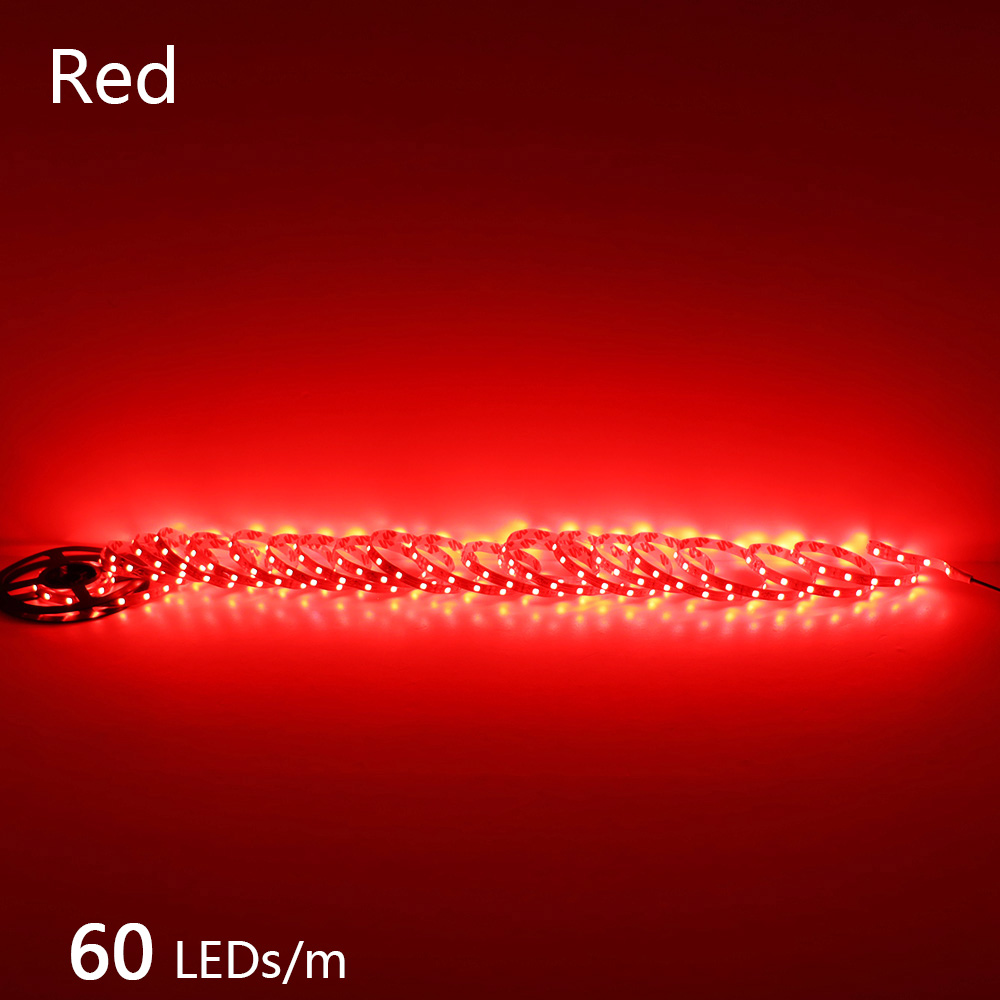

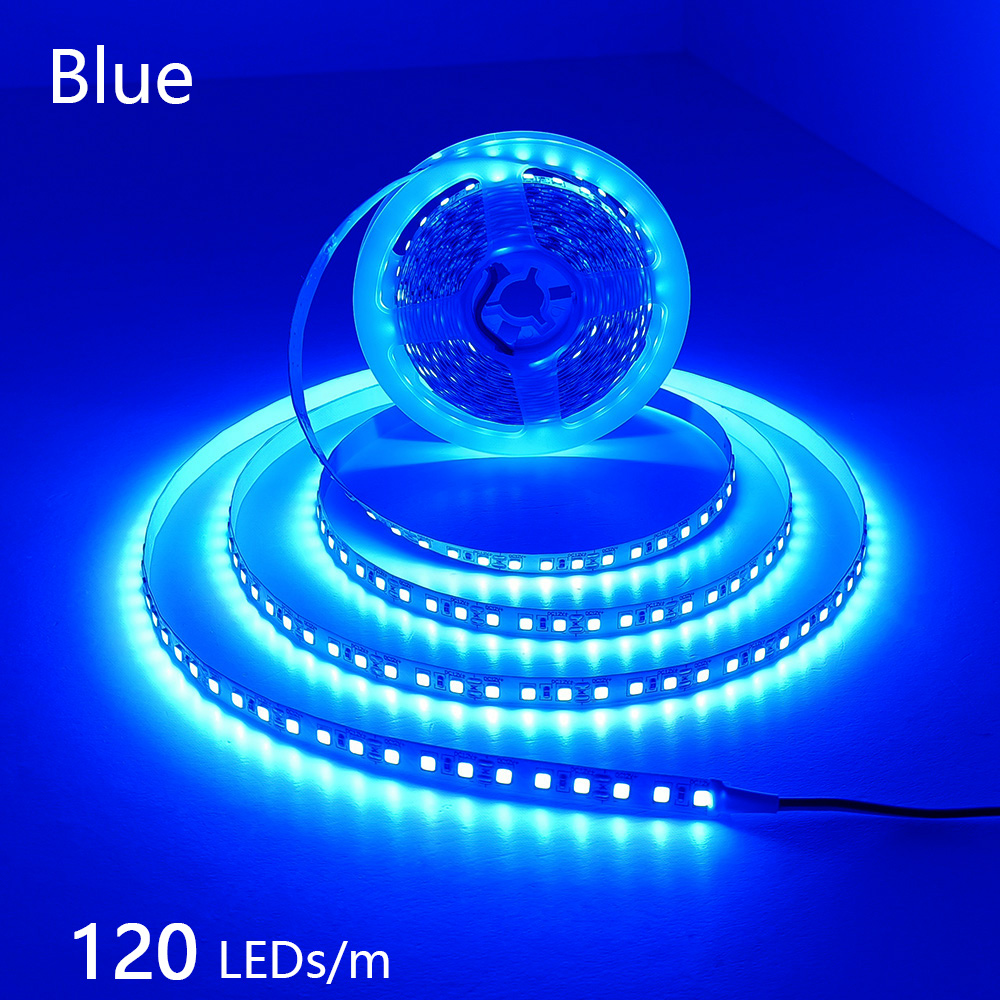

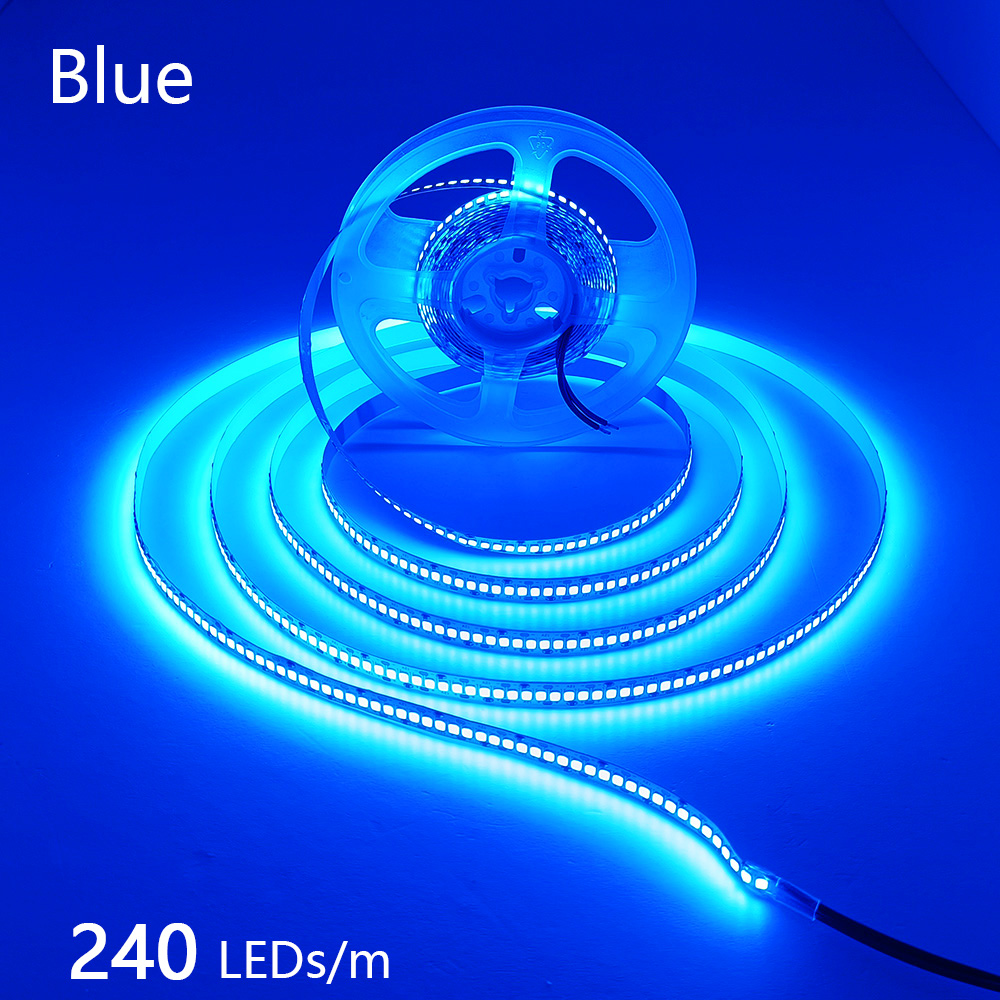

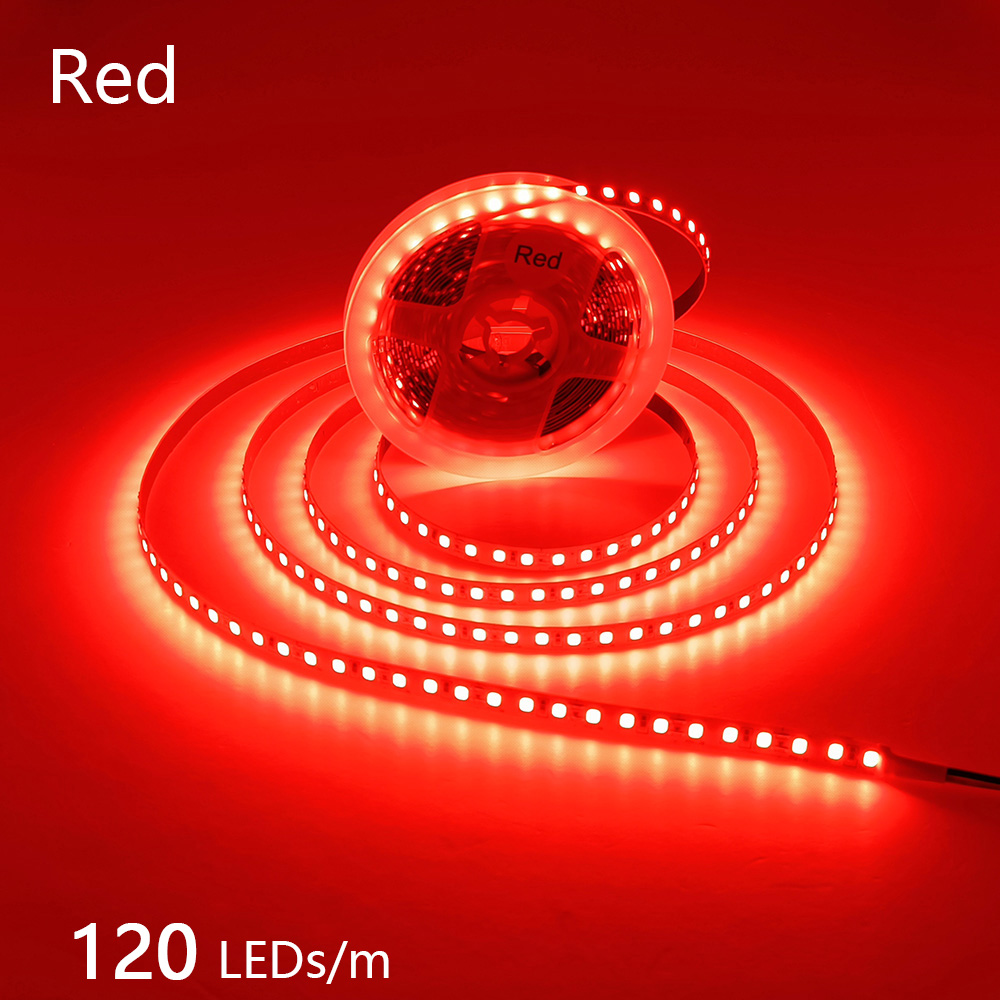

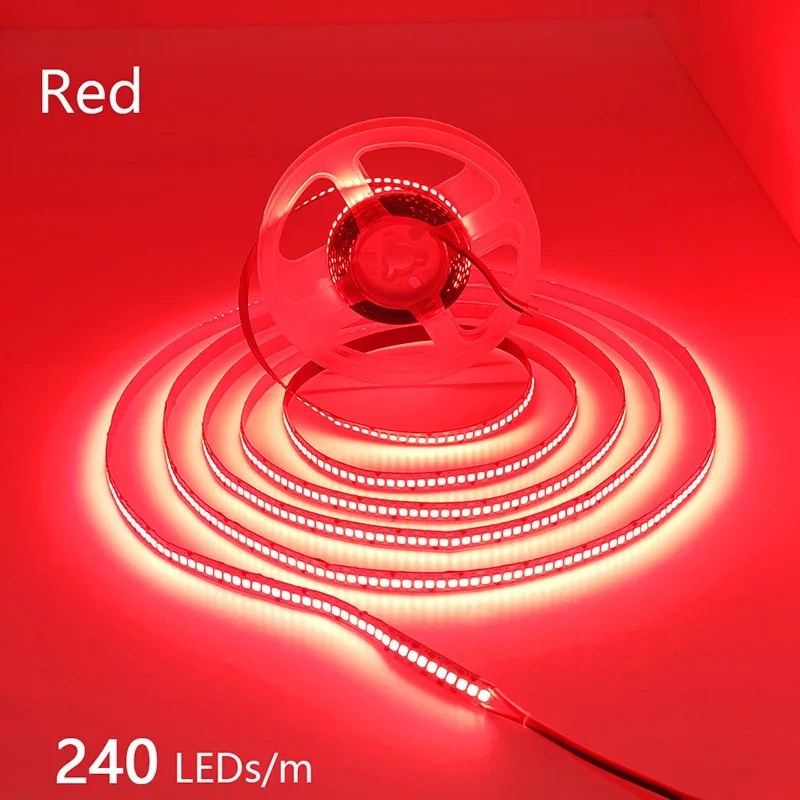

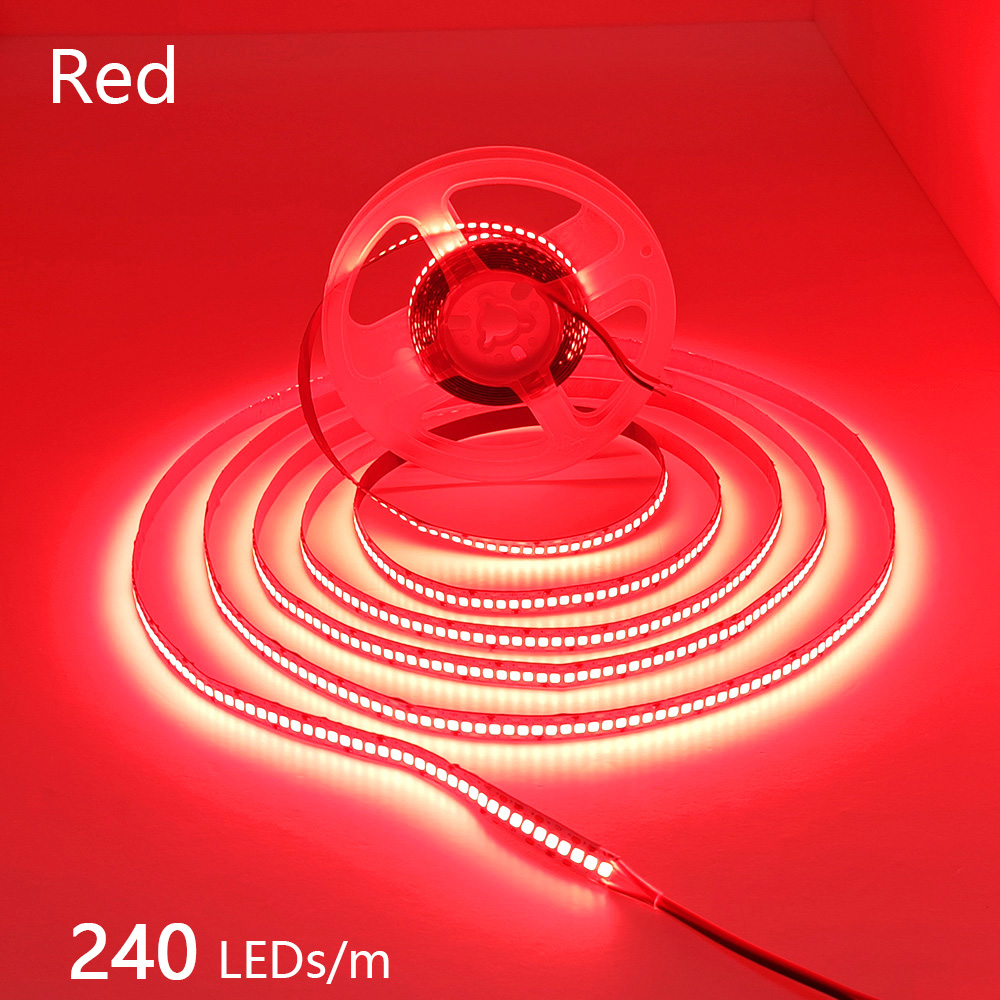

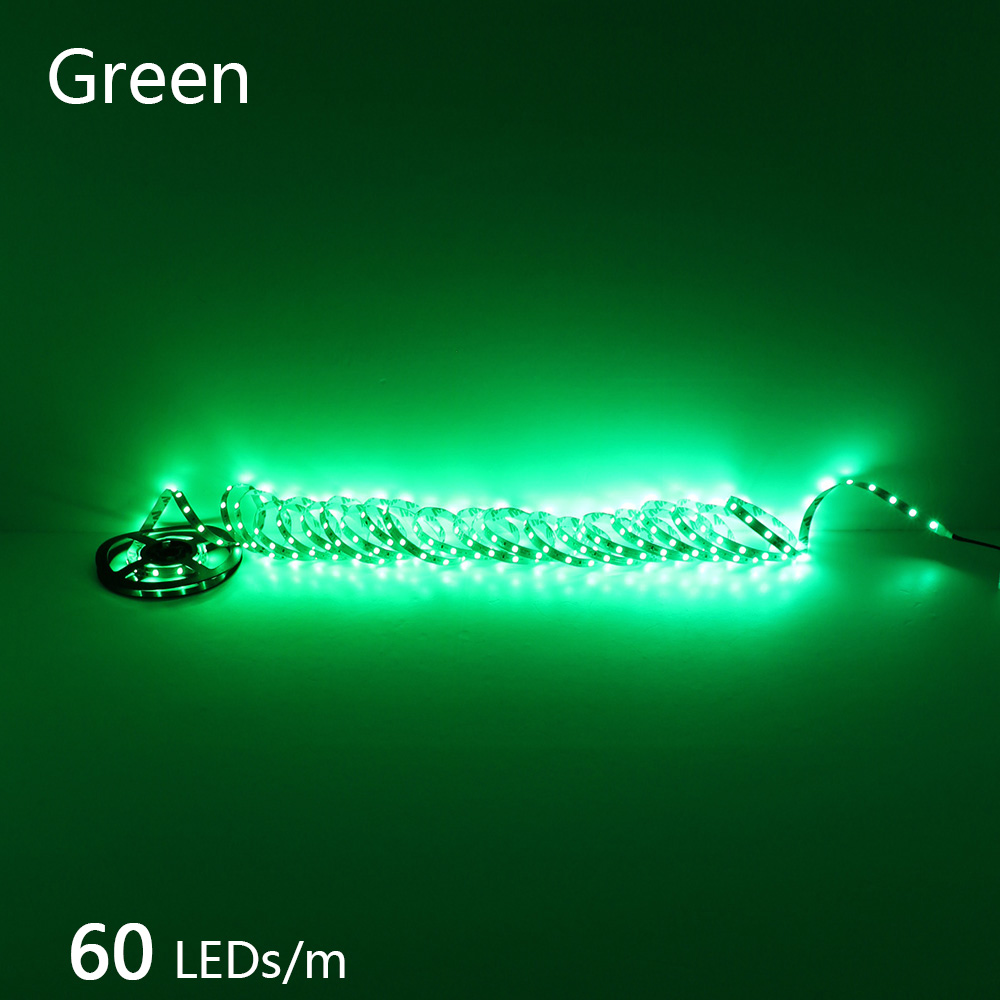

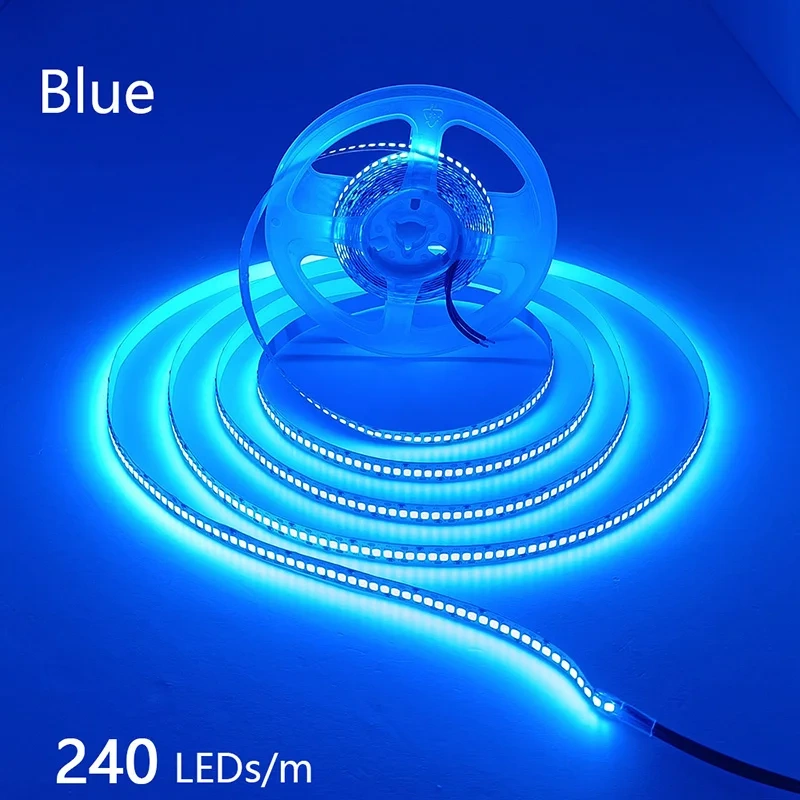

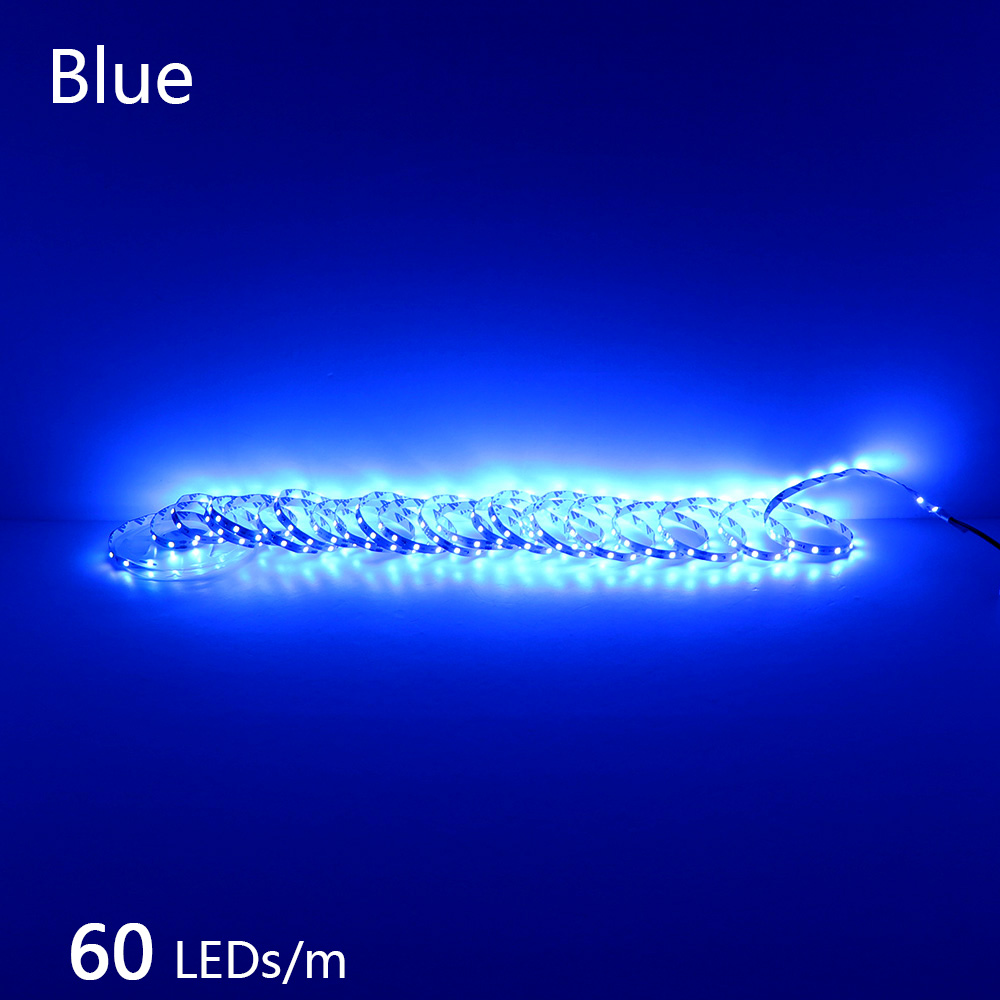

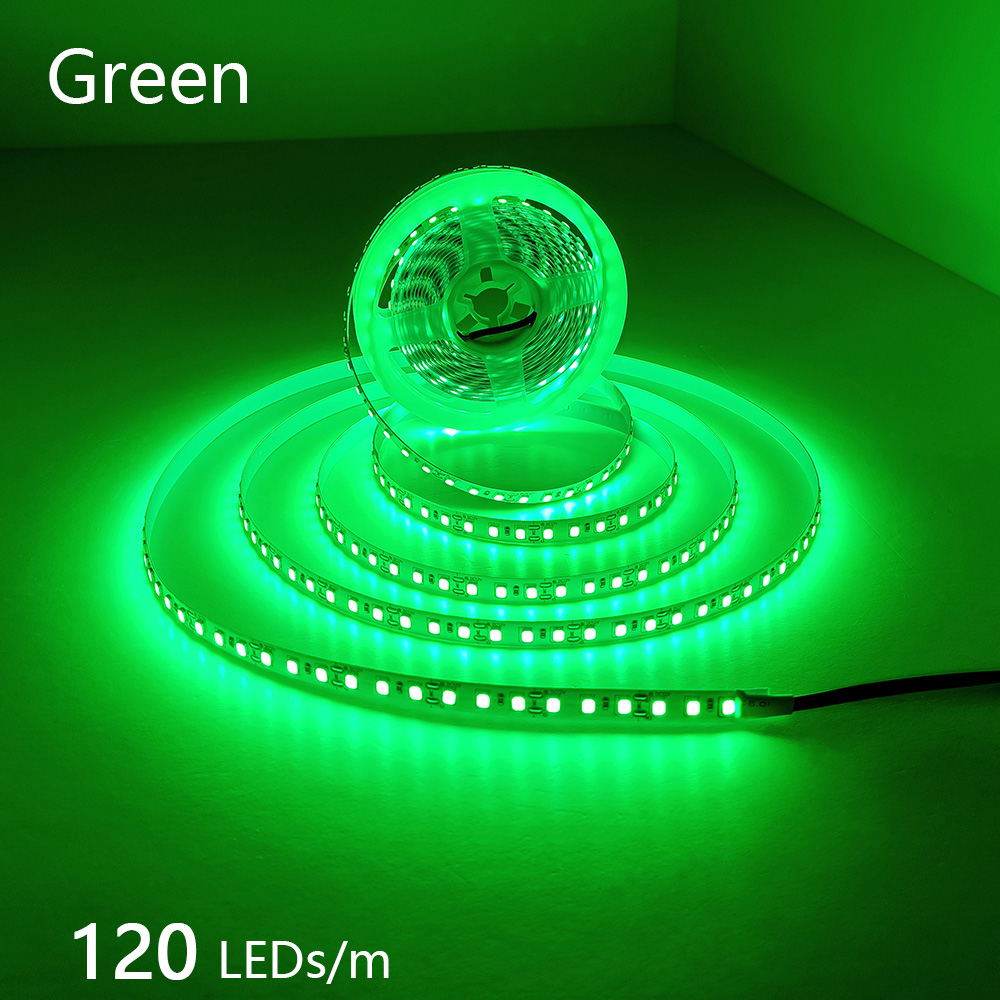

Red, Green, Blue,

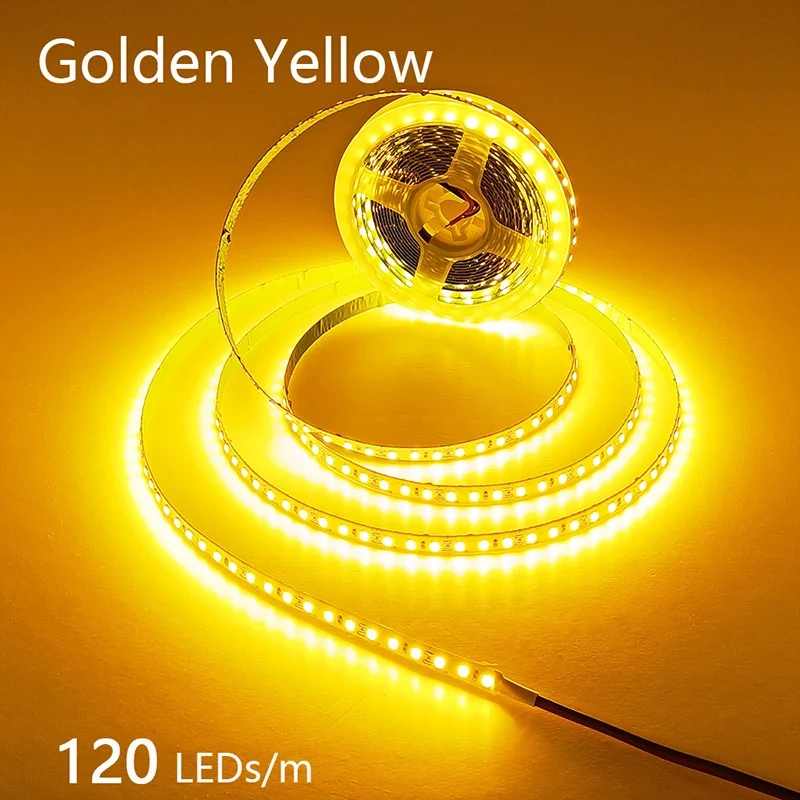

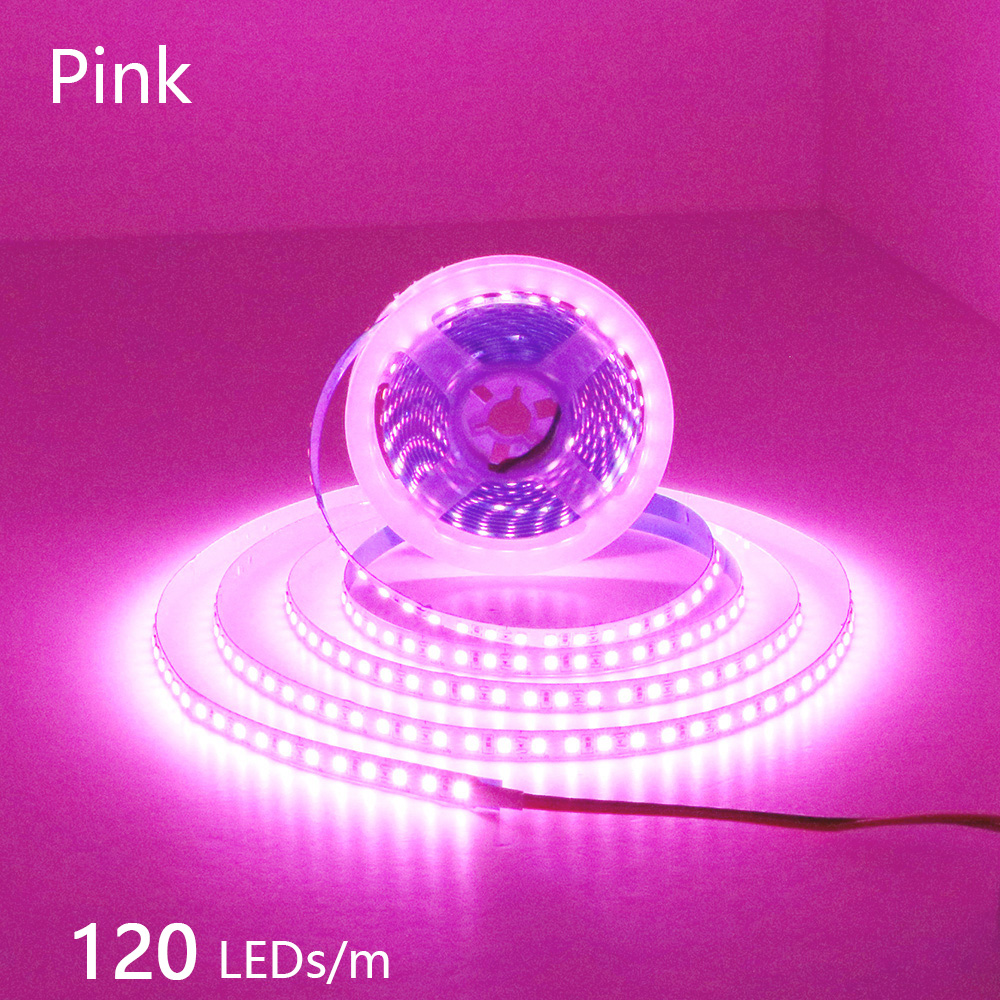

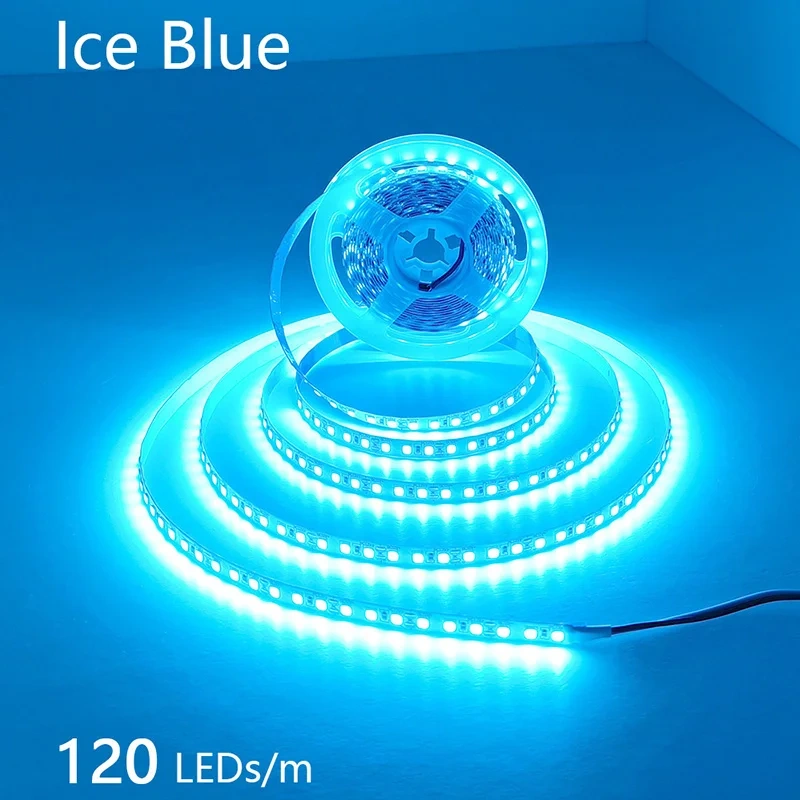

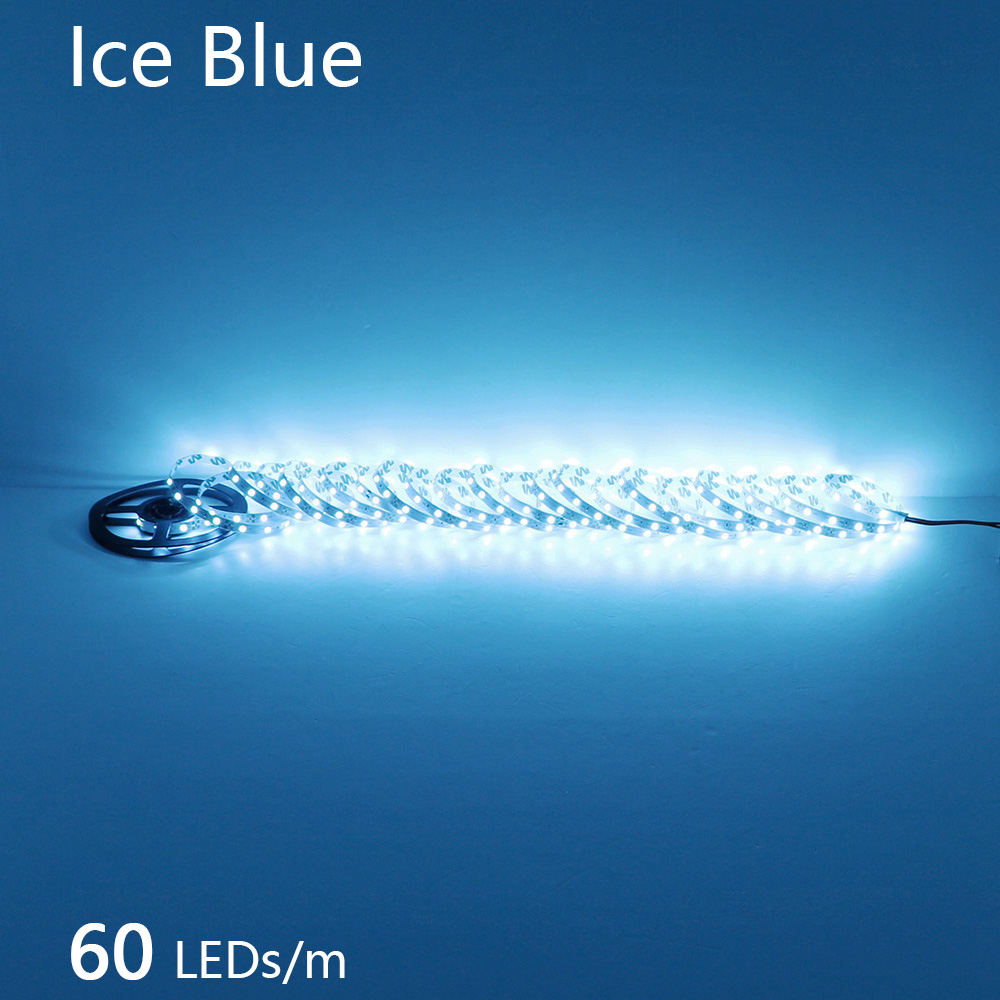

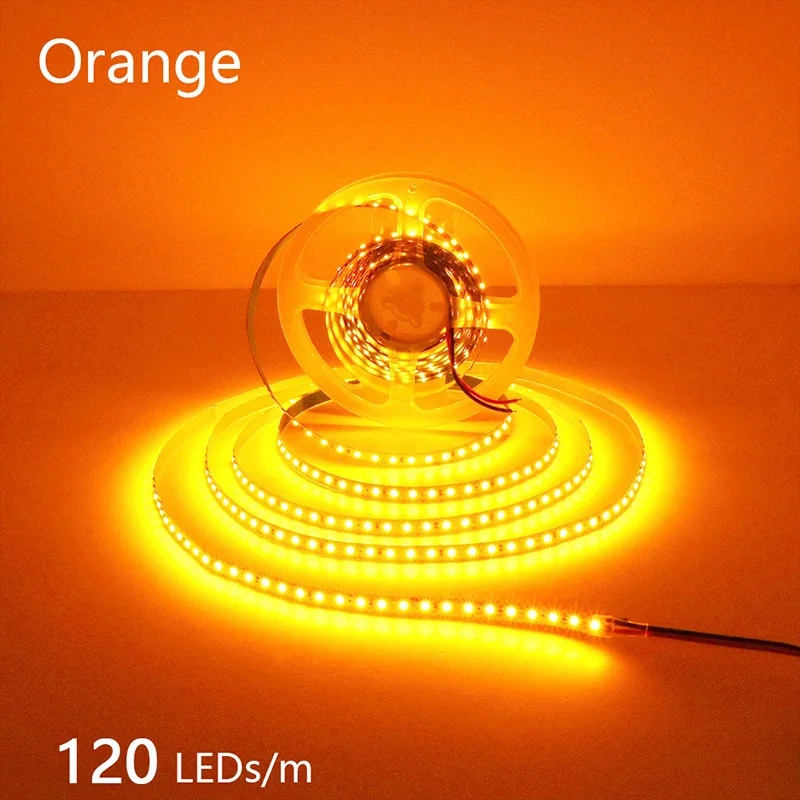

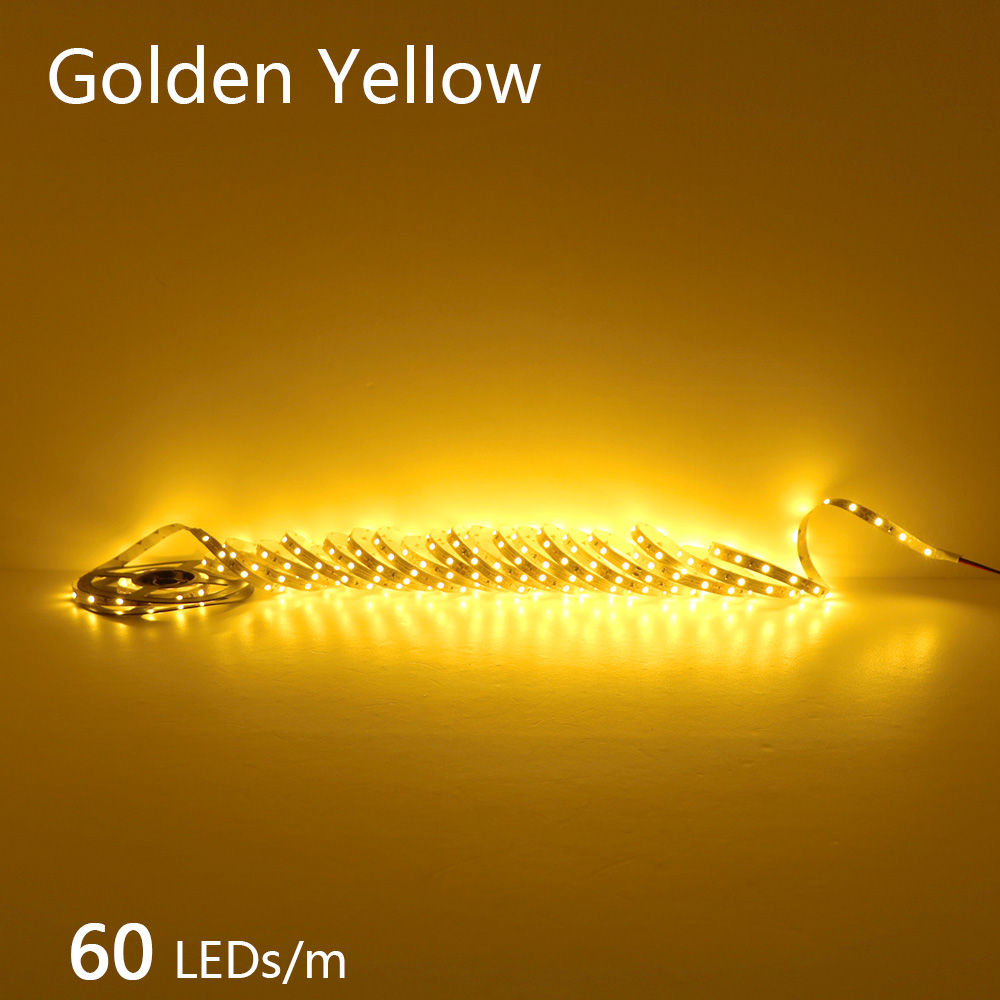

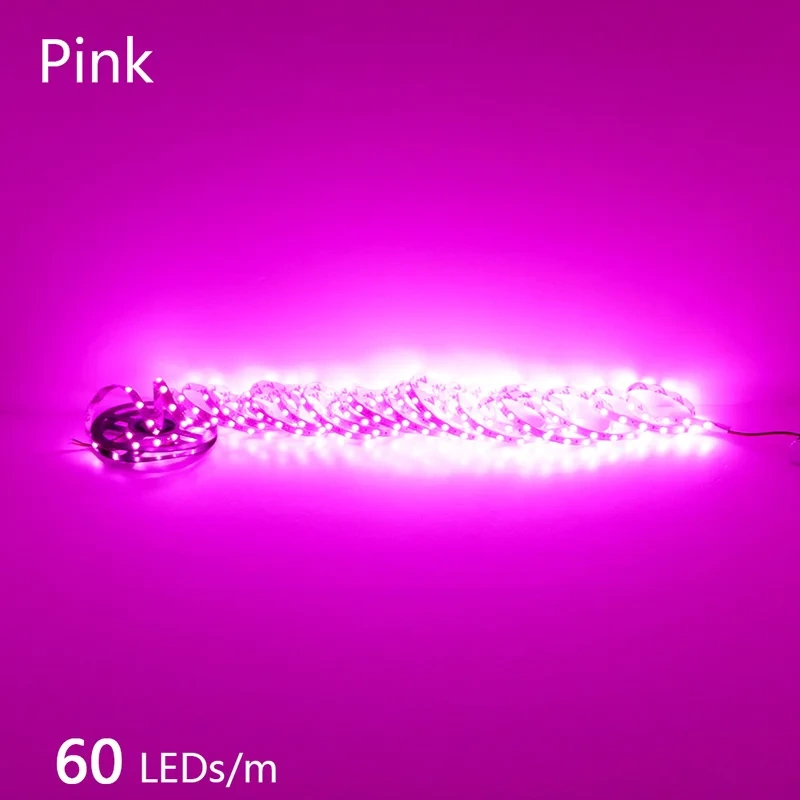

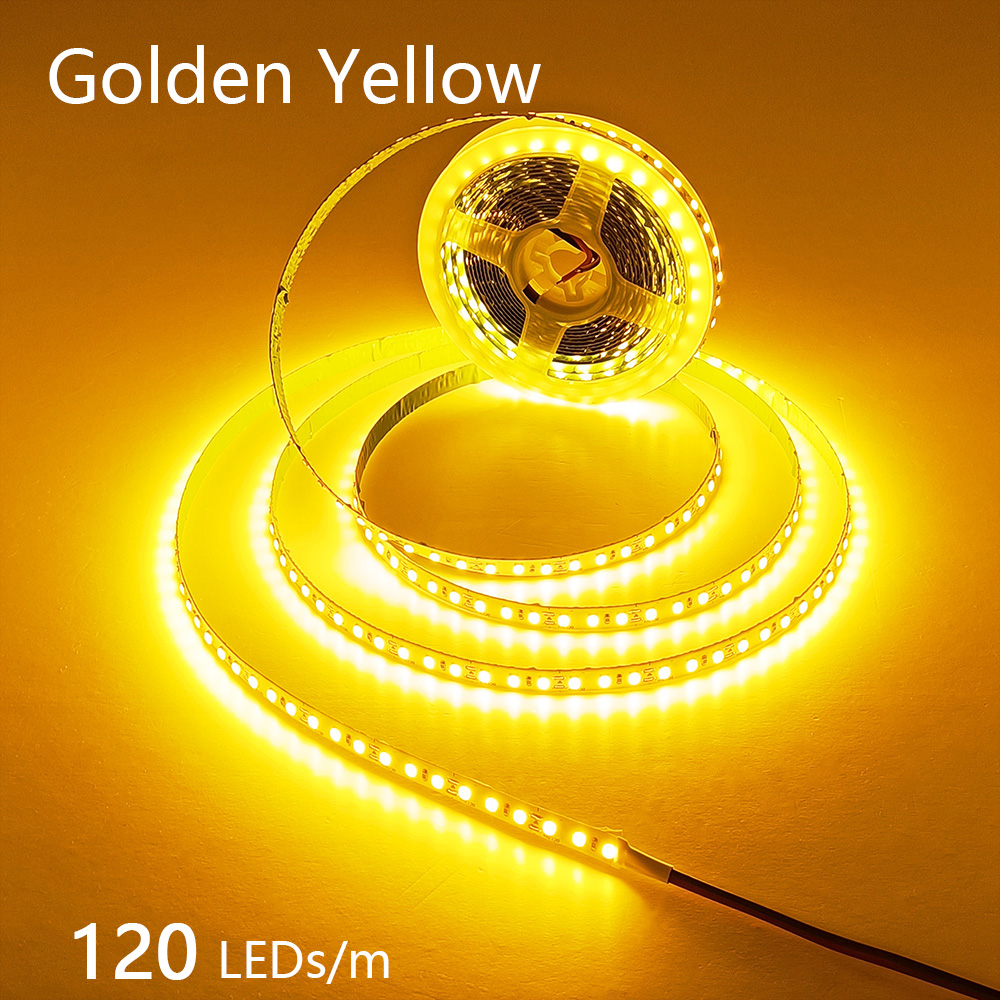

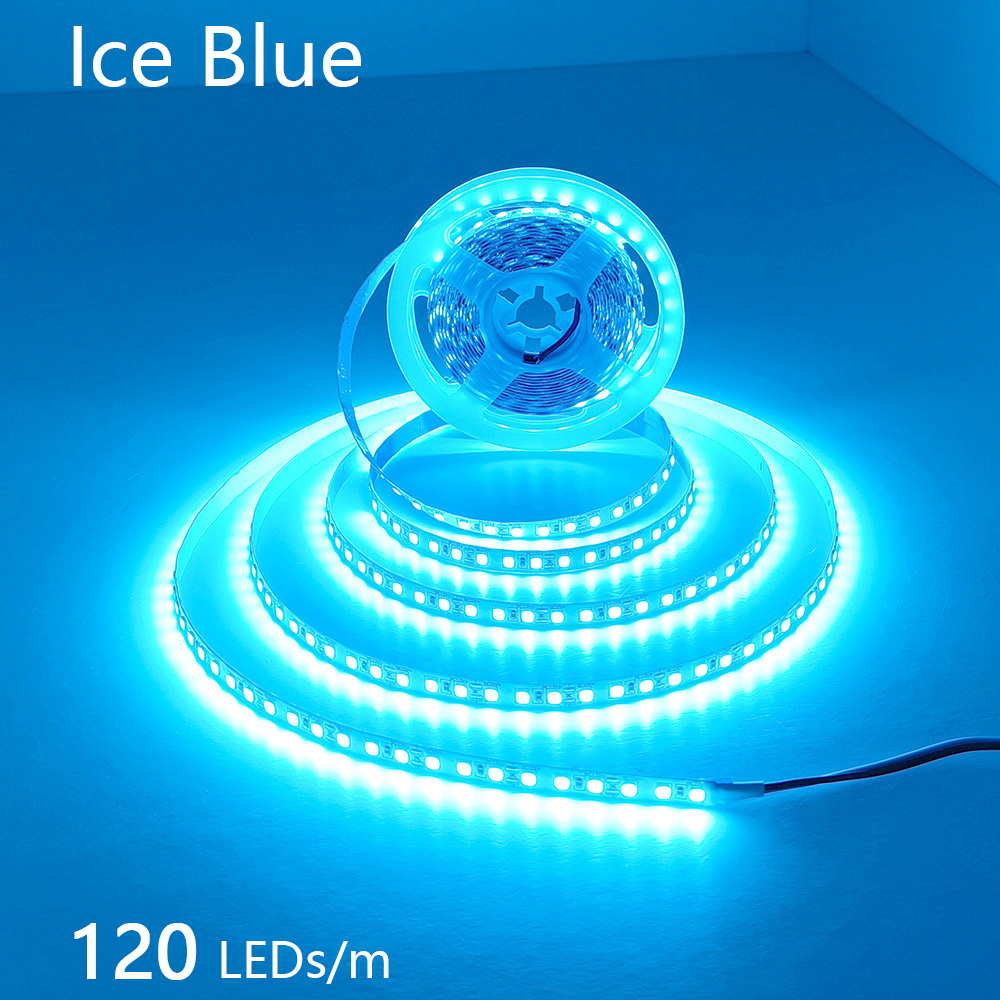

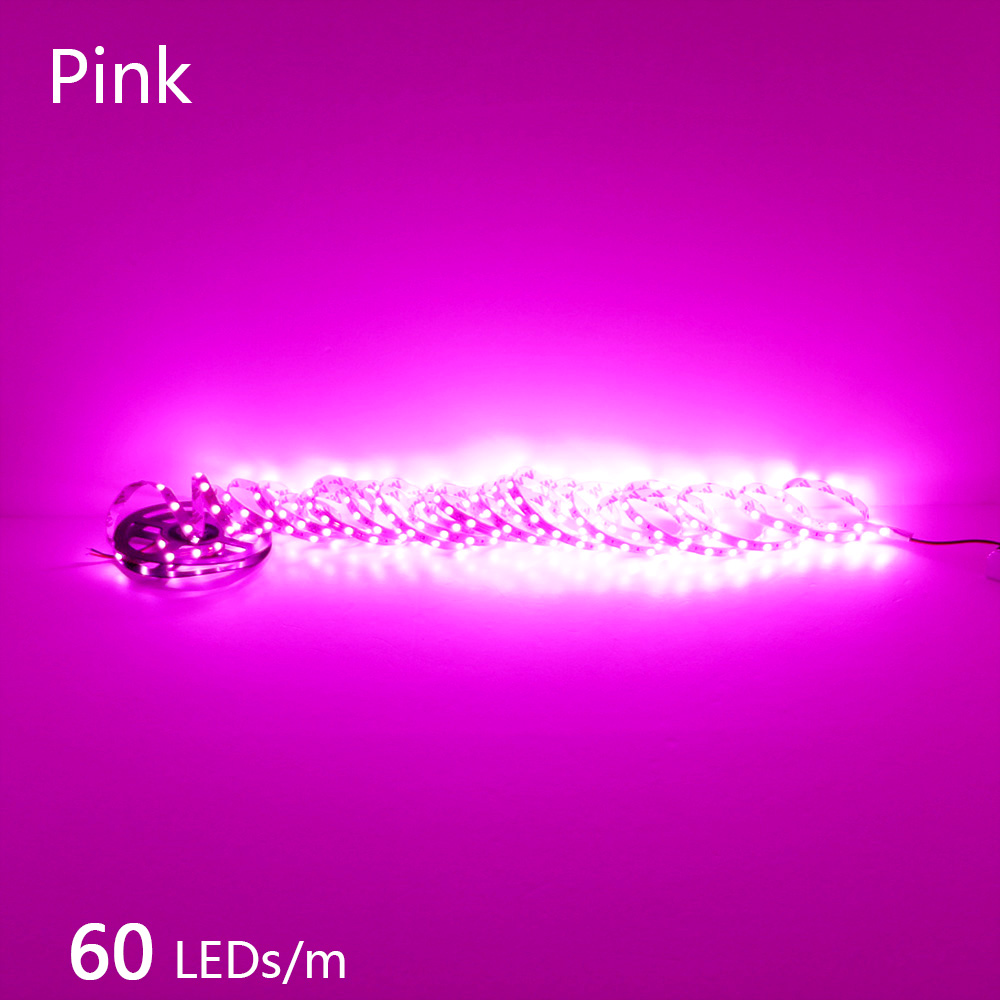

Ice Blue,Golden Yellow,Pink.
6. Protection Rate: (There are two options)
(1). Non-waterproof (IP20).
(2). Waterproof (IP65).
7. Power per meter:
Power of 60LEDs/m LED light strip: 4 Watt/meter ;
Power of 120LEDs/m LED light strip: 8 Watt/meter ;
Power of 240LEDs/m LED light strip: 16 Watt/meter .
8. Beam angle: 120°.
9. Working Temperature: -20° to 50°
10. 5m or 10m/1 Roll Led strip (not include any controller,connector or power supply)
11. There is double-sided tape on the back of the LED light strip, Which is very sticky and can be freely pasted where you want to paste.

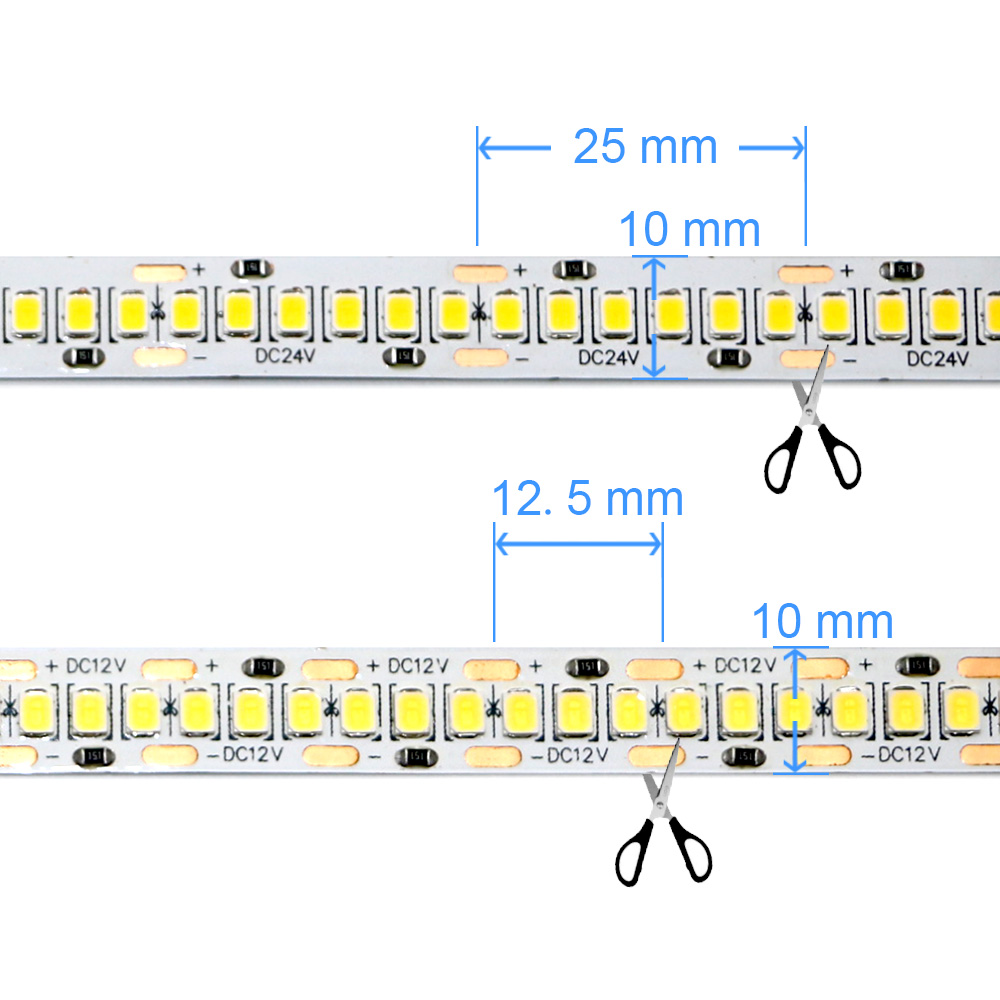

12. The cutting distance of 12V LED strip is 12.5mm, and that of 24V LED strip is 25mm.
13. The LED strip must be connected to the voltage DC12V or DC24V corresponding to the LED strip. or the LED strip will be burnt out.
14. This LED strip can only be used after being connected to the city voltage by purchasing additional transformers. If you do not know how to select the power of the transformer, please contact us, and we can tell you how to select the power of the power supply.

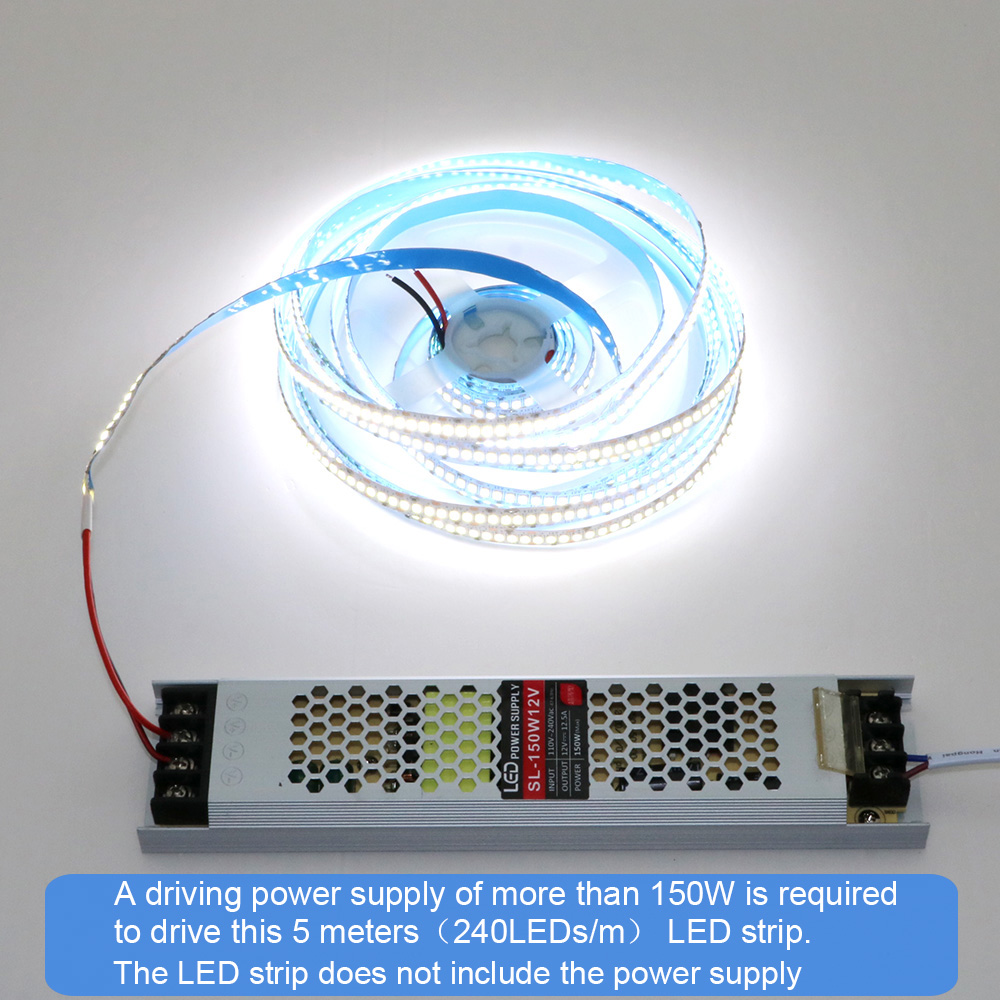

15. This 5 meters 240LEDs/m LED strip can only be driven by a driving power supply of more than 150W. The higher the power of the driving power supply, the better. (The product itself does not include any controller, connector or power supply)
16. When the LED strip flickers intermittently, it indicates that the power of the drive power used for the LED strip is insufficient, and the drive power with higher power needs to be replaced.
If you purchased LED strips, here is a 12V/24V drive transformer for LED strips. Click on the image to view now.
