Product Introduction

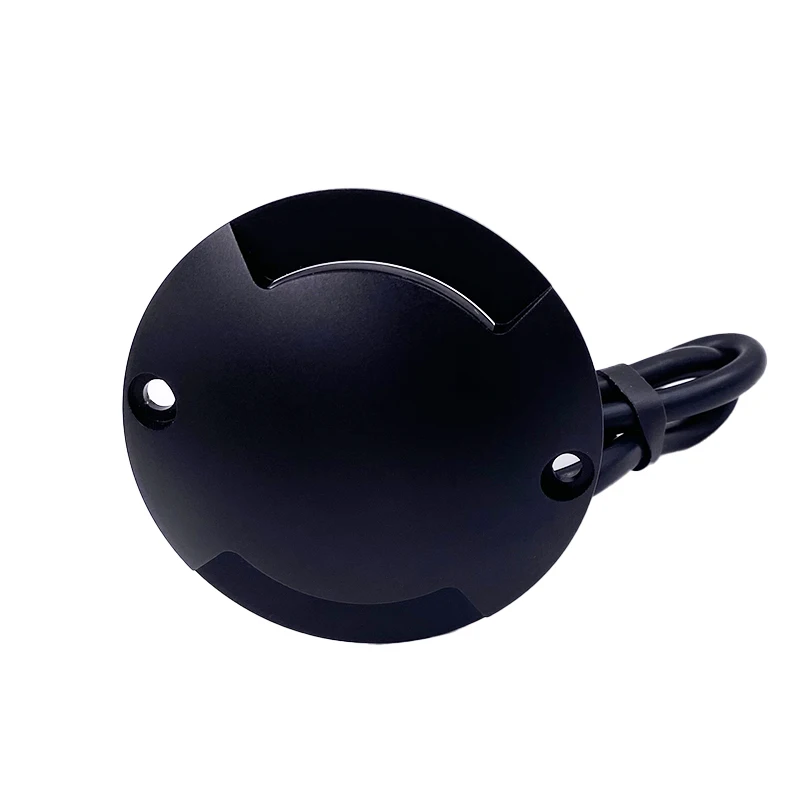

The USKYLED 12V LED In-Ground Light is a compact outdoor ground lighting fixture developed for landscape and architectural applications.
With its slim D70 × H14mm profile, aluminum housing and IP67 protection, the fixture can be integrated into gardens, lawns, pathways, terraces, stairs, driveways and other outdoor areas where a low-profile lighting solution is required.

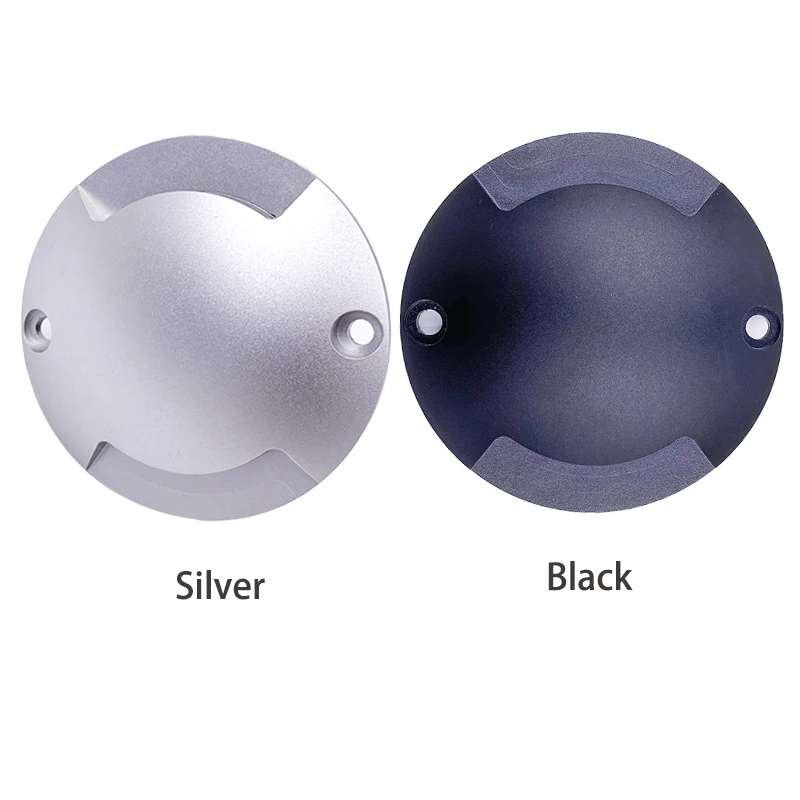

The product uses a 2835 LED light source and is available in 1W and 2W configurations. The current product variants include black and silver finishes as well as single-side and double-side lighting options.
The fixture operates on DC12V low voltage, making it suitable for outdoor landscape lighting systems that use a low-voltage power supply. The transformer is not included with the product and should be selected according to the overall project load.
Design
The slim circular design provides a discreet appearance when installed into outdoor landscape areas.
The compact 70mm diameter × 14mm height body is suitable for projects where designers need a low-profile ground light without a visually bulky fixture.
The aluminum body provides a practical combination of:
- Compact construction
- Low-profile appearance
- Outdoor landscape compatibility
- Easy integration with modern garden design
- Black or silver finish options
The design can be used as functional pathway lighting as well as decorative landscape lighting.
Main Features
12V Low-Voltage Operation
The fixture uses DC12V input power, making it suitable for low-voltage outdoor landscape lighting systems.
IP67 Protection
The IP67 protection rating makes the product suitable for outdoor applications where protection against dust and temporary water immersion is required.
Slim Profile
With a diameter of approximately 70mm and height of approximately 14mm, the fixture is designed for low-profile ground lighting applications.
1W / 2W Options
The product is available in 1W single-side and 2W double-side configurations, with additional black and silver variants listed on the current product page.
2835 LED
The fixture uses a 2835 LED light source.
PWM Dimming
PWM dimming is supported for applications requiring adjustable lighting output.
Multiple Color Temperatures
Available lighting options include:
- 3000K Warm White
- 4000K Natural White
- 6000K Cool White
Aluminum Housing
The light body is made from aluminum for a compact outdoor lighting construction.
Long Service Life
The listed service life is up to 50,000 hours.
5-Year Warranty
The current product specification lists a 5-year warranty.
CE & RoHS
The product page lists CE and RoHS certification.

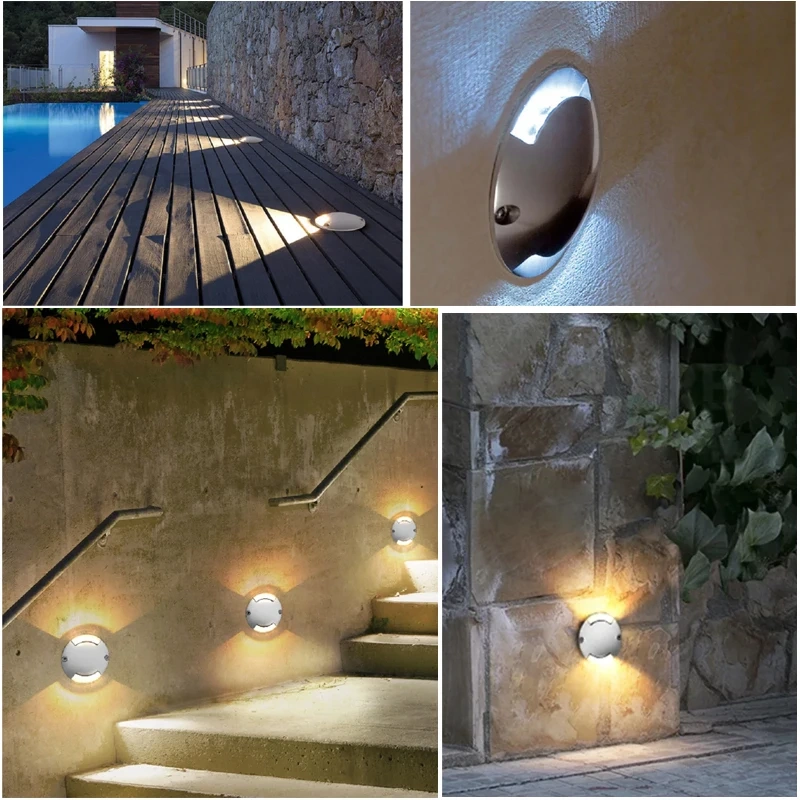

Application
The 12V LED In-Ground Light is suitable for a wide range of outdoor landscape and architectural lighting applications.
Garden Lighting
Install the fixture around flower beds, planted areas, garden borders and landscape features to provide subtle ground-level illumination.

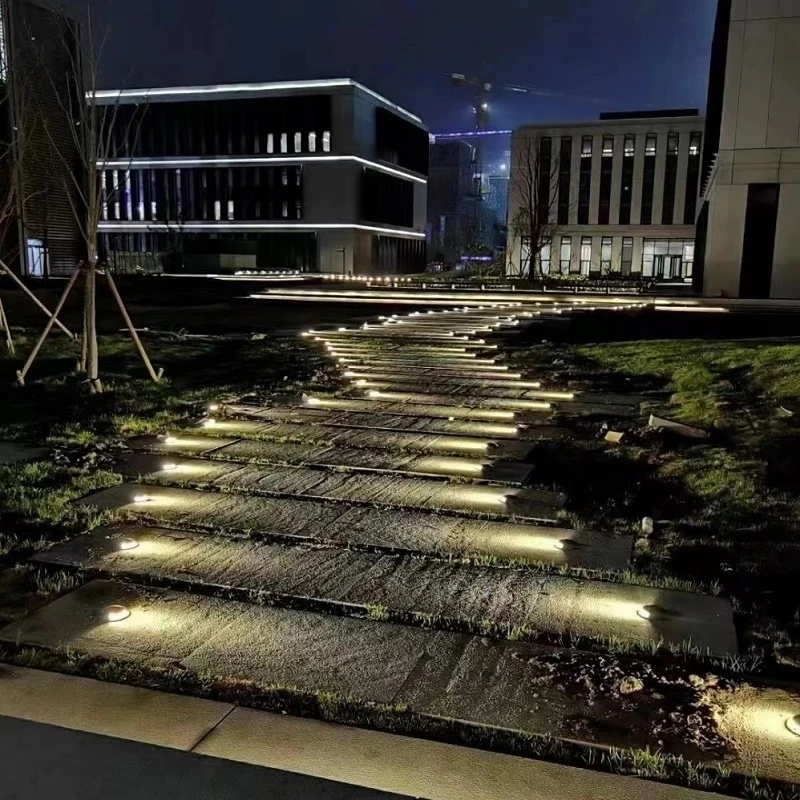

Pathway Lighting
Use along pedestrian pathways, garden paths and outdoor walkways to improve visibility and create a defined lighting route.
Lawn Lighting
The compact form is suitable for lawns and landscaped green areas where a discreet ground light is required.
Staircase Lighting
Use the light around outdoor steps, platforms and stair approaches for low-level guidance lighting.
Terrace Lighting
Suitable for residential and commercial terraces, patios and outdoor seating areas.
Driveway Lighting
The fixture can be integrated into driveway and vehicle-access areas as part of a broader landscape lighting design.
Villa & Residential Landscape Lighting
Suitable for gardens, terraces, pathways, entrances and outdoor architectural features around villas and private residences.
Commercial Landscape Lighting
Suitable for hotels, restaurants, resorts, commercial properties and public landscape projects.
Size / Options

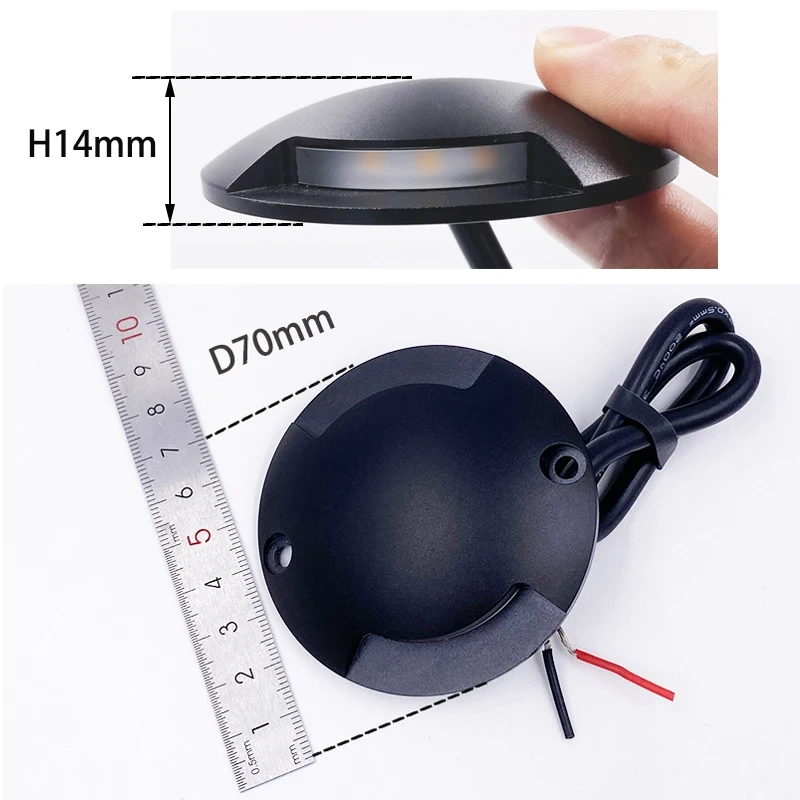

Standard Dimensions
- Diameter: D70mm
- Height: H14mm
Power Options
Lighting Direction / Configuration
Body Color Options
Color Temperature Options
- 3000K Warm White
- 4000K Natural White
- 6000K Cool White
Cable

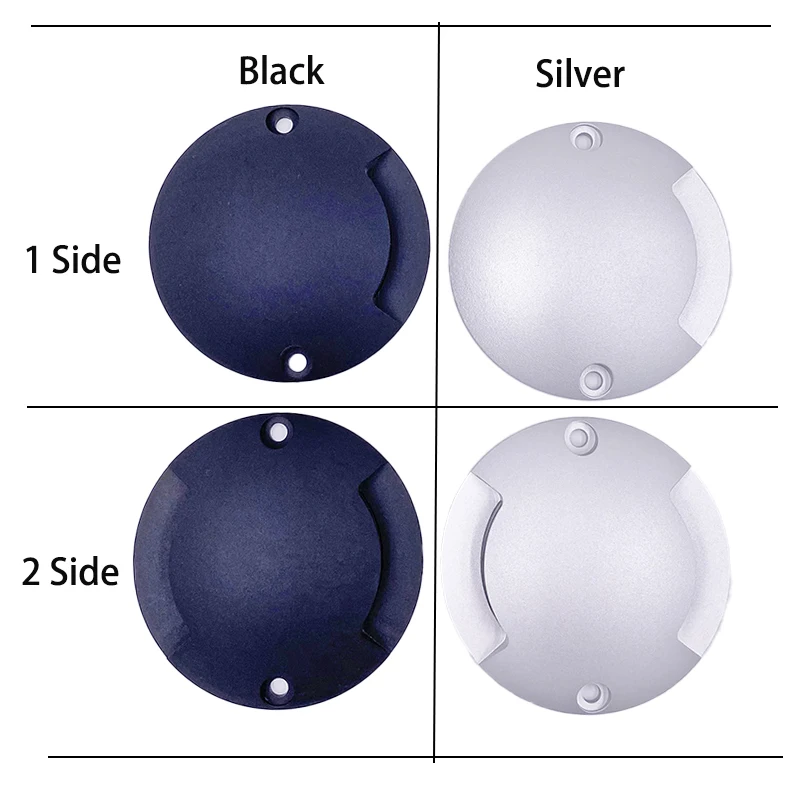

The available variants shown on the product page include black/silver and single-side/double-side configurations.
Lighting Options
The product is available in three standard color temperatures.
3000K Warm White
Recommended for:
- Residential gardens
- Villas
- Terraces
- Hospitality landscapes
- Decorative pathways
- Relaxed outdoor environments
4000K Natural White
Recommended for:
- Commercial landscapes
- Pathways
- Public outdoor areas
- Modern architectural projects
- General landscape lighting
6000K Cool White
Recommended for:
- Contemporary exterior projects
- Functional outdoor lighting
- Commercial environments
- Projects requiring a cooler white appearance
Installation
The fixture is designed for outdoor ground/in-ground lighting applications.
A typical installation process includes:
- Determine the required lighting locations.
- Prepare the installation opening according to the fixture dimensions.
- Prepare the DC12V power supply system.
- Connect the silicone cable to the low-voltage lighting circuit.
- Install the fixture securely.
- Check cable protection and waterproofing.
- Test the lighting system.
- Complete the surrounding landscape installation.
Important: The product page states that the transformer is not included. A suitable DC12V power supply should be selected according to the total connected wattage and local electrical requirements.
Professional installation is recommended for commercial and large-scale landscape lighting projects.

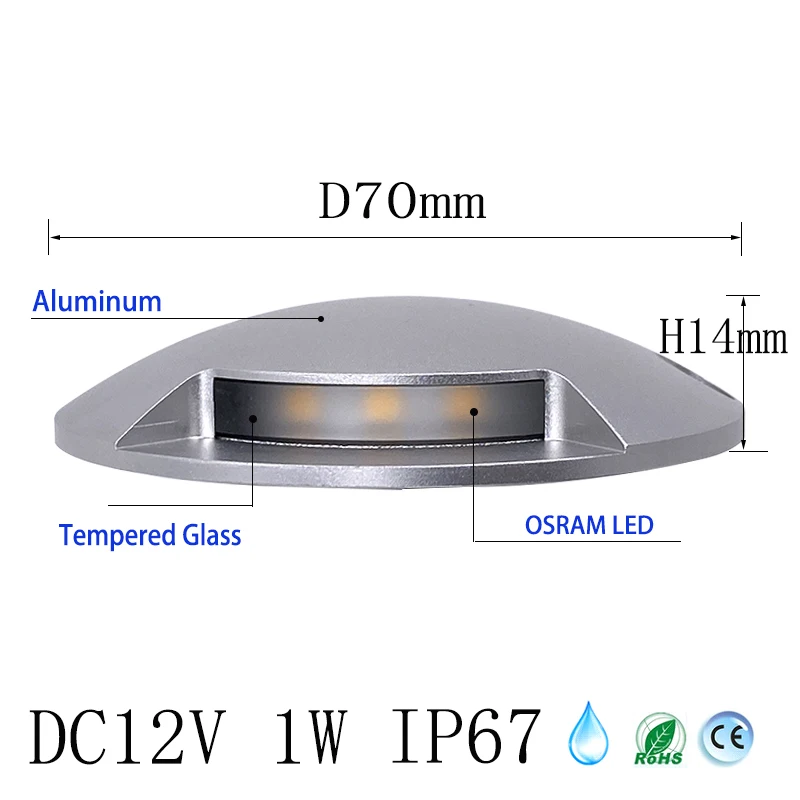

Technical Specifications
| Specification |
Details |
| Product Type |
LED In-Ground Light |
| Primary Keyword |
12V LED In-Ground Light |
| Application |
Outdoor Landscape Lighting |
| Input Voltage |
DC12V |
| Power |
1W / 2W |
| LED Type |
2835 LED |
| Lighting Configuration |
1 Side 1W / 2 Side 2W |
| Color Temperature |
3000K / 4000K / 6000K |
| Dimming |
PWM Dimming Supported |
| Material |
Aluminum |
| Dimensions |
D70 × H14mm |

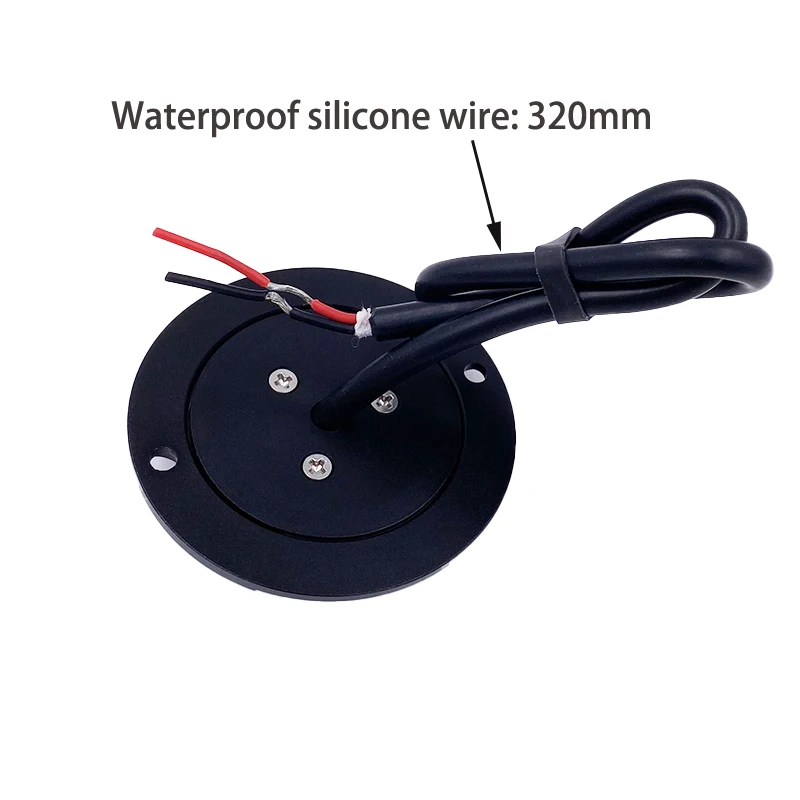

| Cable Length |
300mm |
| Cable Material |
Silicone |
| Protection Rating |
IP67 |
| Luminous Efficiency |
100–130 lm/W |
| Lifespan |
50,000 hours |
| Warranty |
5 Years |
| Certification |
CE / RoHS |
| Transformer |
Not Included |
| Installation |
Outdoor Ground / In-Ground |
| MOQ |
1 pcs |
| Sample Order Lead Time |
3–7 days |
| Mass Order Lead Time |
7–15 days |
Project Applications
Residential Landscape Projects
Suitable for:
- Villas
- Private gardens
- Residential pathways
- Courtyards
- Terraces
- Balconies
- Driveways
- Outdoor stairs
Hotel & Resort Projects
Suitable for:
- Hotel gardens
- Resort pathways
- Outdoor terraces
- Poolside landscape areas
- Guest walking routes
- Hospitality outdoor spaces
Commercial Landscape Projects
Suitable for:
- Shopping centers
- Office buildings
- Commercial complexes
- Restaurants
- Cafés
- Retail properties
- Business parks
Public Landscape Projects
Suitable for:
- Parks
- Squares
- Pedestrian paths
- Public gardens
- Landscape walkways
- Outdoor architectural areas
Architectural Landscape Projects

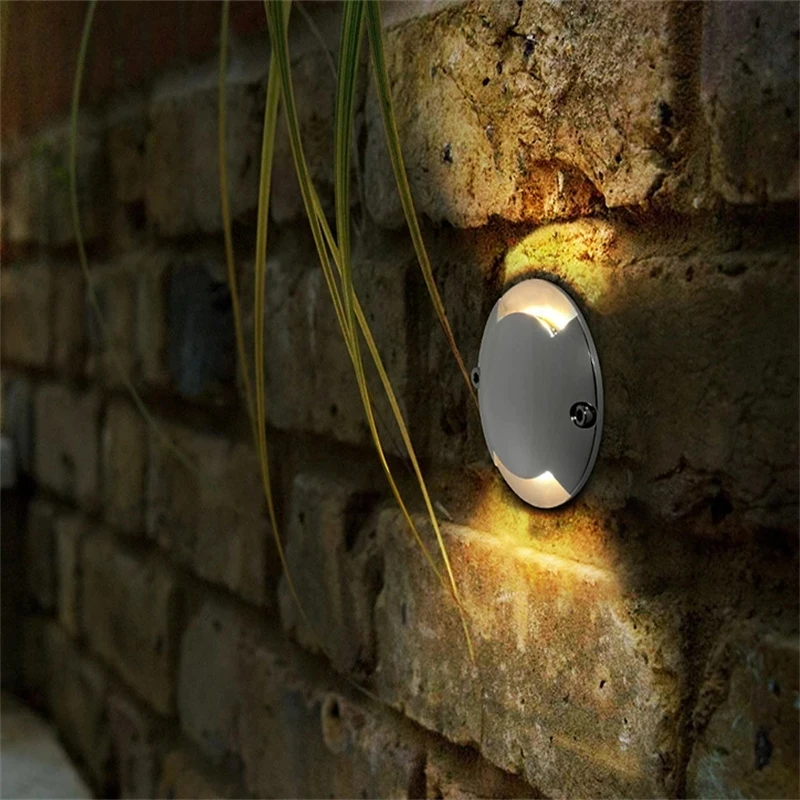

The low-profile design can be integrated with:
- Garden walls
- Landscape steps
- Outdoor platforms
- Pathways
- Building entrances
- Driveways
- Architectural landscaping
OEM/ODM
USKYLED provides B2B outdoor lighting solutions for distributors, wholesalers, landscape contractors, lighting designers and project procurement teams.
OEM/ODM cooperation can be discussed according to project requirements, including:
- Custom product specifications
- Custom body colors
- Custom lighting configurations
- Custom color temperatures
- Project-specific packaging
- Private-label requirements
- Bulk project orders
- Landscape lighting system development
For large landscape projects, buyers can provide project quantity, installation environment, required voltage, color temperature and lighting configuration for product selection and quotation.
B2B Order Information
MOQ: 1 pcs
Small orders are supported for product testing, samples, showroom displays and individual project requirements.
Sample Order Lead Time: 3–7 days
Suitable for distributors, lighting designers, contractors and project buyers who want to test the product before placing a bulk order.
Mass Order Lead Time: 7–15 days
Suitable for wholesale and project procurement. Final lead time should be confirmed according to order quantity, selected variants and customization requirements.
