LED Neon Flex – 12V Digital RGBW Lighting for Retail Displays & Architectural Accents

Product Parameter

Product Introduction

The USKYLED digital RGBW LED neon flex combines colour-changing lighting with a dedicated white channel in a compact silicone profile. Its 10×20mm cross-section is designed for continuous decorative lines in retail displays, hospitality interiors and architectural accent installations.

The white silicone body diffuses light through the top surface, softening the appearance of the LEDs inside. The product operates at DC12V and is supplied in a standard 5m length with mounting clips.

Design

An extruded silicone housing surrounds a 4-in-1 RGBW LED tape. The top-emitting profile creates a continuous-looking line of light, while the white body provides a consistent appearance when switched off.

The product is specified for vertical bending. Plan curves in the permitted bending direction and confirm the minimum bend radius before installation. Avoid twisting the profile or forcing it into sharp corners.

Main Features

• Digital RGBW lighting with a dedicated white channel.

• DC12V operating voltage.

• 10×20mm silicone profile.

• Top-surface light diffusion.

• 60 LEDs per metre.

• Maximum listed power of 14W per metre.

• Cutting intervals of 50mm at the marked positions.

• Vertical bending configuration.

• Standard supplied length of 5m.

• Ten mounting clips included per standard 5m length.

• JST connections described at both ends.

Application

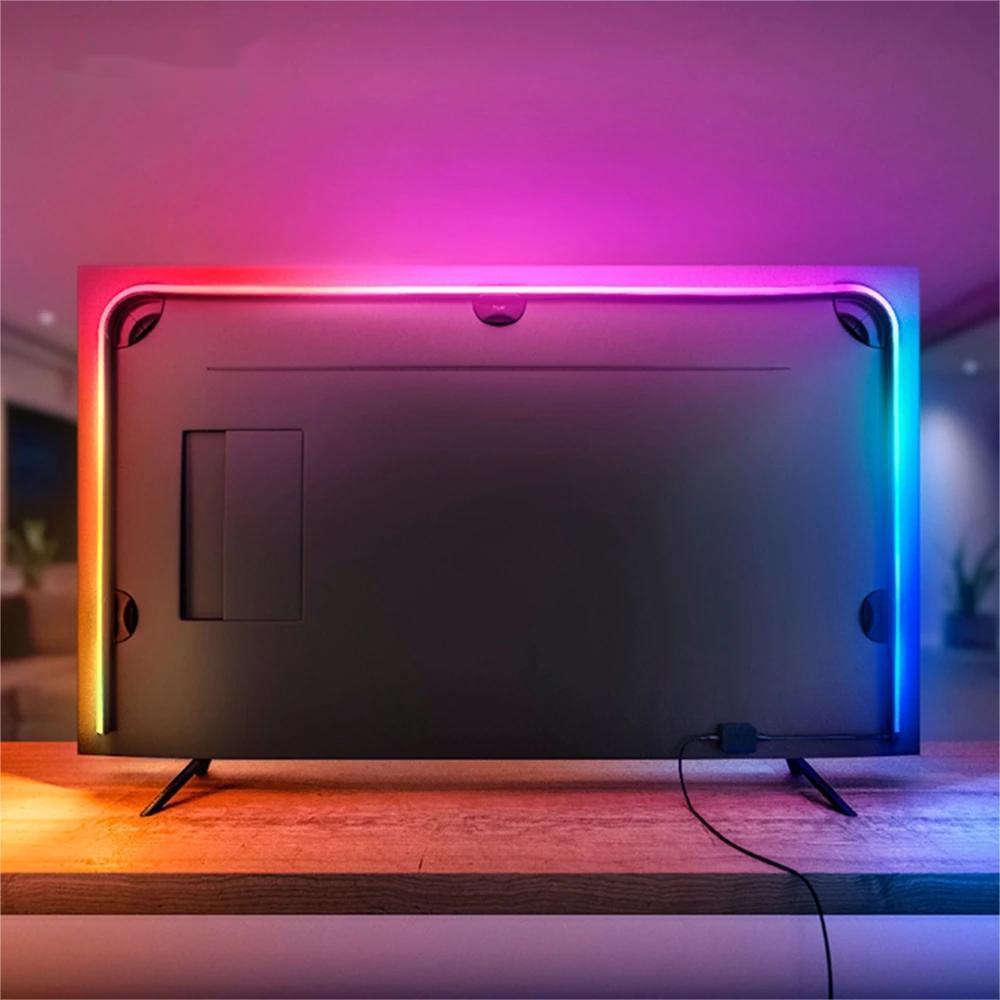

This RGBW neon flex can be considered for retail display outlines, interior architectural details, hospitality accents and decorative lighting features.

Use it to define a display edge, trace an approved curved detail or add colour to a feature area. The dedicated white channel also provides a white-light option within the same profile.

Before specifying exposed or wet-location installations, confirm the required protection rating and the sealing method for all ends, cuts and connections.

Size / Options

The standard dimensions are:

• Length: 5000mm.

• Cross-section: 10×20mm.

• Cutting unit: 50mm.

• Bending direction: Vertical.

Two white-channel options are listed:

• RGBW with warm white: 2500–3000K.

• RGBW with white: 5000–5500K.

These are alternative white-channel specifications, not a continuously adjustable white-temperature range.

For project lengths or prepared connections, send the required dimensions and installation layout for confirmation. Custom preparation, accessories and additional minimum quantities are subject to quotation.

Lighting Options

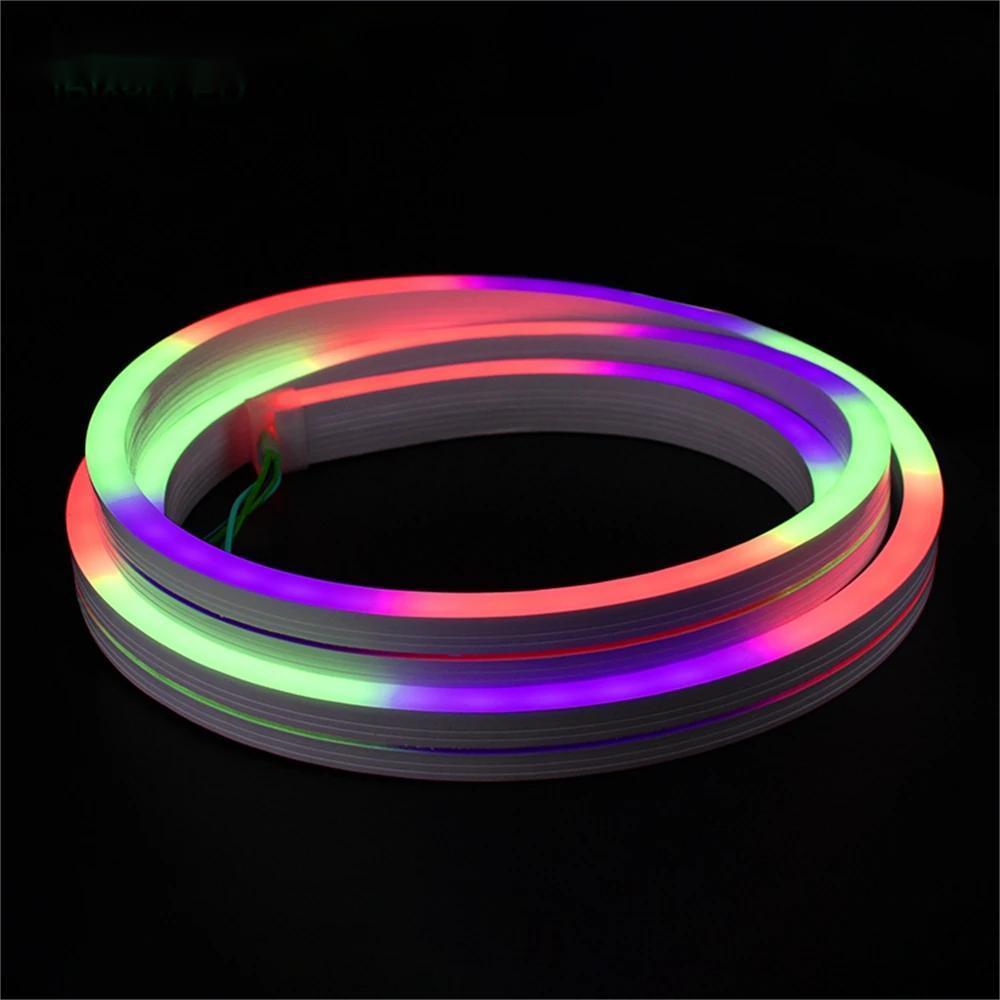

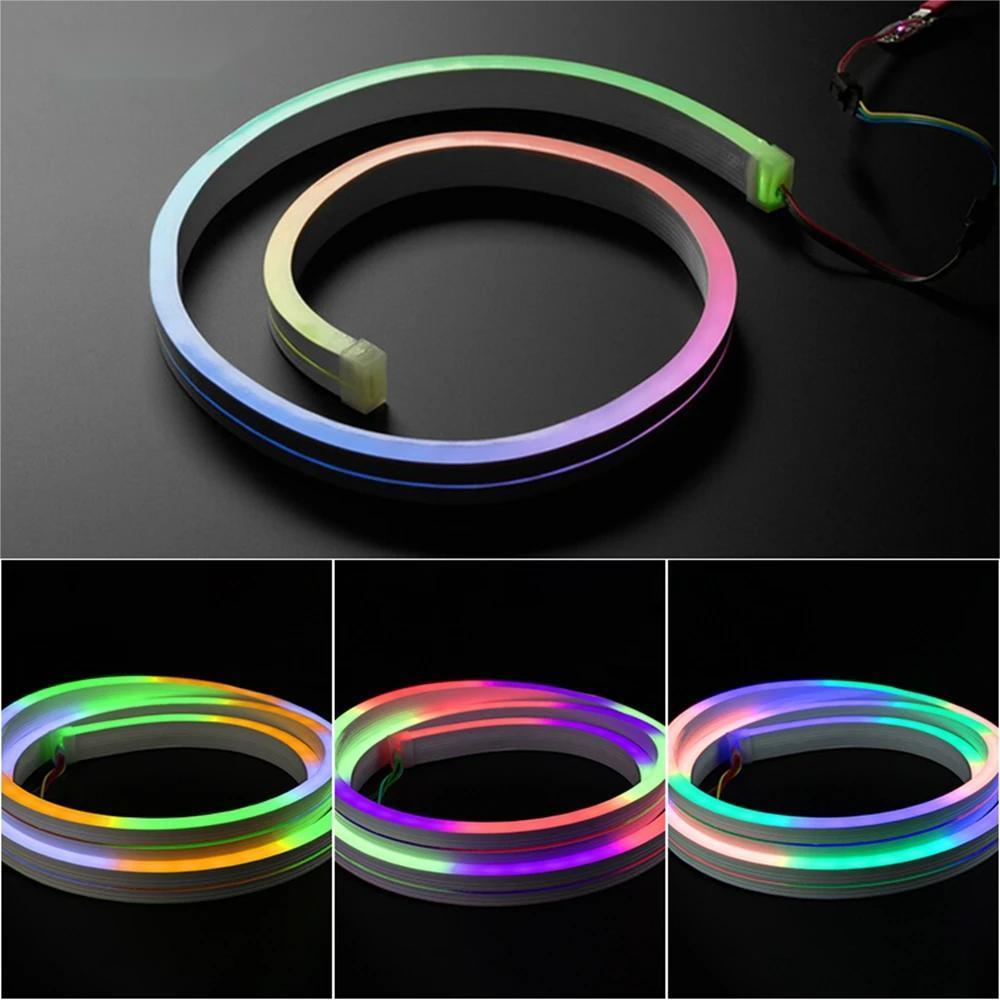

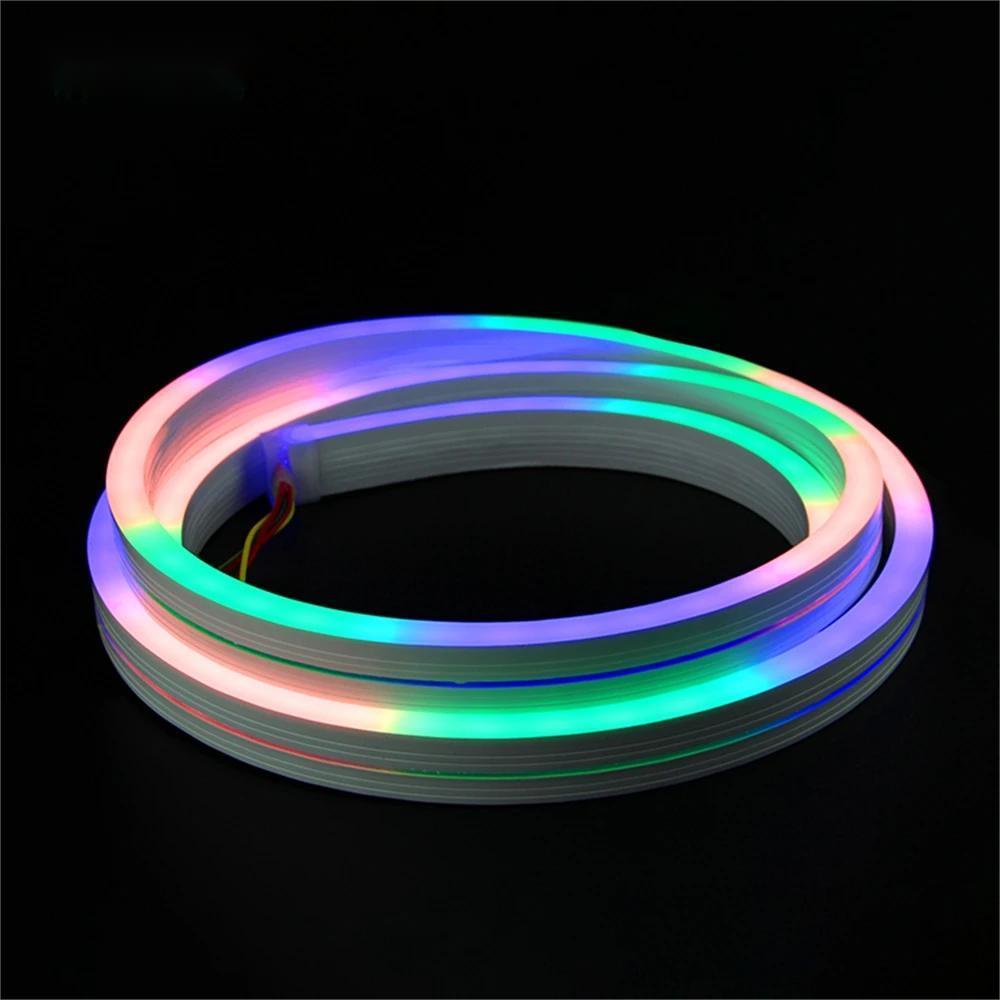

RGBW combines red, green and blue colour channels with a separate white channel. The digital configuration can support multi-colour effects when paired with a compatible controller.

The available effects and control resolution depend on the internal IC, controller and programming. Confirm the exact protocol, channel order and supported controller before ordering.

The listed density of 60 LEDs per metre describes the LED quantity. It should not be treated as a confirmed pixel count. Likewise, the 50mm cutting interval does not by itself establish the independently controlled segment length.

Installation

Use a suitable DC12V power supply and a digital controller matched to the supplied RGBW version. Confirm polarity, connector pinout and data direction before connection.

At the listed maximum of 14W/m, a full 5m length represents a calculated load of up to 70W. Select the supply and wiring with appropriate capacity, and confirm the required power-feed arrangement for the installation.

Do not assume that one-end power feeding is suitable for every 5m run. Cable length, conductor size, connection capacity and operating conditions affect voltage drop.

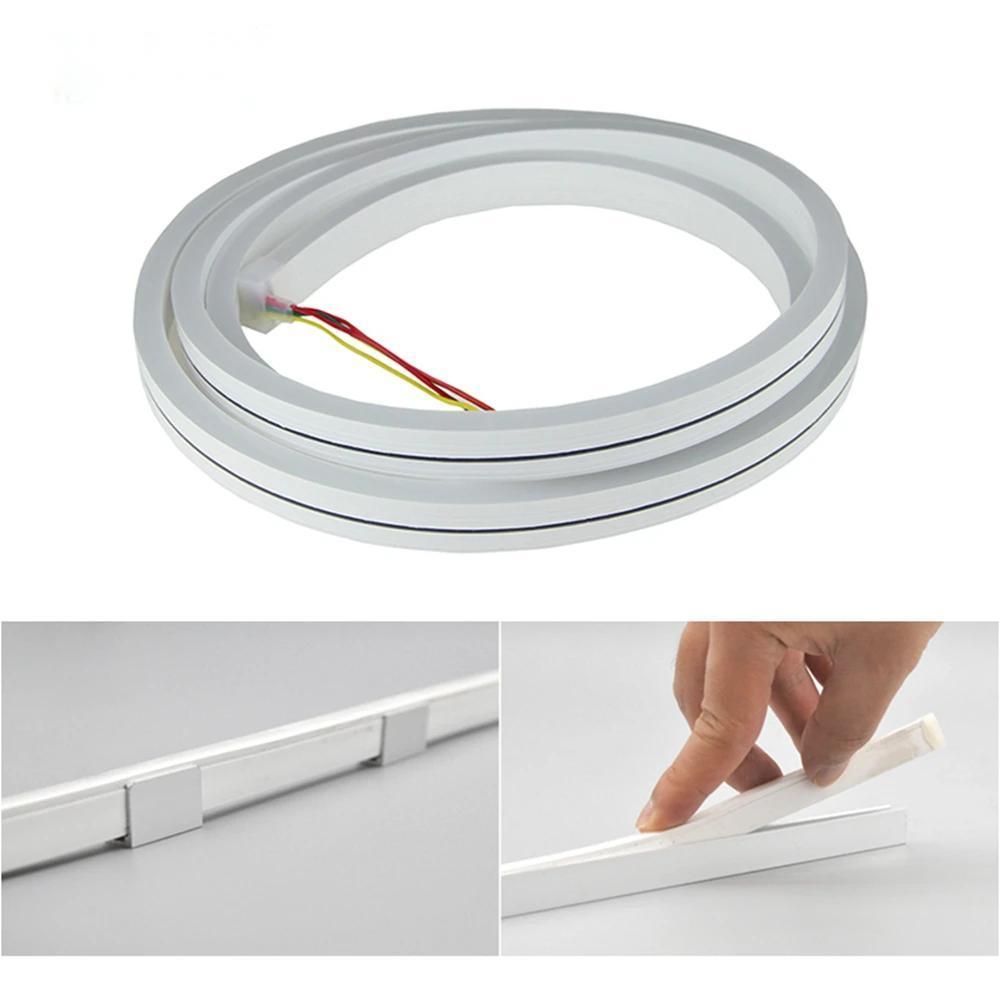

Cut only at the marked 50mm intervals and follow the approved procedure for reconnecting and sealing cut ends. Secure the profile with suitable mounting clips or a compatible support system. Keep connections accessible for inspection and maintenance.

Technical Specifications

• Product model: N010060CB4ST.

• Product type: Digital RGBW LED neon flex.

• Input voltage: DC12V.

• LED type: SMD RGBW, 4-in-1.

• LED density: 60 LEDs/m.

• Maximum listed power: 14W/m.

• Standard length: 5m.

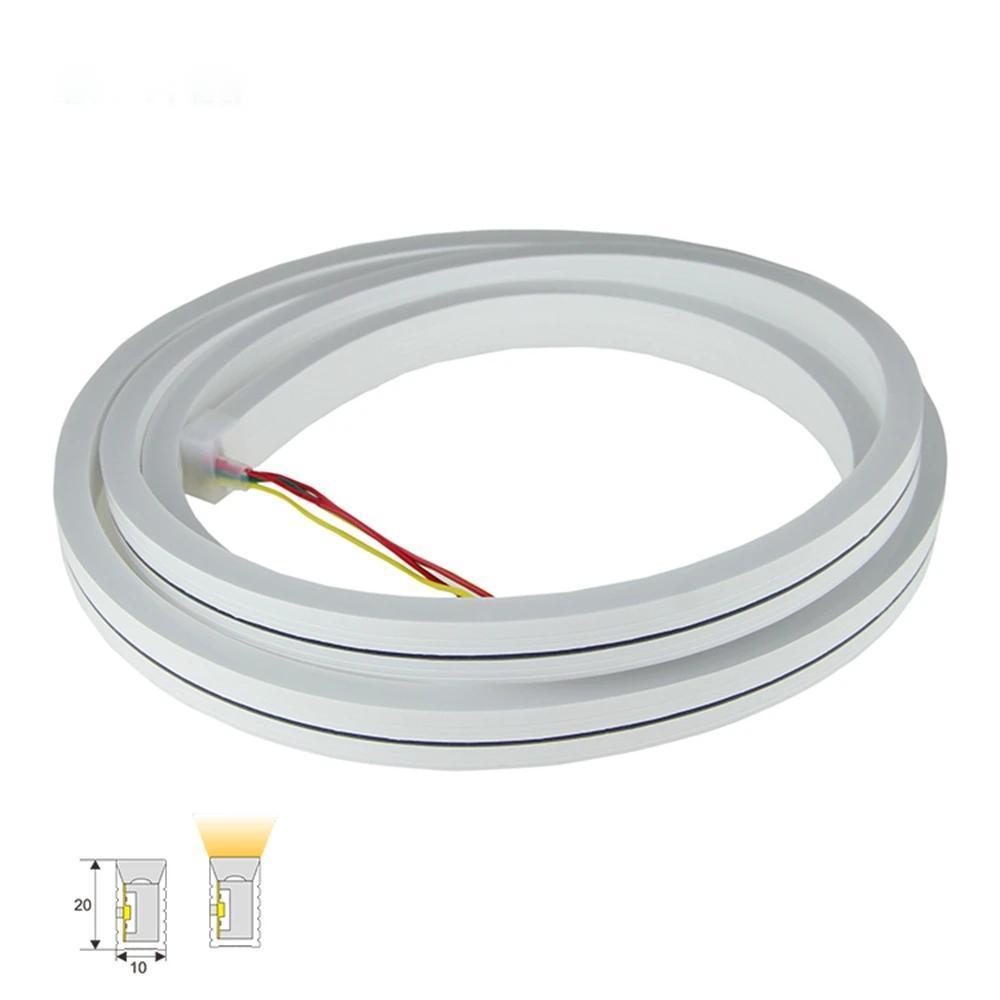

• Profile dimensions: 10×20mm.

• Warm-white channel option: 2500–3000K.

• White-channel option: 5000–5500K.

• Cutting unit: 50mm.

• Bending direction: Vertical.

• Housing: Extruded silicone, white body.

• Light-emitting surface: Top.

• Listed operating temperature: -30°C to +45°C.

• Connections: JST connections at both ends, as described in the listing.

• Included mounting accessories: 10 clips per standard 5m length.

Project Applications

For contractors and lighting designers, the key selection points are the required effect, profile dimensions, bending direction and control-system compatibility.

Prepare a layout showing each run length, power-supply position, controller location and intended cable route. This helps establish the required connections and power-feed arrangement before installation.

For distributors and project buyers, sample testing should confirm RGBW channel operation, white-light appearance and compatibility with the intended controller. Include all required accessories separately in the purchase schedule.

OEM/ODM

Contact USKYLED to discuss OEM/ODM requirements, including project lengths, lead preparation, packaging and labelling.

Customisation availability, minimum quantities, pricing and lead times require confirmation. Requests for a different control protocol, protection rating or white-channel specification should be reviewed before an order is placed.

Request a Sample or Project Quotation

Planning digital RGBW lighting for a retail display or architectural feature? Send USKYLED your total length, individual run lengths, preferred white channel, controller details and delivery destination.

MOQ: 1 piece.
Sample order lead time: 3–7 days.
Bulk order lead time: 7–15 days.

The current standard product length is 5m. Confirm the supplied configuration, accessories and order schedule before purchase. Shipping transit time is additional.
